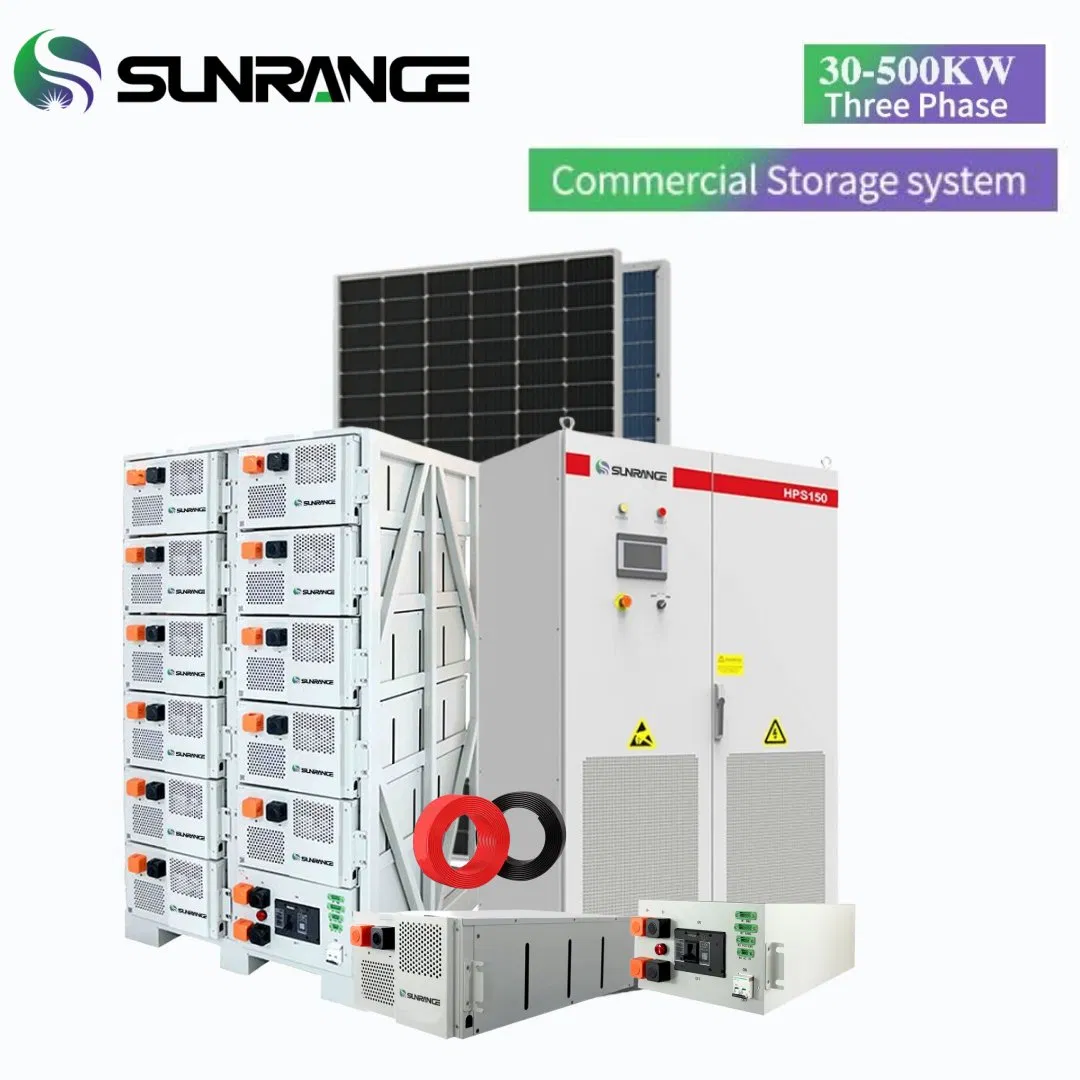

Wholesale 30kw 50kw 100kw Hybrid Solar Energy System 200kw 500kw for Commercial Project Energy Storage Solar Power System

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	5-10 Years

Overview - Basic Info.

Model NO.

SR-30/50/100/150/250/500KW-HY

Condition

New

Certification

ISO, CB, CE

Application

Commercial

Specification

Normal, customize

Type

Commercial Solar Energy Storage System

Battery

Gel/ LiFePO4 Battery

System Type

Hybrid Solar PV System

Solar Panel

Monocrystalline 400-700W

Grid Type

3W+N+PE

Controller

MPPT Types

Technical Support

Complete Technical Support

OEM/ODM

Acceptable

Battery Capacity

230kwh/Customized

Installation Site

Open Ground Yard Garden

Transport Package

Wooden Box

Origin

China

Production Capacity

50000 Piece/Year

Product Description

Higher Power Output In Off-Grid Model

Support Diesel Generator Access

Pre-Wired & Easy Installation

One Stop Shop Proposal

Indoor Or Outdoor Options

Tested Under Multiple Operating Conditions

30KW To 500KW Solar Storage System

Convenient Operation & Maintenance

Hybrid Solar Energy System Commercial Project

Model. No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
System Parameter
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Rated grid frequency	50/60HZ
Max. Output (KVA)	33	55	110	165	275	550
Solar Panel
Quantity	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Model	SR72P-580N
Power in total	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Hybrid Inverter
Quantity	1PC	1PC	1PC	1PC	1PC	2PC
Model	SRHPS 30	SRHPS 50	SRHPS 100	SRHPS 150	PBD250	PBD 250
Battery Inverter	built-in	built-in	built-in	built-in	PCS250 1PC	PCS500 1PC
Rated current (A)	43A	72A	144A	216A	361A	722A
Rated Power (KW)	30KW	50KW	100KW	150KW	250KW	500KW
MPPT Voltage	250-850VDC
Lithium Battery
Quantity	8PCS	7PCS	22PCS	33PCS	33PCS	66PCS
Model	SR48100	SR48280	SR76120	SR76120	SR48280	SR48280
Nominal Voltage (Vdc)	51.2	51.2	76.8	76.8	51.2	51.2V
Nominal Capacity (AH)	100	280	120	120	280	280
Battery Bank Capacity	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH
BOS
Battery Combiner Box	0 set	0 set	1 set	1 set	1 set	1 set
PV Combiner Box	1 set	1 set	1 set	1 set	1 set	1 set
PV Cable 4MM2	400m	600m	1200m	1700m	3000m	6000m
MC4 Connectors	20 pairs	30 pairs	50 pairs	70 pairs	120 pairs	240 pairs
EMS	Optional	Optional	Optional	Optional	Optional	Optional
ATS	Optional	Optional	Optional	Optional	Optional	Optional
Container	10ft (Optional)	10ft (Optional)	10ft (Optional)	10ft (Optional)	20ft (Optional)	20ft (Optional)
General Data
Operation Temperature Range	-35~50ºC (>40ºC derating)
Operation Humidity Range	0~95% (no condensation)
Maximum Operation Altitude	2000m

Product Parameters

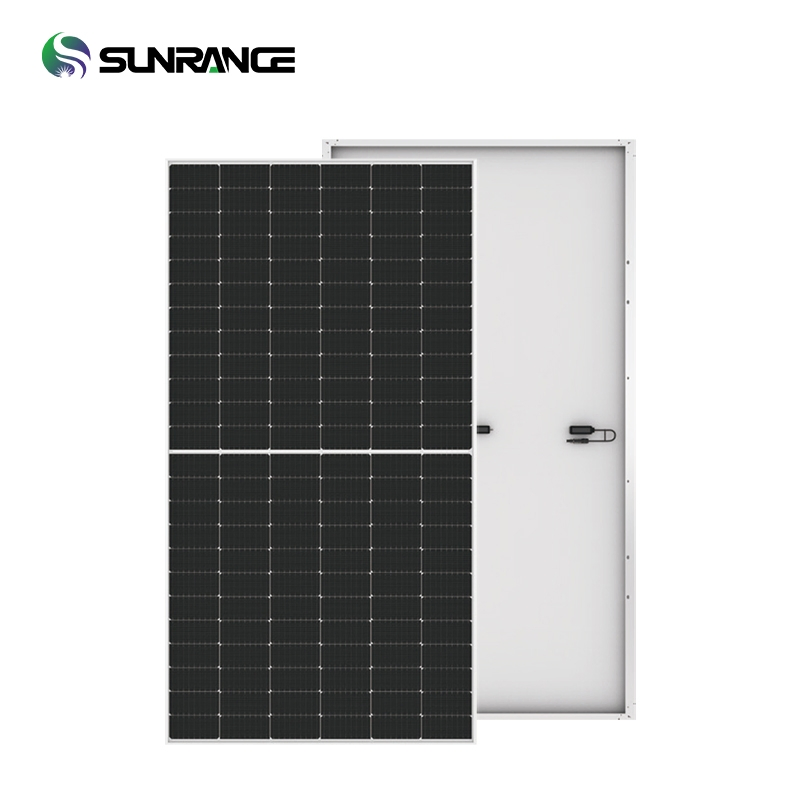

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum Power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (Isc): 14.33A
Voltage at Maximum Power (Vmpp): 43.09V
Current Maximum Power (Impp): 13.46A
Module Efficiency: 22.44%

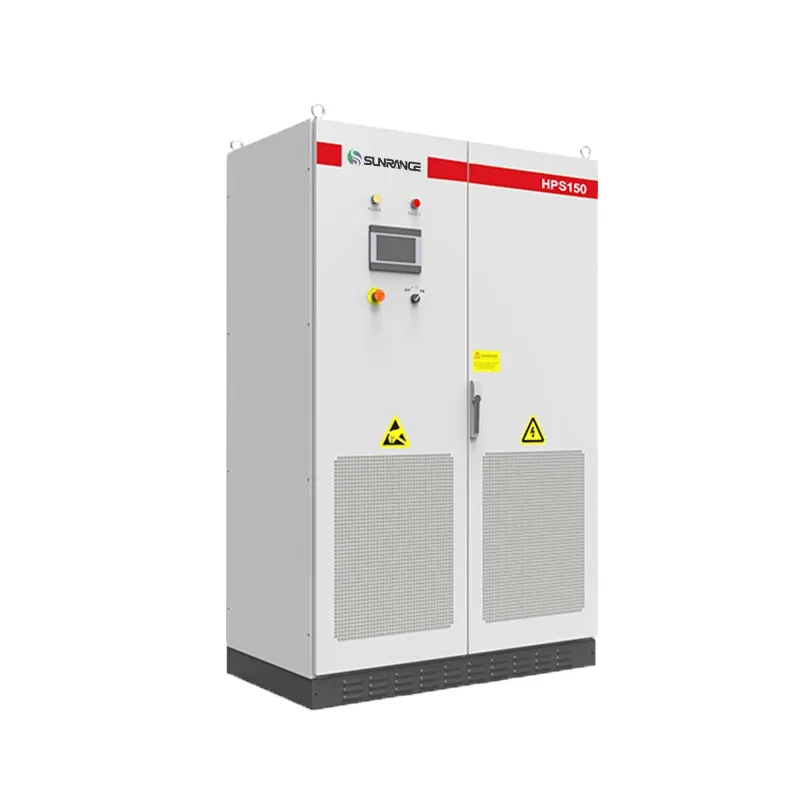

All in One Hybrid Inverter

Support PV, battery, DG, grid, and load connections in one system
System capacity can be easily expanded
Dynamic power distribution to fulfill load demand
SCR enables seamless switch within 6ms

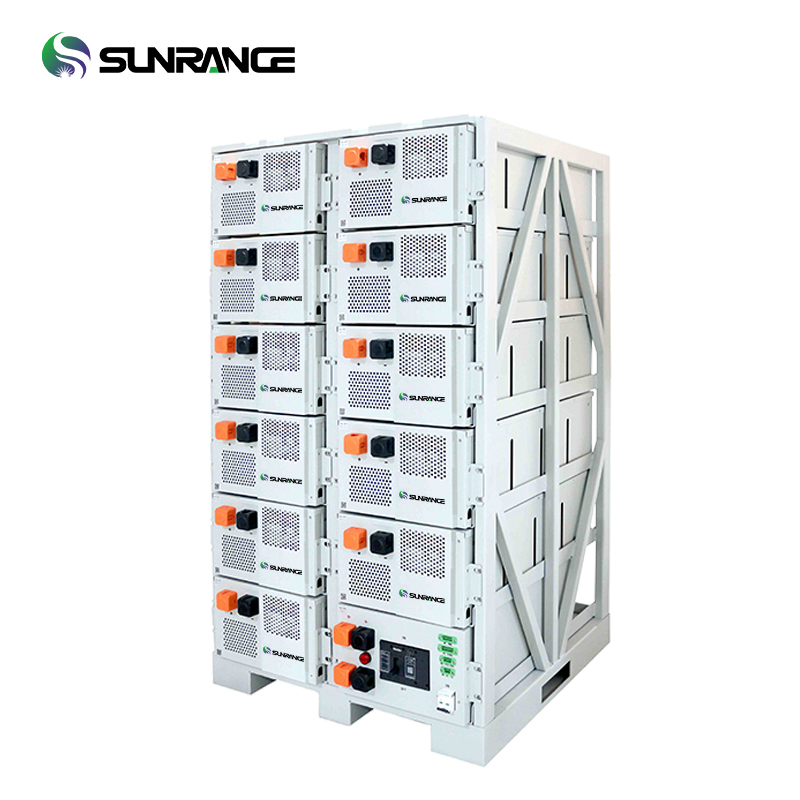

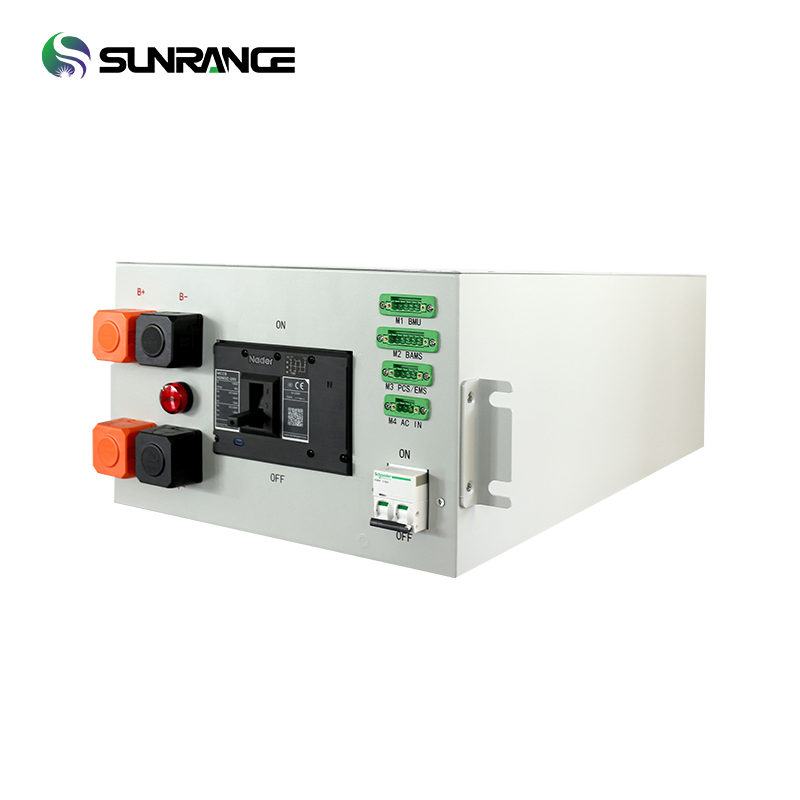

Solar Battery Packs

Rack mounted, easy installation & maintenance-free
Deep cycle with long lifespan (more than 6000 times, up to 90% DOD)
High discharge performance
GEL/LiFePO4 Lithium Ion Battery options
2V/12V/48V/51.2V/76.8V/153.6V High Voltage Battery support
Wide suitability of ambient temperature range

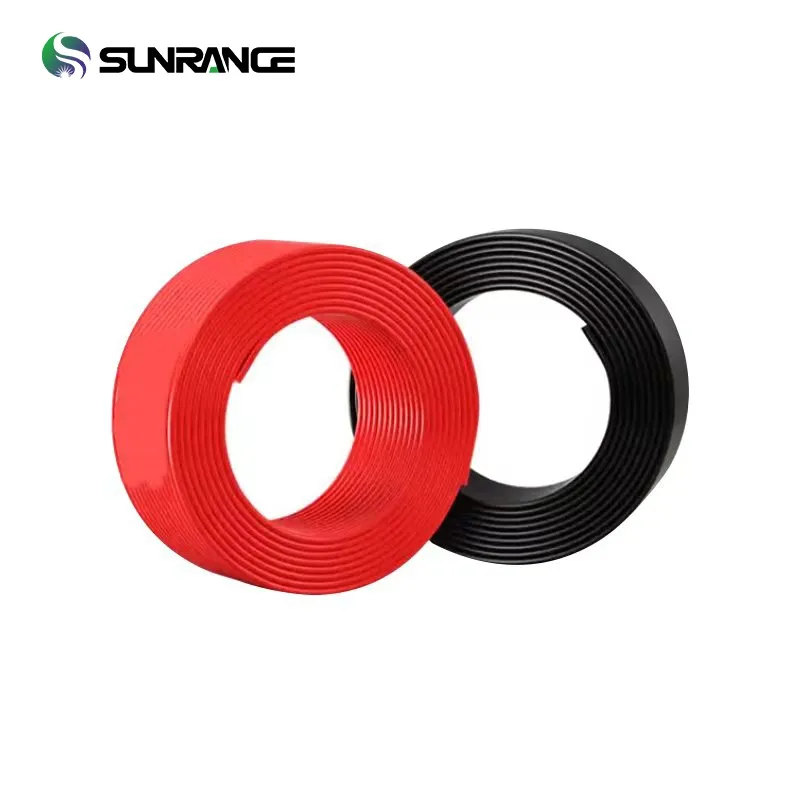

DC Cable & MC4 Connector

Cross Section: 4mm², 6mm², 10mm² Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black for Standard, Red Optional
Lifetime: ≤ 25 Years

Online Monitoring System

Open station supports one-click installation and registration
Support one-click dispatch and navigation
Safe operation with traceable logs
Support full lifecycle data storage to ensure data security & reliability

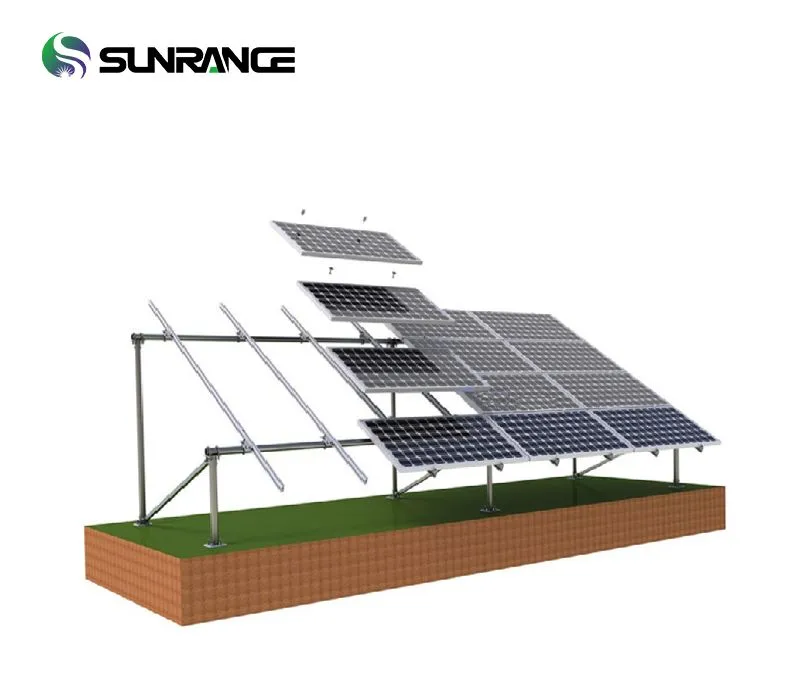

PV Mounting System

Mounting Rail & Rail Splice Kit: Al6005 & SUS304
Bolt Mid & End Clamps: 30mm, 35mm, 40mm
L Foot Asphalt Shingle Mount & Hanger Bolt: Optional
Cable Clips & Tie: Optional
Ground Clips & Lugs: Optional

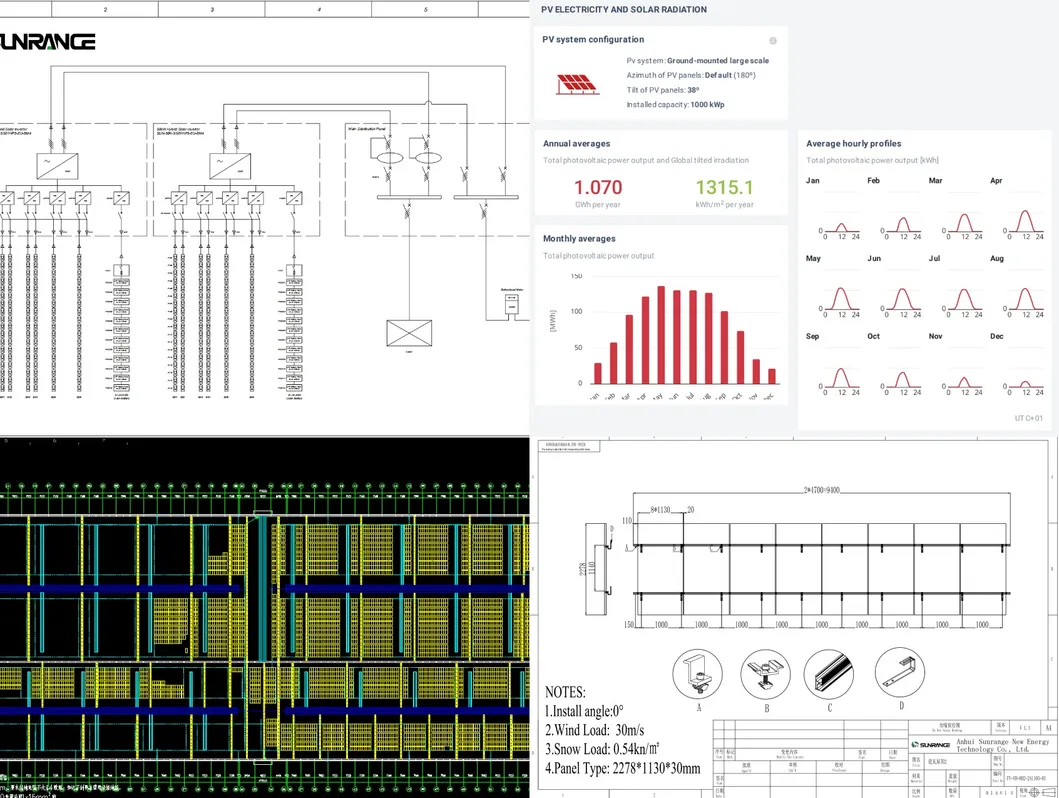

Complete Technical Support

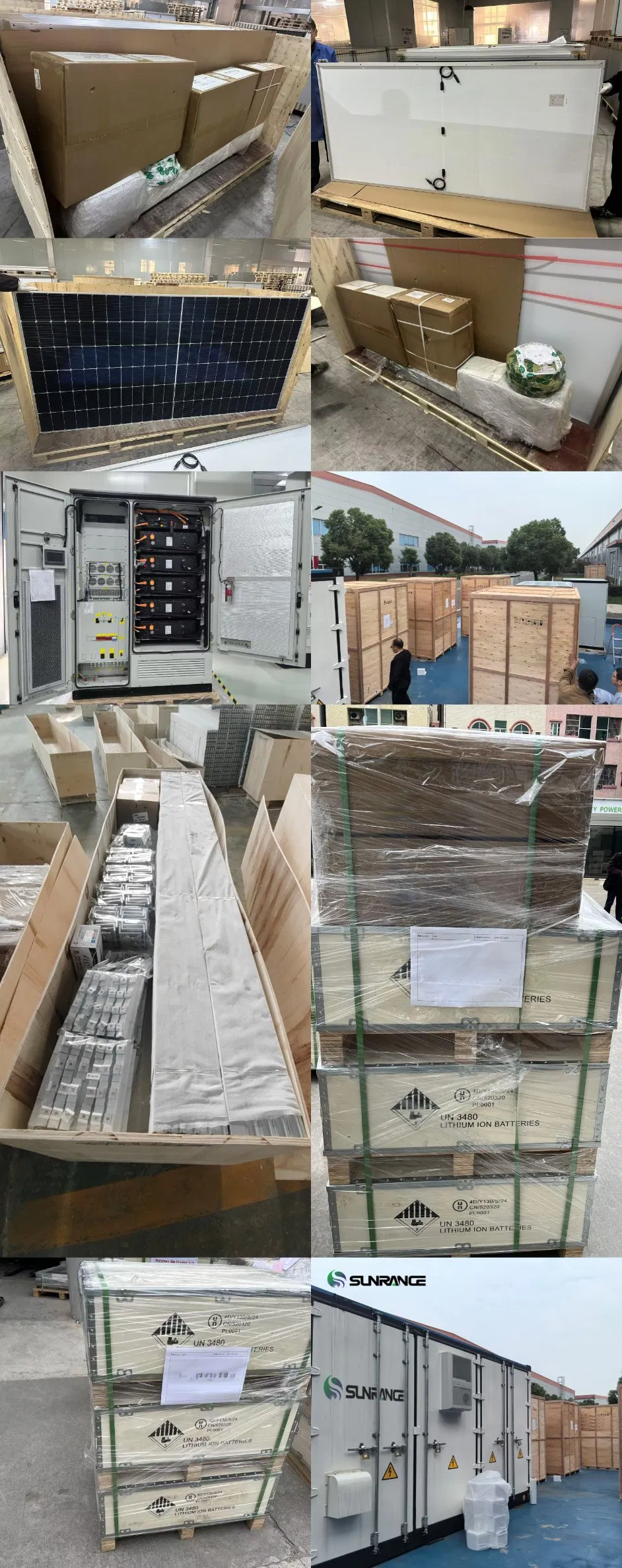

Packaging & Shipping

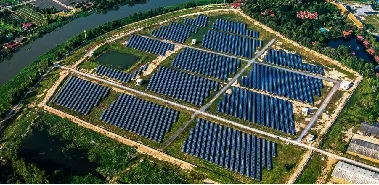

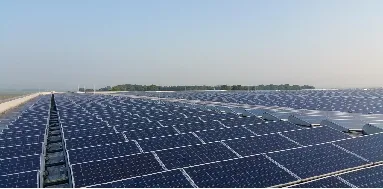

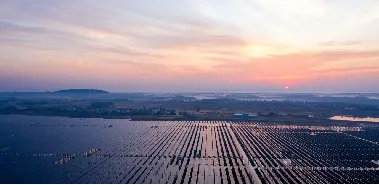

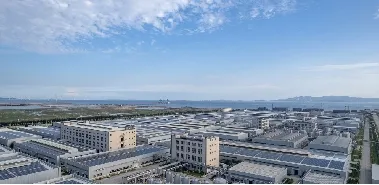

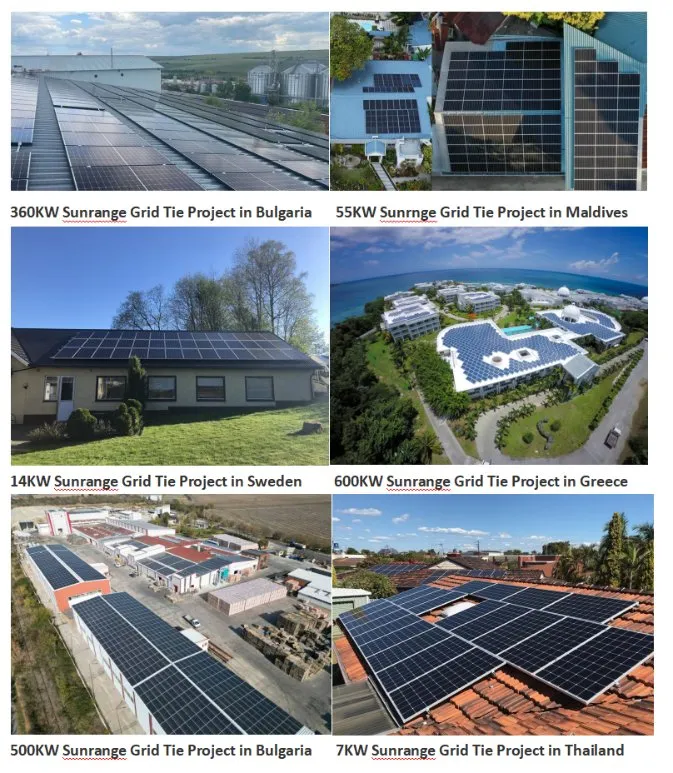

Project Case

Certifications

Company Profile

We are an emerging brand in the photovoltaic industry. Our customers are located on all continents.
We provide the highest quality products and the most professional services. We provide different design solutions for large, medium and small customers.
We continue to develop and improve technology to bring a better experience to our users.

Frequently Asked Questions

Q How much power solar energy systems can you provide?

Home solar energy systems 5-30KW, and we also provide higher wattage 30KW-1MW+ commercial and industrial solar power systems.

Q Can you offer On Grid and Off Grid solar power systems?

Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.

Q Who is your service customer?

Individual client for house solar systems; distributor; importer and solar energy system installer.

Q What certificate do you offer?

CE, IEC, CEC, ISO, INMETRO, SGS.

Q What is your warranty and after-sales policy?

Your order products will be guaranteed for 10 years, and solar panel warranty is 25-30 years.

Q Can the solar energy system be customized for specific needs?

Yes, we provide custom design solutions tailored to different installation sites, grid parameters, and energy requirements for commercial and industrial projects.
