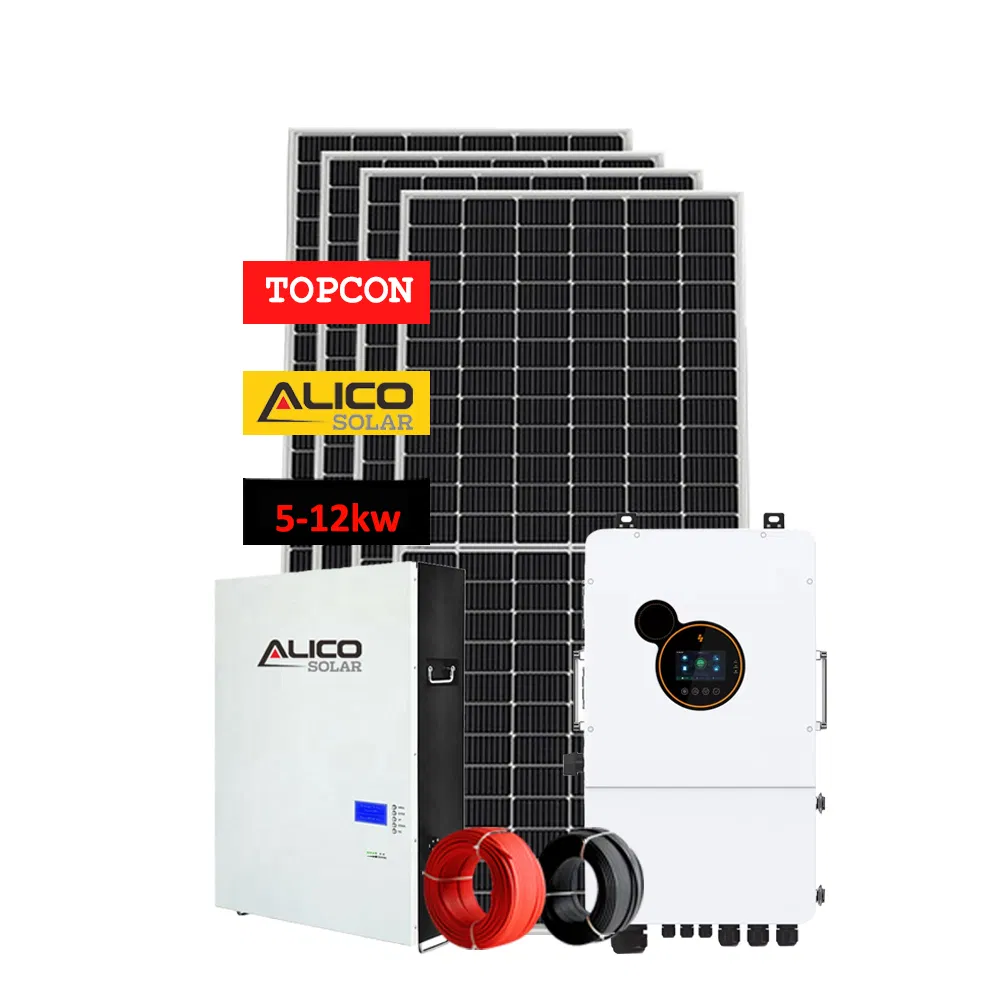

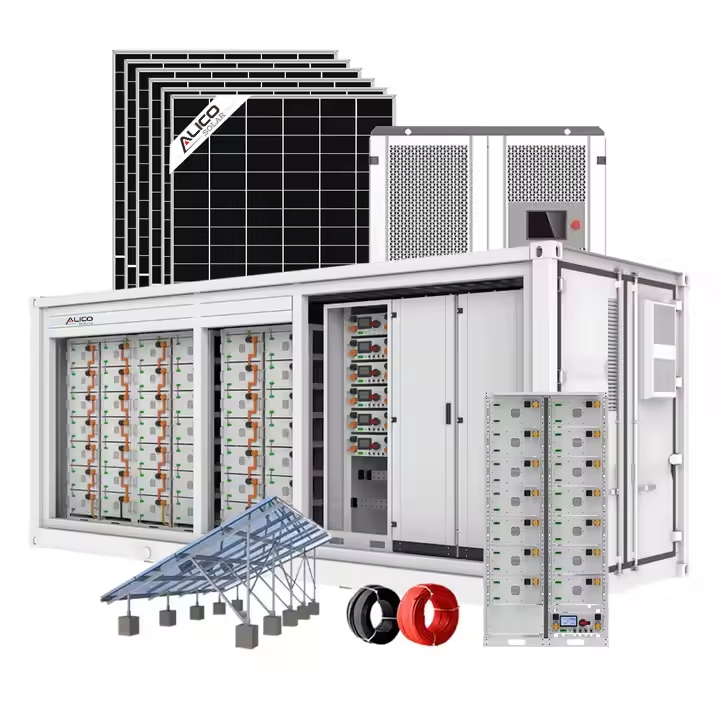

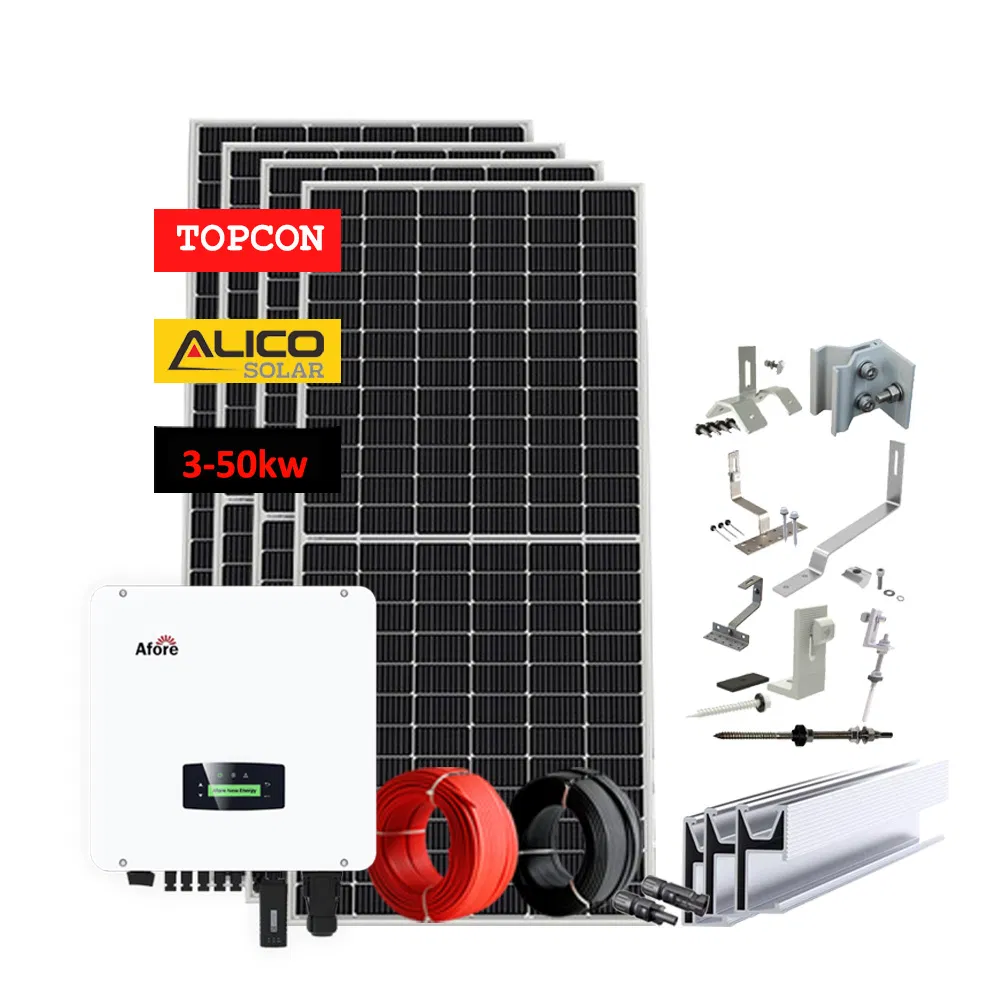

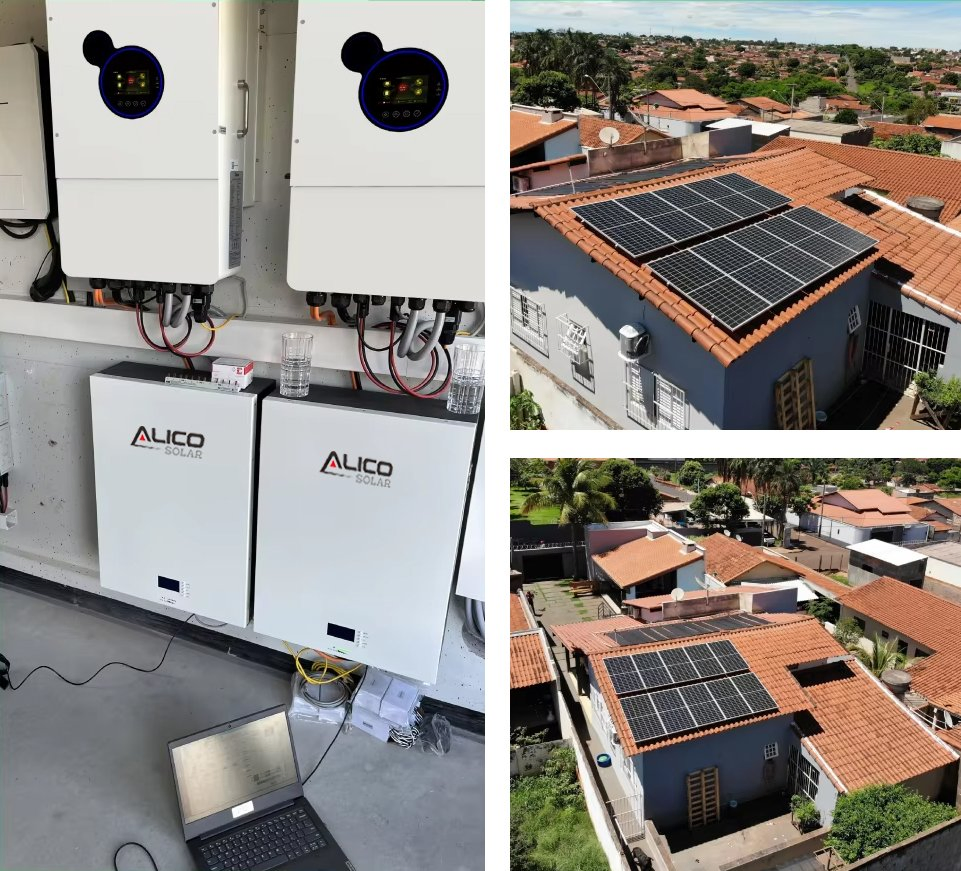

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type Hjt

Battery

Gel or Lithium Battery or No

HS Code

8507600090

Production Capacity

2 Gw/Year

Packaging & Delivery

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Package Gross Weight

2000.000kg

On Grid System Configuration

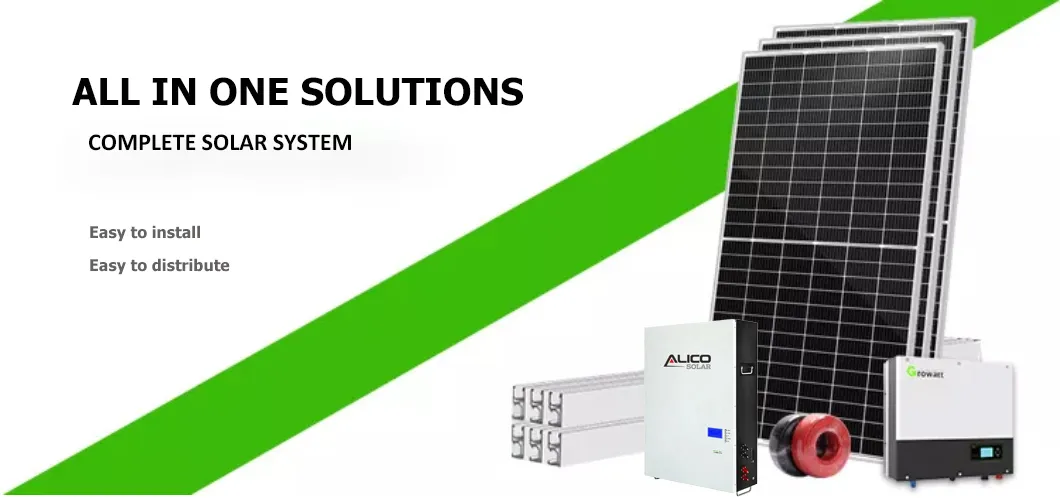

10kw Hybrid on Grid Home Potovoltaic Solar System Configuration Map

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

System Technical Details

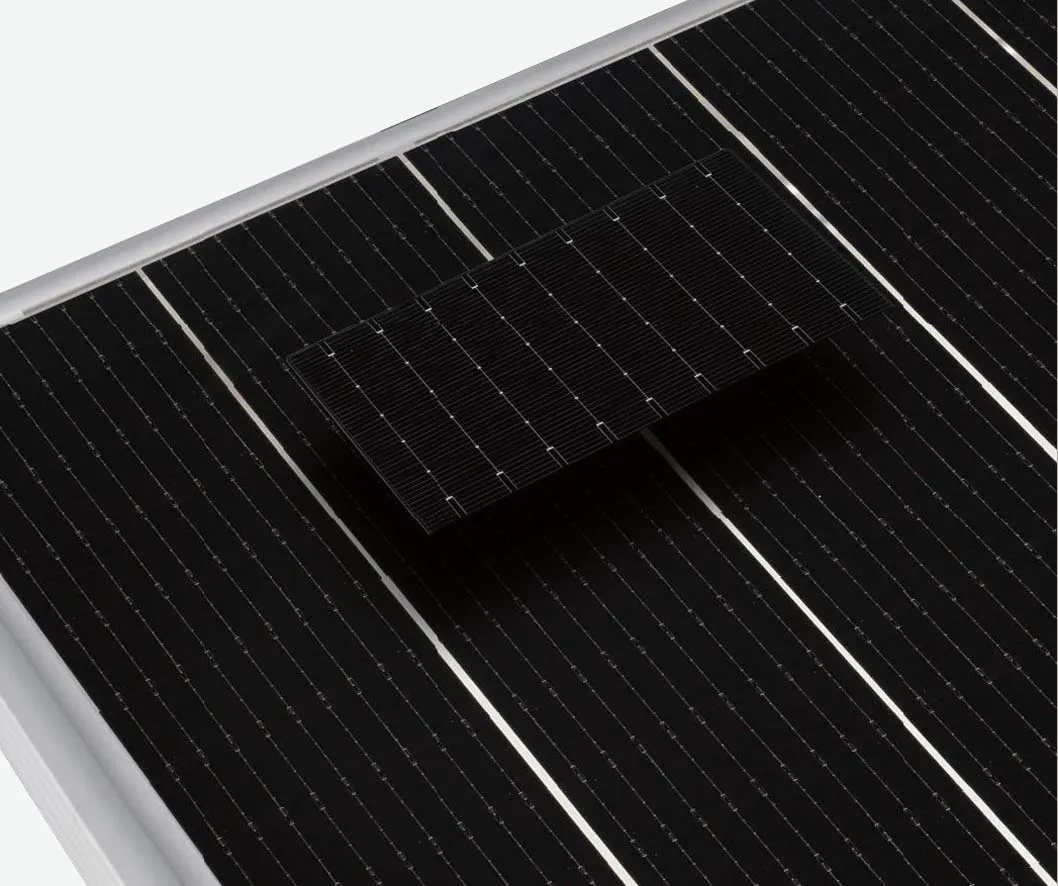

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V (US Standard) ; 230V (EU Standard)
Warranty: 5 Years (EU) / 10 Years (US)
Connection: Wifi Stick Standard, Lan & GPRS Optional.

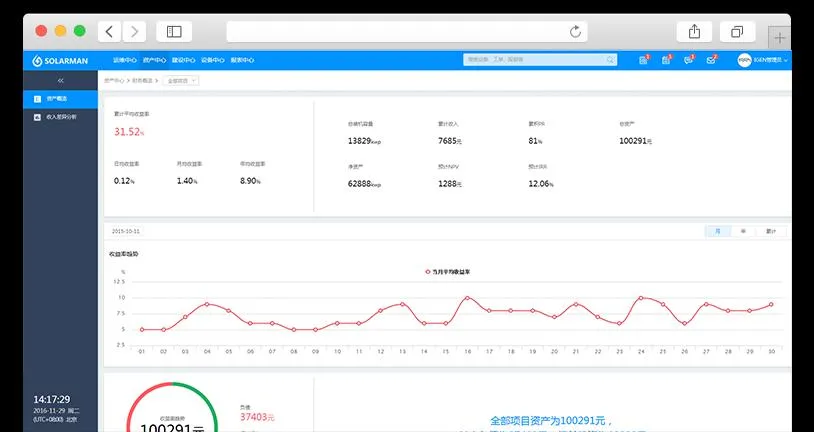

Remote Monitoring System

Data Logging Stick allows you to receive real-time information from your solar power system. Keep track of PV status and atmospheric conditions via a dedicated web server accessible by Wi-Fi, LAN, or GPRS. Desktop, iOS, and Android applications are fully supported.

PV Mounting System

Rail & Rail Splice: Al6005 Structural Grade & SUS304 Hardware Bolts.
Clamps: Mid & End Clamps suitable for 35mm, 40mm, 45mm, and 50mm thickness.
Options: L-Foot Asphalt Shingle Mounts, Hanger Bolts, Cable Clips, Grounding Clips, and Lugs.

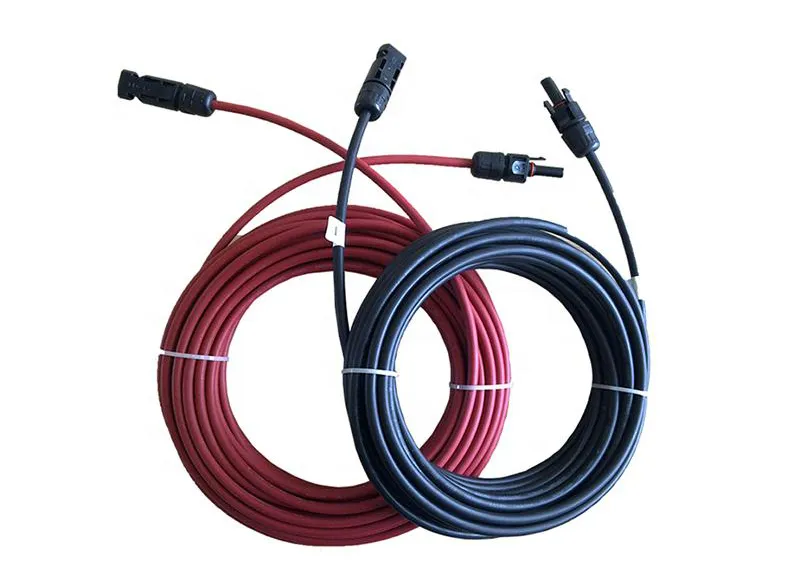

DC Cable & MC4 Connector

Cross Section: 4mm² or 6mm² configurations.
Rated Voltage: 600VDC / 1000VDC (TUV certified).
Rated Current: 55A / 70A.
Colors: Standard Black, Red optional. Designed for a lifetime of up to 25 Years.

Packaging & Shipping

Solar Panels Packaging Process and Container Loadings

Projects Showcase

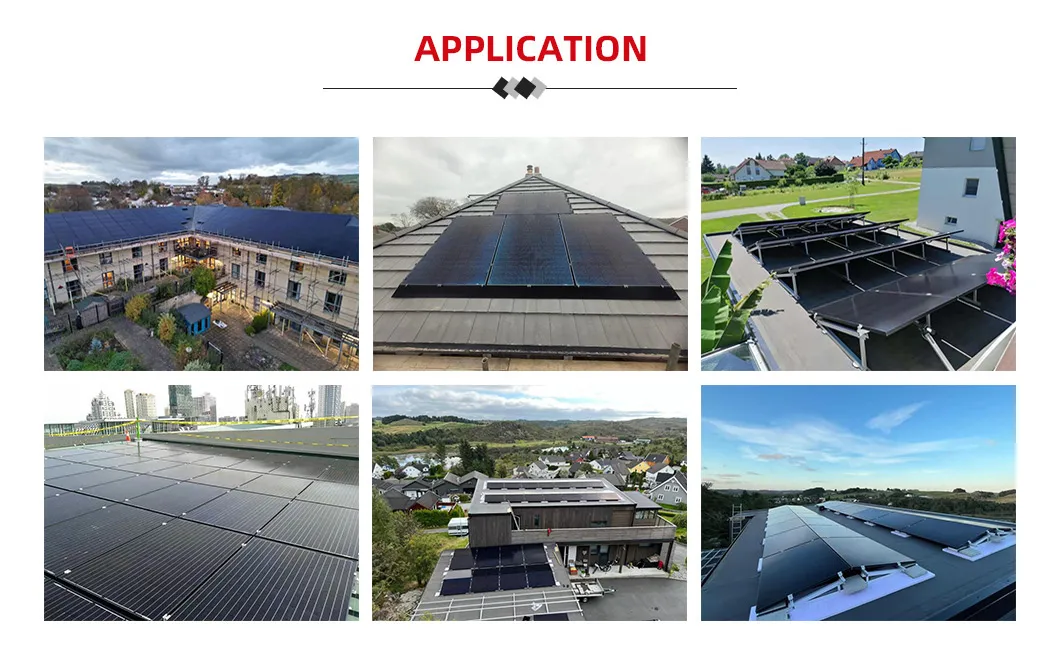

12MW Commercial Metal Roof Solar Plant Case

12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015

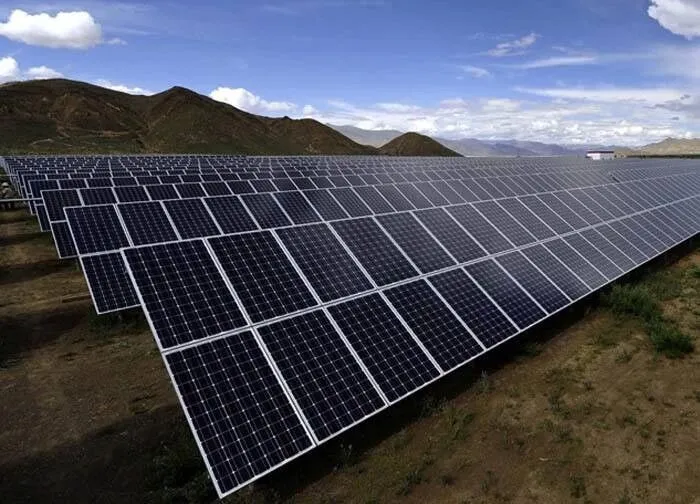

20MW Ground Solar Plant in USA

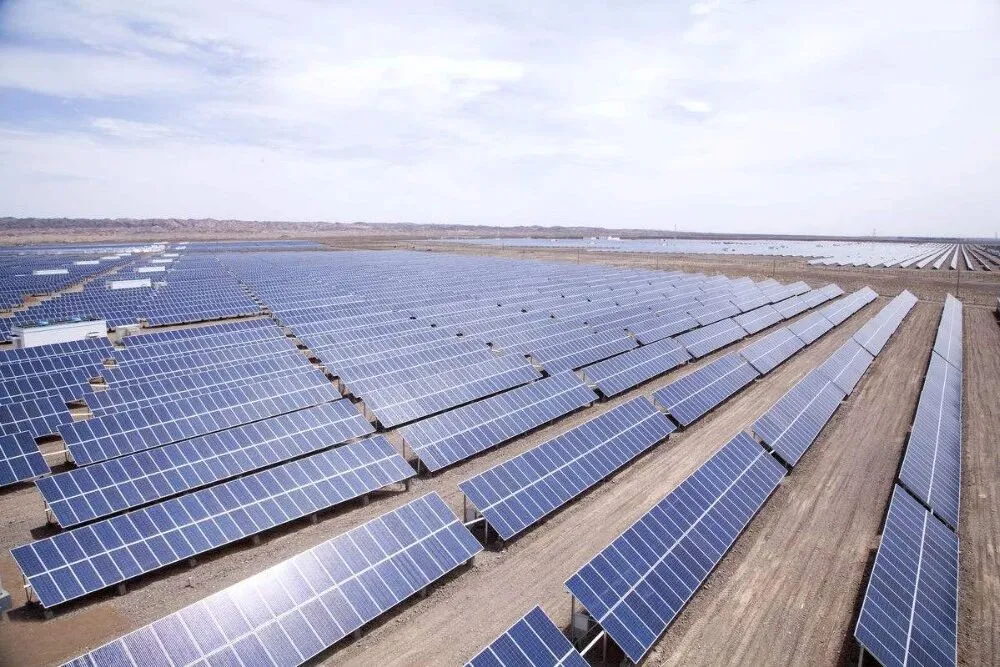

50MW Solar Plant in Brazil

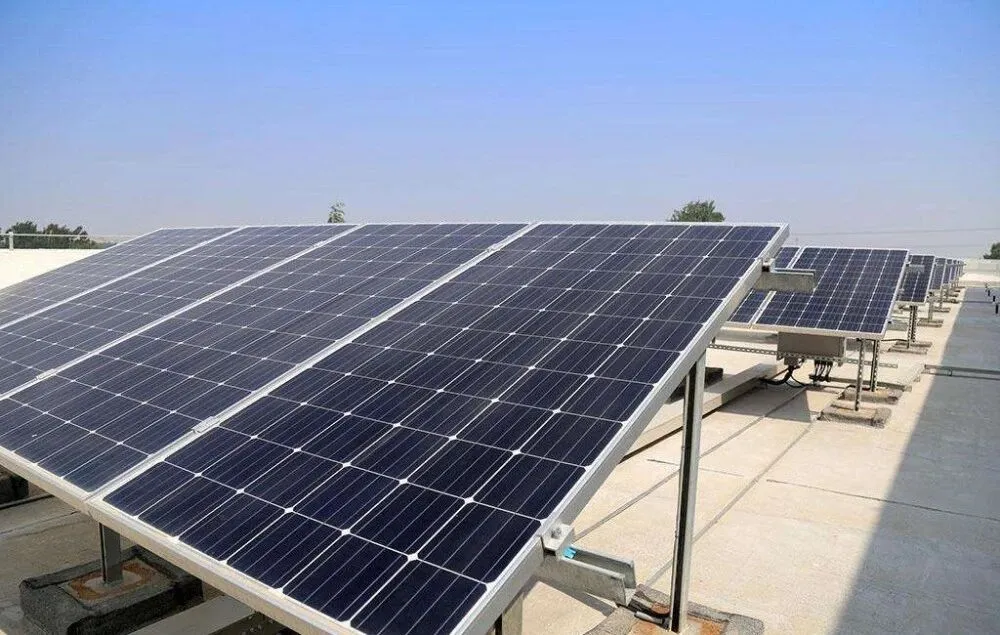

20KW Solar Plant in Mexico

Frequently Asked Questions

What is an on-grid solar system configuration?

An on-grid (or grid-tied) solar system is connected directly to the local utility grid. It enables users to utilize clean solar energy during the day while drawing power seamlessly from the grid when production is low, allowing you to optimize energy usage and reduce electricity bills.

Does this solar configuration support battery storage options?

Yes, this solar system configuration is highly flexible. It can support gel or LiFePO4 lithium-ion batteries for energy storage, or it can be configured without batteries to run as a standard grid-tied system, depending on your energy profile needs.

How can I monitor the performance of this solar power system?

The setup includes a remote monitoring system with a Wi-Fi, LAN, or GPRS-enabled data logging stick. Users can easily monitor real-time energy production and overall system health via standard applications accessible on PCs, iOS, and Android devices.

What kind of mounting structure is supplied with this system?

We supply standard pitched roof mounting setups composed of durable Al6005 structural rails and robust SUS304 hardware bolts. Ground mounting structure designs or customized roof options are also available depending on installation site specifications.

What are the core technical lifespans of the components?

High-efficiency Mono N-Type HJT solar panels and matching DC cables are designed to deliver a robust service life of up to 25 years. The grid-tied inverters come with standard product warranties (5 years for EU specifications, 10 years for US specifications).
