| Component | Specifications & Features | Qty | Unit |
|---|---|---|---|

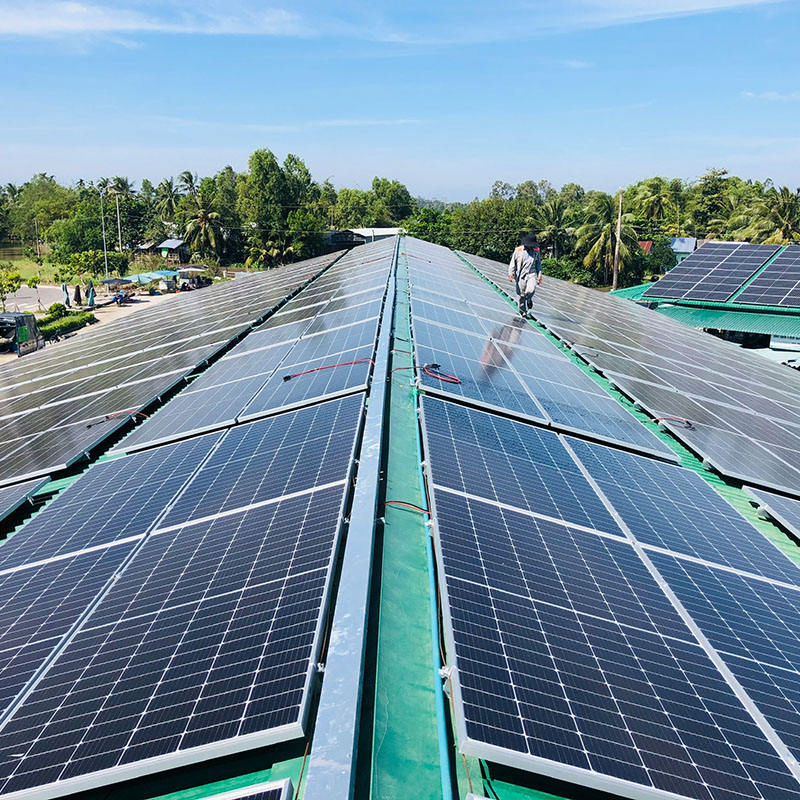

| Solar Panel | 580W N-Type TOPCon Solar Module, TUV Certificate, Connection: 14 strings x 60 parallels, 25 Years Design Lifespan | 840 | Pcs |
| PV Combiner Box | 6 inputs, 1 output. Current counter-attack, over current, over-voltage, and lightning protection. 20 Years Design Lifespan | 10 | Pcs |
| Bracket | Aluminum alloy rail tripod system. Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥150KW/H | 1 | Set |
| Hybrid Inverter | IGBT Technology, 500KW/380AC 3PHASE. AC input: 380VAC. Supports grid/Diesel Input. Pure sine wave, power frequency output. Especially for Inductive loads and big Industrial equipment. 15 Years Design Lifespan | 1 | Set |
| DC Distribution Box | Electrical Distribution Busbar Box. Built-in DC Breakers & bolder cables for balanced charging and terminal connection. Best protection for batteries, panels & controllers. 15 Years Design Lifespan | 1 | Set |

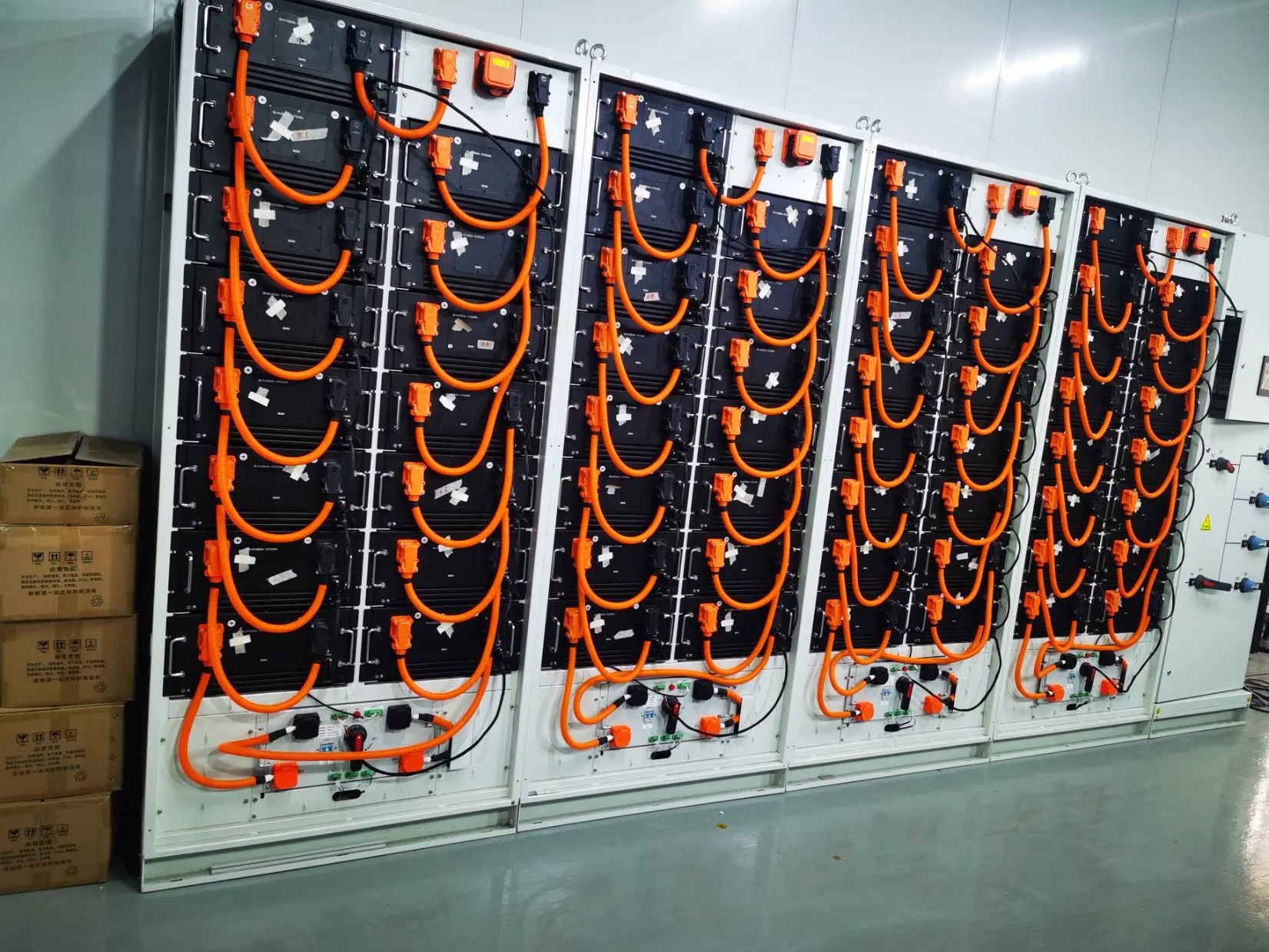

| Lithium Battery | 51.2V280AH modules * 14pcs (716.8V--280AH), One cluster. DOD: 90%, >8000 cycles. CAN Communication. Over-current/Over-voltage/Short circuit/Under-voltage protection. Total 1003KWH power as backup. 15 Years Design Lifespan | 5 | Set |
| Communication Unit | Communication management machine | 1 | Set |
| AC Distribution | Electrical Distribution Busbar Box. Built-in AC Breakers & bolder cables. Easy connection & ultimate protection. 15 Years Design Lifespan | 1 | Set |
| Connector | MC4, Rated Voltage: 1000V DC, rated current: 30A, Water-proof and dust-proof grade: IP67, Ambient temperature: -40ºC to +85ºC | 150 | Pairs |
| PV Cables (Panel to Box) | 6mm² Pure Copper | 3000 | M |
| BVR Cables (Box to DC Box) | 25mm² Pure Copper | 200 | M |
| BVR Cables (DC Box to Inverter) | 120mm² Pure Copper | 80 | M |
