Solar Power System Energy Storage Lithium Battery Systems Generator 50kw 60kw 80kw 100kw Hybrid Solar Energy System 0.5c 1c Solar Storage System

Basic Info.

Model NO.

SR-30/50/100/150/250/500KW-HY

Condition

New

Certification

ISO, CB, CE

Application

Commercial

Specification

Normal, customize

Type

Commercial Solar Energy Storage System

Battery

Gel/ LiFePO4 Battery

System Type

Hybrid Solar PV System

Solar Panel

Monocrystalline 400-700W

Grid Type

3W+N+PE

Controller

MPPT Types

Technical Support

Complete Technical Support

OEM/ODM

Acceptable

Battery Capacity

230kwh/Customized

Installation Site

Open Ground Yard Garden

Transport Package

Wooden Box

Origin

China

Production Capacity

50000 Piece/Year

Product Description

ENERGY STORAGE SYSTEM

Higher Power Output In Off-Grid Model
Support Diesel Generator Access
Pre-Wired
One Stop Shop Proposal
Easy Installation & Debugging
Indoor Or Outdoor Options
Tested Under Multiple Operating Conditions

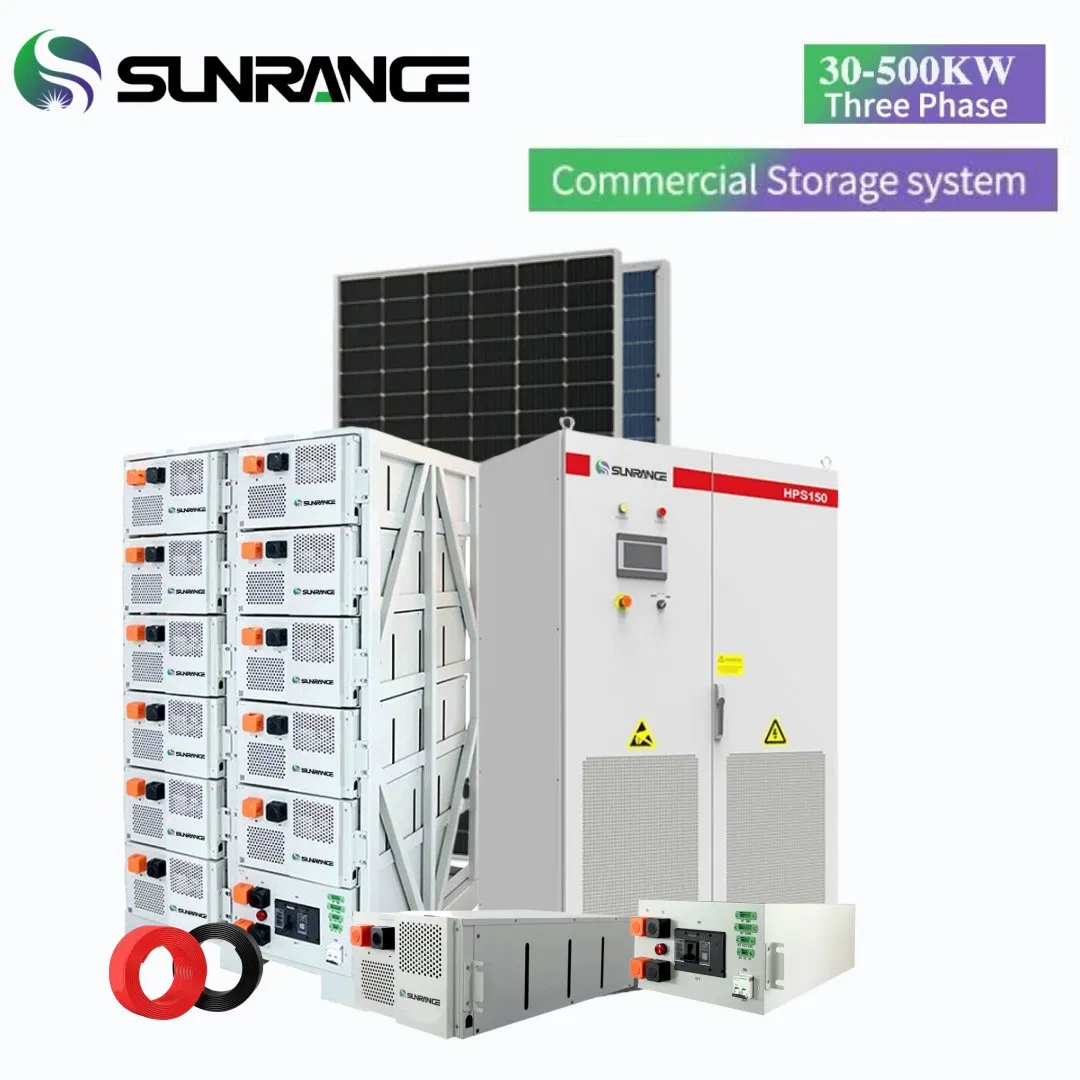

30KW To 500KW Solar Storage System
Convenient Operation & Maintenance

Model. No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
System Parameter
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Rated grid frequency	50/60HZ
Max. Output (KVA)	33	55	110	165	275	550
Solar Panel
Quantity	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Model	SR72P-580N
Power in total	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Hybrid Inverter
Quantity	1PC	1PC	1PC	1PC	1PC	2PC
Model	SRHPS 30	SRHPS 50	SRHPS 100	SRHPS 150	PBD250	PBD 250
Battery Inverter	built-in	built-in	built-in	built-in	PCS250 1PC	PCS500 1PC
Rated current (A)	43A	72A	144A	216A	361A	722A
Rated Power (KW)	30KW	50KW	100KW	150KW	250KW	500KW
MPPT Voltage	250-850VDC
Lithium Battery
Quantity	8PCS	7PCS	22PCS	33PCS	33PCS	66PCS
Model	SR48100	SR48280	SR76120	SR76120	SR48280	SR48280
Nominal Voltage (Vdc)	51.2	51.2	76.8	76.8	51.2	51.2V
Nominal Capacity (AH)	100	280	120	120	280	280
Battery Bank Capacity	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH
BOS
Battery Combiner Box	0 set	0 set	1 set	1 set	1 set	1 set
PV Combiner Box	1 set	1 set	1 set	1 set	1 set	1 set
PV Cable 4MM2	400m	600m	1200m	1700m	3000m	6000m
MC4 Connectors	20 pairs	30 pairs	50 pairs	70 pairs	120 pairs	240 pairs
EMS	Optional	Optional	Optional	Optional	Optional	Optional
ATS	Optional	Optional	Optional	Optional	Optional	Optional
Container	10ft (Optional)	10ft (Optional)	10ft (Optional)	10ft (Optional)	20ft (Optional)	20ft (Optional)
General Data
Operation Temperature Range	-35~50ºC (>40ºC derating)
Operation Humidity Range	0~95% (no condensation)
Maximum Operation Altitude	2000m

Product Parameters

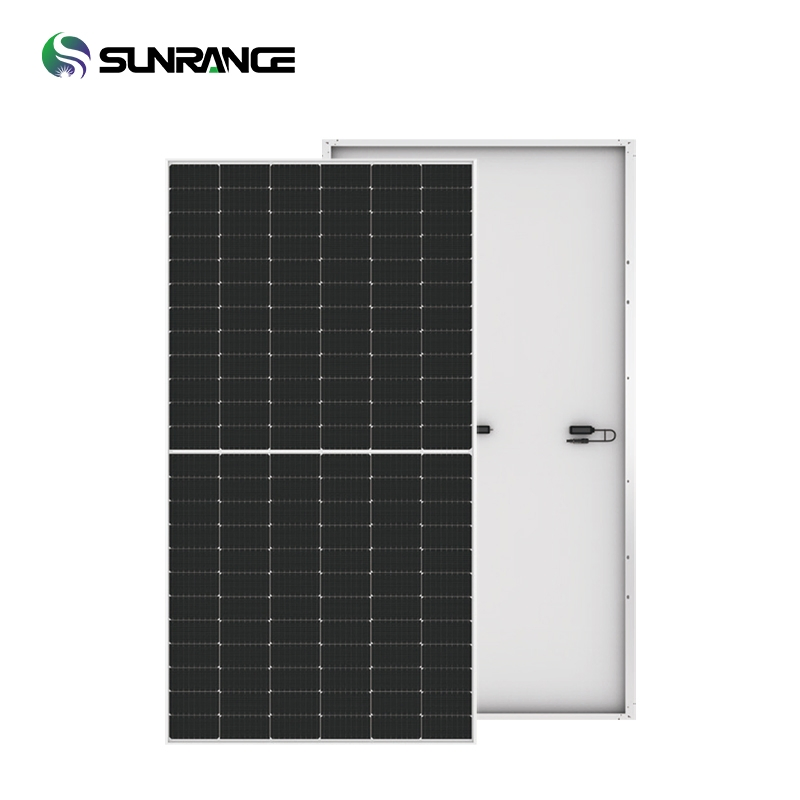

N-Type Topcon Solar Panel

Model: SR72P-580N

Maximum power (Pmax): 580W

Open Circuit Voltage (Voc): 51.57V

Short Circuit Current (lsc): 14.33A

Voltage at Maximum power (Vmpp): 43.09V

Current Maximum Power (lmpp): 13.46A

MODULE EFFICIENCY(%): 22.44%

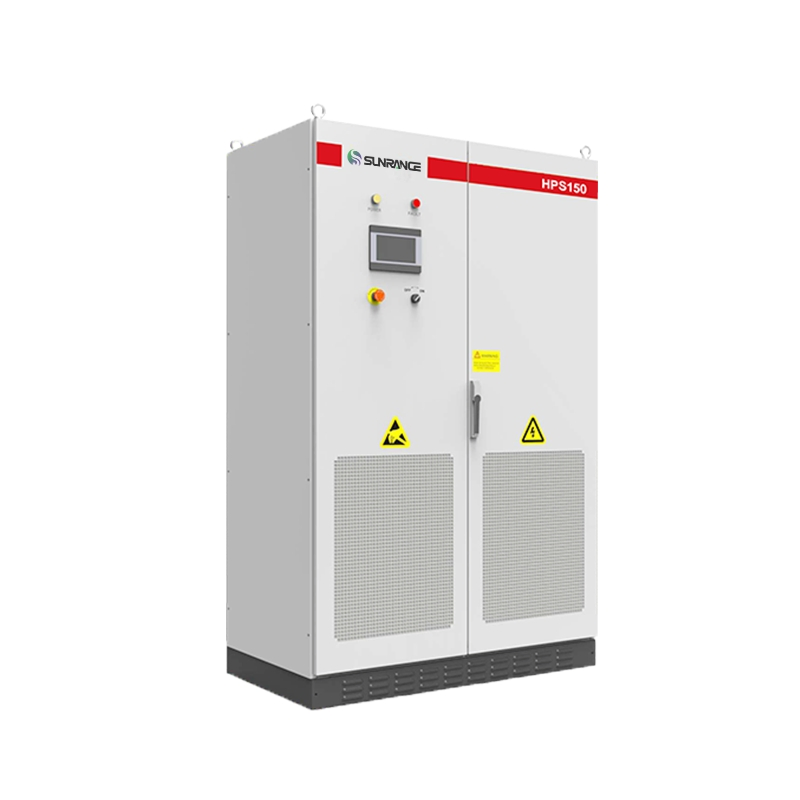

All in one hybrid inverter

Support PV, battery, DG, grid, and load connections in one system

System capacity can be easily expanded

Dynamic power distribution to fulfill load demand

SCR enables seamless switch within 6ms

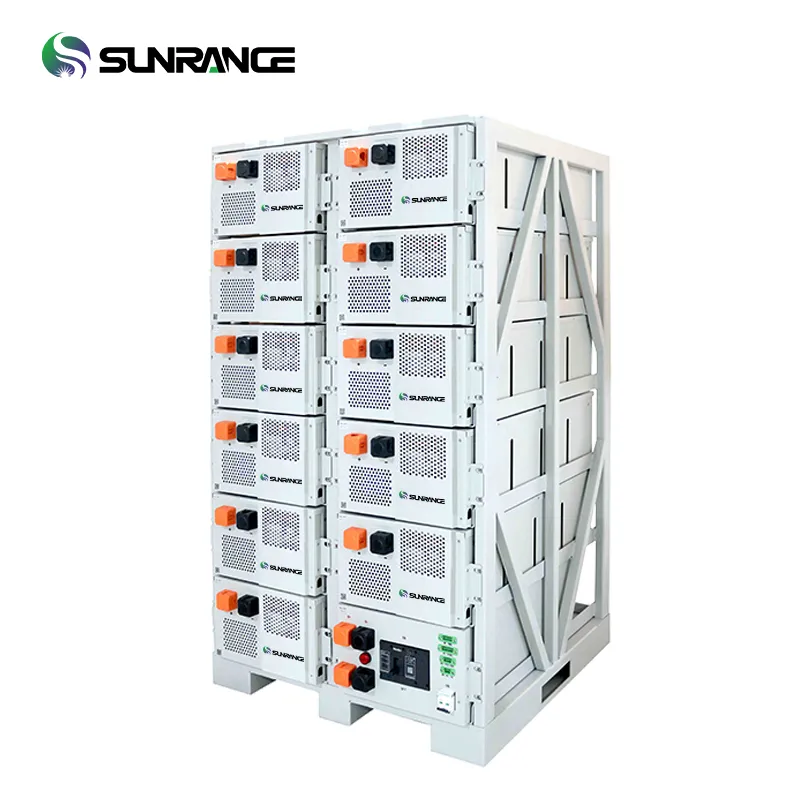

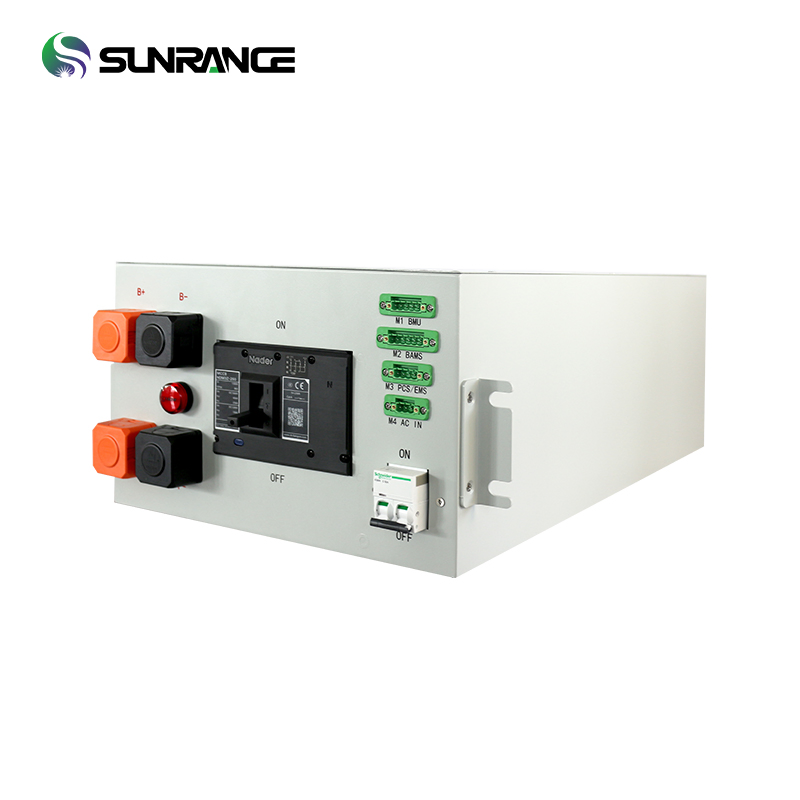

Solar Battery Packs

Rack mounted

Deep Cycle long lifespan

High discharge performance

Easy installation and Maintenance-free

GEL/LiFePO4 Lithium Ion Battery Type

2V/12V/48V/51.2V/76.8V/153.6V High Voltage Battery

More than 6000 times, up to 90% DOD

Wide suitability of ambient temperature range

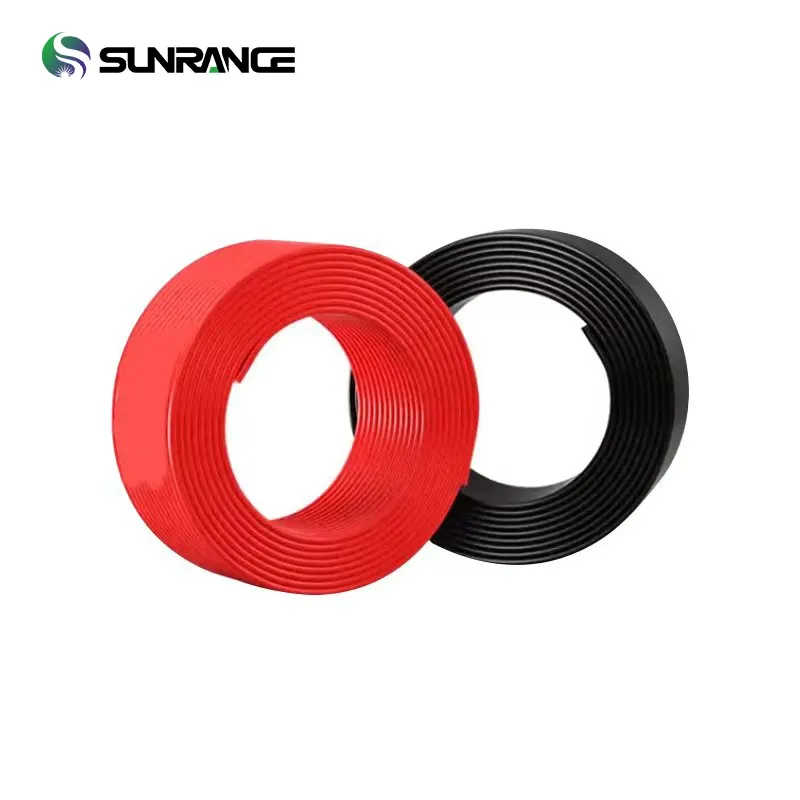

DC Cable & MC4 Connector

Cross Section: 4mm2; 6mm2; 10mm2 Optional

Rated Voltage: 600vDC/1000VDC (TUV)

Rated Current: 55A, 70A

Colors: Black For STD, Red Optional.

Lifetime: ≤25 Years

Online Monitoring System

Open Station Supports one-click Installation and registration Problem

Support one-click dispatch and navigation

Safe operation, traceable logs, etc.

Support full lifecycle data storage to ensure data security and reliability

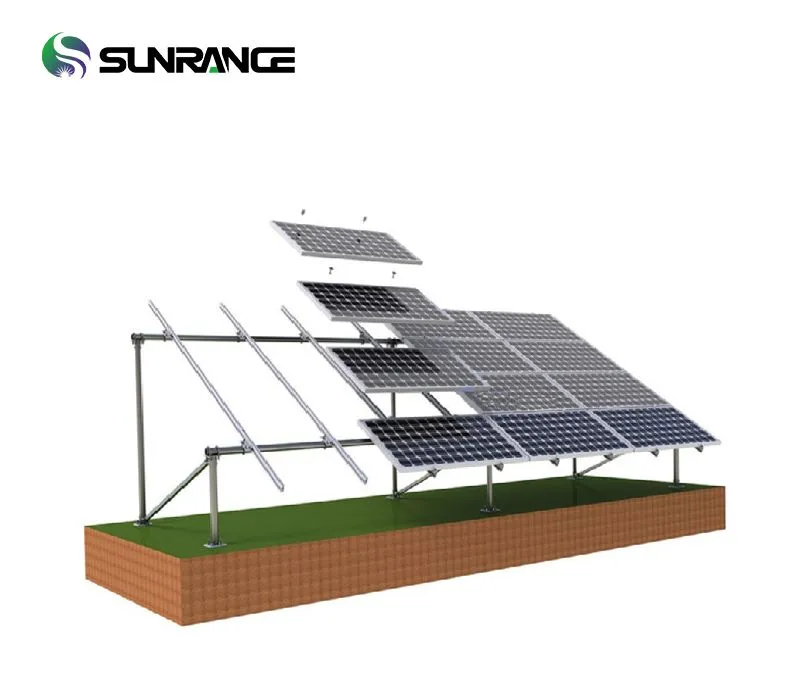

PV Mounting System

Mounting Rail & Rail Splice Kit: Ai6005 & Sus304

Boltmid & End Clamps: 30, 35, 40mm

L Foot Asphalt Shingle Mount & Hanger Bolt: Optional

Cable Clips & Tie: Optional

Ground Clips & Lugs: Optional

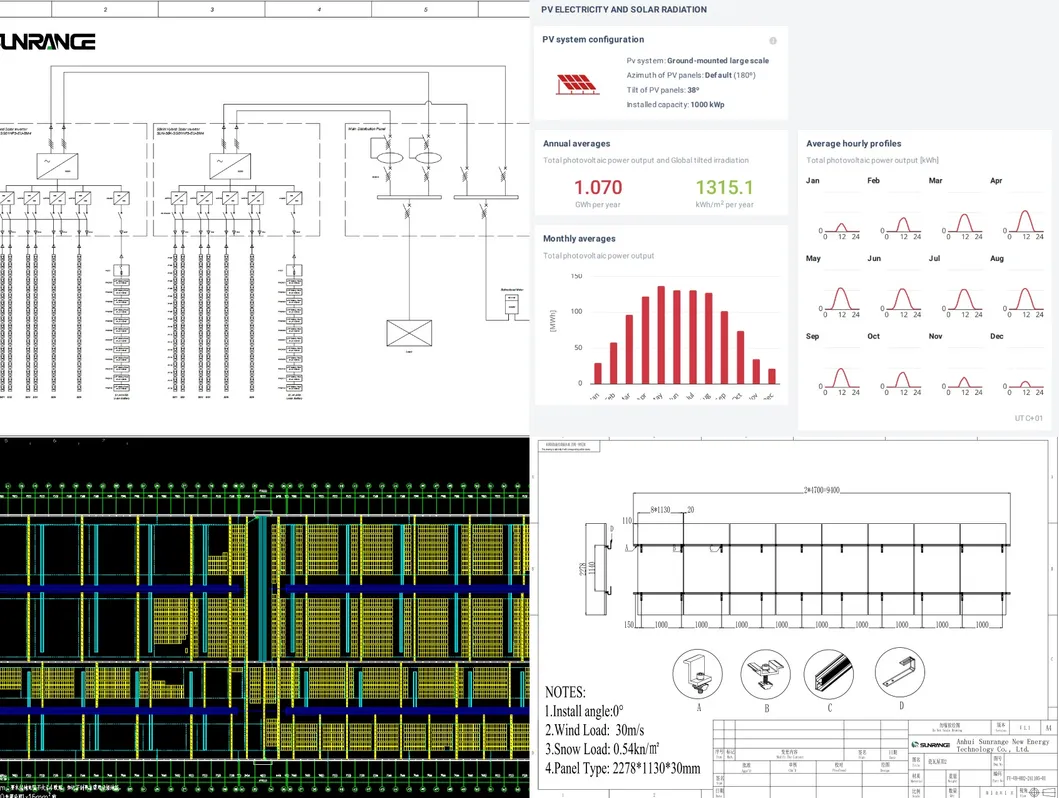

Complete Technical Support

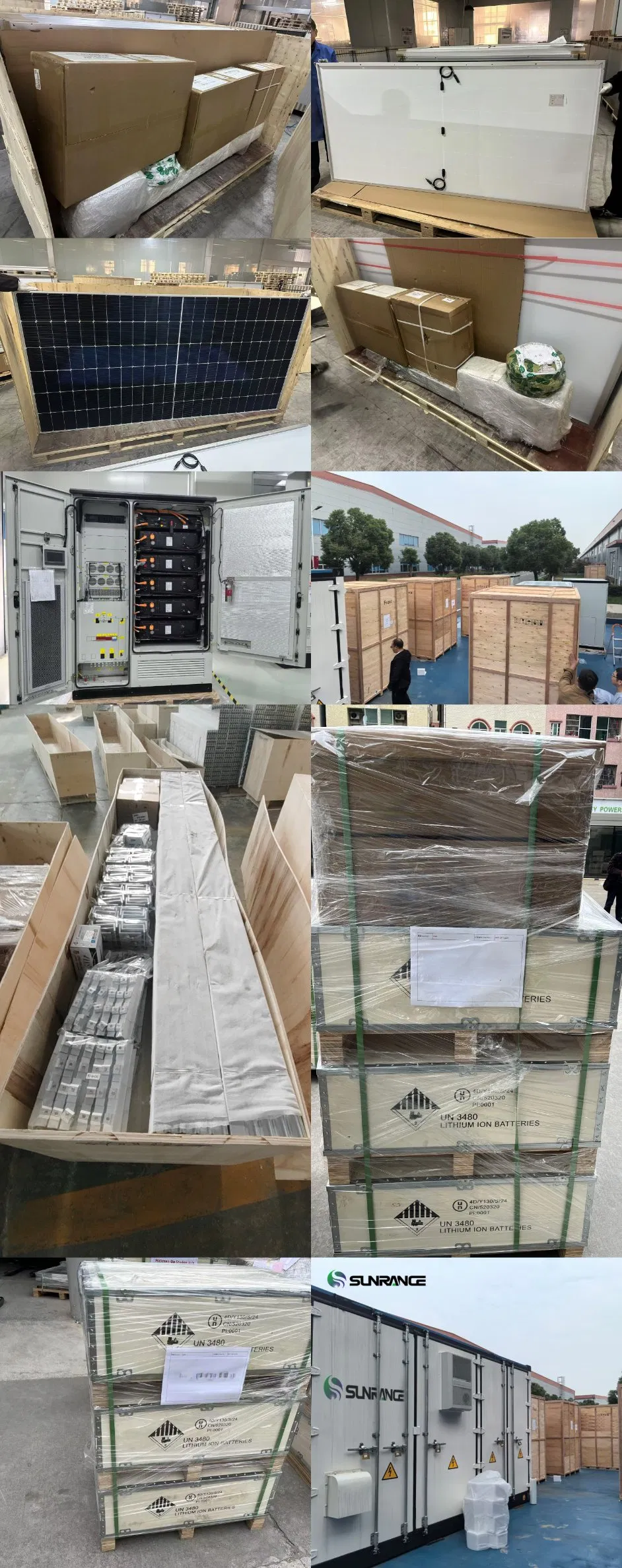

Packaging & Shipping

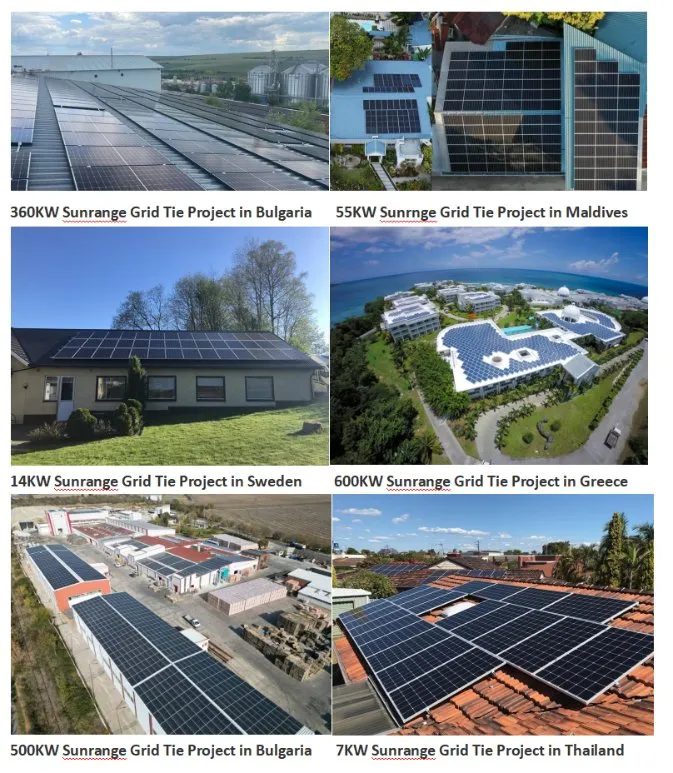

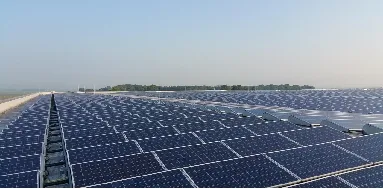

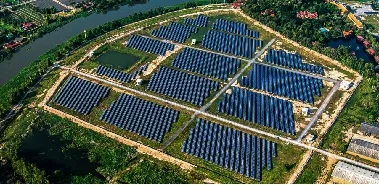

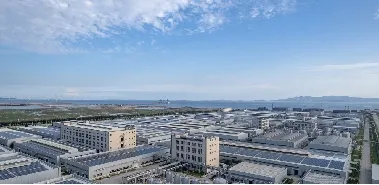

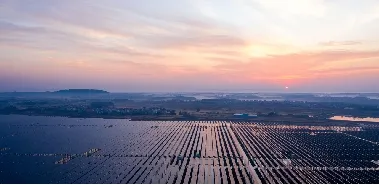

Project Case

Certifications

FAQ

How much power solar energy systems can you provide?

We provide residential solar energy systems ranging from 5kW to 30kW, as well as high-wattage commercial and industrial solar power systems from 30kW up to 1MW+.

Can you offer On-Grid and Off-Grid solar power systems?

Yes, we provide On-Grid solar power systems, Off-Grid solar power systems, and Hybrid solar power systems to meet different grid environments.

Who is your service customer?

Our clients include individual residential customers, distributors, importers, and professional solar energy system installers worldwide.

What certificates do you offer?

Our products have successfully obtained major international certifications, including CE, IEC, CEC, ISO, INMETRO, and SGS.

What is your warranty and after-sales policy?

Our complete systems are guaranteed with a 10-year warranty, and the solar panels come with a long-term performance warranty of 25 to 30 years.

Do you support OEM and ODM services?

Yes, we support both OEM and ODM customization services. We can design and tailor the components and capacities to suit your specific project requirements.
