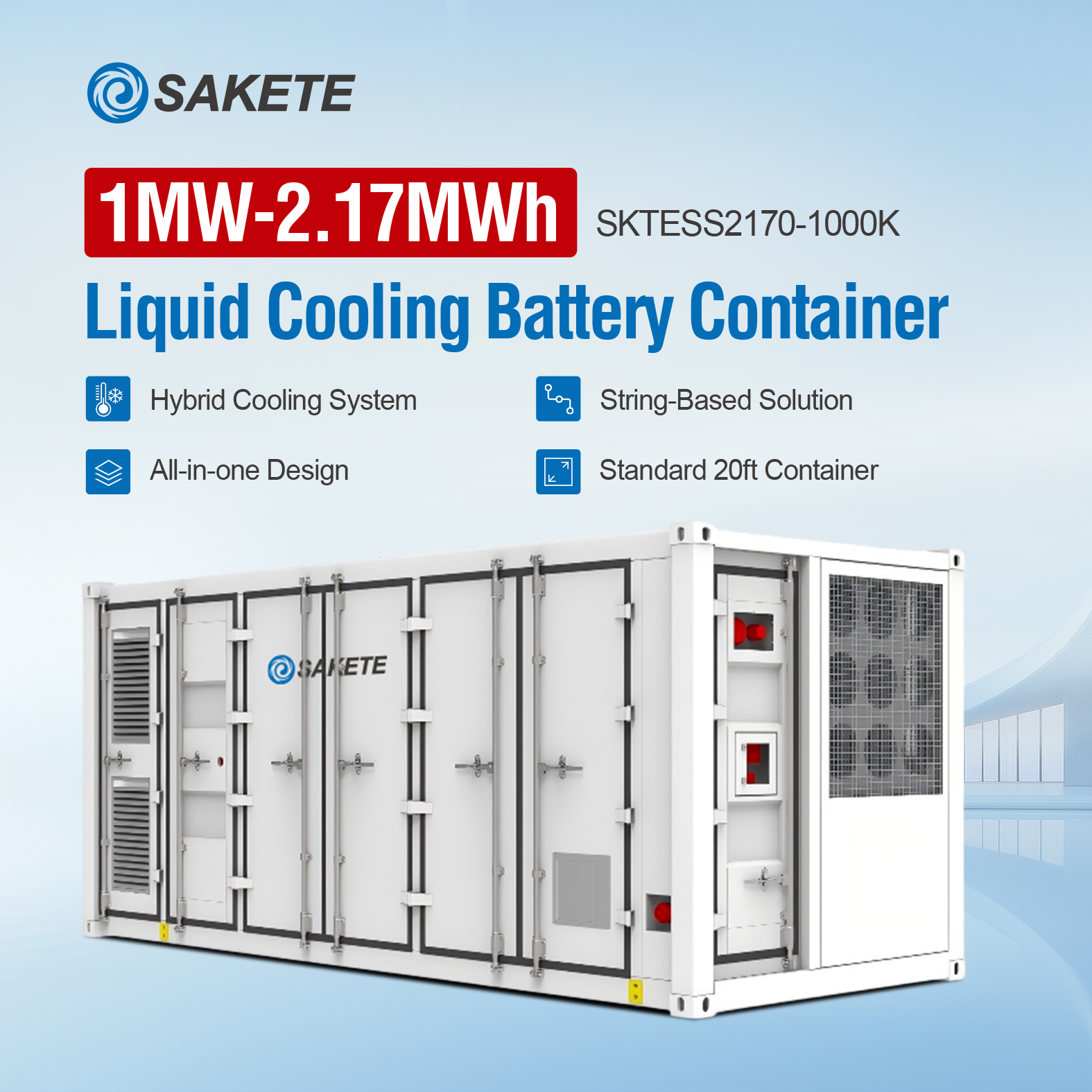

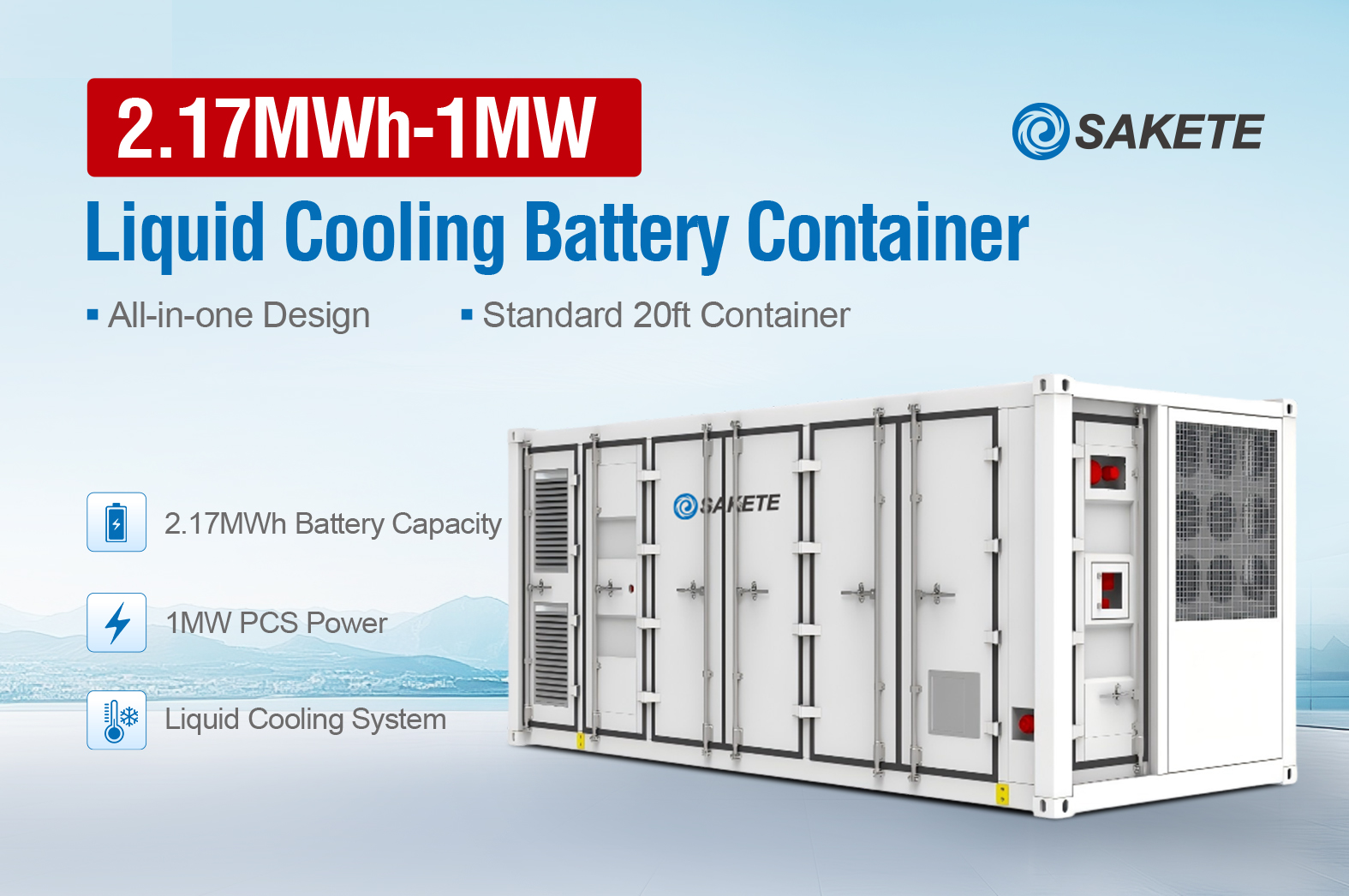

| Category | Model | SKTESS2170-1000K |
| DC Side | Cell Type | LFP / 314 Ah |
| Pack Configuration | 48.2 kWh/ 1P48S | |
| System Configuration | 2170 kWh/ 9P240S | |
| Rated DC Voltage | 768 V | |
| DC Voltage Range | 672~864V | |
| Max. Charge / Discharge Rate | 0.5 P | |
| Max. Depth of Discharge | 100%(25±2℃) | |
| AC Side | Rated Output Power | 1000 kW |
| Max. Apparent Power | 1100 KVA | |
| Rated AC Voltage | 400V | |
| AC Voltage Range | ±15% | |
| Grid Type | 3W+N+PE | |
| Rated Frequency | 50 Hz / 60 Hz | |
| Power Factor | 0.99/ -1 ~ +1 | |
| THDi | ≤3% | |
| DC Ratio | <0.5% lpn | |
| General | Round Trip Efficiency | ≥87% |
| Cycle Life | ≥ 8000 cycles | |
| Communication | Modbus TCP / IP | |

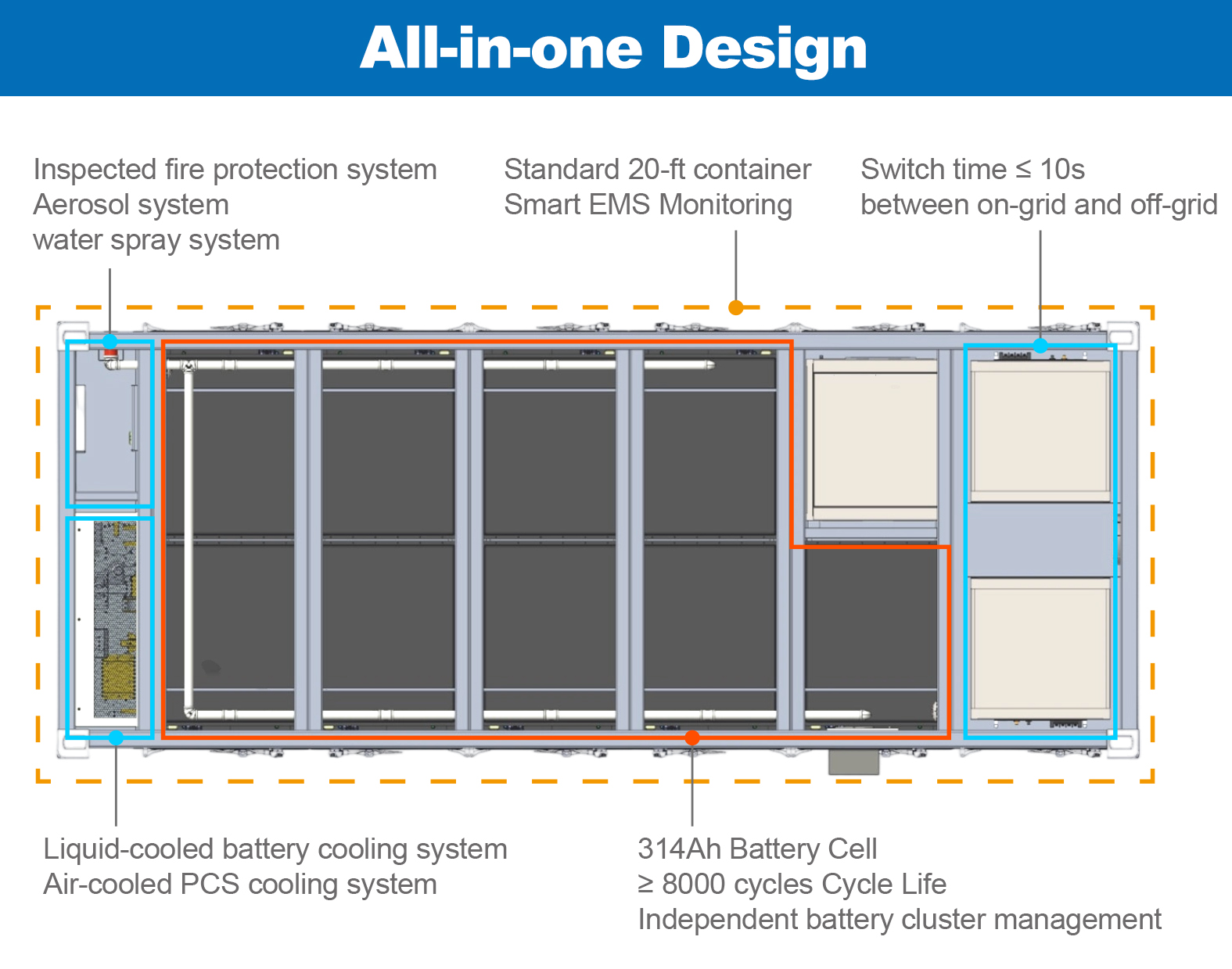

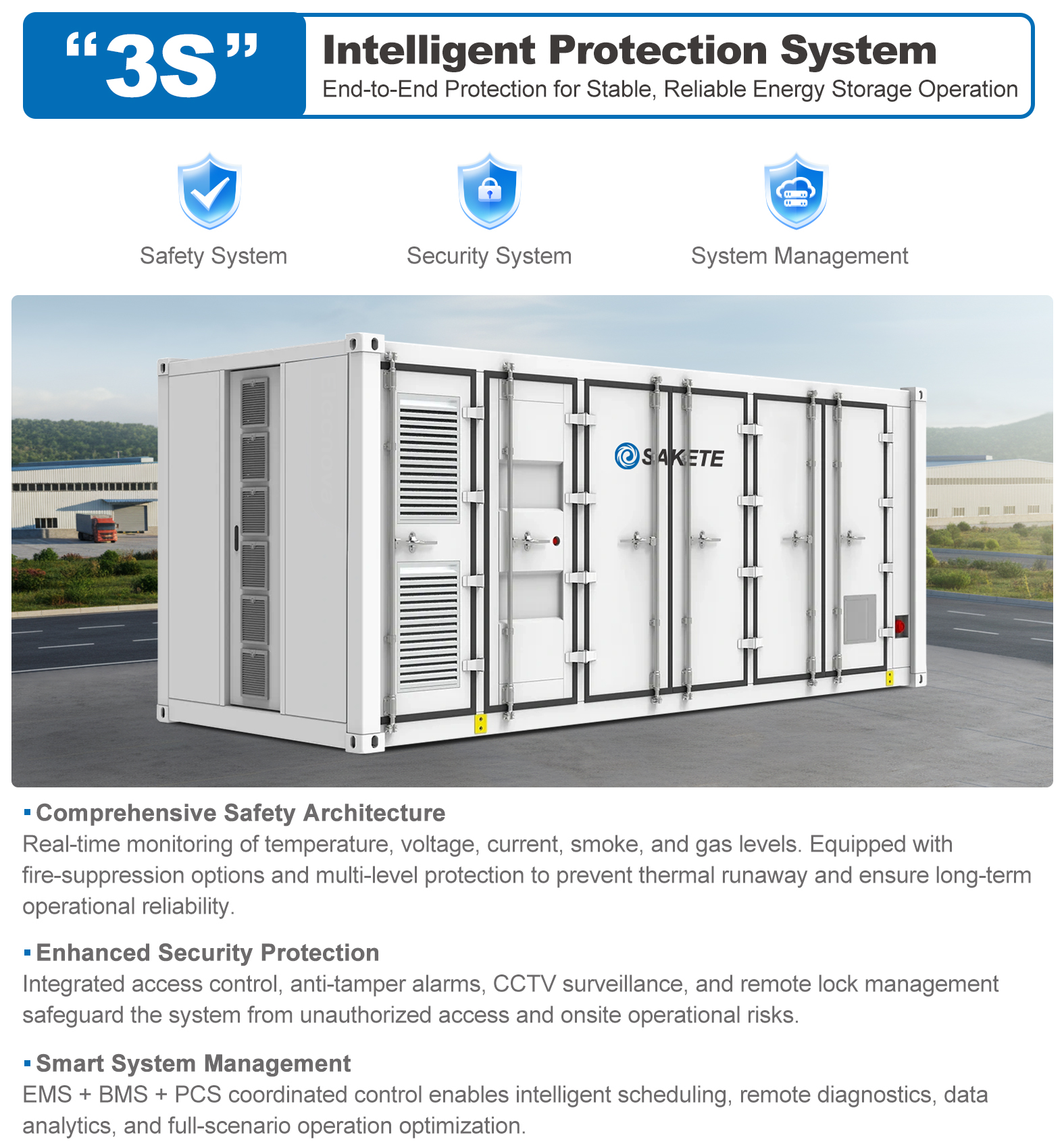

| Fire Suppression System | Aerosol system( pack level and container level ), water spray system | |
| Ingress Rating | IP55 | |
| Cooling | Liquid cooling+Forced air cooling | |
| Operating Temperature | -25°C~55°C (Derating after 45℃) | |
| Anticorrosion Rating | C4 (C5 optional) | |
| Humidity | 5~95% RH(non-condensing) | |
| Noise | ≤ 80 dB | |
| Altitude | 4000m (Derating above 2000m) | |

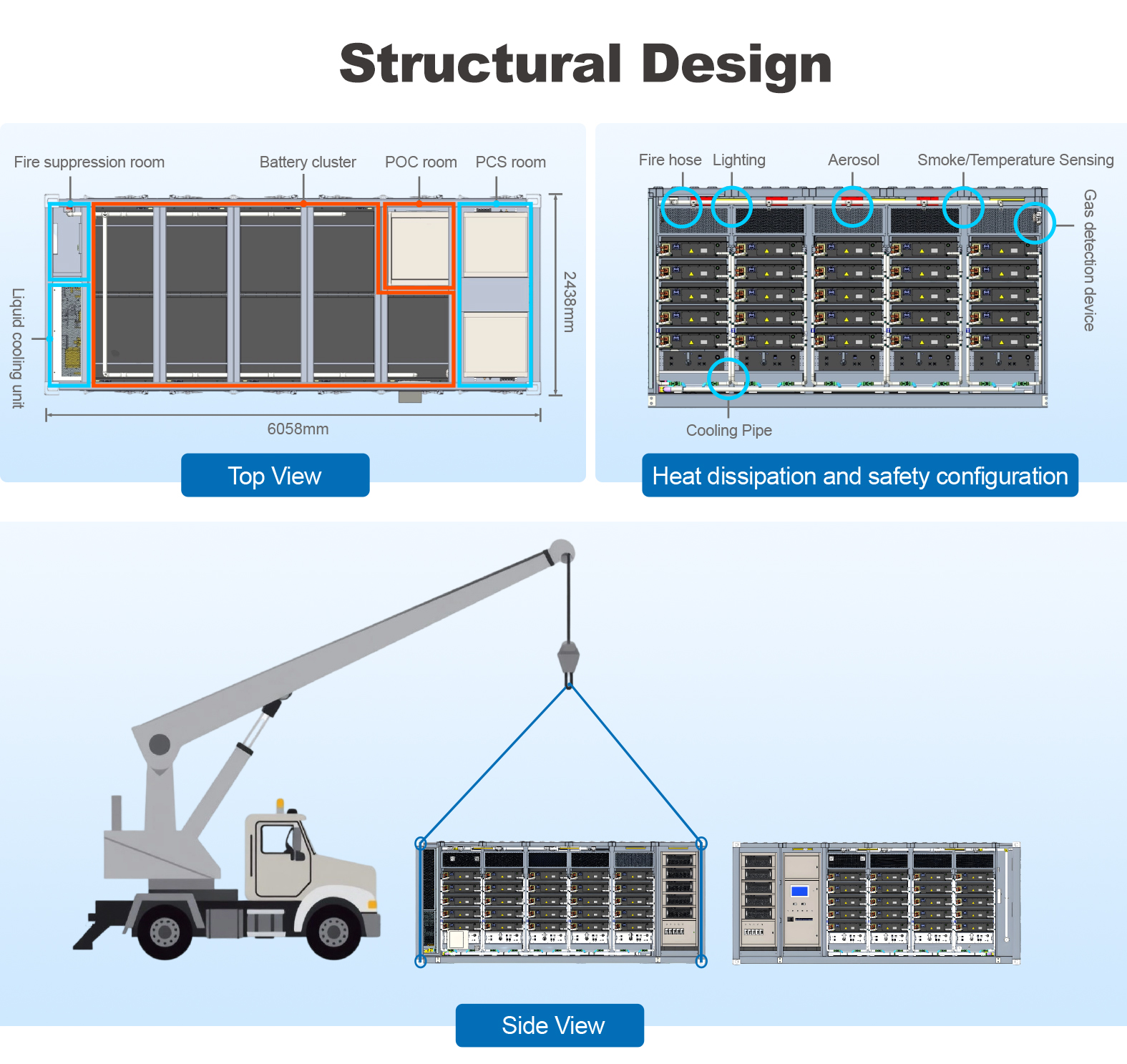

| Dimensions (W*D*H) | 6058× 2438 ×2591 mm | |
| Weight | 28T | |

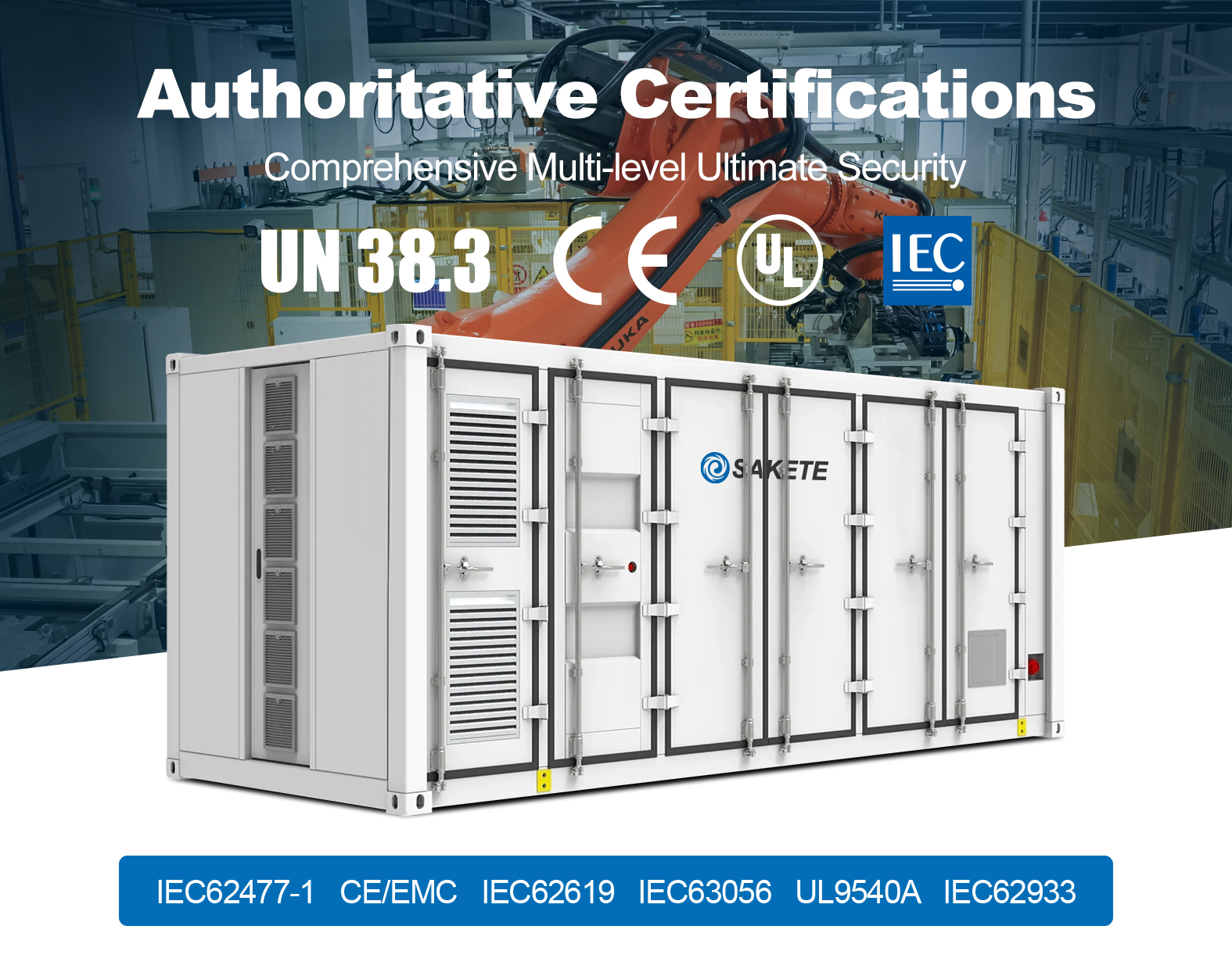

| Certification | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, UL9540A, IEC62933 EN50549 |
