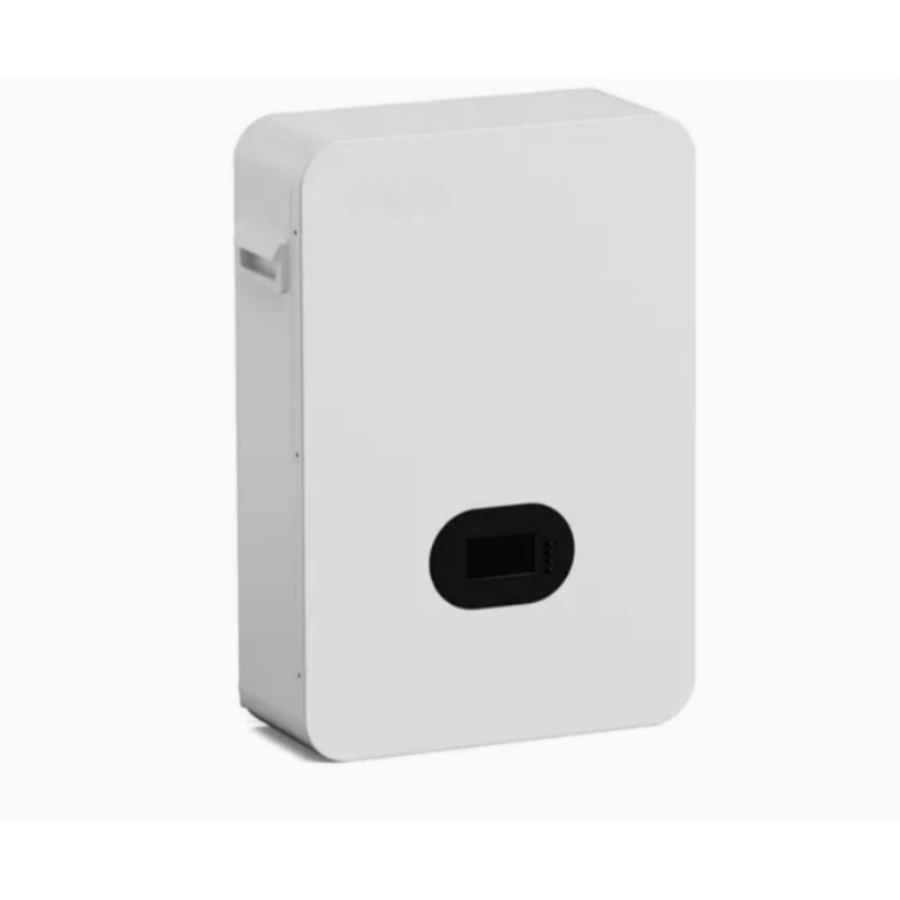

| Model | ZT-25100B | ZT-51100B | ZT-51200B |
|---|---|---|---|
| Physical | |||
| Battery Type | LFP(LiFePO4) | ||
| Weight(kg) | 29 | 55 | 90 |
| Dimensions (WHD) | 522x240x218 mm | 600x423x203mm | 600x423x266mm |
| Protection Level | IP20 | ||
| Warranty Years | 5 years | ||
| Parameters | |||
| Nominal Capacity | 2.56 kWh | 5.12kWh | 10.24 kWh |
| Cell Capacity | 100Ah | ||
| Depth of Discharge | 90% | ||
| Operation | 21.6V-28V | 43.2V-56V | 43.2V-56V |
| Application | |||
| Rated Charge/Discharge Current | 50A/100A | ||
| Max.Charge/Discharge Current | 100A | ||
| Rated DC Power | 2.56 kW | 5.12 kW | 5.12 kW |
| Charge Temperature | 0°C~58°C | ||
| Discharge Temperature | -18°C~58°C | ||
| Certification | |||
| Certification | IEC62619,UN38.3 | ||
