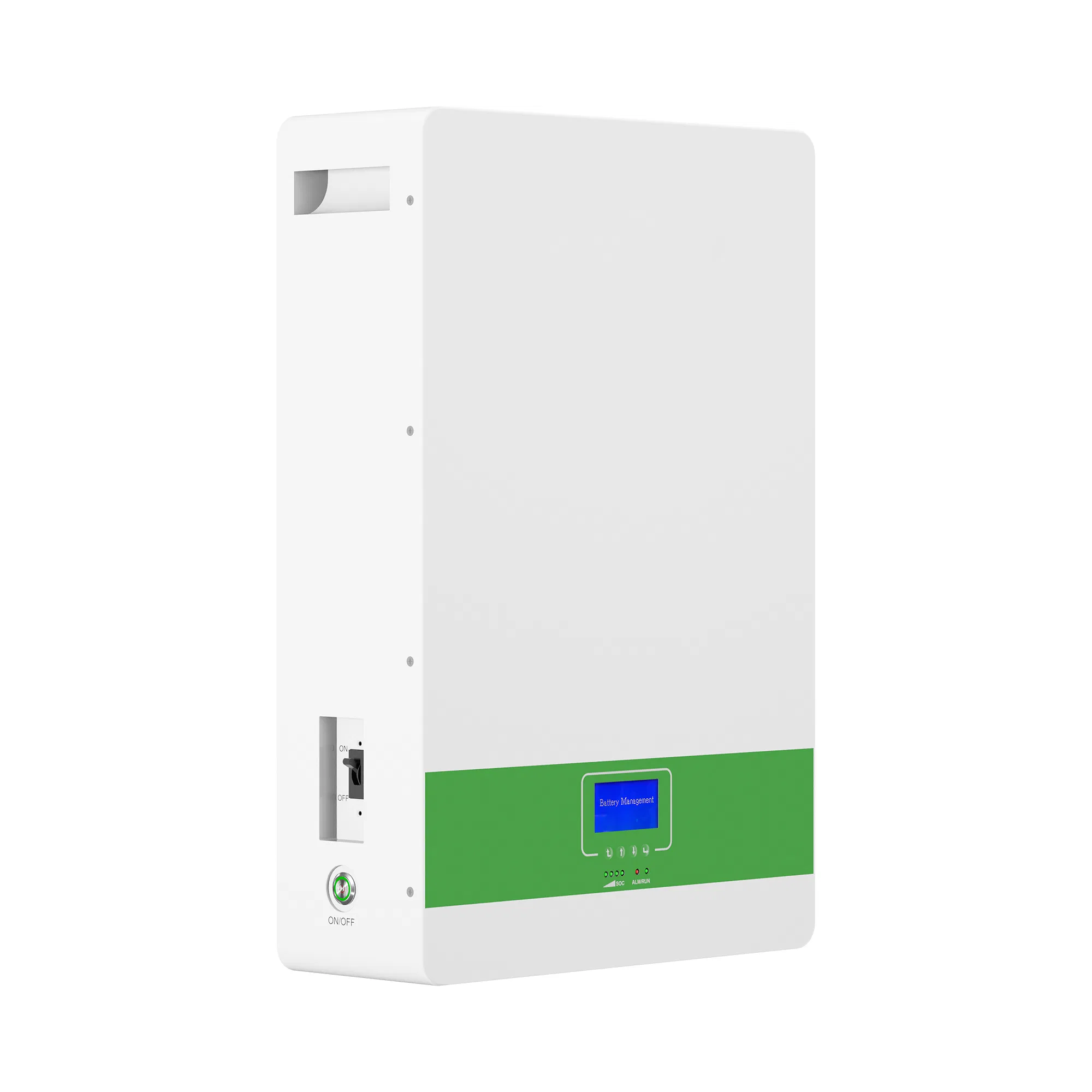

Photovoltaic Storage Integration Solar Lithium Ion Battery Energy Power Storage

Customization:	Available
Nominal Voltage:	51.2V
Nominal Capacity:	100ah~280ah

Overview

Basic Info.

Model NO.

051100A-B-GBP2

Cycle Life

6500+

Cell Chemistry

LiFePO4

Battery Capacity

5kwh~15kwh

Application

Solar, Wind, UPS, Telecom

Installation

Wallmounted

Communication Port

Can2.0, RS485

Warranty Period

10 Years

Certification

CB-IEC62619, CE-EMC, Un38.3, MSDS

Transport Package

Wooden Cases

Specification

436*650*160mm / 17.2*25.6*6.3 in

Origin

China

HS Code

8507600090

Packaging & Delivery

Package Size

47.10cm * 68.50cm * 18.50cm

Package Gross Weight

72.000kg

Product Description

Model No: 051100A-B-GBP2

Long life and safety Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
Intelligent Each battery with independent BMS system manages power output smartly and effectively.
Modularization Modular design gives the end customers the power of choice of capacity. Deliver up to 81.9KW with single max module (5.12kWh) at 16pcs parallel connection.
Easy to install and use Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.
Compatibility Compatible with most of the available Hybrid inverters.
Safety Cert CB-IEC62619, CE-EMC, CEI 0-21, UN38.3, MSDS

Model No: 051200A-B-GBP2

Long life and safety Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
Intelligent Each battery with independent BMS system manages power output smartly and effectively.
Modularization Modular design gives the end customers the power of choice of capacity. Deliver up to 163KW with single max module (10.24kWh) at 16pcs parallel connection.
Easy to install and use Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.
Compatibility Compatible with most of the available Hybrid inverters.
Safety Cert CB-IEC62619, CE-EMC, CEI 0-21, UN38.3, MSDS

Specification

Model No		051100A-B-GBP2
Nominal Parameters
Battery Chemistry		LiFePO4
Voltage		51.2V
Operating Voltage		46-56V
Capacity		100Ah
Energy		5.12kWh
Scalability		Max.16pcs in parallel (81.92kWh)
Usable Energy		4.61kWh
Charge/Discharge Current	Recommended	50A
	Max.	100A
	Peak (2mins, 25℃)	120A
Basic Parameters
Recommend Depth of Discharge		80%
Dimension (W/H/D)		436×650×160mm / 17.2×25.6×6.3 in
Weight Approximate		45kgs / 99 lbs
Master LED Indicator		4 LED (SOC:25%-100%)/2 LED (working, alarming, protecting)
IP Rating of Endosur		IP20
Working Temperature		Charge:0℃~55℃ Discharge:-20℃~55℃
Storage Temperature		0℃~35℃
Humidity		5%~95%
Altitude		≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80% DOD)		≥6500
Installation		Wall-mounted

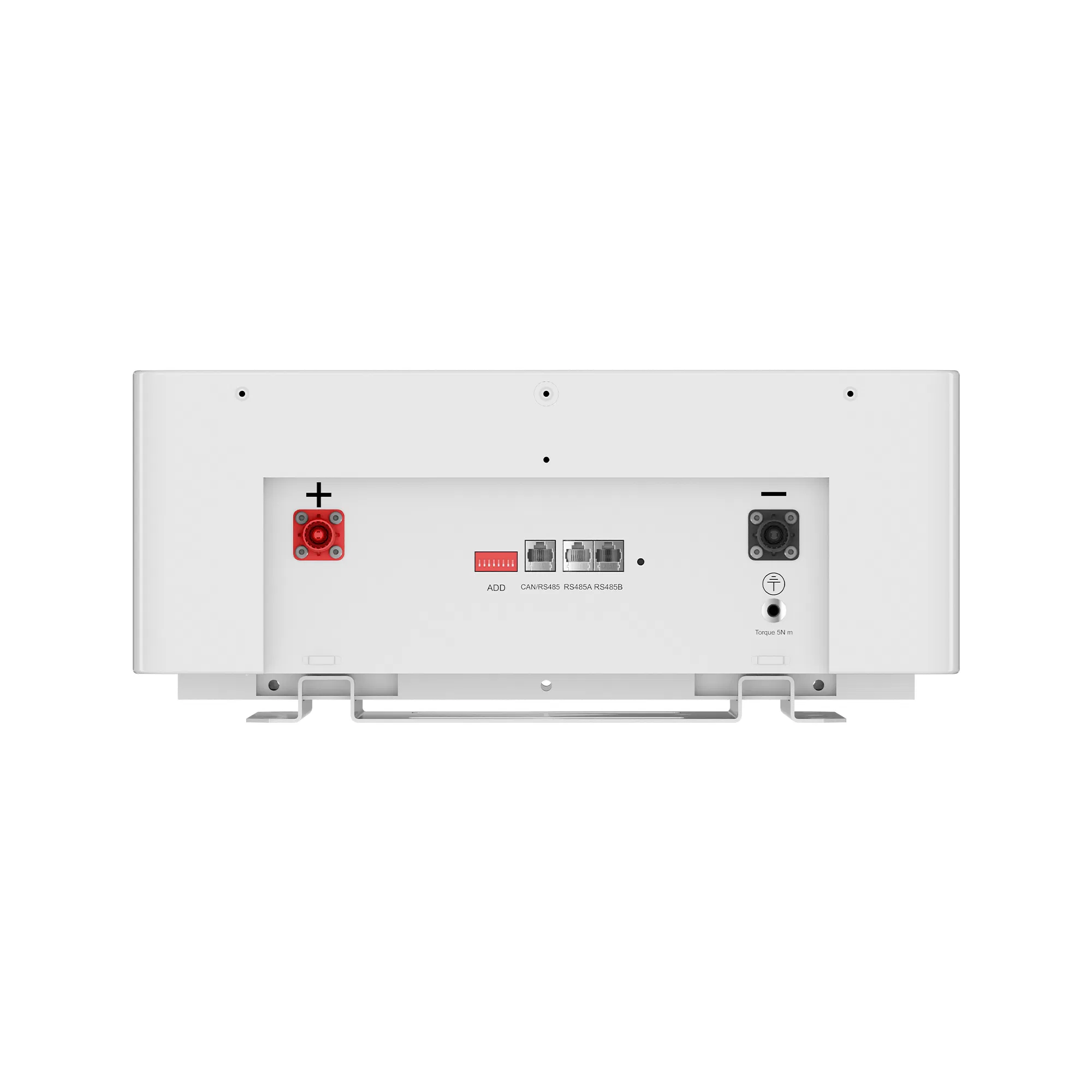

Communication Port		CAN2.0, RS485
Warranty Period		10 years
Certification		CB-IEC62619, CE-EMC, UN38.3, MSDS

Model No		051200A-B-GBP2
Nominal Parameters
Battery Chemistry		LiFePO4
Voltage		51.2V
Operating Voltage		46-56V
Capacity		200Ah
Energy		10.24kWh
Scalability		Max.16pcs in parallel (162kWh)
Usable Energy		9.22kWh
Charge/Discharge Current	Recommended	100A
	Max.	150A
	Peak (2mins, 25℃)	200A
Basic Parameters
Recommend Depth of Discharge		80%
Dimension (W/H/D)		800550200mm / 31.521.67.8 in
Weight Approximate		84.5kgs / 186 lbs
Master LED Indicator		4 LED (SOC:25%~100%)/2 LED (working, alarming, protecting)
IP Rating of Endosur		IP20
Working Temperature		Charge:0℃~55℃ Discharge:-20℃~55℃
Storage Temperature		0℃~35℃
Humidity		5%~95%
Altitude		≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80% DOD)		≥6500
Installation		Wall-mounted
Communication Port		CAN2.0, RS485
Warranty Period		10 years
Certification		CB-IEC62619, CE-EMC, UN38.3, MSDS

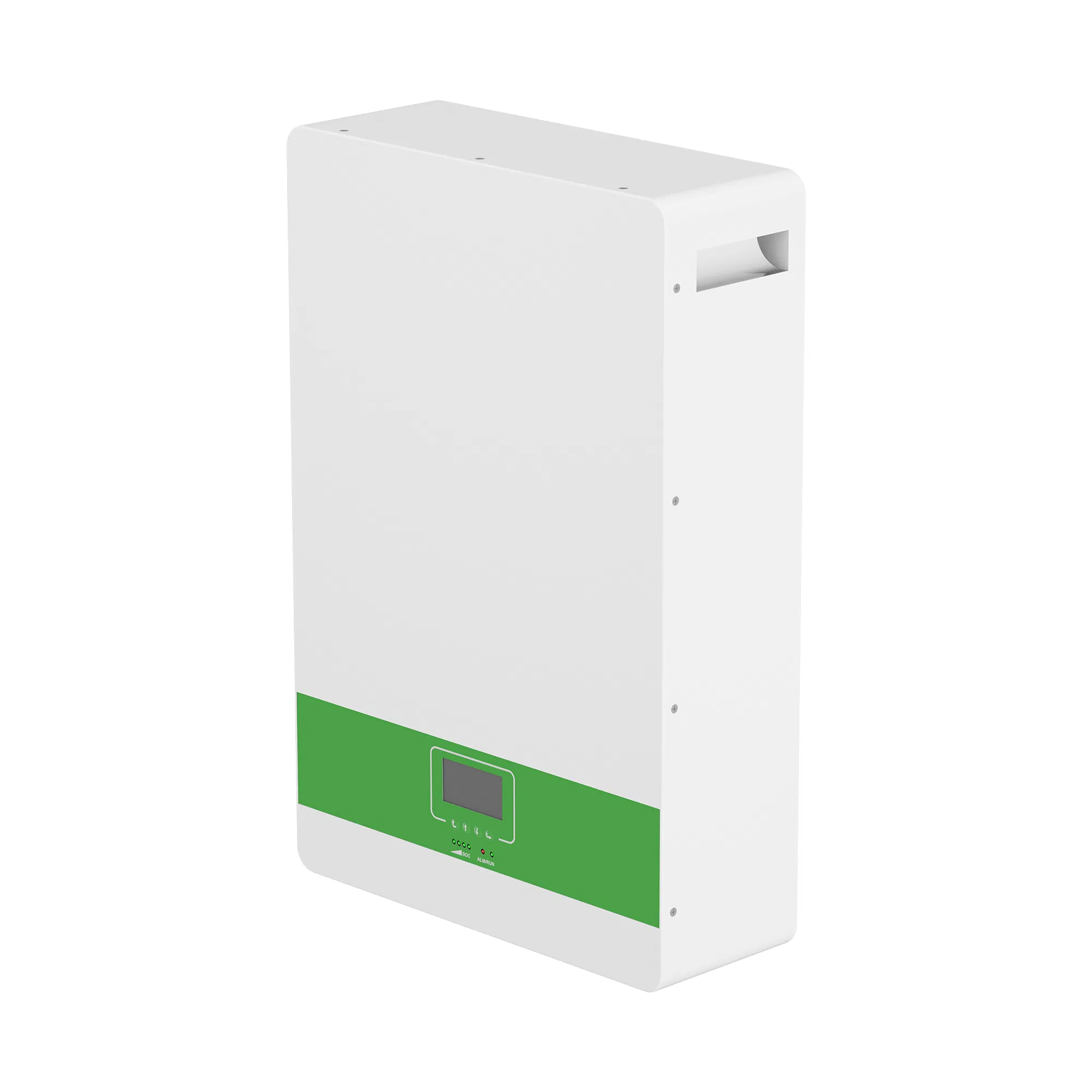

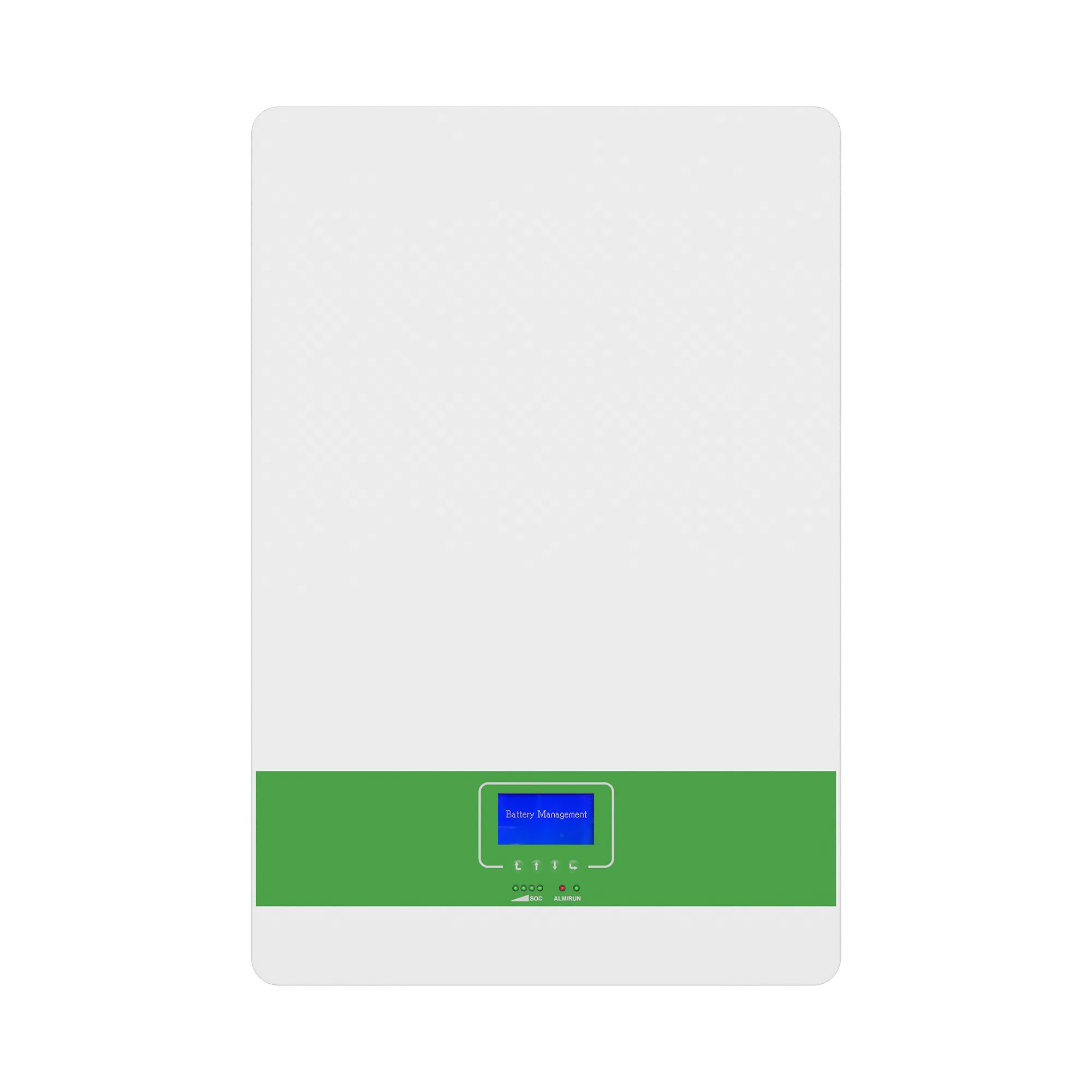

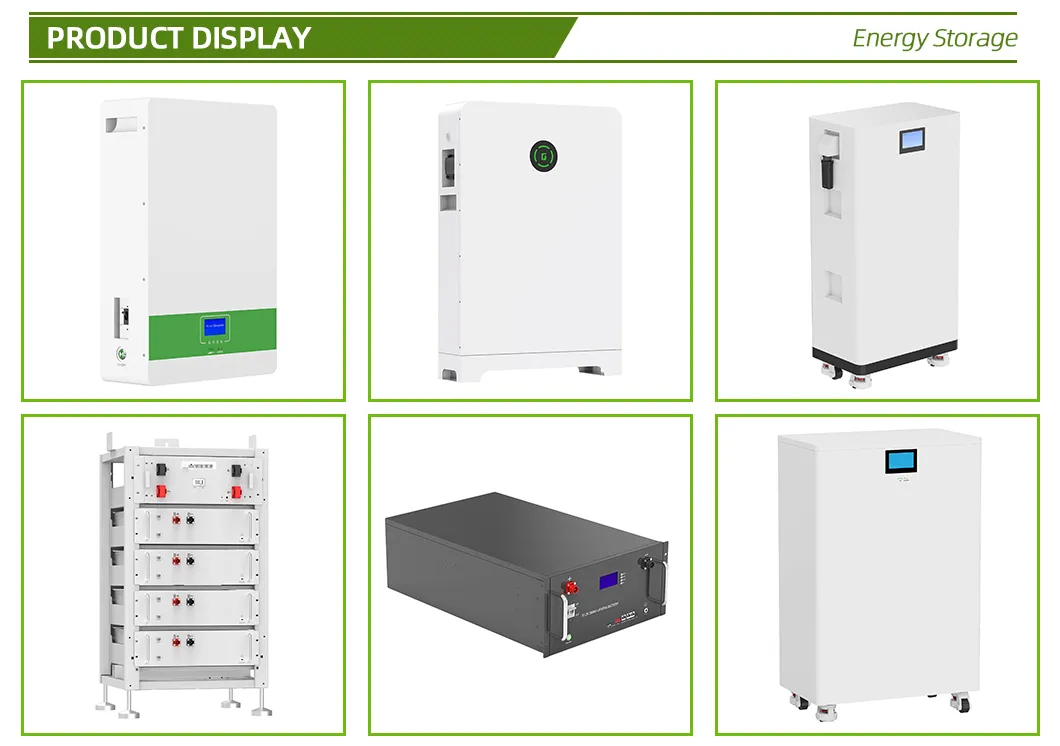

Product Display

Exhibition Display

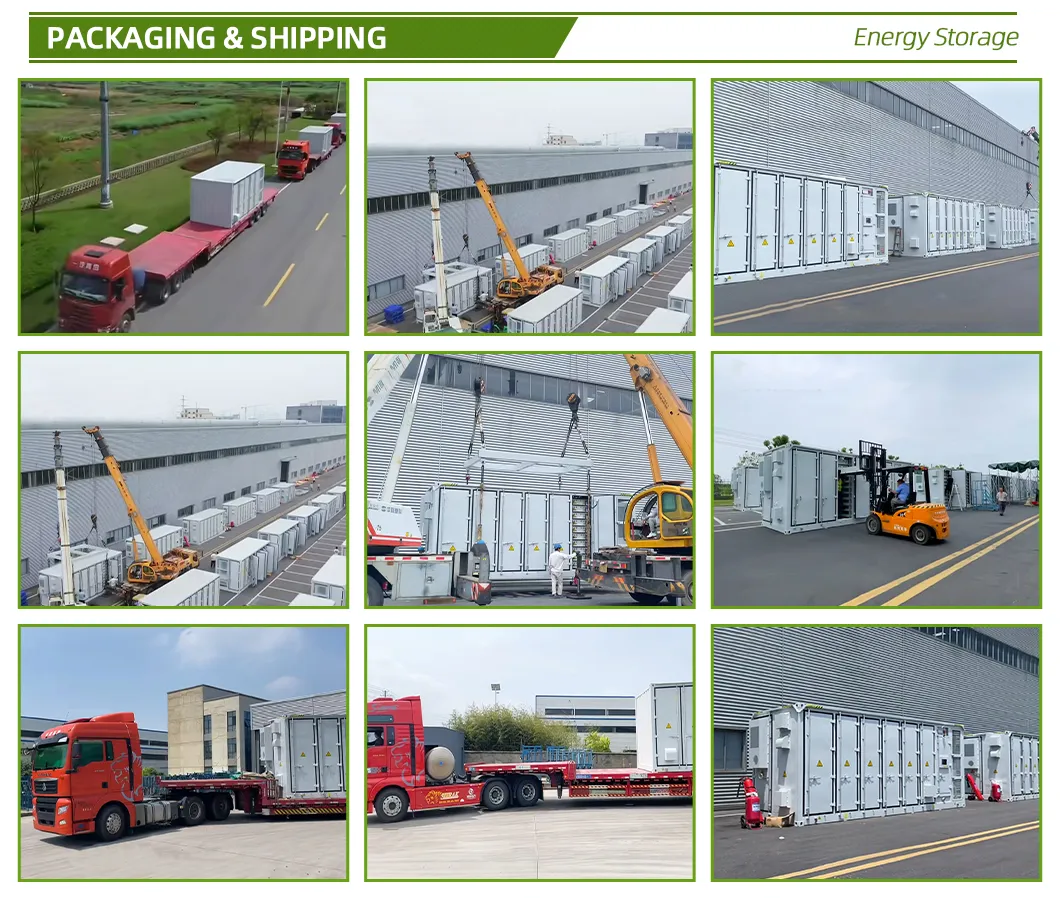

Packaging & Shipping

Certifications

FAQ

QWhat are the factory's main advantages?

We operate our own production facility and also collaborate closely with other leading brands to ensure high quality and diverse options.

QCan I request a sample to check the quality?

Yes, sample orders are welcome to test the performance and verify product quality.

QWhat is the expected delivery lead time?

The factory output is up to 2300 pieces per day. The exact delivery timeline will depend on specific order items and quantities.

QWhere is the primary loading port?

The primary port of loading is Shanghai port.

QDo you provide OEM services?

Yes, OEM manufacturing options are fully supported.

QWhat standard certifications do these batteries hold?

These batteries are fully certified with CB-IEC62619, CE-EMC, UN38.3, and MSDS safety certificates.
