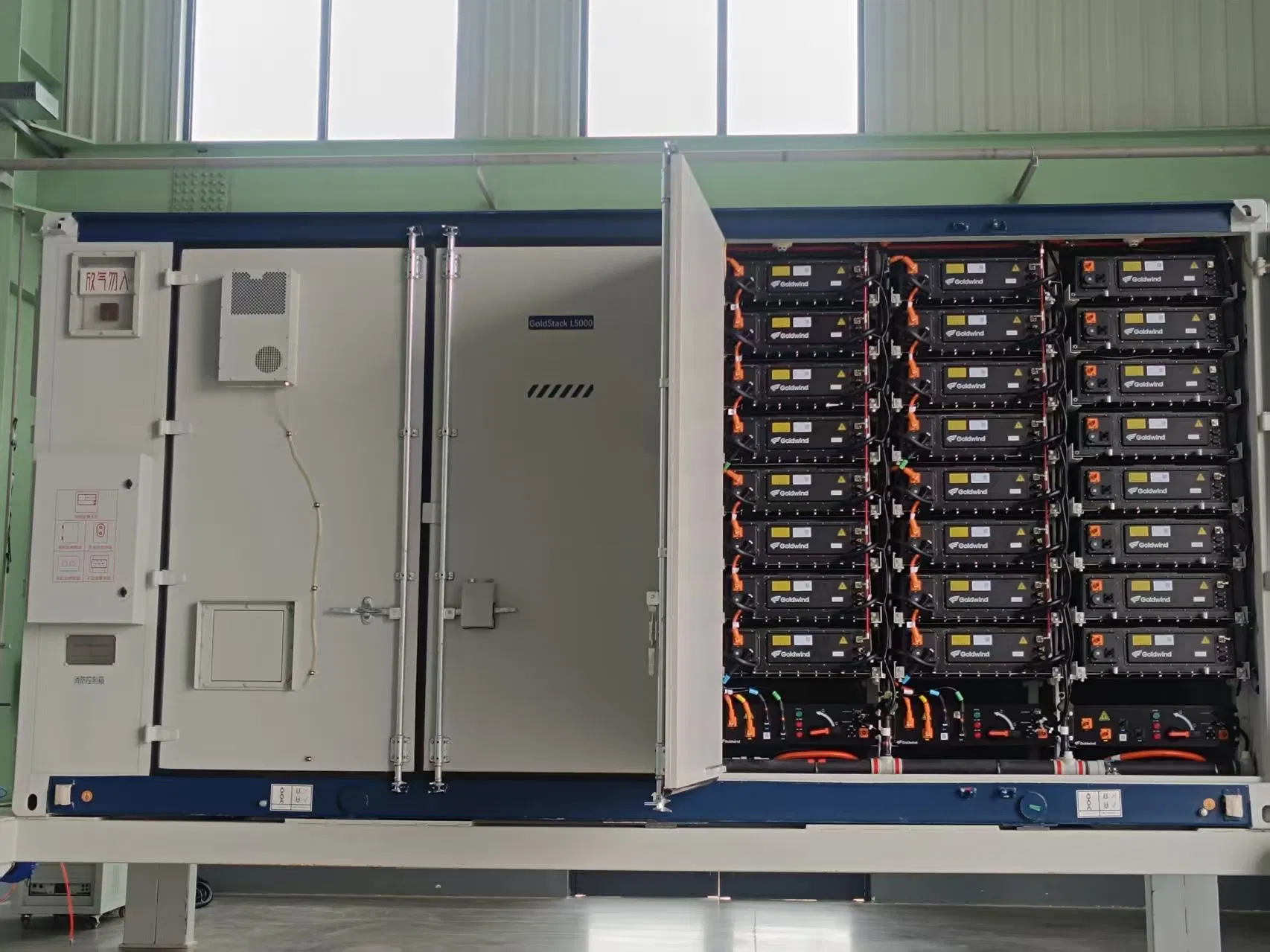

5mwh Solar Integration Energy Storage Containerized Solution

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

i

Basic Specifications

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

10 Years

Rated Power

5mwh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Cooling System

Liquid Cooling

Origin

China

✓

Product Description

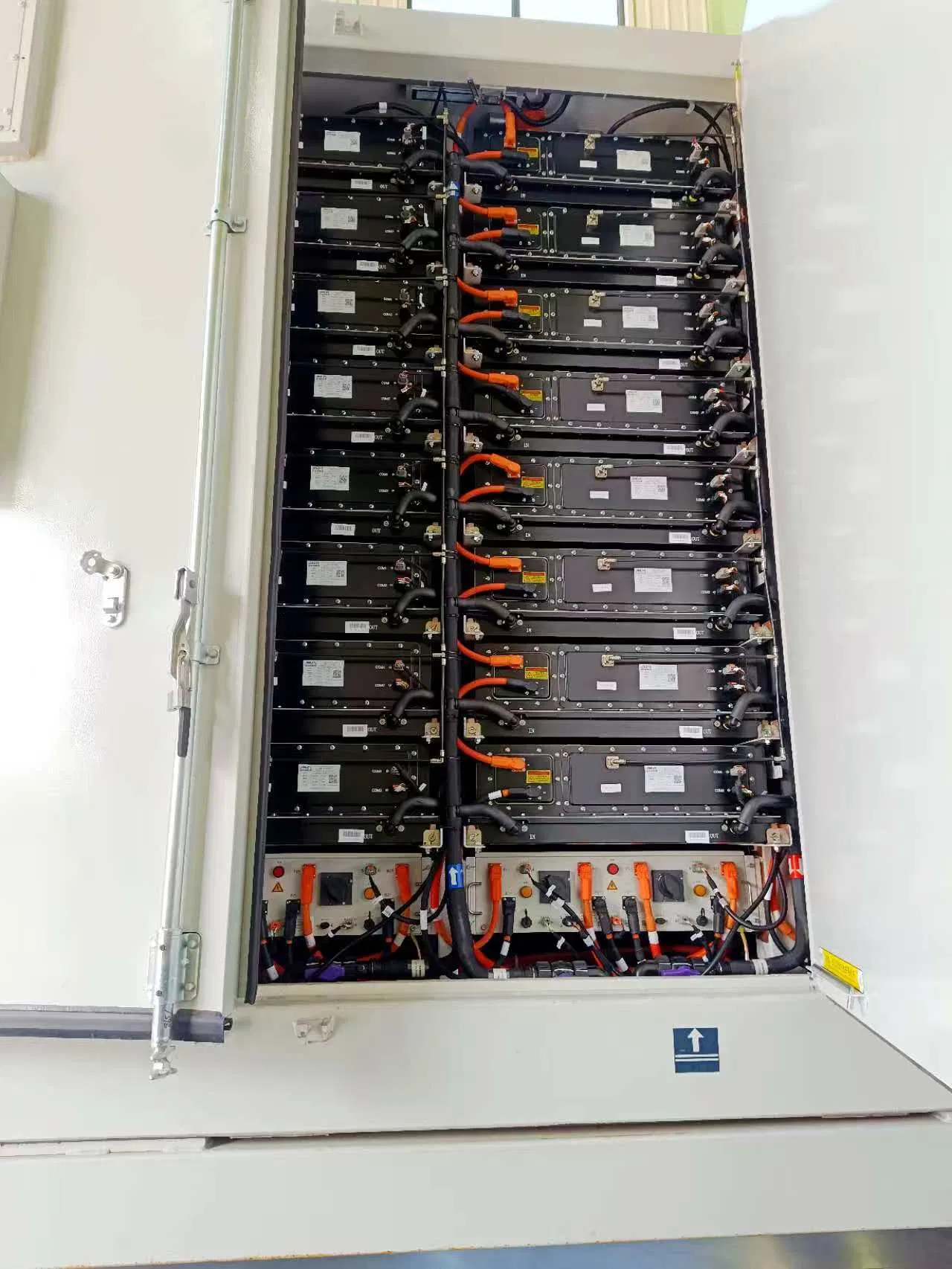

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

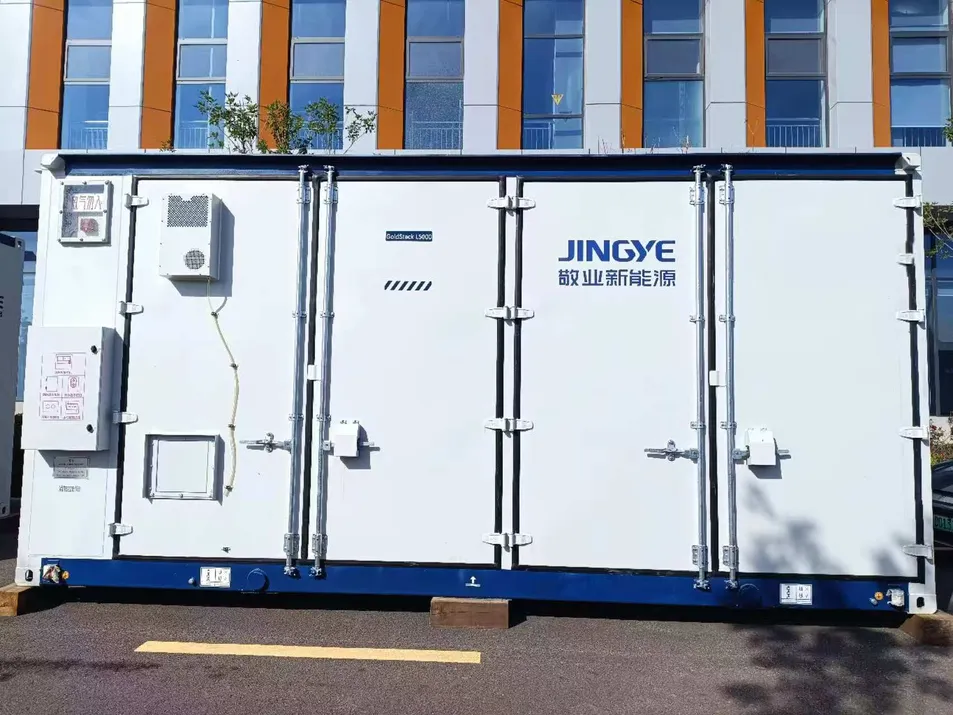

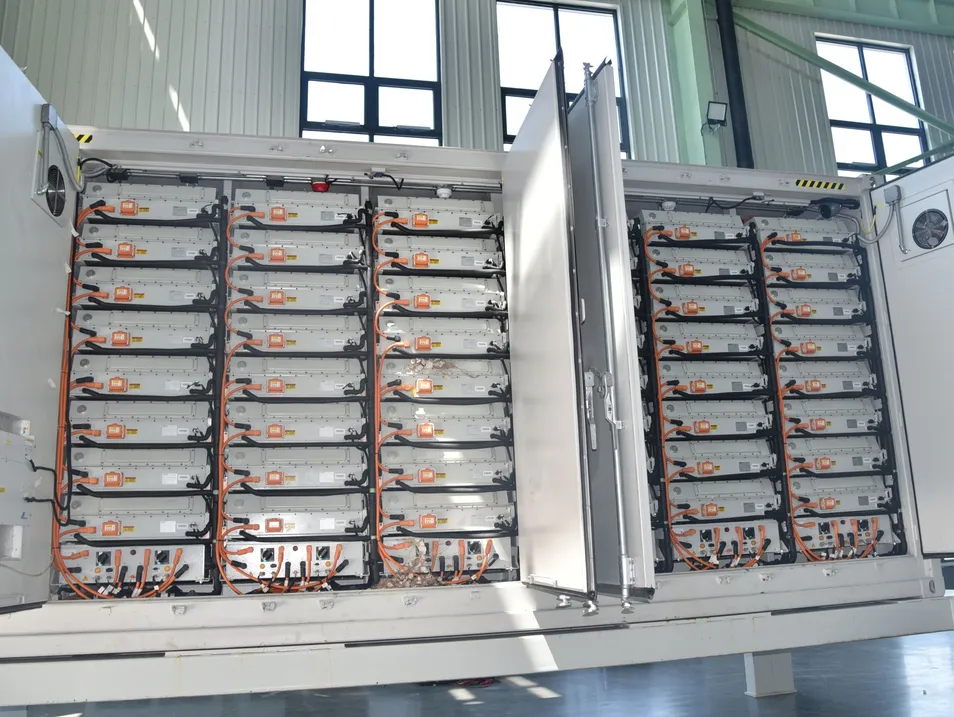

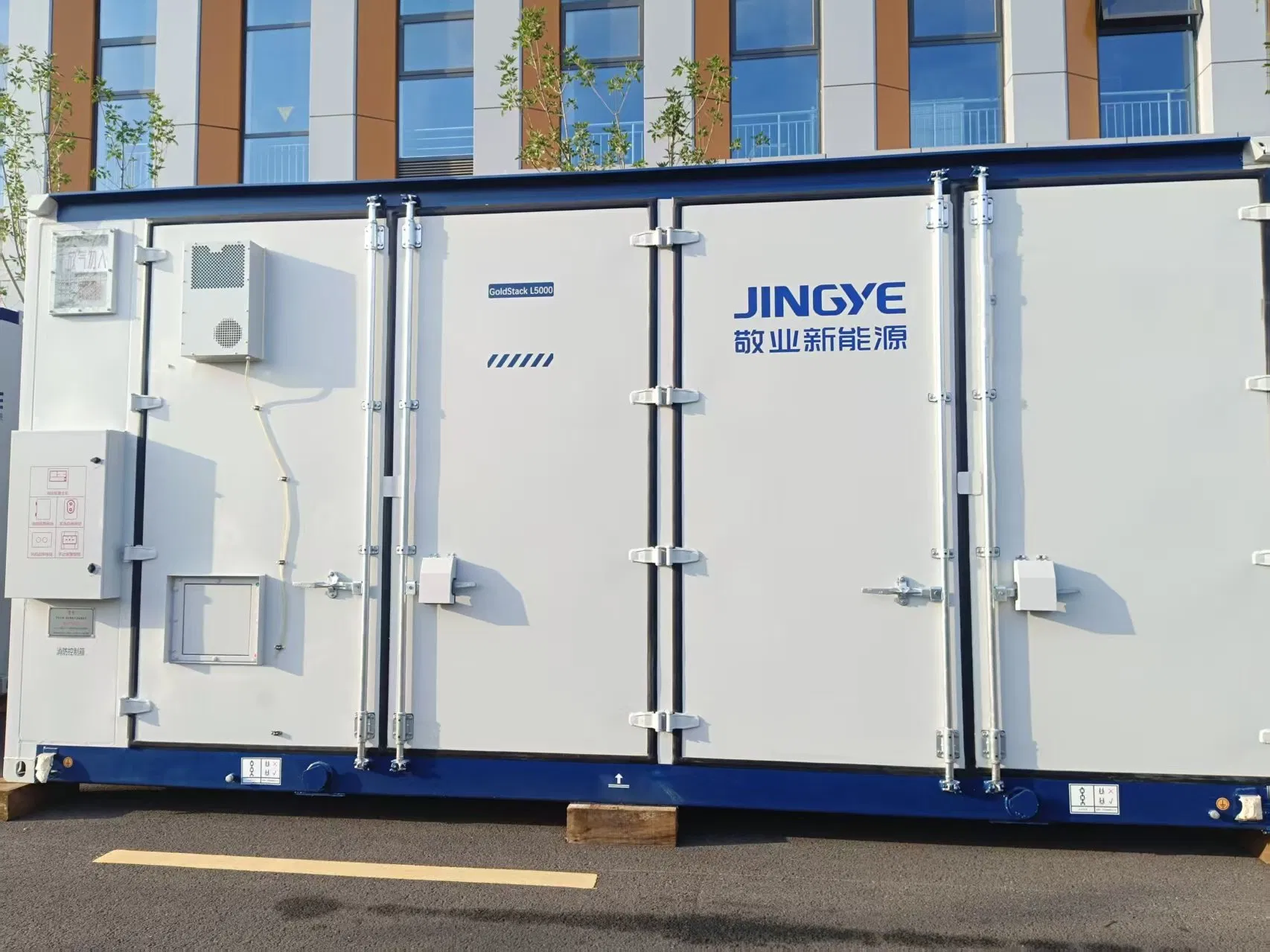

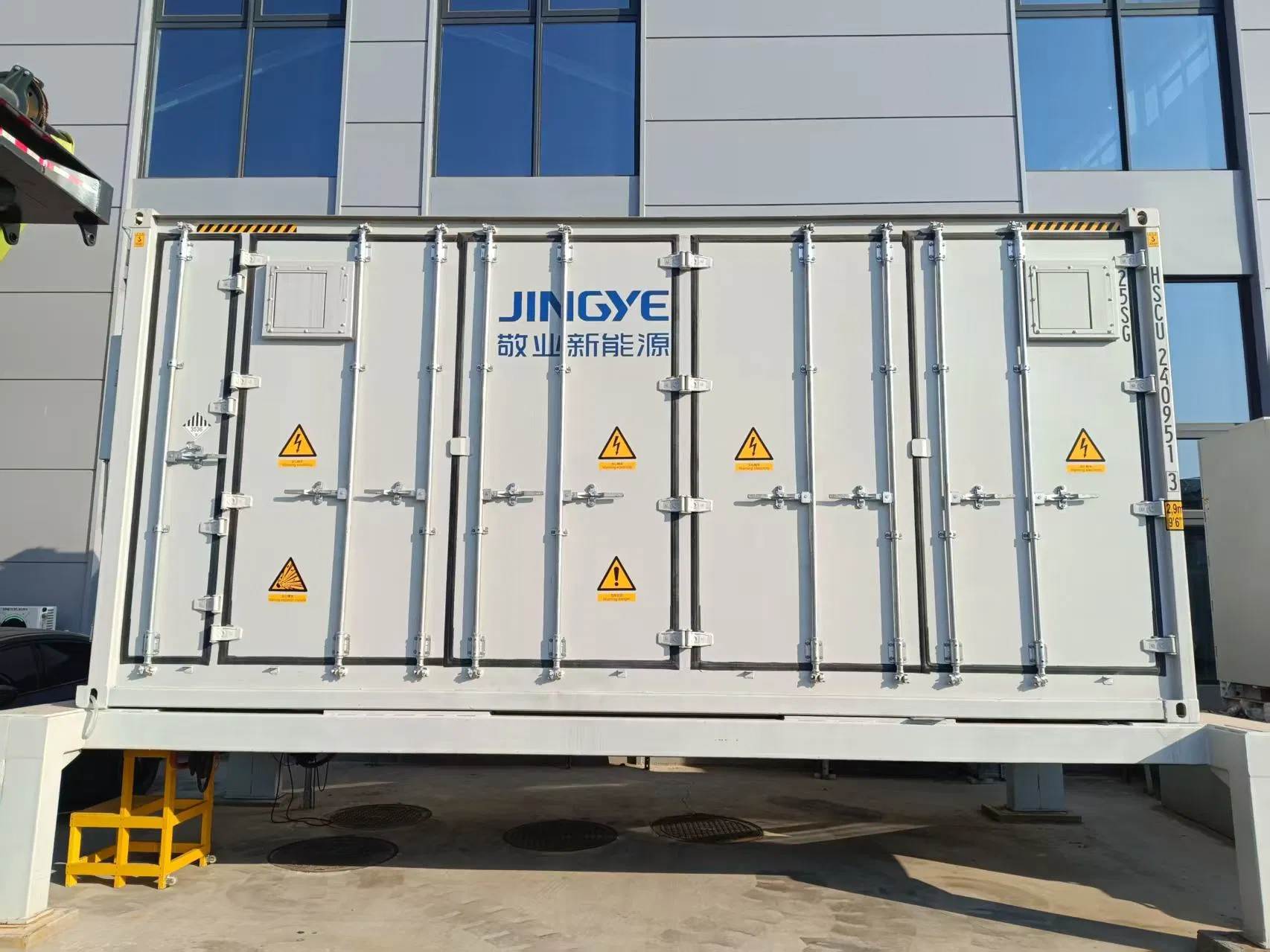

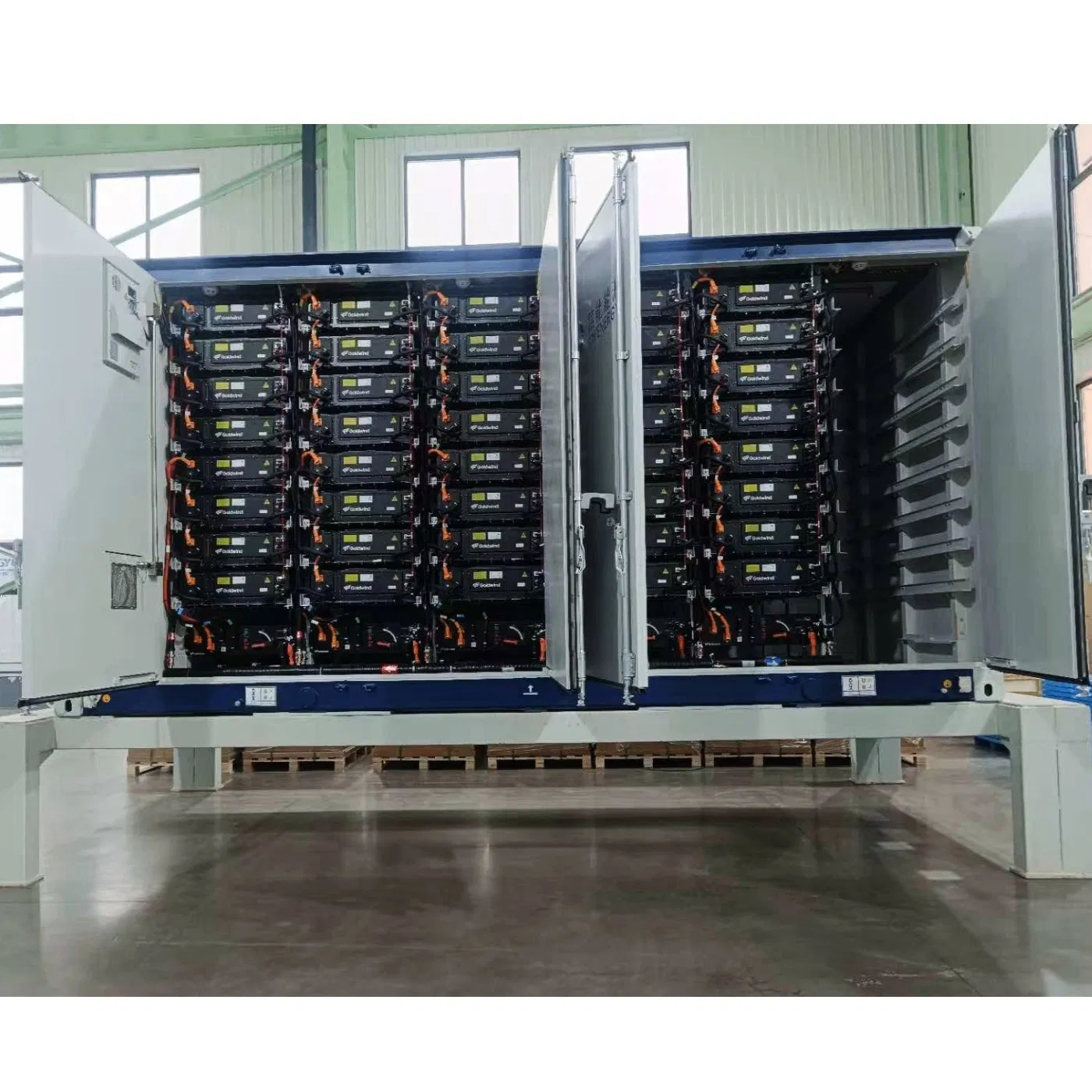

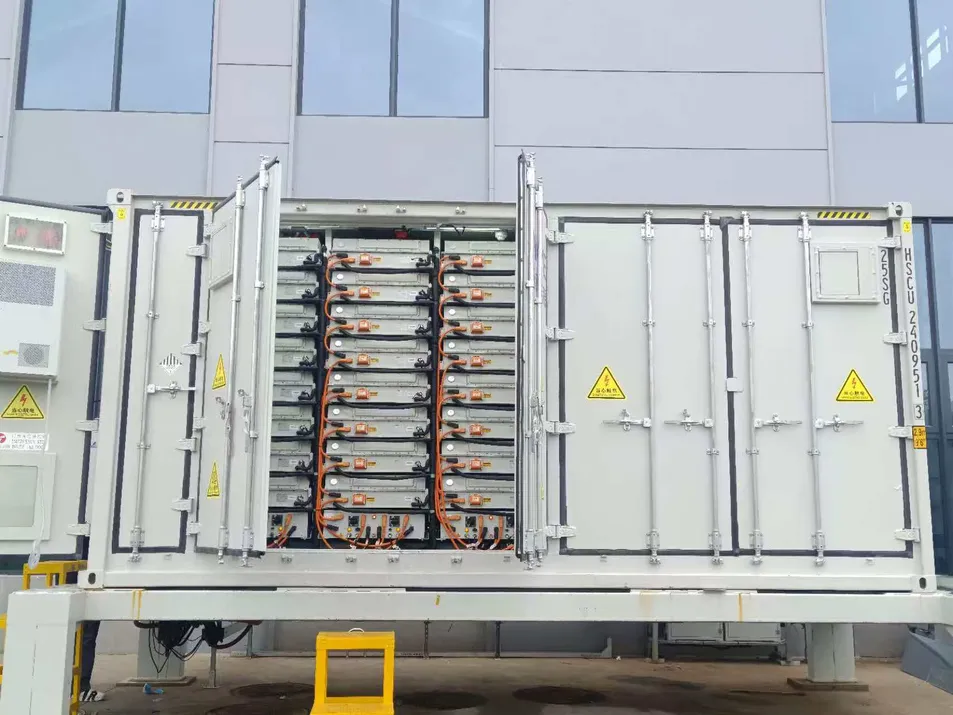

The system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm). Arranged in three compartments, it ensures safety control while being suitable for various transportation conditions and site designs.

★

Core Features

Battery Technology

Utilizes mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.

Thermal Management

High-precision intelligent control ensuring a temperature difference of ≤3℃ inside the PACK and ≤5℃ in the cabinet.

Safety Protection

Three-level automatic alarm and fire extinguishing system using perfluorohexane or aerosol.

Monitoring System

Comprehensive temperature, humidity, smoke, video, and access state monitoring inside the container.

⚙

Technical Specifications

Item	Specification
Configuration	12(1P104S4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Rated Charging/Discharge Power	≤ 2.5MW
Auxiliary Power Supply	400VAC±5% 50Hz / 220VAC
Work Temperature (Charging)	0℃ < T ≤ 60℃
Work Temperature (Discharging)	-30℃ < T ≤ 60℃
Dimensions	L6058 x W2438 x H2896mm
Weight	Approx. 43t
IP Rating	IP54
Communication Protocol	Ethernet, CAN, ModbusRTU
Coolant	50% ethylene glycol aqueous solution

🏭

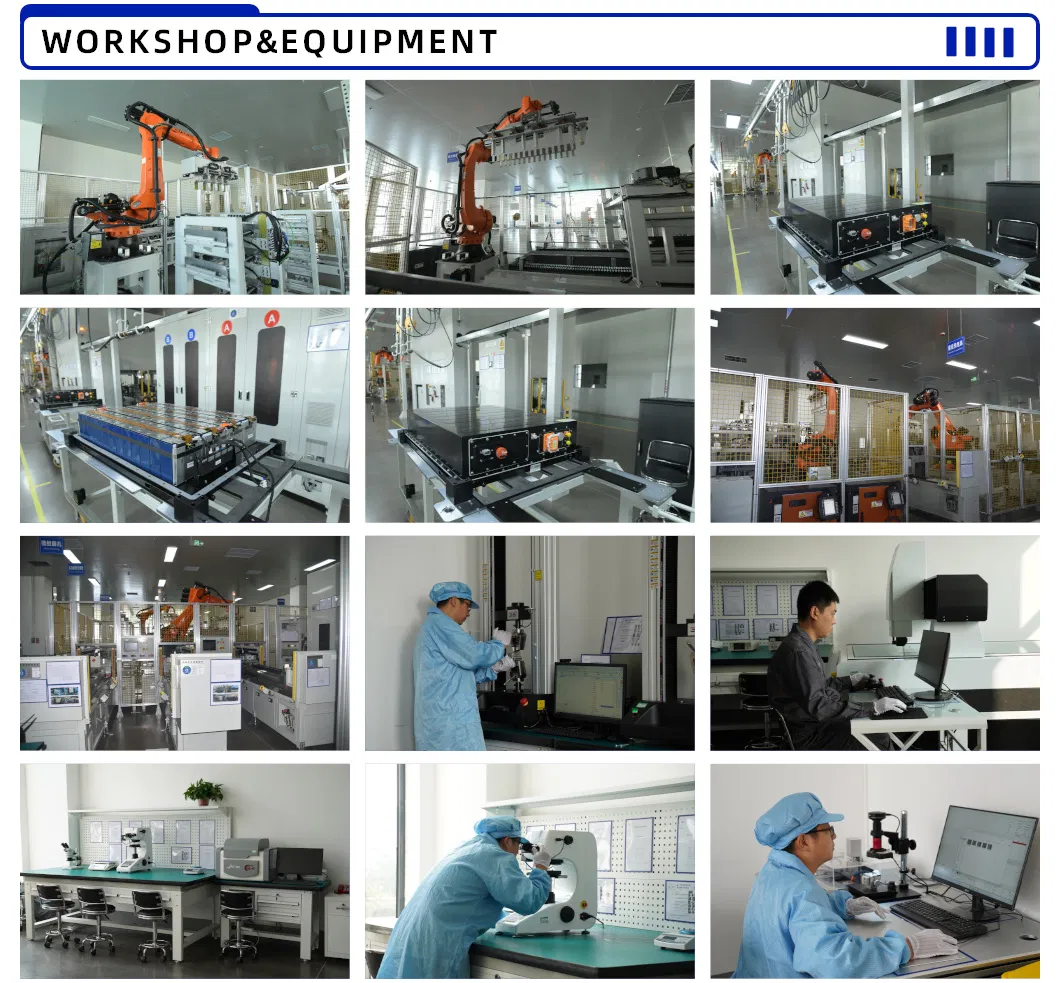

Workshop & Equipment

Equipped with advanced and automated production lines, the annual production capacity reaches 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. The products are widely used in smart grids, wind/solar power distribution, and industrial energy storage.

⎙

Certifications & Exhibition

?

Frequently Asked Questions

Q1: What are the primary energy storage products available?

We provide 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Do you support customization services for specific projects?

Yes, we offer flexible customization services for products across diverse process types and energy requirements.

Q3: How are production and delivery timelines managed?

Equipped with a comprehensive automated production line and proficient technical personnel, we guarantee stable production and on-time delivery.

Q4: Is the company a manufacturer or a trading firm?

We are a formal source factory with standardized production processes, offering competitive pricing and top-quality products.

Q5: What cooling technology is used in the 5MWh container?

The system utilizes advanced Liquid Cooling technology with a 50% ethylene glycol aqueous solution to maintain precise temperature control.

Q6: What safety features are integrated into the storage system?

The system includes a three-level automatic alarm fire extinguishing system for the PACK, cluster, and compartment levels, ensuring maximum safety.
