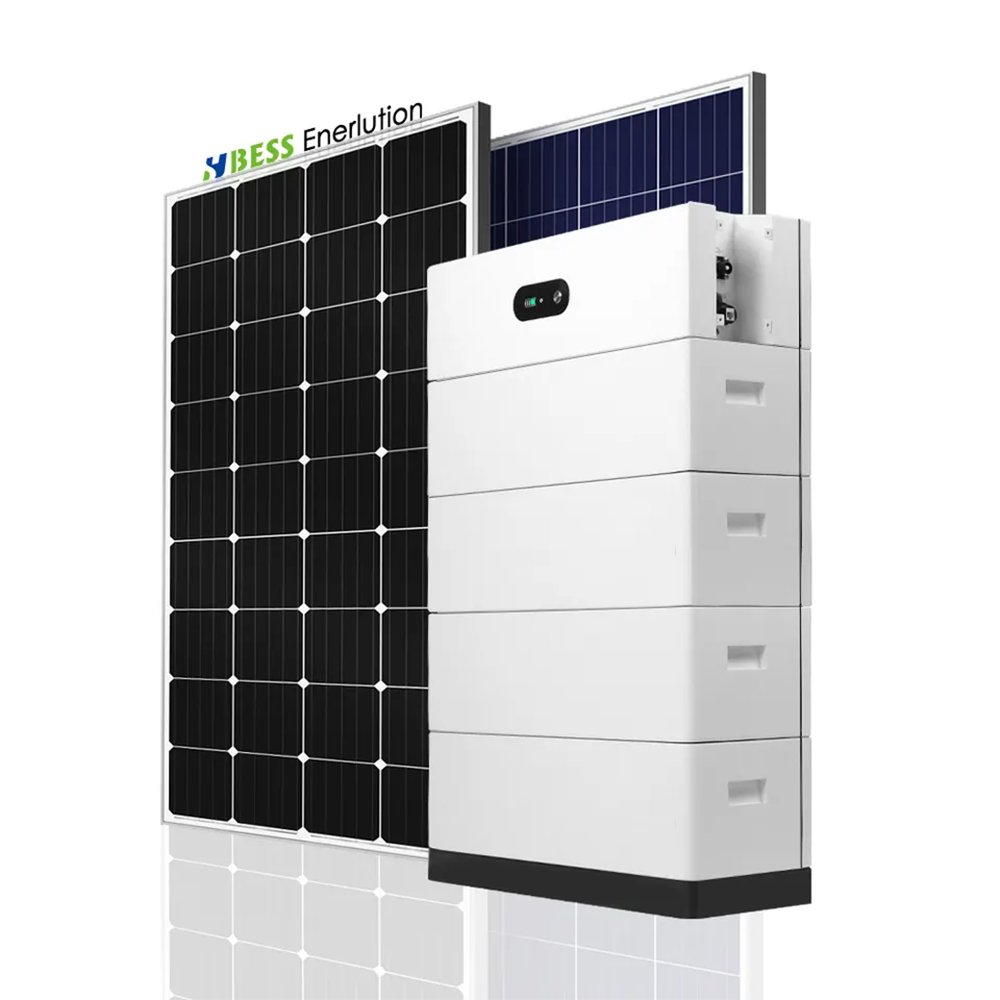

High quality cells, self-developed BMS, easy installation.
Designed for easy installation and ultimate system safety.
| Capacity | 52Ah |
| Max. Discharge/Charge Current | 35A |
| Battery Type | LiFePO4 |
| Installation | Ground-mounted |
| Each Pack Weight & Dimensions | 23.5kg / 220*580*170mm |
| PDU + Base Weight & Dimensions | 14kg / 220*606*220mm |
| Protection Level | IP65 |
| Cycle Life | >6000 cycles @ 25°C, 0.5C, 90% DOD |
| Transportation SOC | 30% |
| Working Temperature | Charge: 0°C ~ +55°C | Discharge: -20°C ~ +55°C |
| Storage Temperature | -20°C ~ +35°C |
| Wi-Fi Module | Optional |
| PDU/Pack Package Dimension | 606*220*225mm |

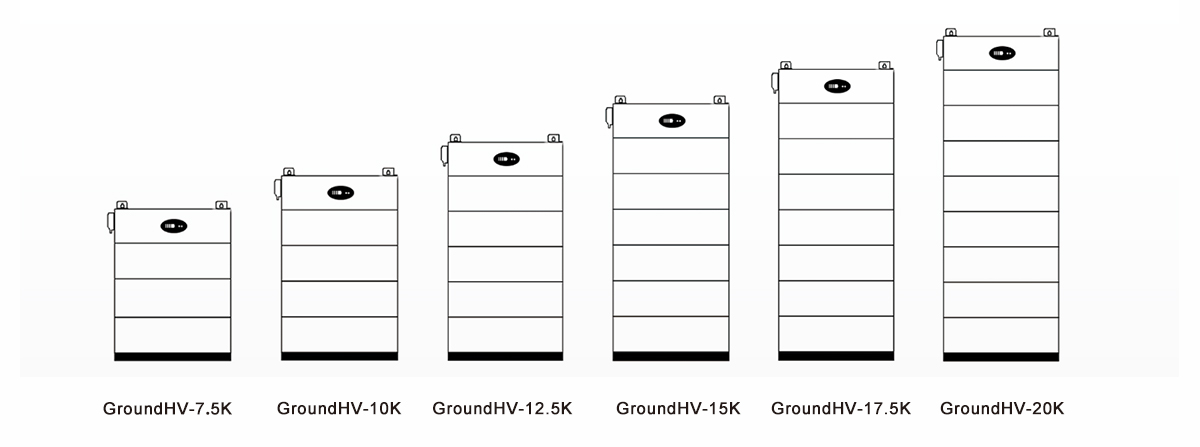

| Specification | GroundHV-7.5K | GroundHV-10K | GroundHV-12.5K |
|---|---|---|---|
| Nominal Voltage | 144V | 192V | 240V |
| Connection | 1P45S | 1P60S | 1P75S |
| Voltage Working Range | 114.7V - 159.7V | 153V - 213V | 153V - 213V |
| Nominal Capacity | 7.488kWh | 9.984kWh | 12.48kWh |
| Weight | ~80kg / 176lb | ~105kg / 231lb | ~129kg / 284lb |
| Dimension (W*H*D) | 606*730*220mm | 606*900*220mm | 606*1070*220mm |
| Specification | GroundHV-15K | GroundHV-17.5K | GroundHV-20K |
|---|---|---|---|
| Nominal Voltage | 288V | 336V | 384V |
| Connection | 1P90S | 1P105S | 1P120S |
| Voltage Working Range | 230V - 319V | 267.7V - 372.7V | 306V - 426V |
| Nominal Capacity | 14.976kWh | 17.472kWh | 19.968kWh |
| Weight | ~152.3kg / 335lb | ~176.2kg / 388lb | ~199.5kg / 438lb |
| Dimension (W*H*D) | 606*1240*220mm | 606*1410*220mm | 606*1580*220mm |

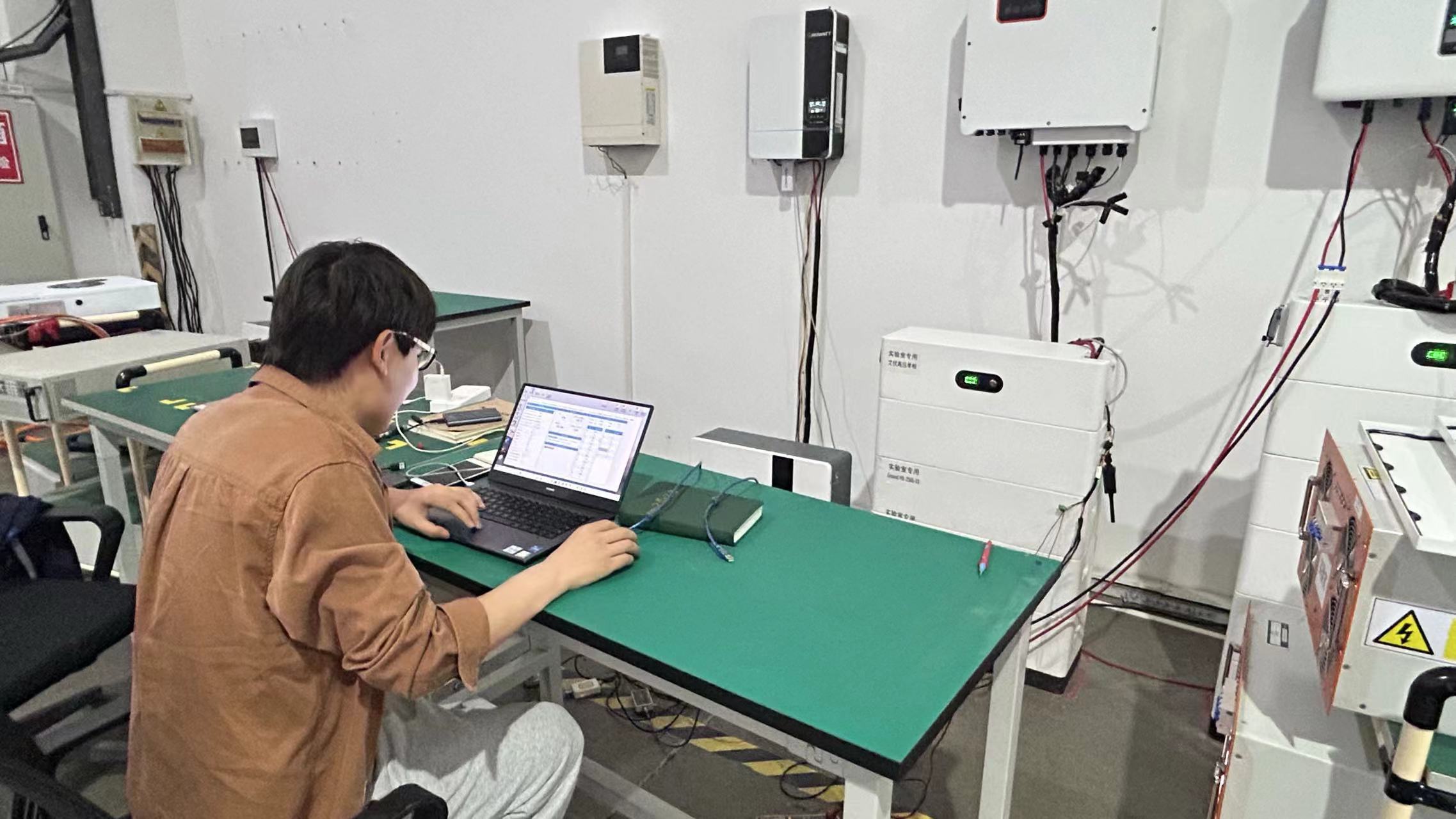

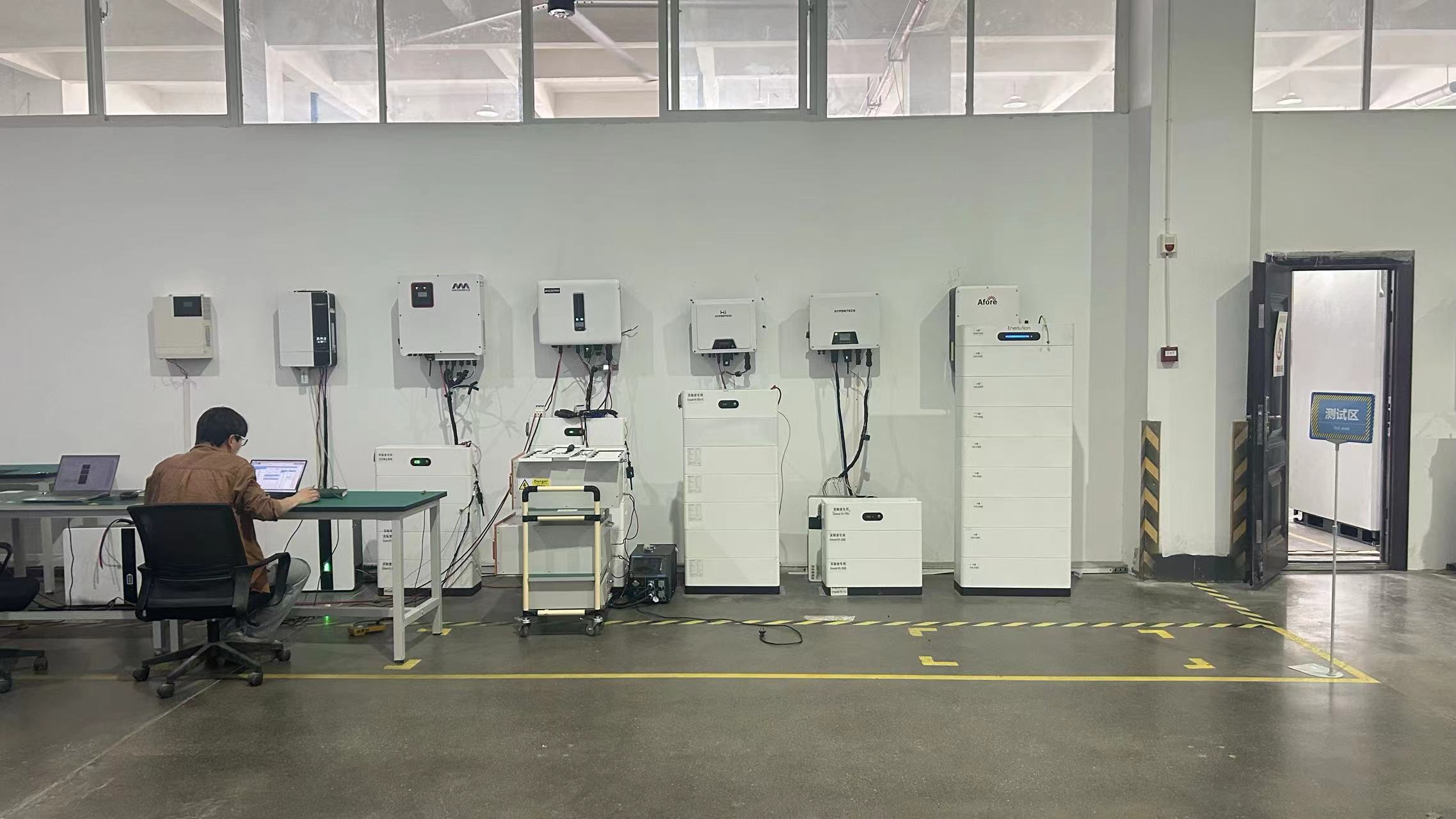

Compatible with most brands of three-phase hybrid inverters, including Growatt, Deye, Goodwe, Sofar, Luxpower, and more. Our batteries are suitable for the vast majority of inverters on the market, backed by continuous matching tests to ensure seamless performance.

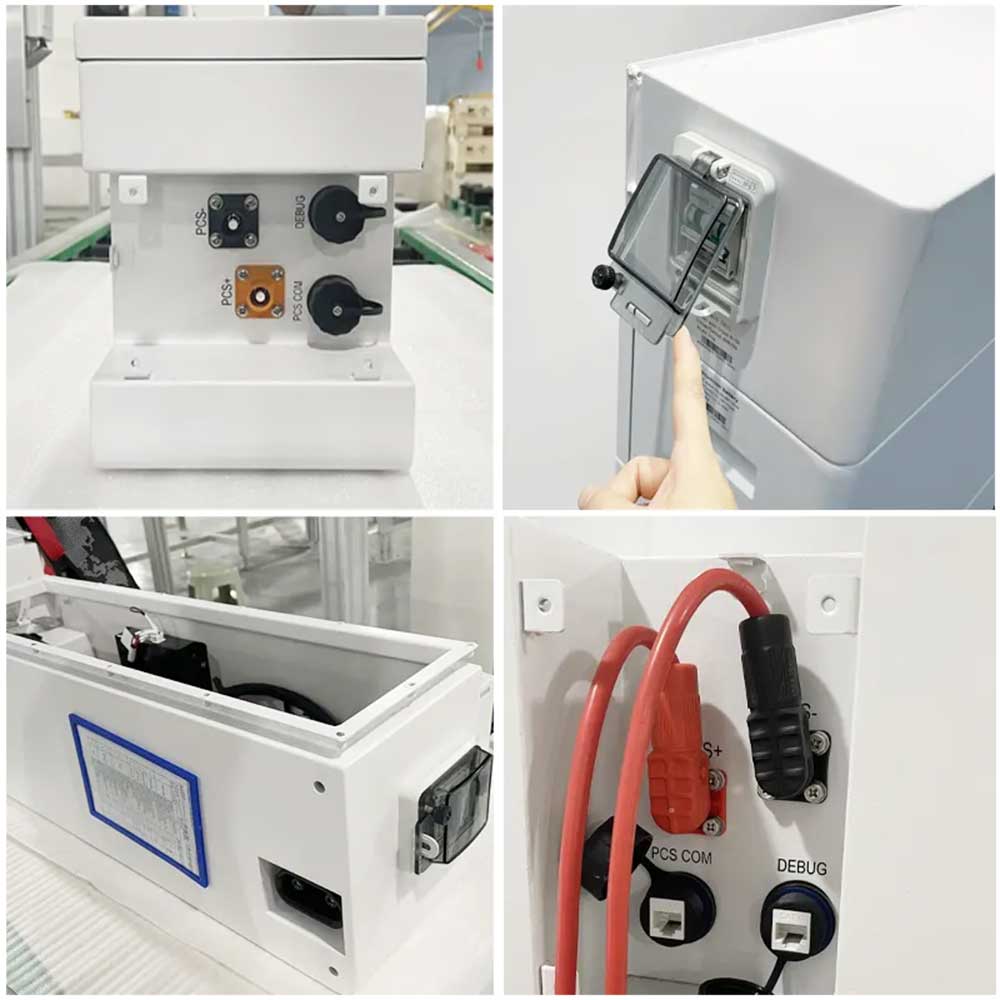

Equipped with a master control switch to restart the battery system easily. Built with premium automotive-grade BMS components and connectors from international leading brands. Main control chip is designed by NXP and certified to meet the ASILB functional safety level. Daisy chain communication technology allows battery packs to be stacked flexibly without order restrictions, maximizing installation convenience.

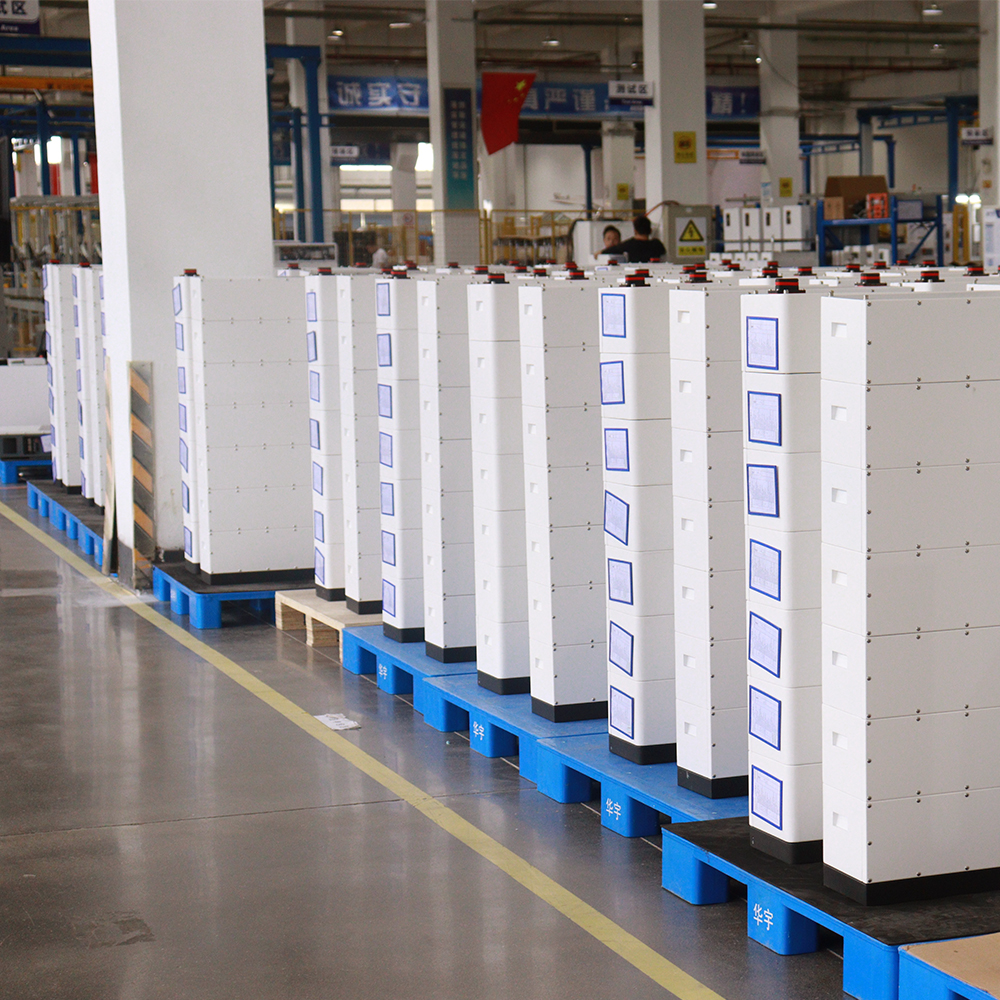

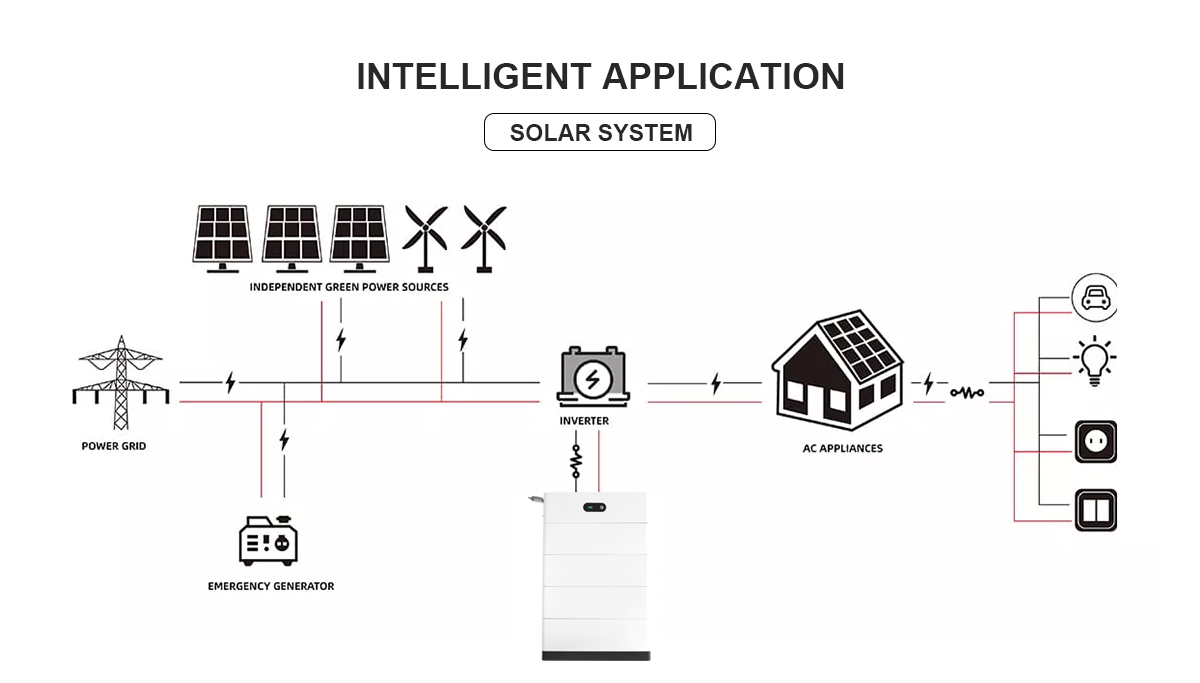

GOTION A+ Grade battery cells achieve more than 6000 cycles life @ 25°C, 0.5C. Ground-mounted or wall-mounted options with capacities ranging from 2.5kWh to 40kWh. Featuring a smart built-in BMS for home solar energy storage.

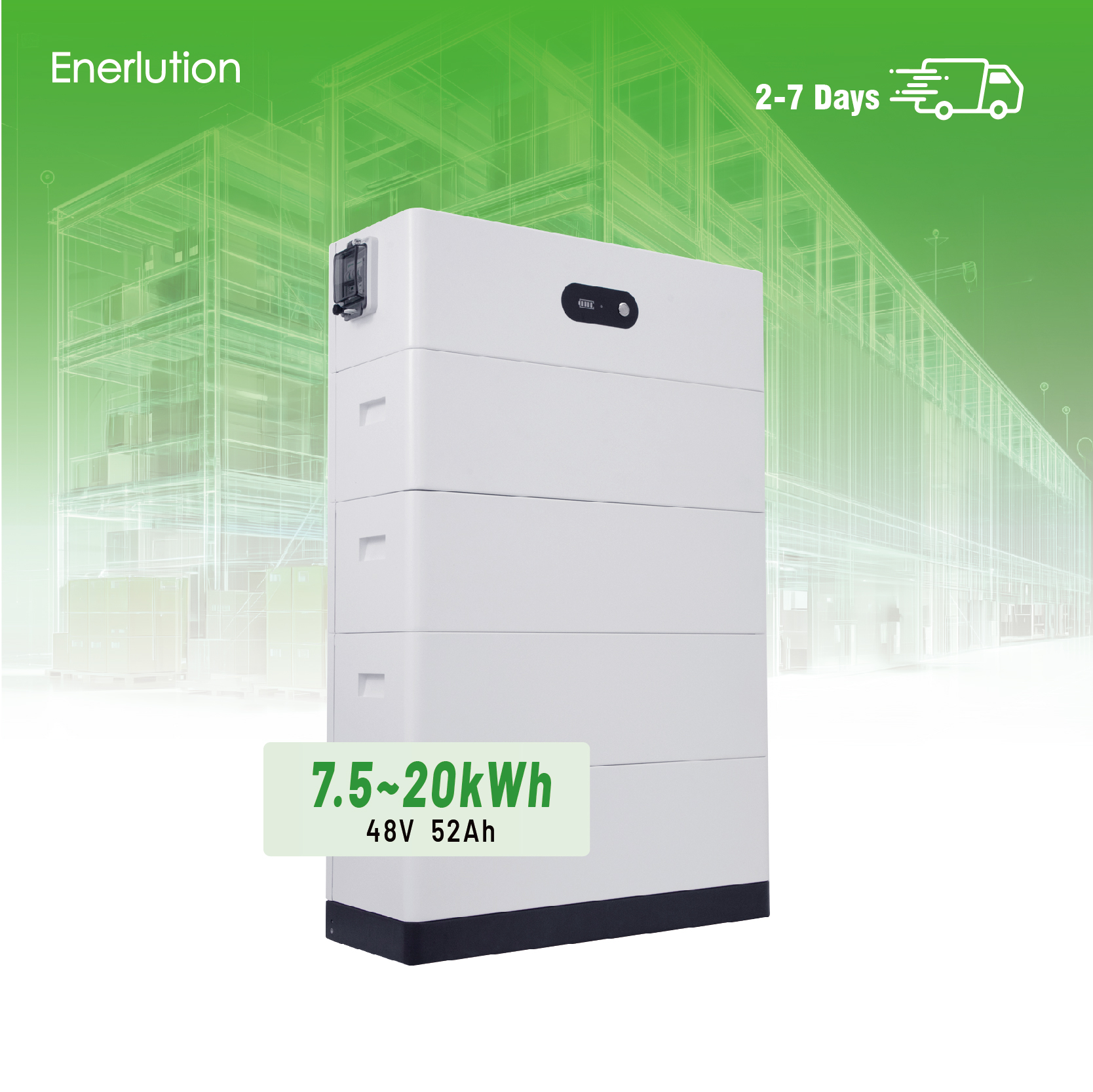

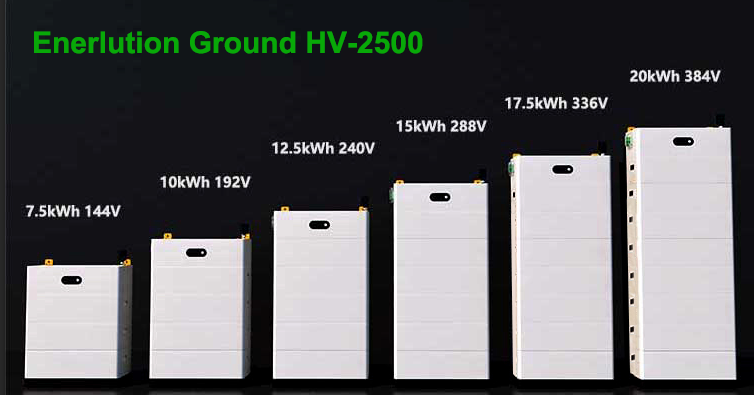

Supports a capacity range from 7.5kWh to 20kWh, configured via a stacked design starting with a minimum of 3 packs + 1 PDU, up to a maximum of 8 packs + 1 PDU. Backed by warehouses located in Europe, Dubai, and China for fast shipping.
Check status and run diagnoses on your phone via APP. Supports remote updates and OTA.

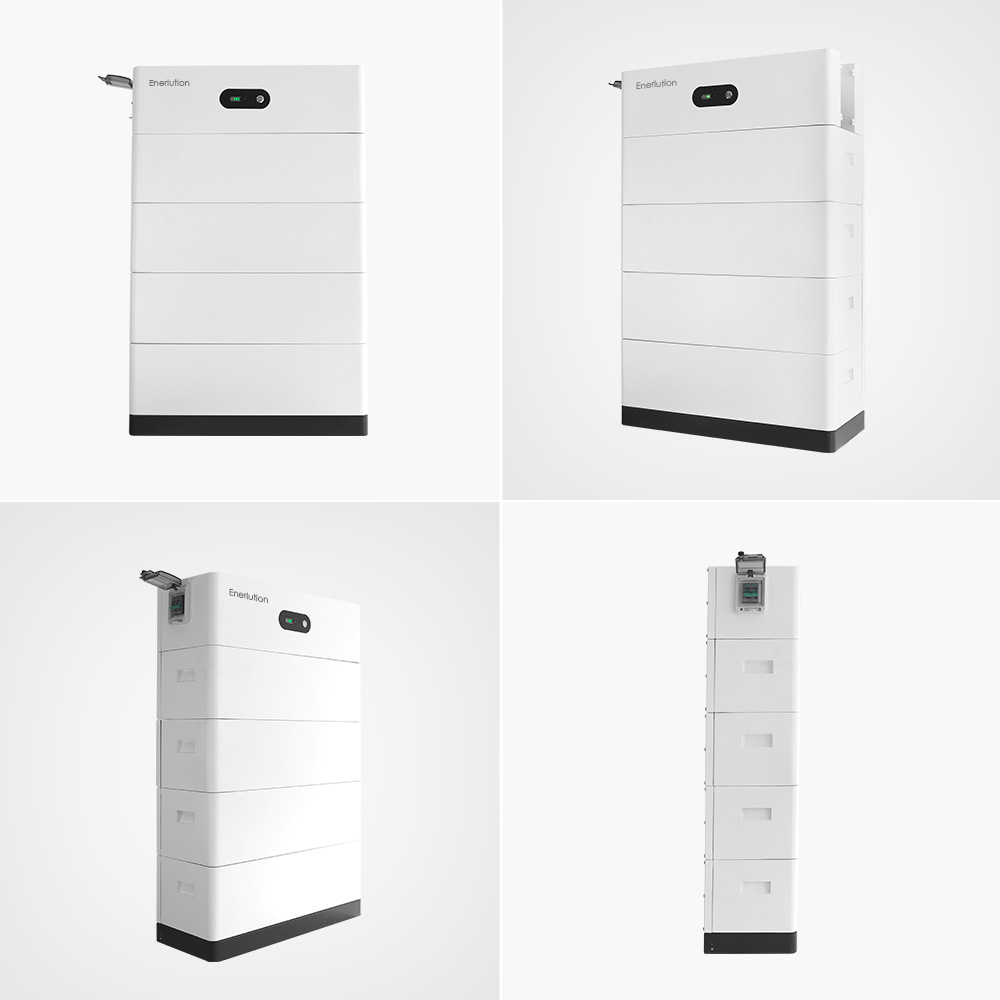

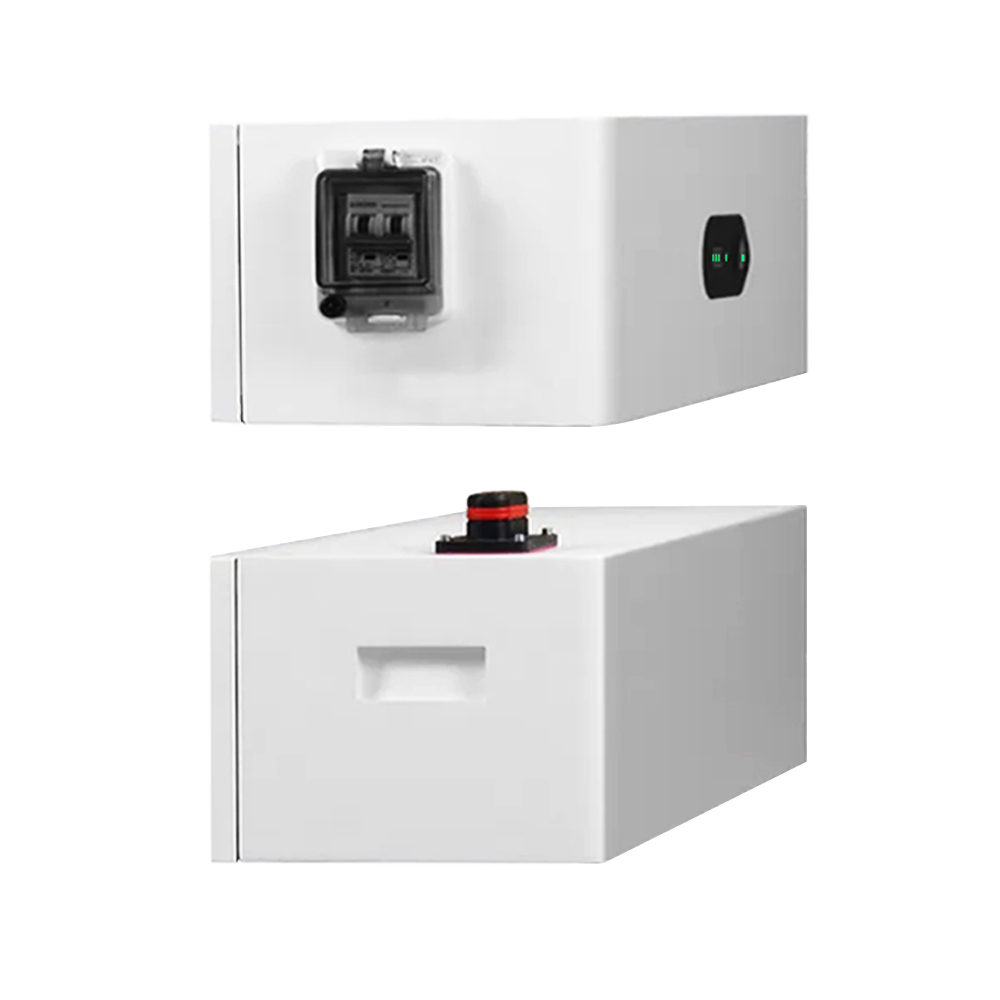

2.5kWh modular design. Scale easily from 7.5kWh to 20kWh system sizes.
Only 24kg (52.9lb) per battery box. Simple quick-connect plug-ins with no extra cabling.
Exclusively built with Lithium Iron Phosphate (LFP) cells. Built-in BMS, fuse, and aerosol safety kit.
Wider working temperature range: -20°C to +55°C. Certified with IP65 dust and water protection.
90% Depth of Discharge (DOD) with more than 6000 cycles (measured at 0.5C, 25°C).

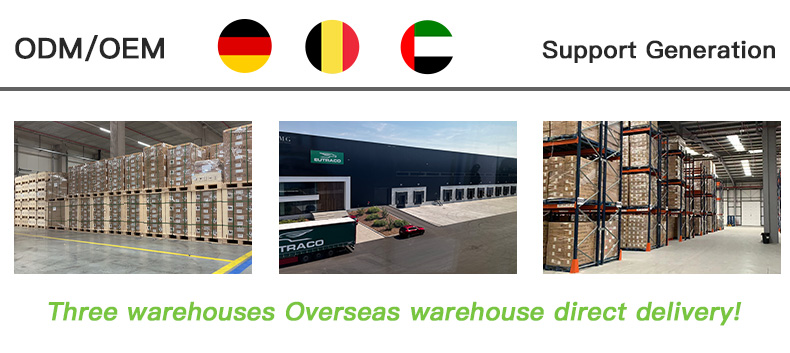

As a supplier of energy storage solutions, we configure completed battery and inverter systems based on your needs. Shipments from local warehouses in Germany, Netherlands, and Belgium save transit time and alleviate capital chain pressures.
Since 2019, multiple regional warehouses have been established in Europe to ensure delivery speeds of 2-7 days for continental shipments. Regional pickup options are supported alongside technical training and local after-sales services.

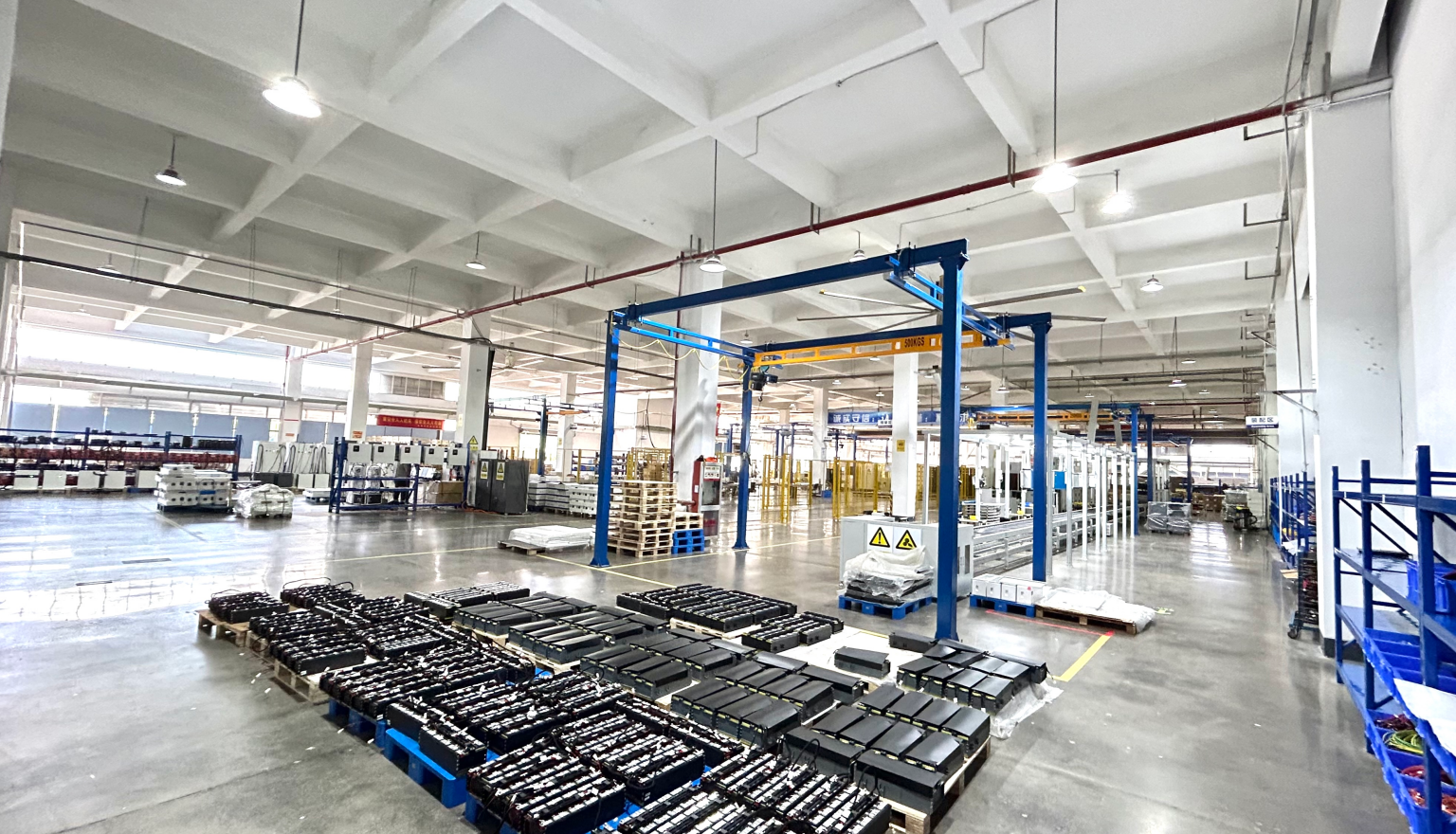

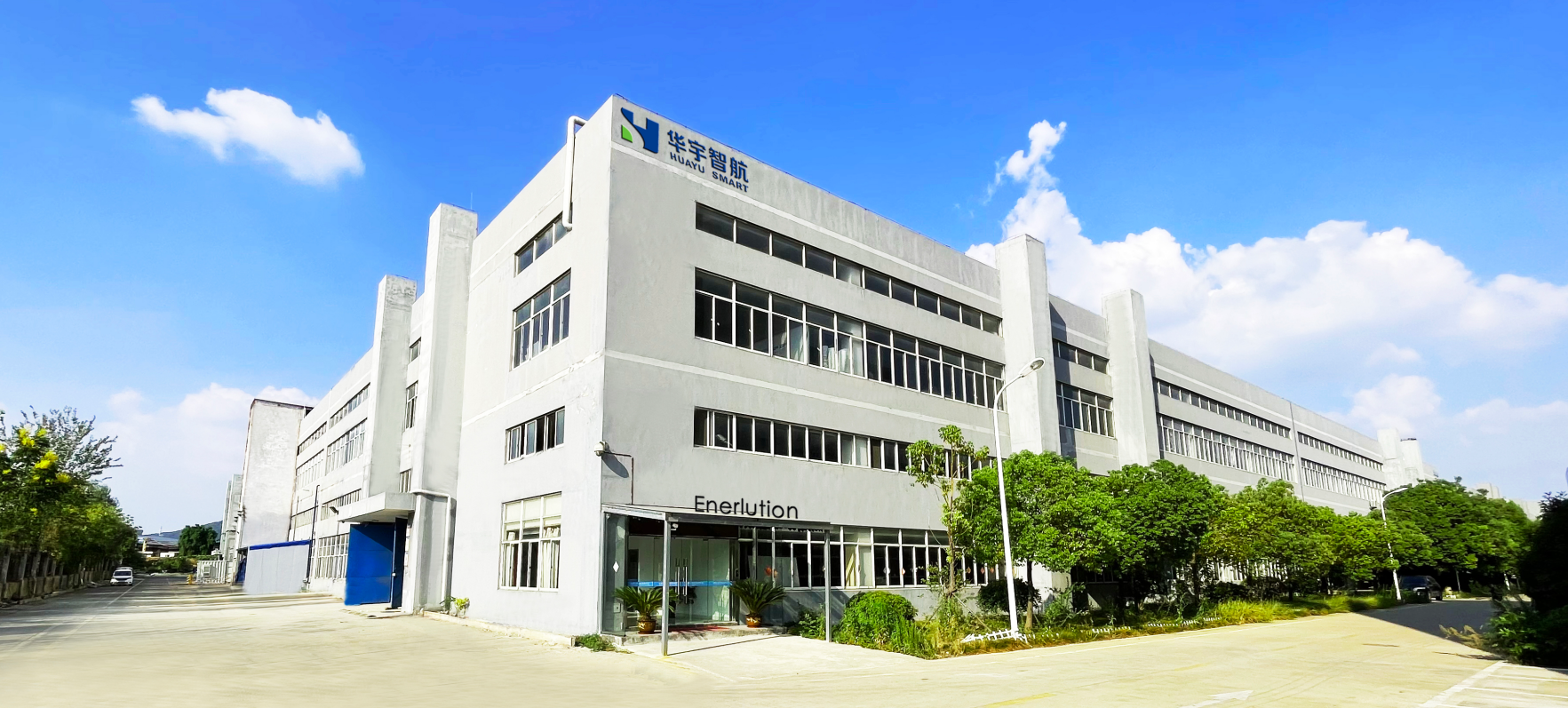

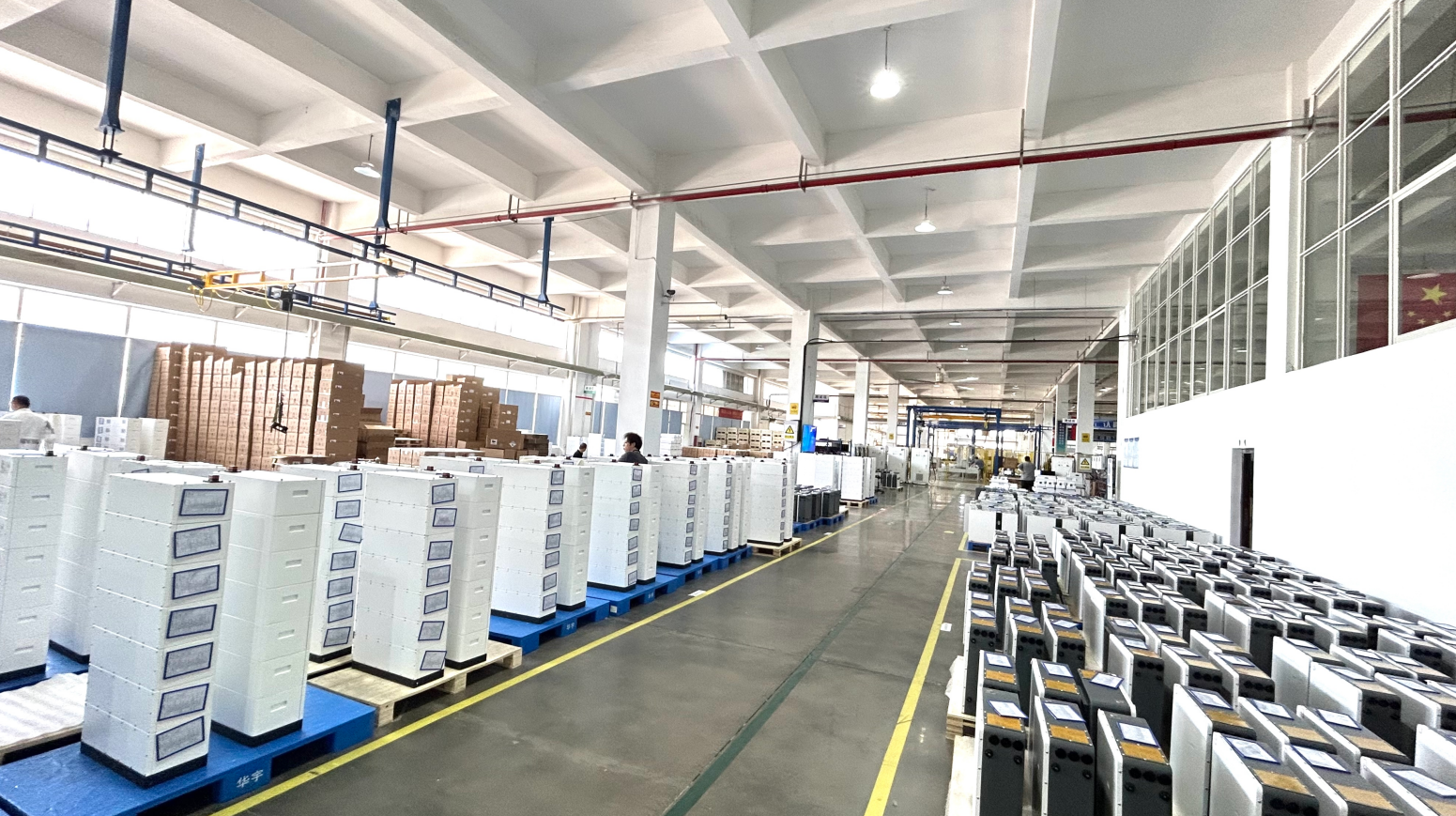

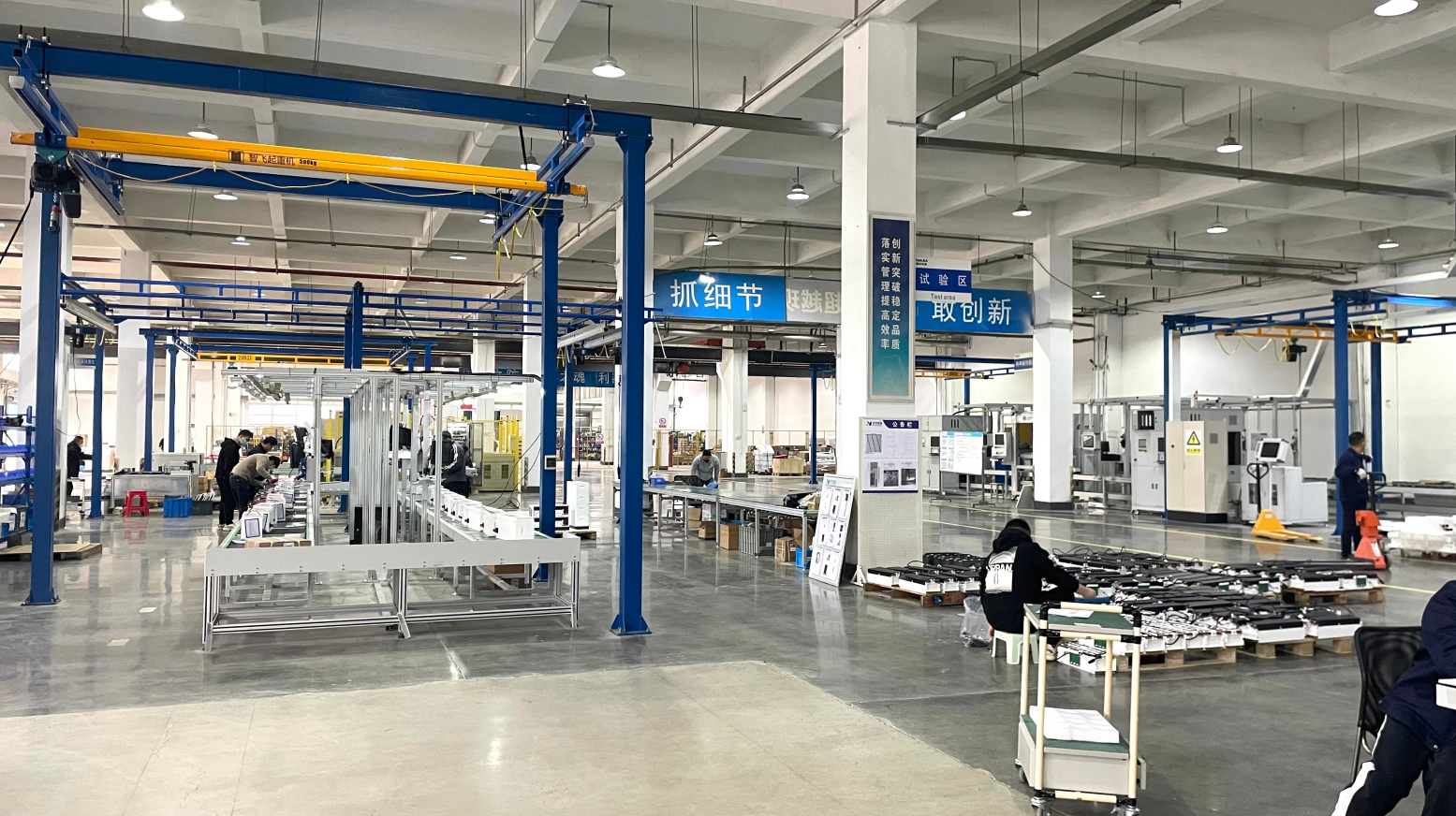

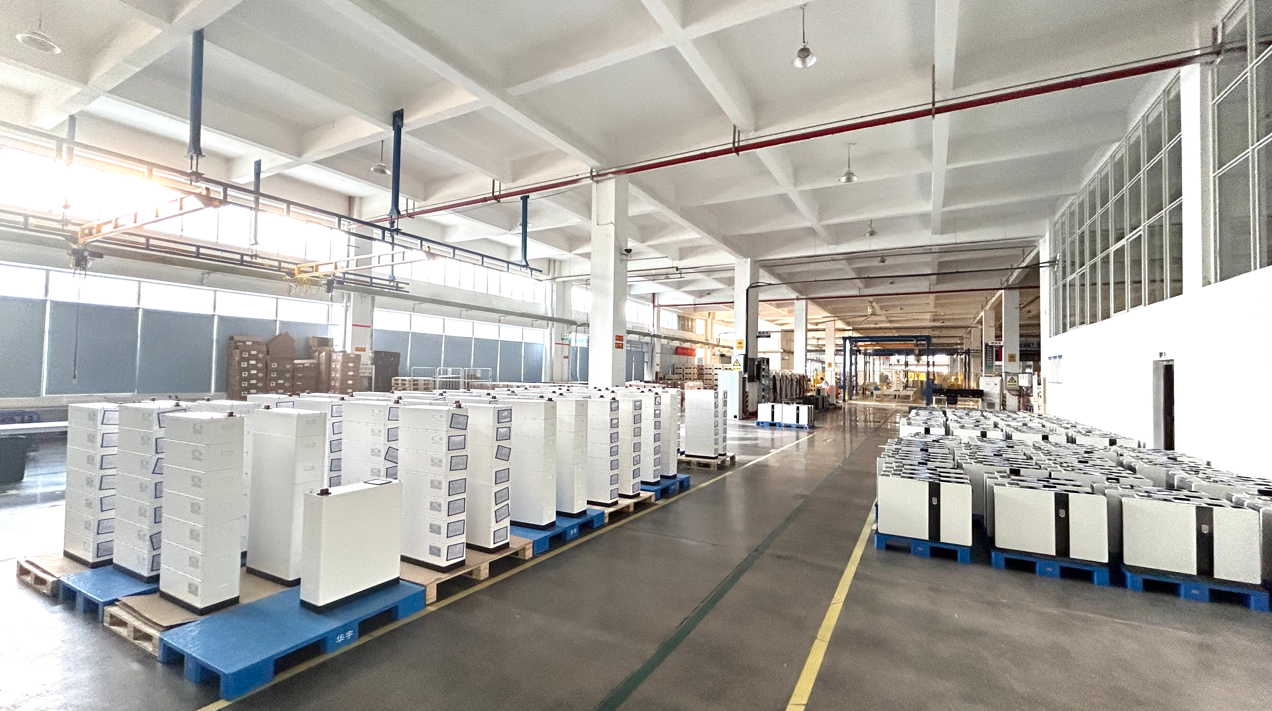

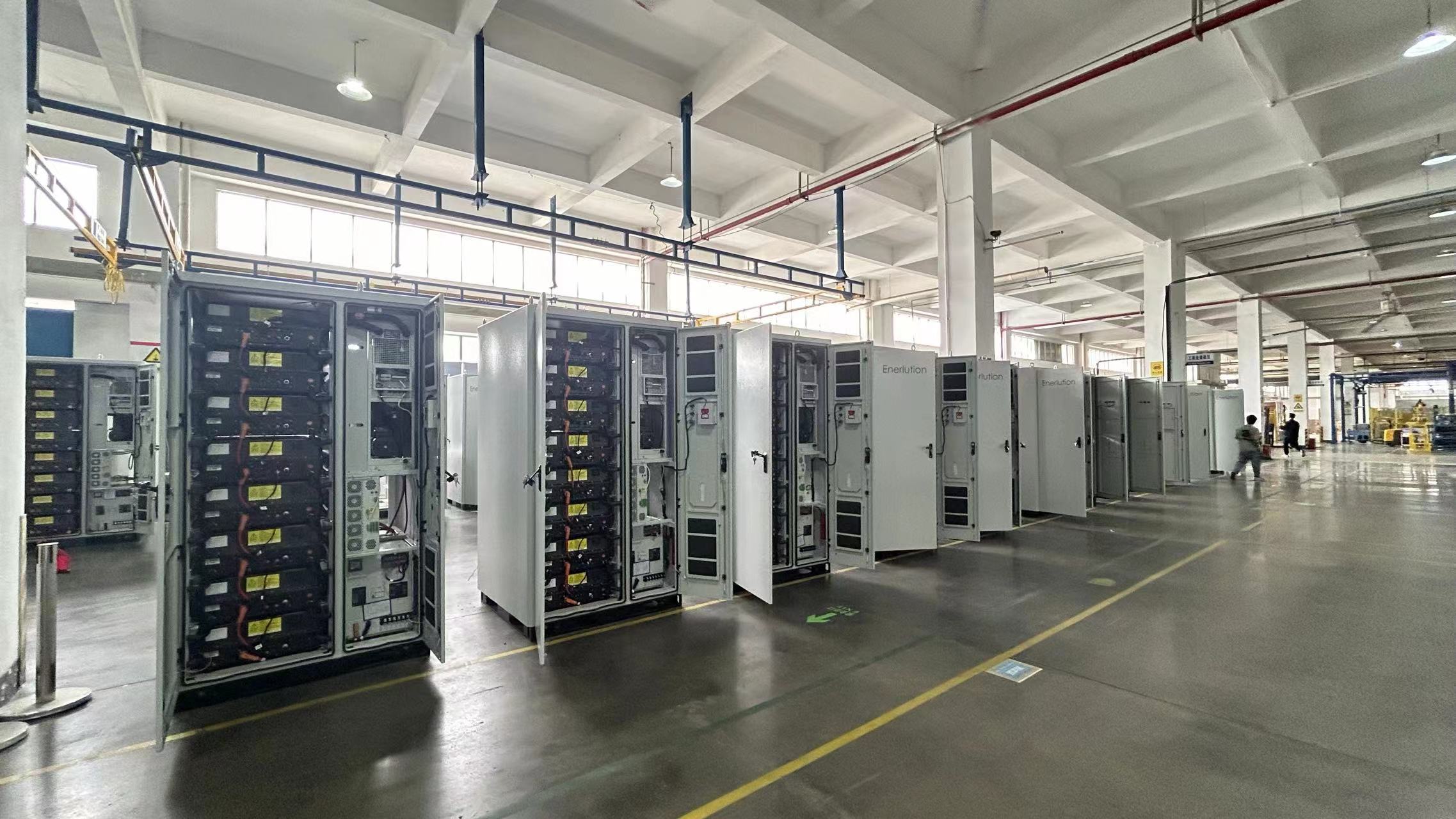

As a leading manufacturer of residential and commercial lithium battery energy storage systems (BESS), we specialize in Battery Management Systems (BMS) and Energy Management Systems (EMS). Our monthly factory production capacity spans 6000 to 10000 battery sets with an annual capacity of 1GWh, equipped to support both OEM and ODM orders. All systems integrate A+ Grade cell technology with core certifications: ISO9001, UN38.3, MSDS, IEC62619, CE, CB, UL1973, UKCA, PSE, CEC, CEI, and VDE.
Sales Price - (Purchase Price + After-Sales Cost) = Profit
Customer Recognition + Reliable Quality = Long-Term Continuous Orders
Since the initial launch, this battery system has drawn visits from numerous global distributors who have signed orders on-site, trusting in the system's long-term cost benefits and reliability over lower-priced alternatives.
June 19-21, 2024
Messe München, Germany
Booth Number: C3-220

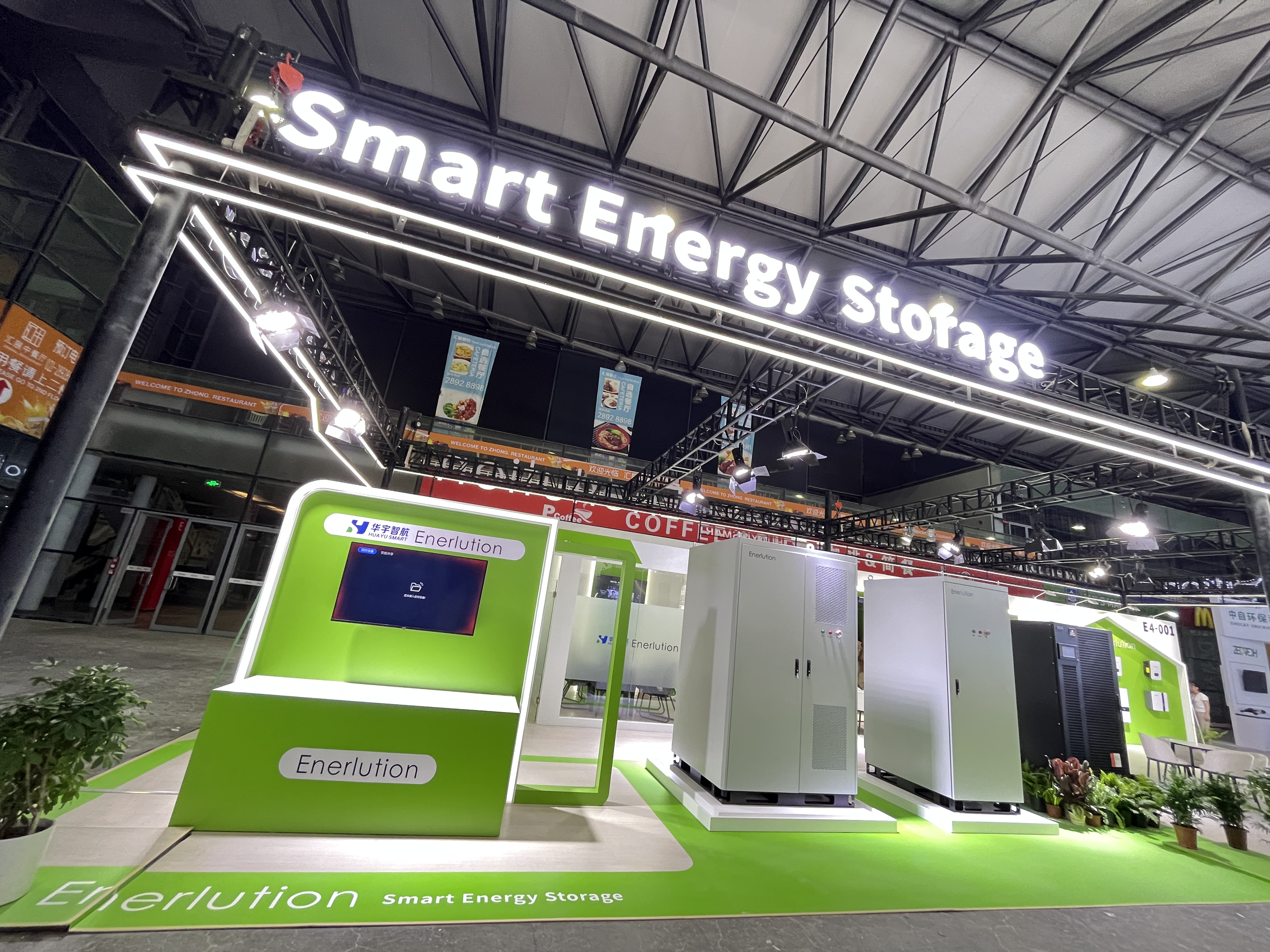

June 13-15, 2024
