| Model Number: GW-5016-3-4S | Place of Origin: Guangdong, China |
| Brand Name: OEM ODM | Base Material: FR-4 |
| Copper Thickness: 1OZ | Board Thickness: 0.8mm |
| Certificate: ROSH, ISO9001 | Warranty: 12 months |
| Application: 4s Lifepo4 | Keywords: 32650 bms |
| NO. | Item | Symbol | Specification |
|---|---|---|---|
| 1 | Material Structure | VDET1 | 4.375±0.05V |
| 2 | Over-charge release voltage | VREL1 | 4.175±0.05V |
| 3 | Over-discharge voltage | VDET2 | 2.500±0.075V |
| 4 | Over-discharge release voltage | VREL2 | 2.9±0.075V |
| 5 | Inner Resistance | RDS | 60 mΩ |
| 6 | Excess Current protection for discharging | IDP | 3A-10A |
| 7 | Short circuit protection | - | yes |
| 8 | Short circuit protection delay time | TSHORT | 80±40μS |
| NO. | Item | Specification |
|---|---|---|
| 1 | Material Structure | FR4 / Cooper |
| 2 | Cooper thickness | 1oz-4oz |
| 3 | PCB thickness | 0.02--0.04inch |
| 4 | Min. circuit width | 0.008inch |
| 5 | Min. hole size | 0.008inch |
| 6 | Surface Treatment (OSP) | 0.3-0.5um |
| 7 | Surface Treatment (HASL) | 2-40um |
| 8 | Solder mask | Blue/Green |

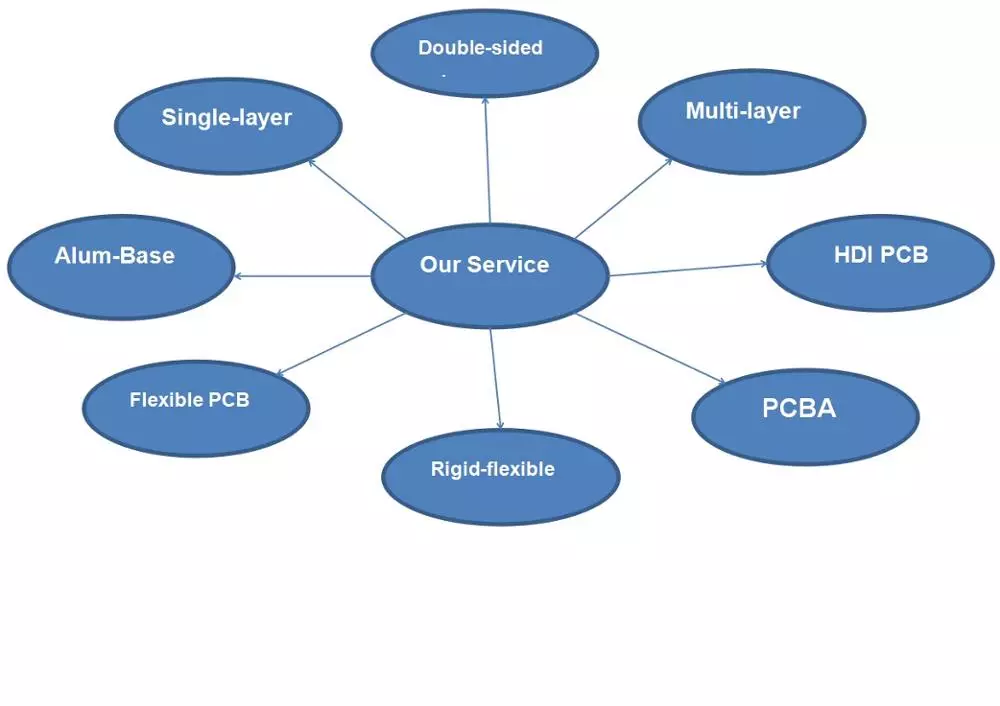

We offer one-stop services for battery PCBA with the following core capabilities:
Widely applied in mechanical, communication, home-intelligent, and automotive products.
We are a team with more than 20 years of field experience. We possess abundant expertise in serving overseas customers from industrial automatic control, communication, medical, automotive, and consumer electronics sectors. We test our products strictly to guarantee quality.
Value-added services you receive:
