| Model No | 051314A-B-GBP2F |
| Nominal Parameters | |
| Battery Chemistry | LiFePO4 |
| Voltage | 51.2V |
| Operating Voltage | 46-56V |
| Capacity | 314Ah |
| Energy | 16.08kWh |
| Scalability | Max.16pcs in parallel (257kWh) |
| Recomend Discharge Energy (80% DOD) | 14.47kWh |
| Recommend | 100A |
| Charge/Discharge Current | Max. 150A |
| Peak(2mins,25°C) | 200A |
| Basic Parameters | |
| Recommed Depth of Discharge | 90% |

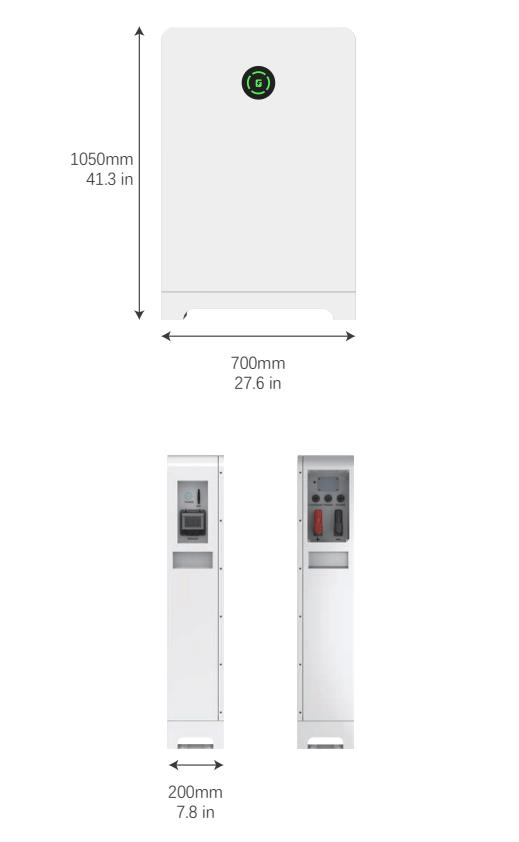

| Dimension (W×H×D) | 700×1050×200mm / 27.6×41.3×7.9 in |
| Weight Approximate | 145.5kgs / 320 lbs |
| Master LED Indicator | 4 LED (SOC:25%~100%), 2 LED (working, alarming, protecting) |
| IP Rating of Enclosure | IP65 |
| Working Temperature | Charge:0°C~55°C Discharge:-20°C~55°C |
| Storage Temperature | 0°C~35°C |
| Humidity | 5%~95% |
| Altitude | ≤2000m |
| Cycle Life (25±2°C,0.5C/0.5C,80%EOL) | ≥10000 |
| Installation | Ground/Outdoor |
| Communication Port | CAN2.0, RS485, WiFi |
| Warranty Period [3] | 15 years |
| Certification | CB-IEC62619, CE-EMC, UN38.3, MSDS |
