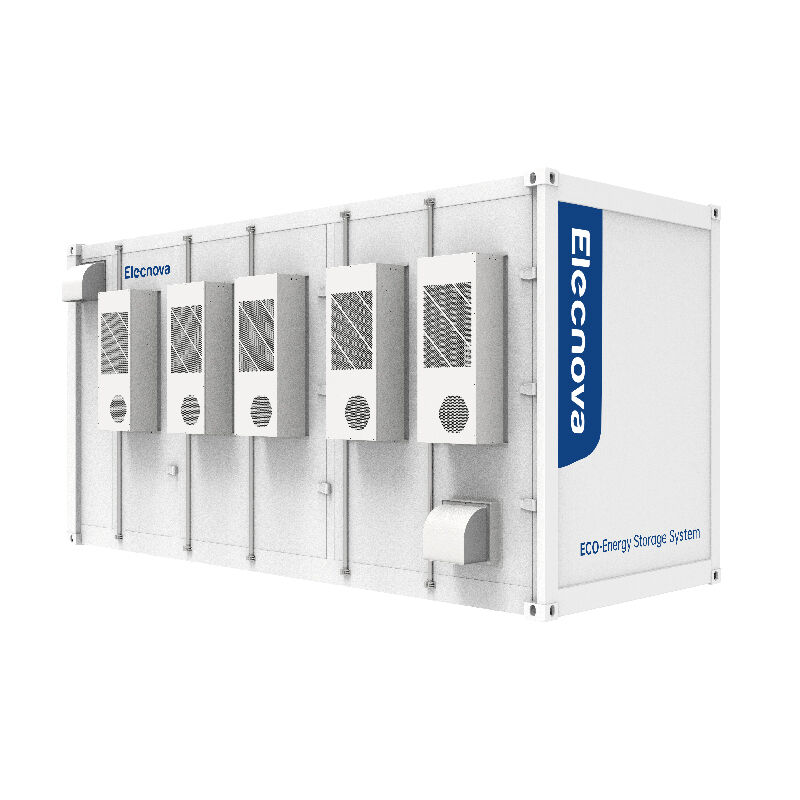

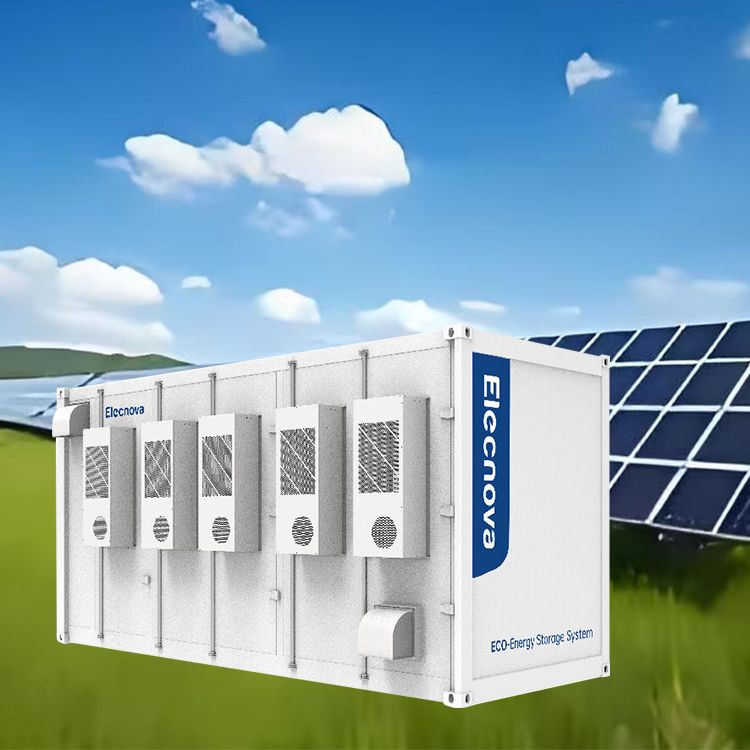

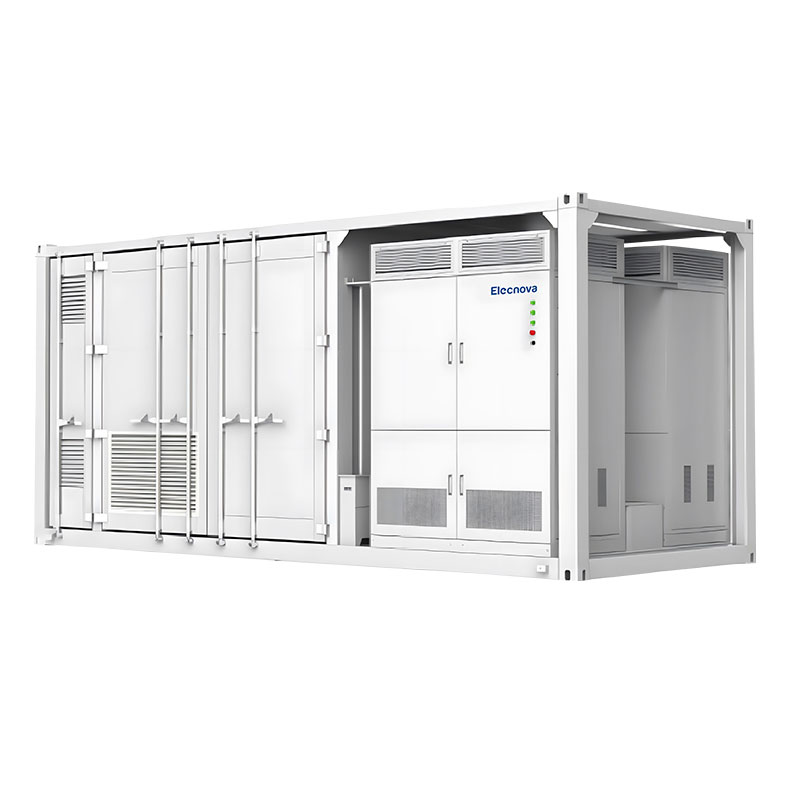

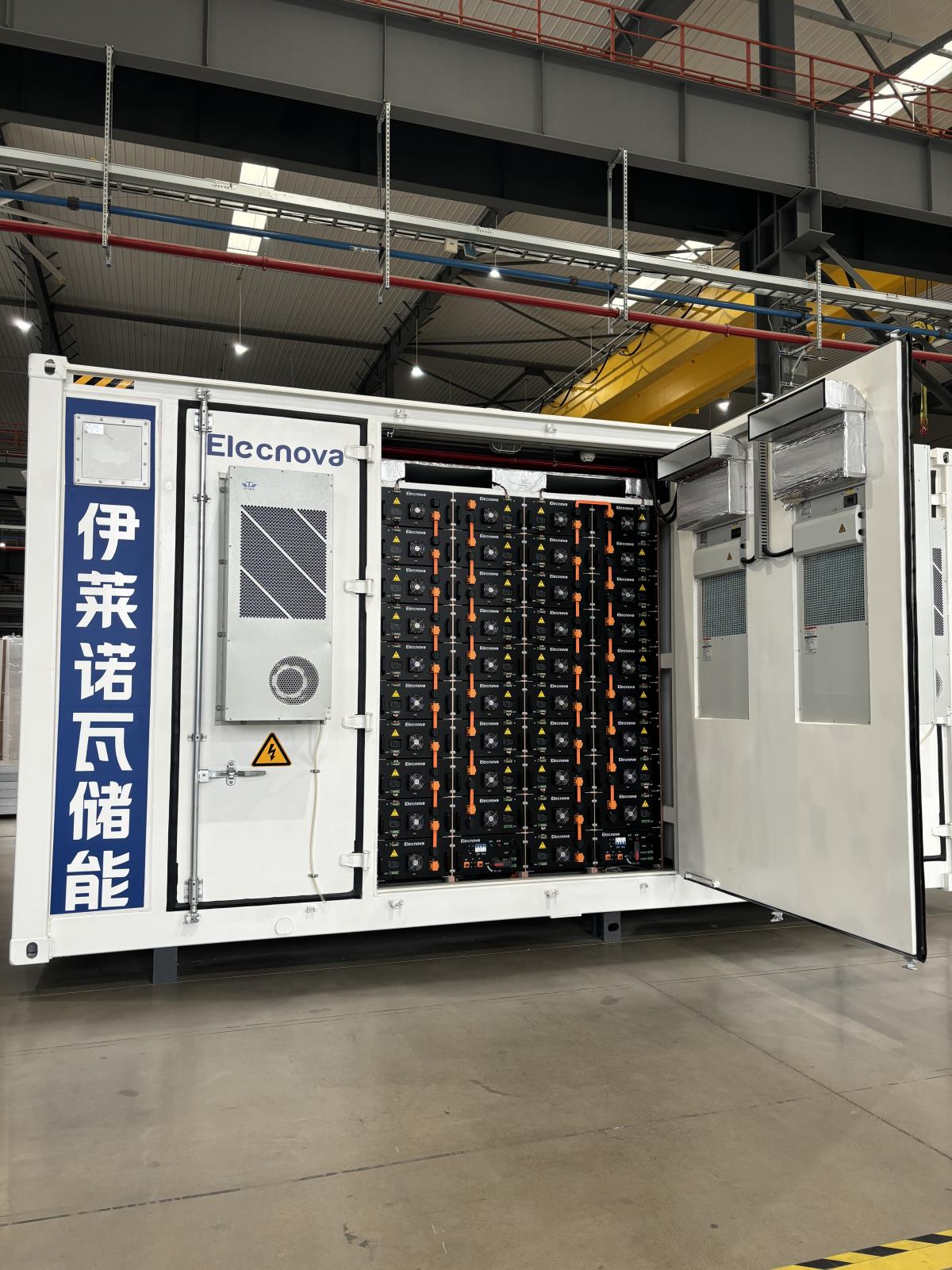

The #ECO-B20FT3858WS Lithium-ion battery cabinet utilizes an advanced liquid cooling system to keep the cabinet internal temperature difference less than 3°C, which improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and can be combined with the centralized PCS to form an ESS with higher energy density.
| Item | Specification |
|---|---|
| Configuration | 10P380S |
| Rated Energy | 3.858MWh |
| Rated Voltage | 1368V DC |
| DC Voltage Range | 1165-1498VDC (individual battery 2.8-3.6V DC) |
| PACK Protection Level | IP65 |
| Nominal Rate | 0.5P |
| Operating Environment Temperature | -25°C ~ 55°C |
| Fire Suppression Method | Combustible gas detection / smoke detection / temperature detection + Active warning + Module-level fire suppression (perfluorohexanone) |
| Protection Level | IP55 |
| Cooling | Air Force Cooling |
| Operating Altitude | ≤2,000m (derating above 2,000m) |
| Dimensions (Width*Depth*Height) | 6058*2438*3100 (mm) |
| Compliance | UN38.3, IEC62619, UL1973, UL9540, CE-EMC |
