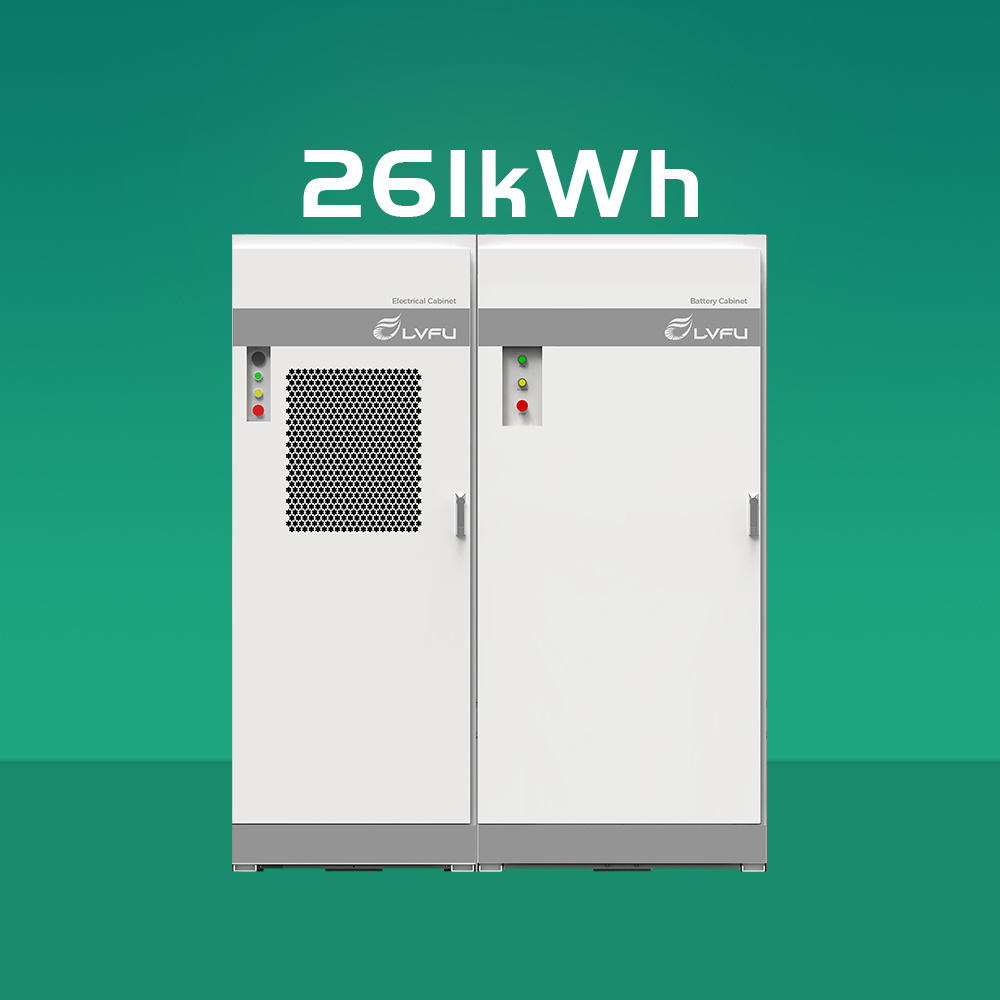

| Model | LF-ESS-261 |
| Cell type | LFP 3.2V/314Ah |
| Battery PACK configuration | 52S/52.2kWh |
| Battery system configuration | (52S)5S |
| Battery voltage range | 702~936V |
| Battery system capacity | 261kWh |
| Temperature detection | battery cell + aluminum bar |
| DC side system efficiency | > 95% |
| Charge-discharge rate | 0.5C |
| Allowable discharge temperature | -28℃ ~ 56℃ |
| Allowable charging temperature | 1℃ ~ 56℃ |
| Allowable relative humidity | < 95% (no condensation) |
| DC input protection | Load switch + Fuse |
| Fire protection system | Perfluorohexanone + water firefighting |

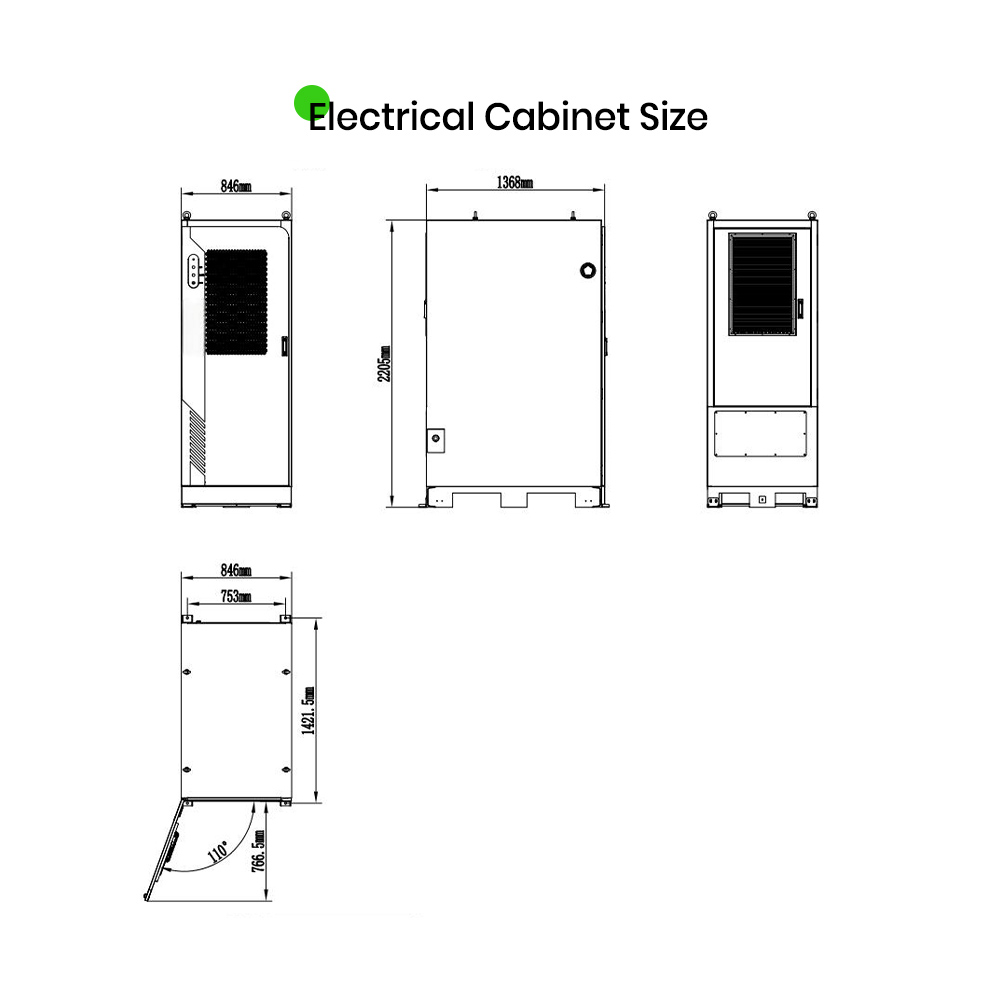

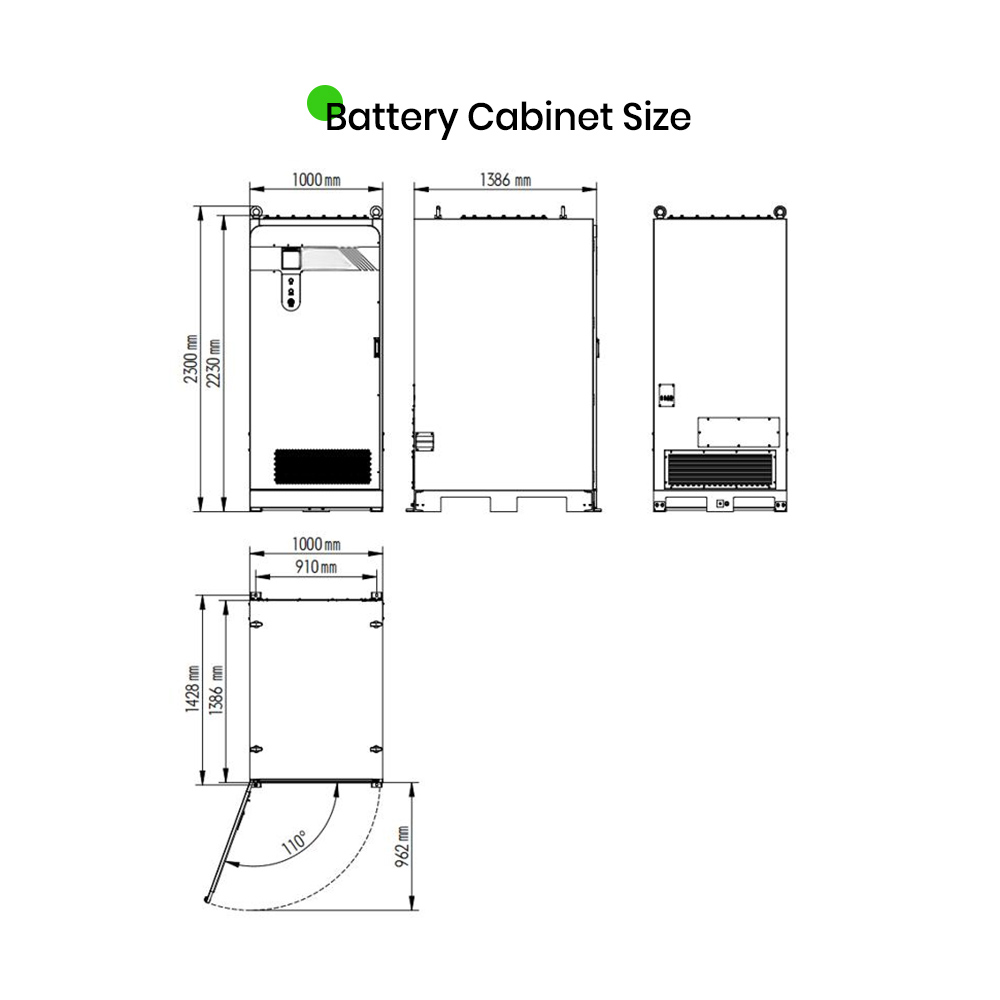

| Dimensions | W1000 * D1386 * H2230 mm |
| Weight | 2376 ± 50kg |
| Protection class | Battery compartment IP55; Liquid cooling chamber IPX4 |
| Cooling method | Liquid cooling |
| Max. altitude | ≤ 4000m |
| Communication interface | RS485/Ethernet |
| Communication protocol | IEC61850 / MODBUS-RTU / MODBUS-TCP |
Yes, of course. Please specify your custom requirements and parameters, and our professional engineering team will provide a tailored configuration plan to match your operating environment.
It is recommended to compare design lifecycles, structural standards, and safety layers. Low-cost solutions often substitute high-performance prismatic cells with cheaper cylindrical formats or sacrifice essential anti-vibration and BMS communication architectures. We can configure specialized optimizations based on your specific regional market requirements.
Warranty conditions are tied to standard operational profiles. The lifecycle is highly dependent on ambient operating temperatures, discharge depths, and charging cycles. Under controlled conditions (25°C ambient, 1C discharge, and 0.5C charge), the system achieves over 4000 cycles with a 5-year warranty, configured for energy storage applications.
Yes, our battery configurations are tested and verified to be compatible with most prominent inverter brands globally. Please provide your inverter model details for specific compatibility confirmation prior to integration.
For items currently in stock, regional dispatch takes 3-7 days. For shipments bound for North America, Australia, and the EU, we offer standard door-to-door delivery setups (approx. 40-55 days). Additionally, regional localized warehouses provide rapid delivery without import duties depending on geographical location.
Safety is maintained through multi-tiered protections, including built-in intelligence systems (BMS), structural cell isolation, physical relief vents, IP55 enclosure ratings, and integrated perfluorohexanone fire suppression layouts to safely control thermal runaways.
