| Product Model | Medium and small container energy storage power station system | Large container energy storage power station system |
|---|---|---|
| Cell type | LFP48173180E-120Ah | LFP48173180E-120Ah |
| Rated power | ≤1 MW | ≤1.5 MW |
| Charge and discharge rate | ≤0.5C | ≤0.5C |
| Compound mode | 228S2P*12 | 228S2P*18 |
| Nominal capacity | 2980 Ah | 4420 Ah |
| Nominal energy | 1 MW/2.2 MWh | 3.16 MWh |
| Nominal voltage | 739.6 V | 739.6 V |

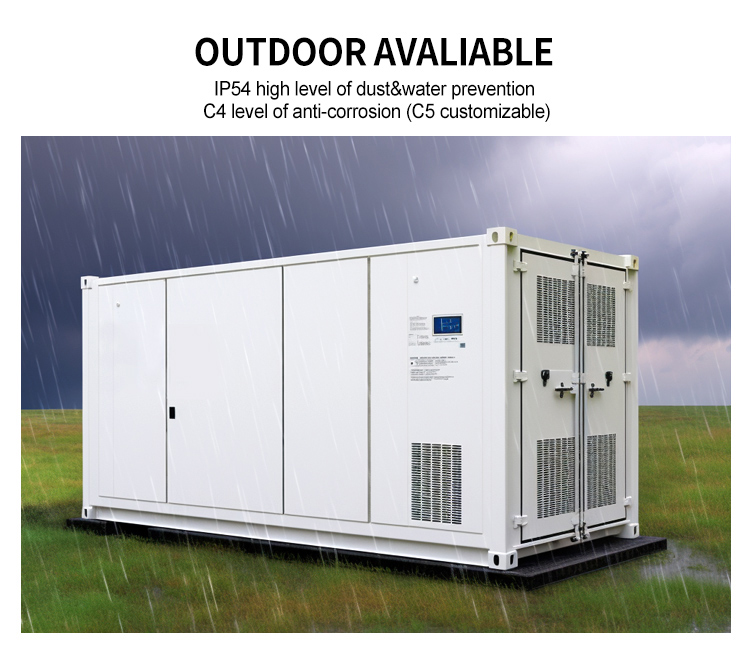

| The protection grades | IP54 | IP54 |
| Operating voltage range | 638.4 ~ 809.4 V | 638.4-809.4 V |
| Operating humidity range | 0-95% (Non-condensation) | 0-95% (Non-condensation) |
| Energy storage inverter | <1MW (Including PCS and isolation transformer) | March-Past (Including PCS and isolation transformer) |
| Protocol | CAN, RS485, IEC104, TCP/IP | CAN, RS485, IEC104, TCP/IP |
| Dimensions (width x depth x height) | 40-foot high standard container | 40-foot high standard container |
| Weight | 35 T | 45 T |
| Cycle life | 6000 Times | |
