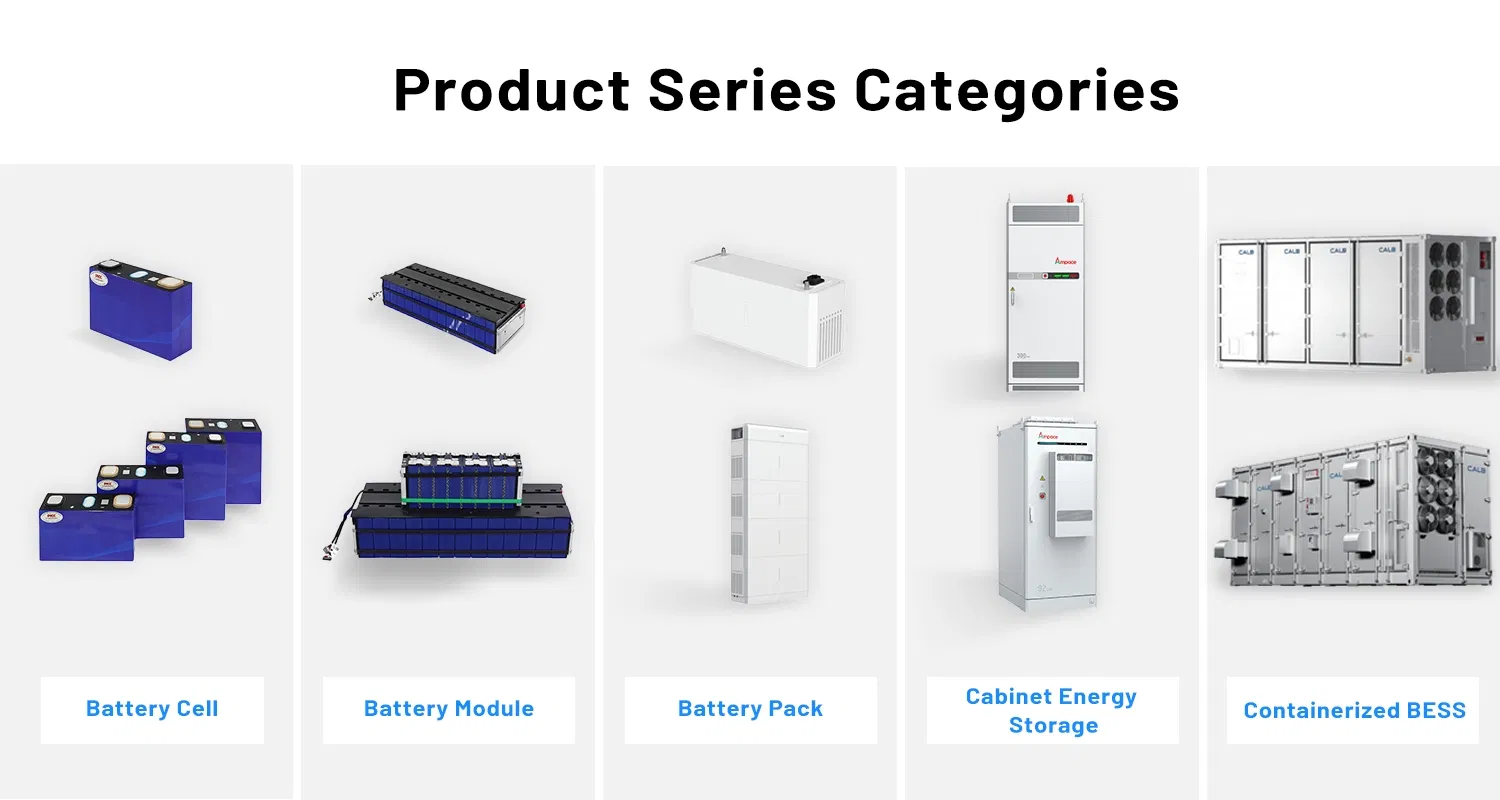

Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.

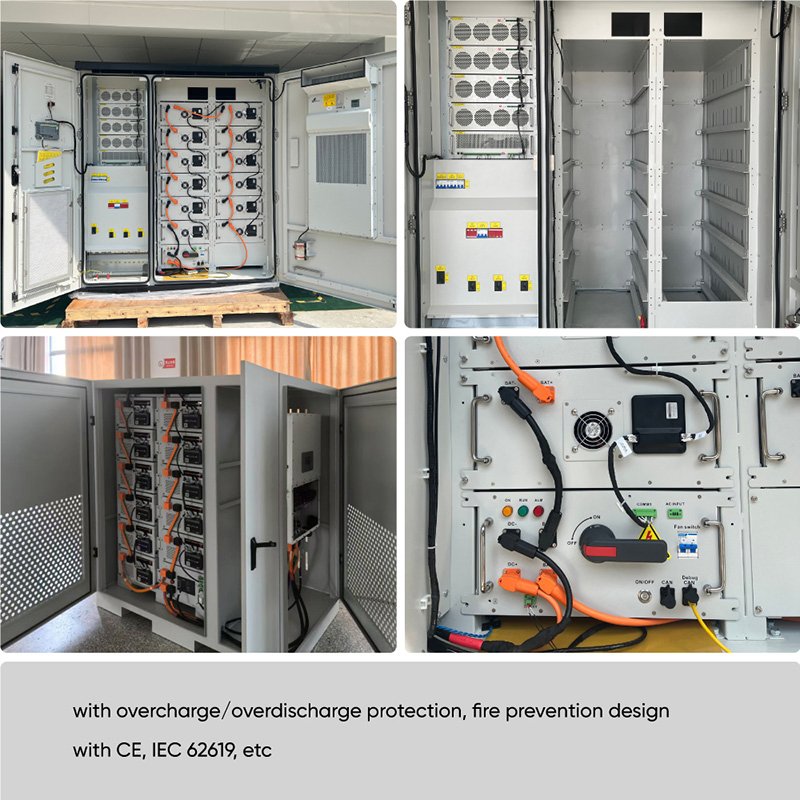

Engineered with safety short-circuit proof technology, high thermal stability, and integrated modular design for industrial and commercial environments.
| General Specification | 1500V | 750V |
|---|---|---|
| Battery Type | LFP 100Ah | |
| Battery Energy Capacity (kWh) | 532.48 | |
| Nominal Voltage (V) | 1331.2 | 665.6 |
| Battery Voltage Range (V) | 1164.8~1497.6 | 582.4~748.8 |
| Max.CP-rate | 0.5CP | |
| Module Configuration | 2P16S*26S*2P | 2P16S*13S*4P |
| Dimension (WxHxD) (mm) | 2200*2443*1400 | |
| Weight (kg) | 6000 | |
| Max. Support Parallel Number | 8 | 4 |
| Audible Noise (dBA) | 75 | |
| Operating Ambient Temperature | -30~55°C | |

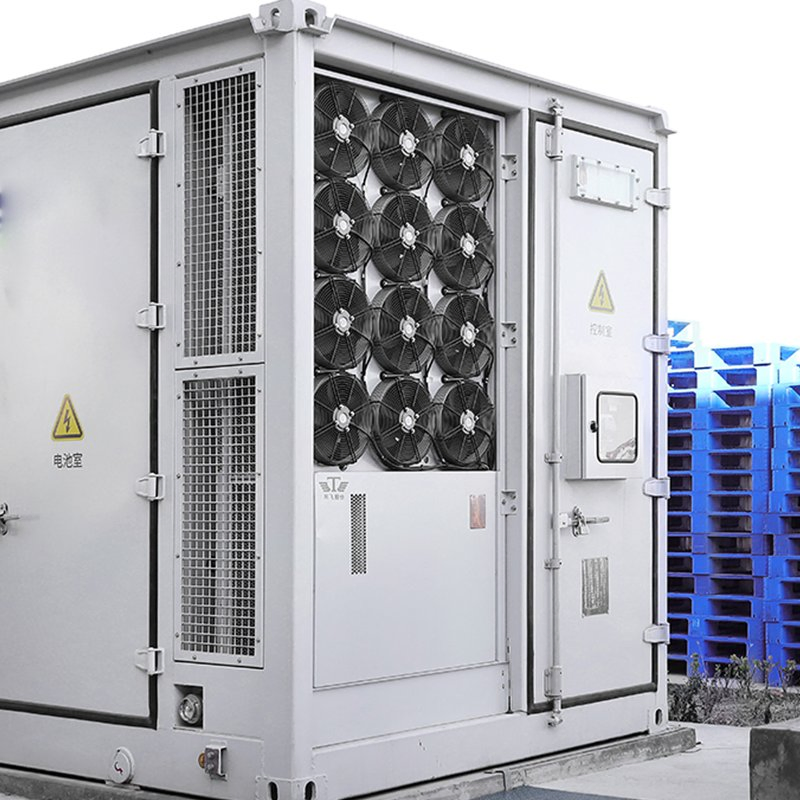

| Cooling Mode | HVAC | |
| Protection Class | IP54 | |
| Anti Corrosion Level | C4 | |
| Operating Humidity | 0~95% (no condensation) | |
| Fire Suppression | Aerosol | |
| Altitude (m) | ≤3000m | |
| Communication Protocol | Modbus TCP | |

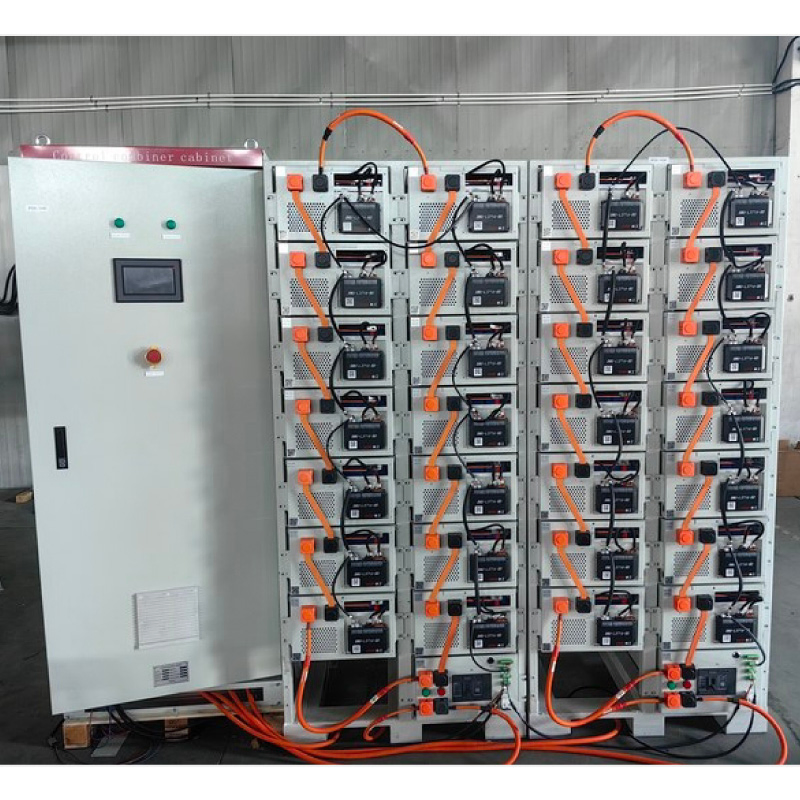

| Combiner Cabinet | ||
| Max. DC Voltage (V) | 1,500 | |
| DC Current (A) | 914*2 | |
| DC Branch | 2 | |
| Dimension (W*H*D, mm) | 1800*2443*1000 | |
| Weight (kg/unit) | 1200 | |
| IP Rating | IP55 | |
| Certification | ||
| Safety | IEC62619, UL1973, UL9540A | |
| Transportation | UN38.3 | |
| EMC | EMC, FCC | |
