CCSC Energy
1 / 5
| PERFORMANCE PARAMETER | |
|---|---|

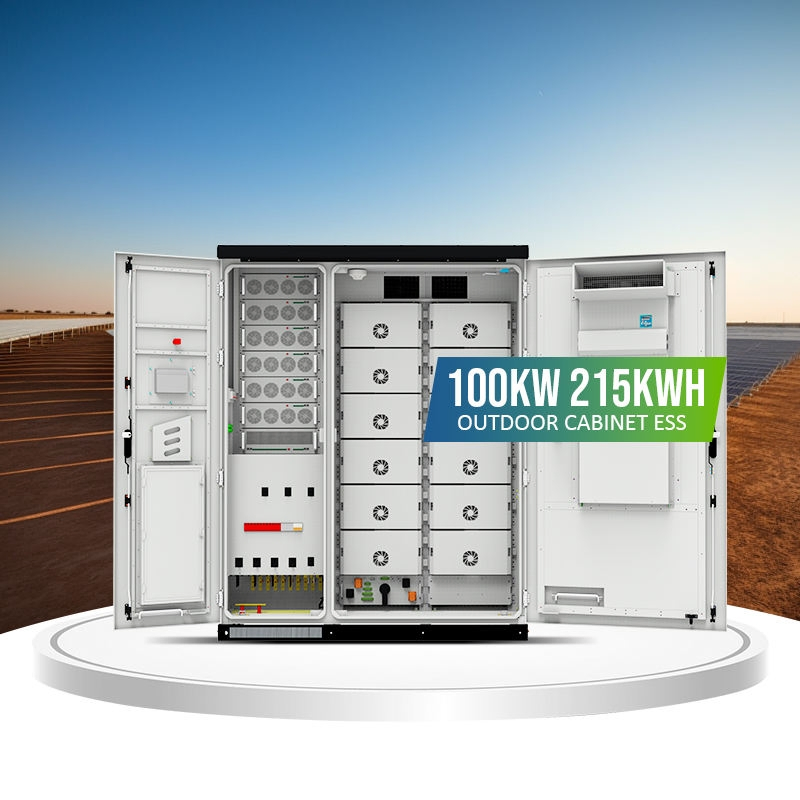

| Energy Storage System | Monet-100TS(215kWh) |
| Battery Rated Energy Storage Capacity | 215kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Pack Series and Parallel Connection | 1P*20S*125 |
| Maximum Charge and Discharge Current | 81A |
| Rated AC Power | 100kW |
| Rated AC Current | 140A |
| Rated AC Voltage | 400V,3W+N+PE/3W+PE |
| Rated AC Frequency | 50/60Hz |
| Current Total Harmonic Distortion Rate THDI | <5%(rated power) |
| Power Factor | -1 lead~+1 lag |
| Voltage Total Harmonic Distortion THDU | <3%(linear load) |
| Degree of Protection | IP54 |
| Protection Level | / |
| Isolation Method | Transformer isolation |
| Power Consumption During Shutdown | <100W(without transformer) |
| Show | LCD |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <70dB |
| Ambient Temperature | -25°C~60°C(Derating above 45°C) |
| Cooling Method | Intelligent air Cooling |
| Altitude | 2000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |
| Dimensions(W*D*H) | 1800*1200*2300mm |
| Weight(approx.) | 3000kg |

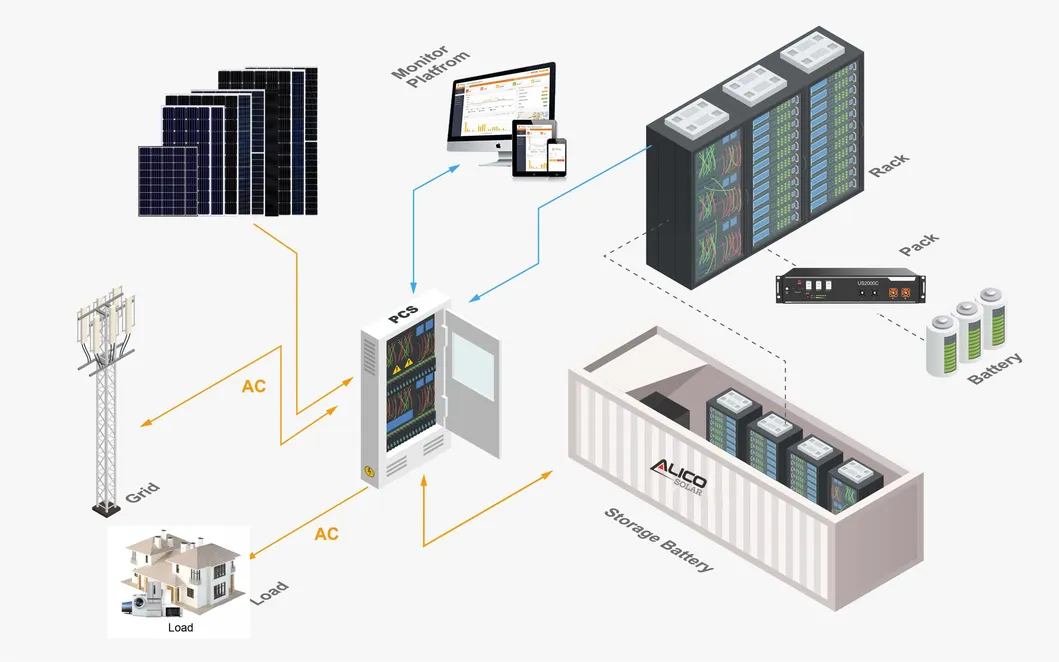

| 1. Solar Panel | 2. On-Grid Inverter | 3. Switch Box | 4. Power Meter |

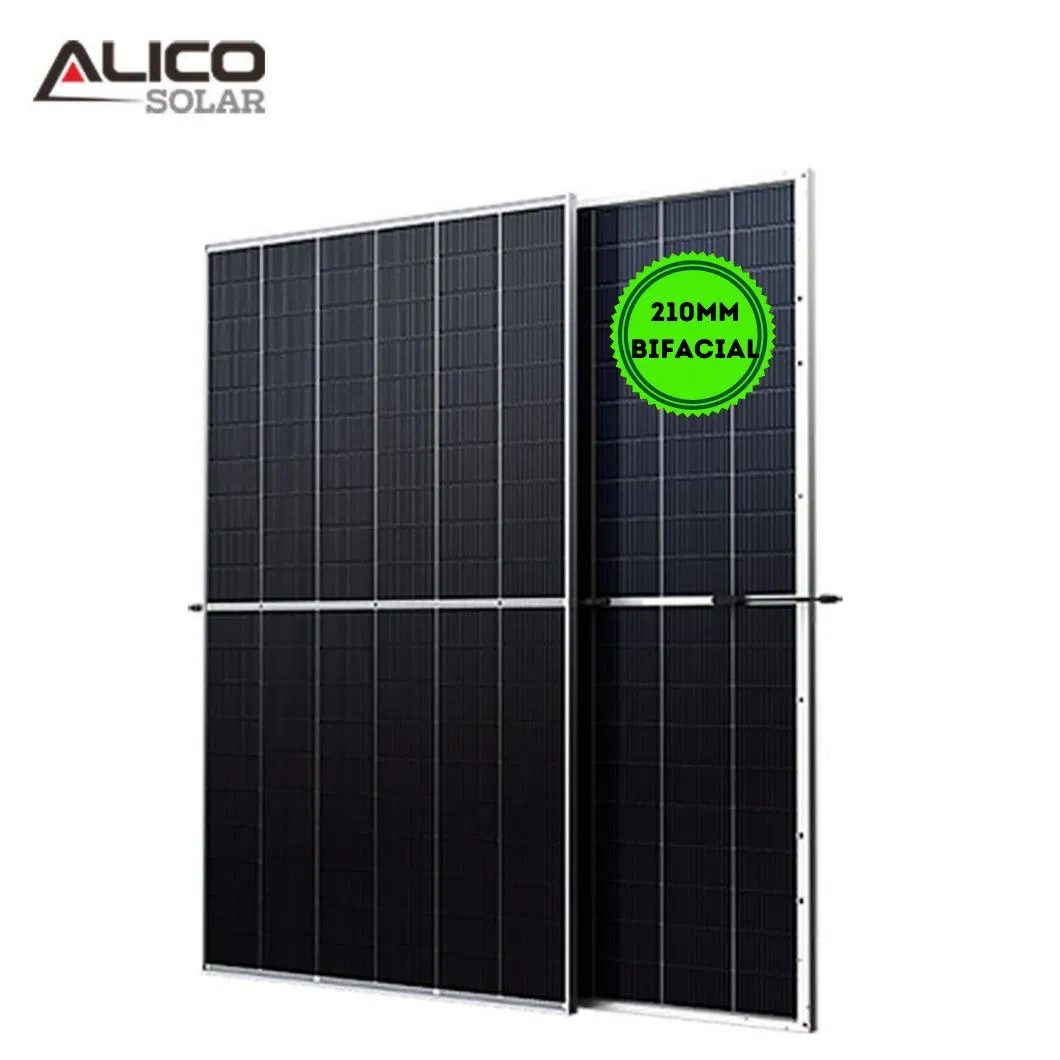

Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

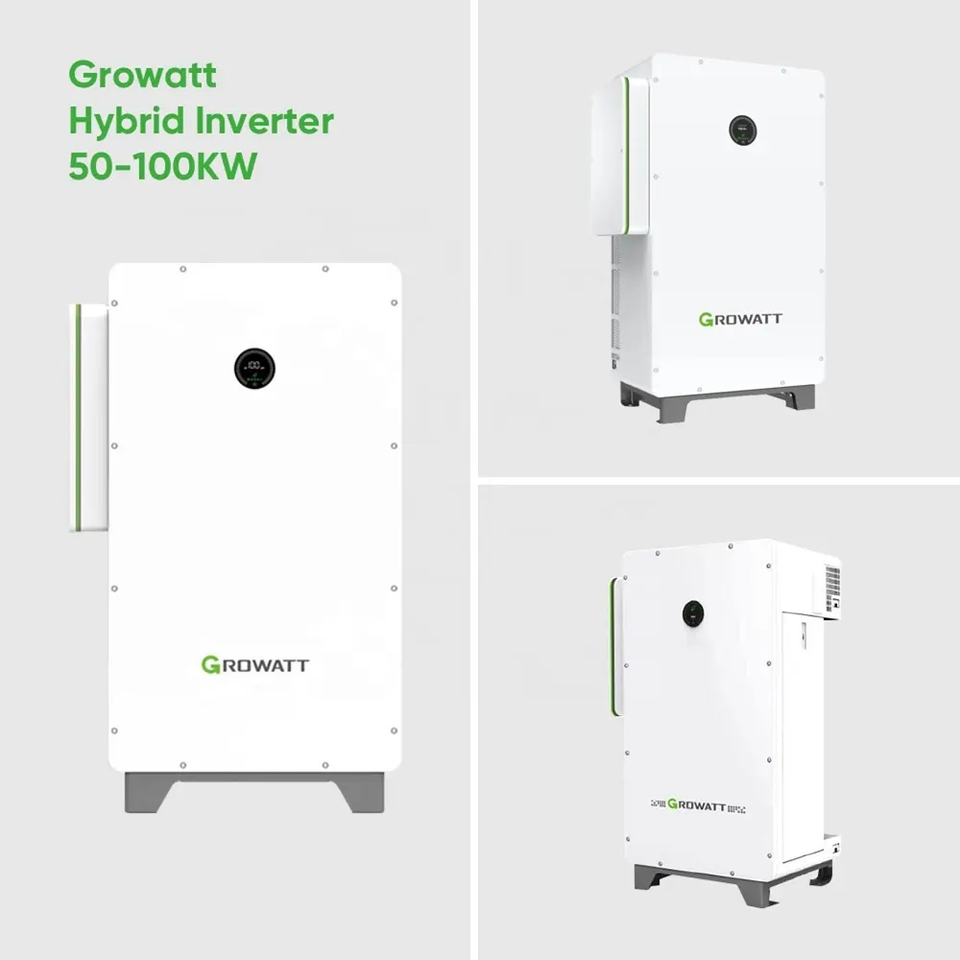

Max. DC Input Power: 1000KW*2
Max. DC Input Voltage: 1200V
MPPT Voltage Range: 90-1000V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380V; 400V
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

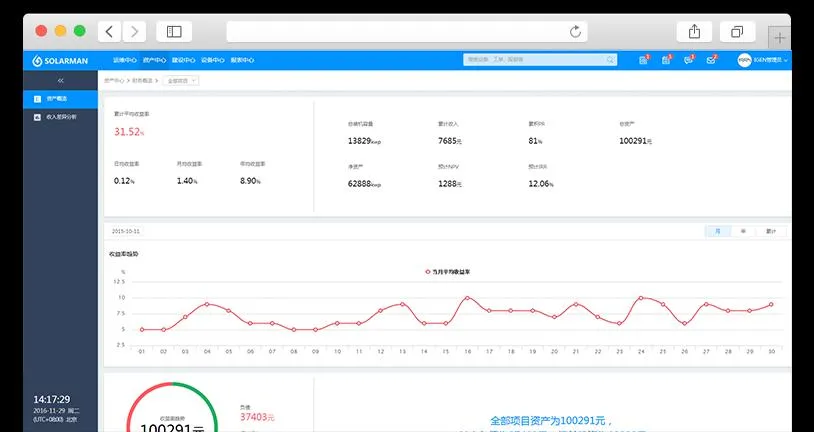

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, Lan or GPRS.
App Available for PC, IOS & Android

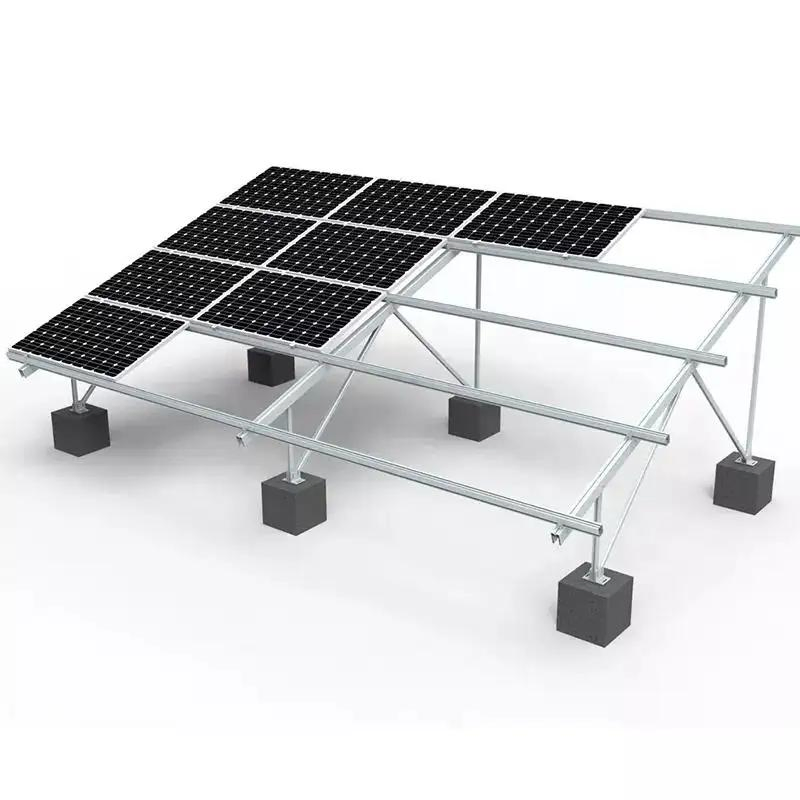

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

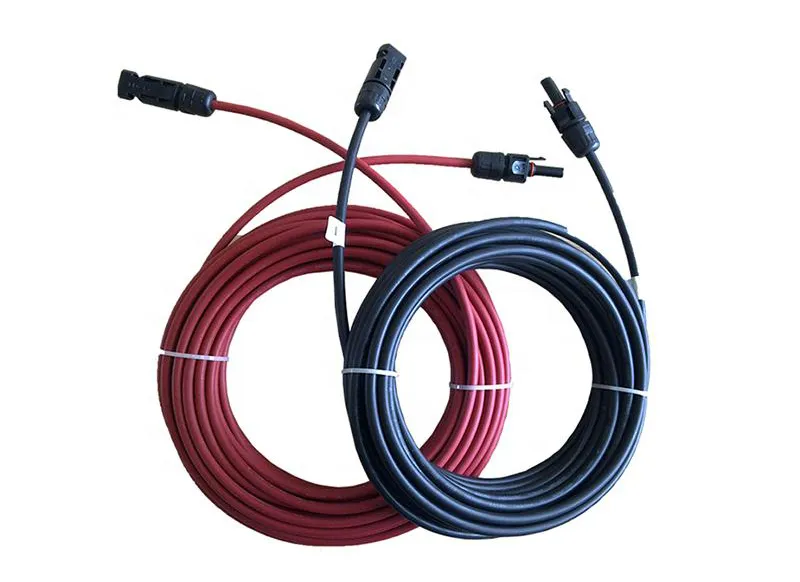

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
With years of professional experience, we can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.

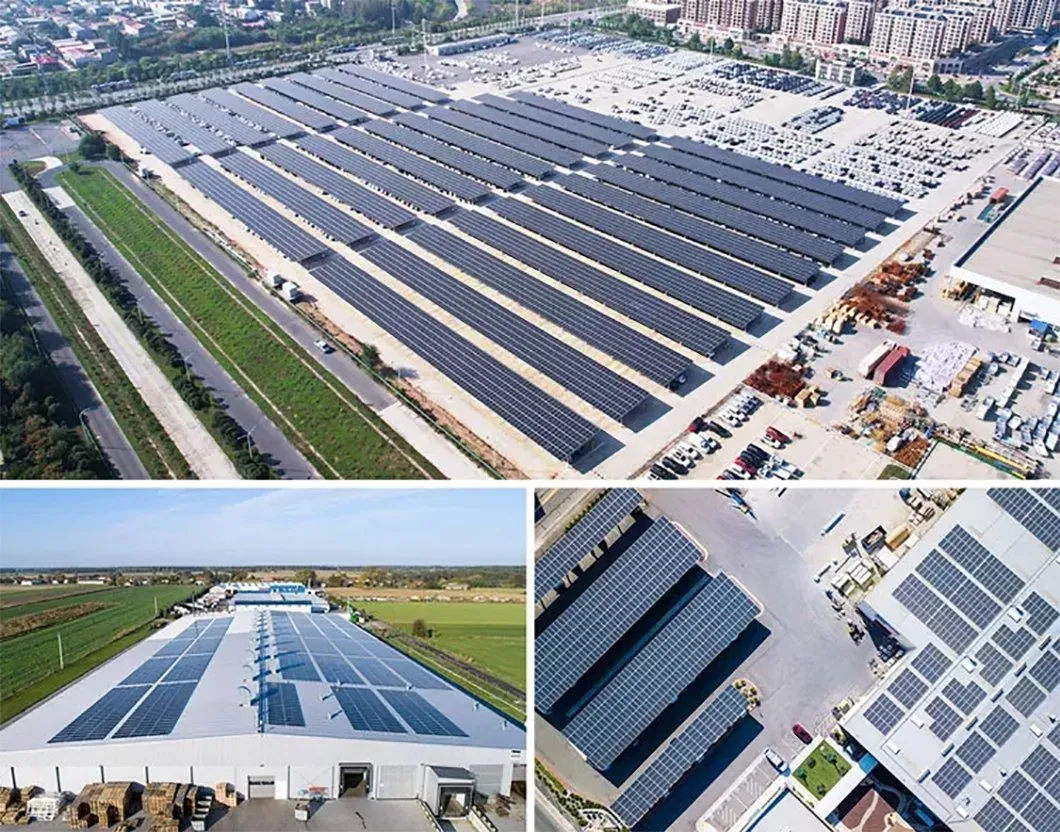

Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And we were, are, and will always be a reliable partner which you won`t regret to choose.

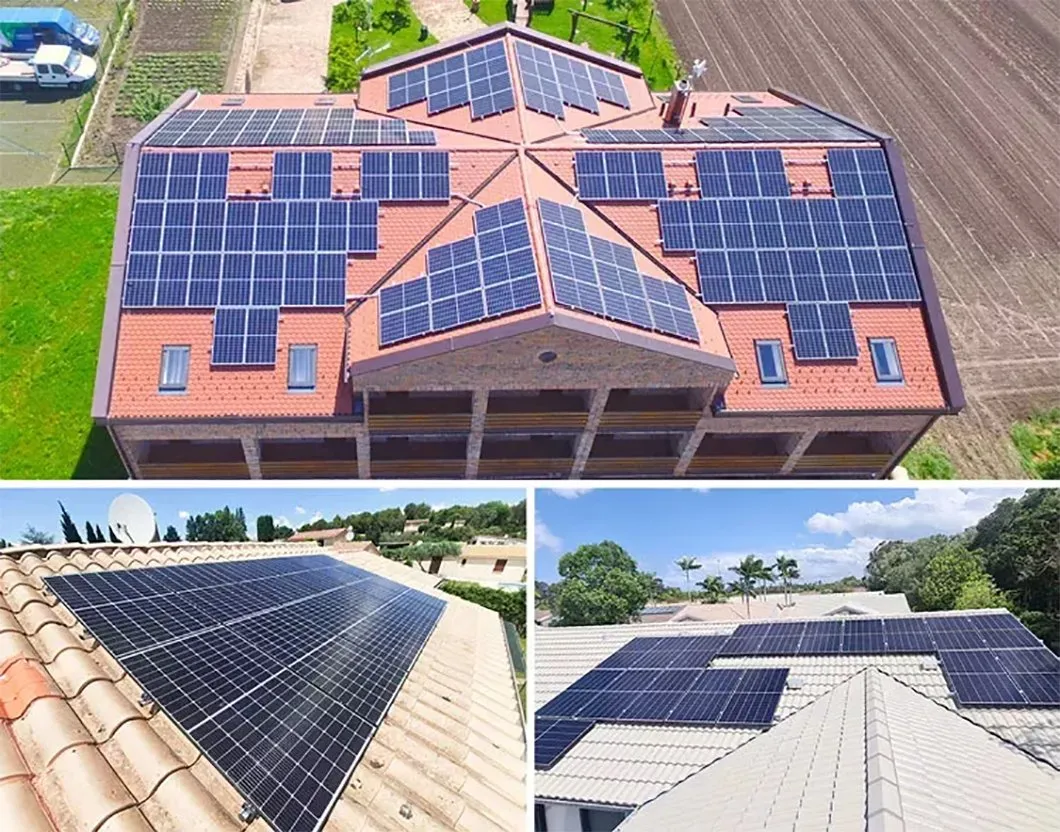

Thousands of houses around the globe are equipped with our solar panel systems, so they can now enjoy clean power with a lower electricity bill and moreover, make profits from them.
