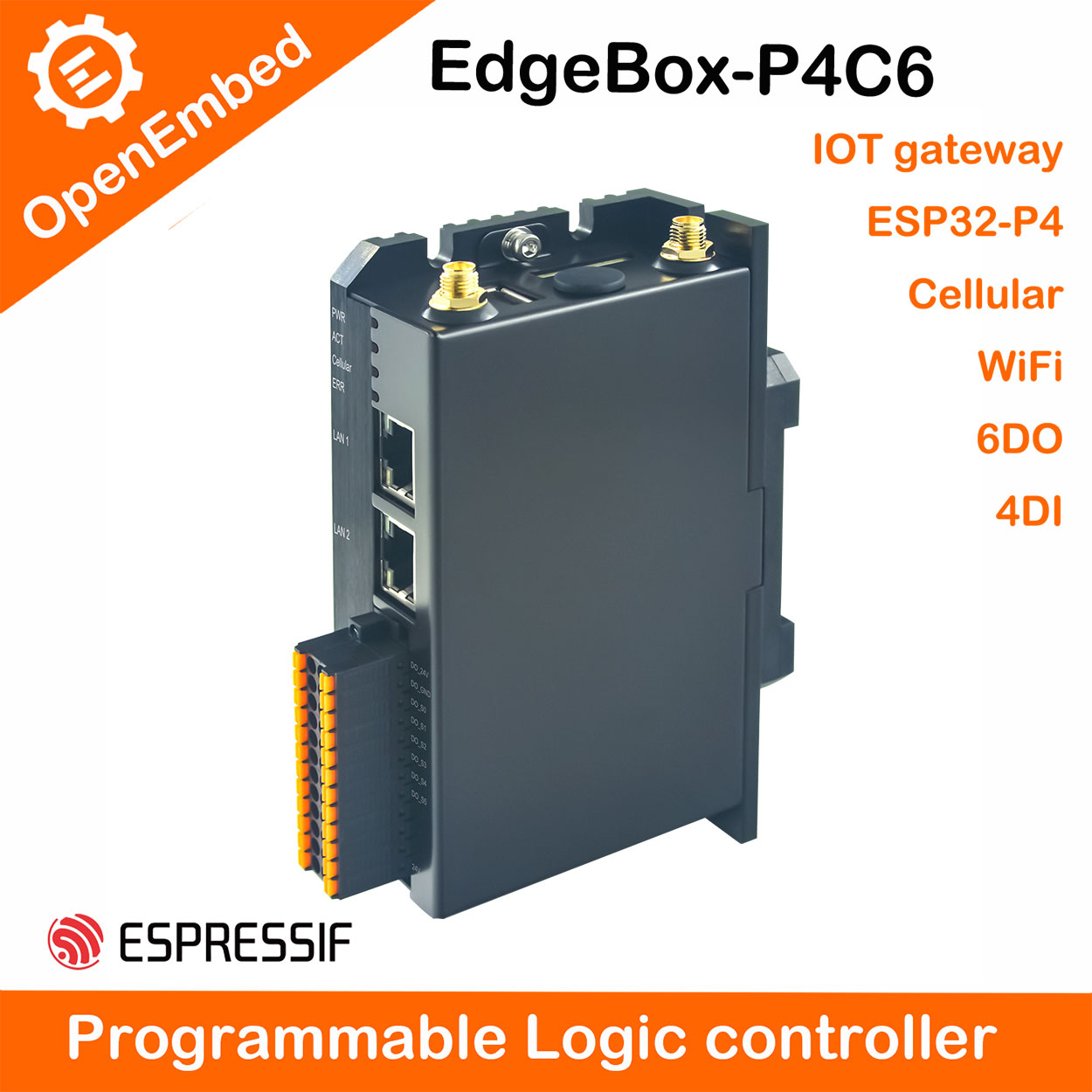

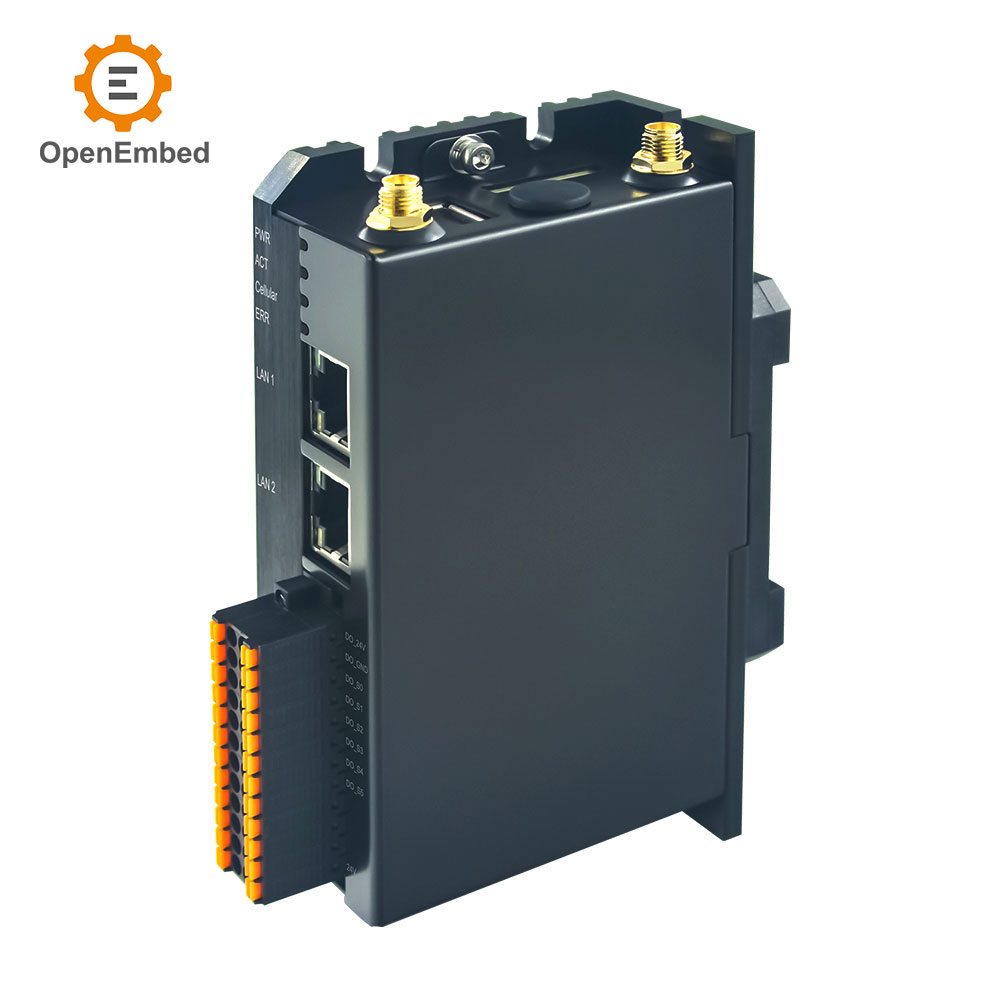

A tiny, hackable IoT platform for VPN router, IIoT, smart home and more
It is a versatile compact controller that helps you solve numerous automation tasks. Additional modules and a wide range of communication options make The EdgeBox-P4C6 a compelling solution for almost every conceivable application. The EdgeBox-P4C6 is compact, smart, flexible - and now even comes with a direct line to the cloud.
The EdgeBox-P4C6 is also used as a compact PLC and assume control tasks, data logging or are designed for use as gateway for Industry 4.0 applications. Powered by ESP32-P4 and ESP32-C6, EdgeBox-P4C6 provides a robust, highly integrated platform, which helps meet the continuous demands for compact design, high performance, and reliability. Basic hardware and software resources help application developers realize their ideas using the EdgeBox-P4C6 series hardware. The basic software development framework by Espressif is intended for development of Internet-of-Things (IoT) applications with Wi-Fi, Meta, Zigbee as well as 4G/LTE connection. Meanwhile, PLC IDE is provided with support of IEC61131-3 and IEC-61499.
Applications:
Solar energy systemMining systemFactory production lineIndustrial automationWater systemSecurity systemCrude oil controlAgricultureSCADAIndustrial ControllerProportional, Integral, Derivative (PID) control loopsLogic Sequencing ControlIndustrial Gateway
10/100Mbps Ethernet LAN port Wi-Fi 6 Bluetooth 5 (LE) and the 802.15.4 protocol(TBD)
Retain memory
8KB

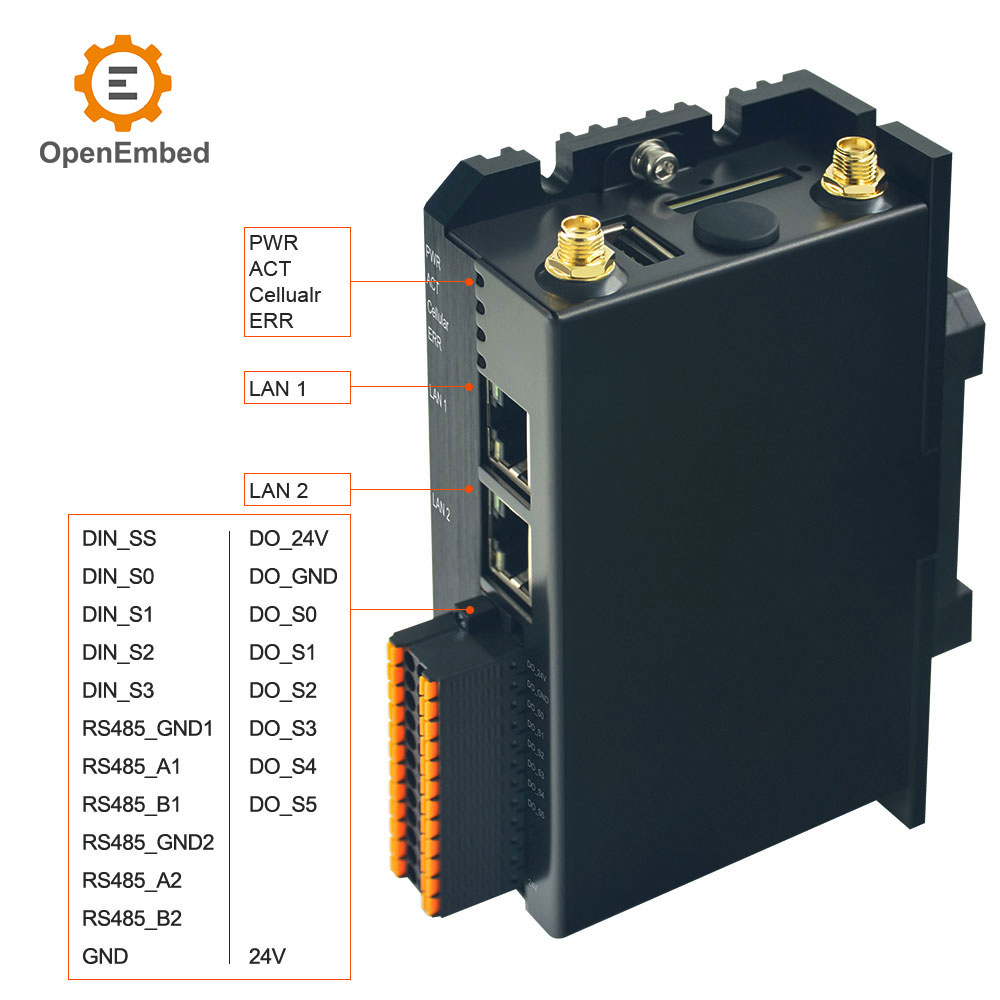

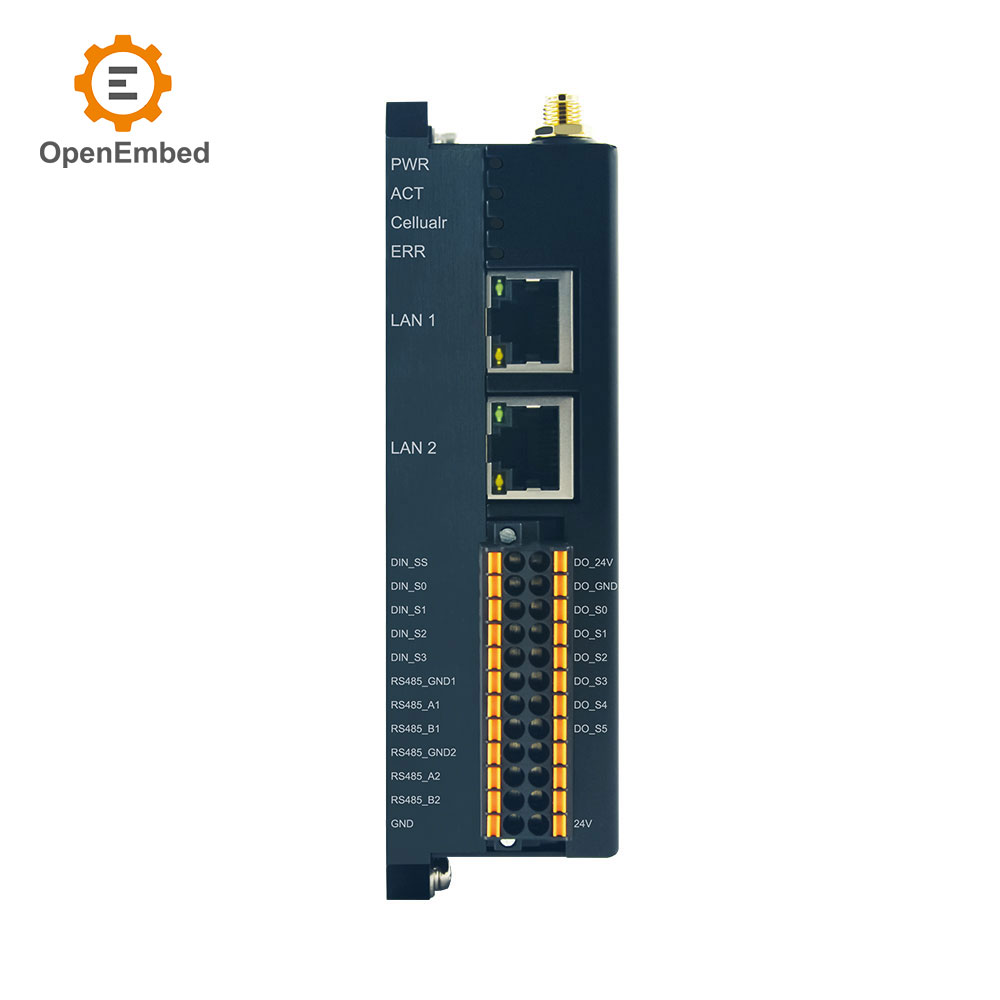

Interfaces

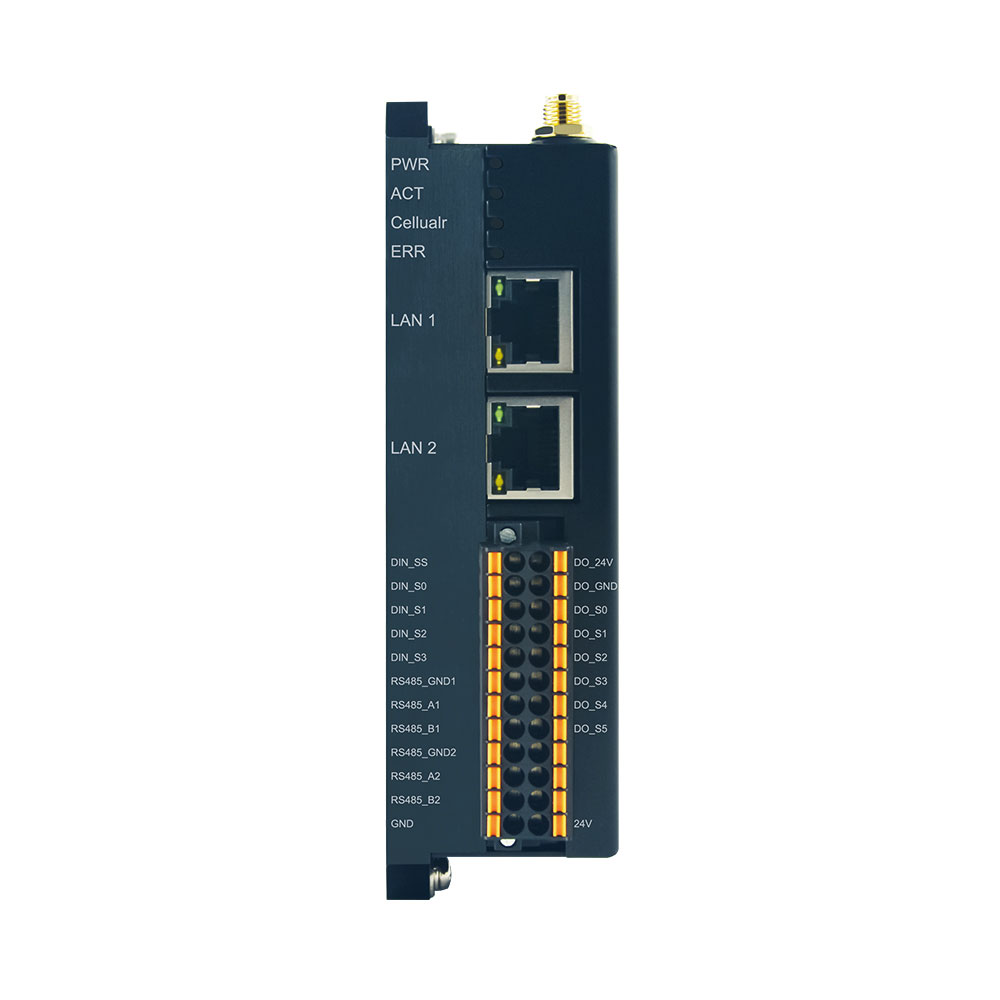

2x RJ45 100M/1000M 1x USB2.0A 2x Isolated RS485 4x Isolated DI (24V level) 6x Isolated DO (24V level) 4x LEDs for Power and Networking
Digital Input
4 (Isolated) onboard, DC input Voltage - 24V
Digital Output
6 (isolated), Recommended Voltage - 24V
Operation temperature
-20°C to +60 °C
Storage temperature
-20°C to +70 °C
Power Supply
10.8 ~ 36 V
Dimensions
124x68x35 mm
Weight
300 g

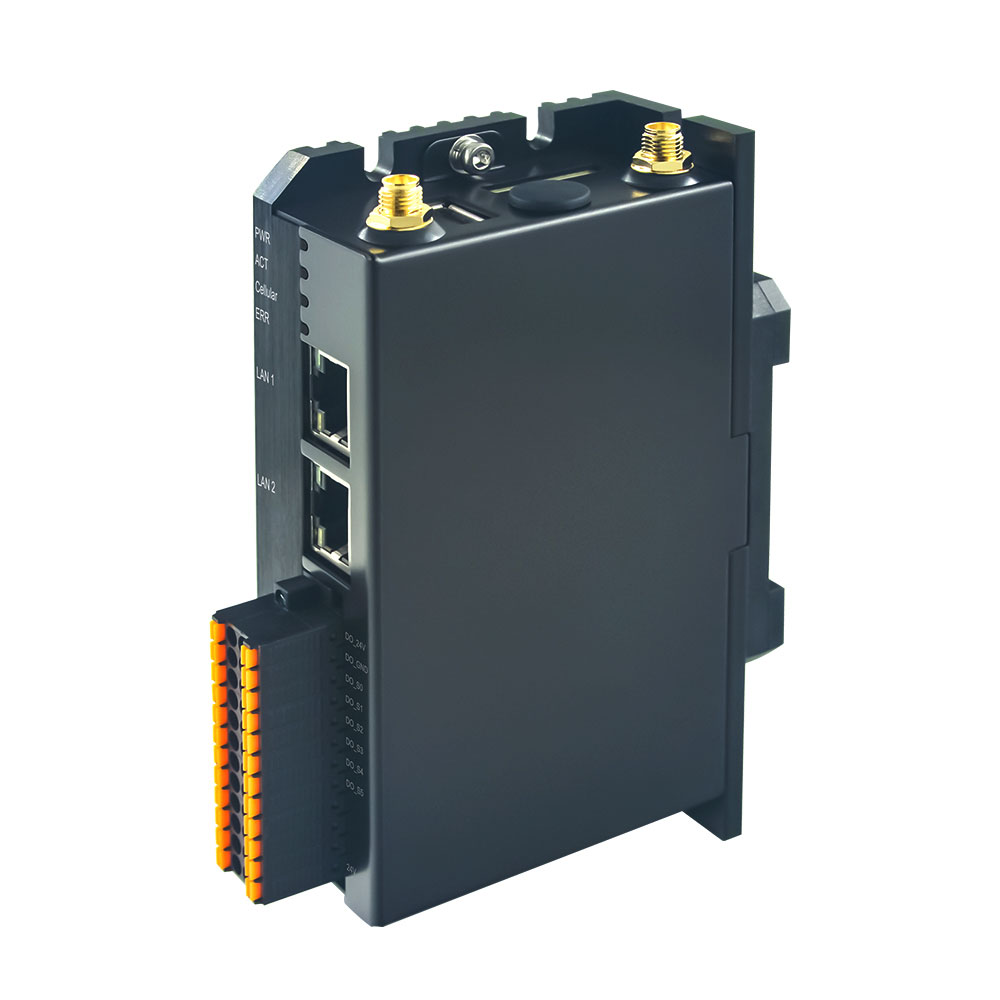

Features and Benefits
Monitor and troubleshoot from field to cloud
Grow customer satisfaction and retain service contracts
Operate more efficiently by remotely diagnosing problems
Handle issues before your customers are even aware of them
The ideal solution for all your industrial IoT (IIoT) commercial customers
Directly maintain Operational Technology (OT) via Information Technology (IT)

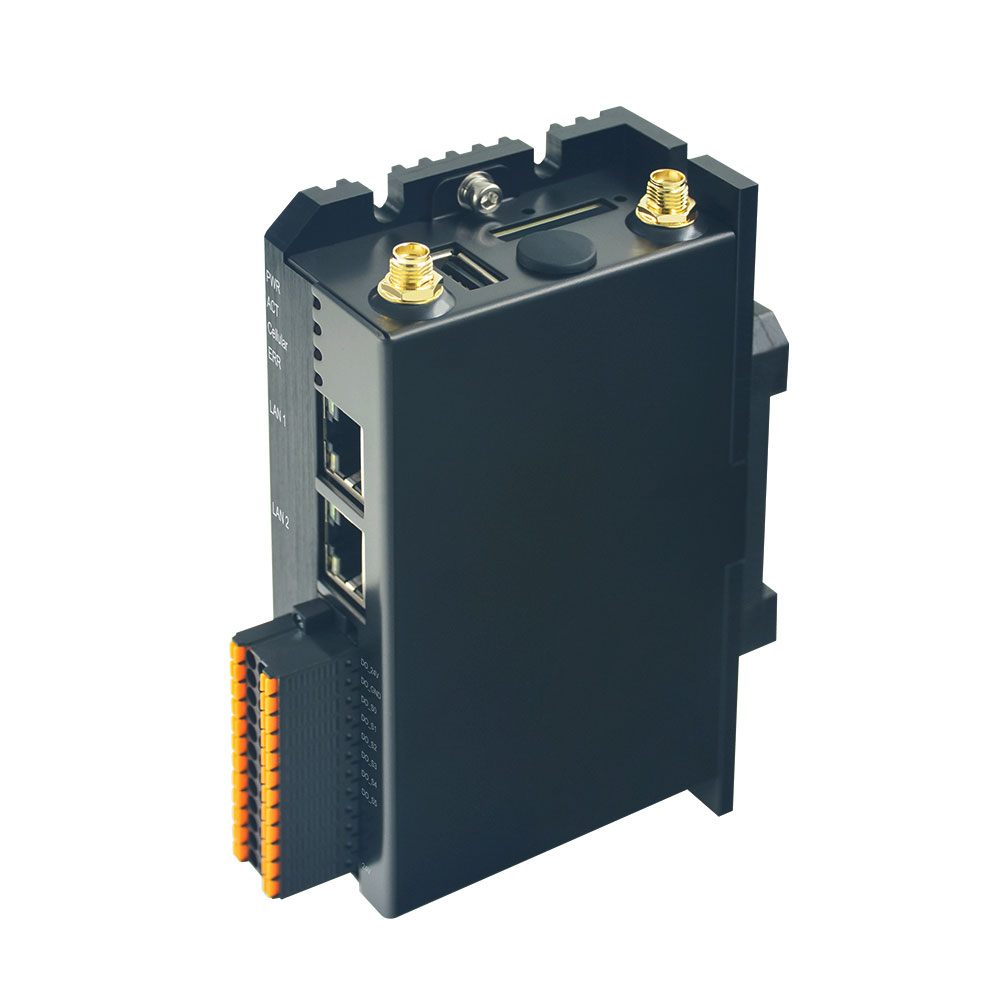

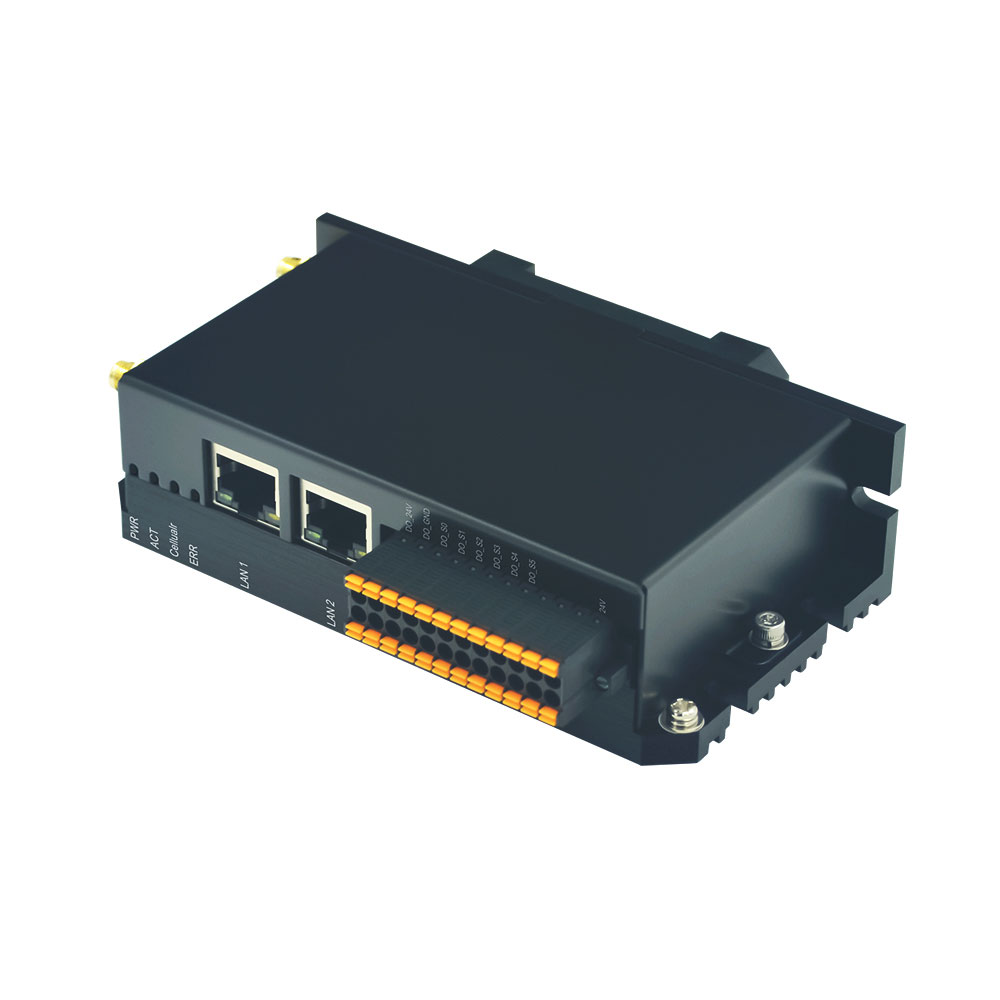

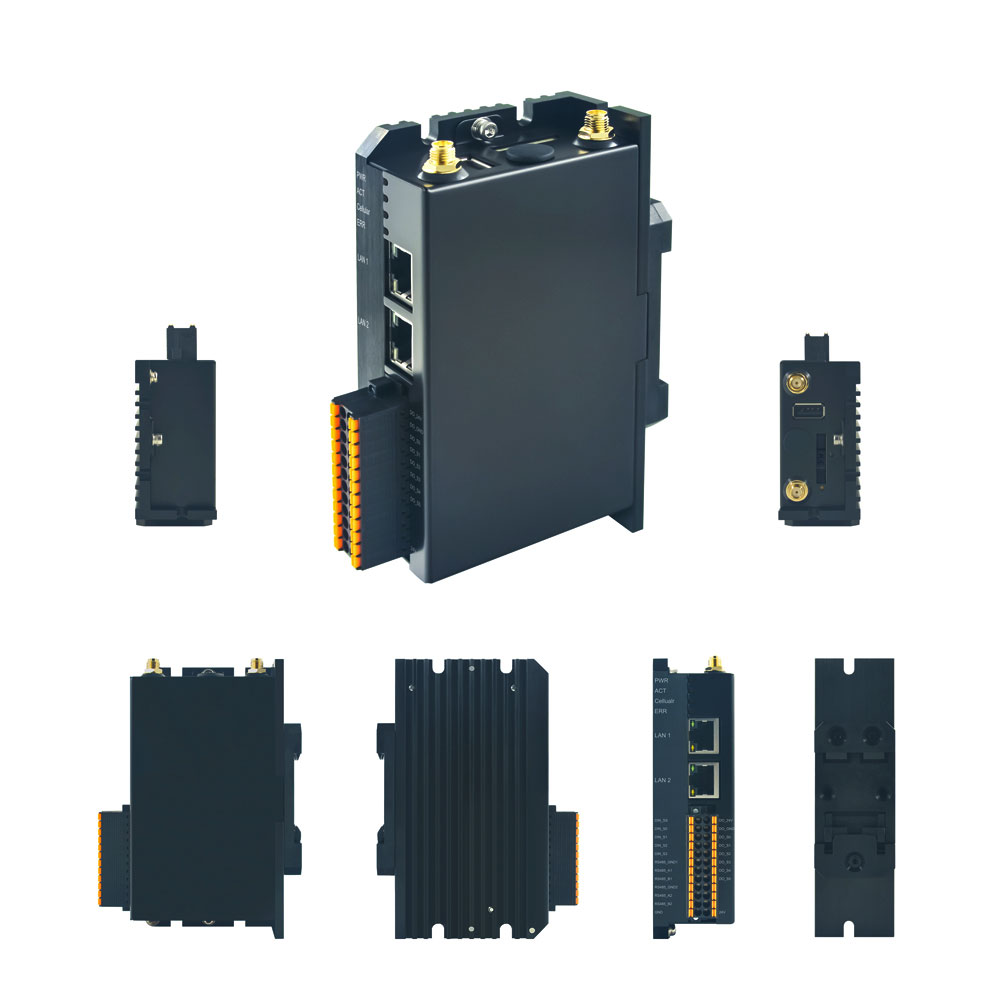

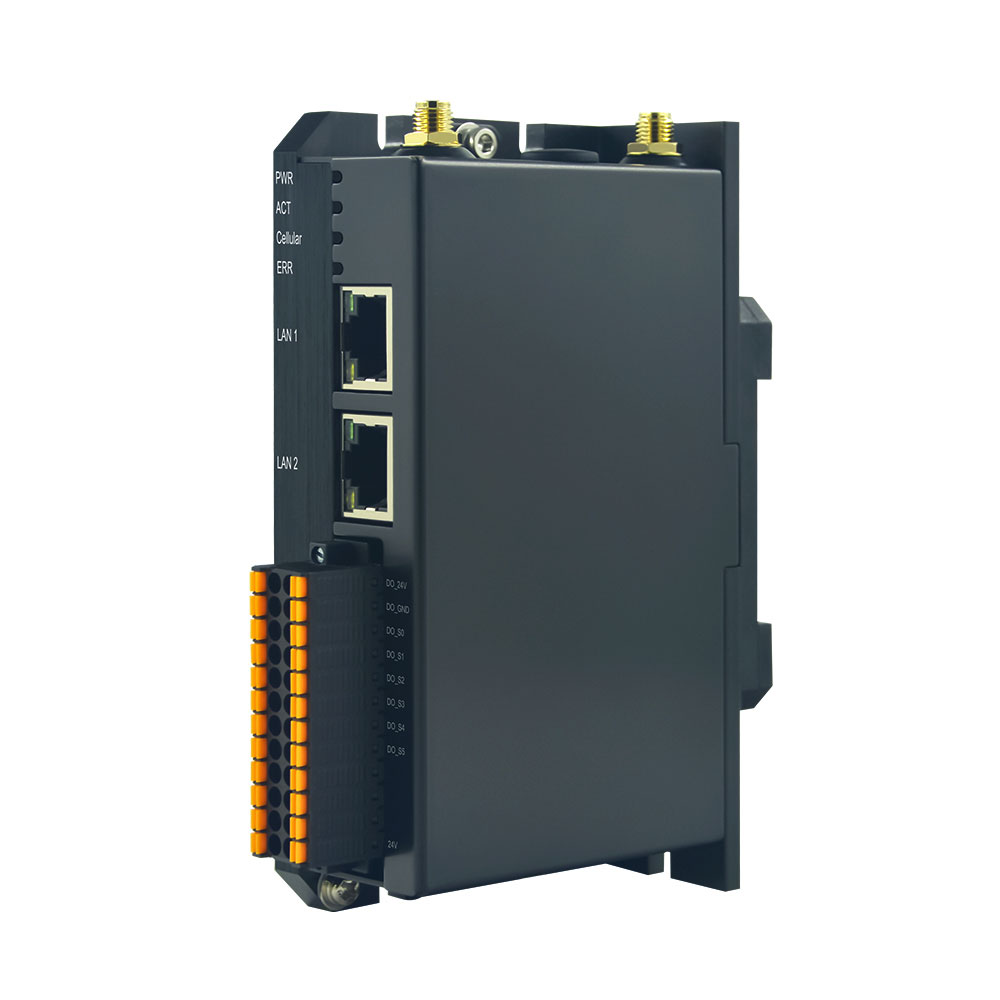

Product Gallery
Exhibition Showcase
Payment & Logistics
Product Certifications
Frequently Asked Questions
Q1 Is this product independently developed and designed?
Yes, the development and design focus is on Programmable Logic Controllers (PLC) and Edge computing controllers.
Q2 How about the warranty of the products?
All products are supplied with a lifetime free warranty.
Q3 What is the minimum order quantity (MOQ)?
We accept sample orders before moving forward to mass orders.
Q4 What payment methods are accepted?
We accept Secure Payments, T/T, L/C, Western Union, PayPal, Cash, and MoneyGram depending on the scale of the order.
Q5 What are the shipping terms and delivery times?
To meet urgent customer demands, we primarily ship via FedEx, UPS, or DHL, with a standard shipping transit time of 3-7 days.
Q6 Which programming languages does this controller support?
The controller supports multiple languages including Python, Arduino, ESP-IDF, Lua, C#, JavaScript, and C, and is compatible with open-source IDEs like Visual Studio Code.
