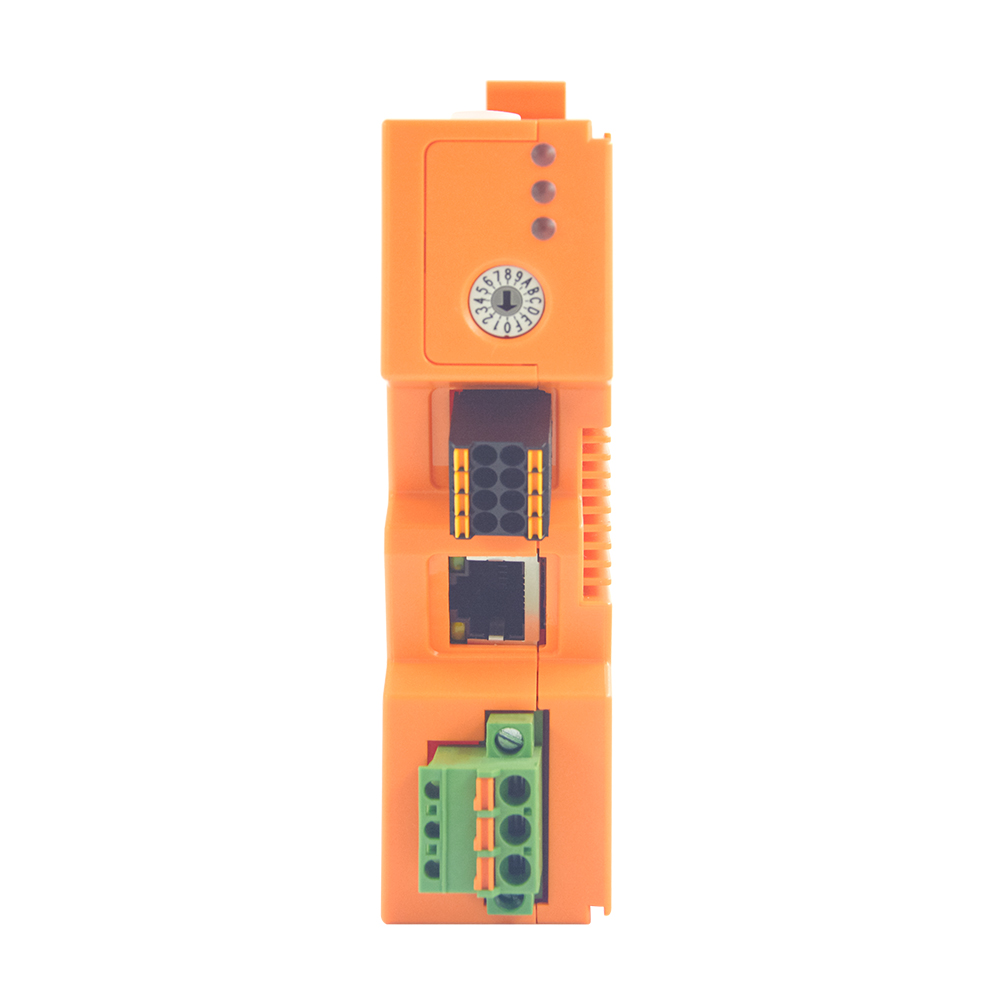

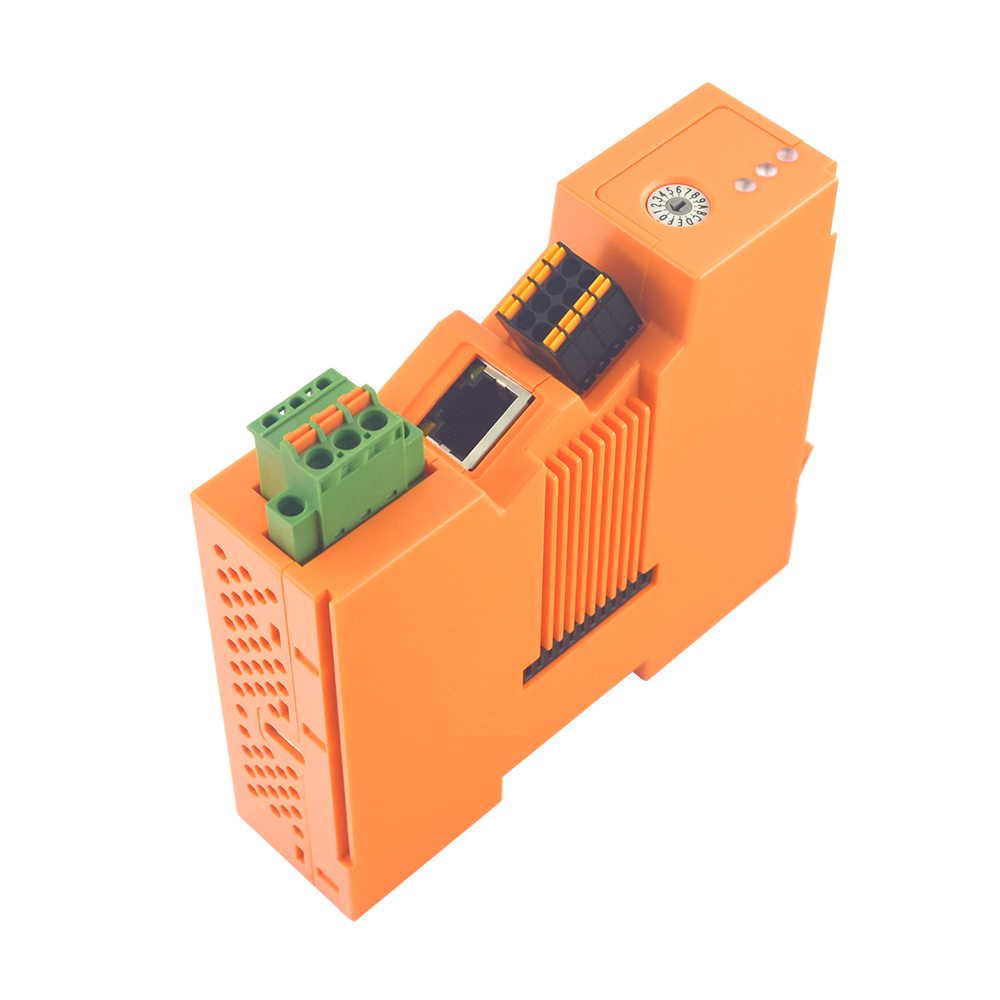

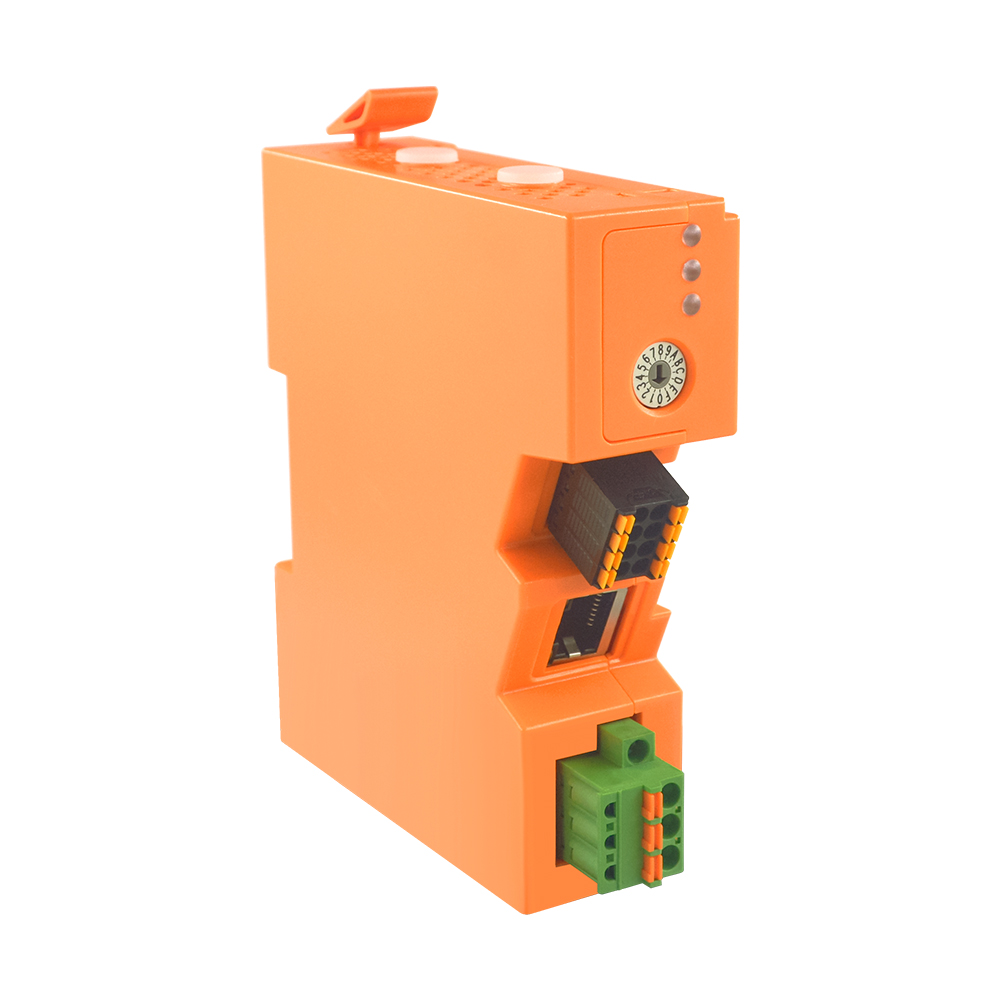

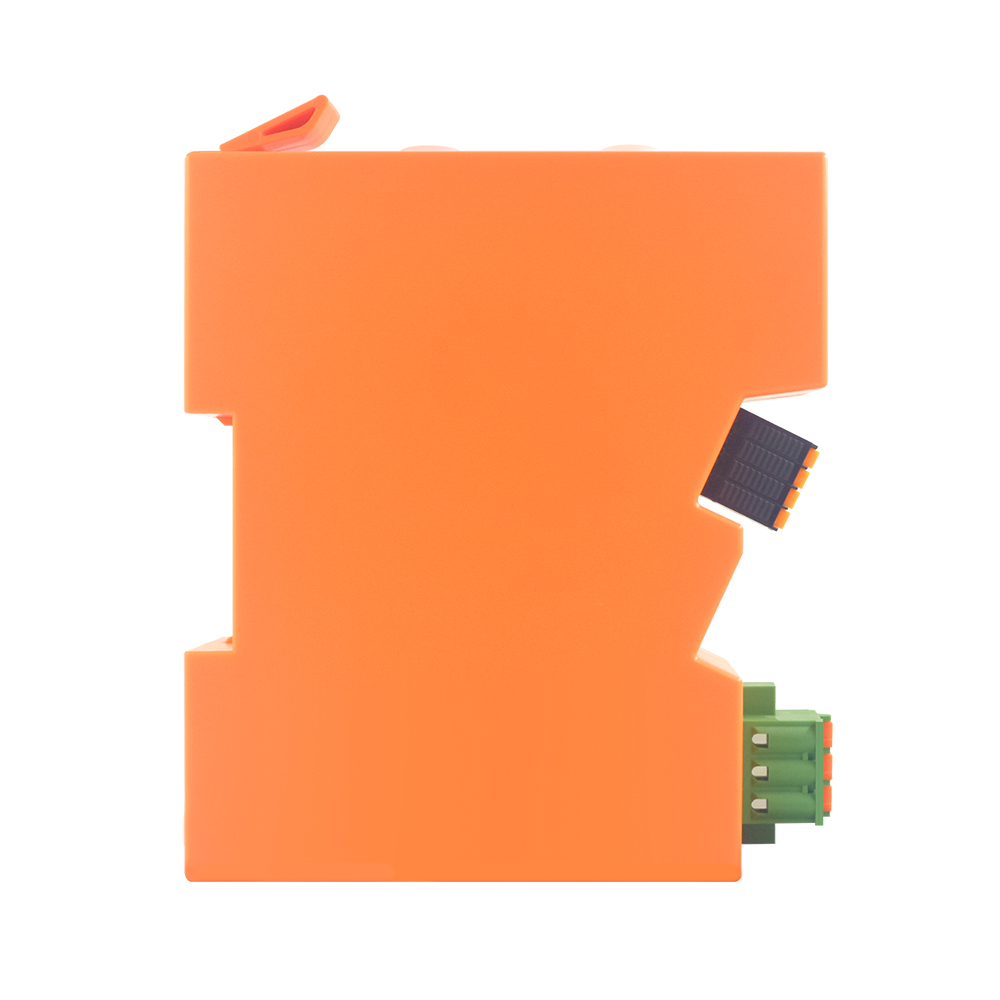

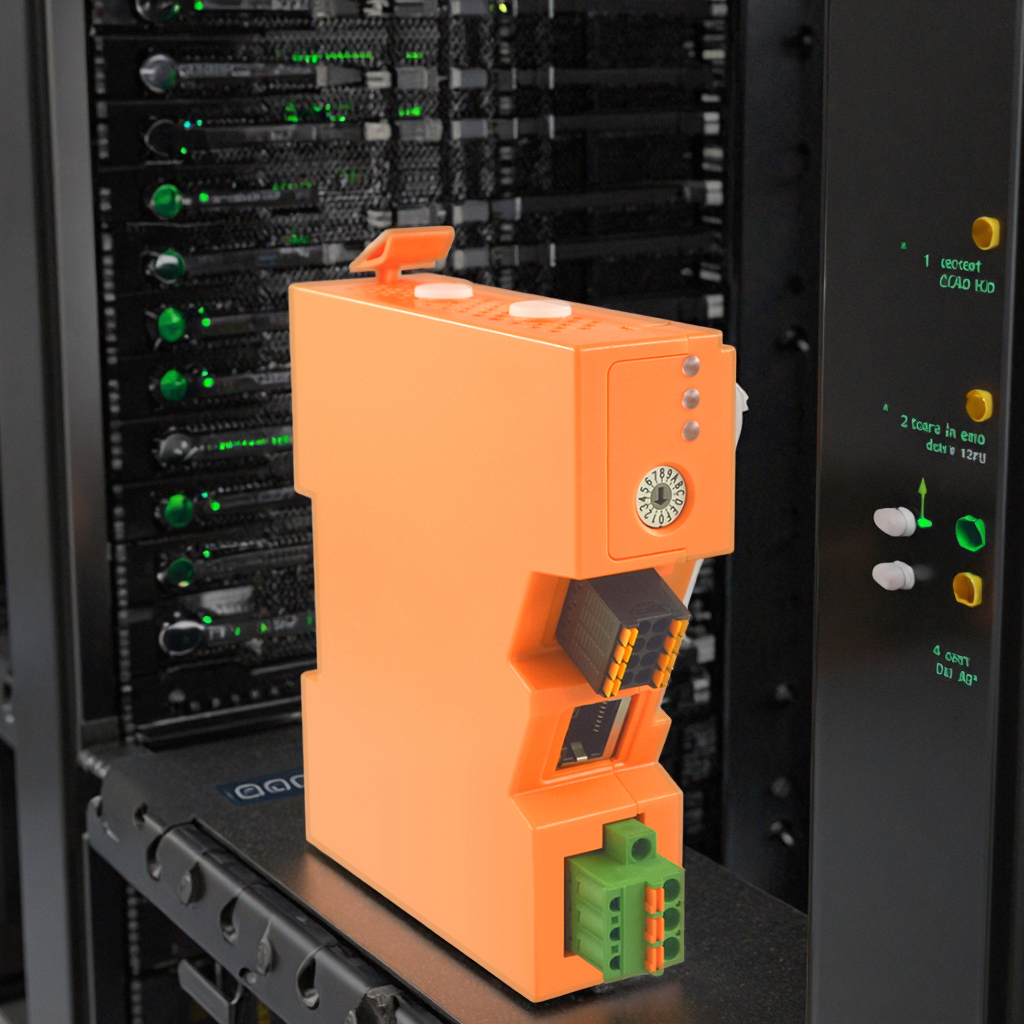

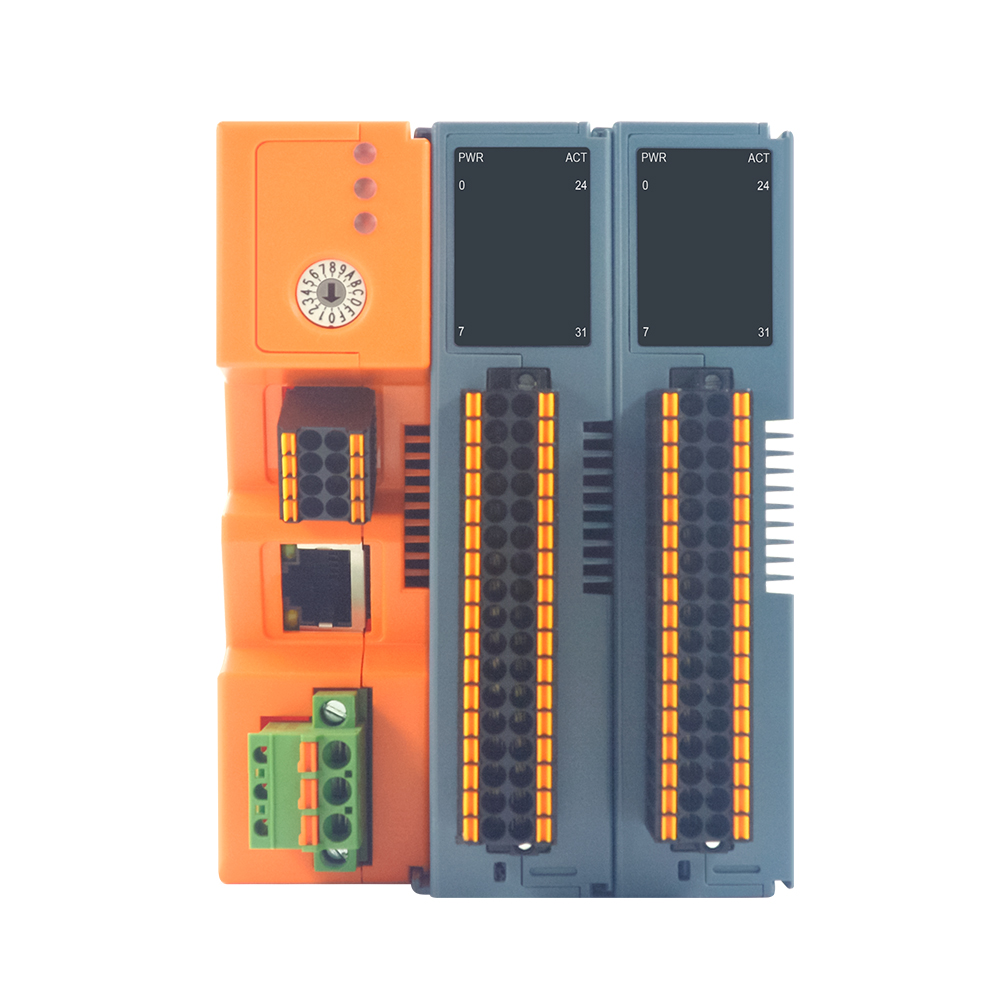

EdgeLogix-1100 is an ESP32-S3 based programmable controller designed to simplify your smart building, industrial equipment, and IoT solutions. It serves as a cost-effective hardware platform specifically designed for FIN Framework and various industrial applications.
This lightweight, multi-functional controller integrates various wireless capabilities (Wi-Fi, BLE, 4G LTE) and multiple Fieldbus connections. It acts as an independent PLC for field automation or as an industrial gateway, offering connectivity to networks and cloud services. Its rugged design with an aluminum alloy enclosure ensures reliable operation in demanding environments, including factories, offices, and hospitals.

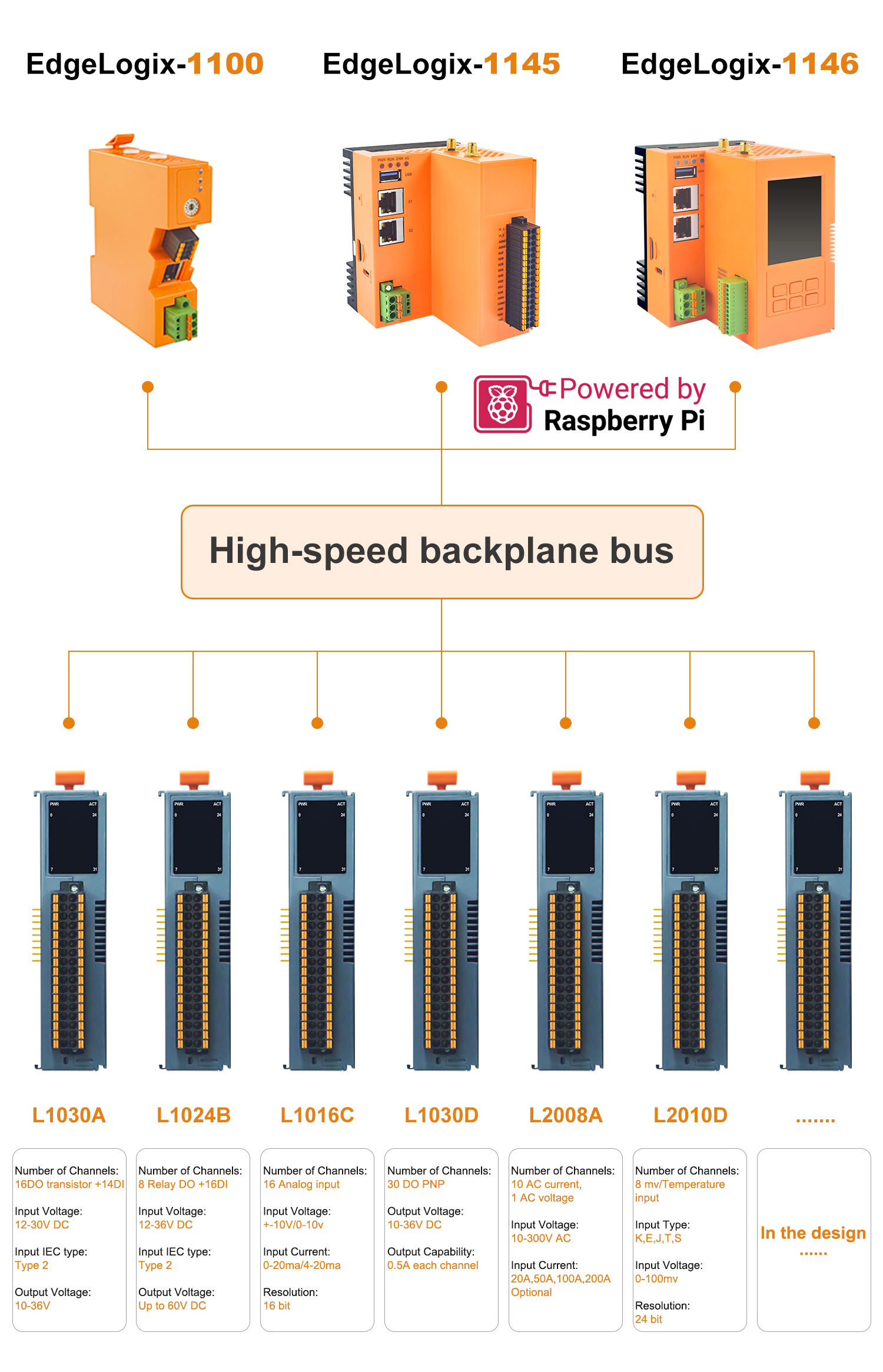

The EdgeLogix-1100 is software-agnostic, supporting tools like Arduino, OpenPLC, IEC 61131, or IEC61499. It features rich I/O resources, supporting digital signals, analog inputs, and various expansion modules for PID control, logic sequencing, and sensor monitoring.
Programming Support: C/C++, Python, Java, node.js.
Software Compatibility: Arduino-IDE, OpenPLC, ESP-IDF, VS code.
| Name | IOT gateway programmable controller |

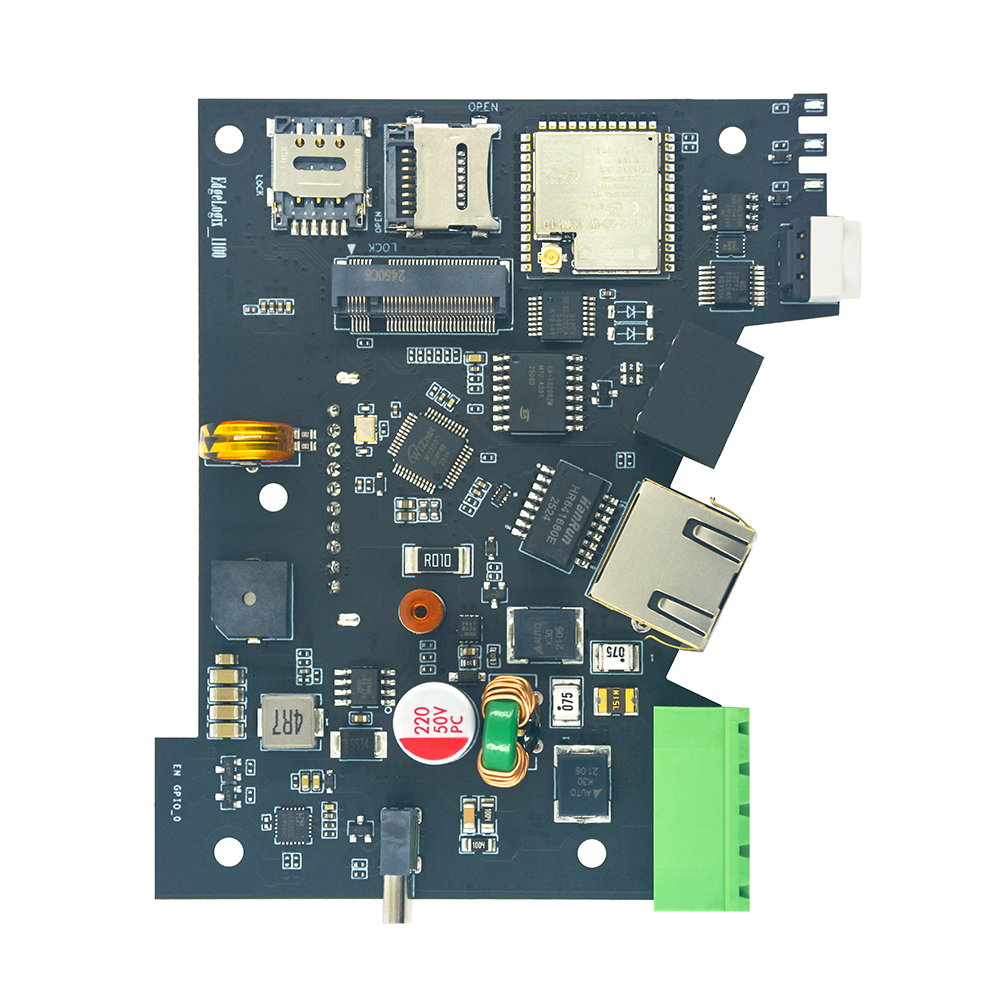

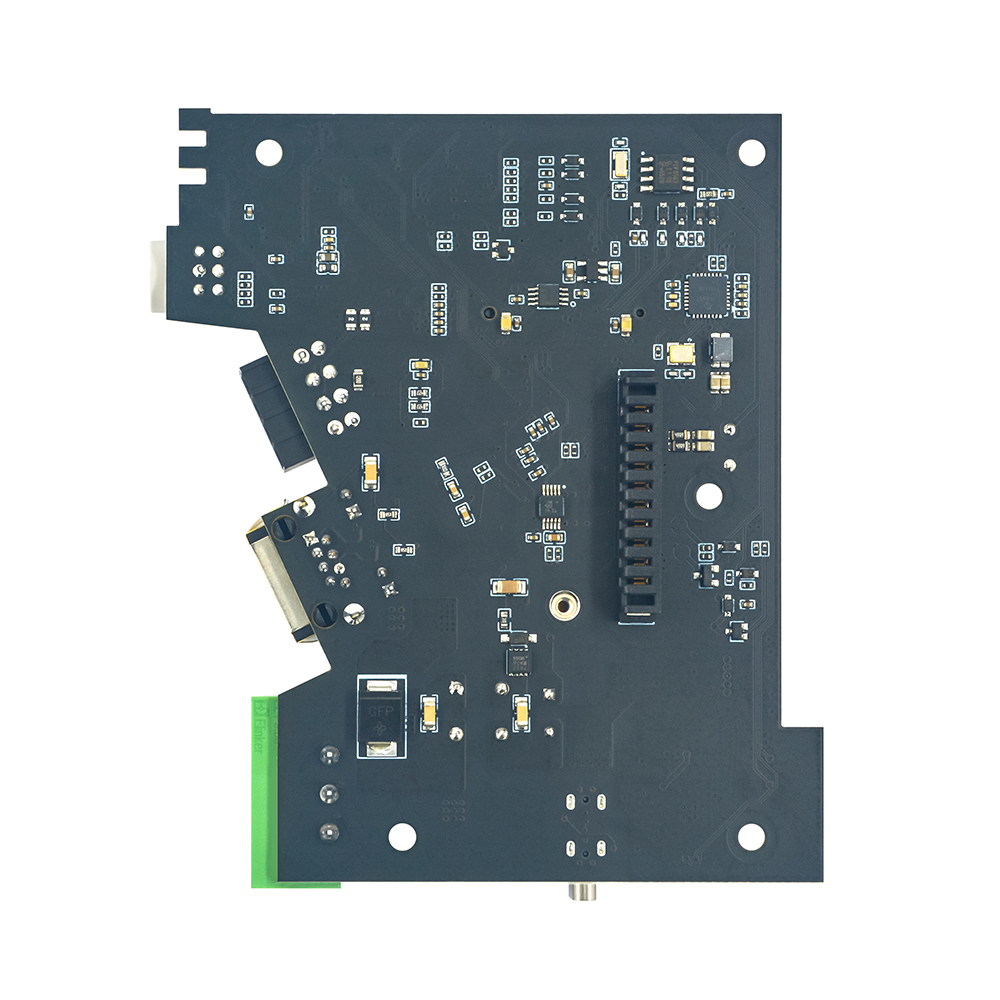

| CPU | Dual-core ESP32-S3 running at 240MHz |
| RAM / Flash | 16MB / 16MB SPI Flash |
| Storage | TF card slot |
| Retain Memory | 64kb retain |
| Wireless | Wi-Fi, Bluetooth, 3042 M.2 B-KEY for Cellular, Nano Sim slot |
| Interfaces | 1x 10/100Mbs Ethernet, 1x RS-232, 1x Isolated RS-485, USB Type-C |
| Operating Temp | -20°C to +60°C |
| Power Supply | 9 ~ 36 V |

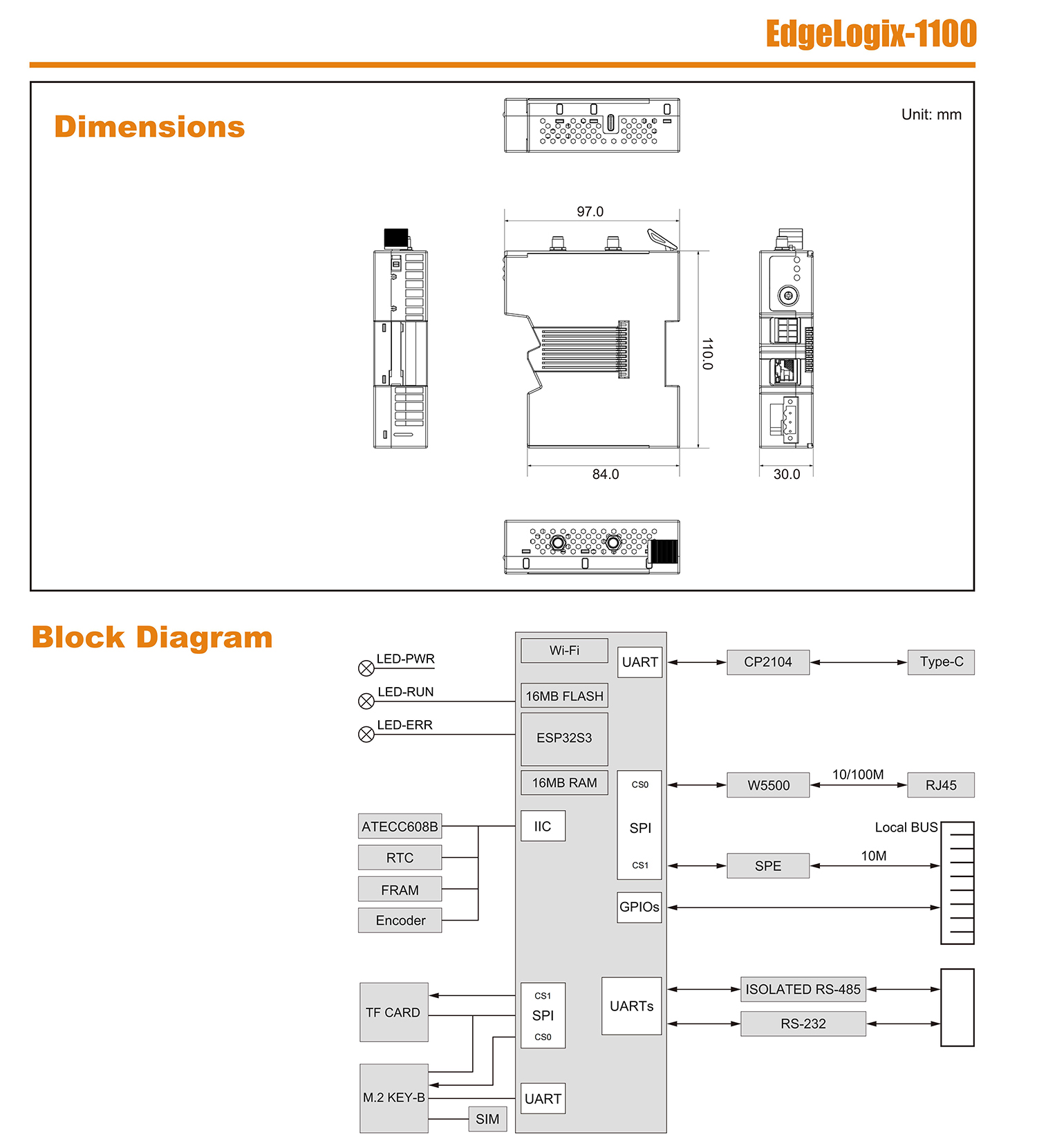

| Dimensions | 110mm (H) * 97mm (D) * 30mm (W) |
Applications: SCADA, Industrial Controller, PID control loops, Logic Sequencing Control, Industrial Gateway.
OpenEmbed is a global provider of embedded computing technology. With innovative design in embedded systems and a premium quality management system, the company optimizes product lines including System on Modules (SOM), Single Board Computers (SBC), IoT gateways, Edge computers, and Programmable controllers.
Our products are designed for demanding applications in automation, transportation, power utilities, IoT, network security, and green energy, providing reliable performance in rugged packages.
