| Model | HJ-G500-1000F |
|---|---|
| Container System | 20ft container (6058*2438*2896mm) |
| Battery System (with BMS) | 78 51.2V/280Ah battery PACKs, total battery capacity 1118.208KWh |
| Power | 500KW, off-grid and grid-connected optional |
| Convergence control cabinet | EMS system, parallel convergence system |
| Electric control cabinet | EMS system, AC power distribution system |
| Fire Fighting System | Containing fire protection cabinet, fire control cabinet, fire protection mainframe, fire protection cylinders, do-not-enter sign, audible and visual alarms. |
| Monitoring System | Containing access control system, environmental monitoring system |
| Air conditioning system | Floor-standing integrated machine, rated cooling capacity 20KW, including air conditioning duct system |

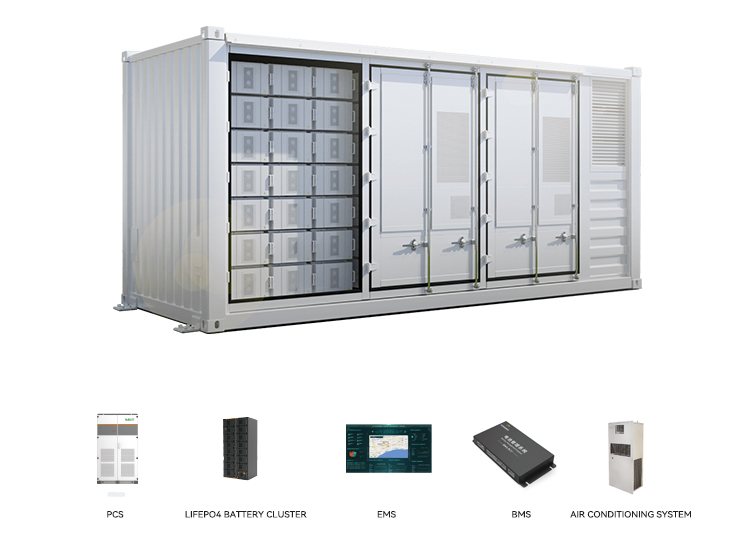

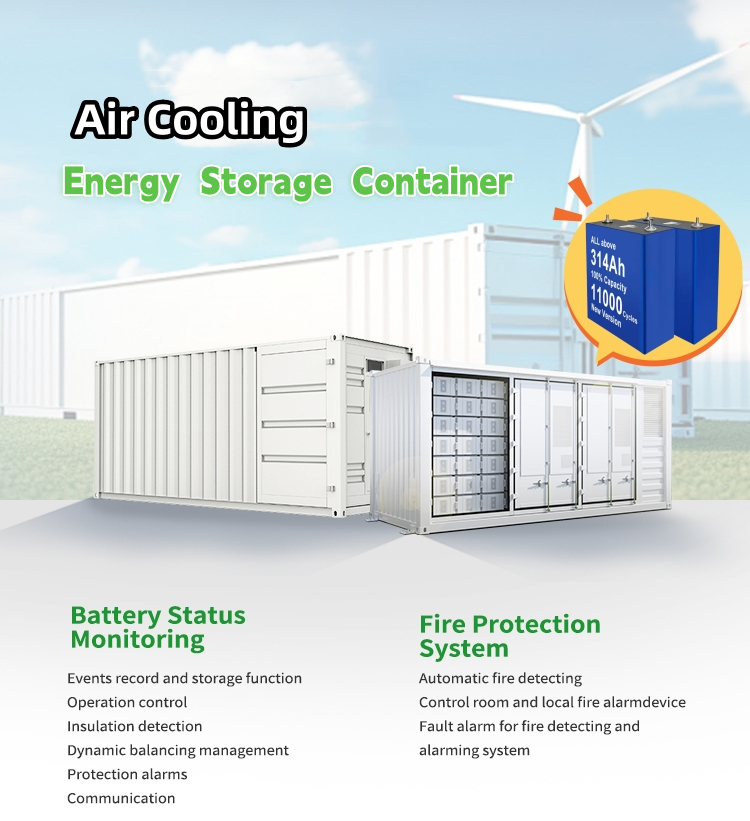

The 1MWh energy storage container system is an efficient, safe and intelligent energy storage solution. The system uses lithium iron phosphate battery technology, cooperates with grid-connected energy storage converters, and realizes intelligent control through the energy management system (EMS). It has complete communication, monitoring, management, control, early warning and protection functions, can achieve long-term continuous and safe operation, and is suitable for a variety of energy storage application scenarios.
| Application Scenario | Recommended System | Key Advantages |
|---|---|---|
| HPC/High-Heat Environments | Liquid Cooling | Maximum Heat Dissipation |
| General Industrial Use | Air Cooling | Budget-Friendly Efficiency |
| Hybrid Requirements | Custom Dual Systems | Risk Mitigation & Flexibility |
