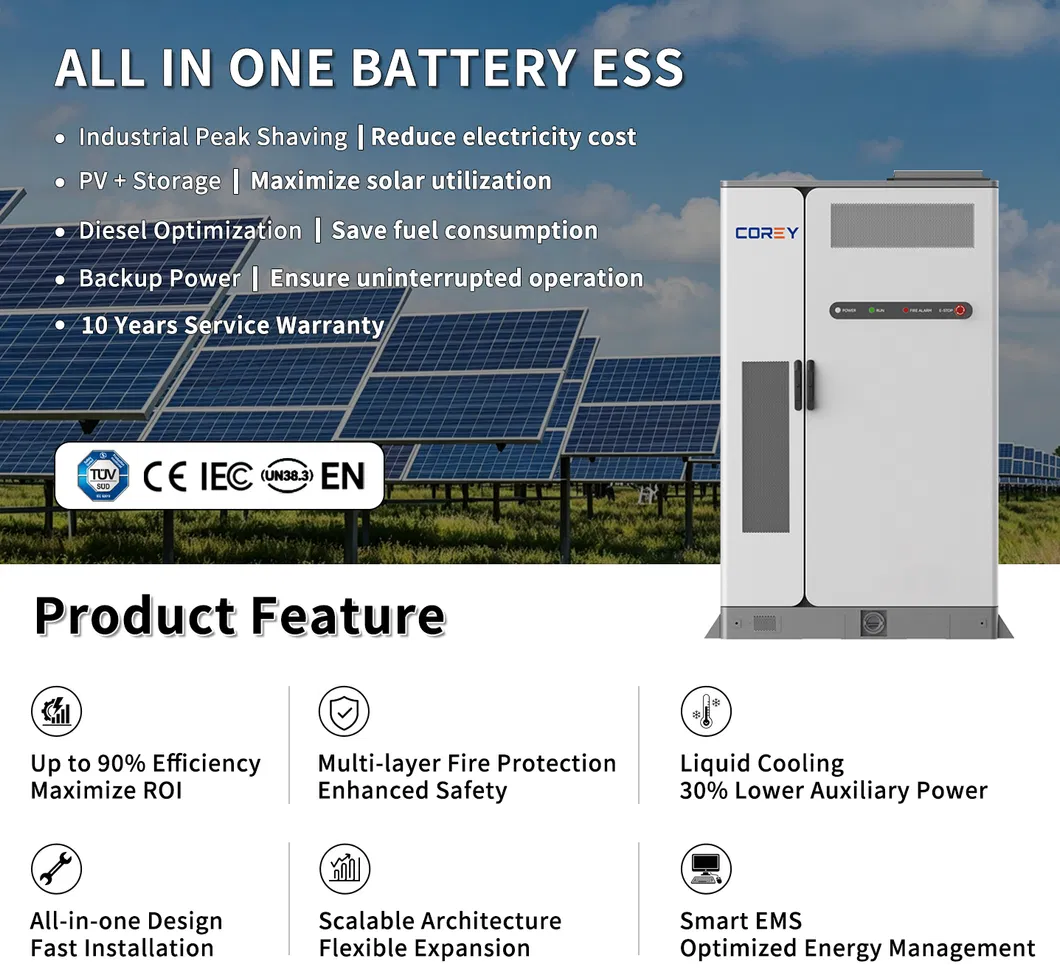

Turn Energy Costs into Profit: The Smart C&I Storage Solution
Stop losing money to volatile energy prices. Our Liquid-Cooled BESS cuts bills and generates new revenue streams with a fast, predictable ROI.
Achieve break-even in under 4 years in major EU markets. With a 25-year lifespan, that is 20+ years of pure profit.
Smart EMS optimized for EPEX markets. Earn from peak-valley arbitrage, negative pricing, VPP, and grid regulation.
Precision peak shaving prevents load spikes, eliminating costly demand charges and EU grid fines.
Advanced liquid cooling (≤3°C diff) extends battery life. CE/IEC/UN38.3 Certified for full compliance and safety.

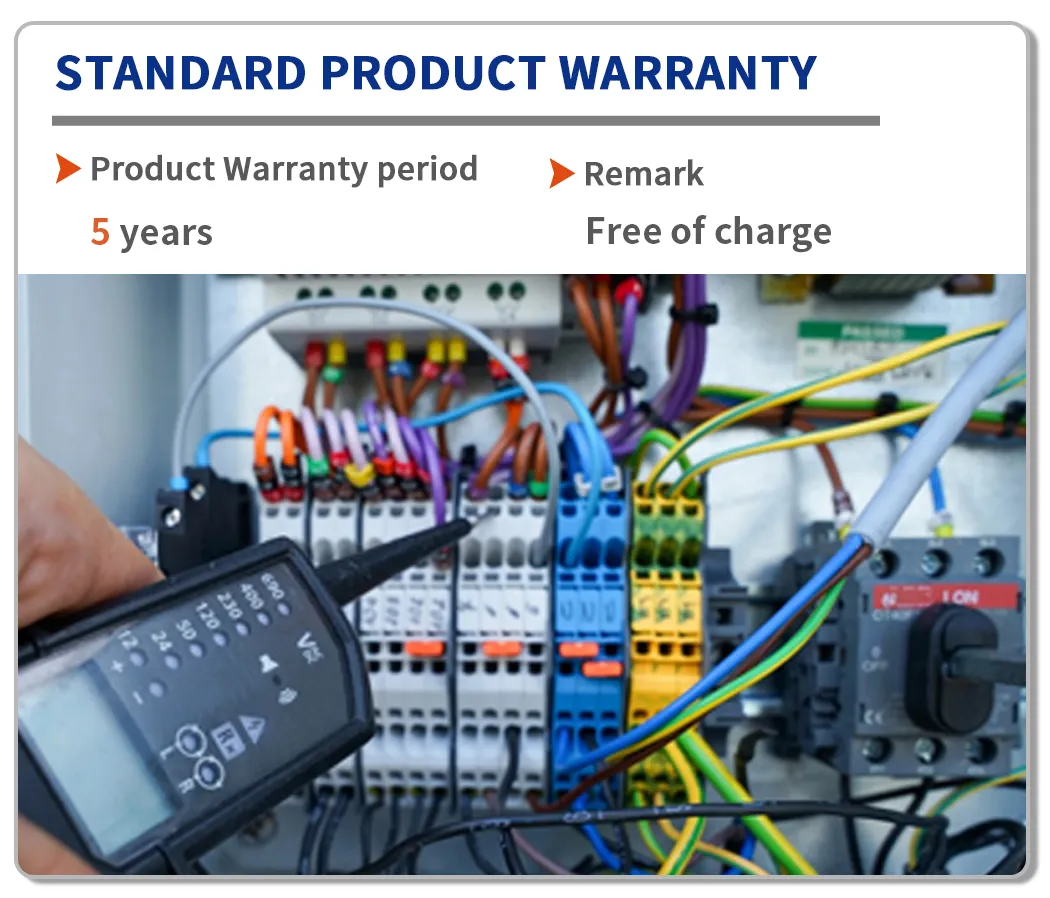

Plug-and-Play design saves on high European labor costs. Includes local support and a 5-year warranty.
ROI Analysis (Based on Typical European Electricity Market Environments)
Whether you are in Frankfurt, London, or Milan, the system adapts to local electricity market rules, transforming static storage into a dynamic profit-generating asset.
| Key Indicator | Value | Description |
|---|---|---|
| System Config | 105kW / 233kWh | Optimal ratio, balancing power and capacity |
| Annual Net Revenue | €22,000+ | Estimated comprehensive revenue based on stacked strategies |
| Static Payback Period | 3 - 3.5 Years | Highly competitive payback period in the European market |
| Lifecycle Revenue | Approx. €500,000 | Long-term asset appreciation over 25 years |
Our AI Energy Management System (EMS) has built-in algorithms for mainstream European electricity markets, automatically adapting to local rules to unlock four revenue sources for you:
Universal Logic: Utilize the expanding day-ahead market price spreads across European countries.
System Advantage: The 105kW high power ensures rapid charging during short low-price windows (e.g., midday PV peaks or nighttime valleys). Daily "two-charge, two-discharge" cycles maximize the 233kWh capacity, directly cutting electricity bills.
Universal Logic: Adapt to real-time fluctuations in European spot markets.
System Advantage: Automatically connects to exchange data (e.g., EPEX, Nord Pool). Discharges during price spikes; charges during low/negative prices. This strategy can boost annual revenue by an extra 15-20% in Europe's current energy climate.
Universal Logic: Address "capacity charges" or "peak penalties" common in European industrial sectors.
System Advantage: When factory loads spike (e.g., heavy equipment startup), the system discharges instantly to shave peaks, smoothing transformer load and avoiding costly seasonal penalties.
Universal Logic: Participate in grid balancing mechanisms.
System Advantage: Standardized interfaces allow connection to Virtual Power Plant (VPP) networks. Respond to grid dispatch (e.g., frequency regulation) during idle times for higher service subsidies than simple energy trading.
| System Parameter Block | Value Specification (Model 233CE) | |
|---|---|---|
| System Parameter | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Access Method | 3W+N/3W+N+Pe | |
| Communication | CAN/RS485/Ethernet/4G | |
| Communication Standard | Modbus TCP, Modbus RTU, CAN2.0, IEC61850, IEC104 | |
| Cooling Method | Intelligent Liquid Cooling | |

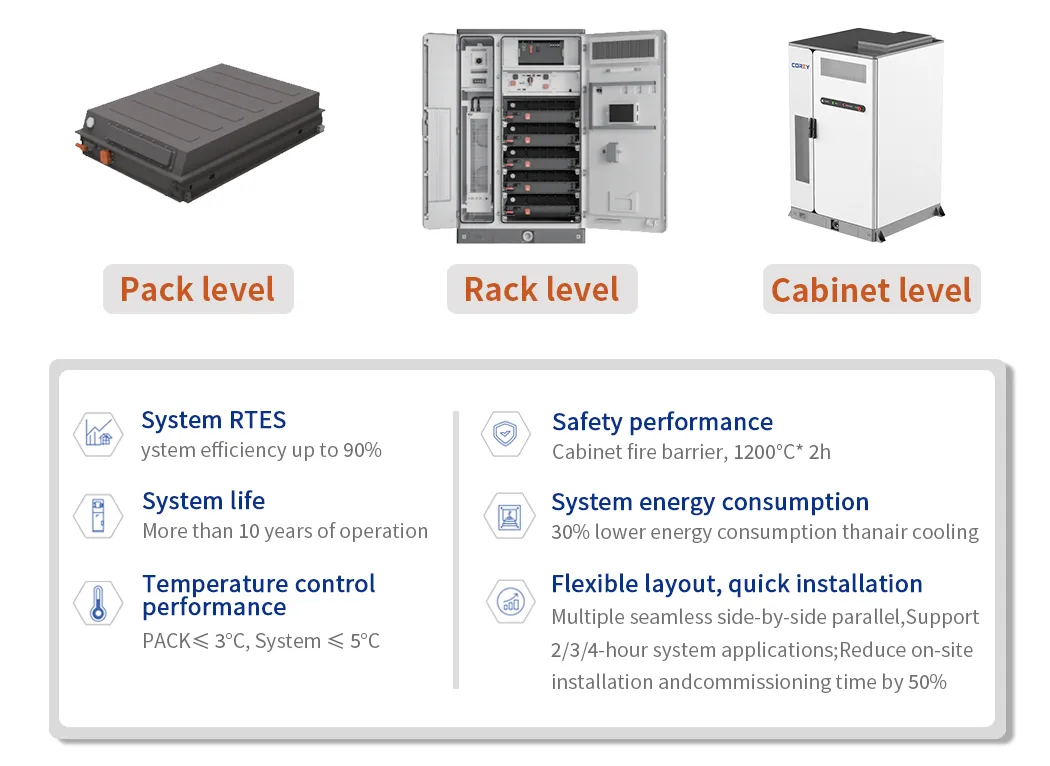

| Fire Fighting | Aerosol (pack-level + cluster-level) + Water Fire Protection (cabinet-level) | |
| Operating Altitude | 4000m (>2000m, derating operated) | |
| Operating Temperature | 0ºC~50ºC (charge), -20ºC~50ºC (discharge), 25ºC±2ºC (optimum) | |
| Relative Humidity | 5% ~ 95% RH | |
| Protection Level | IP54 | |
| Anti-corrosion Level | C4 | |
| Noise | ≤75dB | |
| Weight / Size | 2800kg±50kg / L1560mm*D1380mm*H2385mm | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Power Factor | ≥0.99 (-1~1) | |
| DC Component | <0.5% | |
| THDi | <2% (rated power) | |
| THDu | <3% (off-grid, linear load) | |
| Charge-Discharge conversion time | <100ms | |
| Automatic on-grid and off-grid switching time | 20ms (optional) | |
| Anti-backflow | Optional | |
| Overload Capability | 1.1 times for long-term | |
| DC Side | Rated Voltage | 832V |
| Certifications | CQCLVRT/HVRT, EN 62477, EN 61000, EN 50549-2, UN38.3, EN 62619, VDE 4105, VDE O126-1-1, XP C15-712-3, UTE C15-712-1, VFR 2019 | |

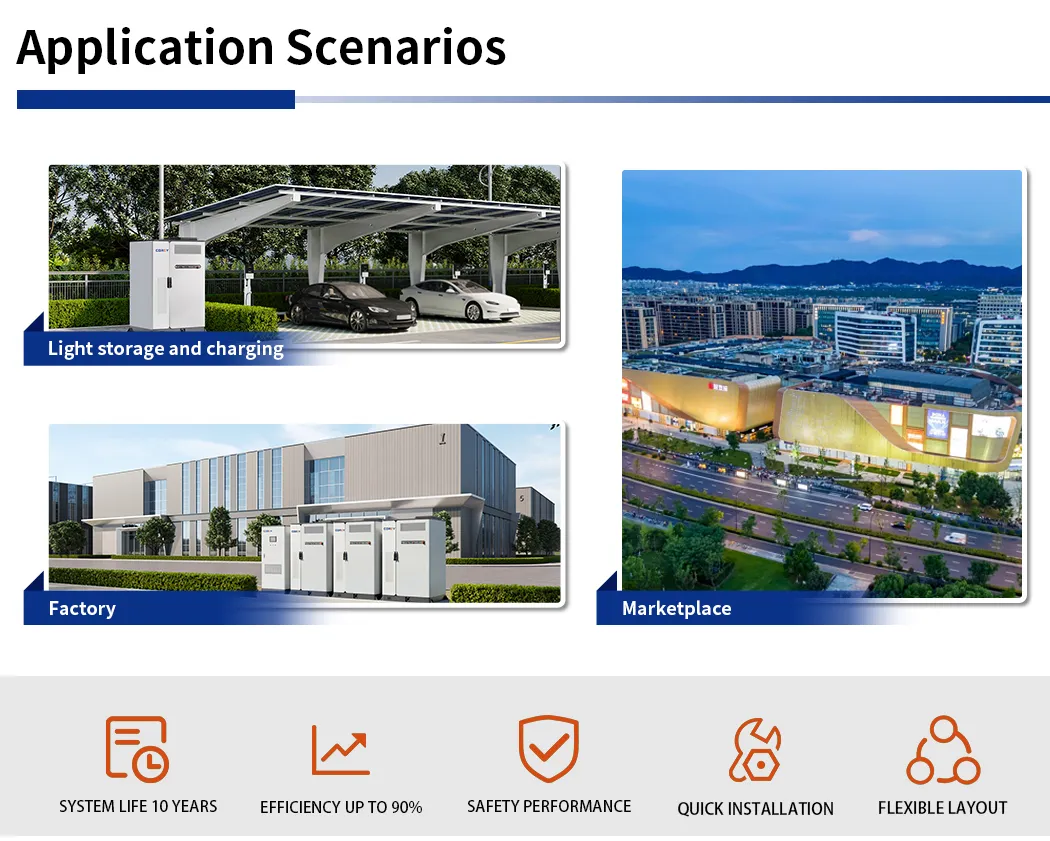

Commercial buildings, factory buildings, remote areas, and areas with power shortages.
The system is built on premium LiFePO4 cells offering a high cycle life of up to 9,000 cycles, providing a long-term asset life of up to 25 years. It is backed by a comprehensive 5-year warranty.
The unit is highly customizable and modular, making it perfect for commercial buildings, manufacturing factories, retail spaces, business parks, and remote areas facing power shortages.
The system runs smart algorithms that stack multiple revenue streams: peak-valley arbitrage, response to negative/dynamic market prices, shaving load peaks to avoid demand charges, and participating in grid balancing networks (VPP).
It holds a robust list of certifications for both safety and grid compliance, including UN38.3, EN 62619, EN 62477, VDE 4105, EN 50549-2, and CE compliance standards for smooth European deployments.
The intelligent liquid cooling mechanism maintains internal temperature variation below 3°C. This preserves battery health, ensures stable high-power charge/discharge cycles, and mitigates thermal hazards effectively.
Yes, the system is designed to switch automatically between grid-connected and off-grid modes. The optional fast-switching unit drops backup transition times down to 20ms to support critical loads.
