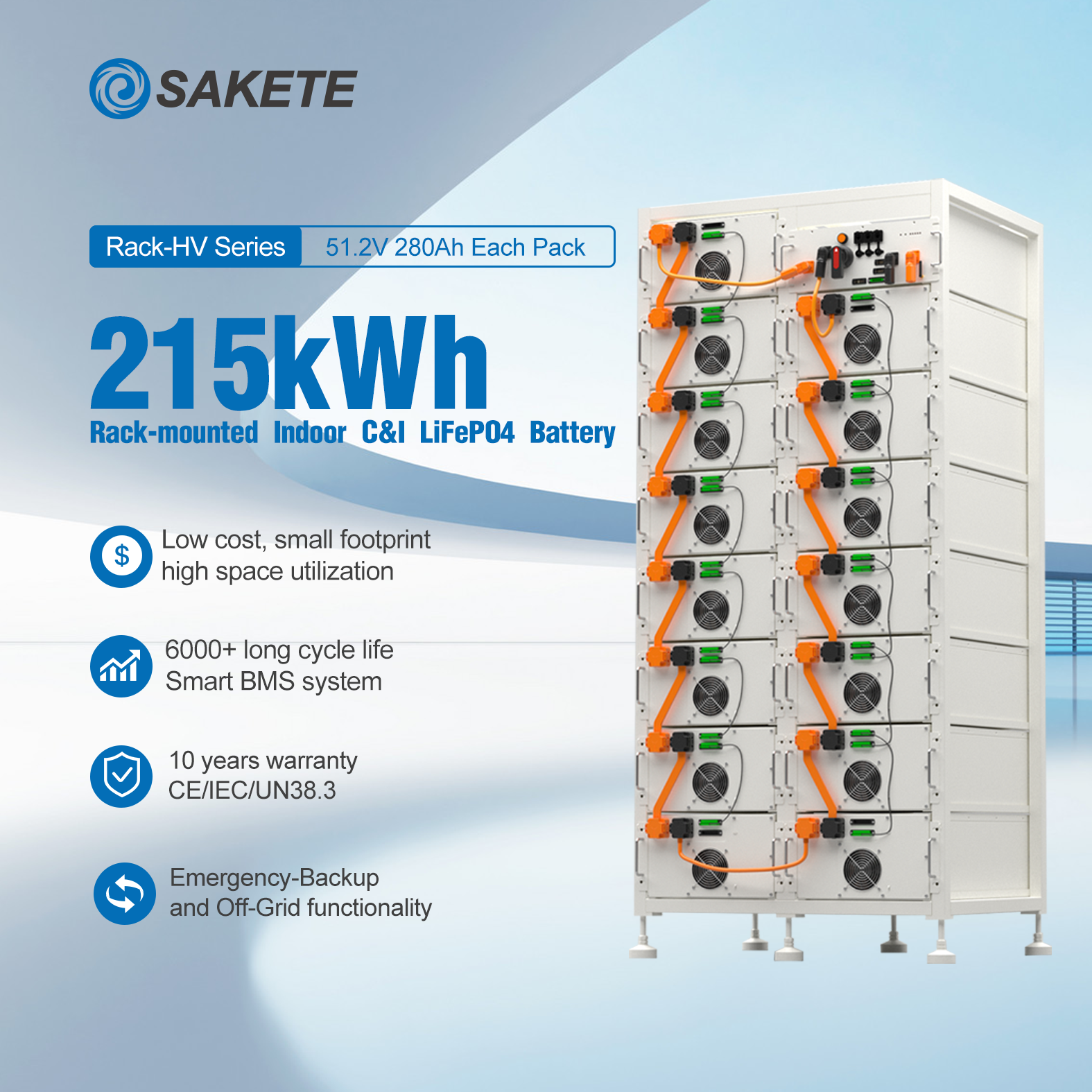

Sakete 215kWh 241kWh High Voltage BESS LiFePO4 Lithium Battery Storage System for Industrial Commercial Solar Hybrid Project

1 / 5

Sakete 215kWh 241kWh High Voltage BESS LiFePO4 Lithium Battery Storage System for Industrial Commercial Solar Hybrid Project

Send Inquiry

Product Description

Overview

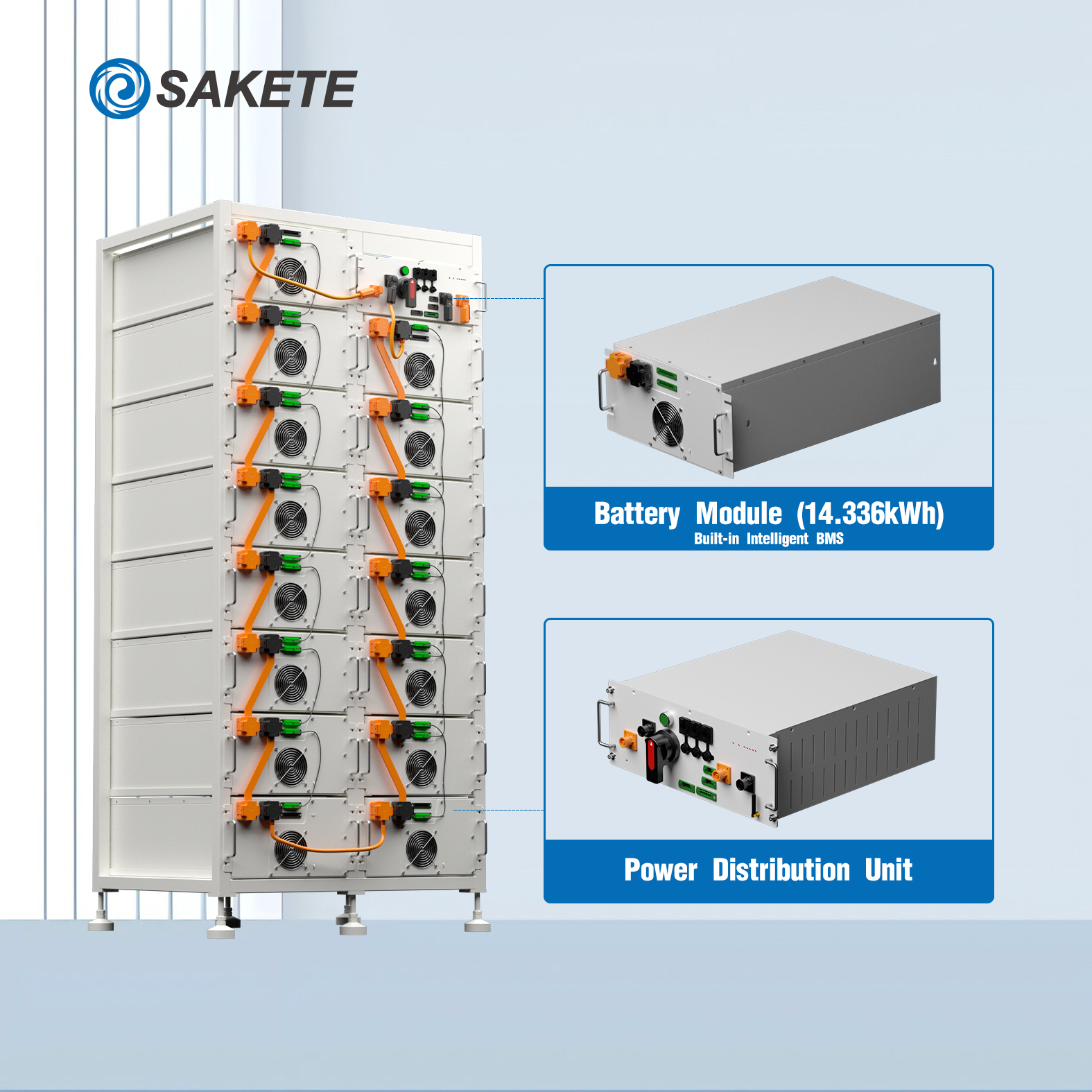

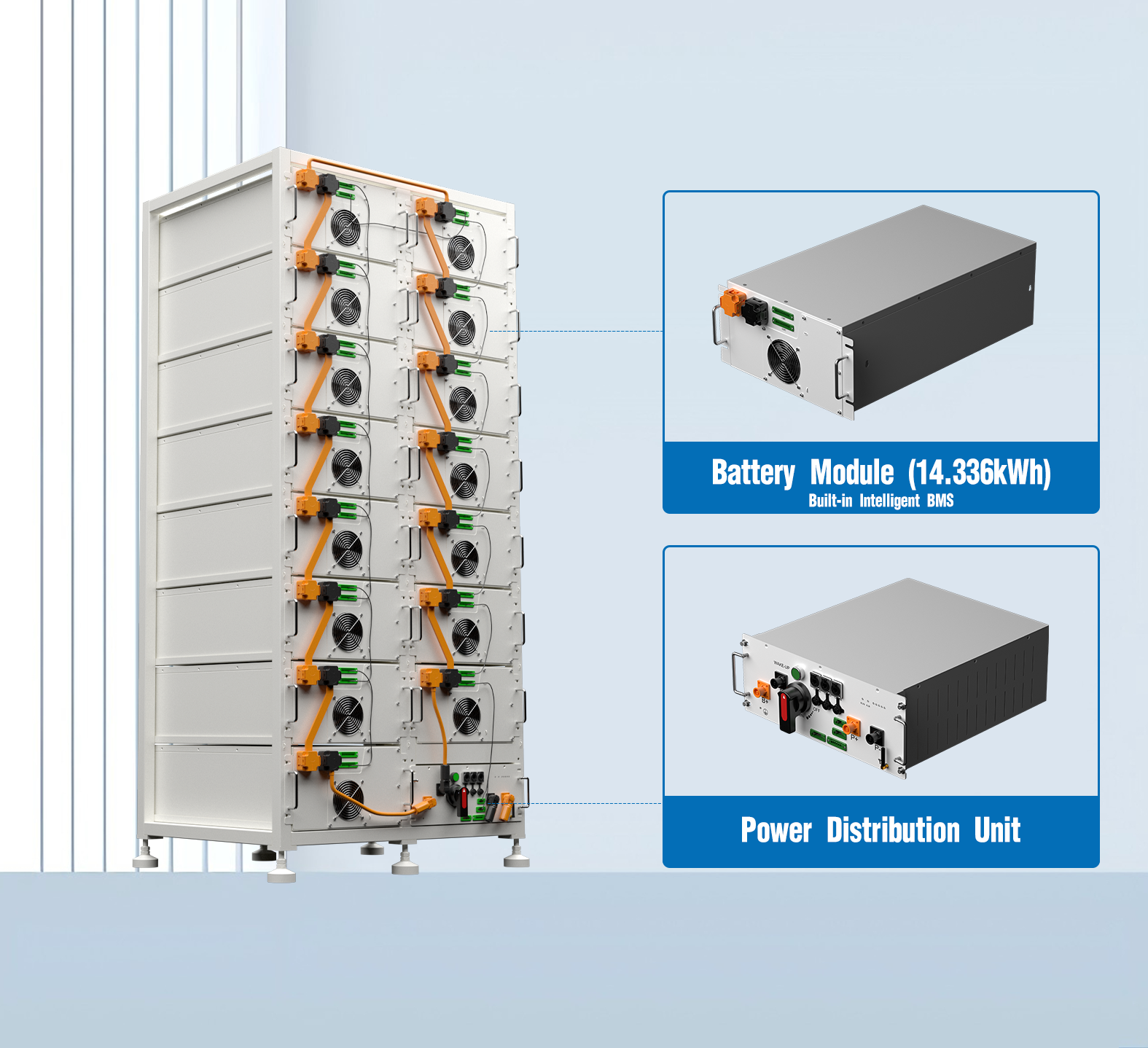

Standard Embedded Design Mainstream size for easy installation and convenient maintenance.

High Safety LiFePO₄ Cells Low self-discharge rate, supports aerosol fire extinguishing for enhanced protection.

Intelligent BMS Offers over-charge, over-discharge, over-current, and temperature protection with automatic cell balancing.

Wide Temperature Adaptability Stable performance from -20°C to 50°C, ensuring reliable operation in diverse climates.

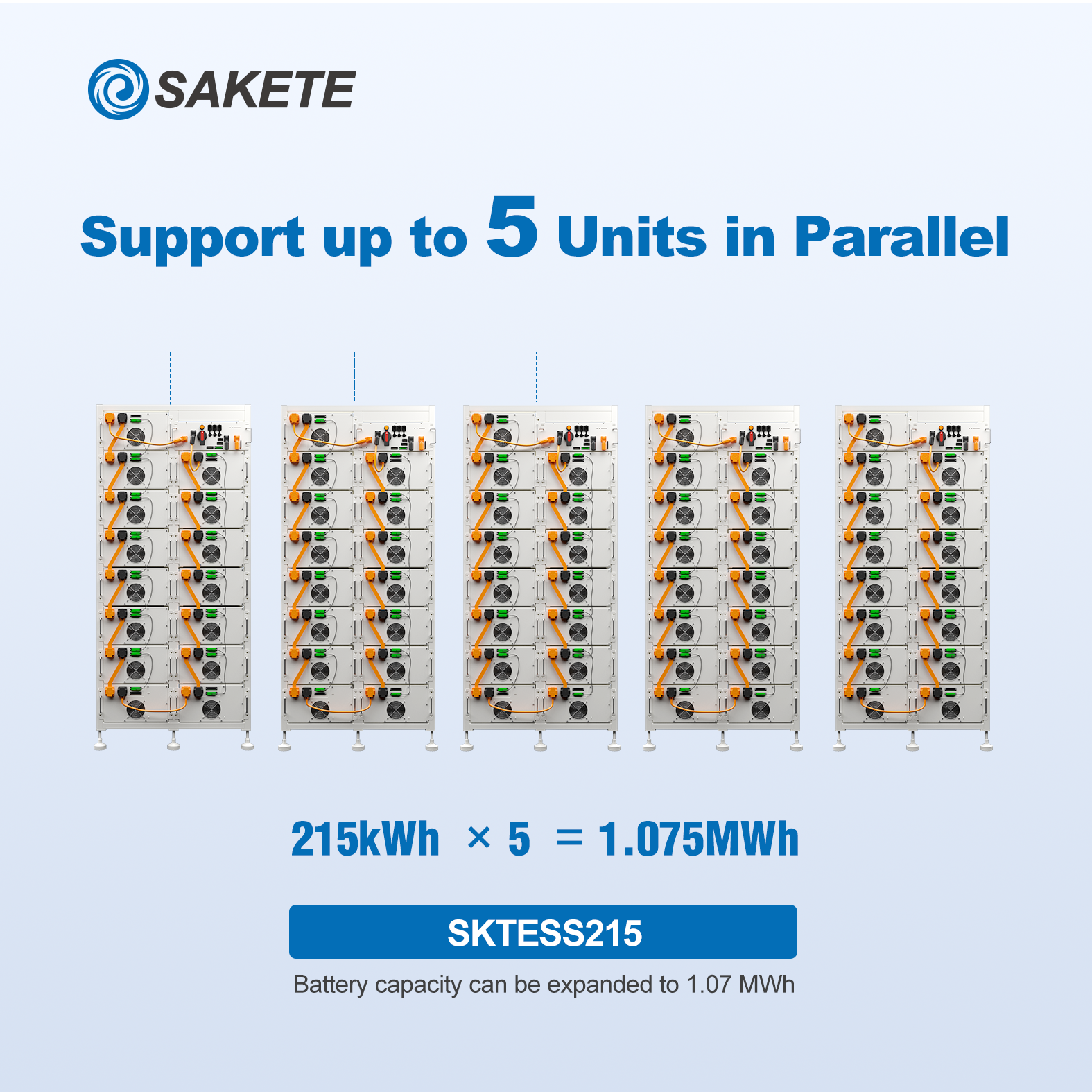

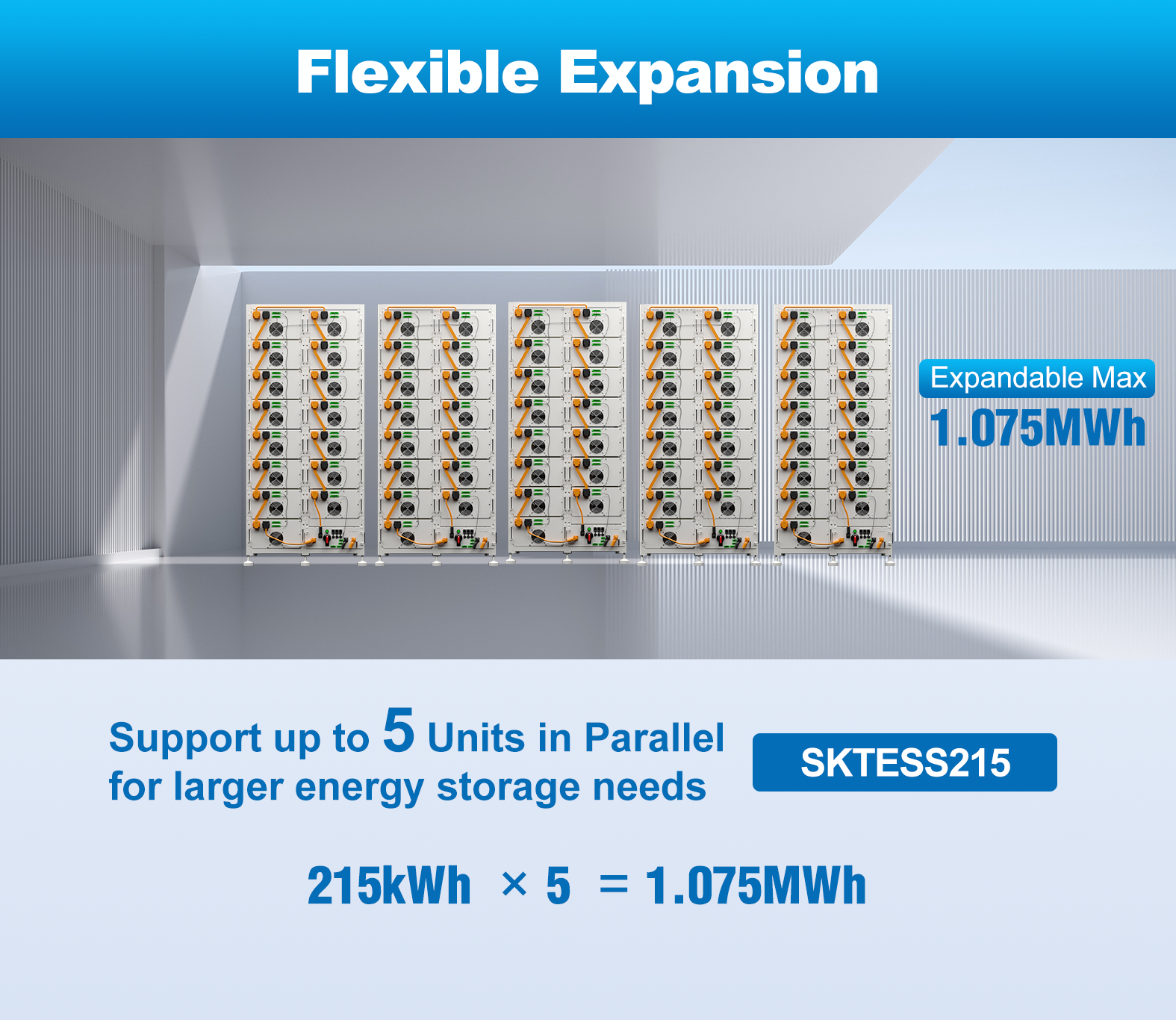

Flexible Scalability Supports parallel connection of up to 5 clusters for capacity and power expansion.

Economical Rack Structure Maximizes space utilization and reduces system cost for higher overall efficiency.

Technical Specifications

Model	SKTESS215
Battery Type	LiFePO4
Battery Capacity	280Ah
Pack Configuration	1P16S*15
Nominal Capacity	215.04kWh
Nominal Voltage	768V
Operating Voltage Range	672~852V
Max.Continuous Charge/ Discharge Current	140A
Charge/Discharge Rate	0.5C
Ingress Protection	IP20
Anti-Corrosion Grade	C3 (C4 Optional)
Cycle Life	Cycle Life ≥6000 /5 Years (@25°C ±2°C,0.5C /0.5C,70% EOL)
Charge Operating Temperature	0°C~45°C
Discharge Operating Temperature	-20°C~50°C
Operating Temperature Range	-20°C~50°C
Relative Humidity	5~95 %(non-condensing )
Communication	CAN/RS485
Cooling	FAN
Dimension	980 × 782 x 2153mm
Weight	≤1800kg
Max. Parallel	5

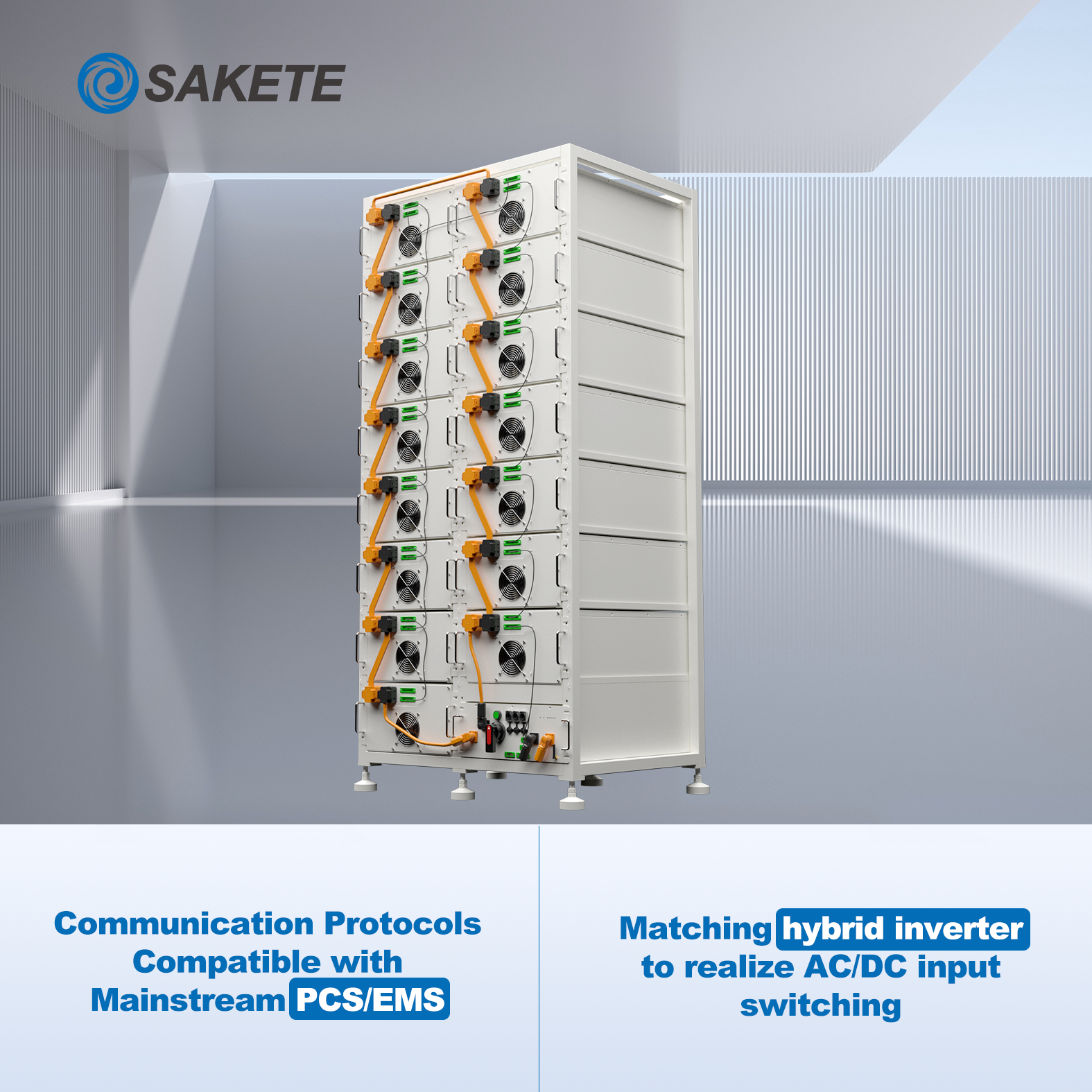

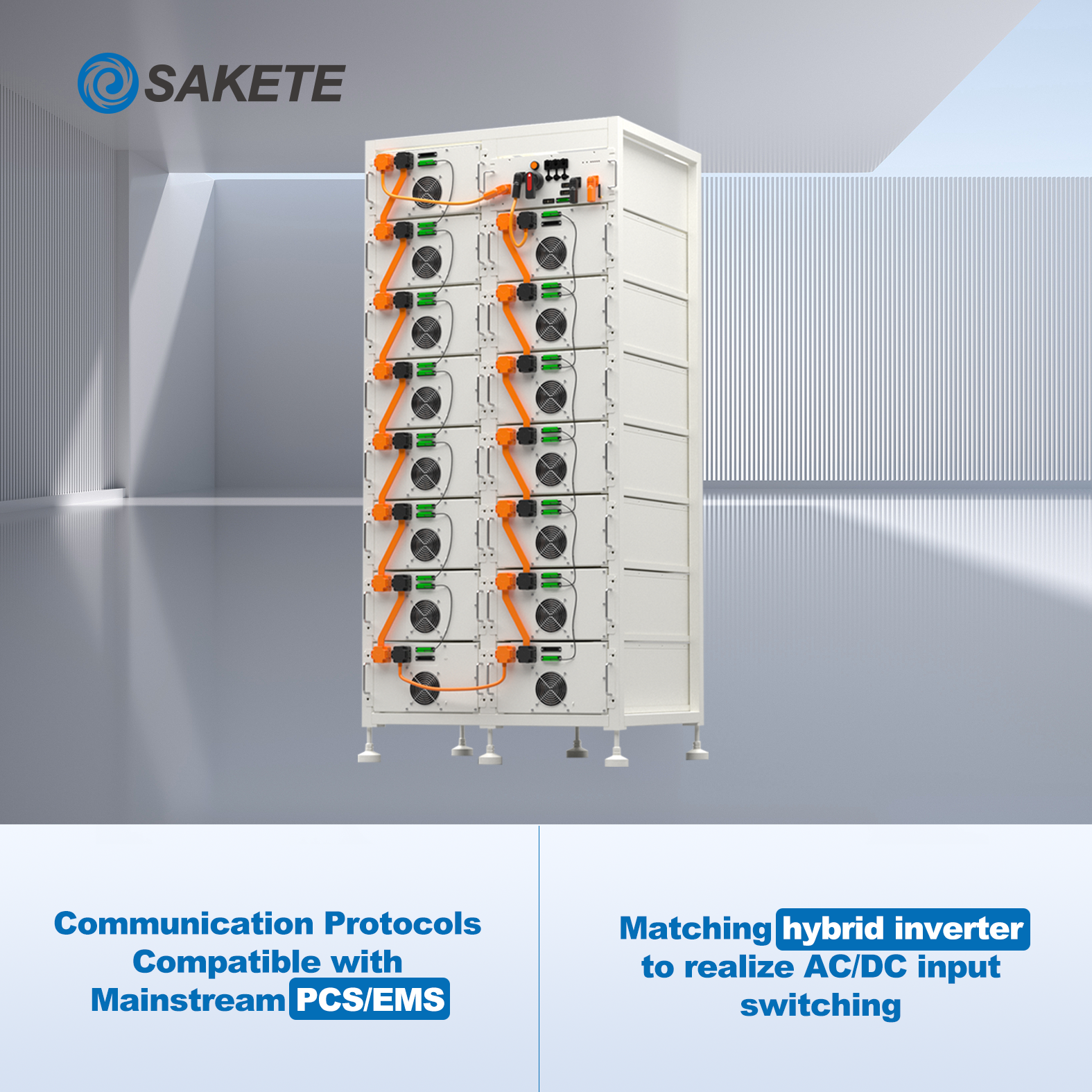

Products Advantages

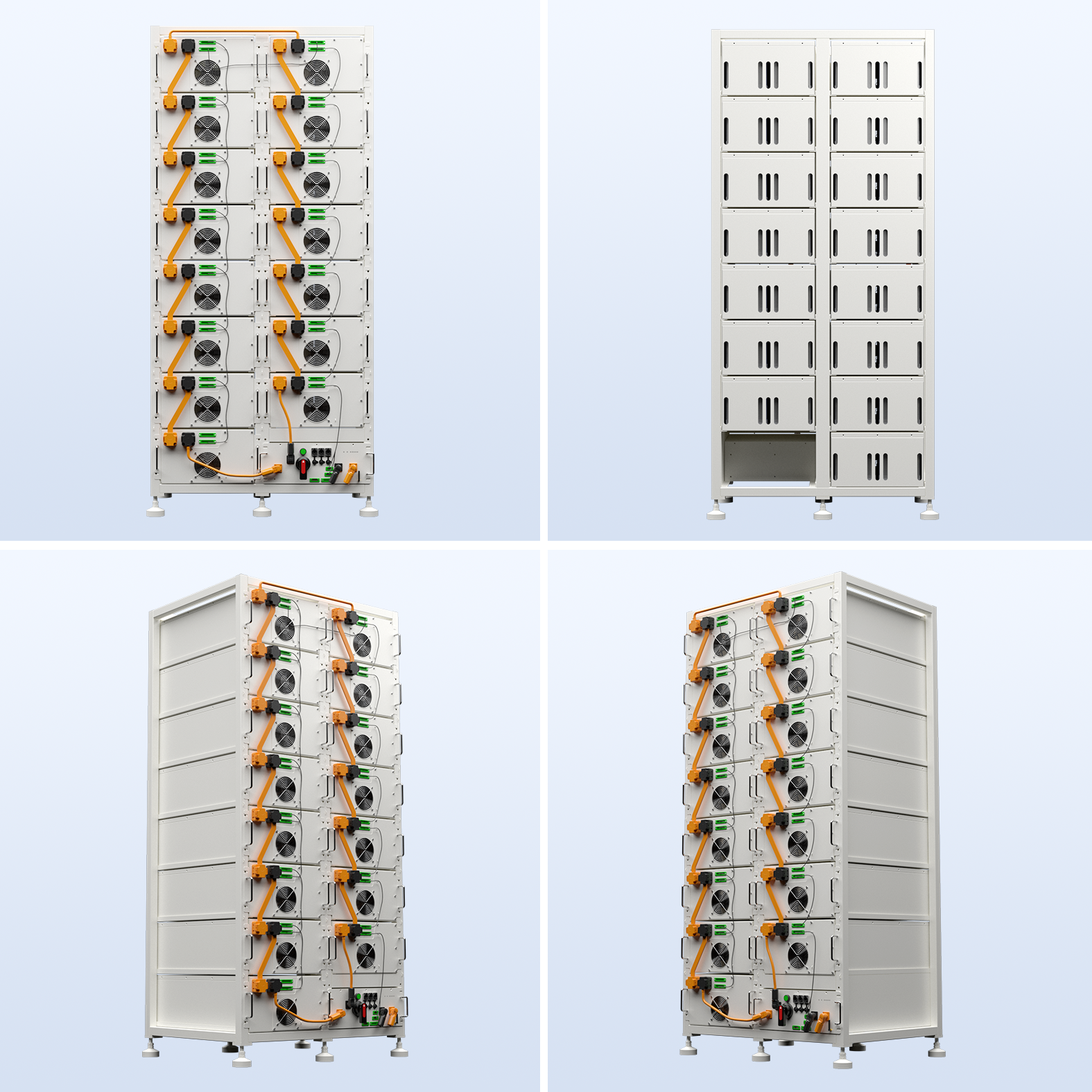

Products Description

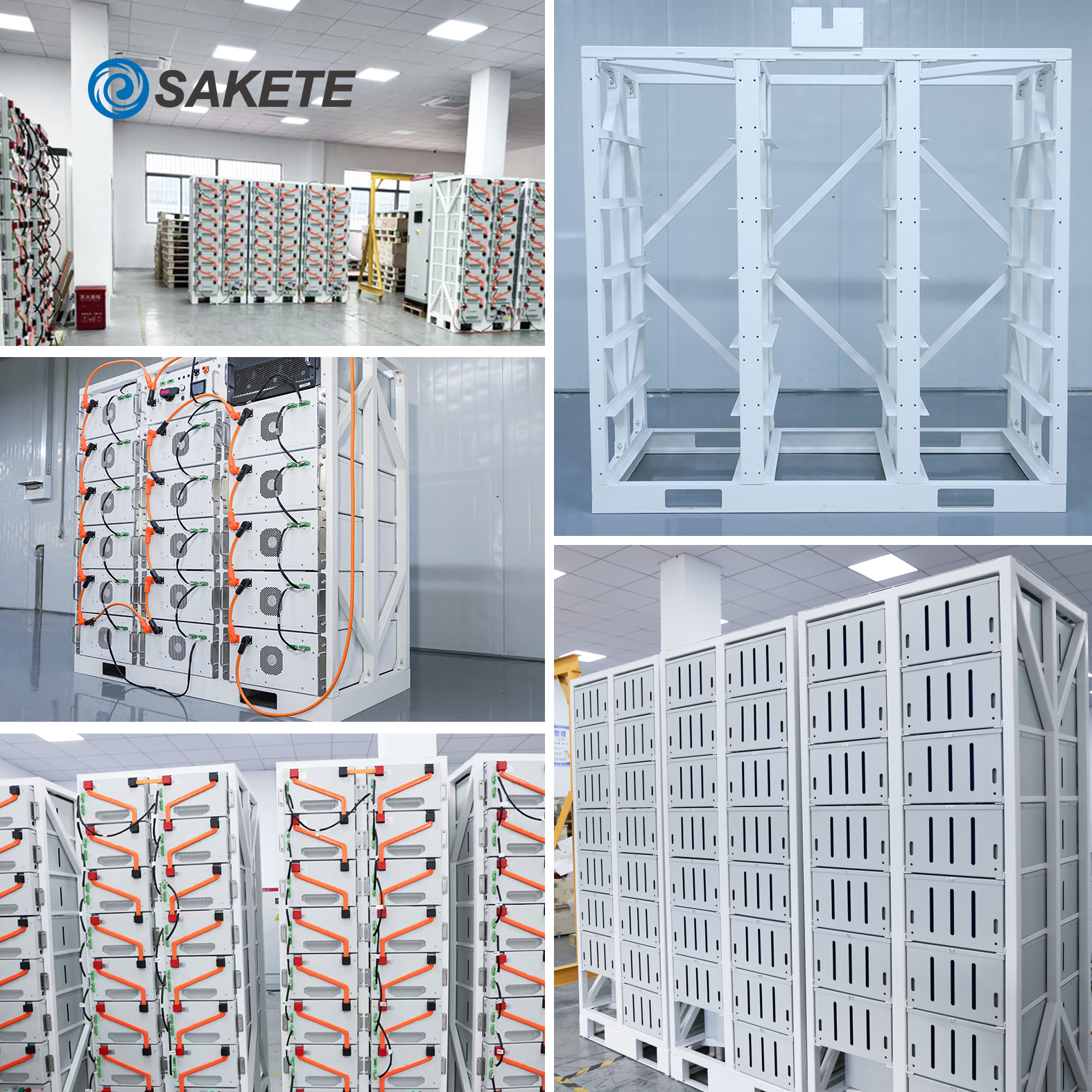

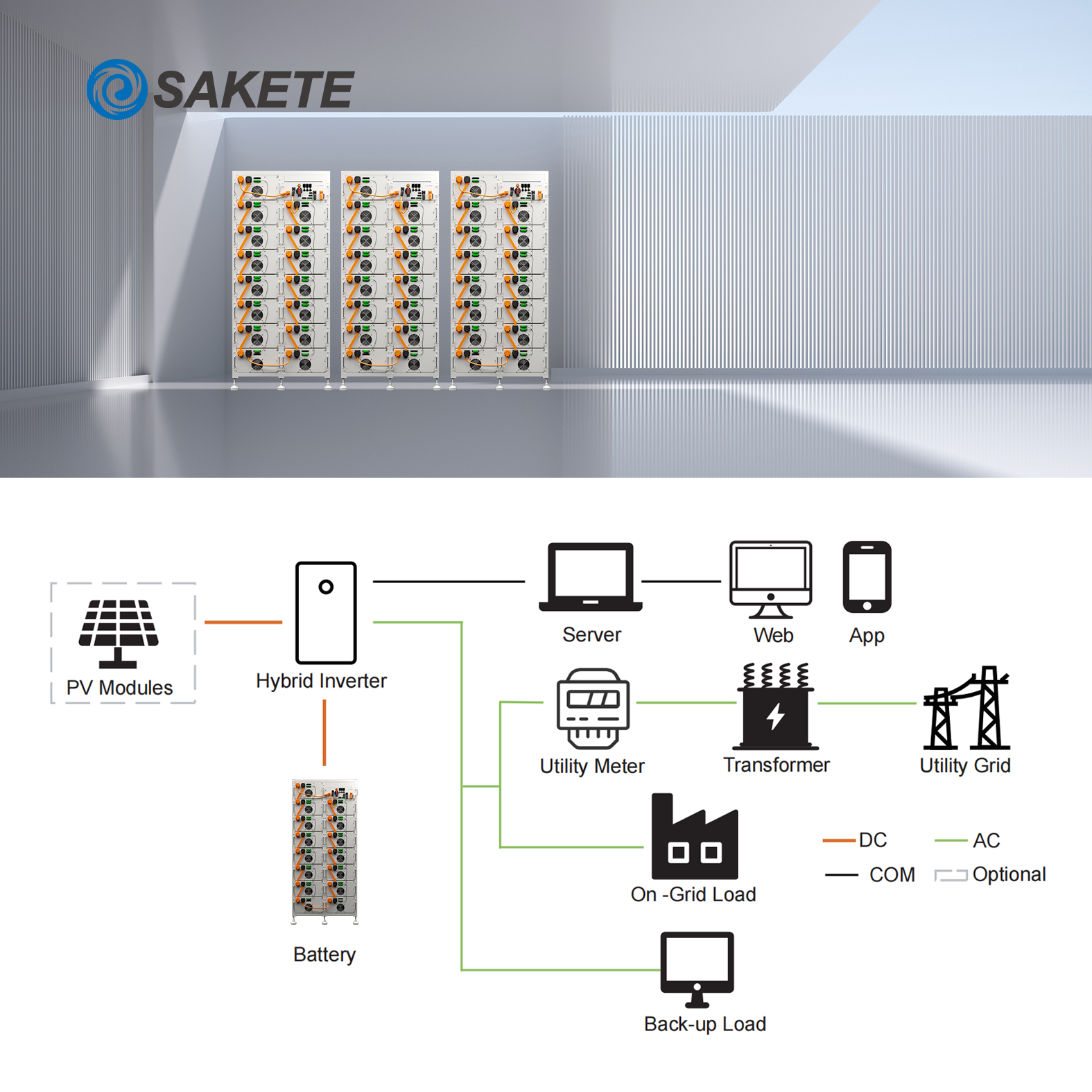

Projects

Product packaging

Company Profile

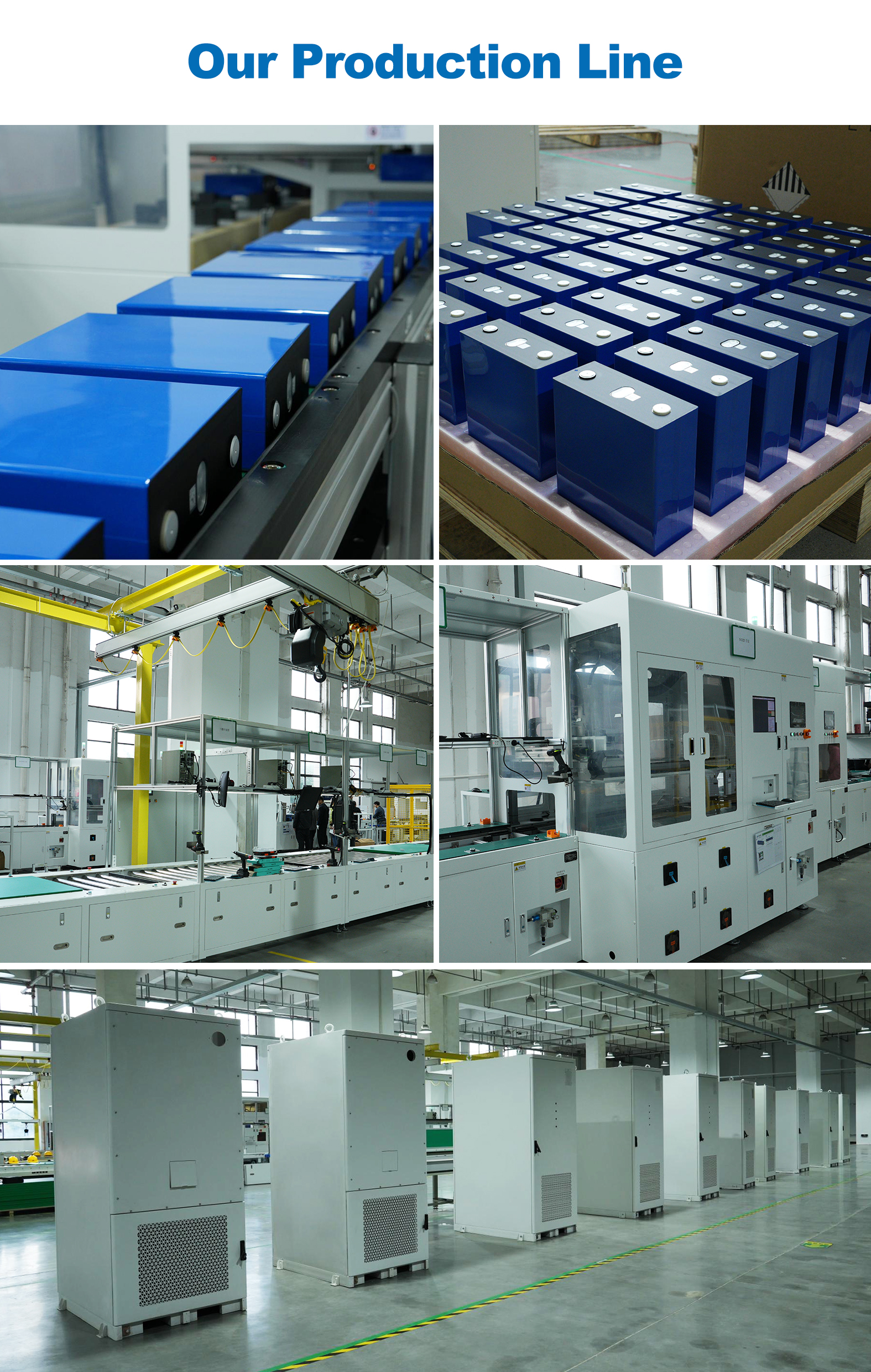

Our Strengths:

Integrating research, development, production, sales and service
Providing integrated green energy solutions for multiple scenarios
Comprehensive product portfolio featuring a diversified industrial, commercial and residential storage product matrix
Robust ‘3S’ (BMS, EMS, PCS) product architecture ensuring seamless, stable operation of smart industrial, commercial and residential storage systems
Possesses OEM & ODM capabilities
Products hold industry certifications guaranteeing safety, reliability and efficiency
24-hour professional technical support team

Frequently Asked Questions

What battery chemistry and capacity are featured in this system?

The system utilizes high-safety Lithium Iron Phosphate (LiFePO4) battery cells, featuring a battery capacity of 280Ah and a nominal system capacity of 215.04kWh.

How does the Intelligent BMS protect the battery system?

The integrated Intelligent BMS provides auto-balancing for cells and features comprehensive protections against over-charge, over-discharge, over-current, and extreme temperature conditions.

What is the operating temperature range for this energy storage system?

The system supports charge cycles within 0°C to 45°C and discharge operations within -20°C to 50°C, ensuring reliable energy delivery across diverse climates.

Is the storage capacity scalable for larger energy needs?

Yes, the system is designed with flexible scalability, supporting parallel connections of up to 5 clusters for both power and capacity expansion.

What is the estimated cycle life of the battery system?

It provides a cycle life of ≥6000 cycles or a lifespan of 5 years (tested under conditions of 25°C ±2°C, 0.5C charge/discharge rate, and 70% End-of-Life).
