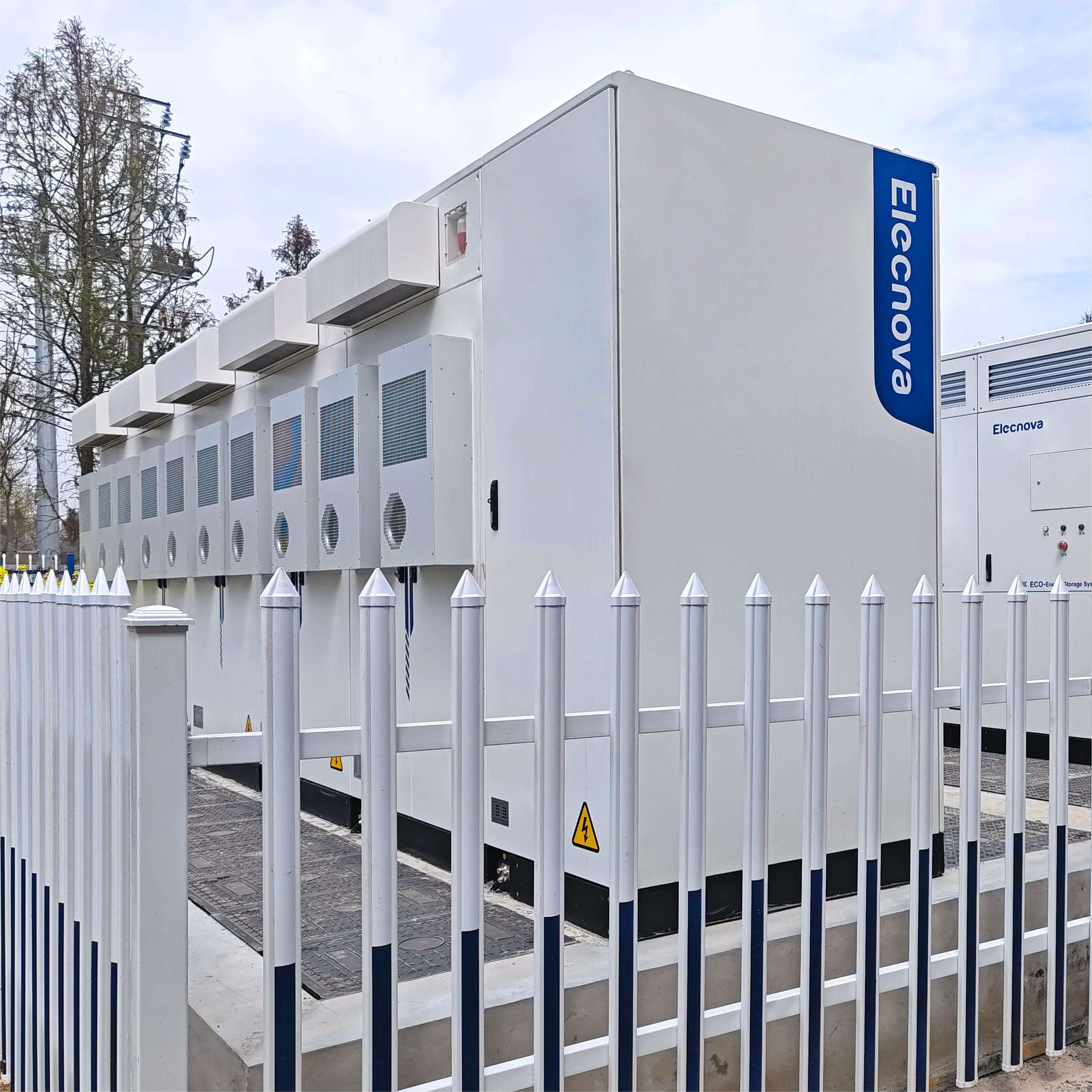

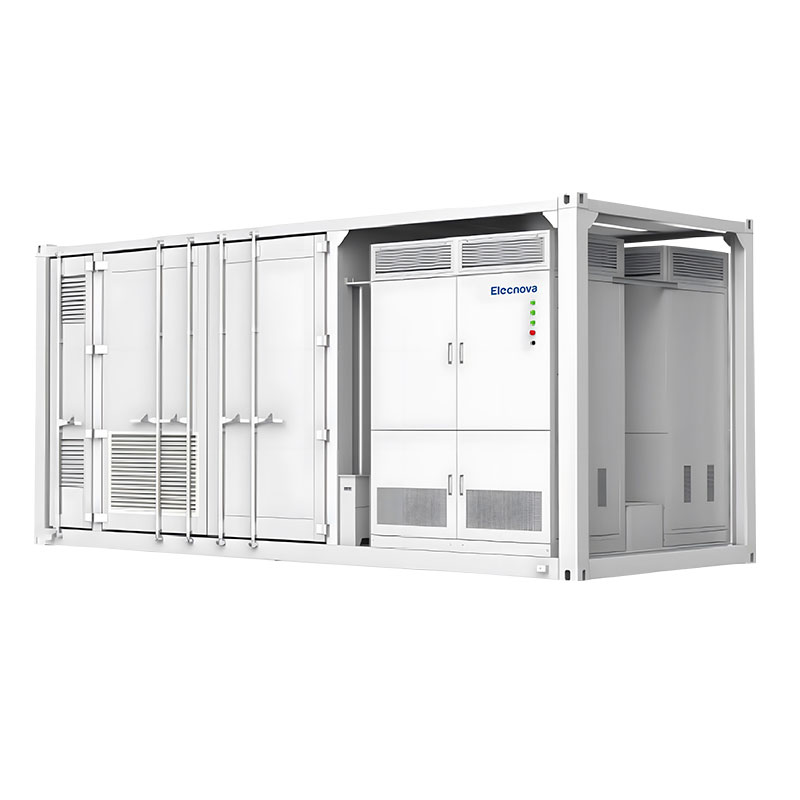

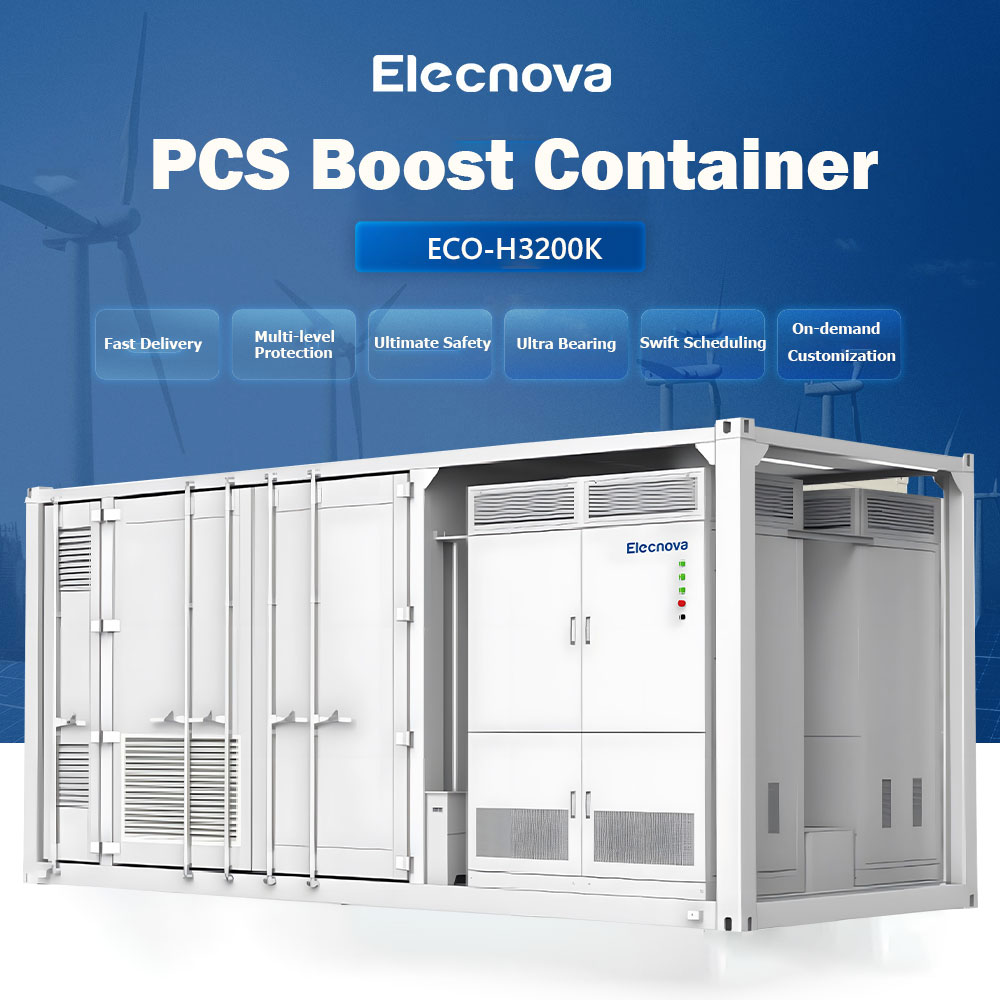

High Quality Economical Air Cooling Energy Storage System UN38.3 Certified PCS-Boost Container

Send Inquiry

Product Description

Specification

DC side	ECO-H3200KG6-35
Max. Voltage	1500Vdc
Max. Power	200kW*16
Max. Current	200A*16
Voltage Range	1000-1500Vdc
AC Side	Rated Power: 3200kW
Max. Power	3520kW
Nominal Voltage	6-35kV optional
Rated Frequency	50Hz/60Hz
THD	<1.5% @rated power
Power Factor	-1 lagging~1 leading
General	Isolation: Dry/oil transformer
Max. Efficiency	98%
Ingress Rating	IP54
Operating Temperature	-40°C~60°C
Altitude	4000m (derating above 4000m)
Cooling	Smart air cooling
Connectivity	RS485/CAN/Ethernet
Dimensions (WDH)	605824382591(mm)

Packing & Delivery

Application

Project

FAQ

Are you trading company or manufacturer?

We are manufacturer. Our manufacturing center includes 3 R&D centers and 1 CNAS lab.

Can you supply OEM & ODM service?

Yes, we welcome long term strategy business partners to implement the OEM & ODM projects.

Can you ship your battery products by sea or by air?

Our products have passed the UN38.3 certification, which is available for international sea shipment.

How long is the warranty?

We provide warranty in 3, 5, 10 years with different prices and conditions.

How do you provide after-sales service?

We have overseas affiliates and business partners worldwide for on-site maintenance.

Can I get a sample?

Yes, please leave your contact information and our sales manager will contact you soon.
