| Energy Capacity | 100kWh-500kWh |
|---|---|
| Power Configuration | 100kW-250kW |
| Cycle Life | 5000 Cycles (80%DOD) |
| Cooling Method | Full Liquid Cooling (Temperature Difference ≤3℃) |
| Battery Cell Type | LFP 3.2V/314ah |
| Product Type | All-in-One Integrated Cabinet |
| Scalability | Up to 10 Units in Parallel |
| Protection Class | System: IP55 / Battery Pack: IP67 |

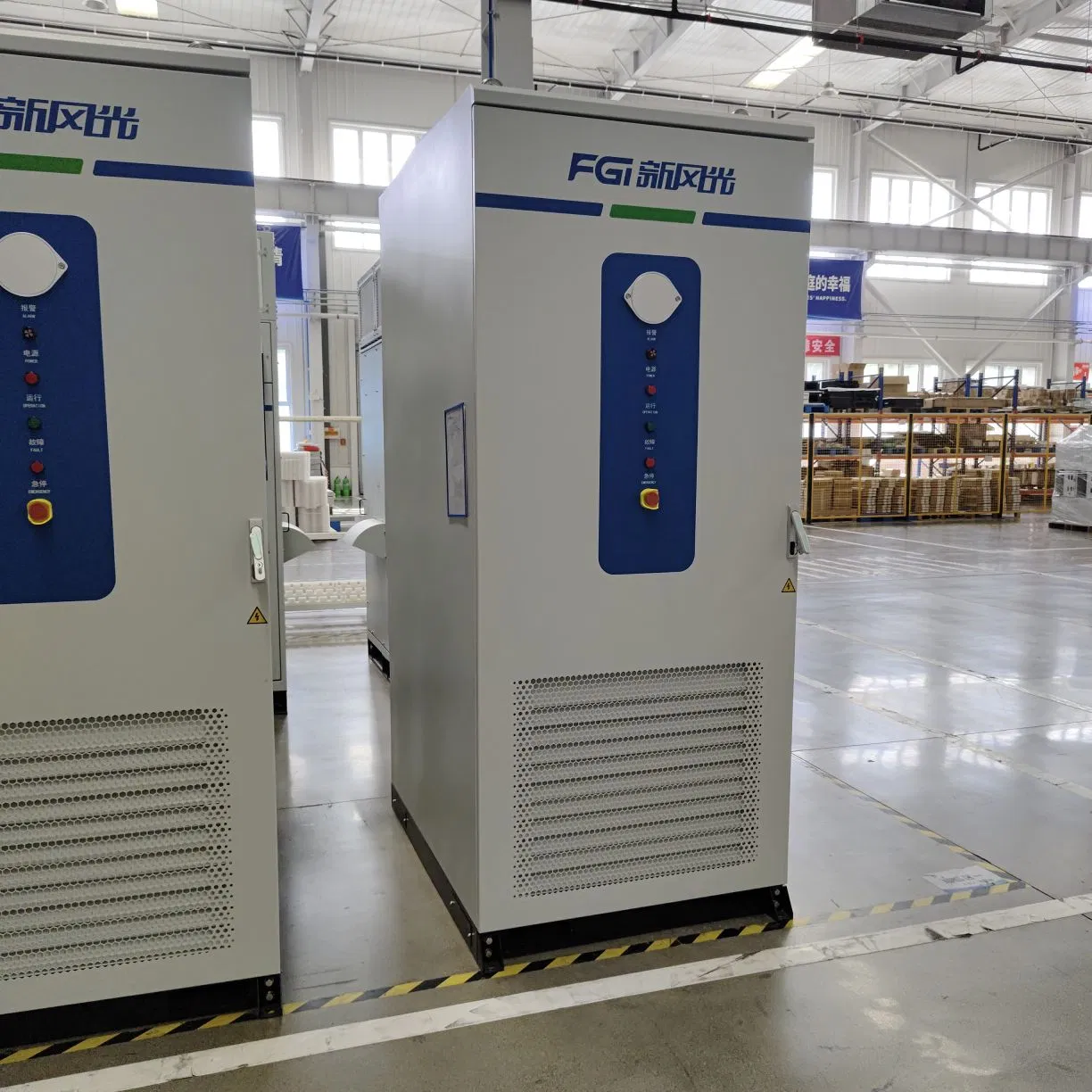

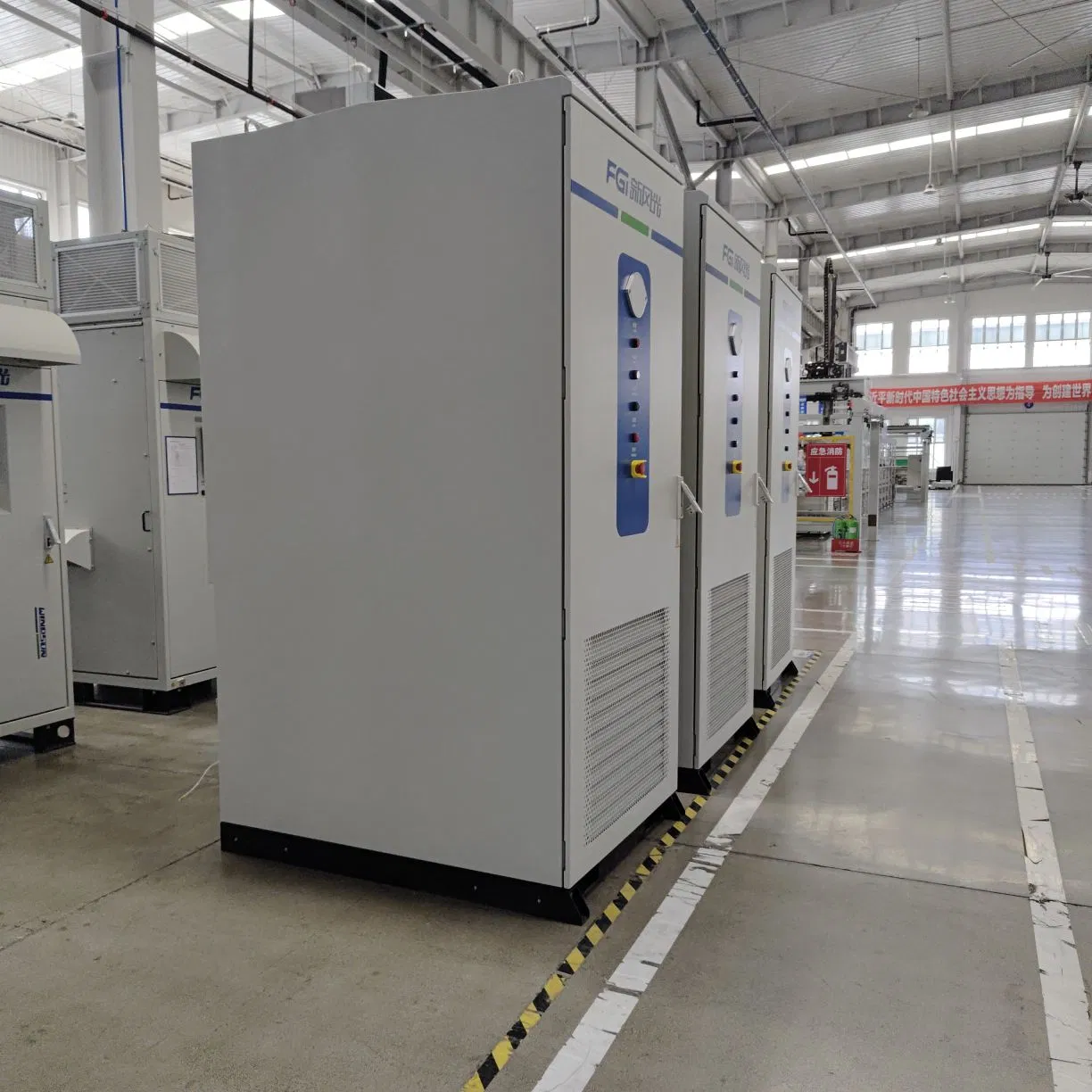

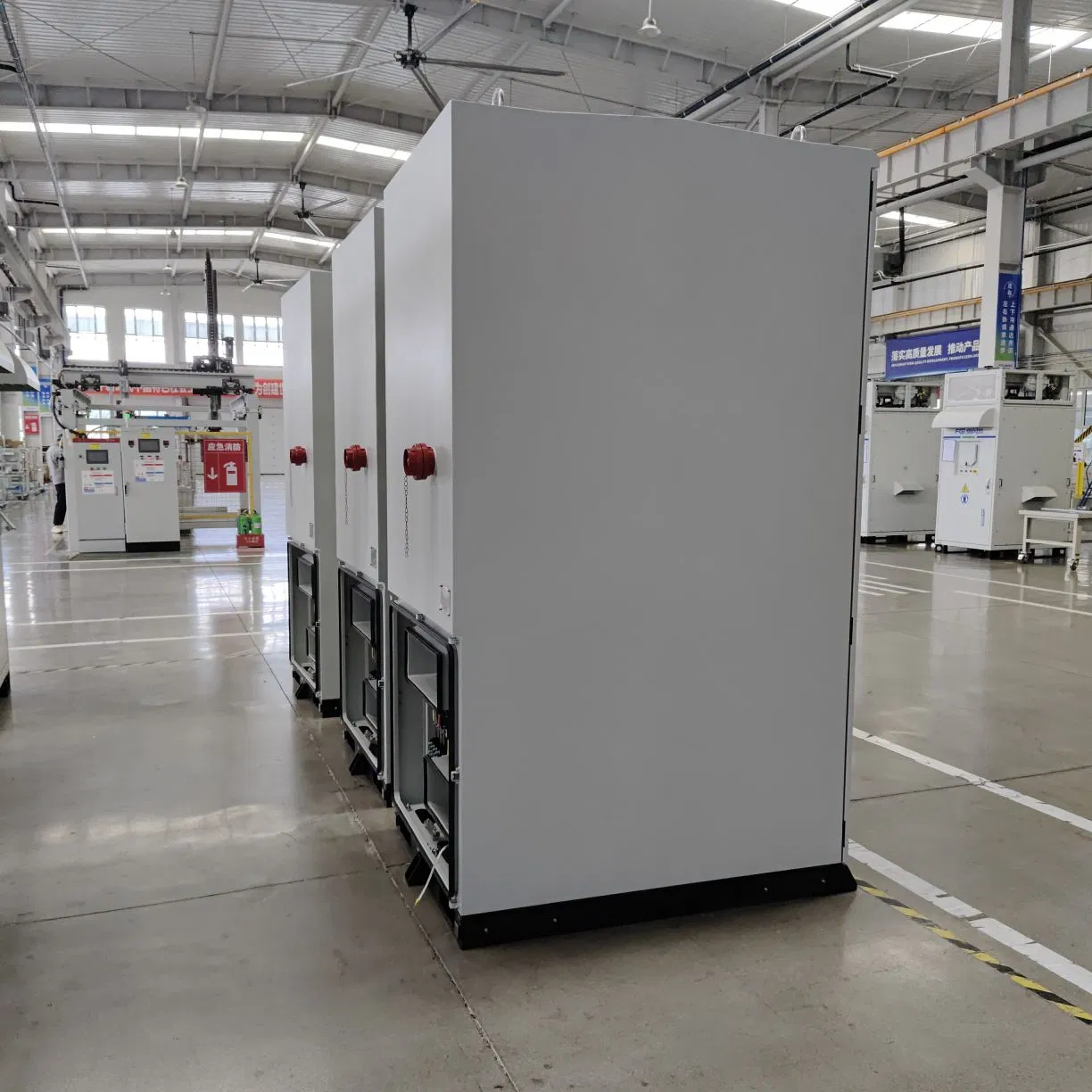

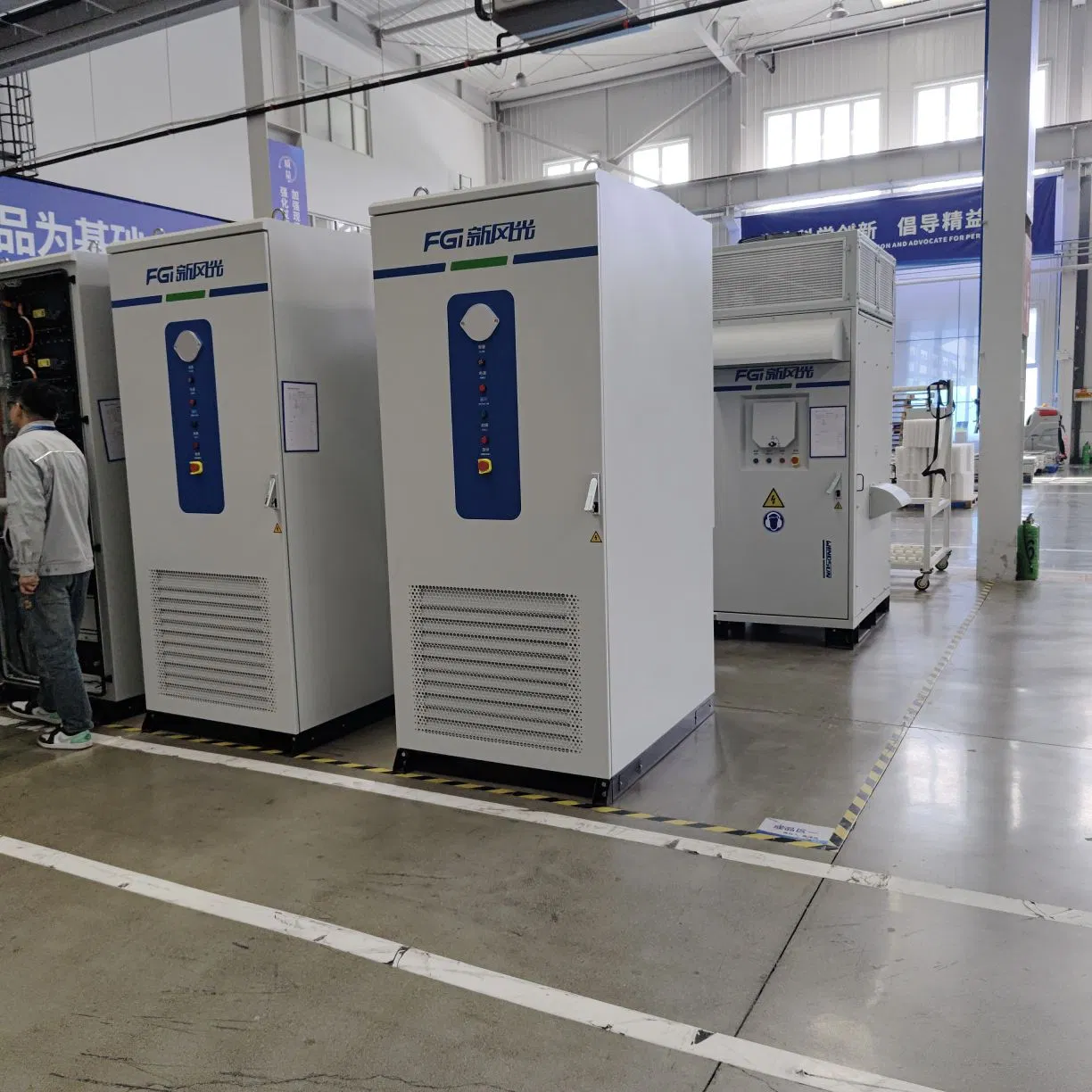

125kW/261kWh Liquid-Cooled Energy Storage Cabinet
The standardized, all-in-one energy storage system is purpose-built for commercial and industrial peak shaving and valley filling. This unit seamlessly integrates a battery cluster, PCS, BMS, EMS, and a dual-channel cooling system into a single, robust IP55-rated enclosure.
Built for scalability, the system supports the parallel connection of up to 10 units, providing a flexible energy capacity ranging from 261 kWh to 2,610 kWh.
| System Parameters | |
|---|---|
| System Rating | 125 kW / 261 kWh |
| Cooling Method | Liquid cooling (DC side), Air cooling (AC side) |
| Max. System Efficiency | ≥ 88% (@ 0.5P) |
| Dimensions (W × D × H) | 1000 × 1300 × 2400 mm |
| Operating Temperature | -20℃~ 50℃ (Derating above 45℃) |
| Fire Protection | Pack & Cabin level aerosol, H2 detection, Ventilation |
| AC & DC Details | |
| Rated AC Power | 125 kW |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 832 V |
| Rated Capacity | 314 Ah |
Employs Liquid Cooling for the DC side (Battery PACKs) and Air Cooling for the AC side. Maintains optimal temperature (ΔT ≤ 5℃), extending cycle life significantly.
Physical partition separating electrical and battery compartments. Equipped with dual fire protection (PACK-level + Cabin-level) and explosion-proof ventilation.

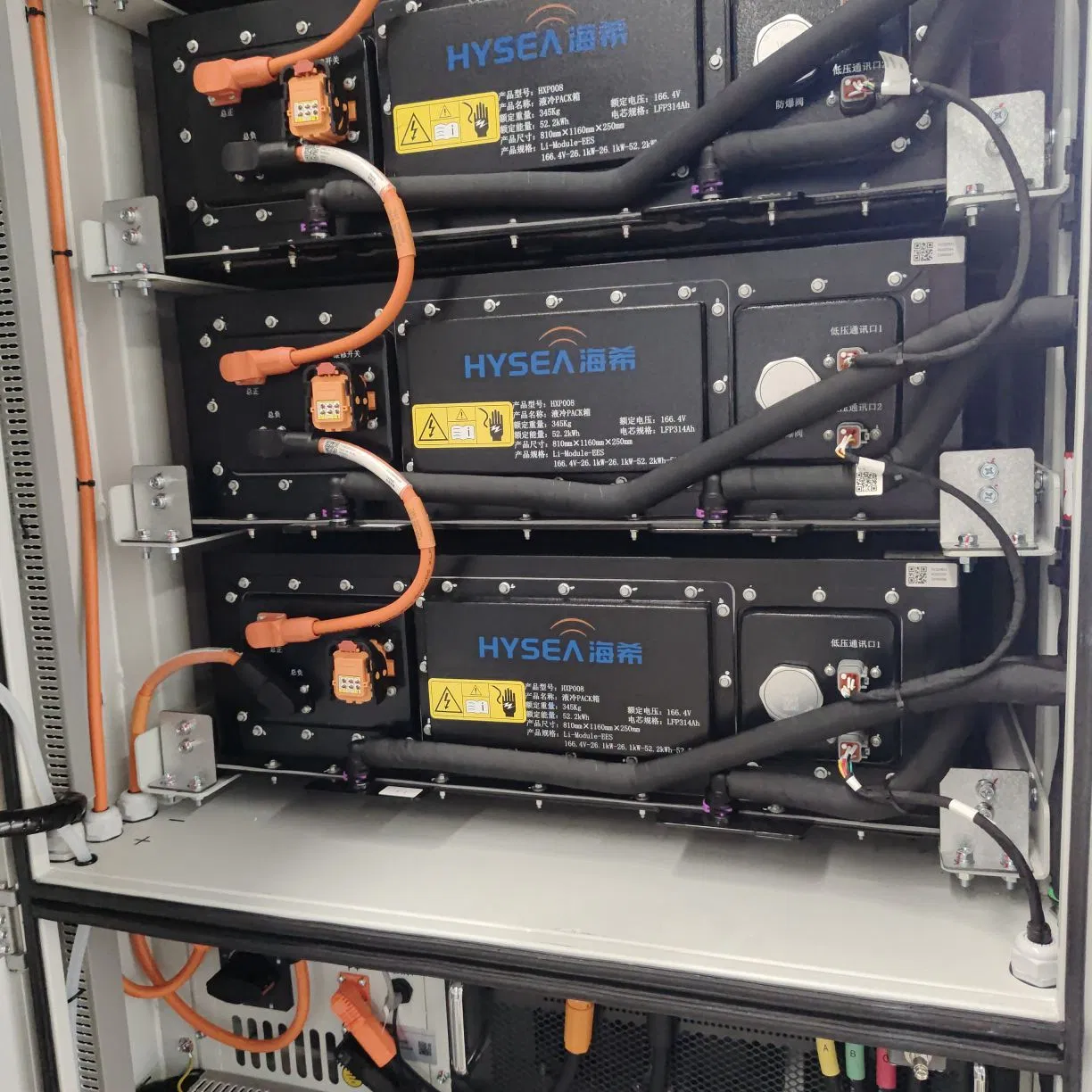

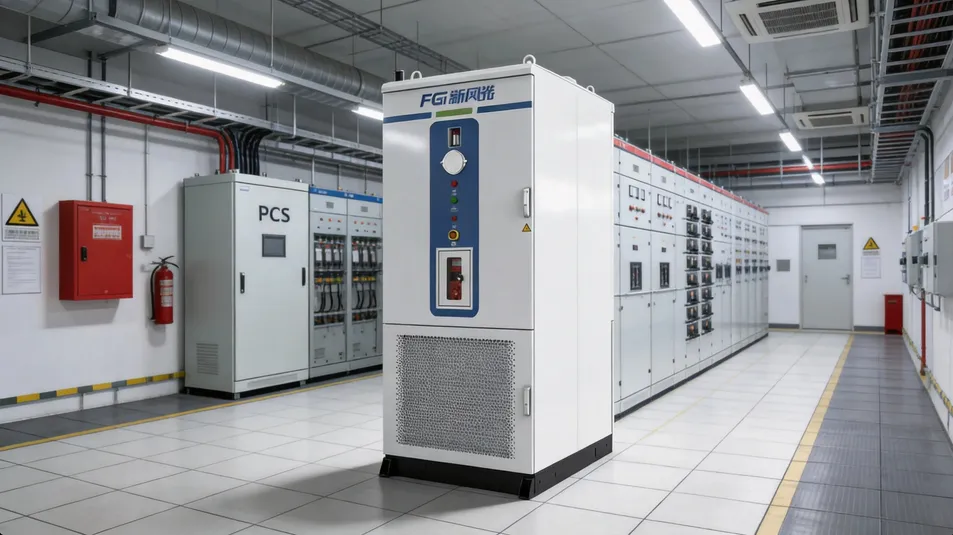

Fully integrates 125kW PCS, 261kWh Battery Cluster, BMS, EMS, and auxiliary power. Supports plug-and-play operation for reduced installation complexity.

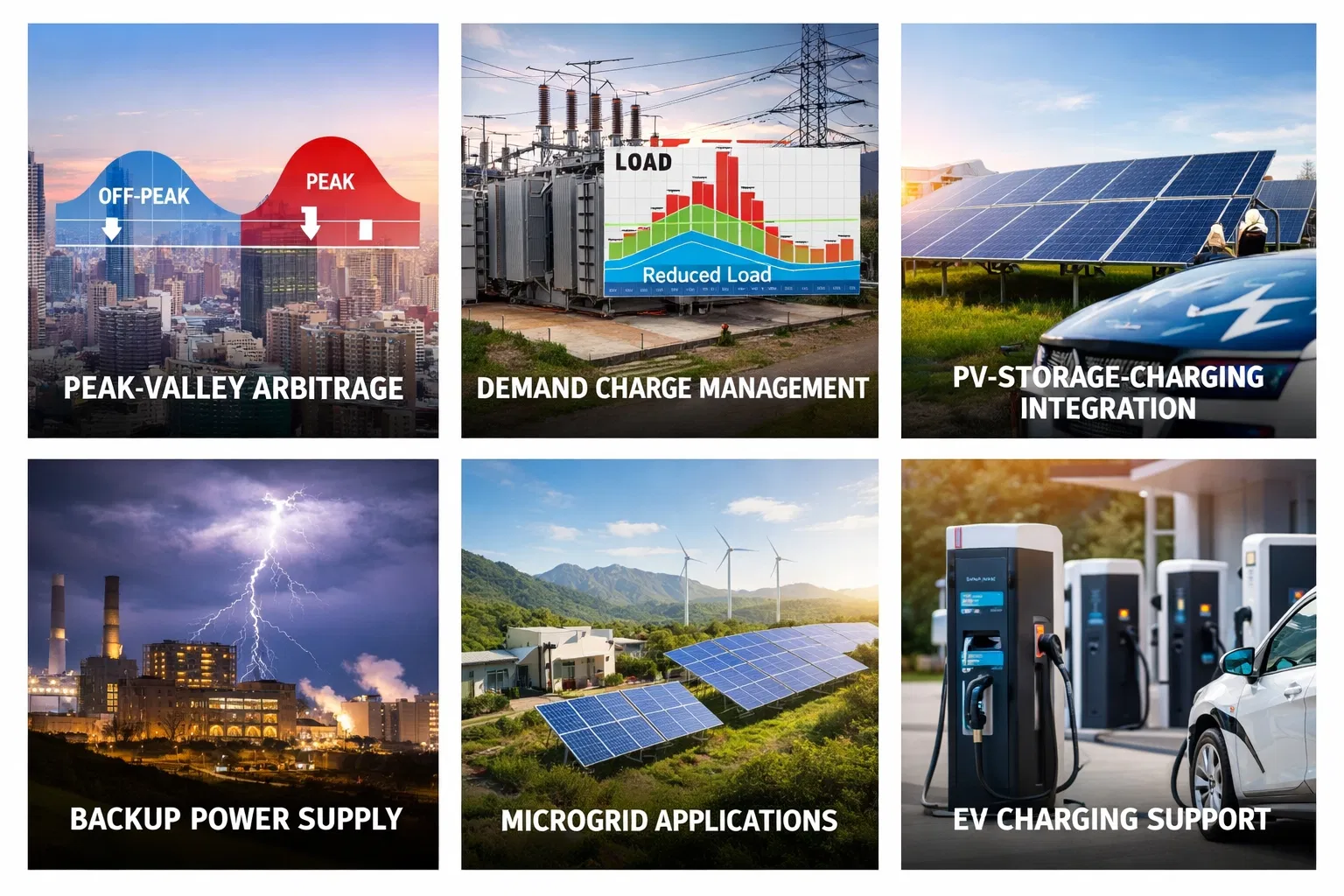

Charge during off-peak hours and discharge during peak hours to reduce energy costs.
Optimize transformer loading and reduce peak demand charges for industrial users.

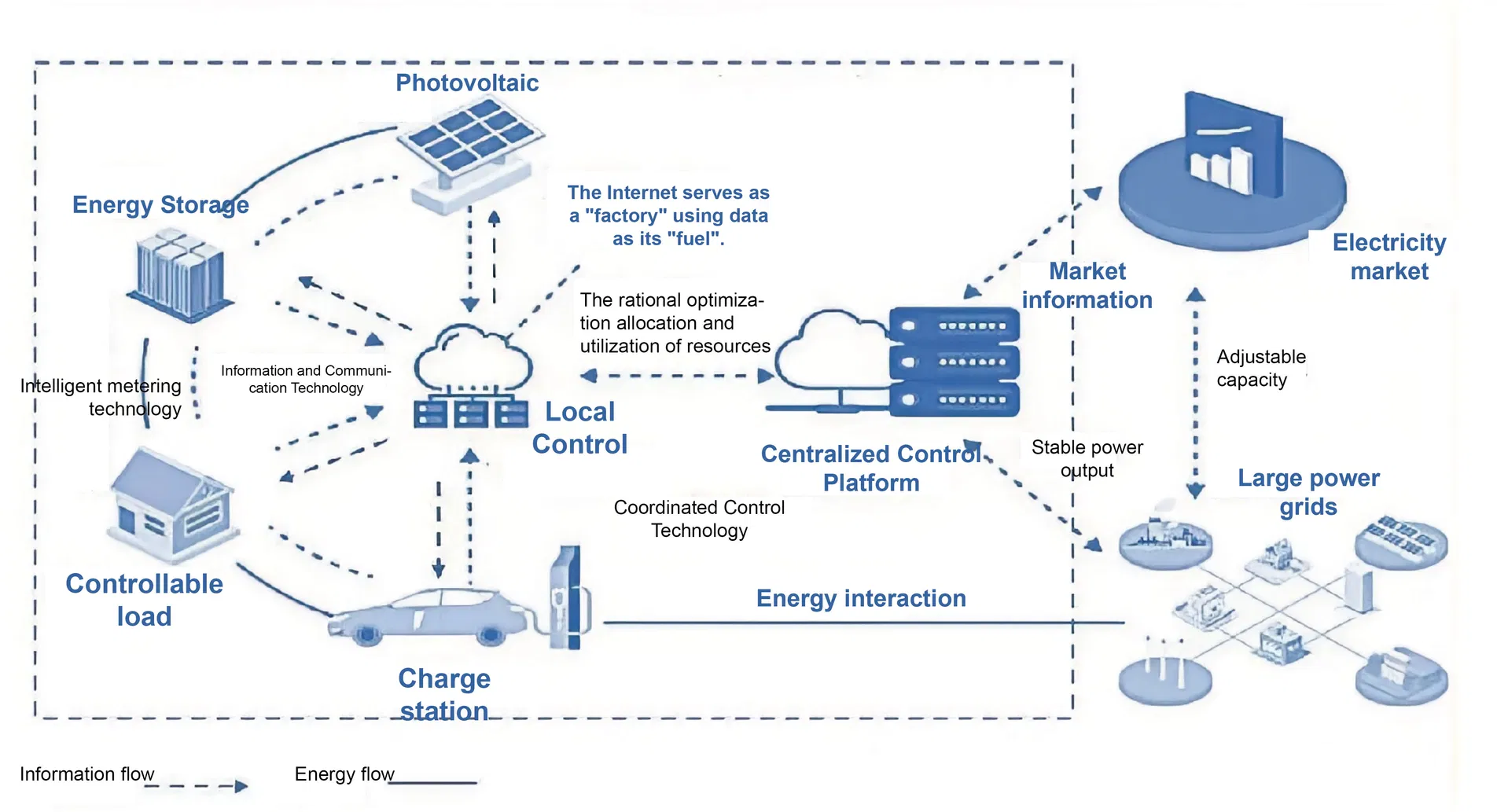

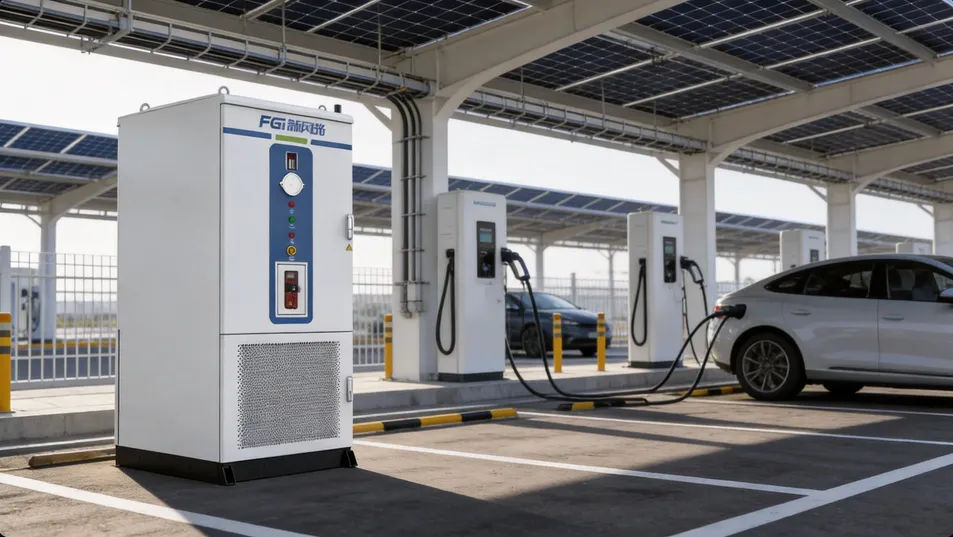

Store excess solar power and supply clean energy to EV charging stations.
Ensure continuous power for critical loads during grid outages.
Support independent power systems in remote areas or industrial parks.
Improve charging station stability and enable fast charging expansion.
