| Key Indicator | Value | Description |
|---|---|---|
| System Config | 125kW / 261kWh | High-power design, optimized for scalable commercial projects |
| Annual Net Revenue | €25,000+ | Estimated comprehensive revenue based on stacked strategies |
| Static Payback Period | 3 - 3.5 Years | Highly competitive payback period in the European market |
| Lifecycle Revenue | Approx. €550,000 | Long-term asset appreciation over 25 years |
Universal Logic: Utilize the expanding day-ahead market price spreads across European countries.
COREY Advantage: The robust 125kW high power combined with 261kWh capacity ensures rapid charging during short low-price windows (e.g., midday PV peaks). Daily "two-charge, two-discharge" cycles maximize energy turnover, significantly cutting electricity bills.
Universal Logic: Adapt to real-time fluctuations in European spot markets.
COREY Advantage: Automatically connects to exchange data (e.g., EPEX, Nord Pool). Discharges during price spikes; charges during low/negative prices. The larger capacity allows for sustained discharge during prolonged high-price events, boosting annual revenue by an extra 15-20%.
Universal Logic: Address "capacity charges" or "peak penalties" common in European industrial sectors.
COREY Advantage: With its higher power rating, the system can handle larger load spikes (e.g., heavy machinery startup) instantly. It effectively shaves peaks to smooth transformer load, avoiding costly seasonal penalties for large facilities.
Universal Logic: Participate in grid balancing mechanisms.
COREY Advantage: Supports multi-machine parallel operation, allowing clusters of units to form a Virtual Power Plant (VPP). This aggregation provides substantial capacity for grid dispatch (e.g., frequency regulation), unlocking higher service subsidies than standalone units.
| Key Metric | Specification | Value Proposition |
|---|---|---|
| System Energy | 261.248 kWh | High-capacity design ensuring full-day backup power. |
| Rated Power | 125 kW | 0.5C high charge/discharge rate for rapid response. |
| Round-trip Efficiency | > 90% | High energy conversion efficiency to maximize ROI. |
| Cycle Life | > 6000 Cycles | Ultra-long lifespan (@25ºC, 90% DOD, 80% EOL). |
| Category | Parameter | Specification |
|---|---|---|
| Battery System | Cell Chemistry | LFP (LiFePO4) 3.2V/314Ah |
| System Rated Voltage | 832 V | |
| Voltage Operating Range | 728 ~ 936 V | |
| Module Configuration | 1P26S | |
| AC Output & Grid | Rated AC Power | 125 kW |
| Max AC Power | 137.5 kW | |
| Grid Connection | 3-Phase 4-Wire | |
| Rated Current | 180 A | |
| Power Factor | 0.99 (Leading) ~ 1 ~ 0.99 (Lagging) | |
| THDi (Current Distortion) | ≤ 3% | |

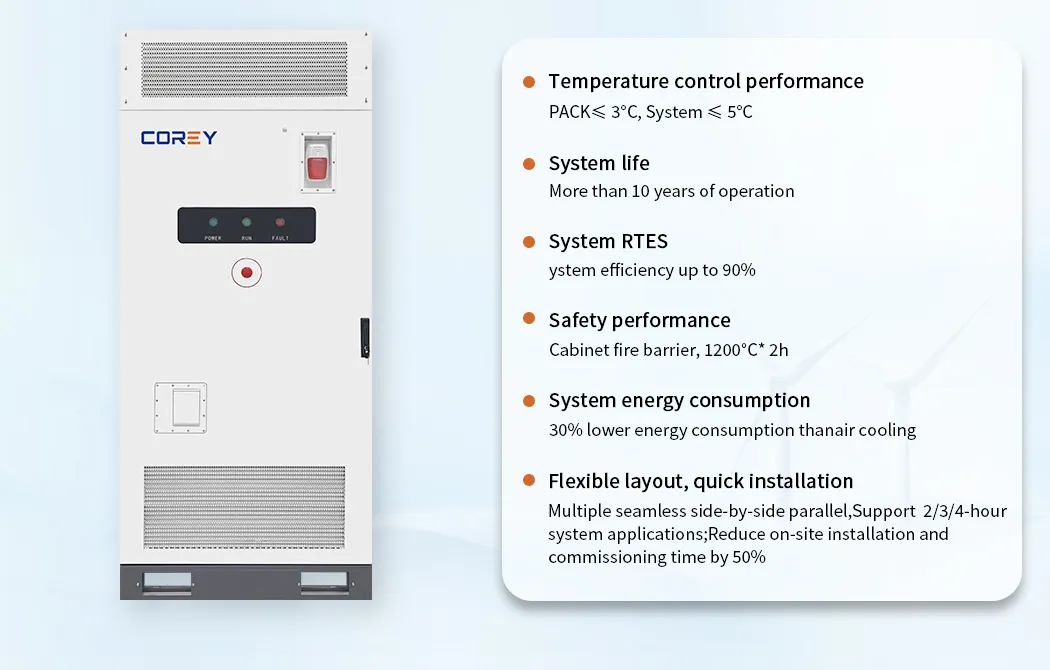

| Safety & Protection | Cooling Method | Intelligent Liquid Cooling |
| Cabinet Protection | IP54 (All-weather outdoor ready) | |
| Battery Pack Protection | IP67 | |
| Fire Suppression | Aerosol + Water Spray (Active + Passive) | |
| Corrosion Resistance | C3 / C4 / C5 | |
| Environment & Control | Operating Temperature | -20°C ~ 55°C |
| Operating Humidity | 5% ~ 95% RH (Non-condensing) | |
| Max Altitude | < 2000m (Derating >2000m) | |
| Communication Interface | Ethernet / RS485 | |
| Control Method | EMS / Cloud Platform / Mobile App | |
| Physical Specs | Dimensions (WDH) | 1000 × 1325 × 2250 mm |
| System Weight | Approx. 2800 kg | |
| Certifications | TUV / CE / UN38.3 |
