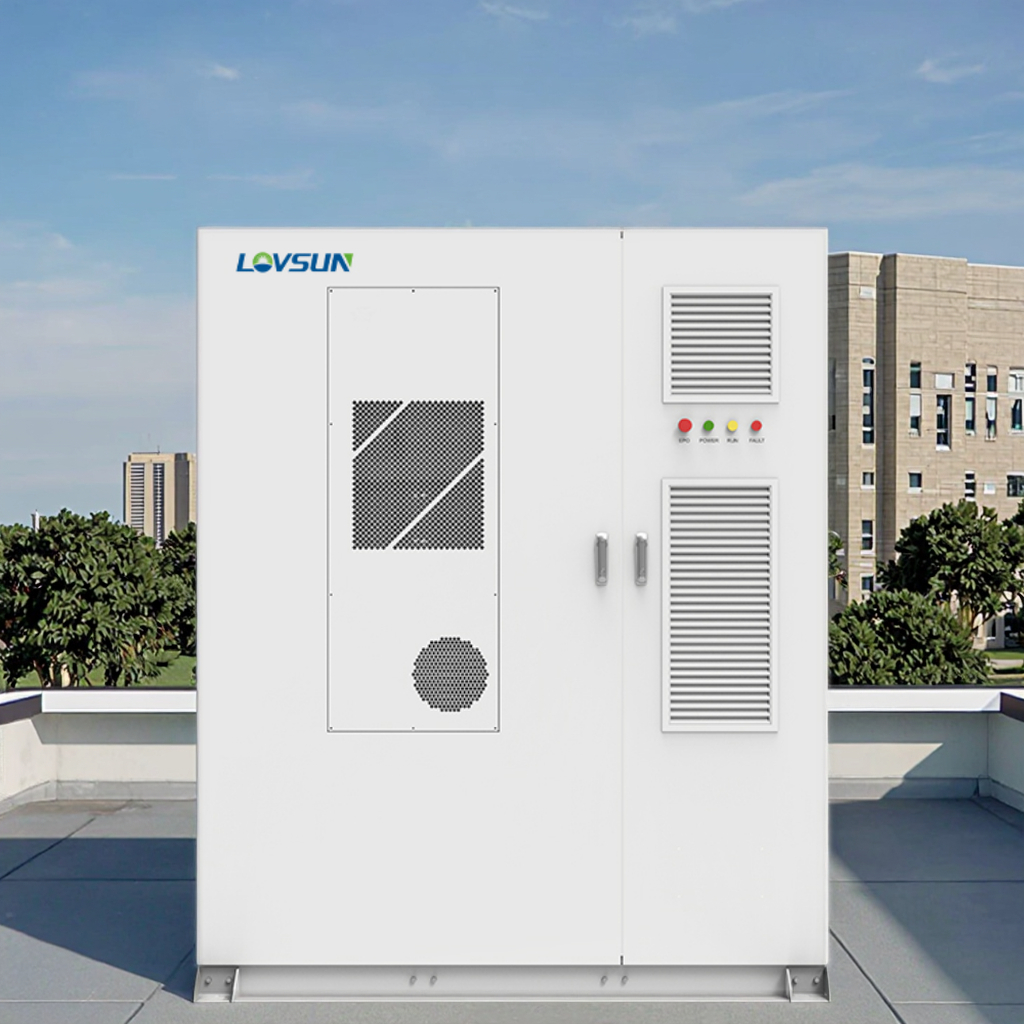

| Model | Battery Cabinet-R768V215kWh |
| Nominal Voltage | 768V |
| Available Energy(Nominal) | 215.04kWh(10*1P24S) |
| Operating voltage Range | 672VDC~876VDC |
| Rated Charge Current | 140A |
| Rated Discharge Current | 140A |
| Maximum Charge Current | 140A |
| Maximum Discharge Current | 140A |
| Communication | CAN/RS485 |
| Operating Temperature Range | 0~45°C |
| Recommended Operating Temperature Range | 15°C~30°C |
| Storage Temperature Range | -20°C~55°C |
| Relative Humidity | 5%~95%RH |
| Dimensions(W*D*H) | 1120mm×1125mm×2220mm |
| Certification | GB/T36276, IEC62619, UN38.3, UL9540A* |
A: The system operates at a nominal voltage of 768V and offers a nominal available energy capacity of 215.04kWh.
A: The battery cabinet supports CAN and RS485 communication protocols, allowing for reliable data transmission and seamless integration with Energy Management Systems (EMS).
A: For ideal performance and longevity, the recommended operating temperature range is 15°C to 30°C, and the relative humidity should be maintained between 5% and 95% RH.
A: The battery system complies with major international industry standards, including GB/T36276, IEC62619, UN38.3, and UL9540A.
A: Both the rated charge/discharge current and the maximum allowable charge/discharge current are set at 140A.
