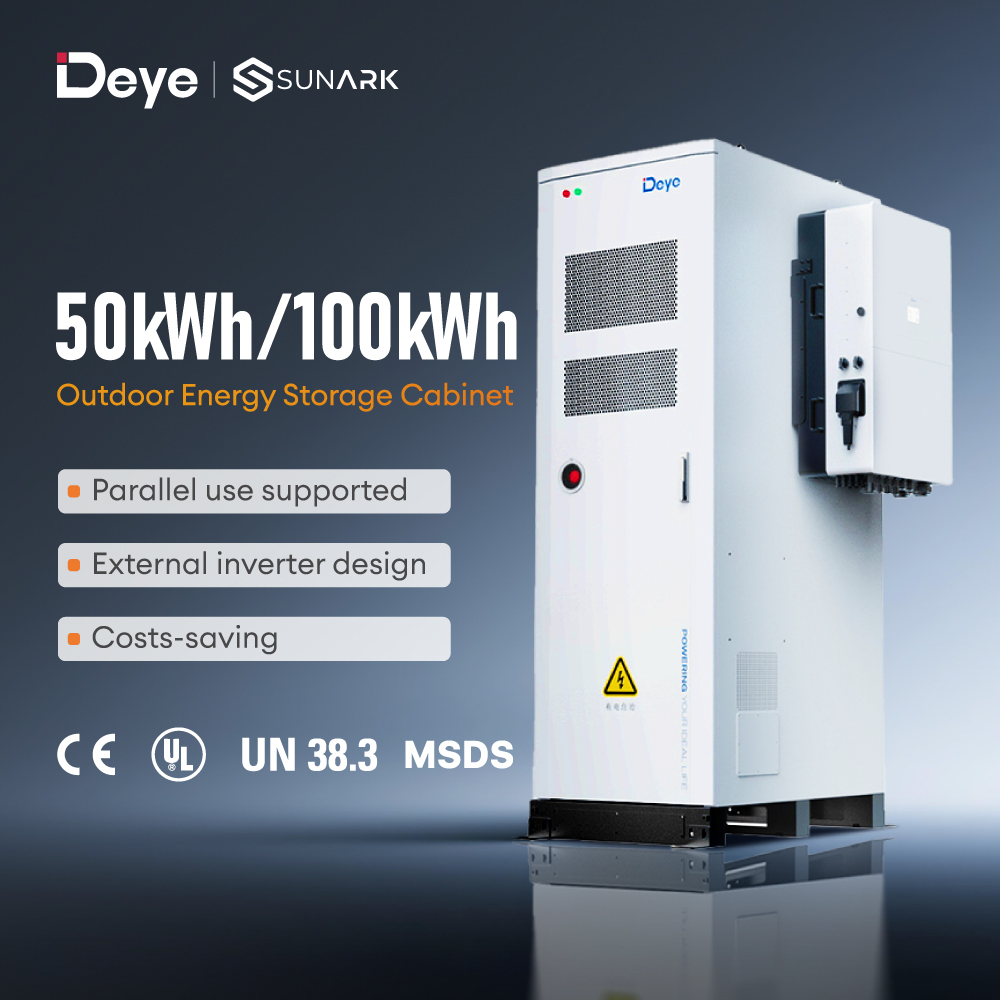

Deye GE-F60 Pv Battery Container 50Kw 100Kw 200Kw Lithium Battery Cabinet Bess Solar Energy Storage System For Industrial

Product Description

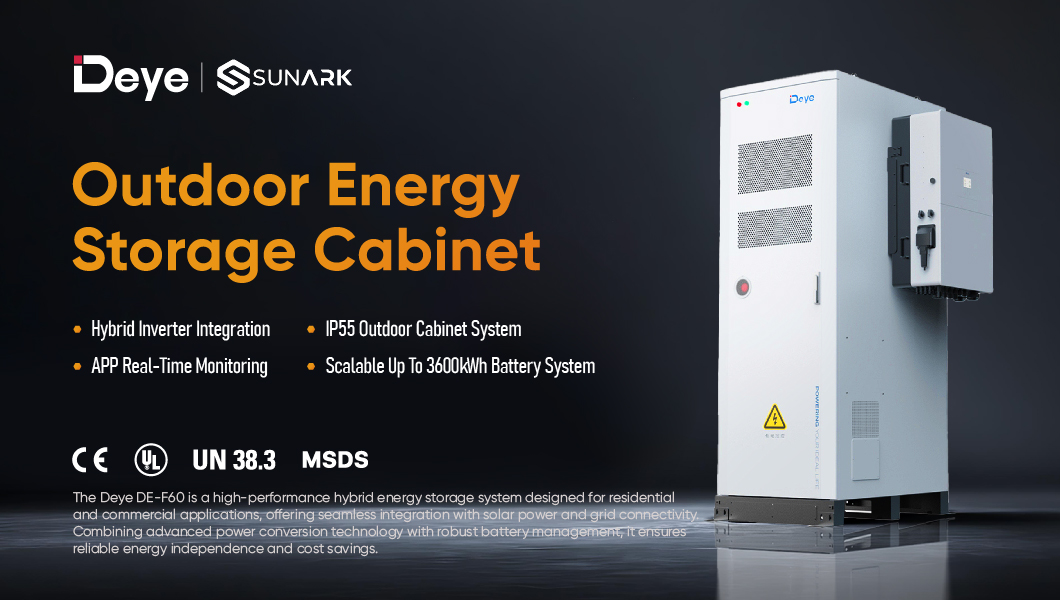

Products Description
Products Description

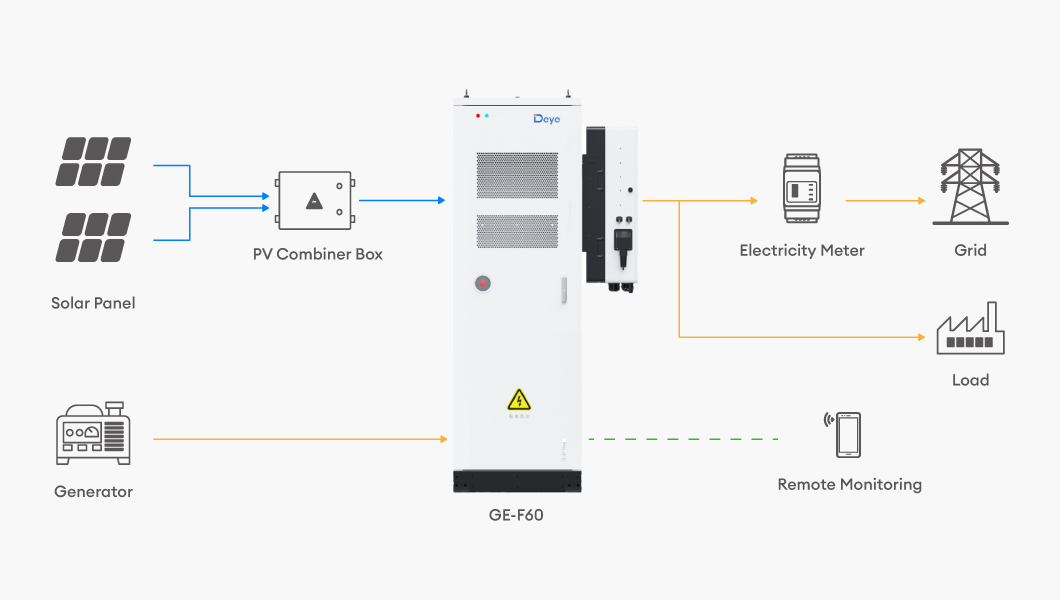

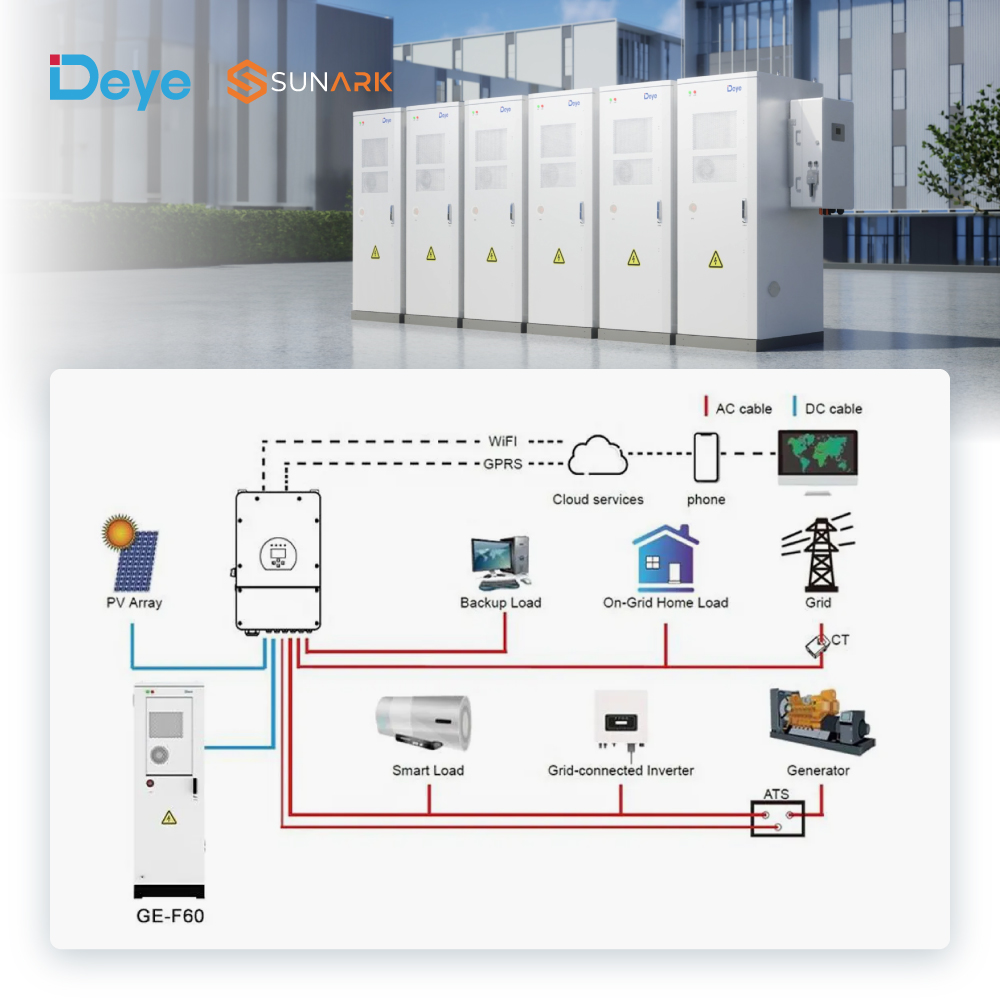

System connection diagram
System connection diagram

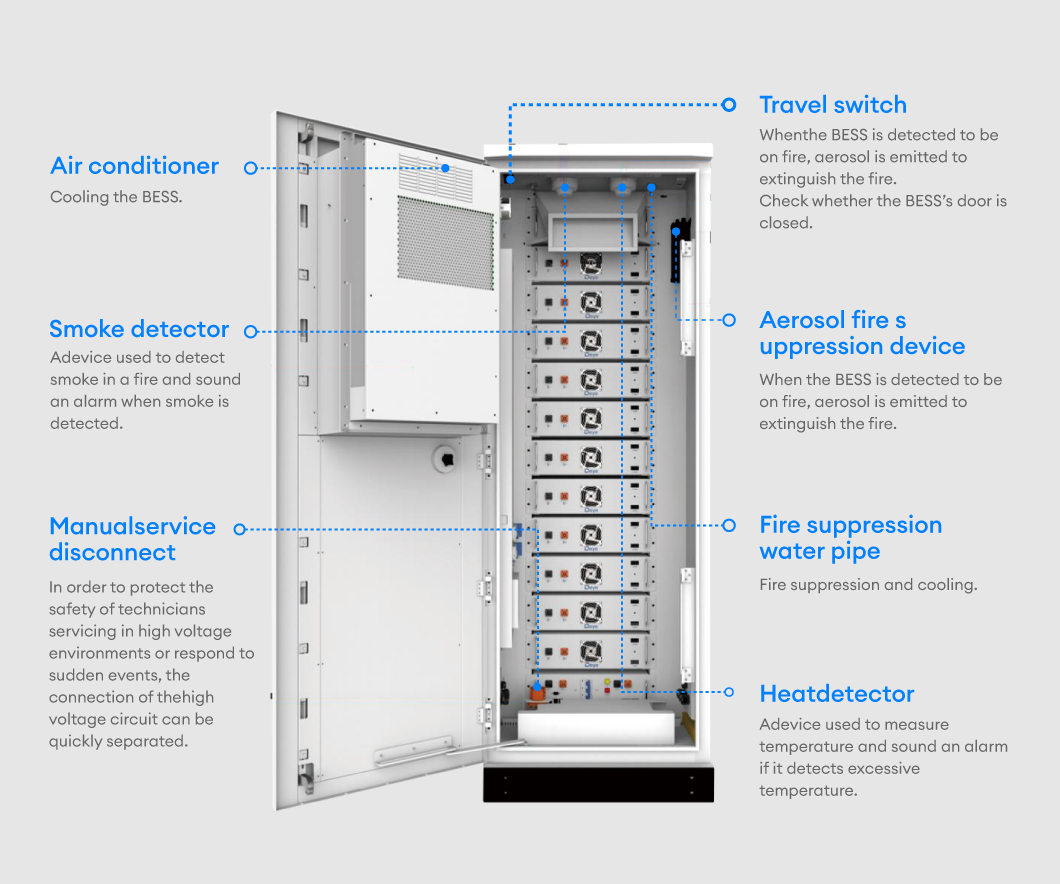

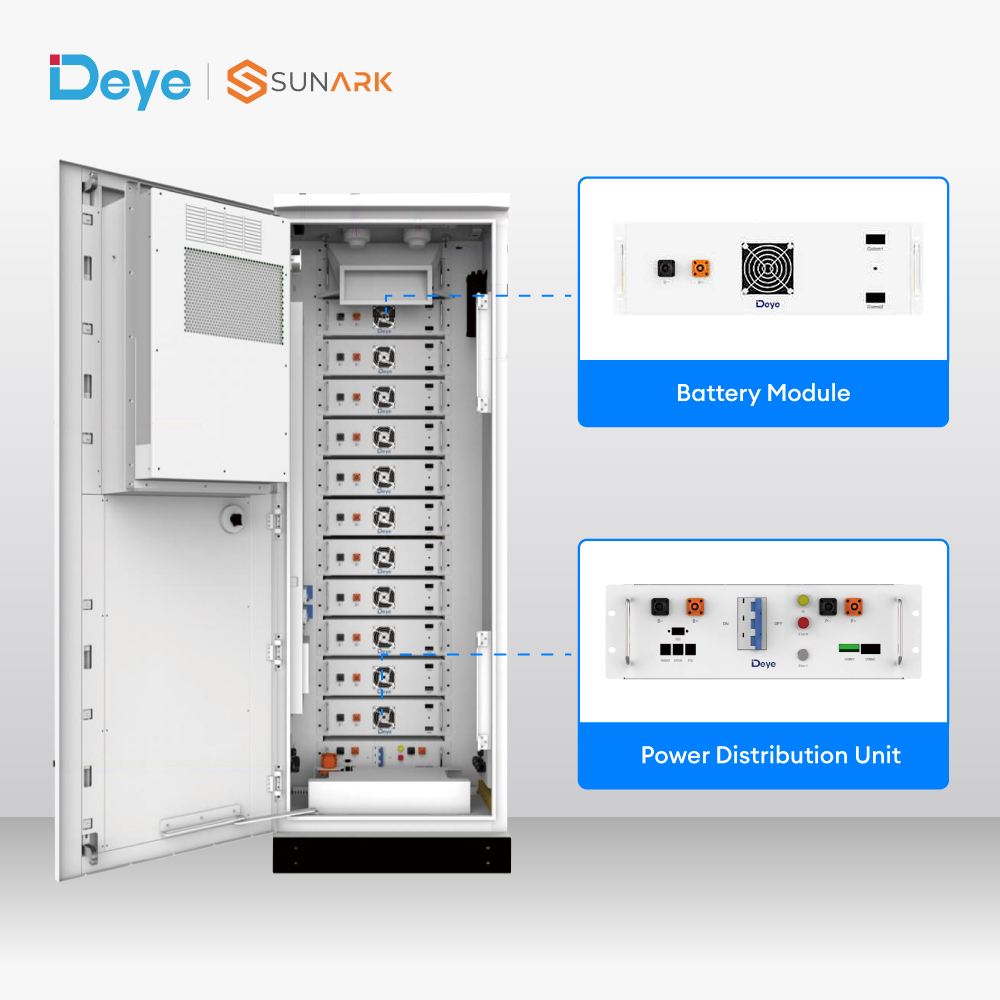

Internal Structure
Internal Structure

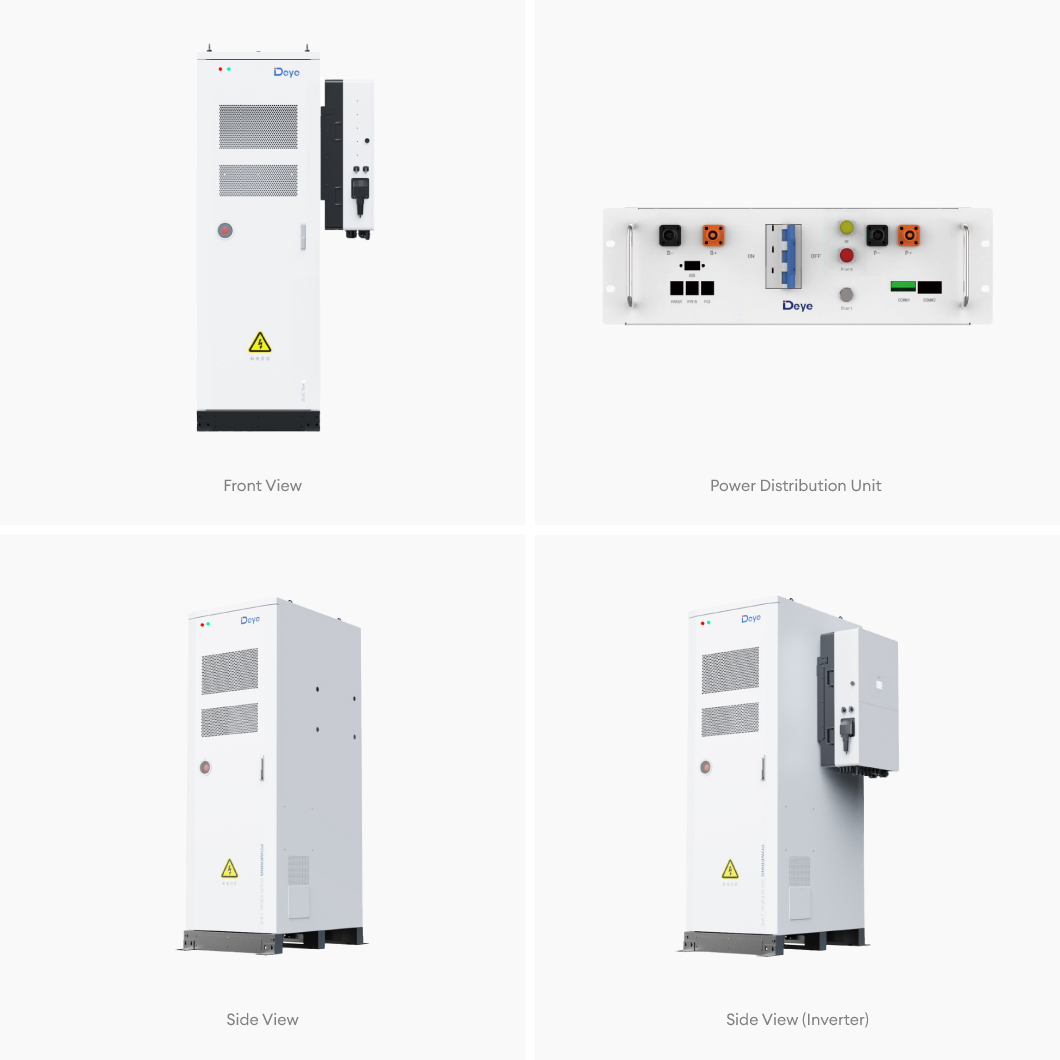

Angle details
Angle details
Product Feature

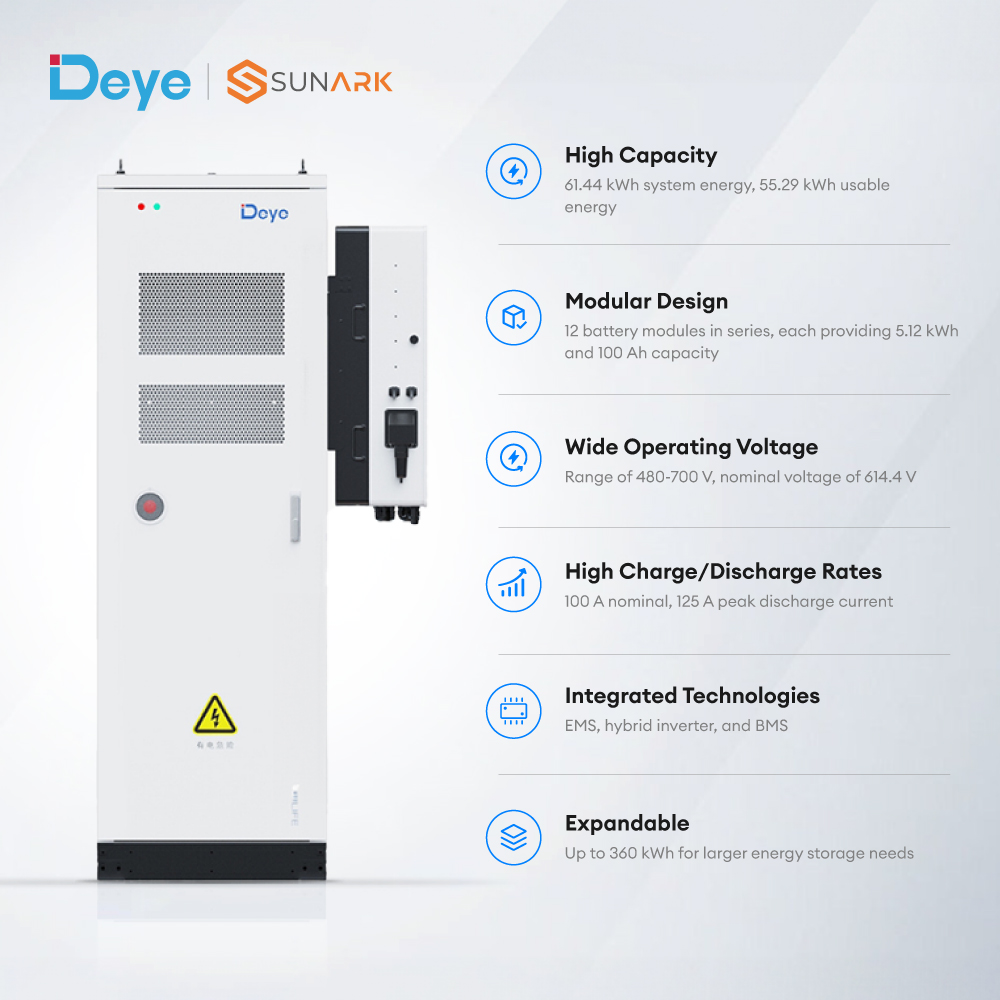

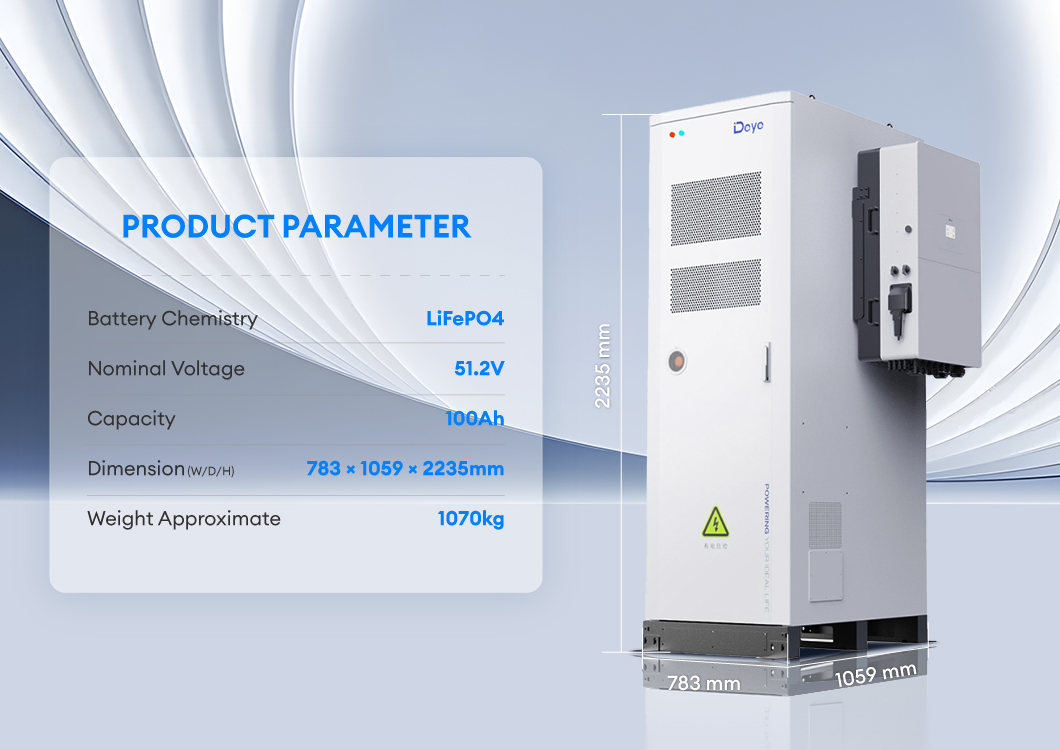

Product Feature 1

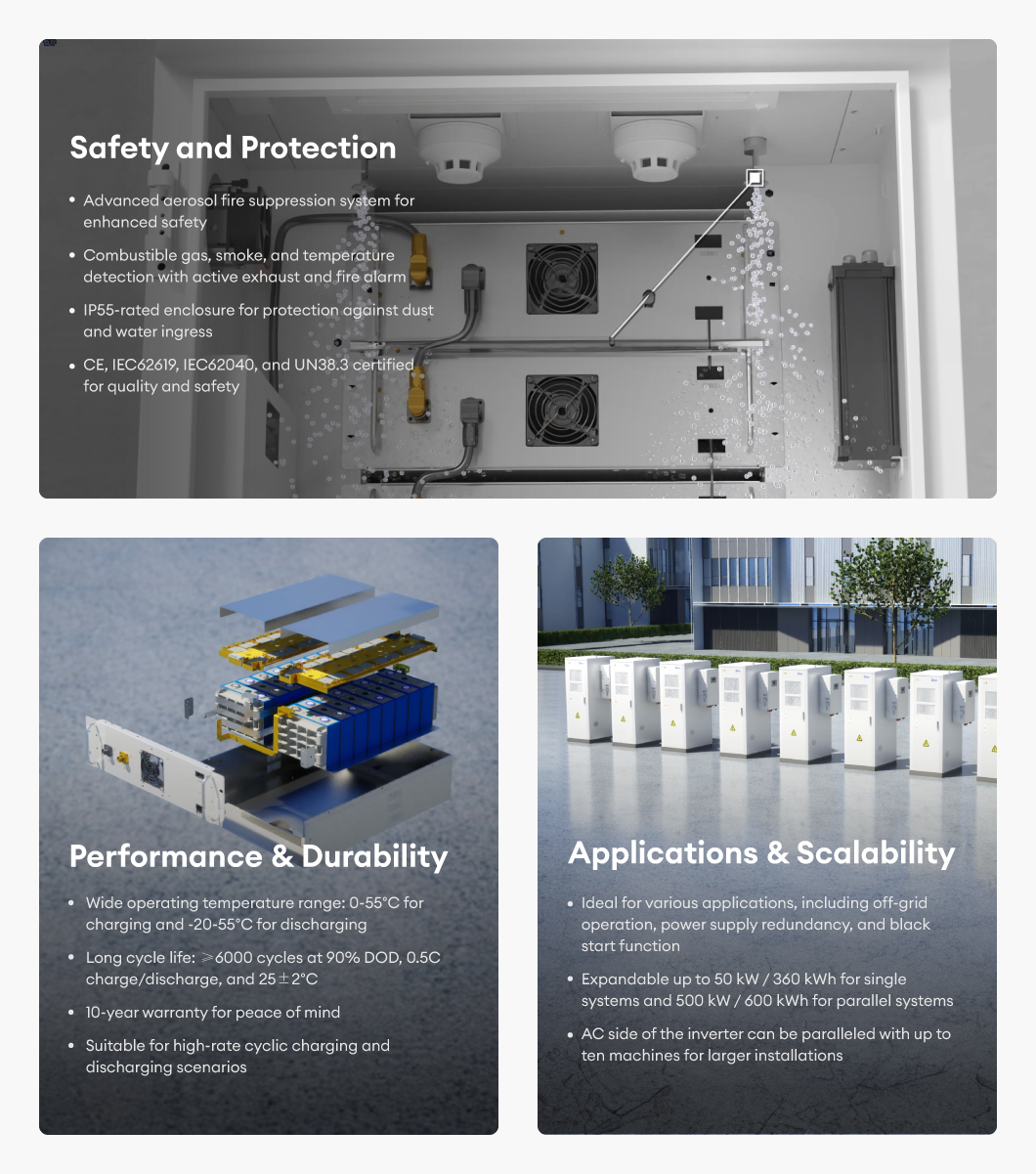

Product Feature 2
Datasheet
Model GE-F60
Main Parameter
Cell Chemistry LiFePO4
Module Energy (kWh) 5.12
Module Nominal Voltage (V) 51.2
Module Capacity (Ah) 100
Battery Module Qty In Series (Optional) 12
System Nominal Voltage (V) 614.4
System Operating Voltage (V) 480~700
System Energy (kWh) 61.44
System Usable Energy (kWh) 55.29
Rated DC Power 61.44
Charge/Discharge Current (A) Recommend 50
Nominal 100
Peak Discharge (2 mins, 25℃) 125
Working Temperature (°C) Charge: 0~55/Discharge: -20~55
Status Indicator Yellow: Battery High Voltage Power On
Red: Battery System Alarm
Communication Port CAN2.0/ RS485
Humidity 5%~85%RH
Altitude ≤2000m
IP Rating of Enclosure IP55
Dimension (W/D/H,mm) 780*1056*2235
Weight Approximate (kg) 1.2T
Installation Location Floor-mounted
Storage Temperature (°C) 0~35
Recommend Depth of Discharge 90%
Cycle Life 25±2°C,0.5C/0.5C, EOL70%≥6000
Warranty 10 years
Certification CE, IEC62619, IEC62040, UN38.3

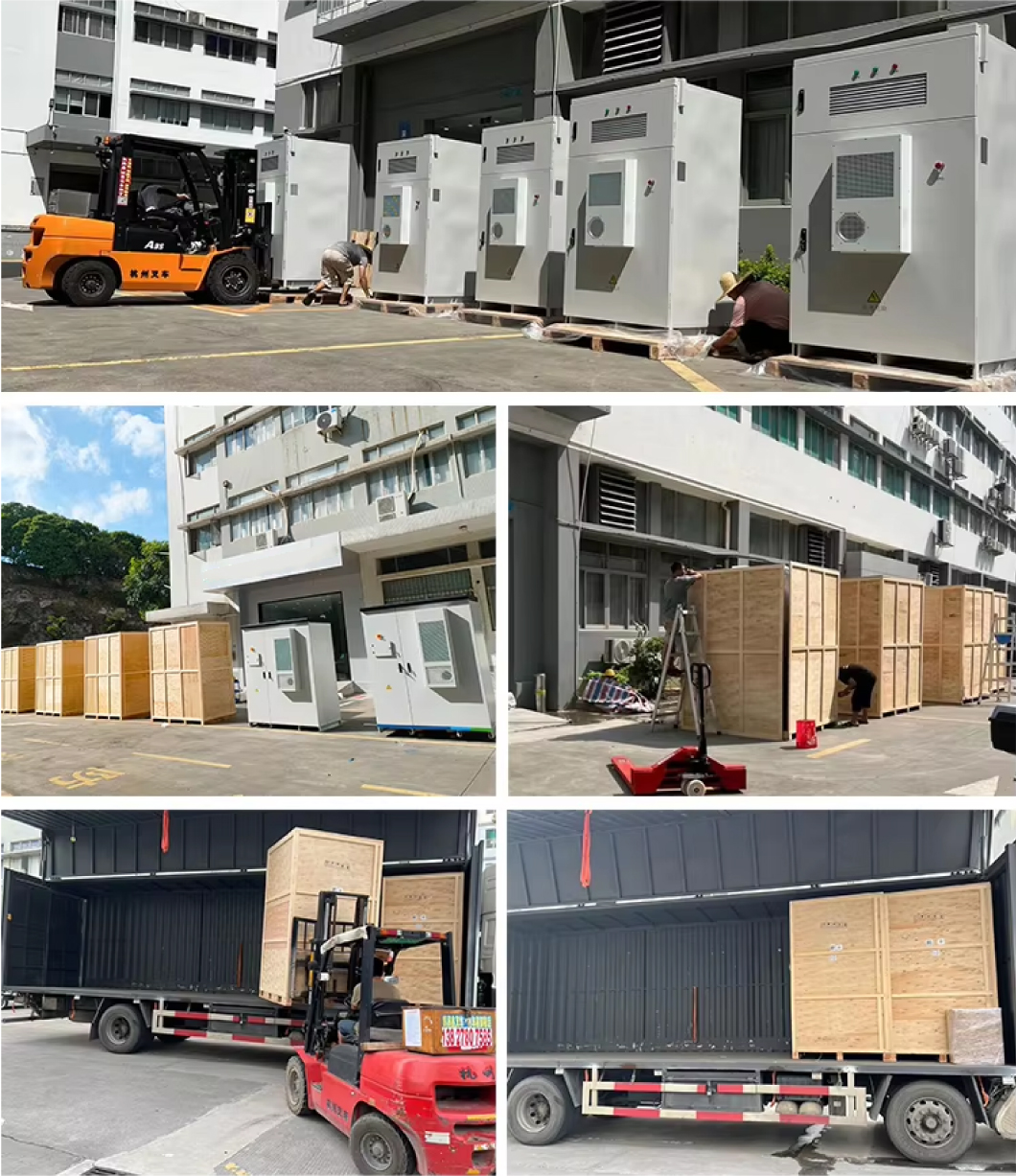

Packing & Delivery
Packing and Delivery

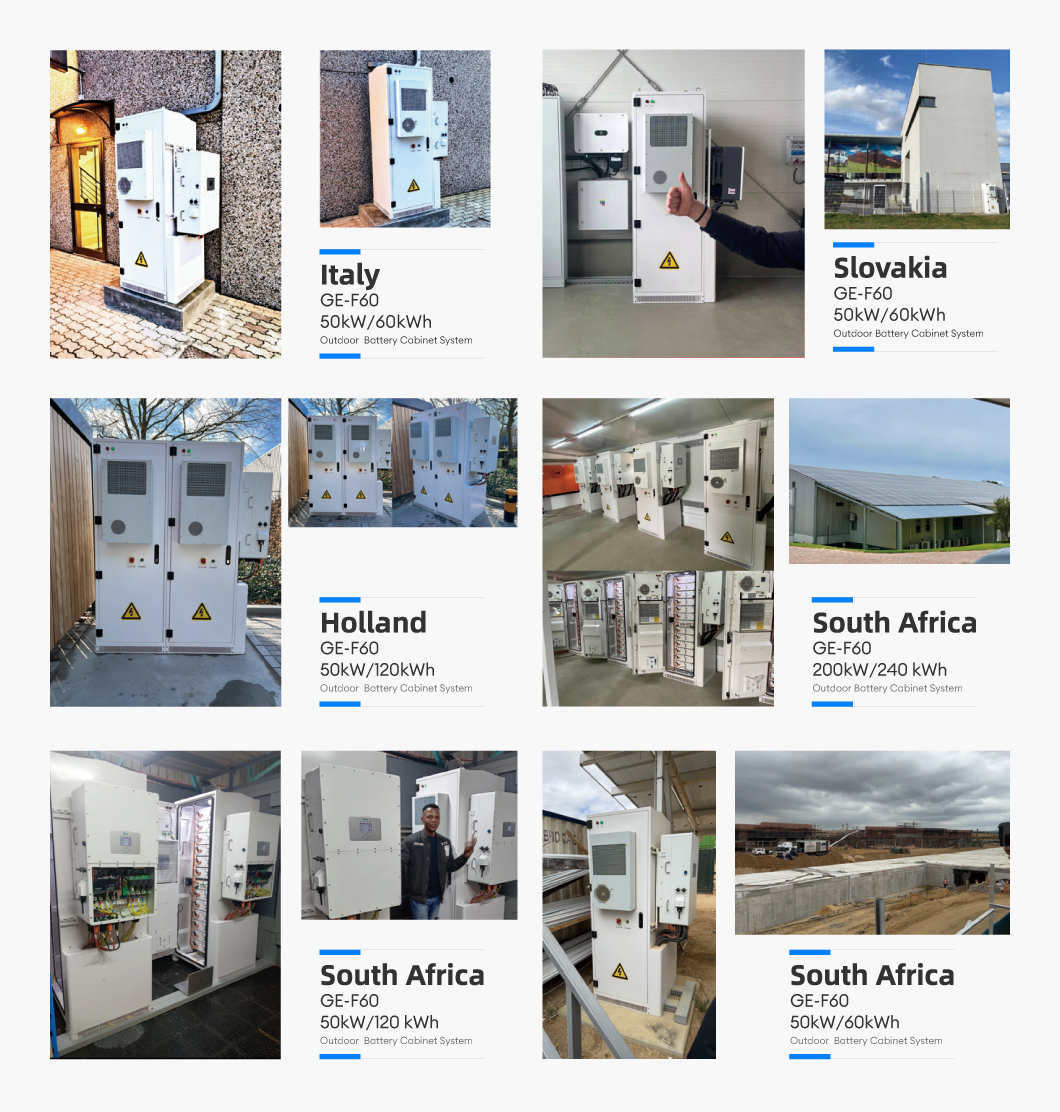

Project Case
Project Case

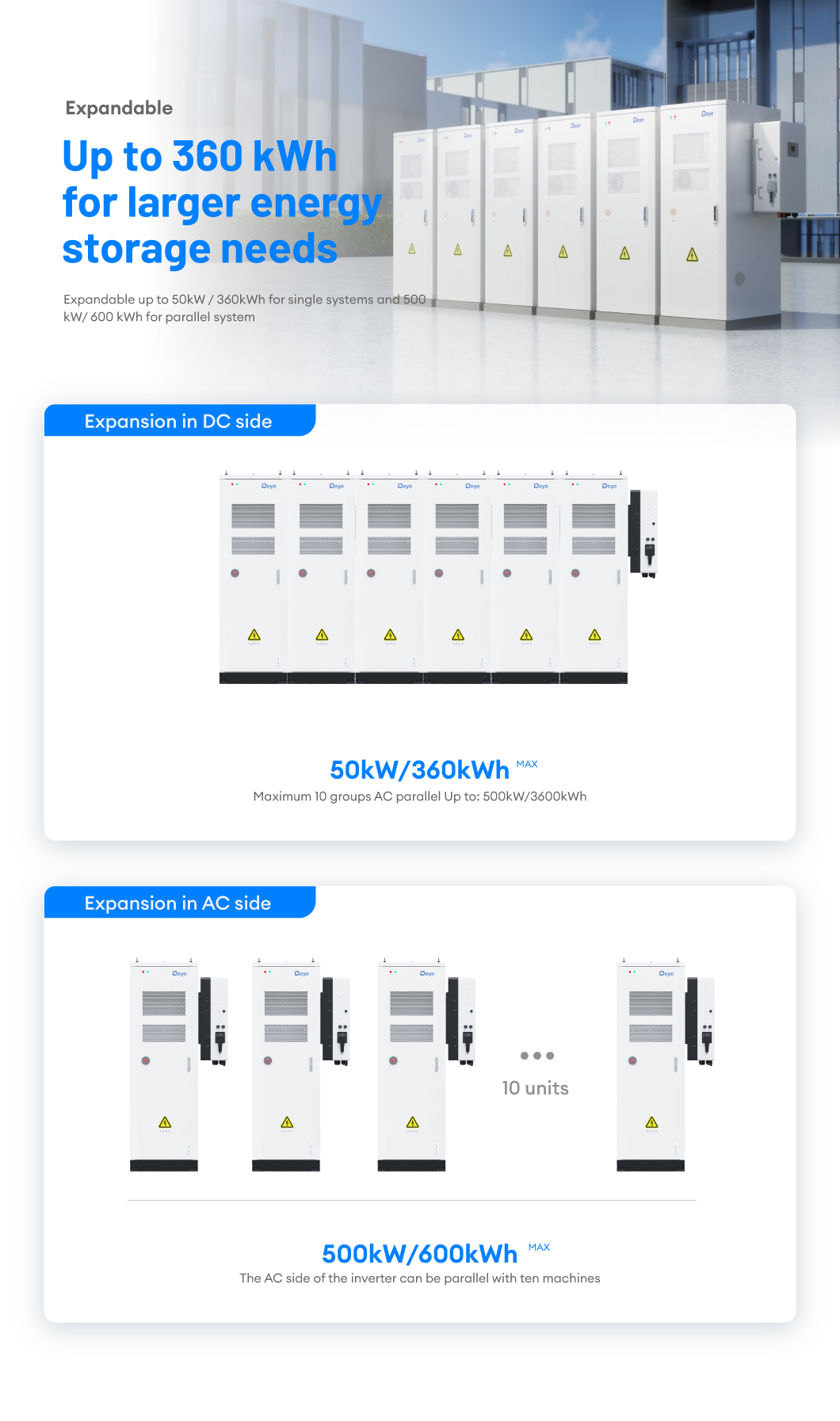

Applications
Applications
About Us
About Us
Our Factory
A leading global energy storage solution and service provider, specializing in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. With 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. Developing quickly, accumulatively, 620MWh BESS and battery strings have been manufactured. Internationally, the FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. As a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on, core technology patents in new materials, new technologies and new structures of battery power supply have been developed, leading and participating in the formulation of a number of international, national and industrial standards.
Factory View
One-stop Solar Service
One-stop Solar Service 1

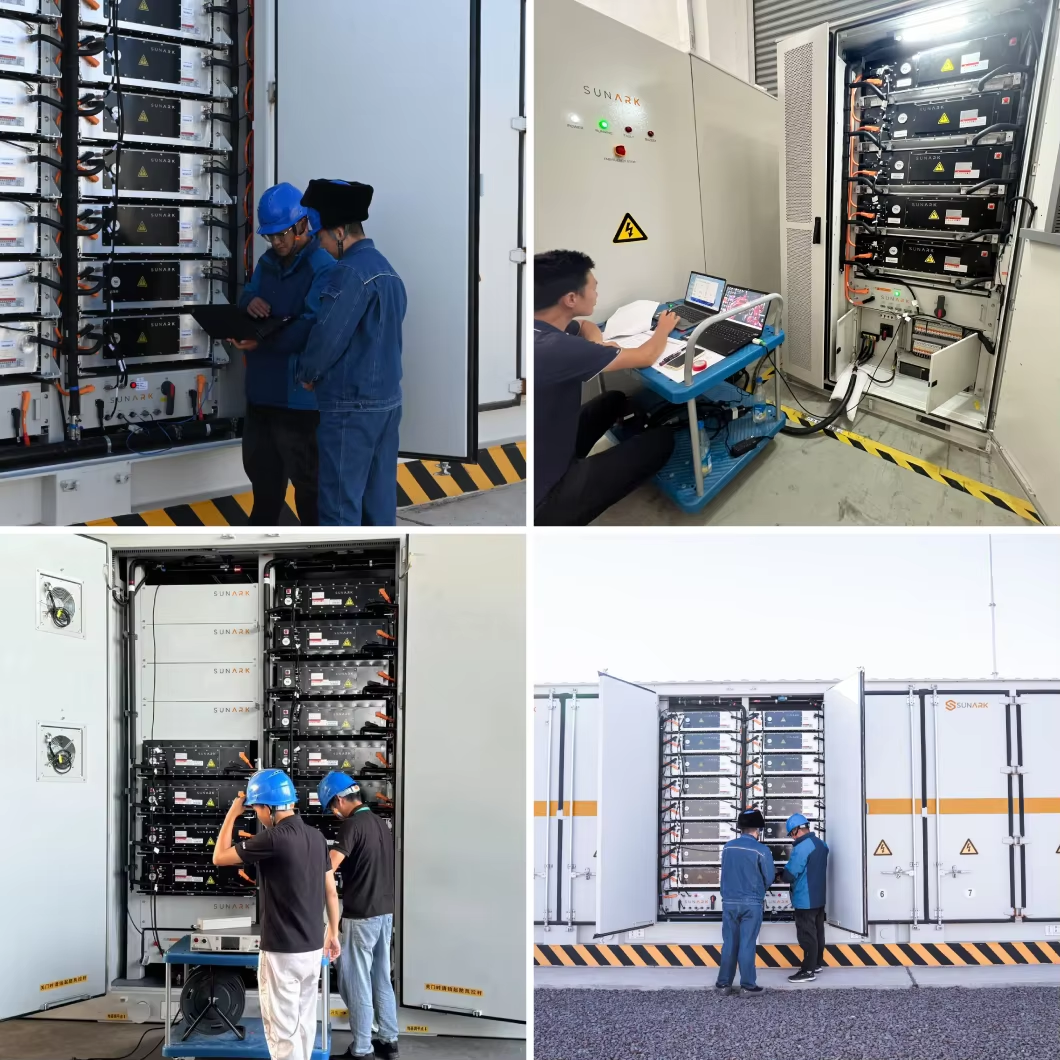

One-stop Solar Service 2
One-stop Solar Service 3
Frequently Asked Questions
What cell chemistry is utilized in the GE-F60 system?
The system features high-performance Lithium Iron Phosphate (LiFePO4) cell chemistry, widely recognized for its superior safety, thermal stability, and long cycle life.
What is the lifespan and warranty policy?
The battery system offers an exceptional cycle life of ≥6000 cycles at 25±2°C (0.5C/0.5C, EOL 70%) and is backed by a comprehensive 10-year warranty.
Is the system suitable for outdoor environment installations?
Yes. The system is enclosed in an IP55 rated cabinet, which ensures robust protection against dust and water ingress, suitable for floor-mounted outdoor installations.
Which certifications has the GE-F60 system achieved?
This system meets global safety and quality standards and has successfully achieved CE, IEC62619, IEC62040, and UN38.3 certifications.
What communication protocols are supported?
The battery system supports standard CAN2.0 and RS485 communication protocols for convenient integration with external systems and monitoring networks.
What is the recommended Depth of Discharge (DoD)?
The recommended Depth of Discharge (DoD) is 90% to optimize energy output while ensuring long-term battery performance.
