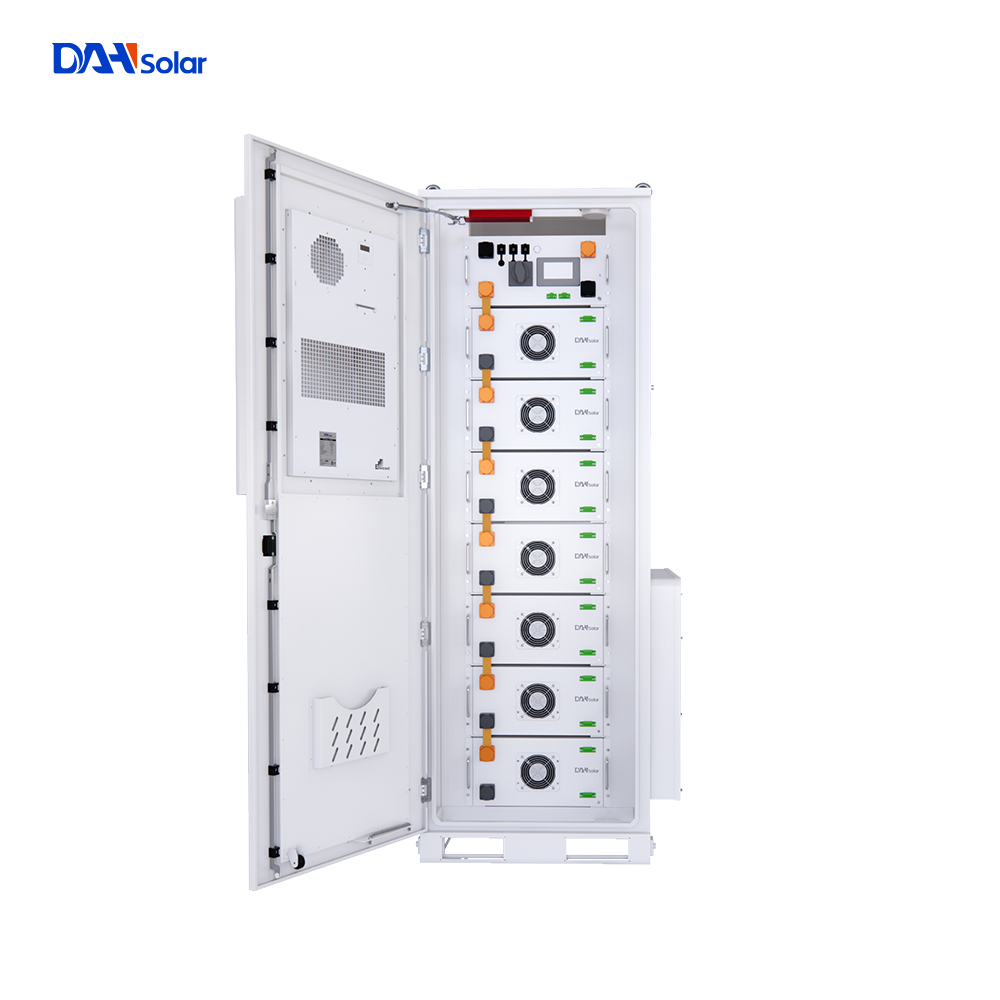

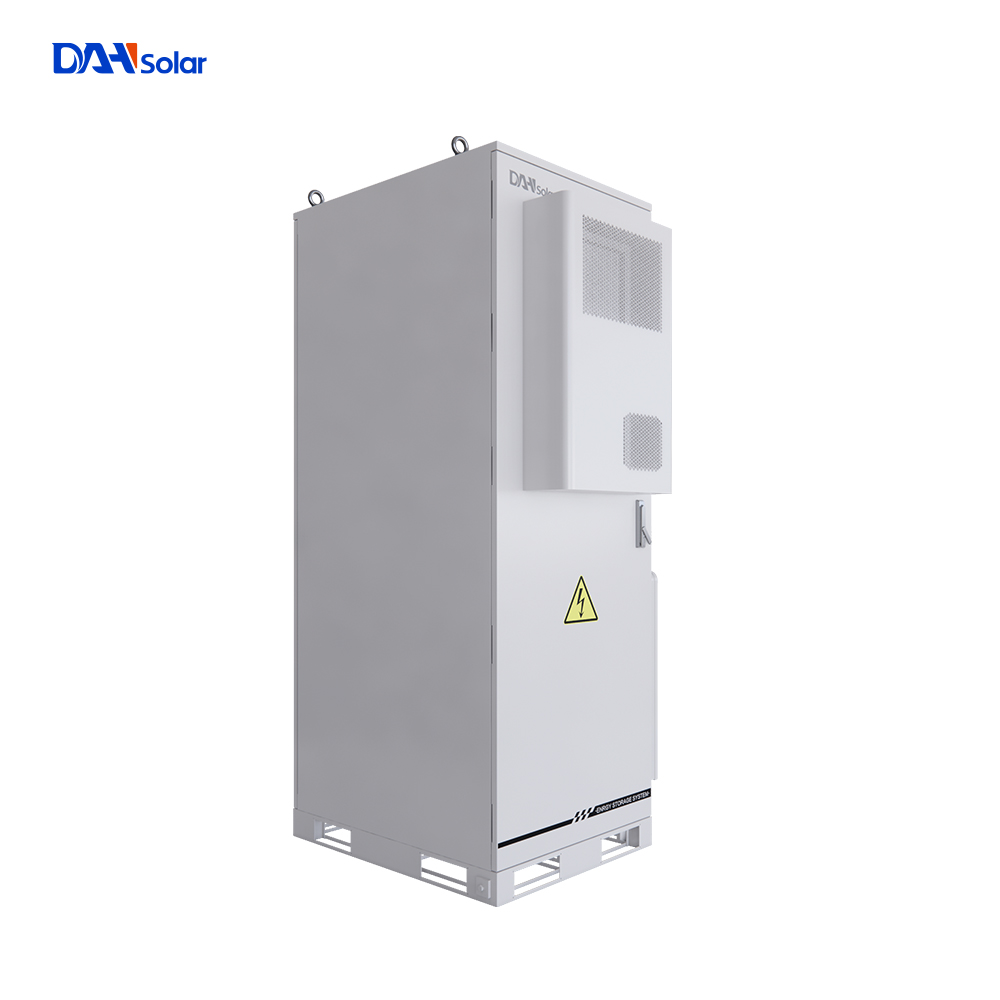

| Model | DHN-HVC05×12-G1 | DHN-HVC15×7-G1 | DHN-HVC16×7-G1 | DHN-HVC15×15-G1 | DHN-HVC16×15-G1 |
|---|---|---|---|---|---|
| Battery System | |||||
| Battery Model | DHN-HVRES05-G1 | DHN-HVRES15-G1 | DHN-HVRES16-G1 | DHN-HVRES15-G1 | DHN-HVRES16-G1 |
| Battery Type | LiFePO4 | ||||
| Battery Capacity (Ah) | 102 | 280 | 314 | 280 | 314 |
| Charge/Discharge Current(A)-Recommend | 50 | 140 | 157 | 140 | 157 |
| Charge/Discharge Current(A)-Max | 100 | 160 | 180 | 160 | 180 |
| Rated Voltage(V) | 614.4 | 358.4 | 358.4 | 768 | 768 |
| Operating Voltage(V) | 518.4~700.8 | 302.4~403.2 | 302.4~408.8 | 648~864 | 648~876 |
| Nominal Energy (kWh) | 62 | 100 | 112 | 215 | 241 |
| Basic Parameters | |||||
| Weight (kg) | 2600 | ||||
| Dimension (W/H/D, mm) | 1255x2360x1200 | ||||
| IP Rating of Enclosure | IP55 | ||||
| Anti-corrosion Grade | C3 | ||||

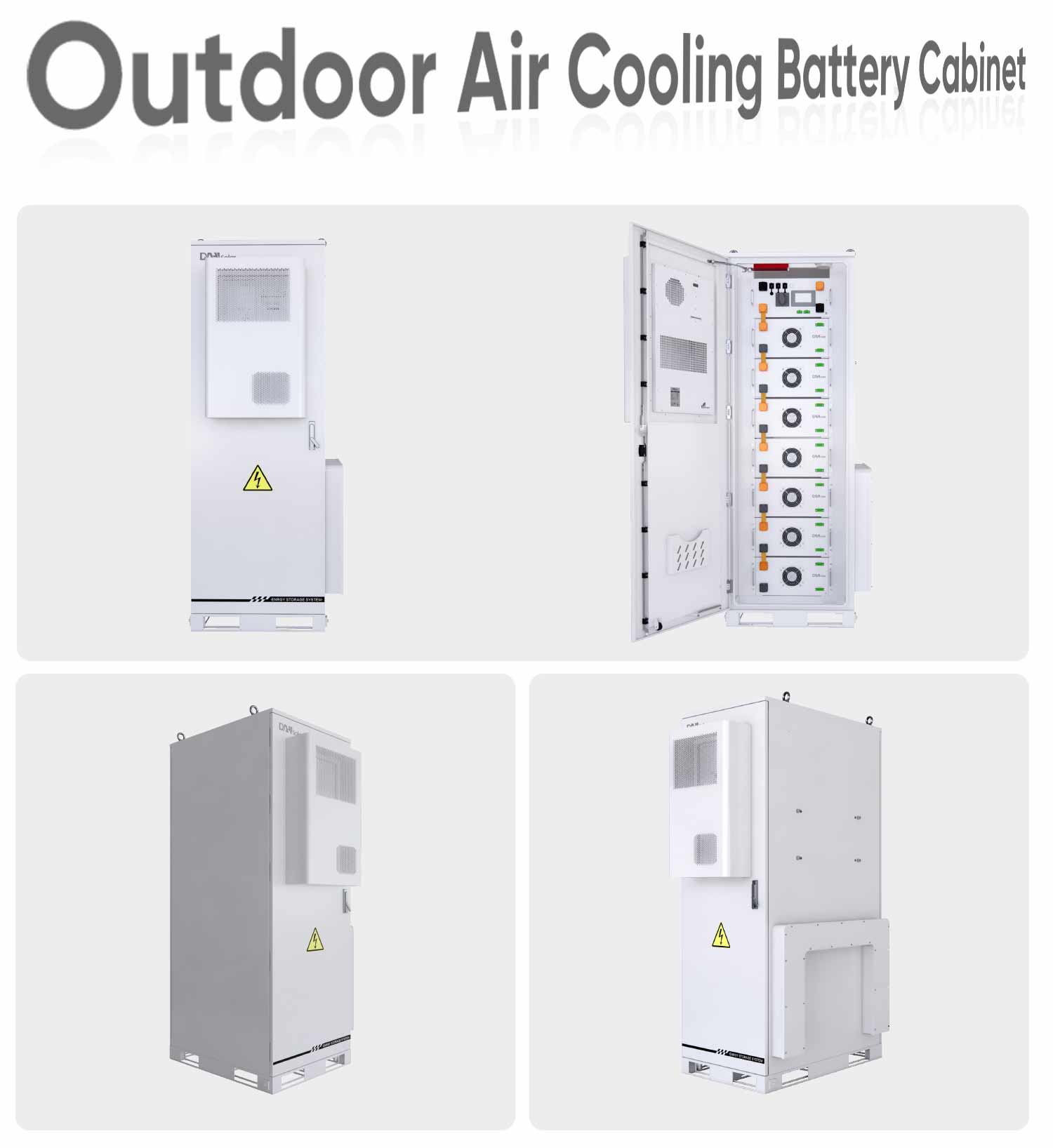

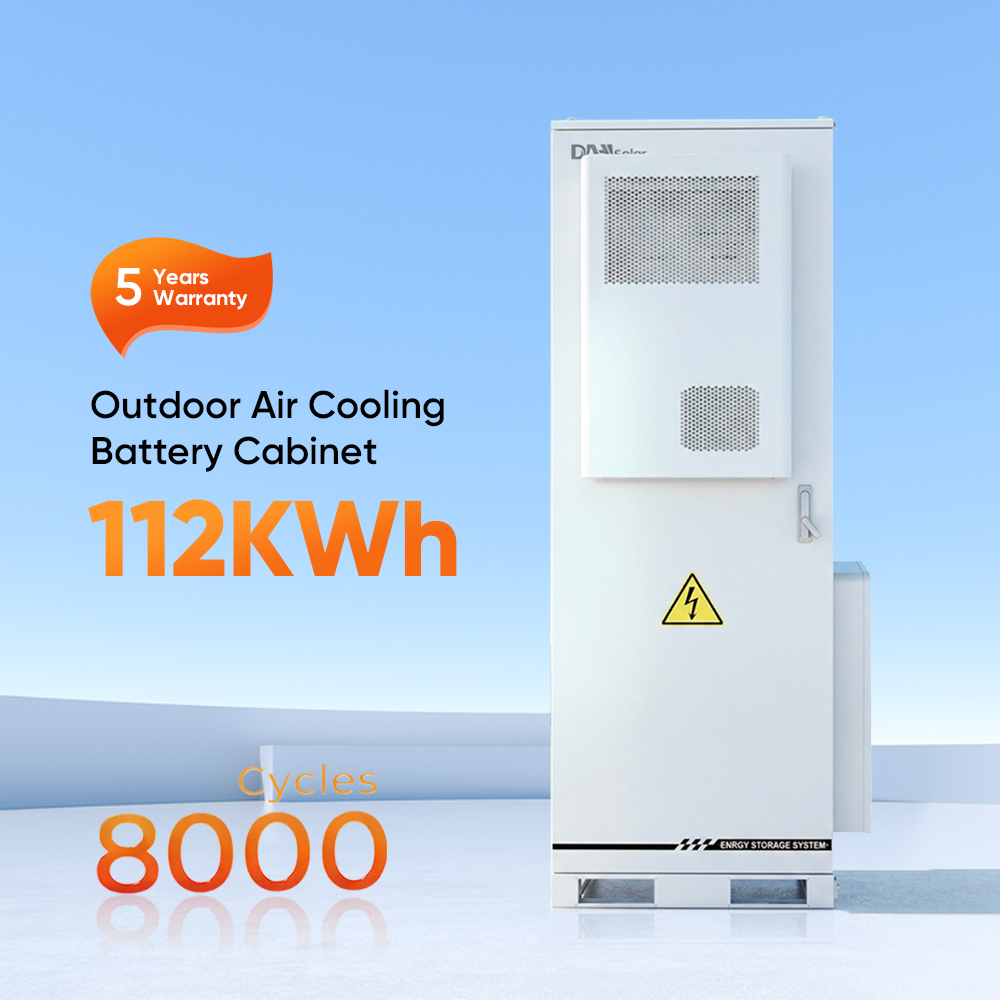

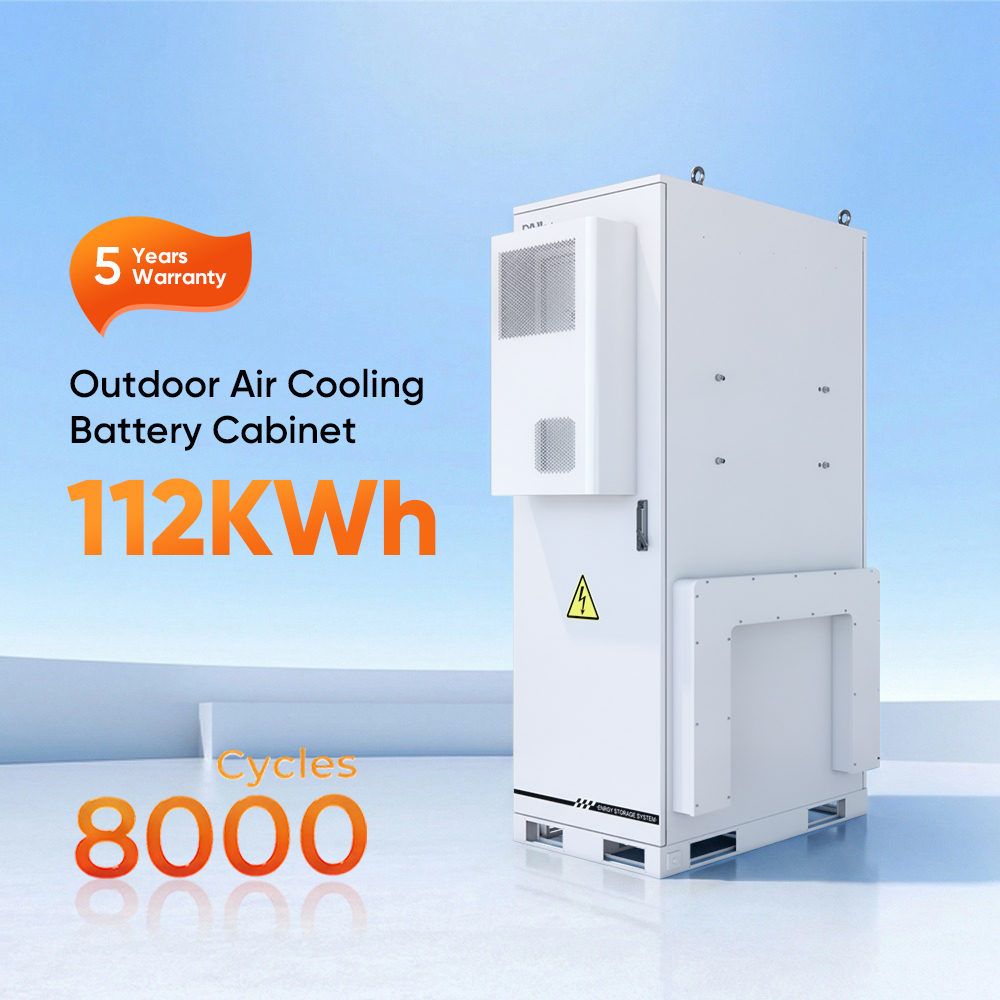

| Cooling Method | Air-cooling | ||||
| Fire Protection | Aerosol fire protection | ||||
| Operating Temperature (°C) | Charge: 0~+50 / Discharge: -20~+55 | ||||
| Storage Temperature (°C) | 0~+35 | ||||
| Recommend Depth of Discharge (%) | ≤90 | ||||
| Cycle Life (25±2°C, 0.5C/0.5C, 70%EOL) | ≥6000 & 8000 (Selectable) | ||||
| Communication Methods | CAN2.0 / RS485 | ||||
| Warranty Period (years) | 5 | ||||
| Certification | UN38.3 | ||||
Powering the Future with Solar Energy Storage Solutions
We are a leading manufacturer and global exporter specializing in advanced solar energy storage products. With a strong commitment to innovation, sustainability, and quality, we empower homes, businesses, and communities worldwide to harness the full potential of solar energy. Our cutting-edge energy storage solutions are designed to meet the growing demand for reliable, efficient, and eco-friendly power systems in an increasingly energy-conscious world.
Our mission is to drive the global transition to renewable energy by providing state-of-the-art energy storage solutions that optimize solar energy storage. We aim to make clean energy accessible, affordable, and reliable for everyone, contributing to a greener and more sustainable future.
We specialize in the design, development, and production of high-performance lithium-ion batteries tailored for solar energy storage applications. Our product portfolio includes:
As the world shifts toward renewable energy, we are committed to being a key player in the solar energy storage revolution. We envision a future where clean, reliable, and affordable energy is accessible to all, and we are dedicated to making this vision a reality through continuous innovation, strategic partnerships, and a relentless focus on customer satisfaction.
Join us in powering a sustainable future. With our solutions, the energy of tomorrow is within reach today.
