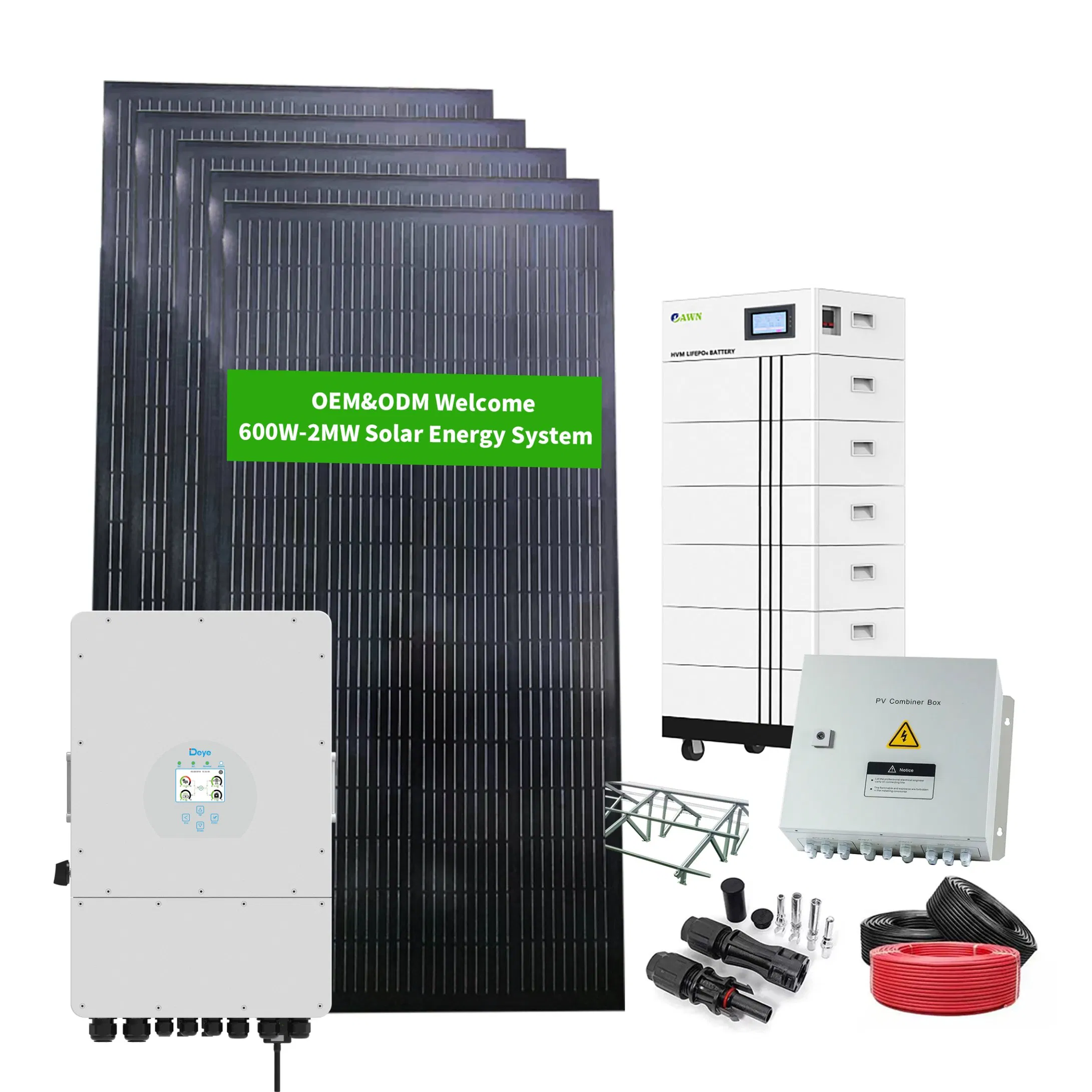

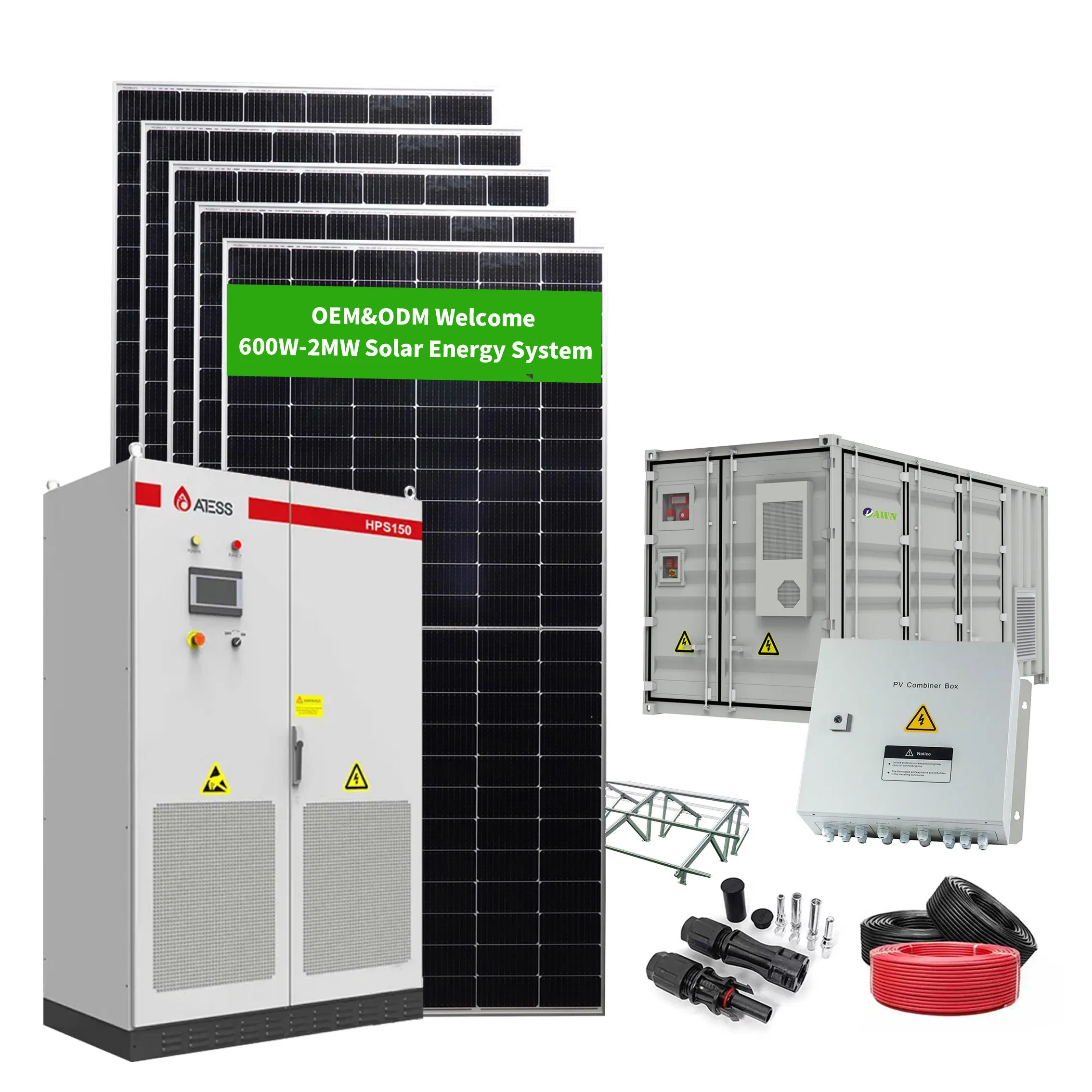

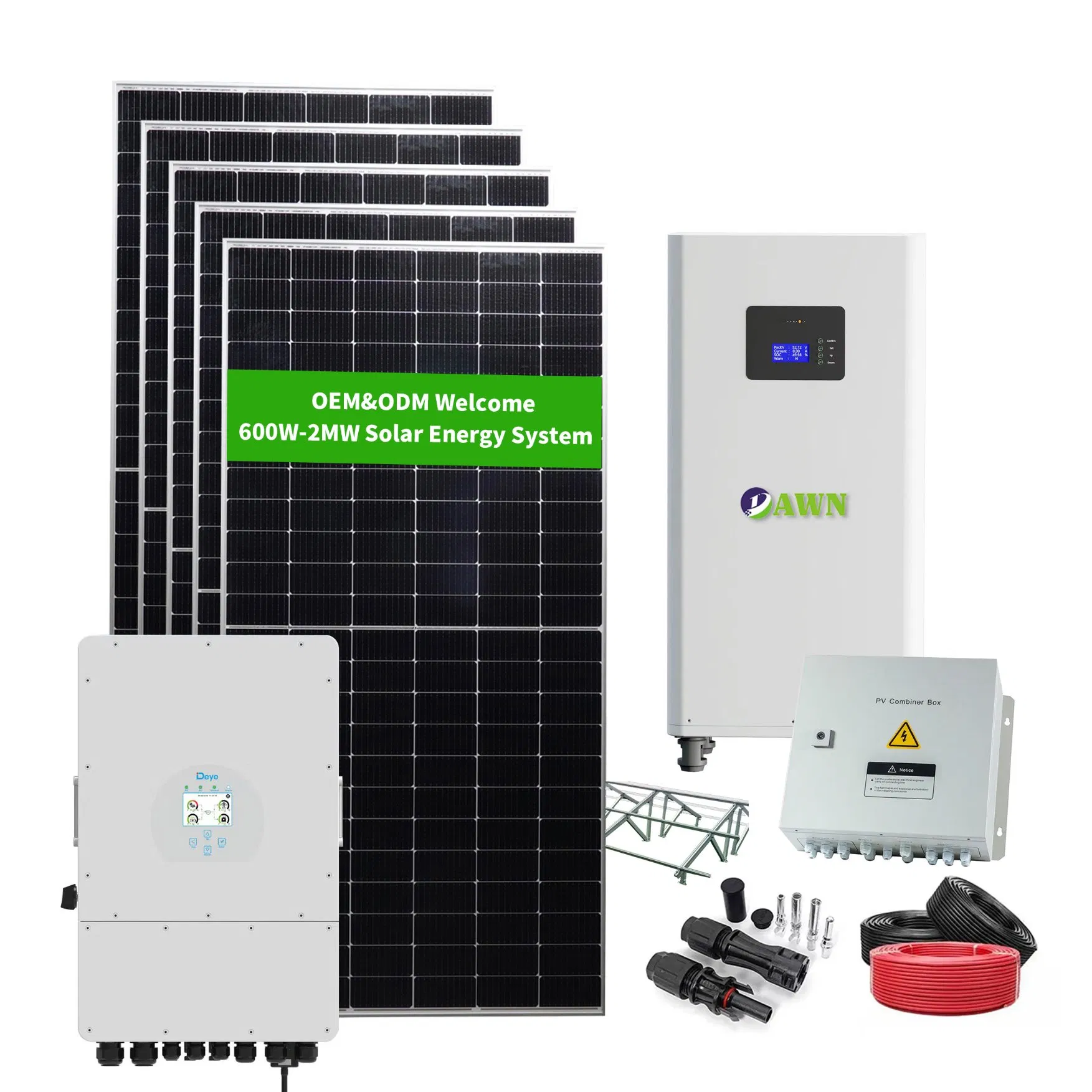

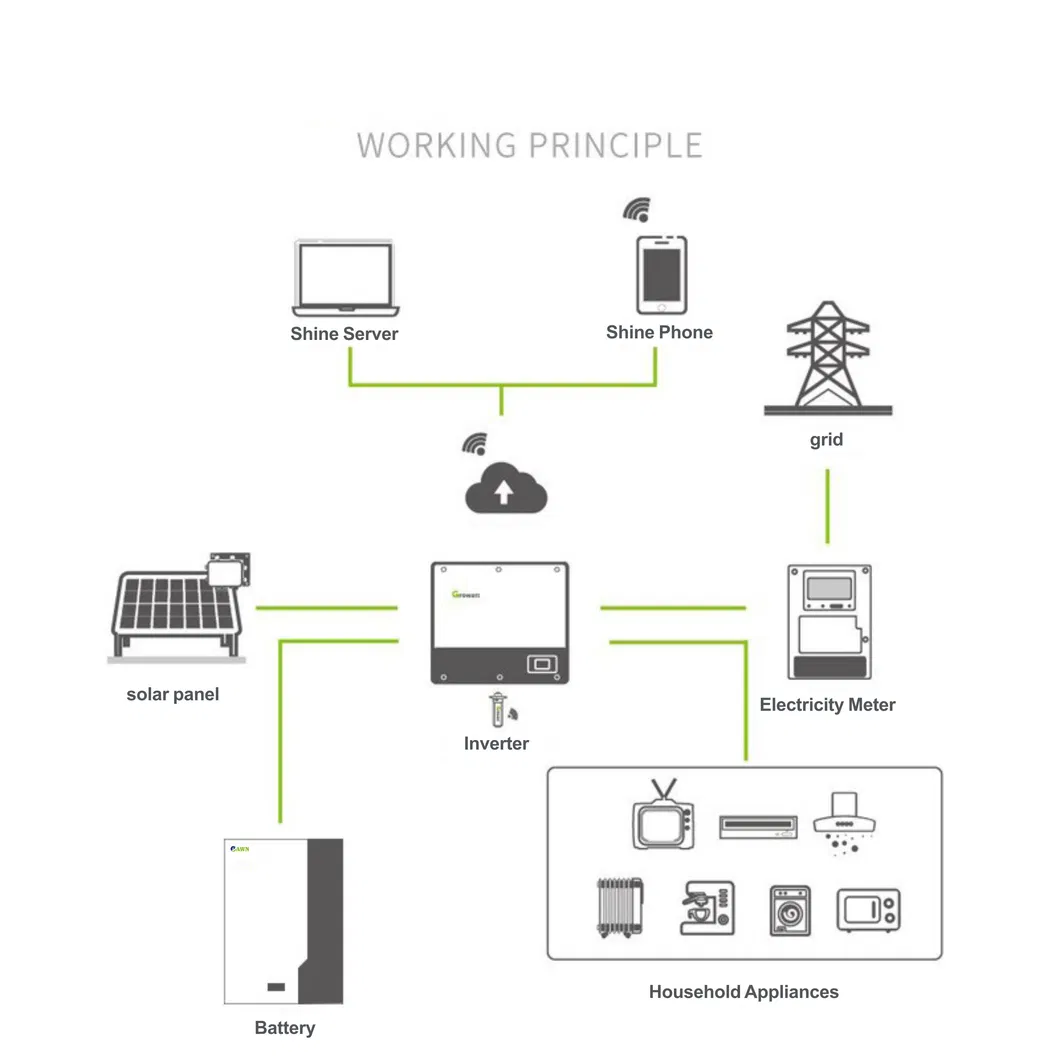

Hybrid Solar Energy System Also Named On & Off Grid Solar Energy System. With the feature and function of both on grid and off grid solar energy system. If you have a set of hybrid solar energy system, you could use electricity from solar panel in the daytime when is sunny, you could use electricity stored in battery bank in the evening or on rainy days.

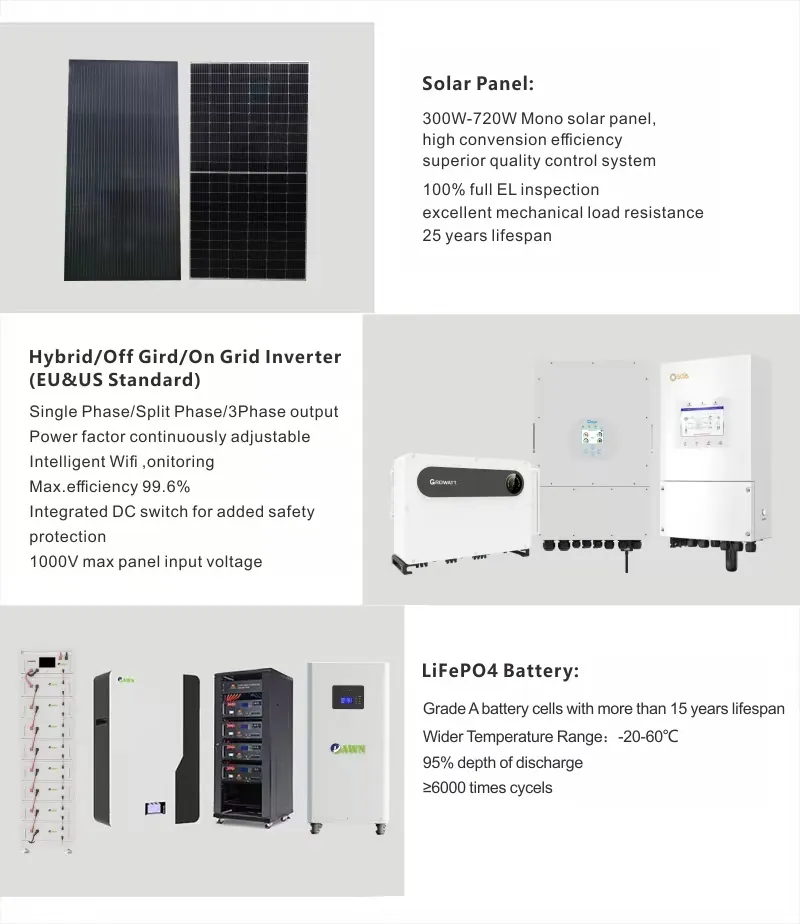

| Model NO. | DL-HSS600W | DL-HSS1KW | DL-HSS2KW | DL-HSS3KW | DL-HSS4KW | DL-HSS5KW |
|---|---|---|---|---|---|---|

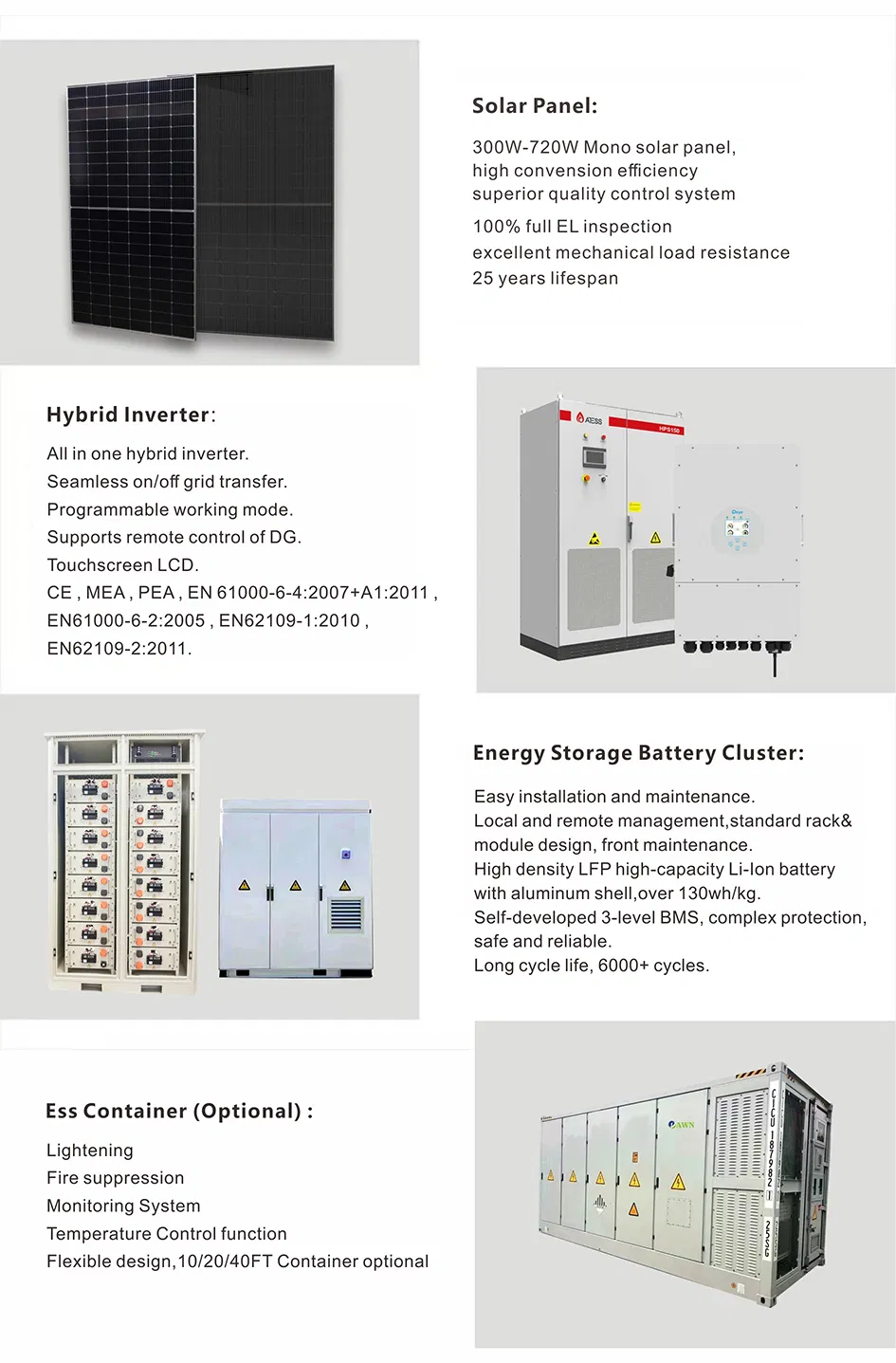

| Mono Solar Panel (300W-720W) | 2pcs of 300W | 3pcs of 300W | 7pcs of 300W | 10pcs of 300W | 7pcs of 550W | 9pcs of 550W |
| Hybrid Inverter | 600W | 1KW | 2KW | 3KW | 4KW | 5KW |
| Battery Type & Capacity | 604WH LiFePO4 | 1.28KWH LiFePO4 | 2.56KWH LiFePO4 | 3.84KWH LiFePO4 | 5.12KWH LiFePO4 | 7.68KWH LiFePO4 |

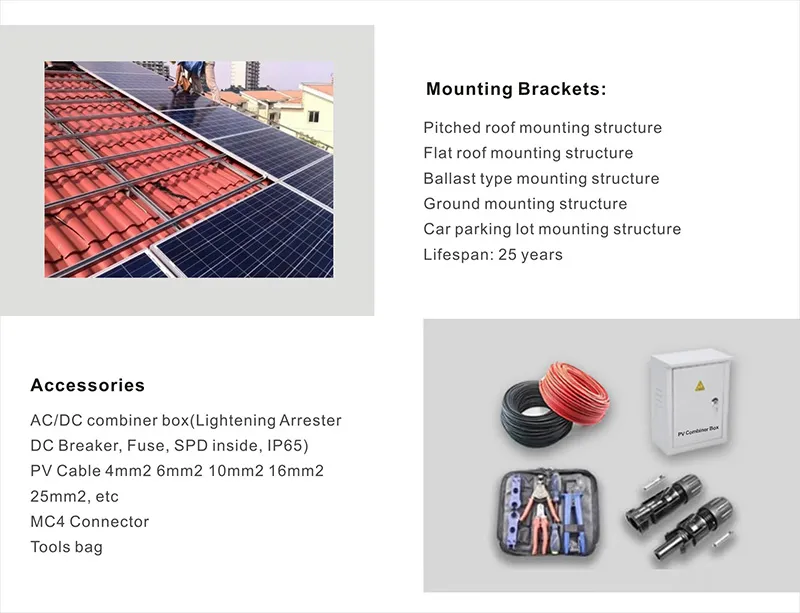

| PV Cable 4mm2 | 20m | 50m | 50m | 100m | 100m | 100m |
| MC4 Connector | 1 Pairs | 2 Pairs | 4 Pairs | 5 Pairs | 4 Pairs | 5 Pairs |
| Mounting Brackets | Roof/Balcony | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| Model NO. | DL-HSS6KW | DL-HSS8KW | DL-HSS10KW | DL-HSS12KW | DL-HSS15KW | DL-HSS20KW |
|---|---|---|---|---|---|---|
| Mono Solar Panel (550W) | 11pcs of 550W | 14pcs of 550W | 18pcs of 550W | 22pcs of 550W | 27pcs of 550W | 36pcs of 550W |
| Hybrid Inverter | 6KW | 8KW | 10KW | 12KW | 15KW | 20KW |
| Battery Type & Capacity | 10KWH LiFePO4 | 12KWH LiFePO4 | 15KWH LiFePO4 | 18KWH LiFePO4 | 20KWH LiFePO4 | 25KWH LiFePO4 |
| PV Cable 4mm2 | 150m | 200m | 200m | 250m | 300m | 350m |
| MC4 Connector | 6 Pairs | 7 Pairs | 9 Pairs | 11 Pairs | 14 Pairs | 18 Pairs |
| Mounting Brackets | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| Model NO. | DL-HSS25KW | DL-HSS30KW | DL-HSS40KW | DL-HSS50KW | DL-HSS60KW | DL-HSS100KW |
|---|---|---|---|---|---|---|
| Mono Solar Panel (550W) | 45pcs of 550W | 54pcs of 550W | 72pcs of 550W | 91pcs of 550W | 109pcs of 550W | 182pcs of 550W |
| Hybrid Inverter | 25KW | 30KW | 40KW | 50KW | 60KW | 100KW |
| Battery Type & Capacity | 28KWH LiFePO4 | 30KWH LiFePO4 | 150KWH LiFePO4 | 192KWH LiFePO4 | 230KWH LiFePO4 | 384KWH LiFePO4 |
| PV Cable 4mm2 | 400m | 450m | 500m | 600m | 700m | 1000m |
| MC4 Connector | 23 Pairs | 27 Pairs | 36 Pairs | 46 Pairs | 55 Pairs | 91 Pairs |
| Mounting Brackets | Roof/Balcony | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| Model NO. | DL-HSS150KW | DL-HSS200KW | DL-HSS300KW | DL-HSS500KW | DL-HSS1MW | DL-HSS2MW |
|---|---|---|---|---|---|---|
| Mono Solar Panel (550W) | 182pcs of 550W | 363pcs of 550W | 545pcs of 550W | 909pcs of 550W | 1818pcs of 550W | 3636pcs of 550W |
| Hybrid Inverter | 150KW | 200KW | 300KW | 500KW | 1MW | 2MW |
| Battery Type & Capacity | 576KWH LiFePO4 | 768KWH LiFePO4 | 1152KWH LiFePO4 | 2MWH LiFePO4 | 4MWH LiFePO4 | 8MWH LiFePO4 |
| PV Cable 4mm2 | 1500m | 2000m | 3000m | 5000m | 10,000m | 20,000m |
| MC4 Connector | 91 Pairs | 182 Pairs | 273 Pairs | 455 Pairs | 909 Pairs | 1818 Pairs |
| Mounting Brackets | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
