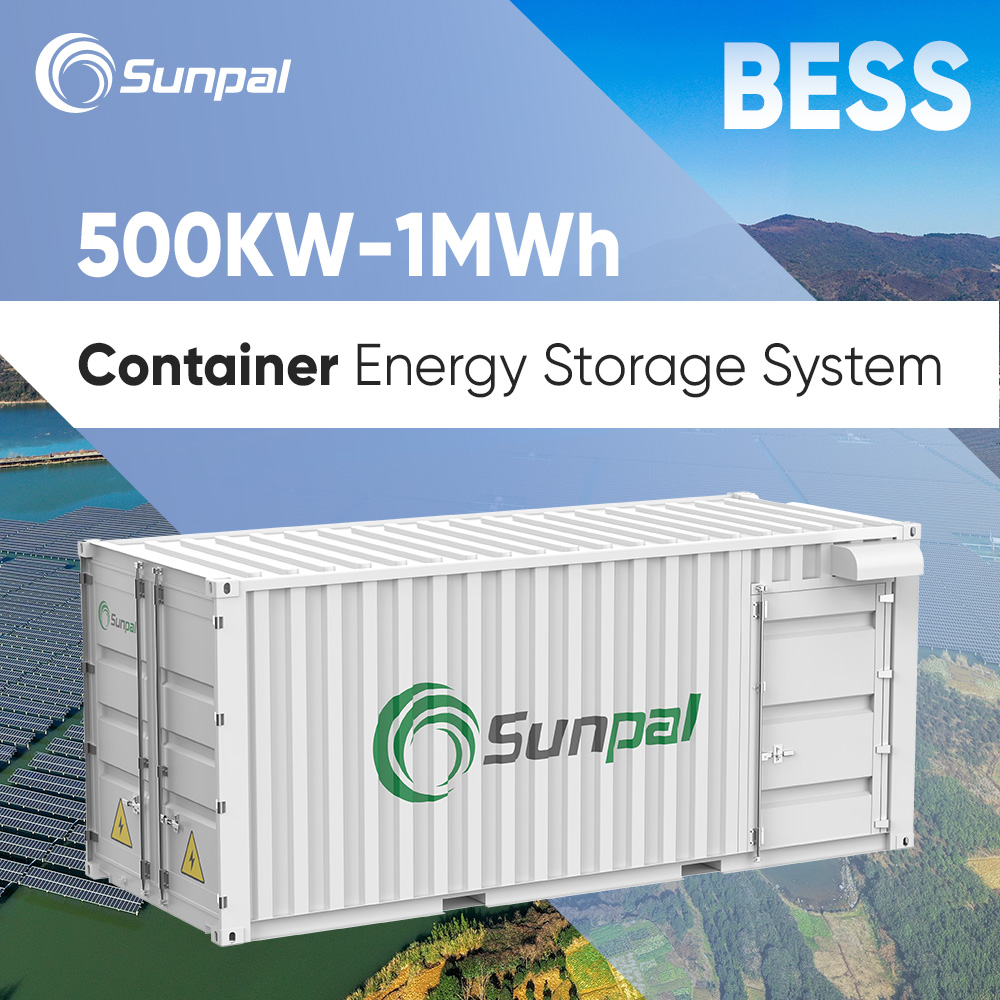

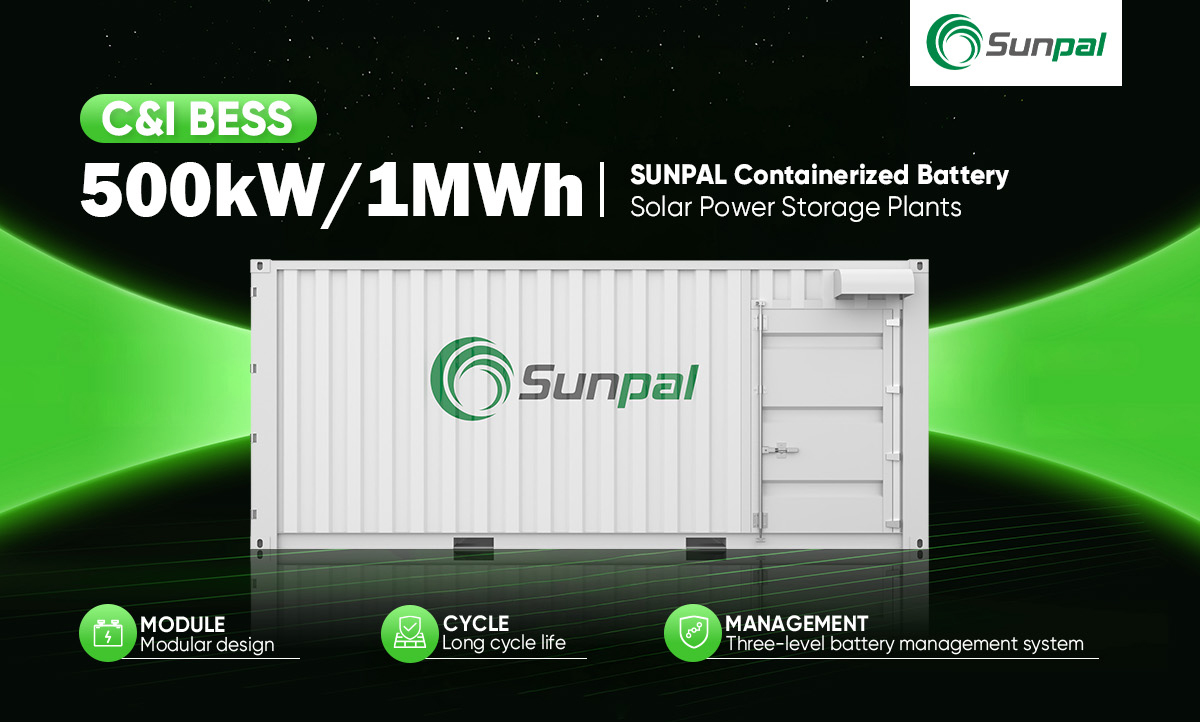

Sunpal Containerized Battery Solar Power Storage Plants

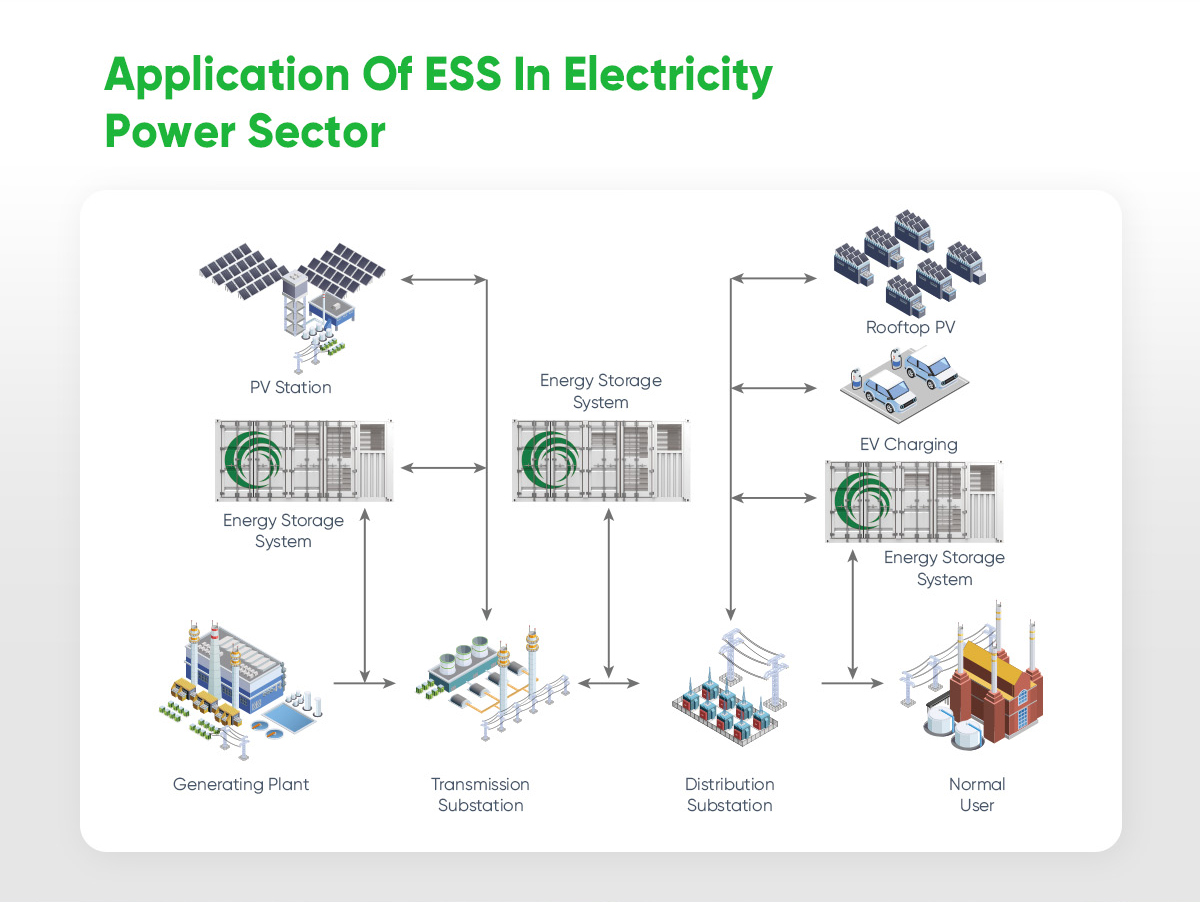

500kW/1mWh Containerized Battery Solar Power Storage Plants are suitable for use in public buildings, communities, medium and large enterprises, utility-scale storage systems, off-grid systems, electric vehicles and backup systems. The storage system's container allows you to store energy generated through a wind turbine, photovoltaic, or CHP. Because of their long lifetime, the storage containers can also be used for peak shaving, thus reducing power bills.
| Parameter | Details |
|---|---|
| Model | 500kW-1mWh |
| Adaptive battery | Lithium/lead-acid/Solarpanel(MPPT) |
| Operating mode | Constant current, constant power, MPPT, AC voltage source, DC voltage source |
| Rated Max. AC power | 500/550kW |
| Rated AC current | 180A*4 |
| Rated AC voltage | 400V, 3W+N+PE |
| Rated AC frequency | 50/60Hz ± 5Hz |
| Degree of protection | IP21(Indoor) |
| Cooling mode | Intelligent air-cooled |
| Communication interface | RS485/CAN/Ethernet |
| Dimensions (W*D*H) | 1200*1000*2100mm |
| Weight (approx.) | 2250kg |

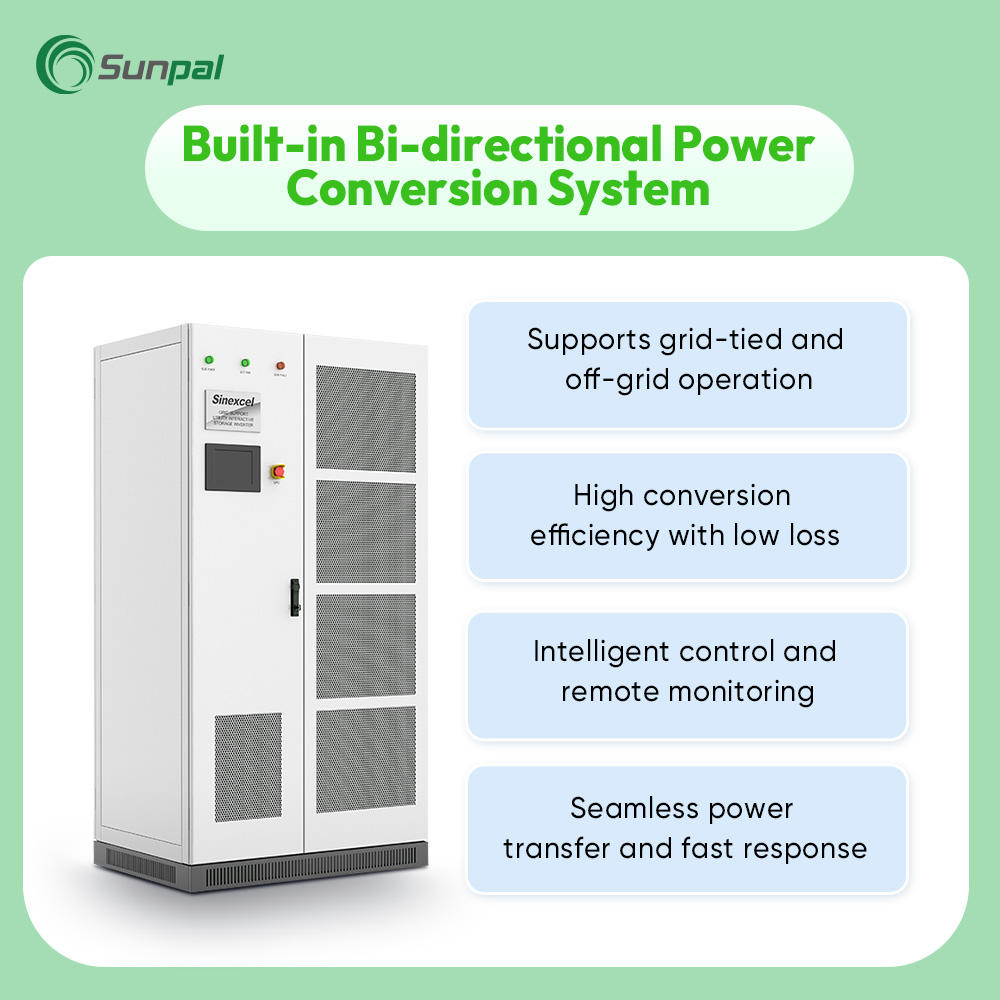

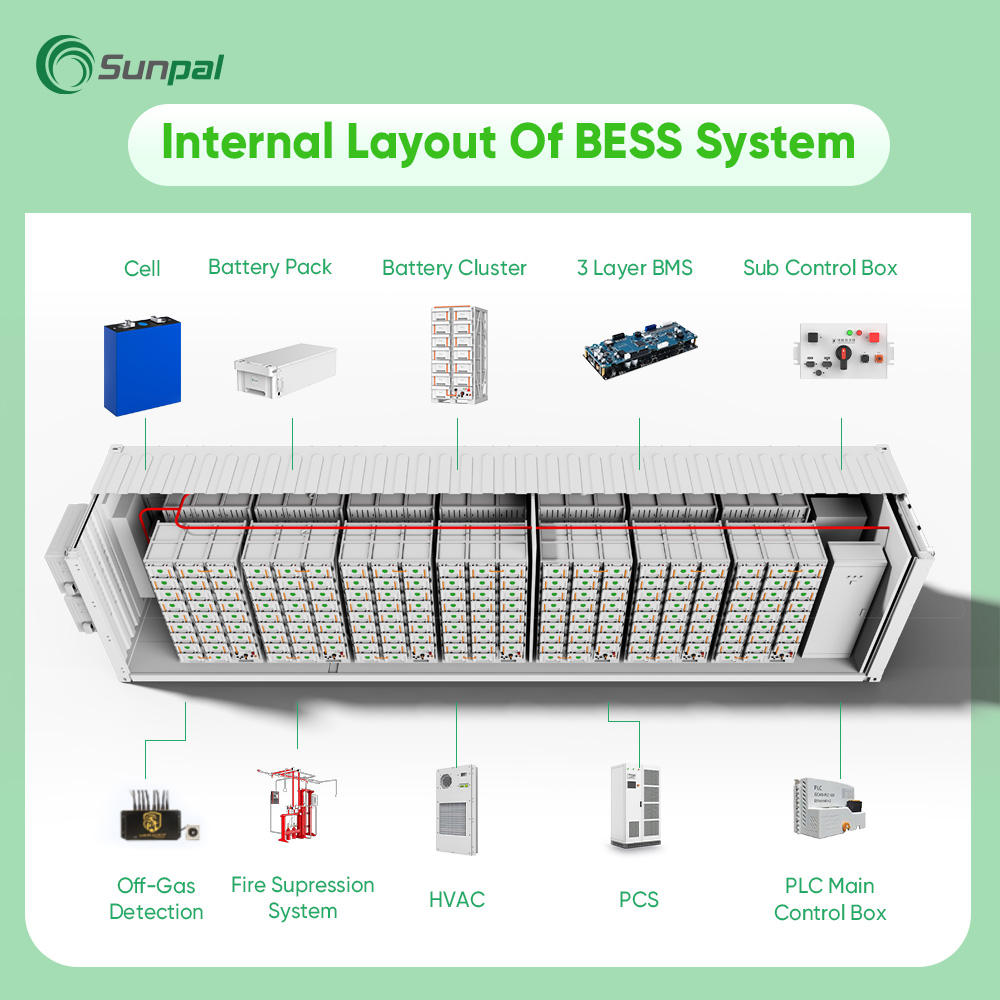

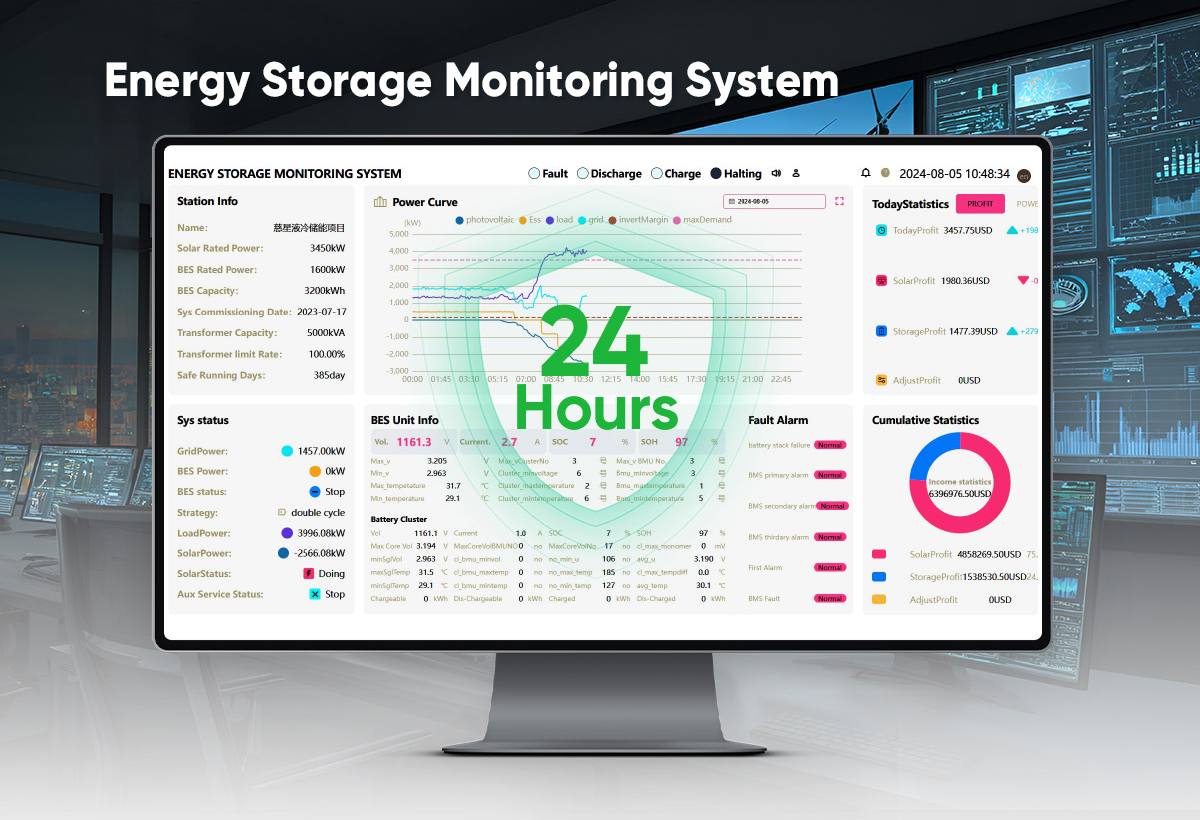

Three-layer architecture of battery system (BMU/BMS/MBMS). MBMS collects all the states and parameters of the battery system and communicates and adjusts with PCS and EMS. The BMS system implements precise parameter control.
Our products have been exported to more than 60 countries and have multiple certifications in these countries, including CE, CSA, and TUV series certificates. Our solar power system fully complies with local usage and sales requirements and complies with local grid-tied policies.

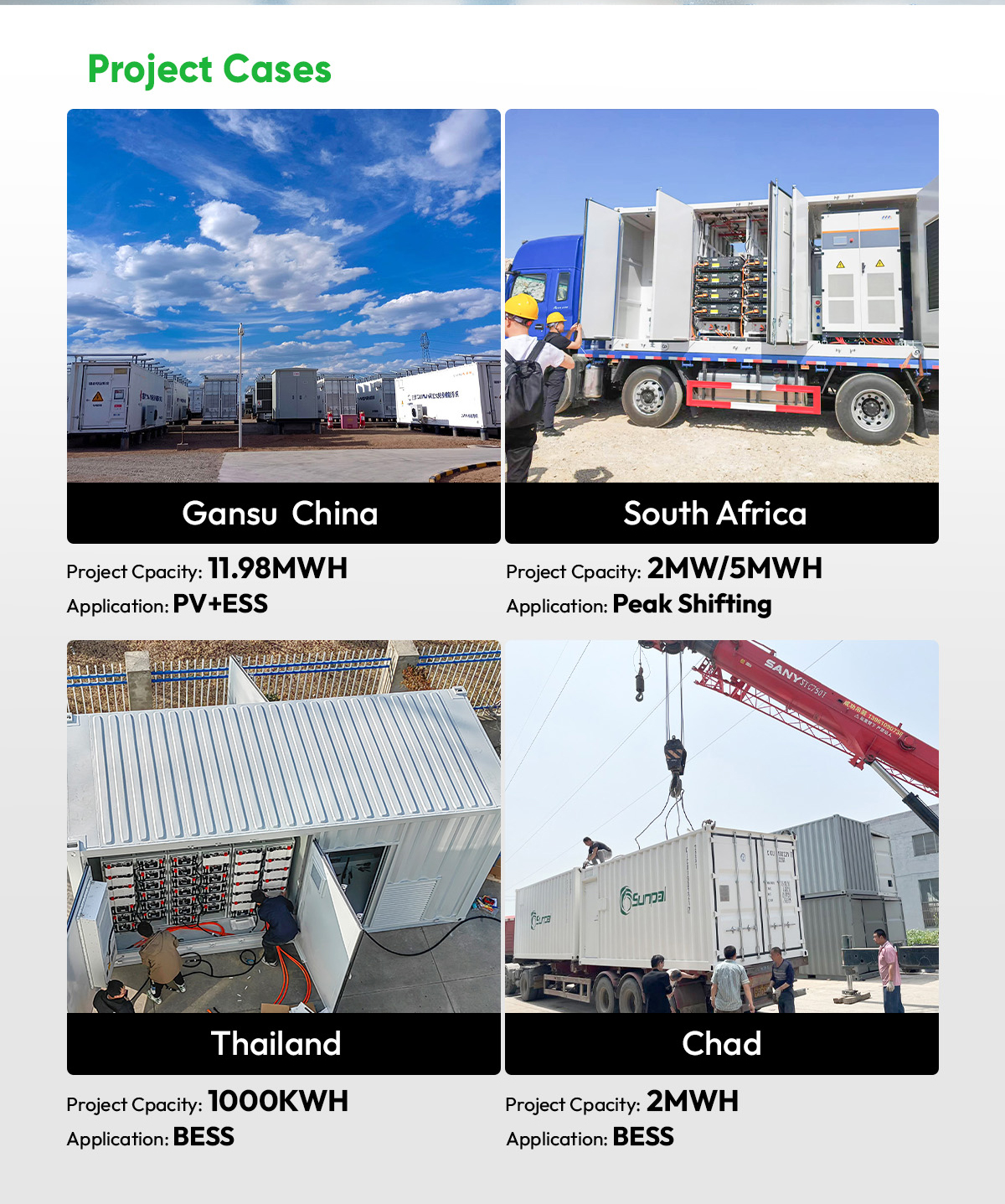

The battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of the client's application. Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
