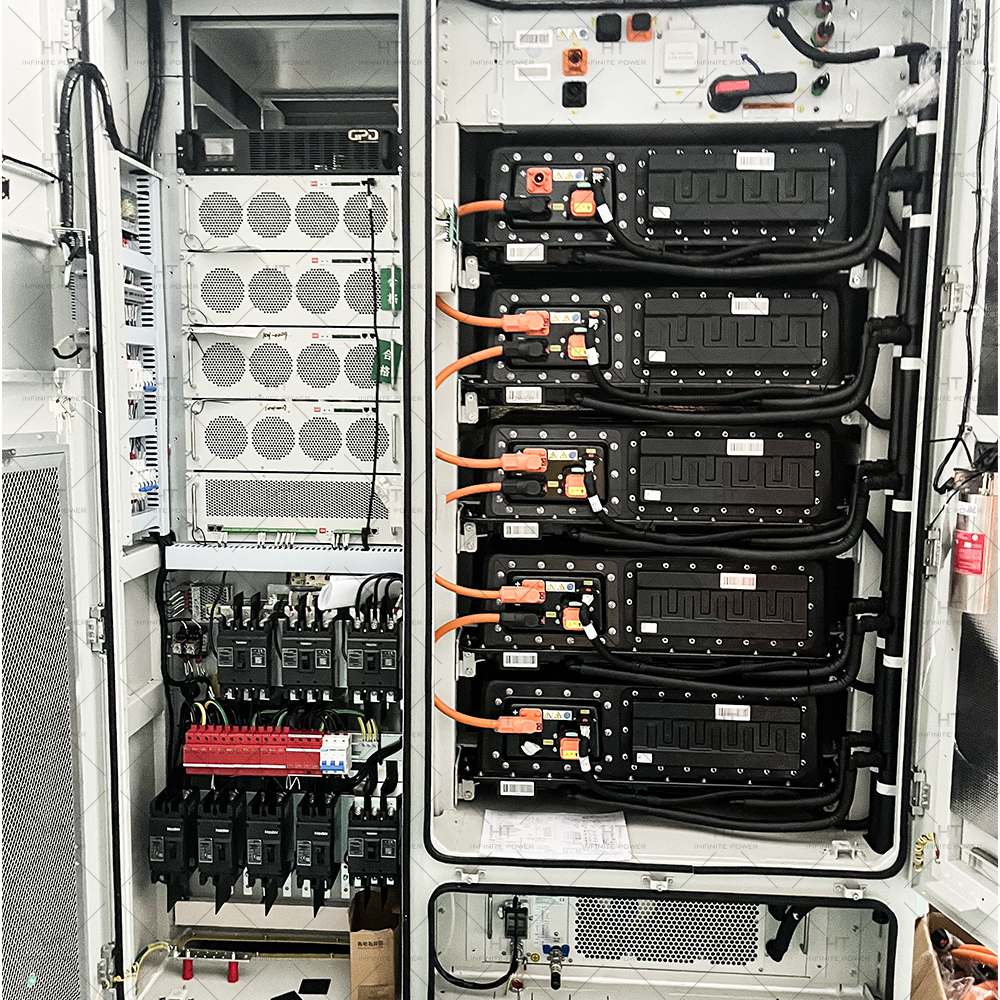

All in One BESS Utility Scale Energy Storage System Industrial&Commercial 100kwh-500kwh High Voltage Battery System

1 / 5

All in One BESS Utility Scale Energy Storage System Industrial&Commercial 100kwh-500kwh High Voltage Battery System

Send Inquiry

Product Description

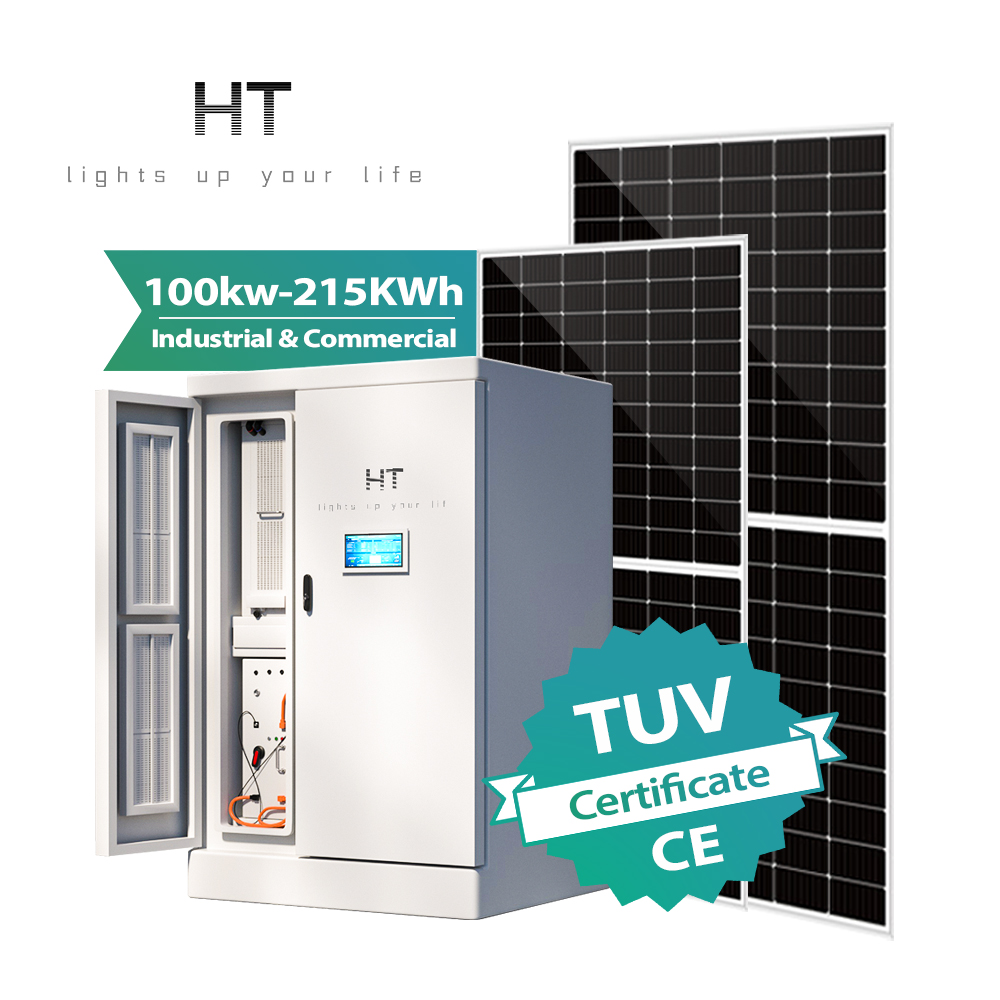

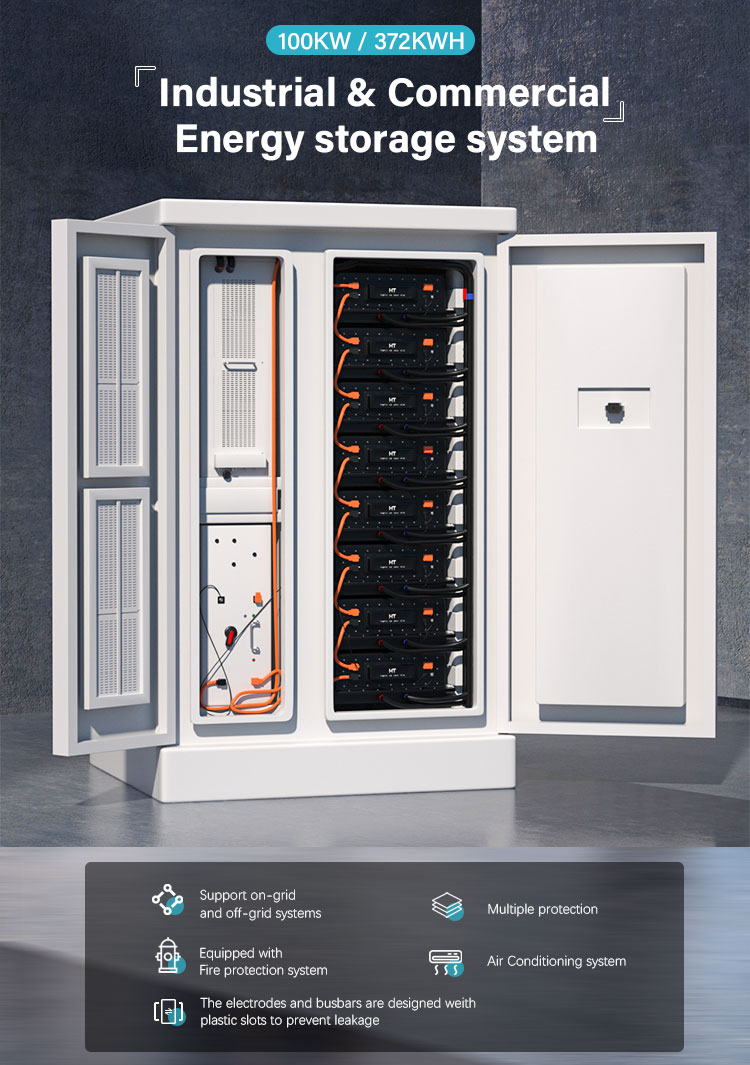

OEM 100KW 215KWH Liquid Cooling Lithium Ion Container Battery All In One Solar Industry & Commercial Energy Storage System BESS

Technical Parameter	186kWh Liquid cooled type	215kWh Liquid cooled type
Cell Capacity	280Ah
Battery Type	Lifepo4 battery
Nominal Voltage	DC665.6V	DC768V
Voltage Range	DC627.2-748.8V	DC672-864V
Nominal Energy	186kwh	215kwh
Battery Cell Equalization	Active equalization
Rated Charge/Discharge Rate	≤0.5P
Battery Pack	13 * 1P16S	15*1P16S
Working Temperature	-40 ° C to 55 ° C
Fire Spray	Heptafluoropropane/perfluorohexanone
Main Materials	Galvanized steel plate
Surface Coating	Electrostatic spraying/fluorocarbon paint
Temperature Control Method	Single battery pack efficient wind cooling
Fire Detection	Temperature/Smoke/Open Flame/Combustible Gas
Protection Level	IP54

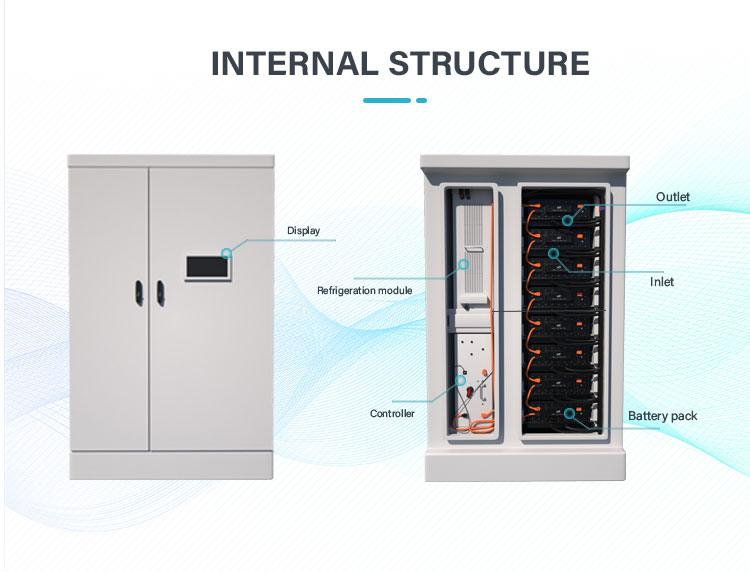

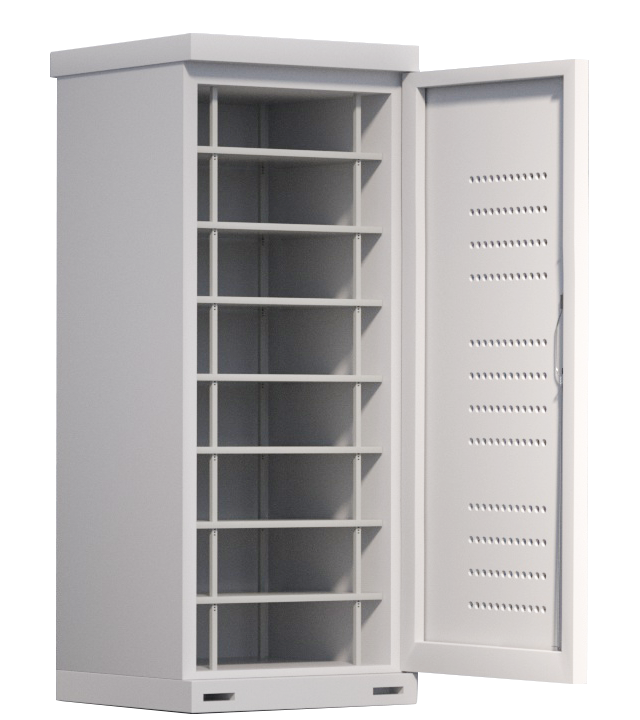

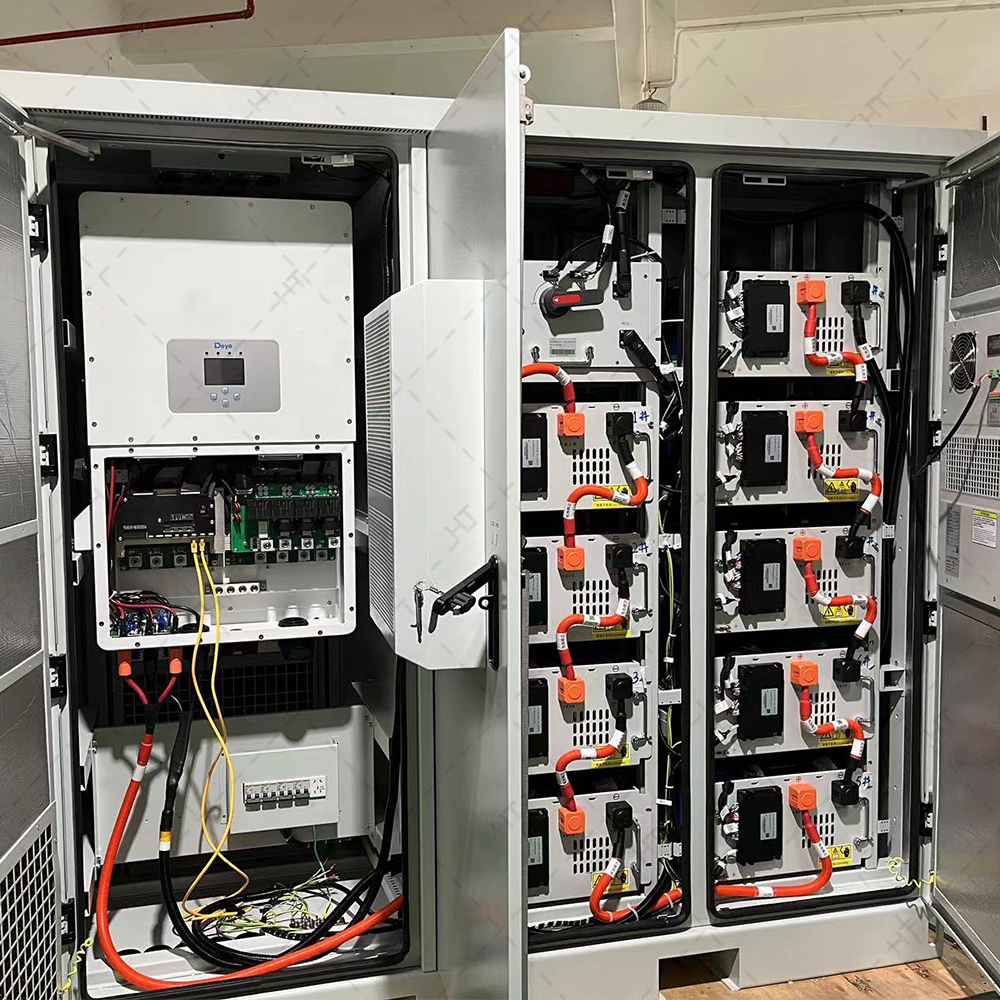

Battery Cabinet

High efficiency air cooled battery PACK box
Reinforced and thickened aluminum alloy bottom plate, hot-dip galvanized + spray material shell.
Meet the electrical clearance, creepage distance design requirements.
Electrostatic spray, bottom polyurethane egg condensation.

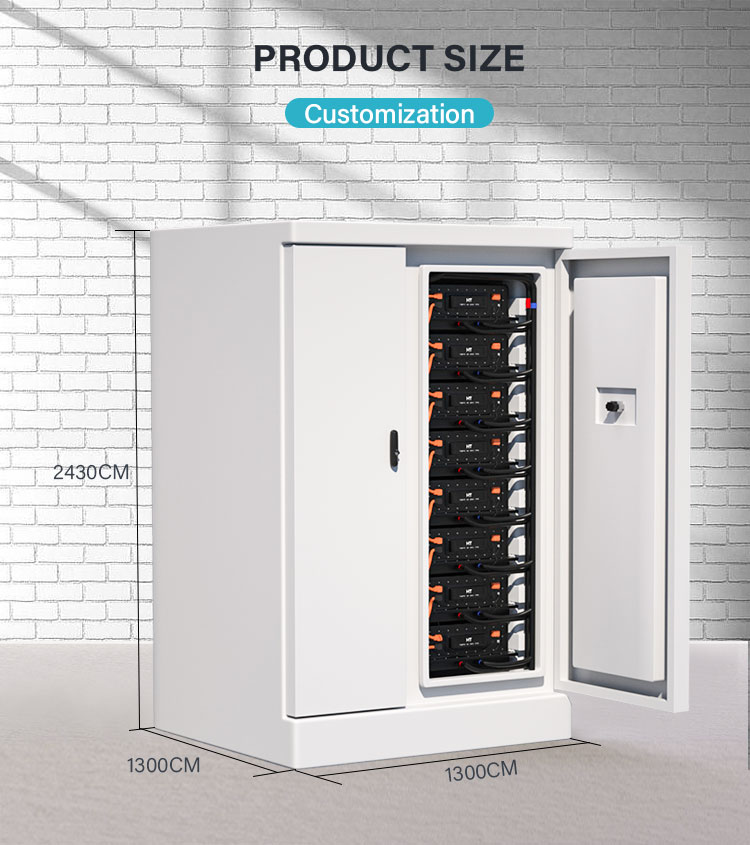

Accept personalized individual customization

Single cluster configuration information

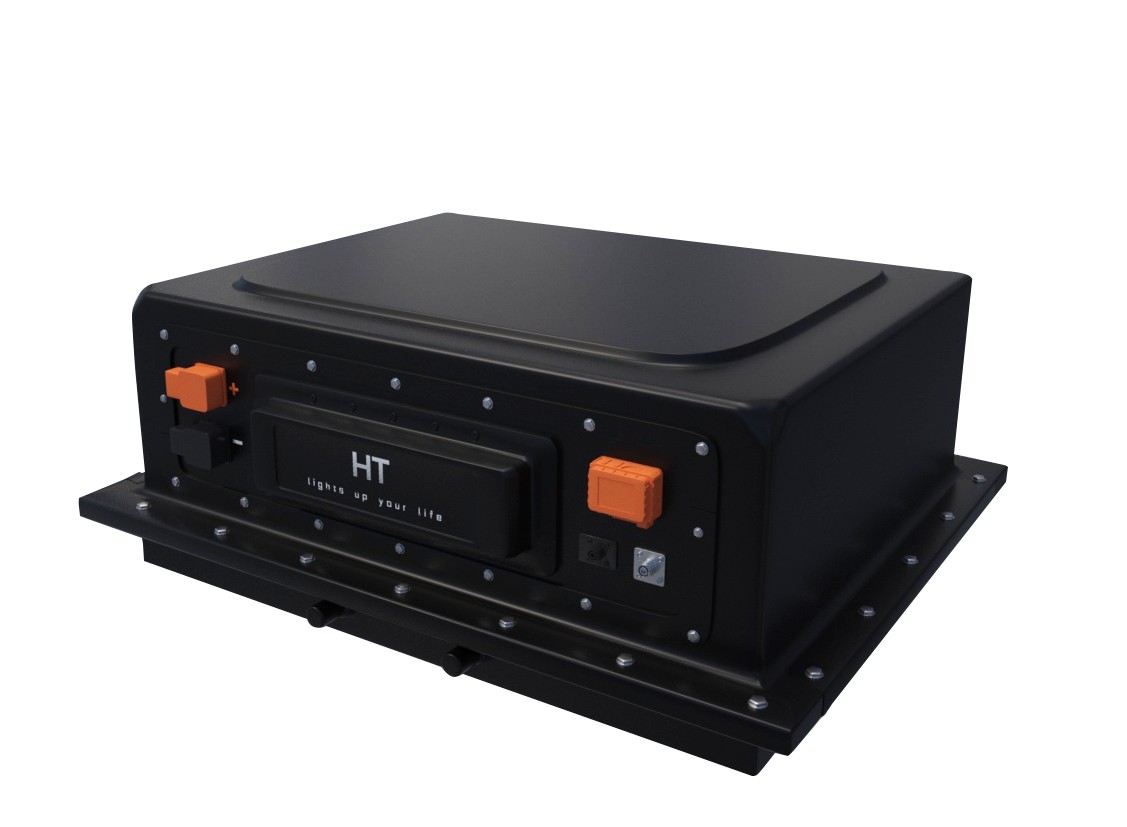

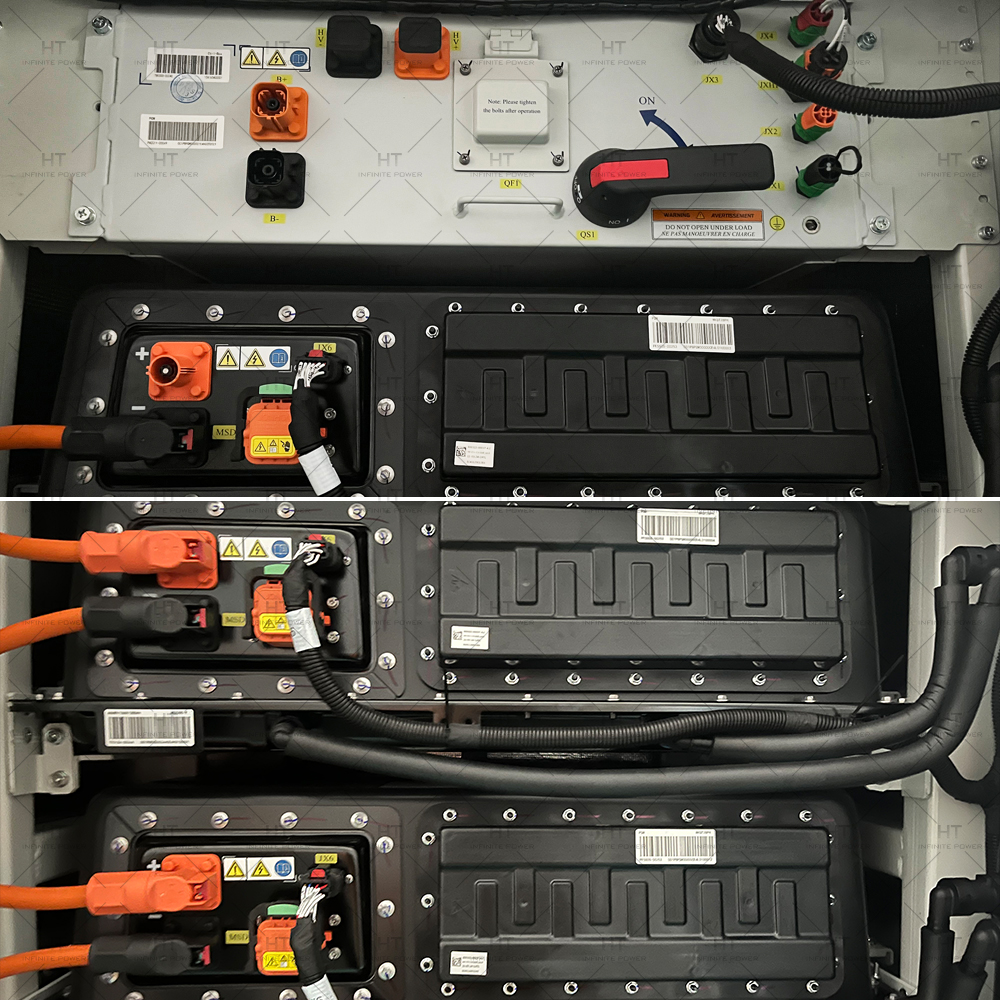

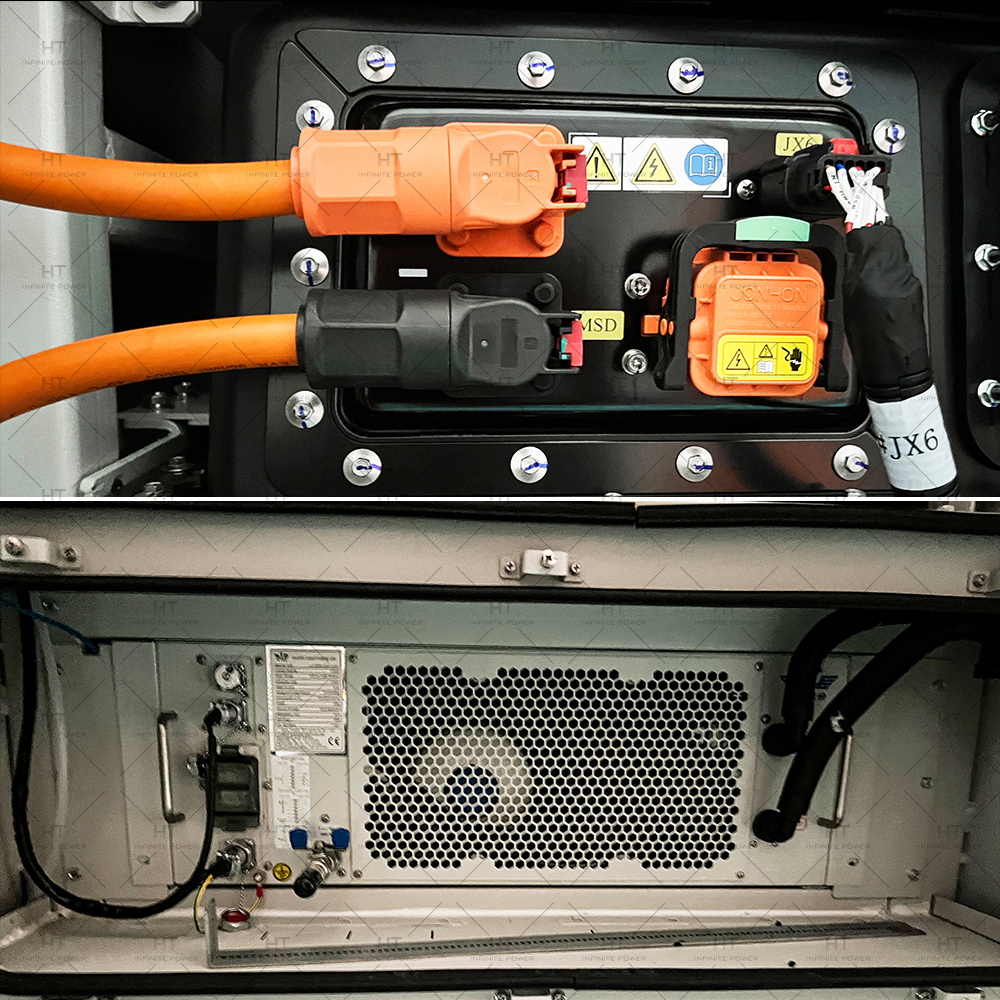

High efficiency liquid cooled battery PACK box
The new liquid cooling flow path design, the flow path area maximization.
Modular design, more convenient maintenance.
Reliable laser welding is used between pole and guide piece
Accurate detection of single cell voltage, temperature.

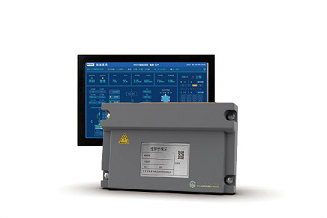

BMS System General Control

Visual operation monitoring industrial screen.
Supports multi-channel communication such as 485, CAN, Ethernet, etc.
Temperature and voltage measurement.
Detection of electric shock status of moving components.

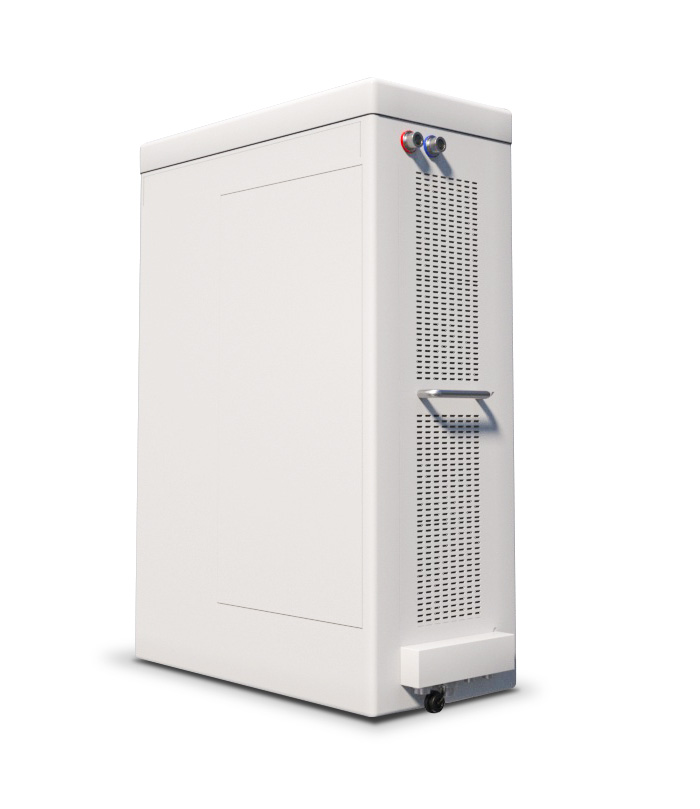

Intelligent temperature control

Ultra-wide operating temperature range, the maximum temperature is as high as 55°C.
Frequency conversion control technology, precise temperature control.
The closed circulation system ensures the stable performance of the coolant.
Precise adjustment to realize the low temperature difference between supply and return water.
Realize high efficiency and energy saving through internal real-time processing mode.

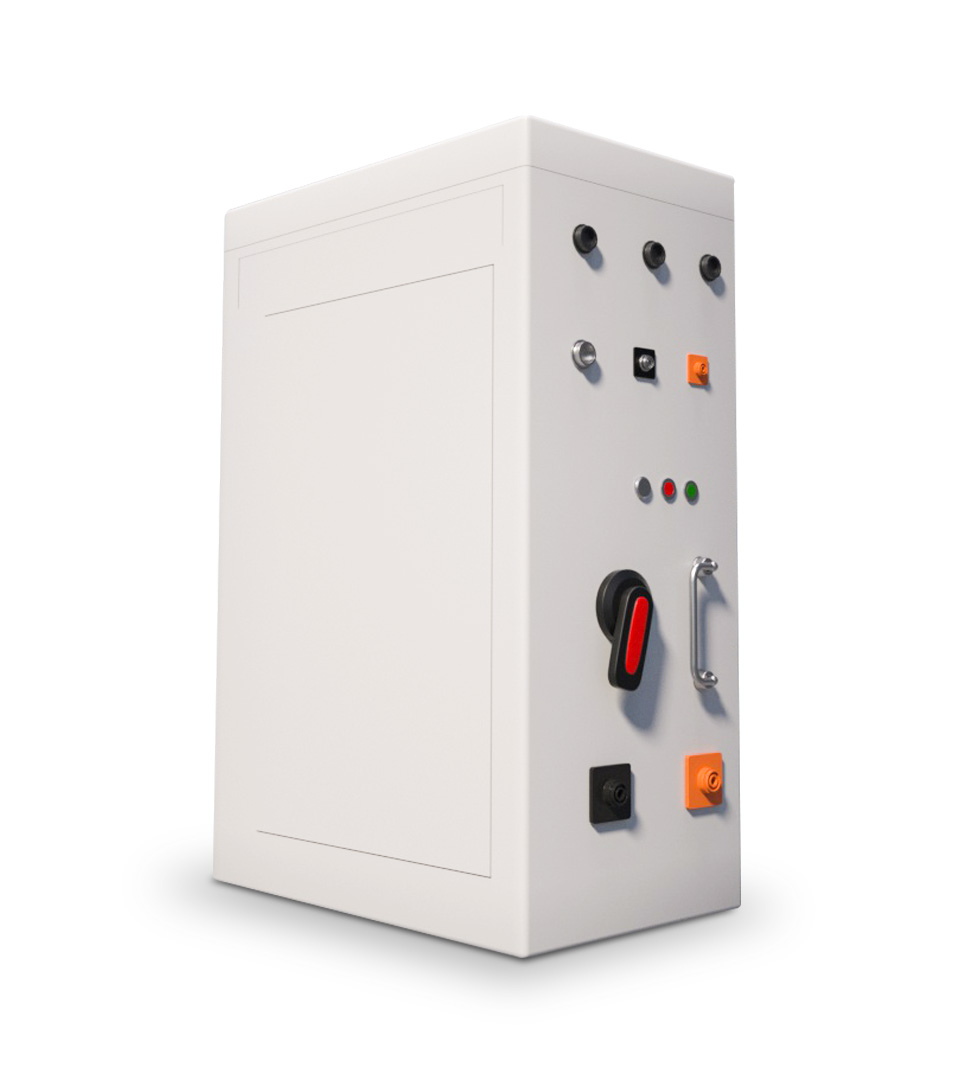

PCS

Three-level topology, maximum 99% conversion efficiency, better power quality.
Support constant power, constant current, constant voltage control, with a frequency modulation, VSG, Black boot and other functions.
Integrated family level battery management function, high battery availability.
Support IEC61850 protocol, with MS-level response capability.
Intelligent multi-stage fan speed regulation, wide temperature operation capability, 50°C without derating
IP66 protection level.

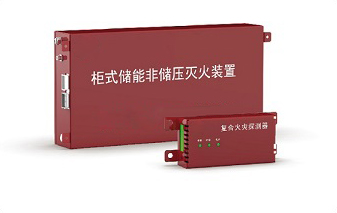

Intelligent fire protection system

High-sensitivity sensors are used to detect the inside of the energy storage cabinet before a fire occurs.
Collect and monitor the air environment in real time, and report any abnormalities in time.
CAN bus connection mode is adopted, which can directly communicate with BMS, and the wiring is convenient.
Integrated design of fire extinguishing and control, easy installation and space saving.
Using perfluorohexanone fire extinguishing agent, the cooling effect is obvious, and there is no damage to live equipment and precision equipment (easy to volatilize without residue, strong insulation and non-conductive).

Frequently Asked Questions

Q1 Are you a factory or a trader?

We are a manufacturer of Solar storage batteries, and we can also provide solutions for the entire solar system.

Q2 What is the warranty period, and how many years?

The warranty period for batteries and inverters is 5-10 years, and the warranty period for photovoltaic panels is 25 years.

Q3 How is your technical support?

We provide lifetime online support. We have a professional engineers team that can provide you the best solutions.

Q4 Do you support OEM/ODM?

Of course, we can do OEM/ODM services for our partners.

Q5 Should I choose an on grid system, hybrid on/off grid system, or off grid system?

If you just need the system for your home use, choose the off grid system or hybrid system, and off grid system is much cheaper. And if you want to sell the power to the power grid, then you need to choose the hybrid system or on grid system.

Q6 How to choose the solar home system?

Firstly, please help us to confirm the following details: What is your monthly electricity consumption kWh? What appliances does your house have? Or can you show us the electricity bill? How many hours do you want the battery to backup? After getting your confirmation, our professional engineers team will custom and design a most suitable and most economical solar home system for you.
