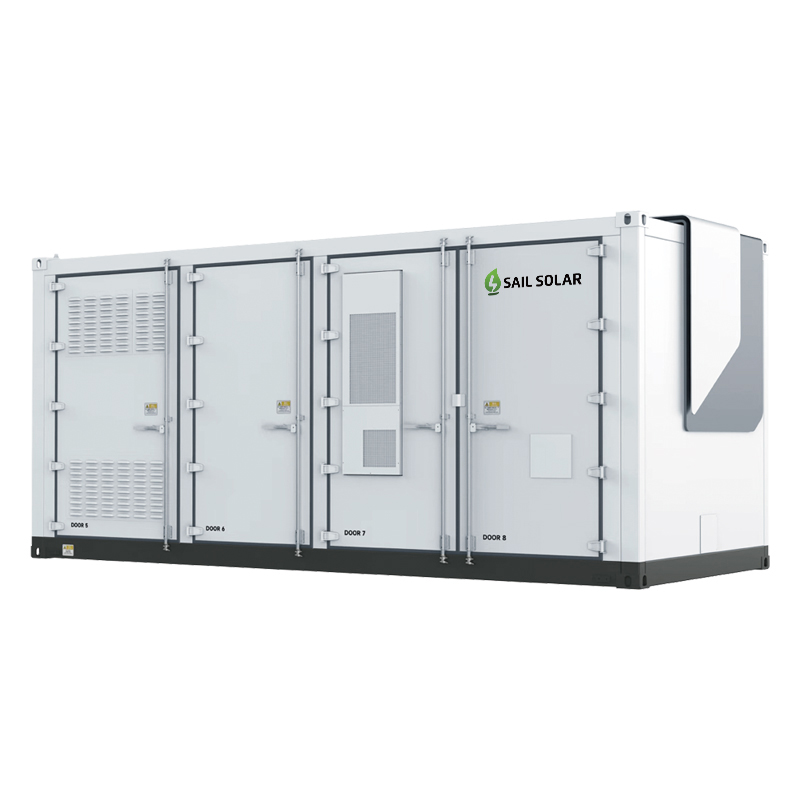

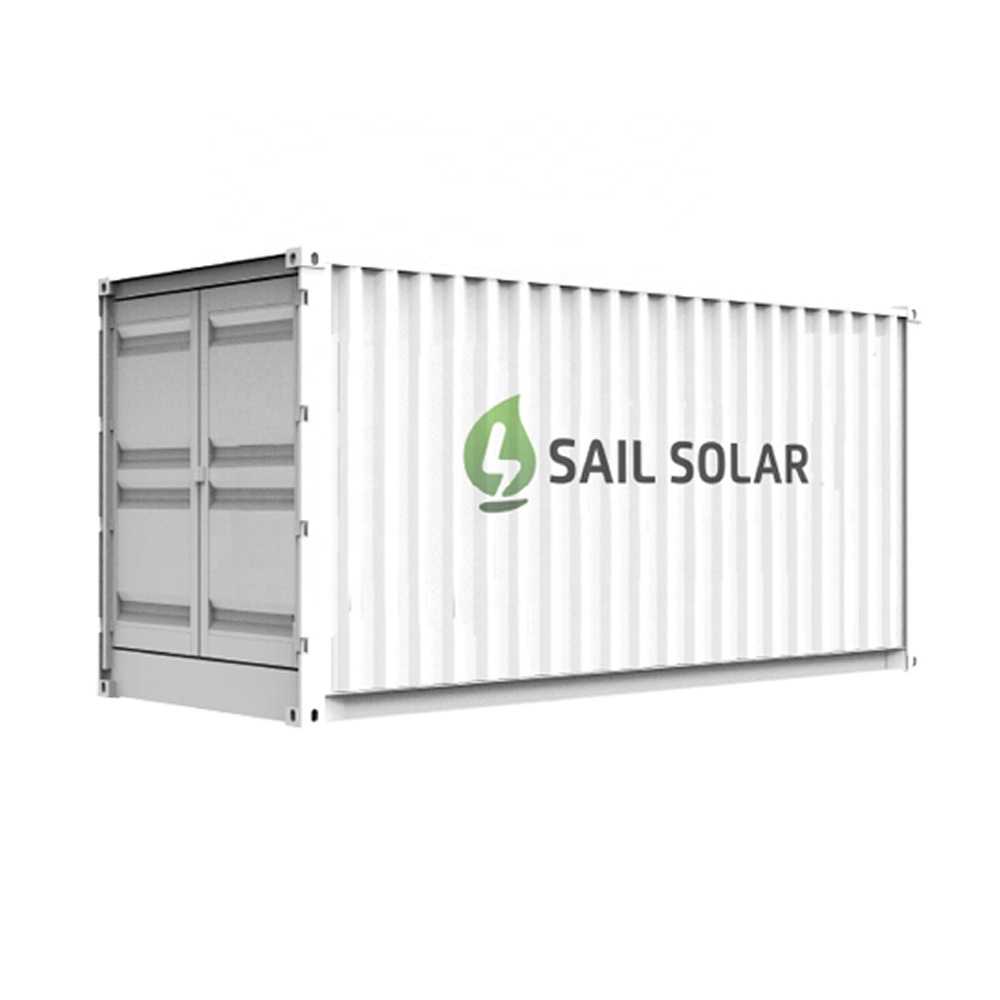

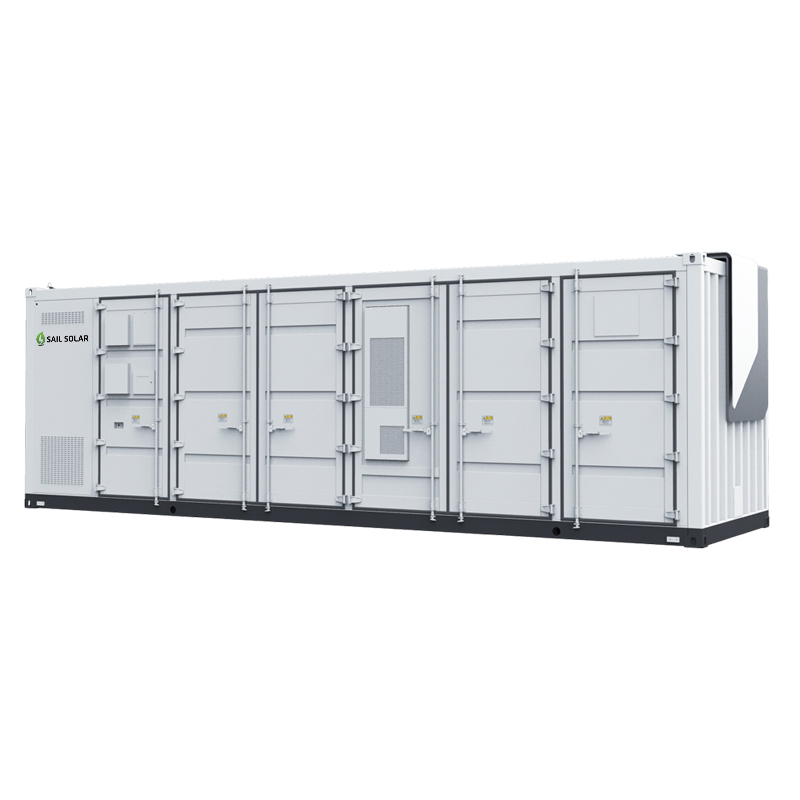

The battery energy storage system (BESS) containers are based on a modular design, with integration of LiFePO4 battery, BMS, PCS, EMS, automatic transfer switch, etc. They can be configured to match the required power and capacity requirements of client’s application. Our container energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
| 20ft BESS Solar Energy Storage System Container Specifications | ||
|---|---|---|
| Rated output power | 500KW/2000KW | |
| Rated capacity | 800KWH/1000KWH | |
| AC Phases | Three-phase Four-wire | |
| Grid discharge mode | Rated voltage | 380V |
| Voltage range | 380±15%V | |
| Rated frequency | 50Hz | |
| Frequency range | 47.5 ~ 51.5Hz | |
| Total current waveform distortion rate (THD) | <5% | |
| Output power factor | ≥0.99 | |
| Isolated network operation mode | Rated voltage | 380V |
| Voltage accuracy | <±3% | |
| Output voltage distortion | <5% | |
| Rated output frequency | 50±2% Hz | |
| Voltage transition range | <10% | |
| Can withstand three-phase load imbalance | 100% | |
| Grid-connected charging operation mode | Rated voltage | 400V |
| Voltage range is allowed | 380±15%V | |
| Frequency range | 47.5 ~ 51.5HZ | |
| Power factor | ≥0.99 (absolute value) | |
| Noise | <70dB | |

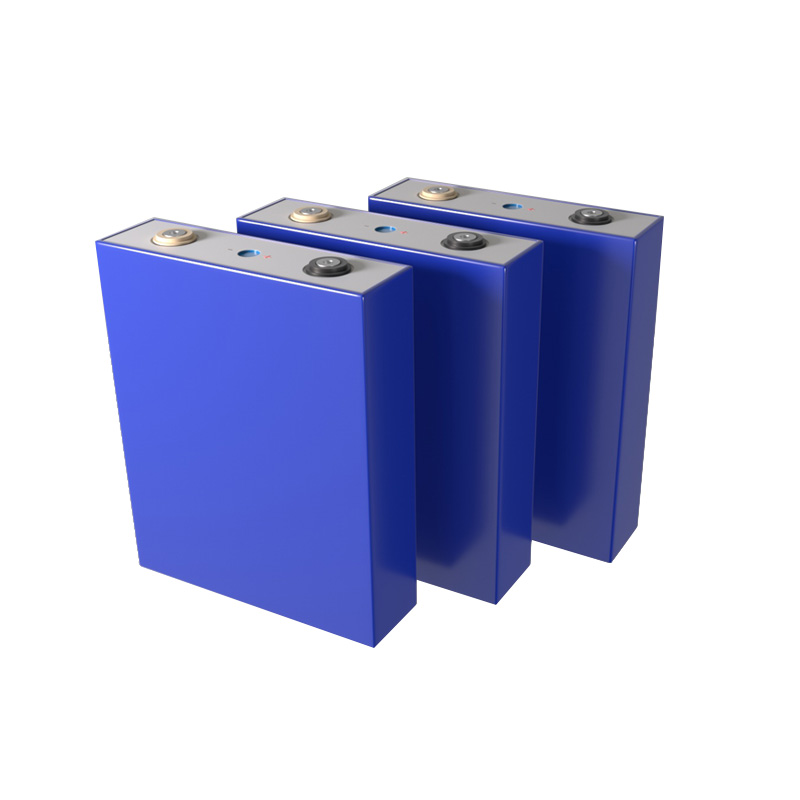

The battery core adopts lithium iron phosphate battery-LFP 48173170E, the capacity is 120Ah, the nominal voltage is 3.2V, the working voltage range is 2.5~3.65V, the monthly self-discharge rate of the battery is ≤3%.

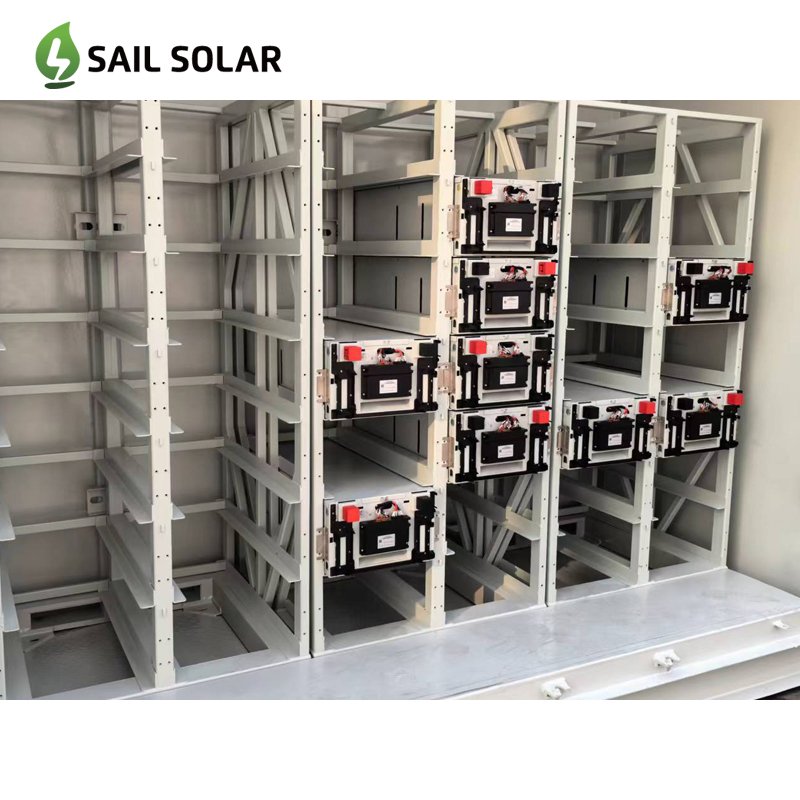

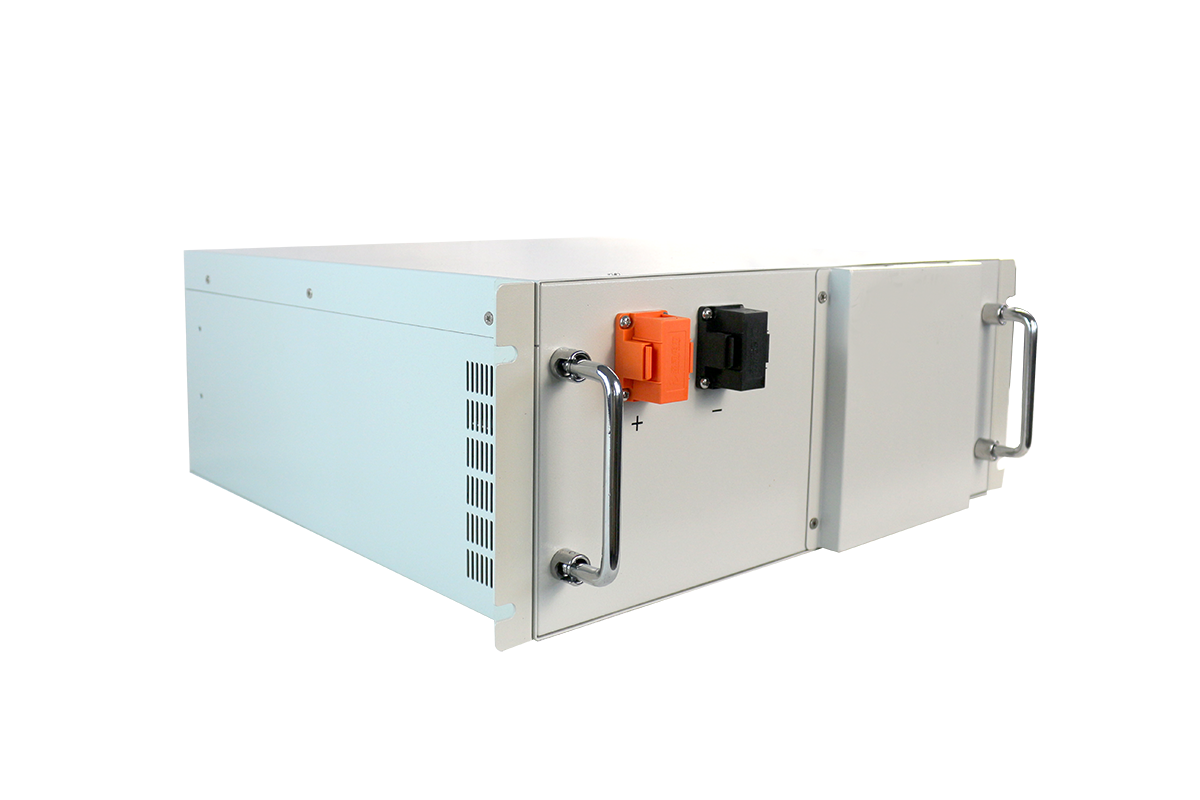

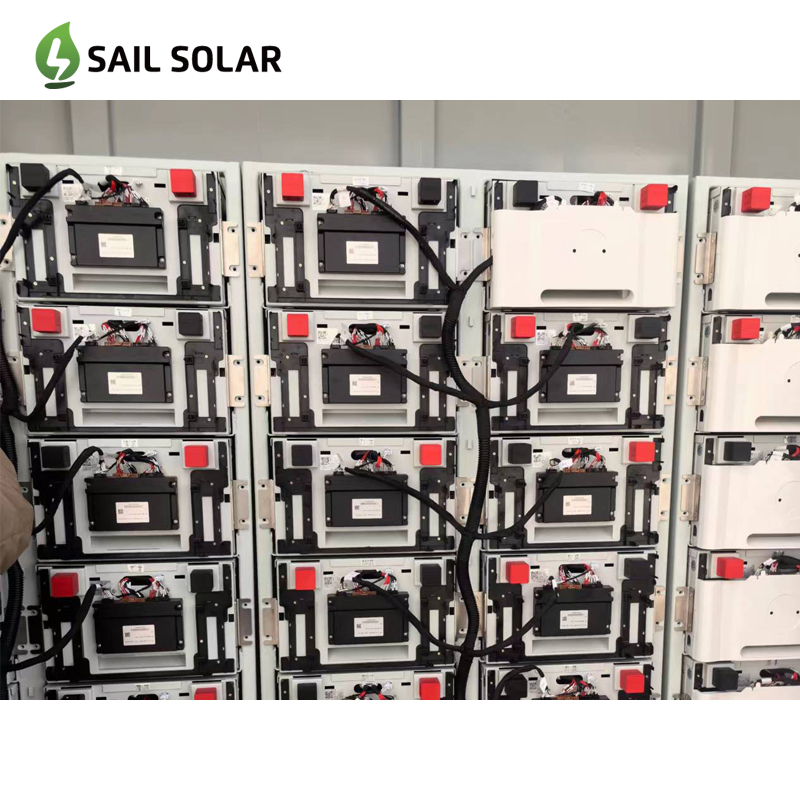

The energy storage standard module consists of 24 single cells, the specification is 2P12S, the power is 9.216kWh, the nominal voltage is 38.4V, the working voltage range is 33.6~43.2V, and the mass is about 85kg.

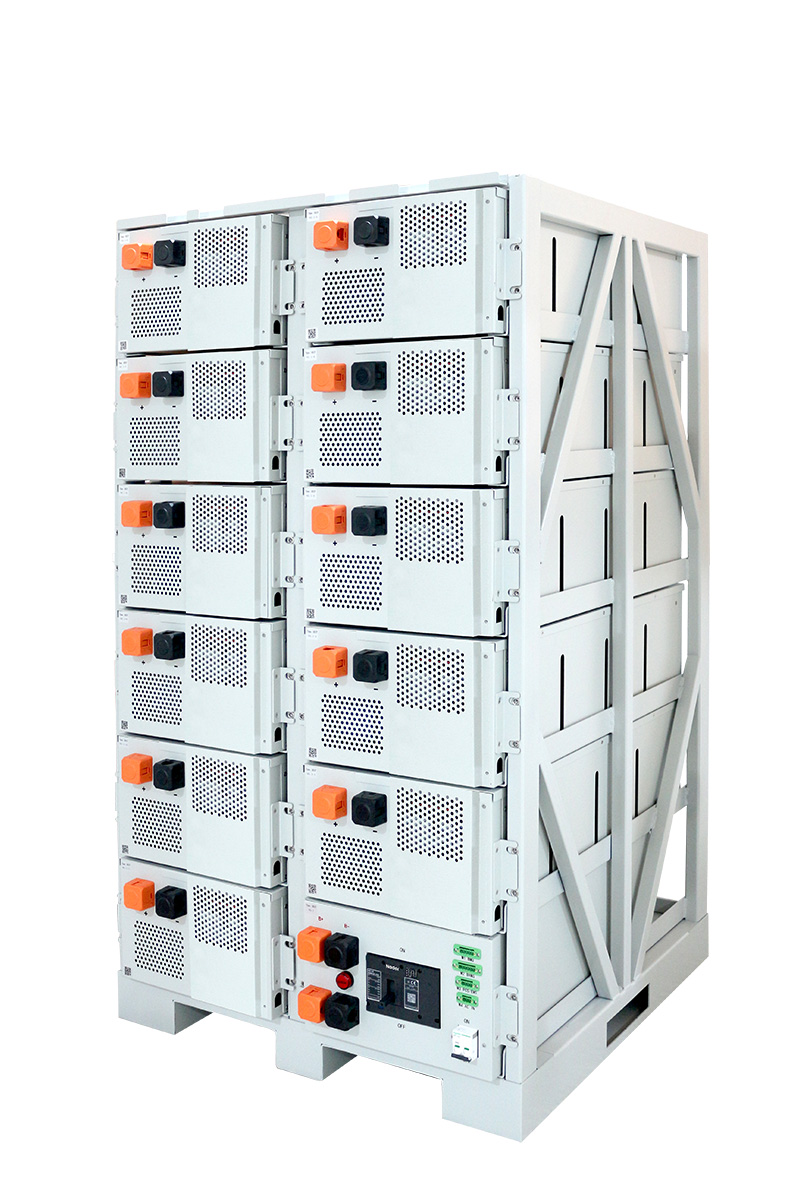

The battery cluster consists of 18 energy storage standard modules with a specification of 2P216S, a power of 165.888kWh, a nominal voltage of 691.2V, an operating voltage range of 604.8V-766.8V, and a total mass of approximately 1700kg.

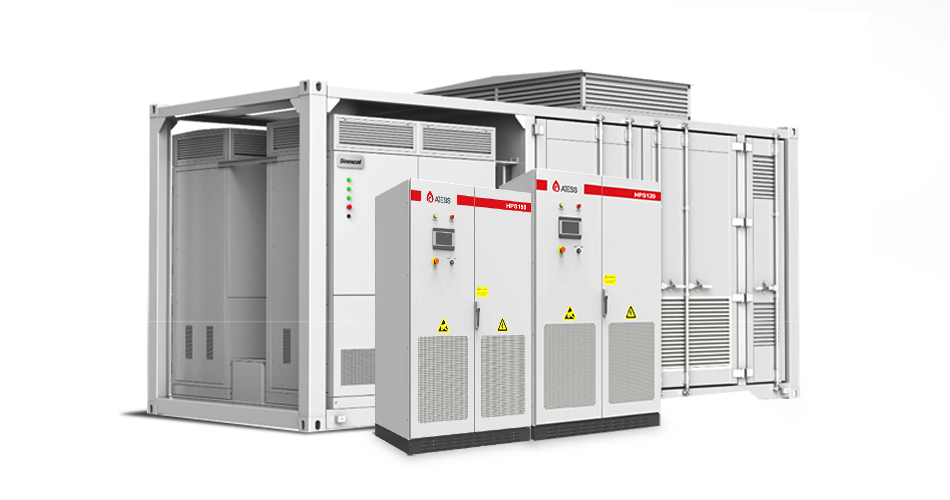

Hybrid storage inverter, can be used alone or with solar charger and other accessories for different application scenarios. Features include: Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, and Touchscreen LCD.

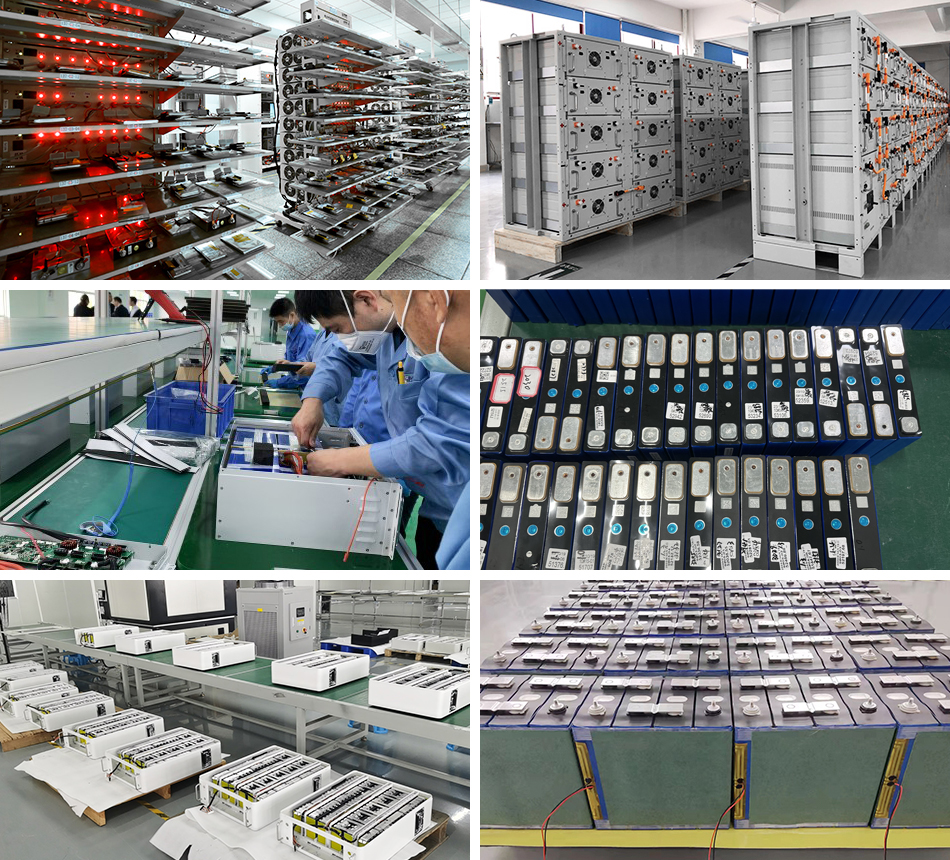

As a professional solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products. Since our foundation in 2008, we have accomplished significant achievements which outpaced most of our main competitors in terms of production capacity and in the number of innovative designs.
We uphold the belief that innovation is the key driver behind advancement by pursuing new technologies and technological innovations. We serve worldwide customers with high-quality products. So far, more than 20GW of our products have been widely applied in over 150 countries.
Adhering to the idea of integrating global resources, we fully integrate capital, technology, brands, networks, and manufacturing resources, forging a talented team, R&D platform, after-sales service, and market networks for internationalized operation, driving and managing global industrial layout and business development.
Based on the core capabilities in project engineering, trade services, system integration, and globalization, we implement a diversified strategy and achieve a comprehensive platform for the clean energy industry.

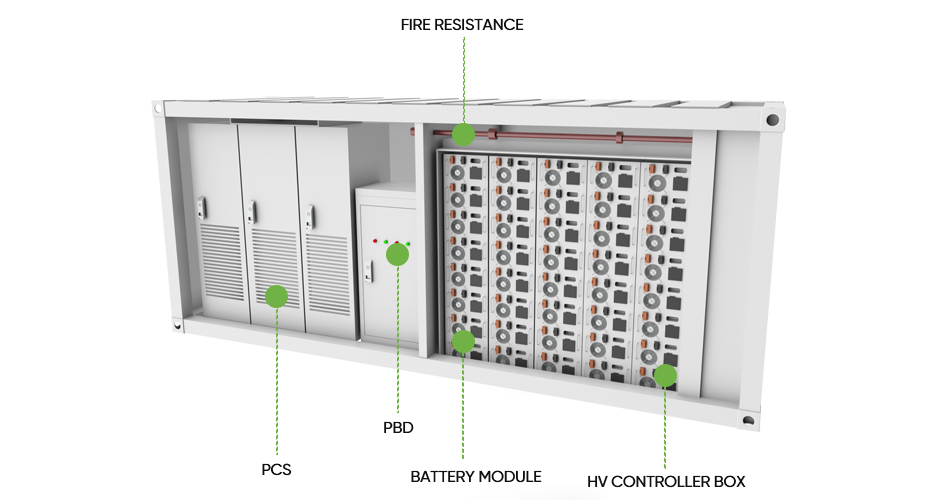

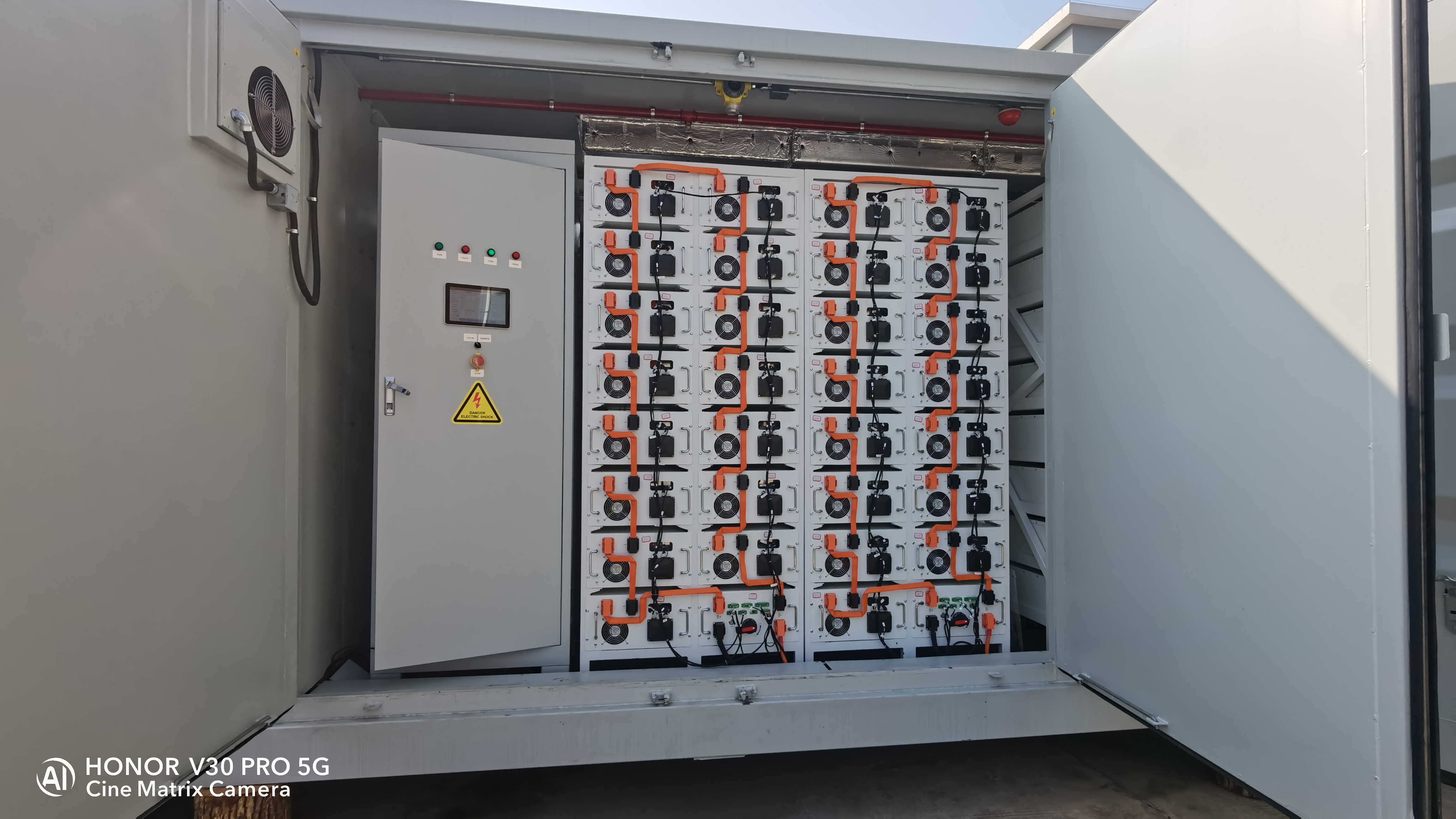

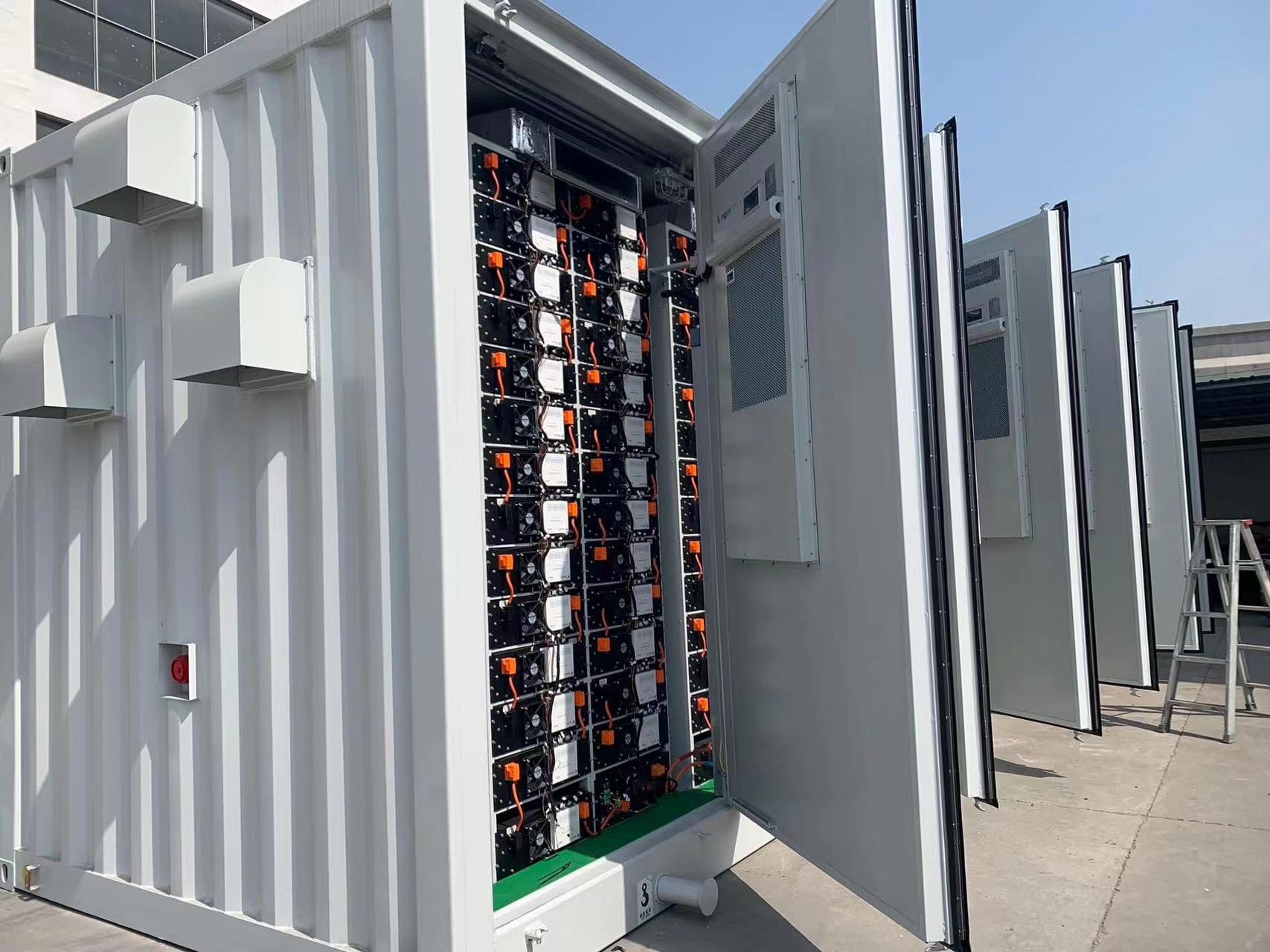

The battery energy storage system (BESS) container uses a modular design that fully integrates LiFePO4 batteries, a Battery Management System (BMS), a Power Conversion System (PCS), an Energy Management System (EMS), and an automatic transfer switch into a single standard container structure.
The system relies on lithium iron phosphate cells (LFP 48173170E) rated at 120Ah and 3.2V. These cells are built into standard modules of 24 cells (2P12S, 9.216kWh), which are then configured in clusters of 18 modules (2P216S, 165.888kWh) with operating voltage ranges between 604.8V and 766.8V.
It supports three main operational modes: Grid discharge mode (380V), Isolated network operation mode (380V with standalone voltage control), and Grid-connected charging mode (400V) with automated frequency tracking.
Yes. The hybrid storage inverter supports configuration flexibility by enabling parallel units, programmable work parameters, remote control capability for diesel generators (DG), and features an interactive LCD touchscreen.
The entire BESS system container runs quietly during daily operations, keeping acoustic noise emissions below 70 decibels (dB).
