| Phase | Three Phase |
| Measuring Energy Range | 0 ~ 99999999 MWh |
| Output Voltage | 3X230/400V |
| Rated Current | 5(80)A |
| Accuracy Class | Class C / Class 0.5 |
| Operating Temperature | -45°C ~ 85°C |

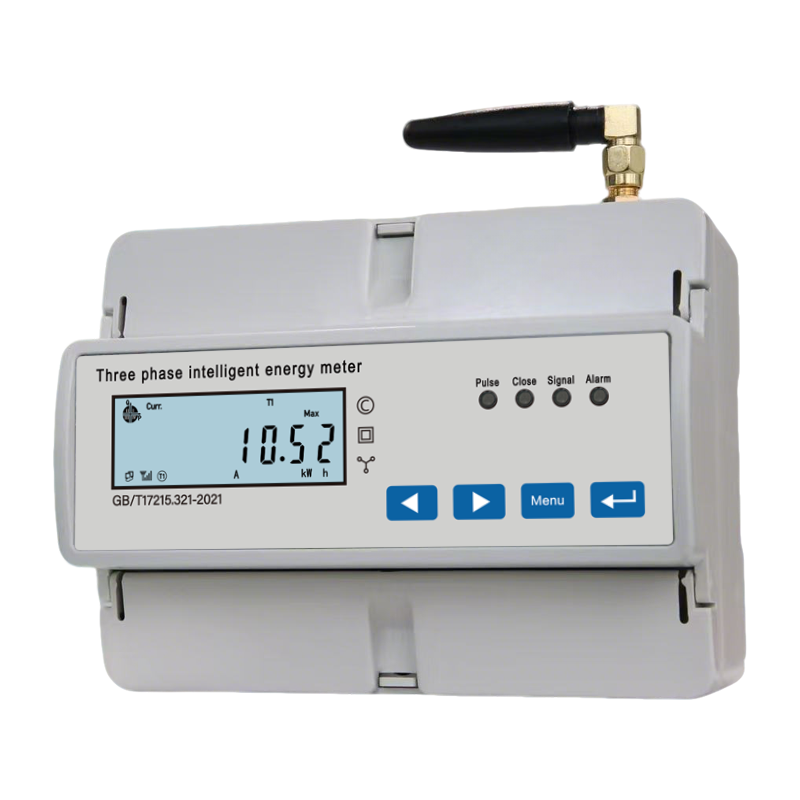

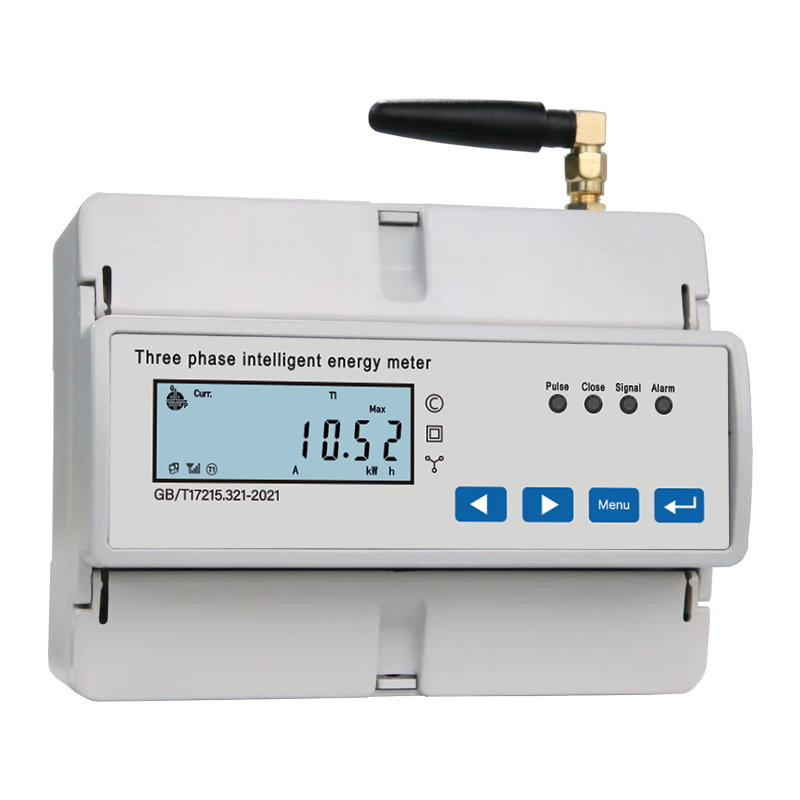

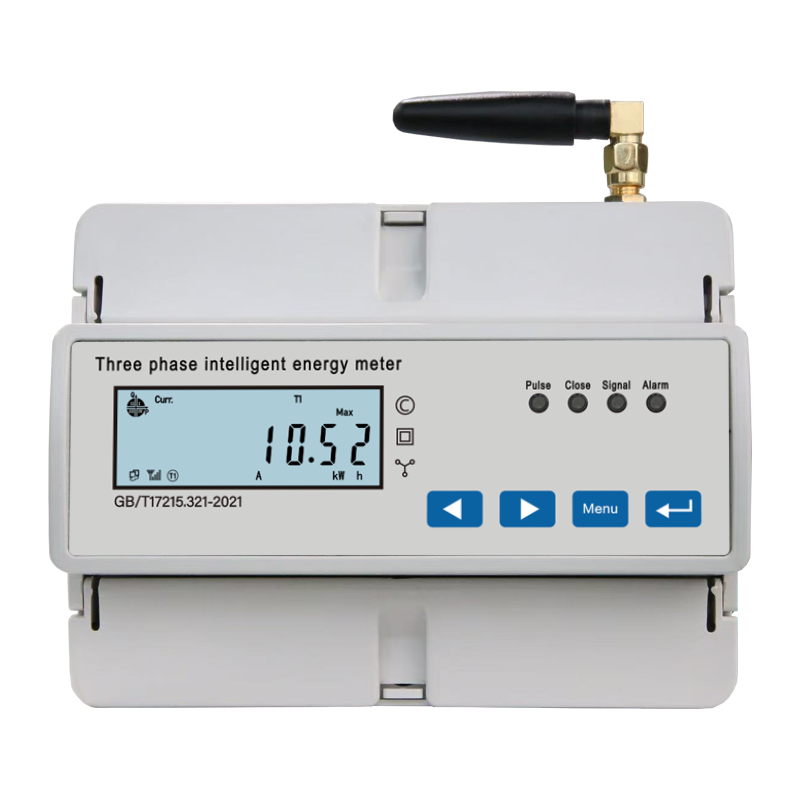

| Type | 4G / WiFi Three-phase energy meter |
| Communication | RS485 Modbus-RTU or DL/T645-2007 |
| Display | LCD |
| Frequency | 50/60Hz |

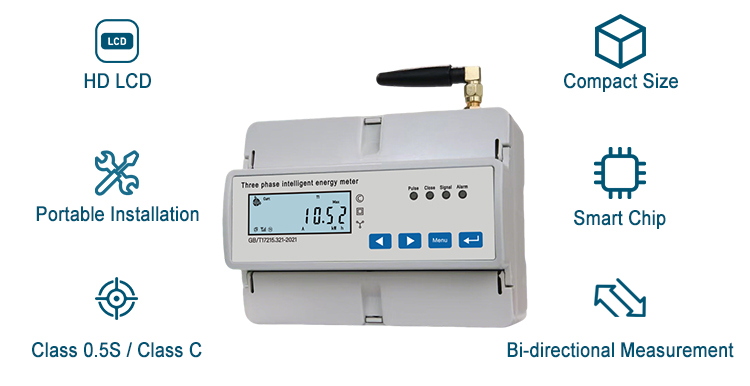

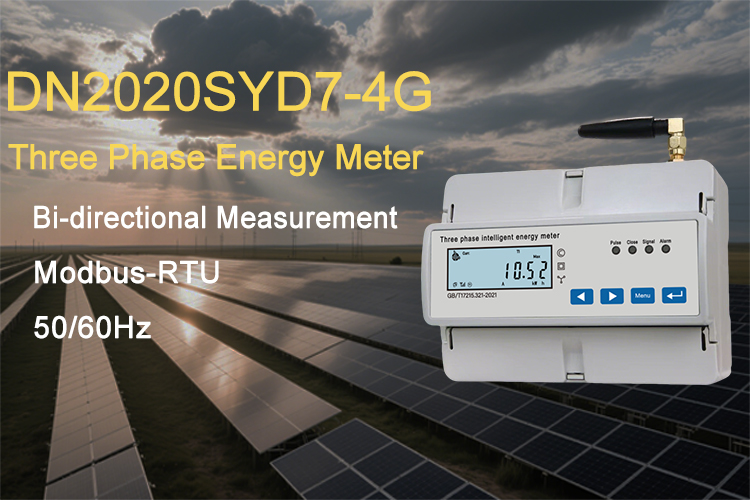

This energy meter supports advanced 4G and WiFi wireless communication, alongside traditional RS485 wired communication utilizing Modbus-RTU or DL/T645-2007 protocols.
The meter operates at a rated output voltage of 3X230/400V, with a standard rated current of 5(80)A and a frequency range of 50/60Hz.
The device features an extensive measuring energy range from 0 to 99999999 MWh, achieving high precision measurement matching Class C and Class 0.5 accuracy standards.
Yes, it is designed for exceptional reliability under harsh environments, with a supported operating temperature range spanning from -45°C up to 85°C.
It is equipped with an integrated high-contrast LCD display screen for clear and immediate local data viewing.
