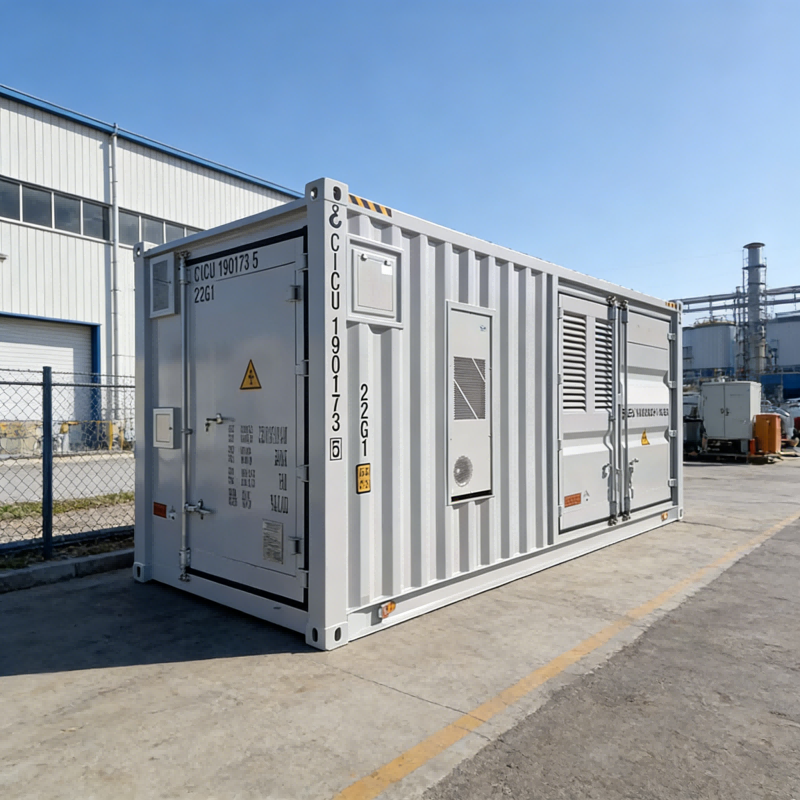

1Mwh Energy Storage 10ft 20gp 40hq Lithium Battery Container System 500kw 2mw Solar Lifepo4 All in One Bess

Product Description

Product Description

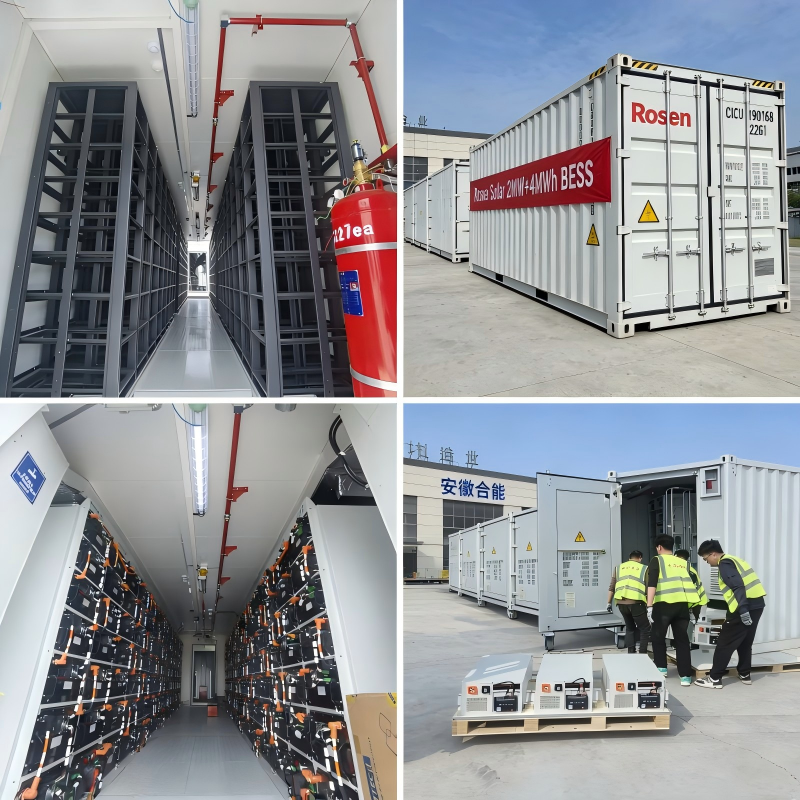

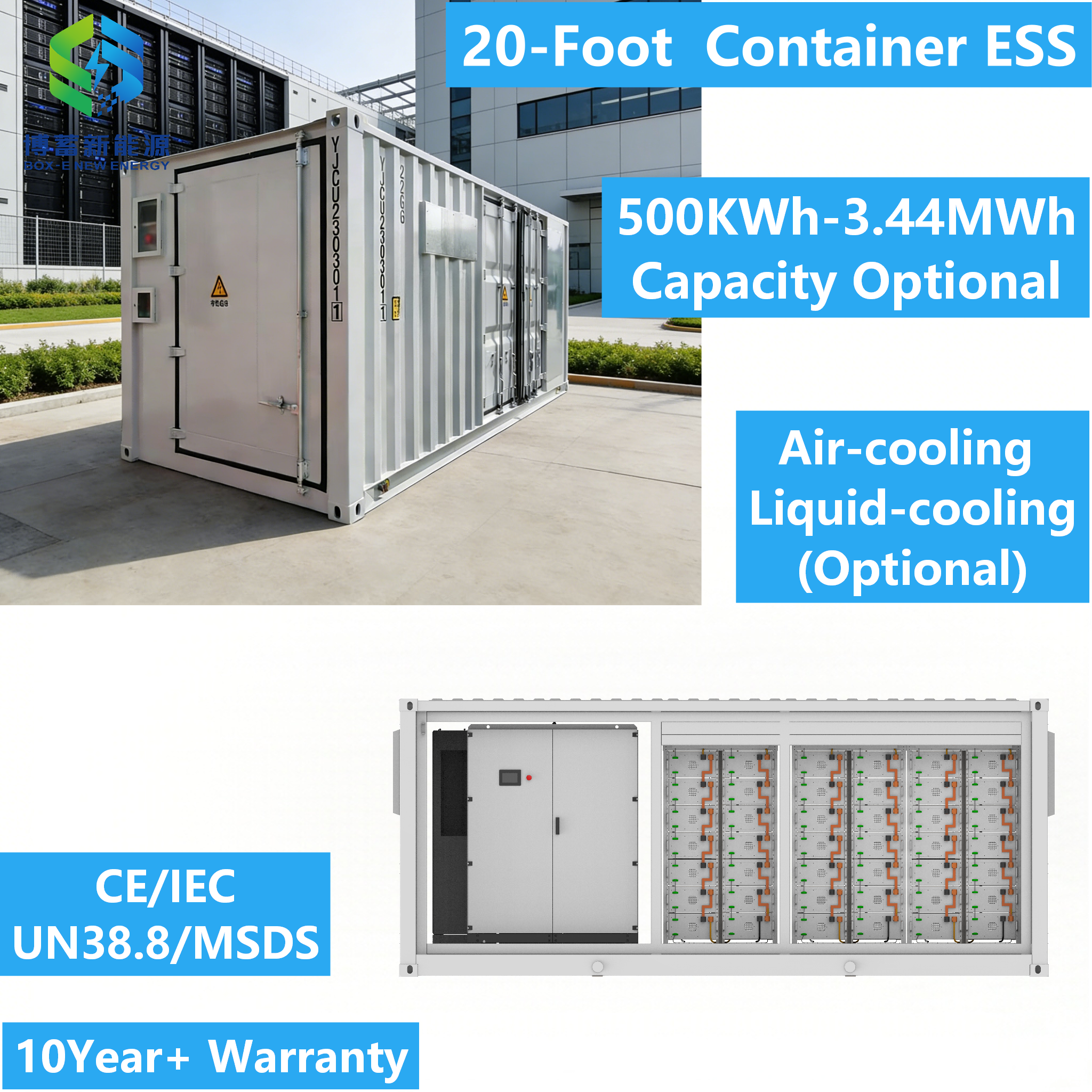

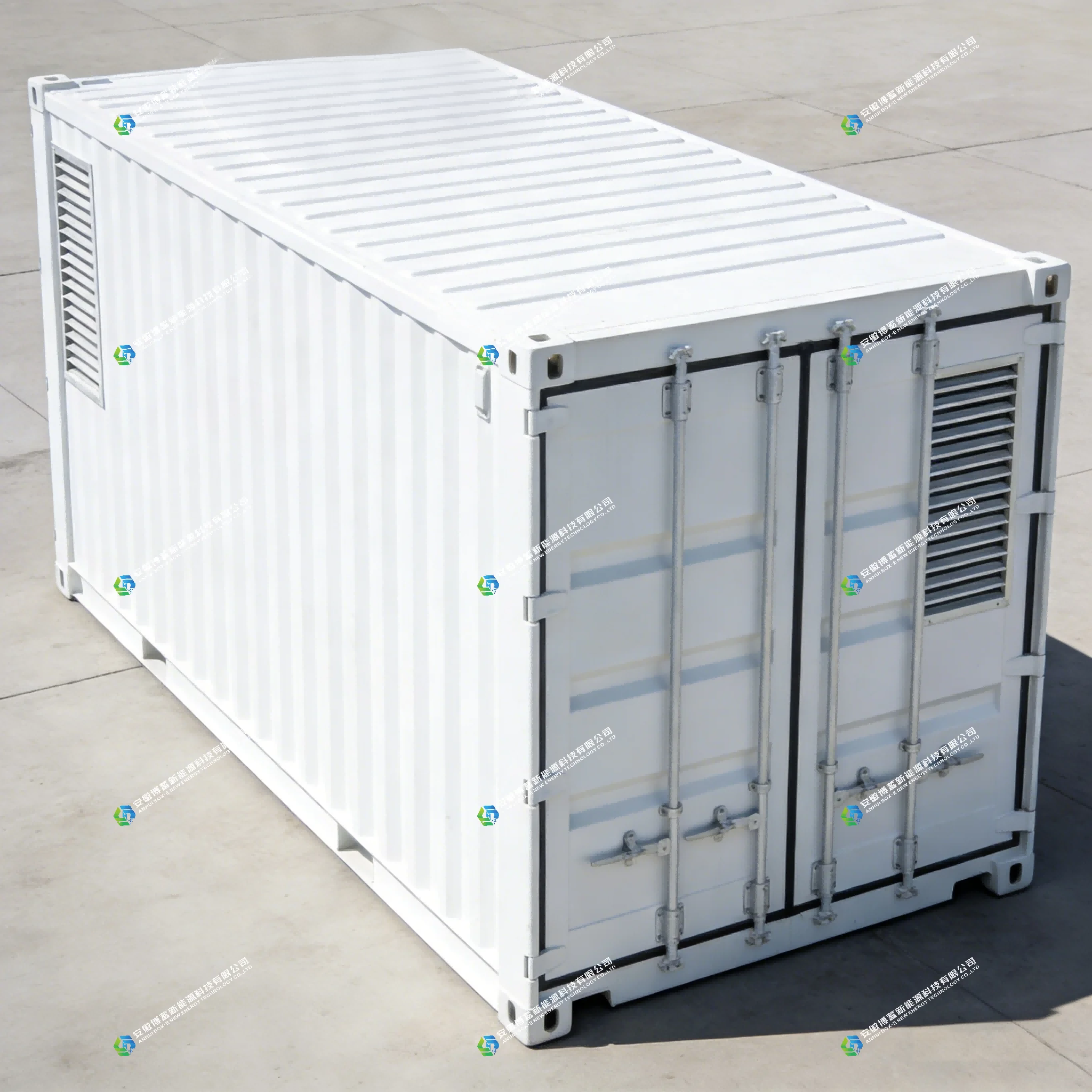

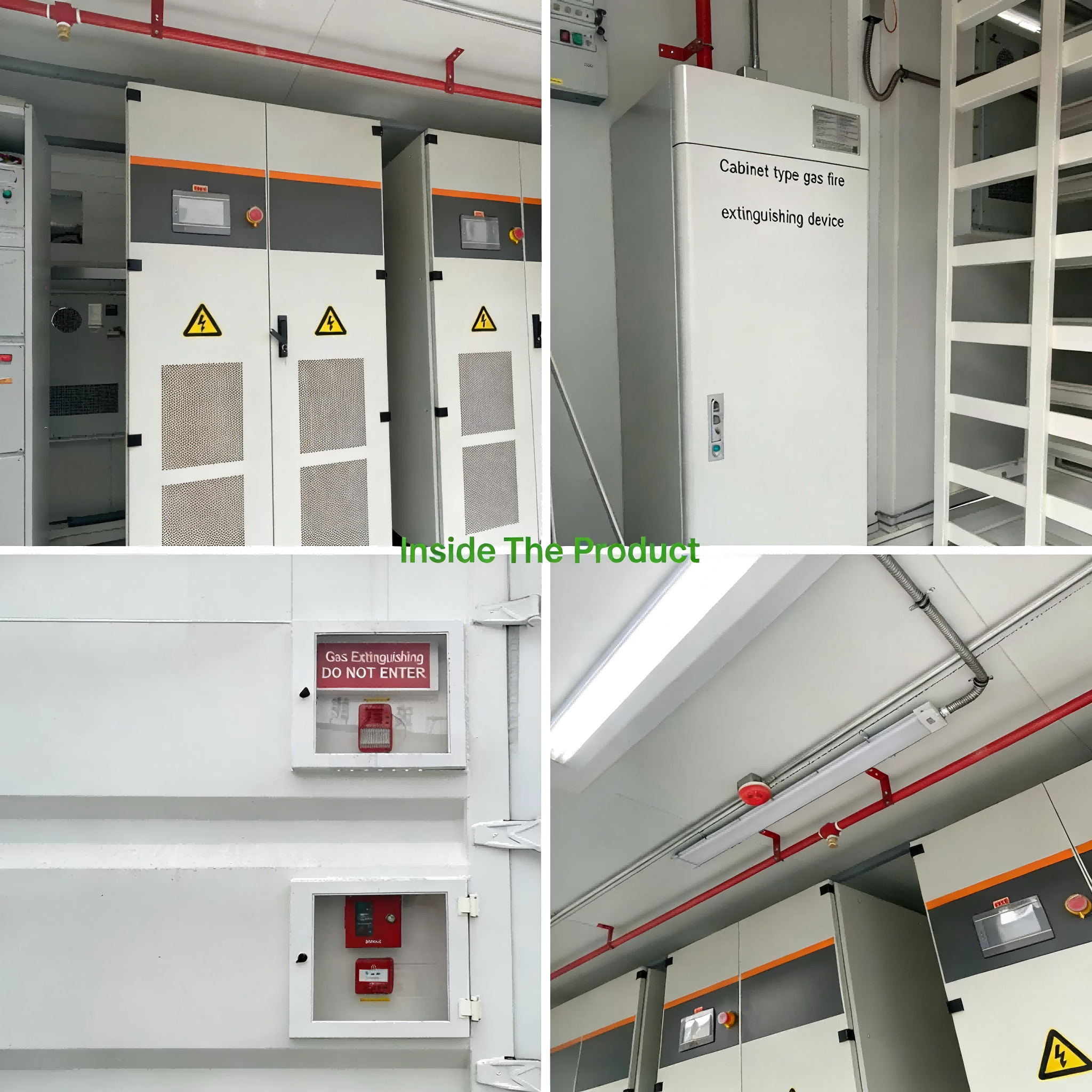

Product Image 1 Product Image 2 Product Image 3
General Specifications
Nominal Voltage 614~768V
Nominal Capacity 1000KWH
Cabinet Size 6058*2591*2438mm
Total Weight 23000KG
Box weight / Battery weight 9000KG / 14000KG
Cooling method Air-cooled
Protection class IP54
Type of firefighting Aerosol
Battery Specifications
Battery Types 51.2V-280AH
Nominal Capacity 1000KWh
Recommend Charge/Discharge Current 700A
Max. Charge/Discharge Current 700A
Communication RS485/CAN
Working Temperature 0°C~50°C Charge / -10°C~50°C Discharge
Transport or Storage Temperature Range -20°C~60°C
Certification CE/IEC/UL/UN38.3/MSDS
Design Life 10years+
Cycle Life (0.5C/0.5C-80% DOD) >6000 times
Cooling method Air-cooled
Certification UN38.3/MSDS/ROHS
AC Specifications
Rating 500KW
Overloaded 110%
Rated AC Voltage 400V
Rated frequency 50/60Hz
Communication Ethernet/Modbus/TCP/IP
Inverter Type MPS / ATESS / Other
Company Profile

Our company is a comprehensive enterprise integrating design, research and development, and manufacturing, specializing in the production of energy storage containers, container modular houses, special containers, and standard containers.

The company covers an area of 20,000 square meters, with a well-organized factory layout including frame processing area, equipment assembly area, painting area, testing area, office area, and accommodation area.

Our factory is equipped with 55 advanced production machines from both domestic and international sources, achieving a fully automated production process from raw material cutting, forming, and welding to painting and assembly, greatly improving production efficiency and product quality.

Company Image 1
Company Image 2
Details Images
Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4
Detail Image 5 Detail Image 6 Detail Image 7 Detail Image 8

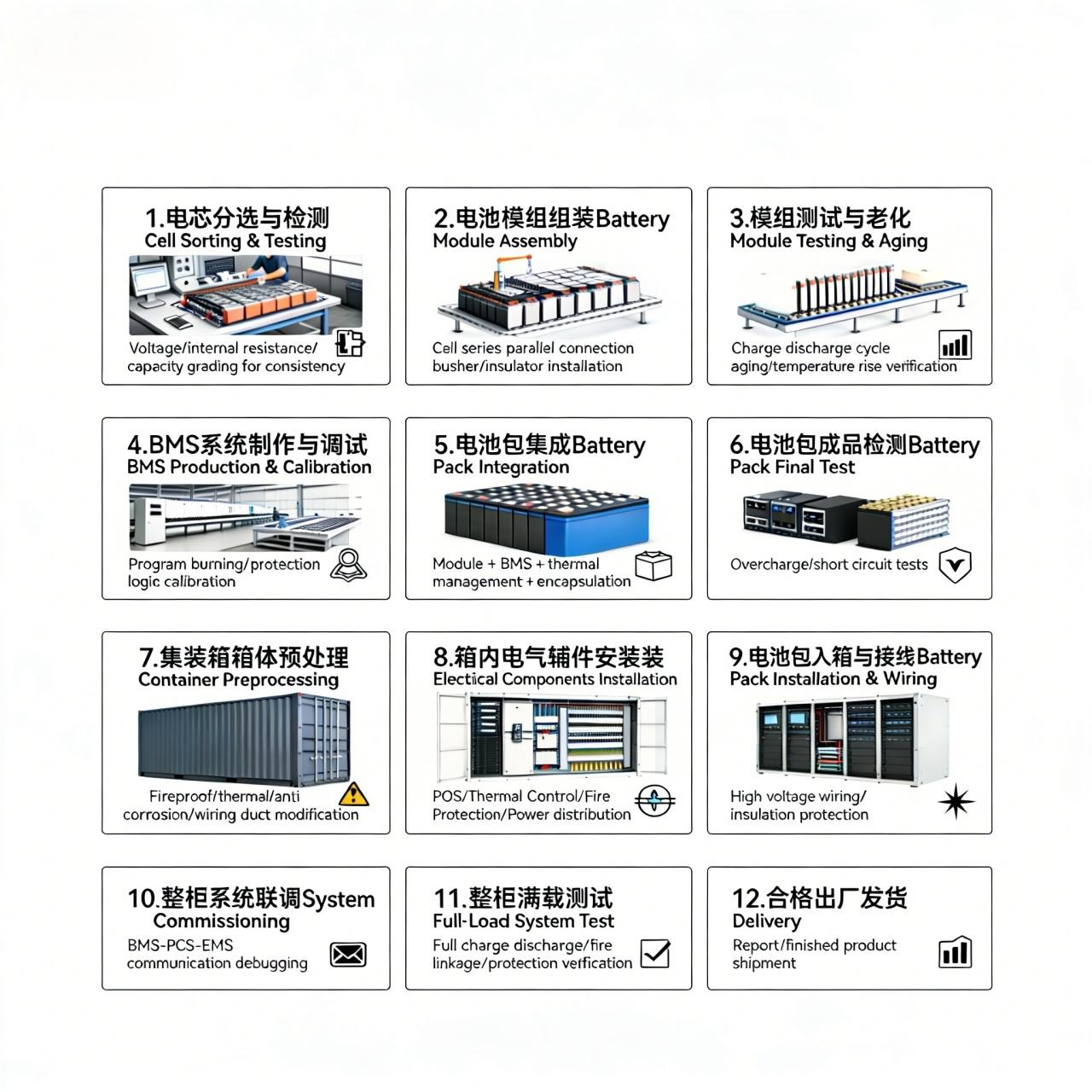

Detail Image 9

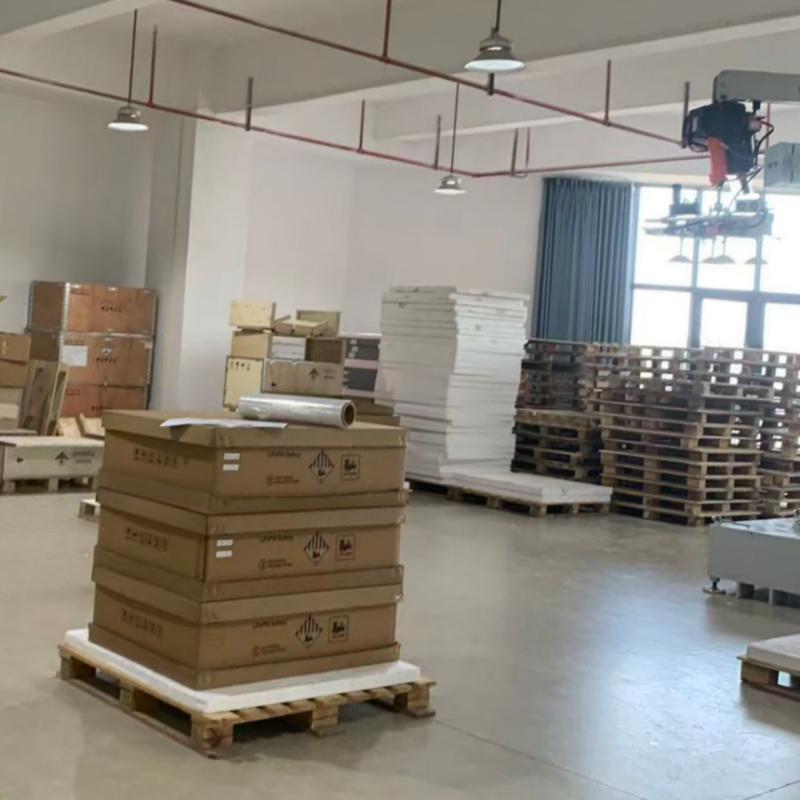

Packing & Delivery
Packing Image 1
Packing Image 2 Packing Image 3
Packing Image 4 Packing Image 5

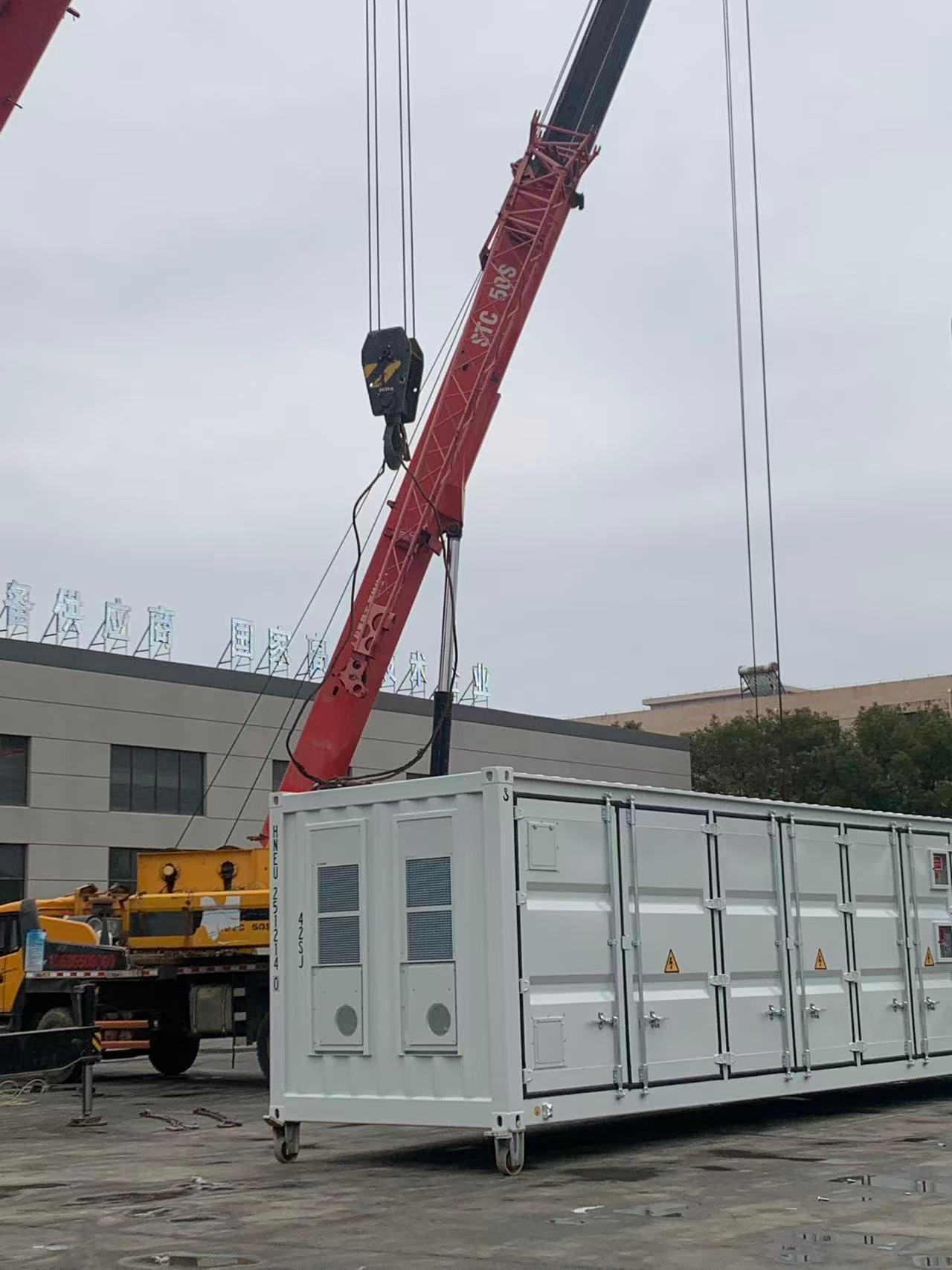

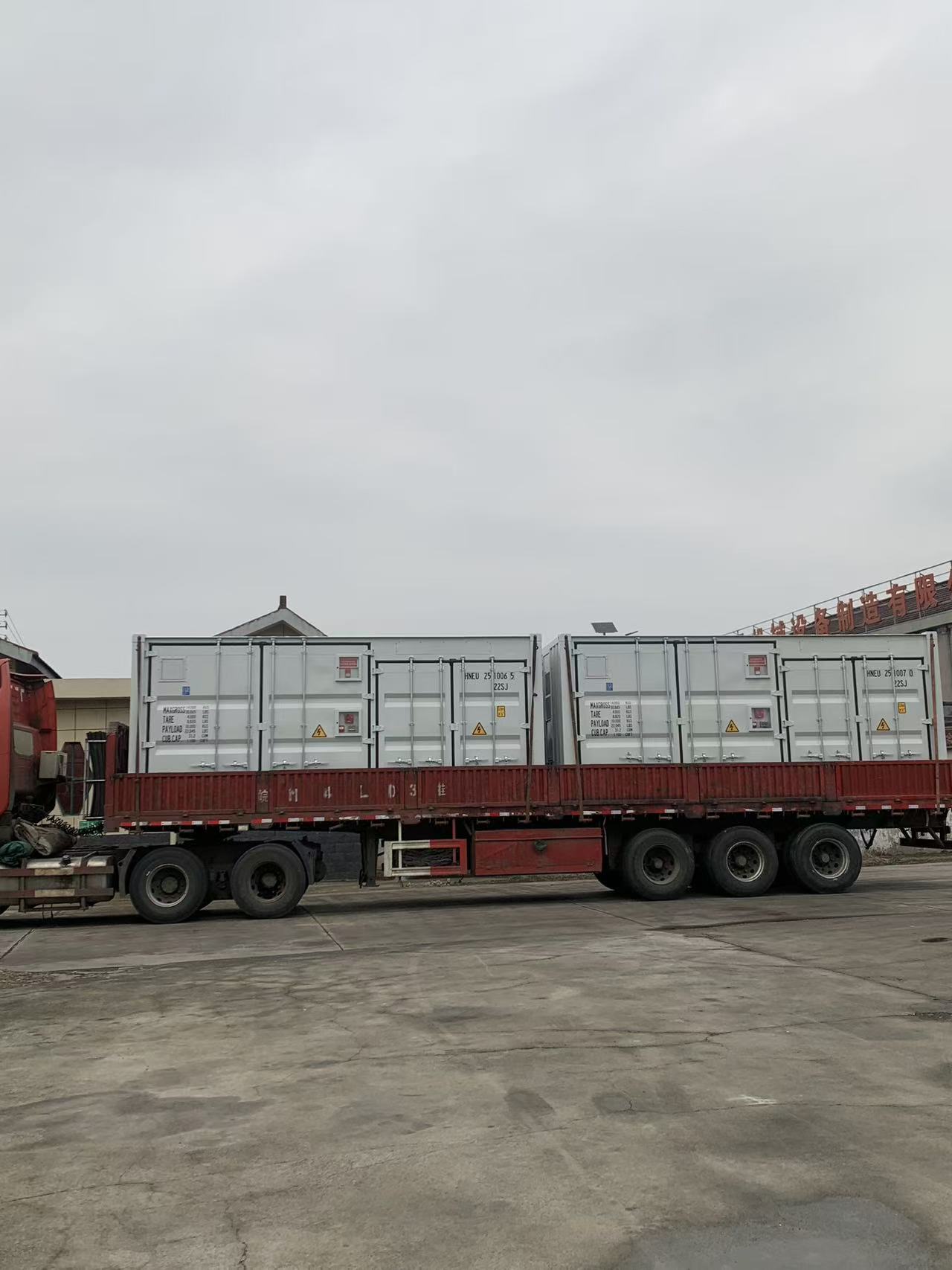

Packing Image 6 Packing Image 7
Packing Image 8 Packing Image 9 Packing Image 10 Packing Image 11
Certifications
Certification Documents
Project Cases

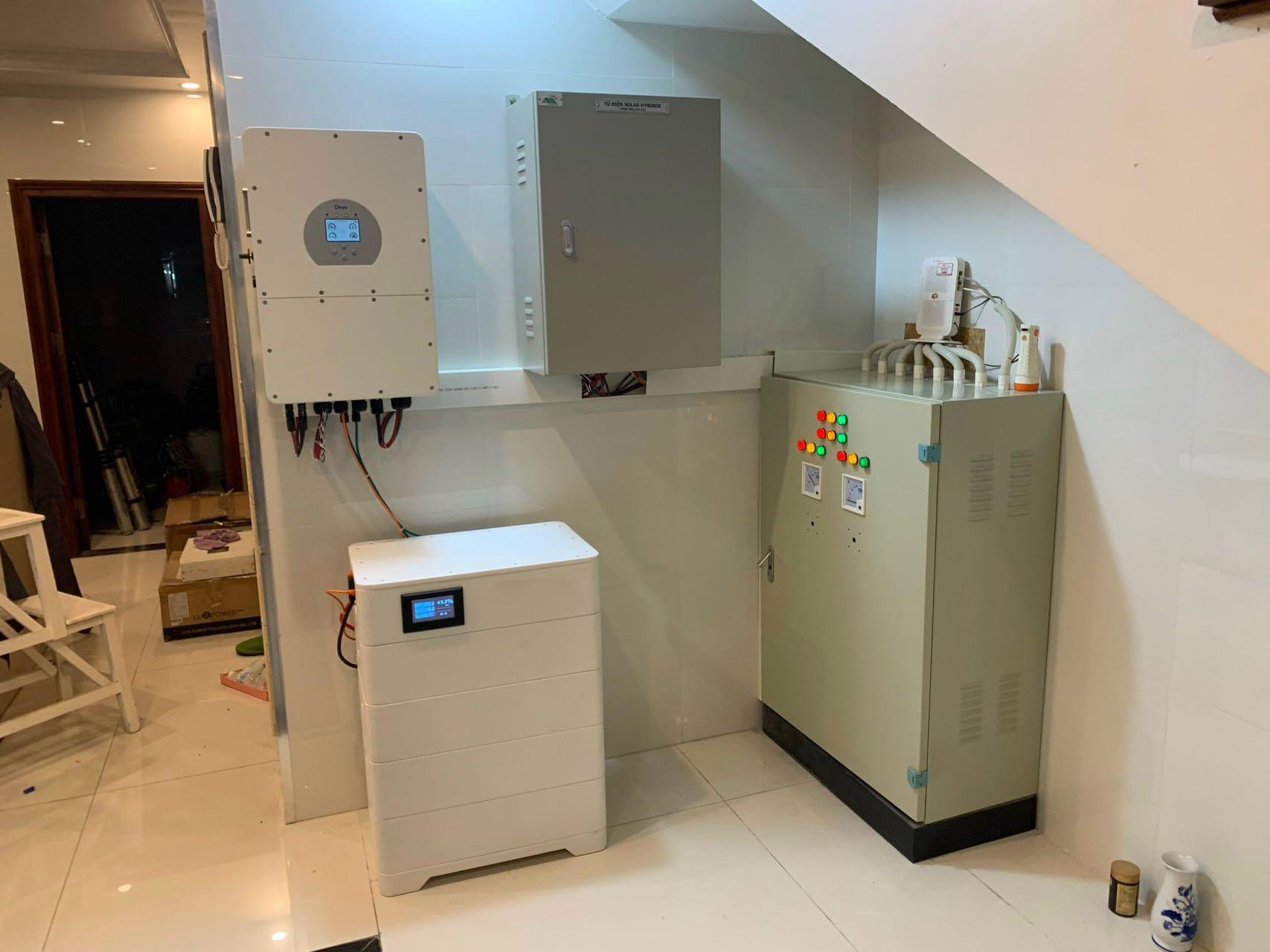

Vietnam Project

25kWh of Home Energy Storage in Vietnam

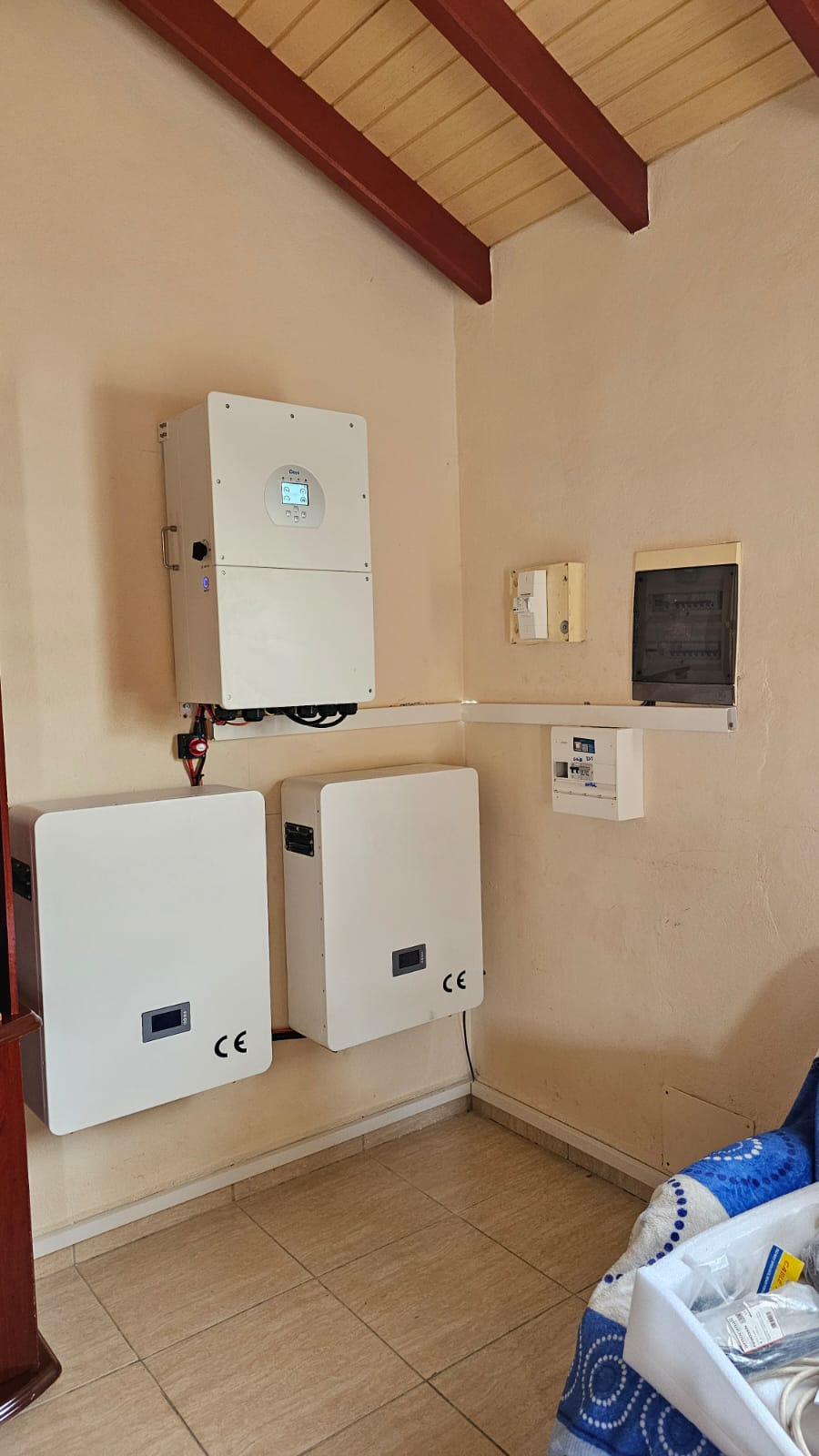

Southeast Asia Project

48kWh of Hybrid Grid Household Storage in Southeast Asia

Yancheng Project

400MWH Shared energy storage power station in Yancheng City

Ningxia Project

300MWh New Energy Storage Power Station in Ningxia Province

Shanxi Project

600 MWh Independent Energy Storage Power Station In shanxi province

Xinjiang Project

China first 'Shago Desert' new energy transmission base in Xinjiang province

Our Service
Services Overview
Pre-sales Services
  • Free consultation service
  • Project design service
  • Design drawings and technical specifications
On-sales Services
  • Visualized production process
  • Weekly production progress report
  • Equipment test, test report & certificate
  • Provide transportation solution
After-sales Services
  • Installation and commissioning
  • Equipment Use and Maintenance Training
  • Response within 24 hours for after-sales issues with concrete solutions
Frequently Asked Questions
Q1: What is the warranty period for your energy storage systems?
A1: The warranty period is 10 years.
Q2: How is your technical support structured?
A2: We provide lifetime online support. If there are any issues after delivery, we will assist you through online channels at any time.
Q3: How can we become your partner or agent?
A3: Please reach out to us directly through the platform messaging interface to discuss partnership opportunities and details.
Q4: Are you a manufacturer or a trading company?
A4: We are a professional manufacturer with over 100 employees and 55 sets of advanced automated production equipments, offering direct factory production.
Q5: What certifications do your products carry?
A5: Our products are fully certified with international standards including CE, IEC, UL, UN38.3, MSDS, and ROHS.
Q6: What is the cycle life and design life of the battery?
A6: The batteries feature a design life of over 10 years and a cycle life exceeding 6000 times (under 0.5C/0.5C conditions at 80% DOD).
