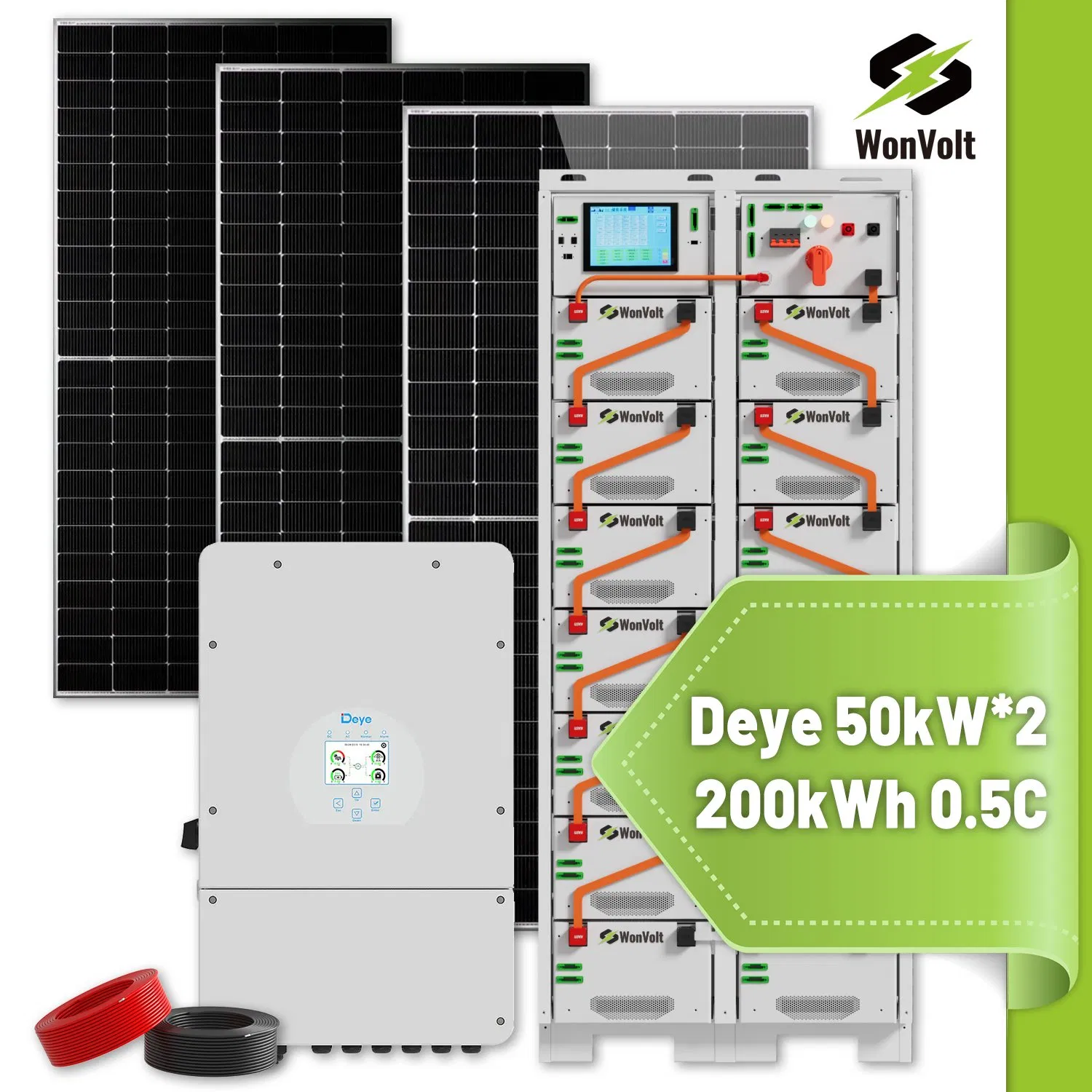

100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
1 / 5
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration

100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

  • Overview
  • Commercial ESS
  • System Configuration
  • Product Description
  • Technical Support
  • Factory
  • Ref. Projects
Basic Info.
Model NO.
WV-100KW-215KWh-0.5C
Cycle Life
6000 Times
Nominal Capacity
100kw/200kwh+
Application
Commercial and Industrial
AC Output
380V/400V/415V
Battery Type
LiFePO4/Lithium
Battery Capacity
100-600kwh
Support
UPS/Black Start/Dg
Cooling
Smart Air Cooling
PV Inputs
10 Mppts
Solar Panel
A Grade 550W 560W 565W Solar Module
Mounting
Metal Rooftop, Tile Rooftop or Ground
PV Cable
4mm2 or 6mm2
Certificate
CE Un38.3 IEC En50549
Training
Solar System Installation
Manufacturer
Yes
Customized
Customize Energy Storage System
Parallel
Yes, up to 3 Units
Transport Package
Wooden Box
Specification
N type
Origin
China
HS Code
8501723000
Production Capacity
50000sets/Year
Commercial ESS
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration

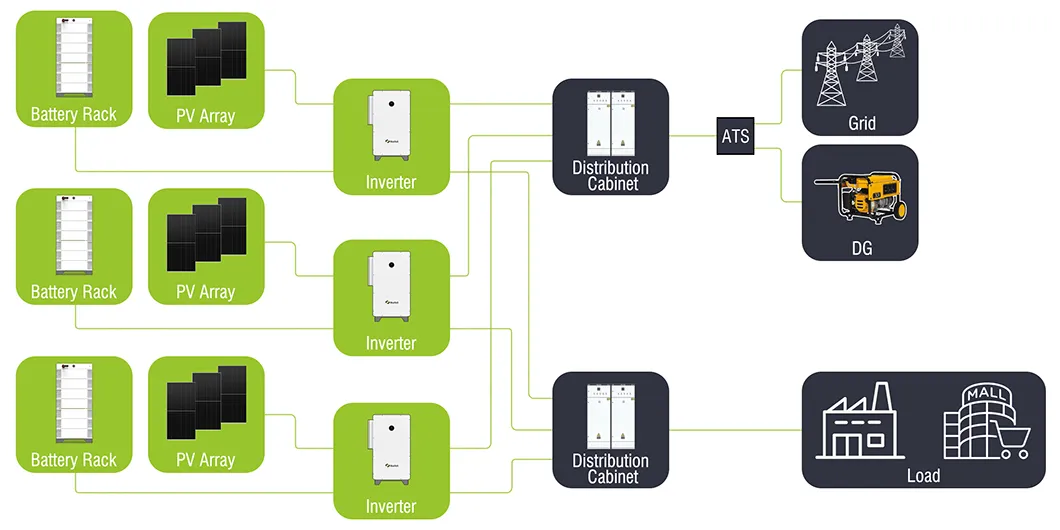

System Configuration
Equipment Model WV-100KW-200.7KWh-C WV-200KW-401KWh-C WV-300KW-602KWh-C

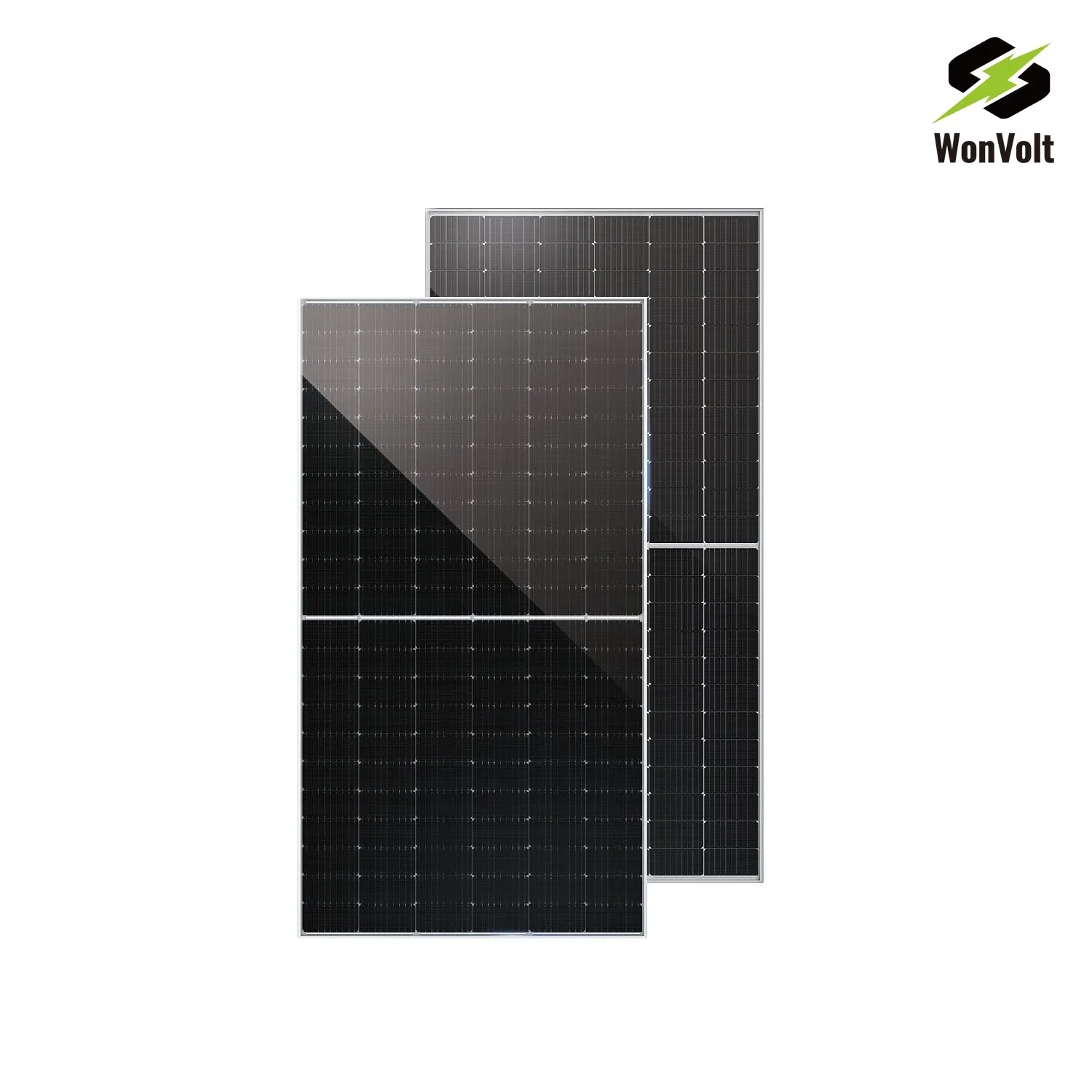

PV Module WV-72KUN-565 187 374 561
Inverter WIT-100K-HU 1 2 3

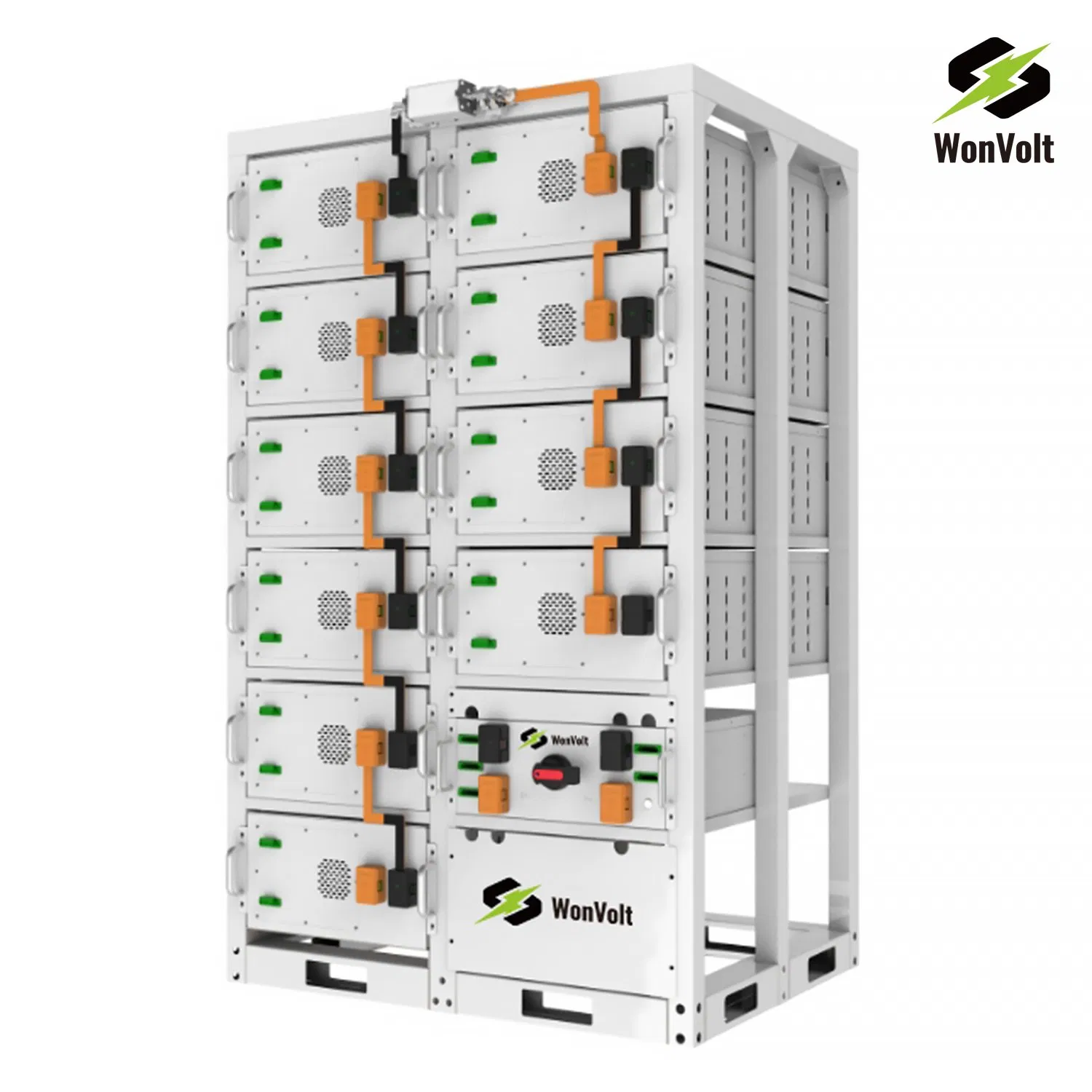

Battery WV51280H 14 28 42
Control Box 1 2 3
Connector MC4 40 80 120

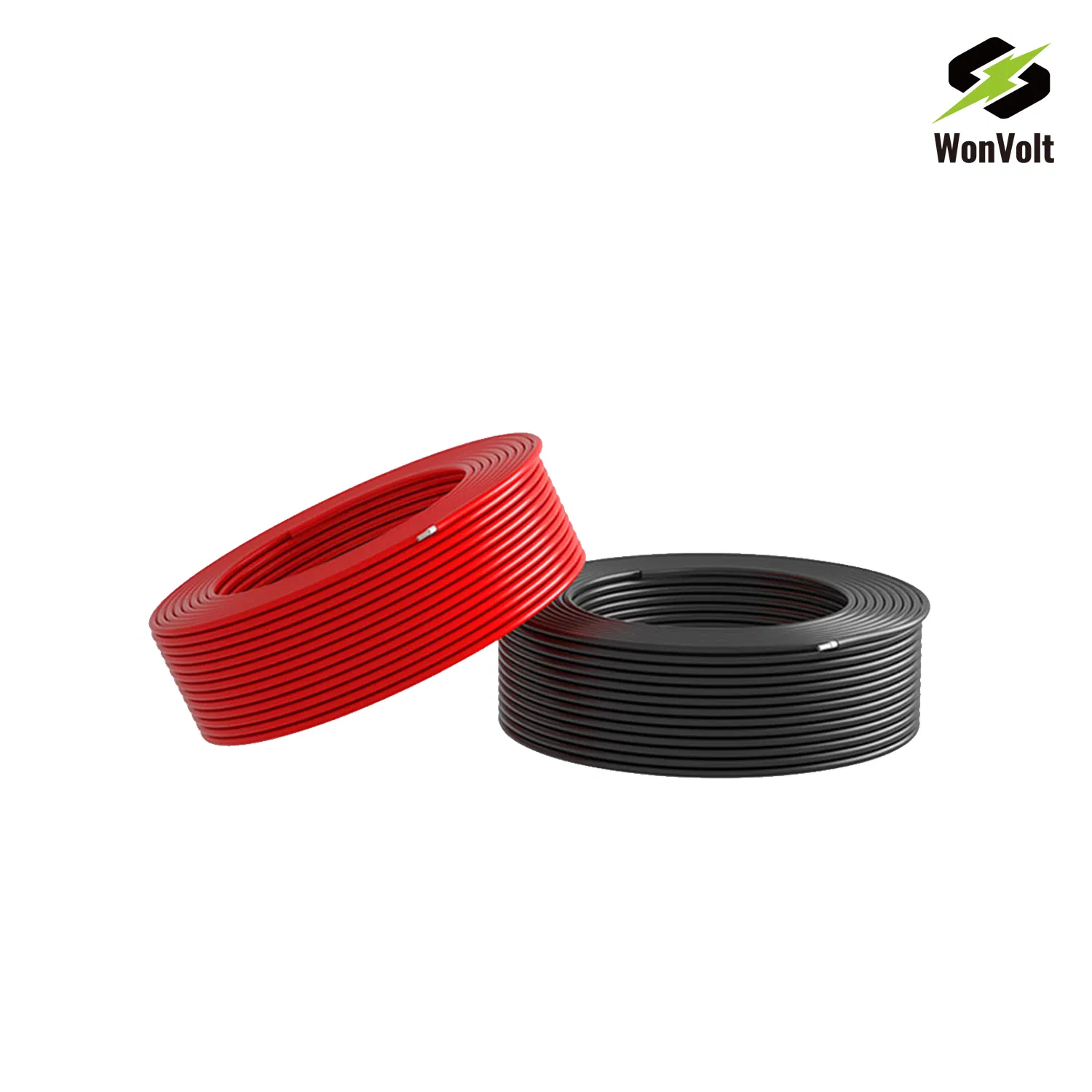

PV cable PV1-F 1*4mm2 1100 2200 3300
ATS opt ATS300KW 1 1 1
AC Cabinet opt XL-1 0 2 2
Remote monitoring WIFI or SEM-X 1 1 1
Mounting Structure Roof/Ground 1 1 1
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration

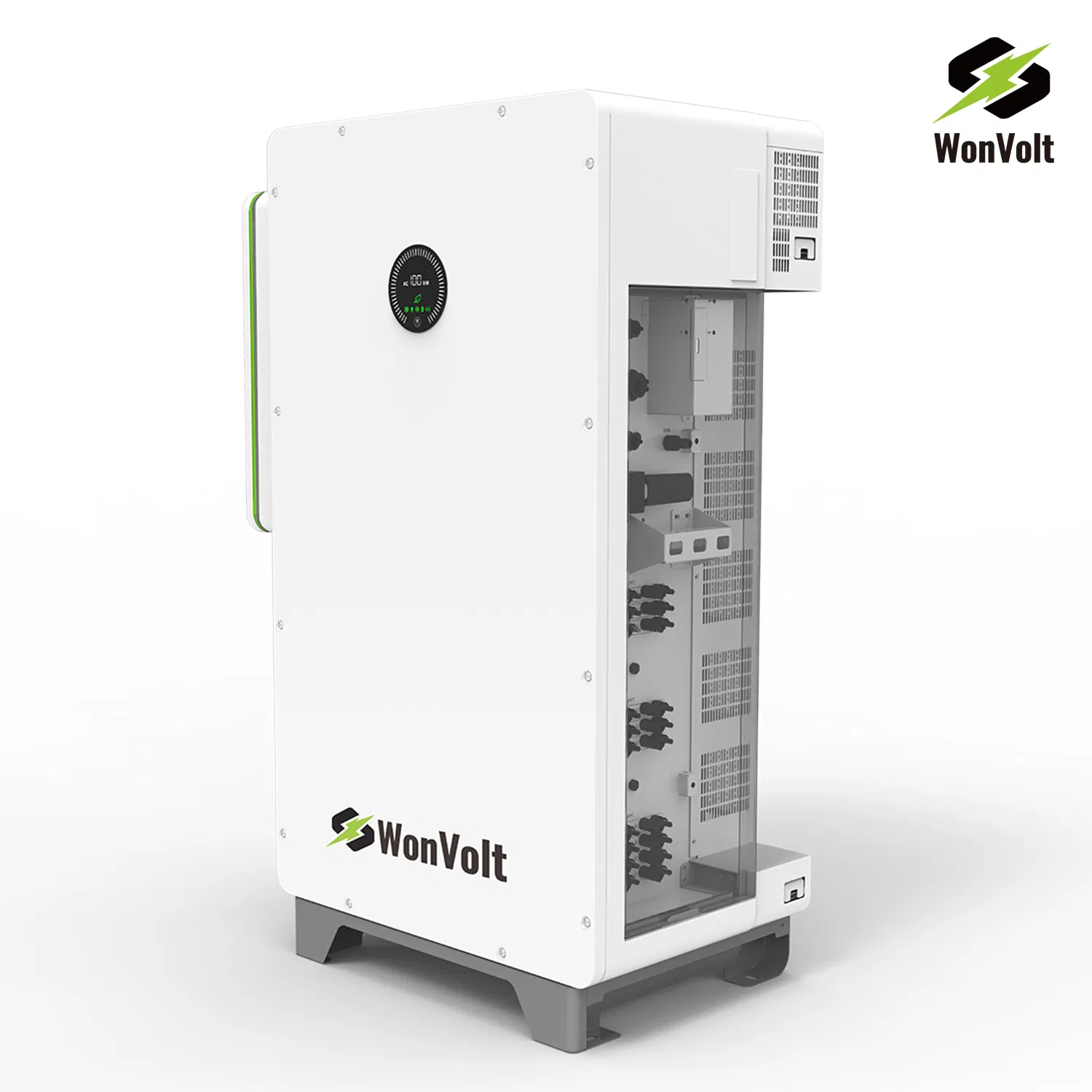

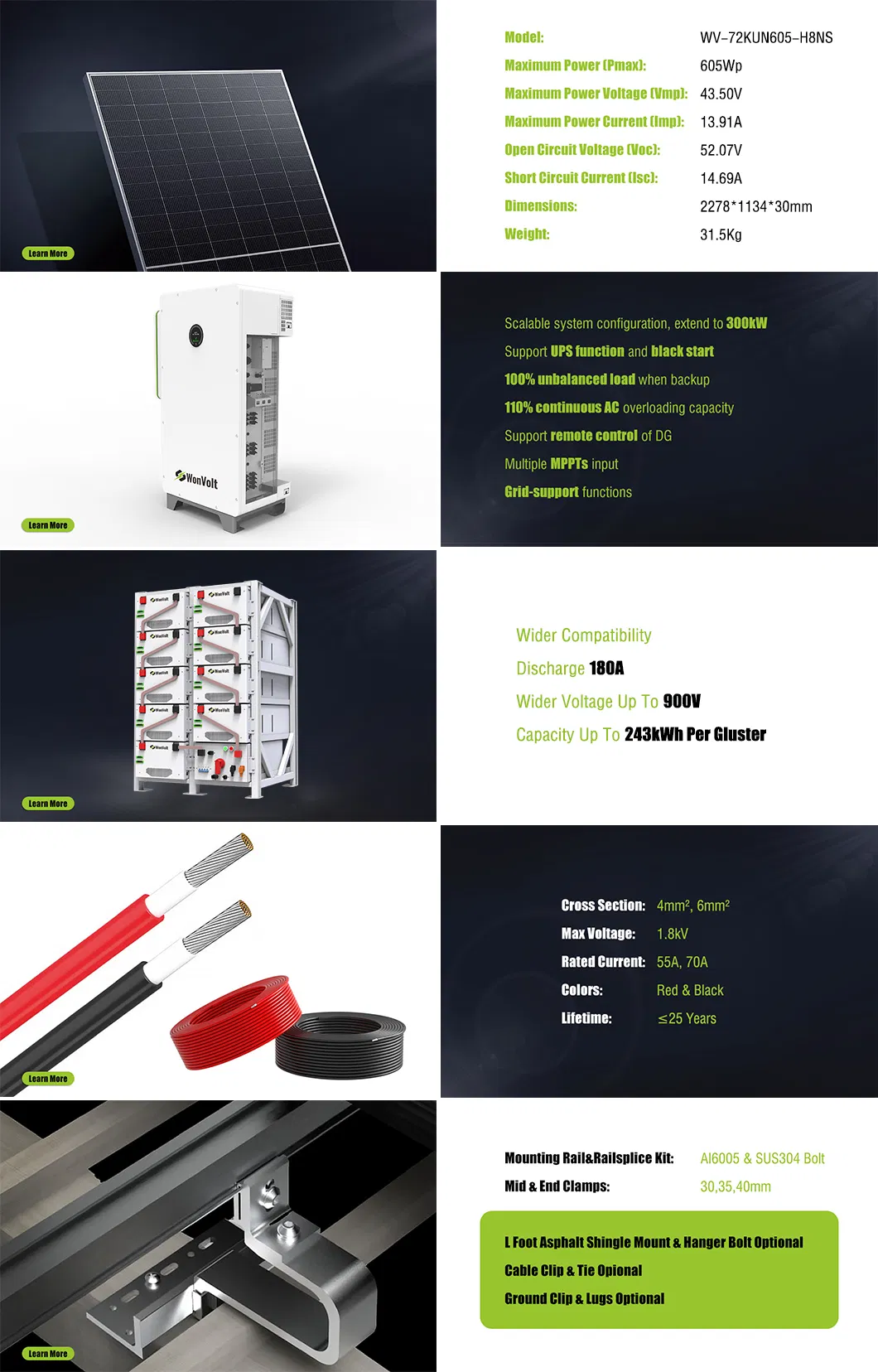

Product Description
100kw Solar + 215kwh Storage - Ideal for Renewable Energy Integration
Technical Support
Technical Support Layout

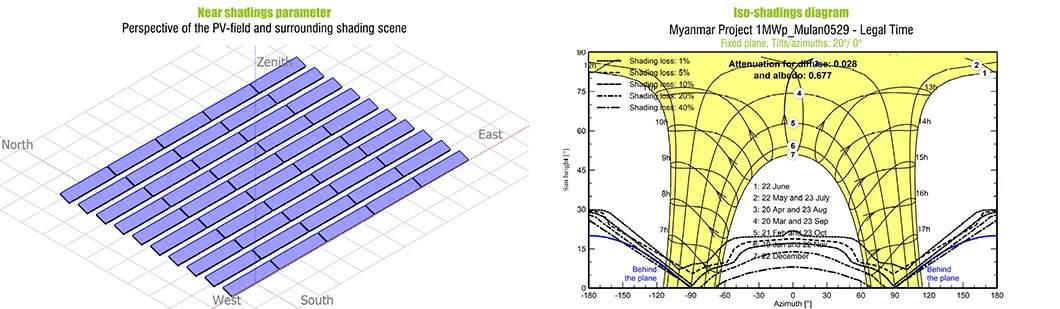

Technical Support Dimensions

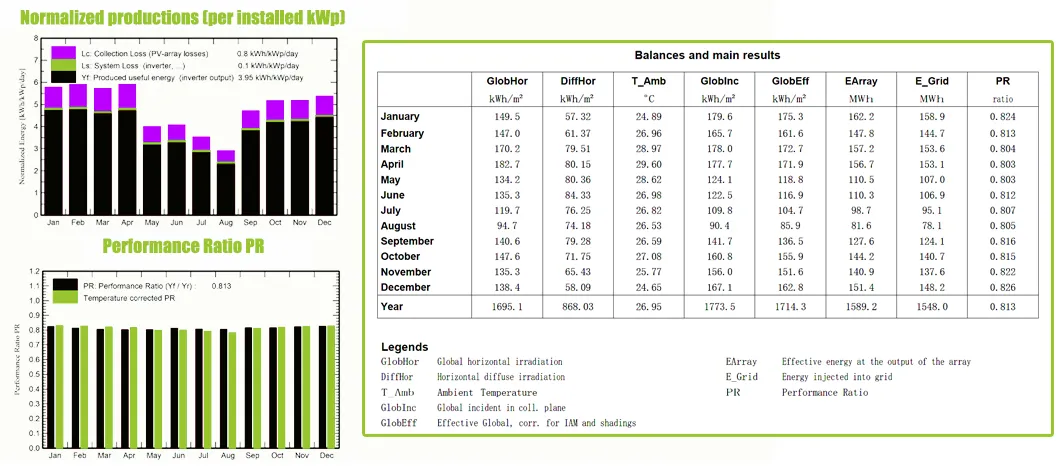

Technical Support Wiring Diagram
Factory

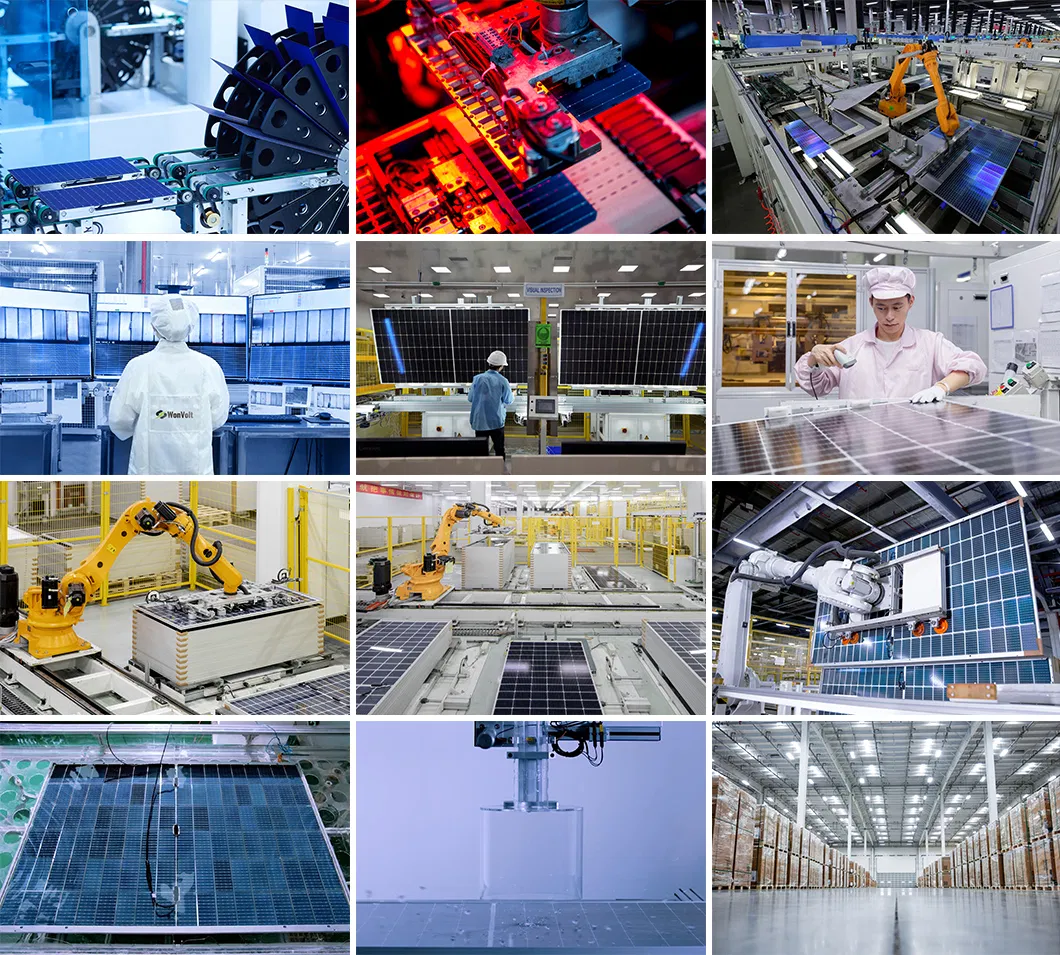

Production Factory Facility Overview
Ref. Projects
100kw Solar + 215kwh Storage - Reference Projects
Frequently Asked Questions
What battery chemistry does the Commercial Energy Storage System use?
The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) battery chemistry, which is renowned for its superior safety, high thermal stability, and long cycle life.
What is the lifespan and cycle rating of the ESS battery?
The battery cells are designed to achieve up to 6000 cycles, providing long-term reliability for commercial and industrial applications.
Can multiple units of this system be configured in parallel?
Yes, the system is highly expandable and supports parallel configuration for up to 3 units to meet larger capacity requirements.
Does this system support UPS or Black Start functionalities?
Yes, the system supports critical features such as UPS, Black Start capability, and Diesel Generator (DG) integration, ensuring uninterrupted power.
What cooling method is applied to maintain temperature regulation?
The system incorporates a Smart Air Cooling design to ensure optimal operating temperatures, promoting system safety and battery longevity.
What certifications does this Energy Storage System carry?
The system meets international safety standards and has obtained essential certifications including CE, UN38.3, IEC, and EN50549.
