100KW Industrial and Commercial Energy Storage Box Energy Storage Cabinet Battery Cabinet Energy Storage Systems
1 / 5
100KW Industrial and Commercial Energy Storage Box Energy Storage Cabinet Battery Cabinet Energy Storage Systems
Package in Carton or According to Your Requirement
Specification
100KW
Production Capacity
1000pieces/Month
Product Description
The Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.
Product Parameters
100KW-Li-215KWH System Components
NO.
Item
Quantity
1
100kw/215kwh solar Energy storage System integrated BMS/PCS/EMS, LiFePo4 Battery 215kWh, etc
1 Set
2
550W Solar Mono Panel
182 Pieces
3
100KW PCS System
1 Set
4
UPS
1 Set
5
EMS Management System
1 Set
6
Battery Cable RV*50mm² 50cm
18 Pieces
7
PV Combiner Box: N4 Plus
1 Piece
8
PV Cable 1*10mm 100M
4 Pieces
9
Solar Panel Bracket
1 Set
10
MC4 solar Cable Connector
30 Pieces
11
Solar PV Crimping Tool kit
1 Set
Detailed Photos

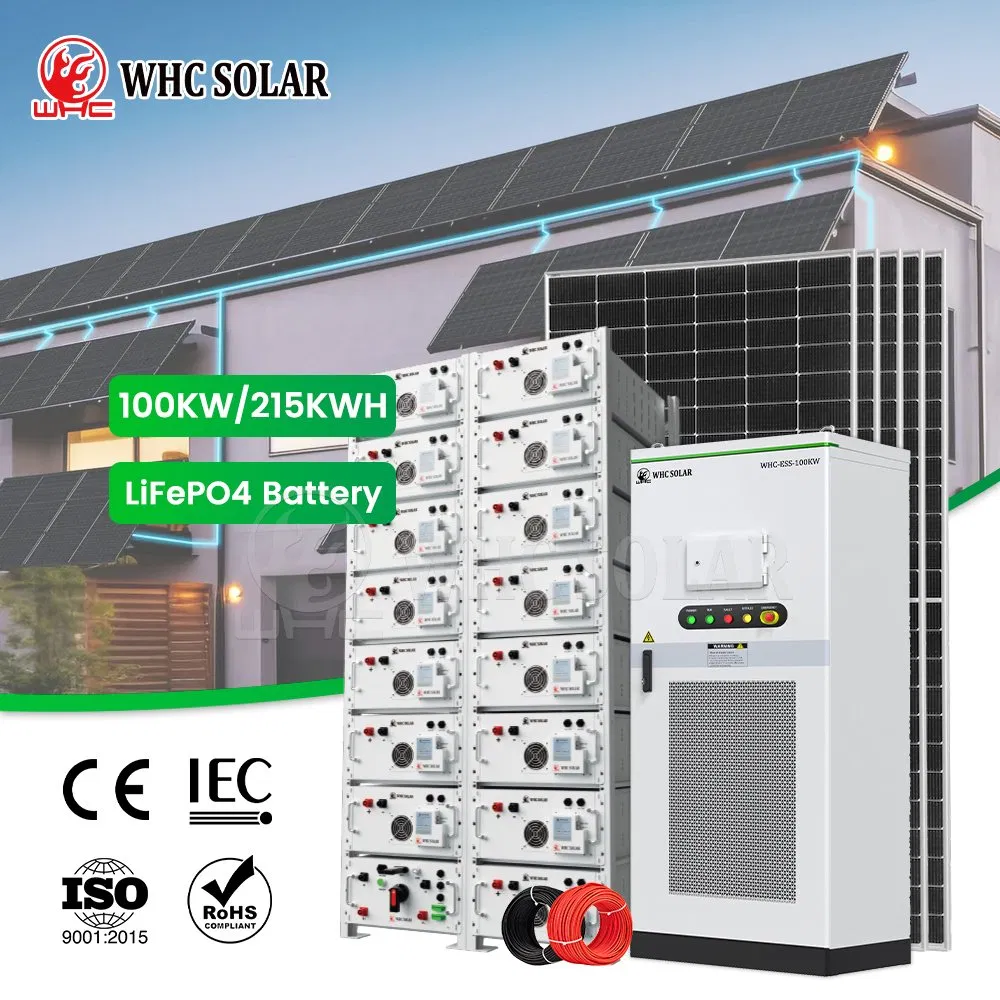

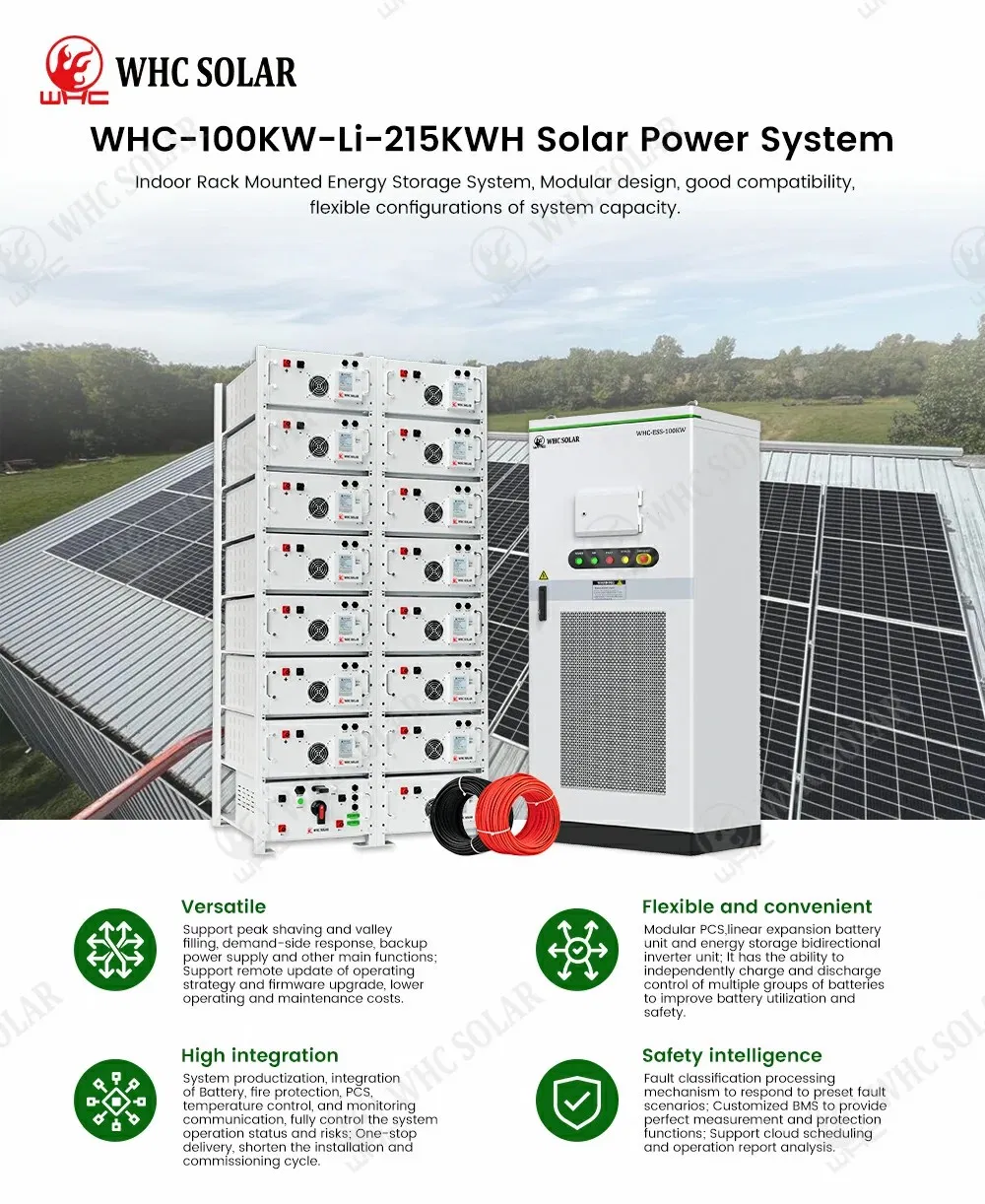

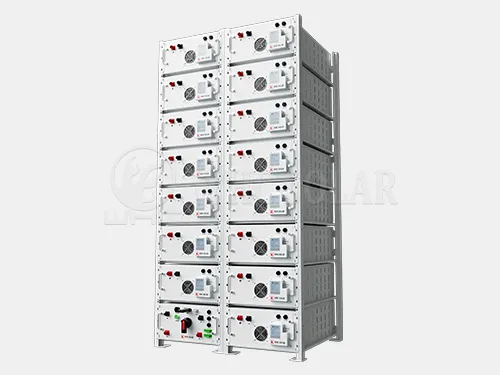

100KW/215Kwh Energy Storage System

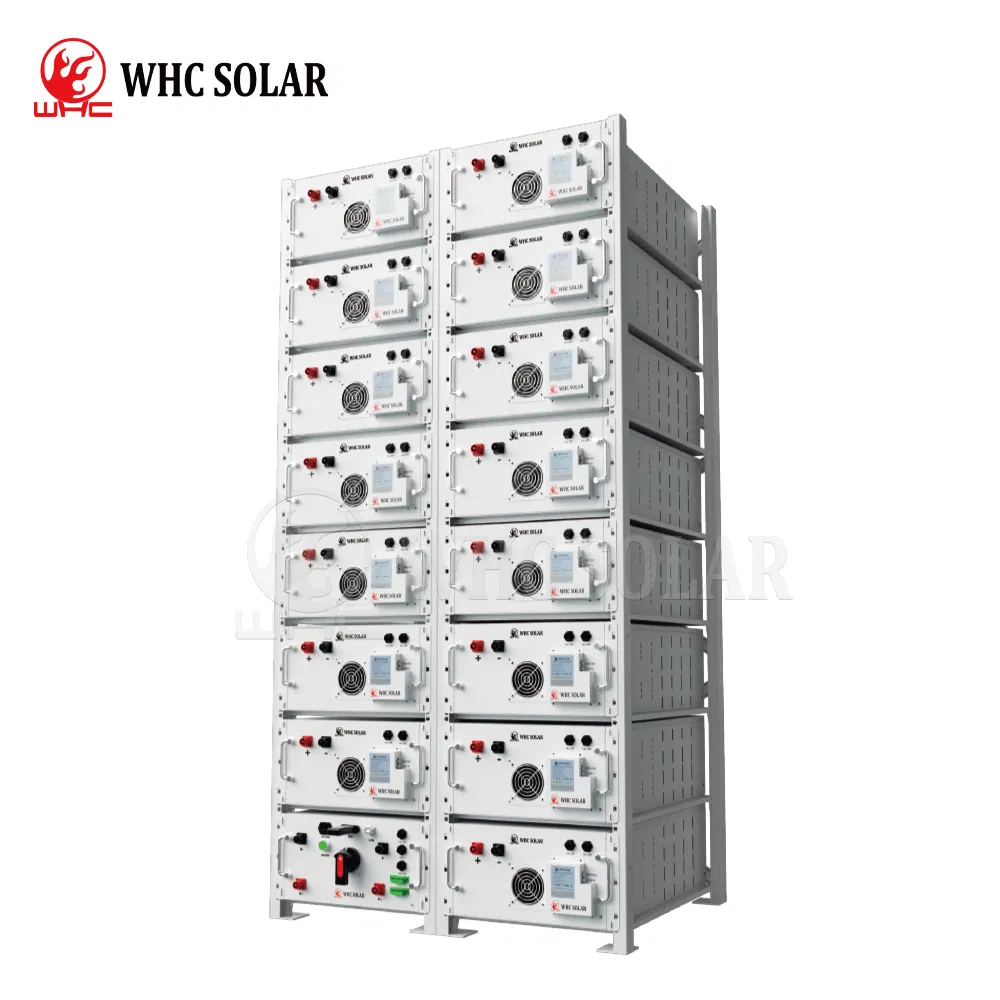

Battery Data:
Chemistry: Lithium Iron Phosphate (LiFePo4)
Cell Spec: 3.2v/280Ah
String Configuration: 1P240S
Rack Capacity: 215kwh
Nominal Voltage: 768V
Cycle Life: >6000 (@25ºC, 0.5c/0.5c)
AC Data:
Max Output Power: 100KW
Max Output Current: 152A
Rated Voltage: 230V (1 Phase) / 400V (3 Phase)
Max Efficiency: 98.78%
High Voltage Control Box
Type: 0-1500V, 140A
Architecture: 2-Stage BCMU, BMU Architecture
Features: High voltage control box
Interface: Ethernet communication and upgrade interface
Operation: Master-slave stable structure for system operation
General Data
Dimension (W*D*H): 2700*1100*2550mm
Weight of Whole System: <2700kg
Degree of Protection: IP65
Operating Temperature Range: -20°C to 40°C
Relative Humidity: 0-95% (non-condensing)

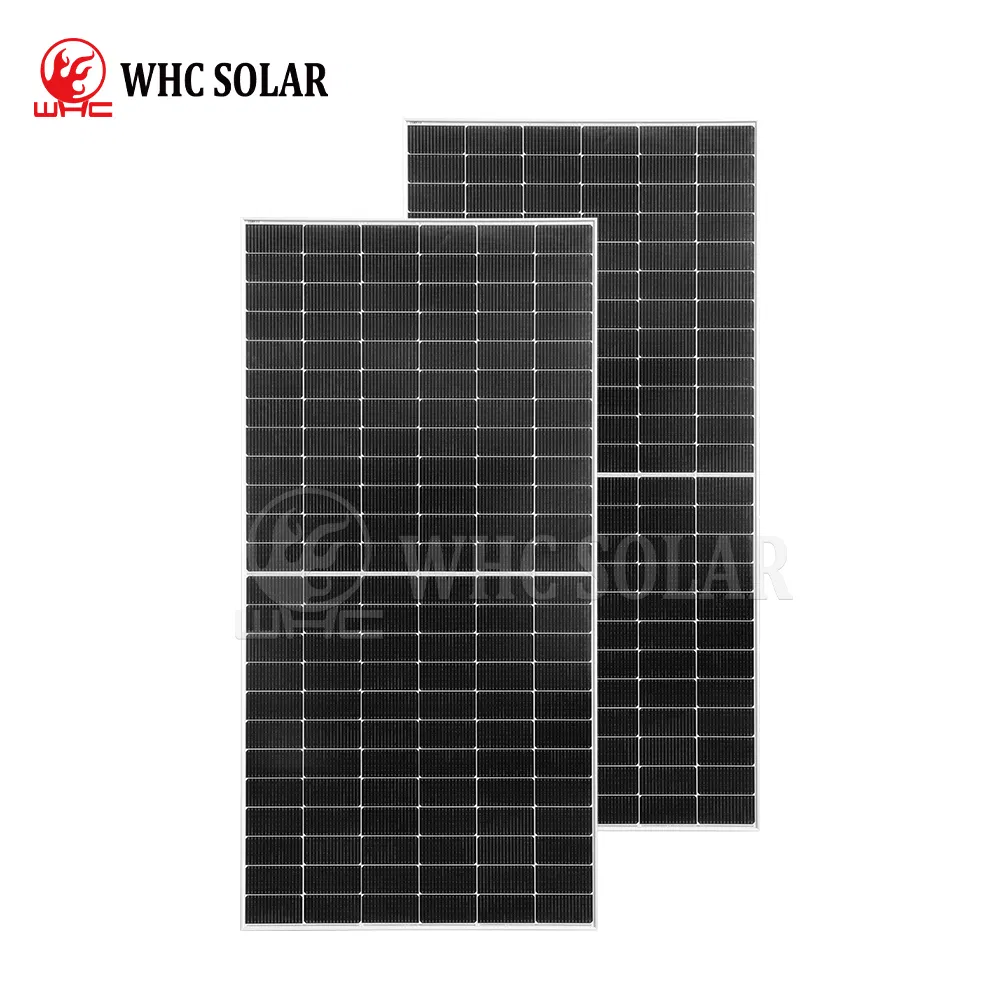

Mono Solar Panel
Model: 550M-144
Voc: 49.95V | Vmp: 41.97V
Imp: 12.97A | Isc: 13.86A
Module Efficiency: 20.9%
Operating Temperature: -40°C to +85°C
Maximum System Voltage: 1500V DC

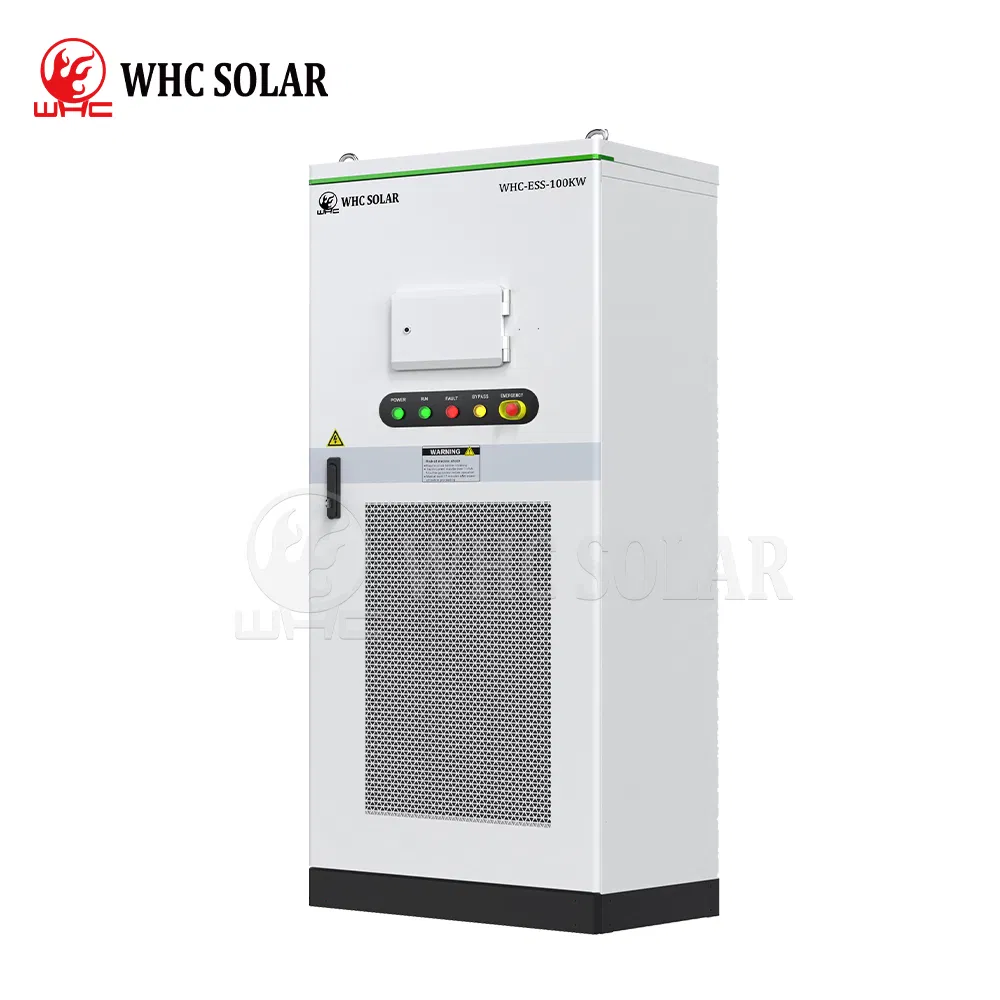

100KW PCS System
Max PV Input Power: 200KW (4*50KW)
PV Open Circuit Voltage Range: 900V
MPPT Working Voltage Range: 180-800V
Ingress Protection Class: IP55
Cooling Method: Intelligent air cooling
Max Charging Current: 202A
UPS
Type: 1KVA/900W
Function: Backup auxiliary power supply

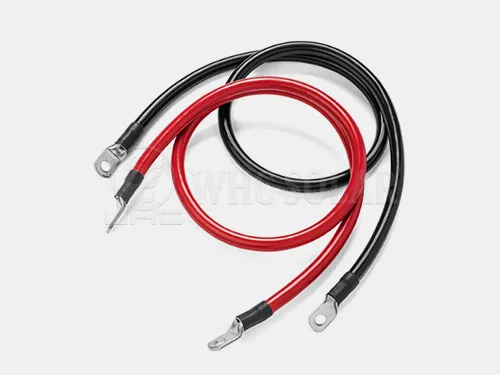

Battery Cable (50cm)
Type: RV1*50mm²
Material: Pure Copper
Temperature Rating: -40ºC to 120ºC
Lifespan: More than 25 Years

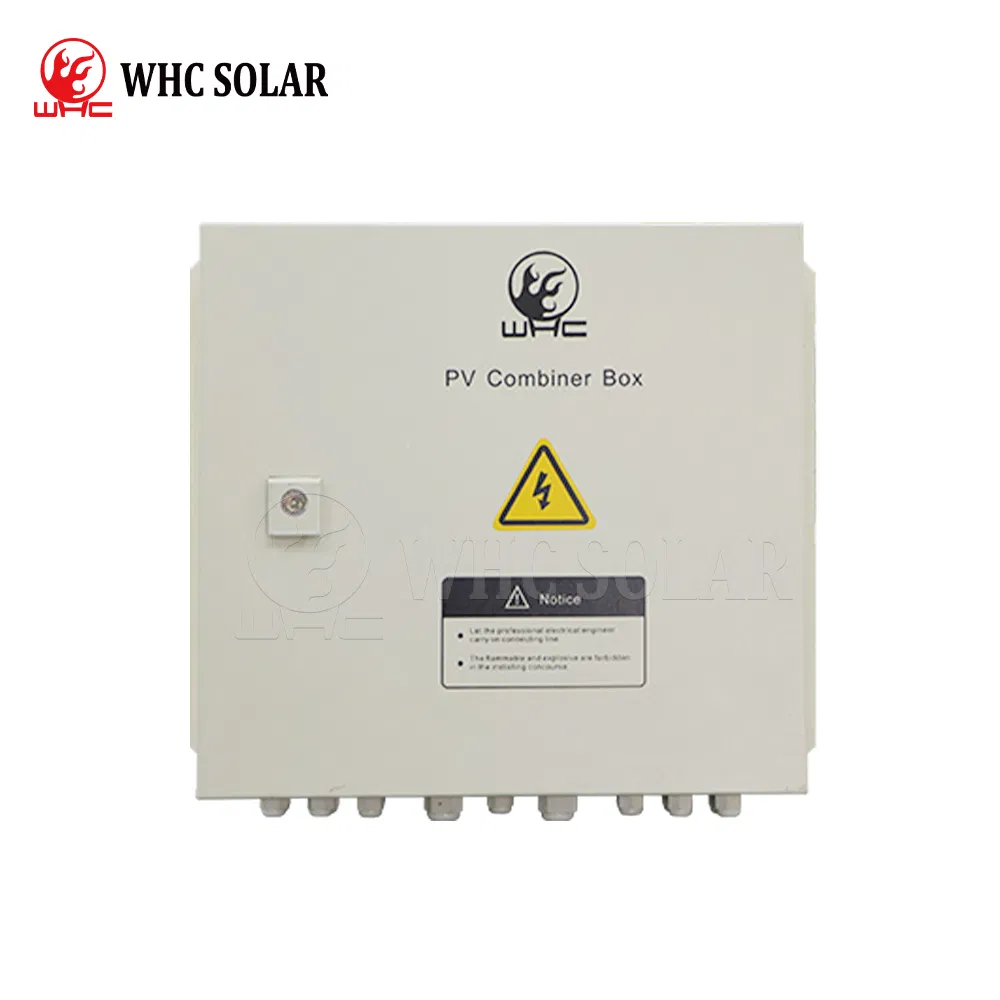

Combiner Box
Model: N 8 P
Waterproof: IP65
Max Output Voltage: 1000V
DC Output Circuit Breaker: Yes
Lightning Protection: Yes

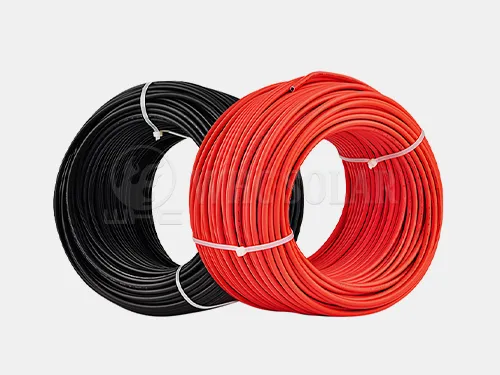

PV Cable 1*10mm 100M
Temperature tolerance: Large range withstanding
Resistance: Humidity, water, UV, acid, alkali, and ozone resistant

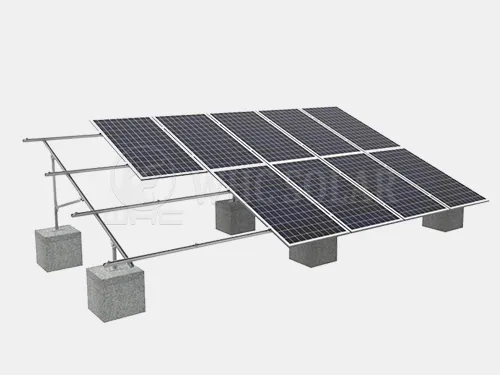

Solar Panel Bracket
Wind Load: 55m/s
Structure Material: Anodized Aluminum
Hardware: Stainless Steel
Adjustability: Angle adjustable
MC4 Solar Cable Connector
Rated Current: 30A
Rated Voltage: 1000VDC
Waterproof Protection: IP67

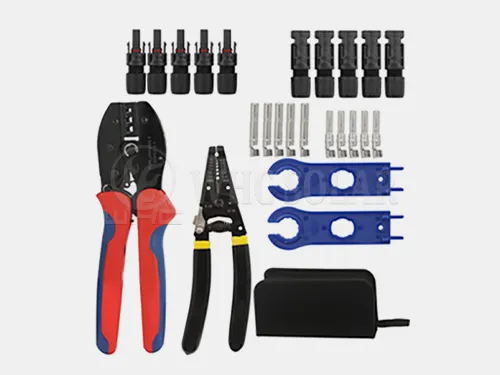

Solar PV Crimping Tool Kit
Solar crimping tool
Wire Stripper
Connector Spanner Wrench
MC4 Solar Cable Connector * 5
Frequently Asked Questions (FAQ)
What is the nominal battery capacity and output power of this system?
This commercial energy storage system has a nominal battery capacity of 215kWh and provides a maximum output power of 100kW.
What type of battery cell chemistry is used in the storage cabinet?
The system uses premium Lithium Iron Phosphate (LiFePo4) cells (3.2V/280Ah specification) configured in a 1P240S string layout for high thermal stability and safety.
What is the expected cycle life of the LiFePo4 battery system?
The battery system is rated for a long cycle life of over 6,000 cycles (measured at 25ºC, with 0.5C charge/0.5C discharge rates).
Can this energy storage cabinet be installed outdoors?
Yes. The system cabinet features a robust IP65 ingress protection rating, making it dust-tight and resistant to water jets, suitable for operating temperatures ranging from -20°C to 40°C.
What is the primary function of the integrated UPS?
The system includes a 1KVA/900W UPS that functions as a reliable backup auxiliary power supply, ensuring continuous operation of key control units during primary power transitions.
What solar panel components are included in the complete setup?
The complete system includes 182 pieces of 550W Mono Solar Panels, complete with mounting brackets, PV cables, combiner boxes, and MC4 connectors.
