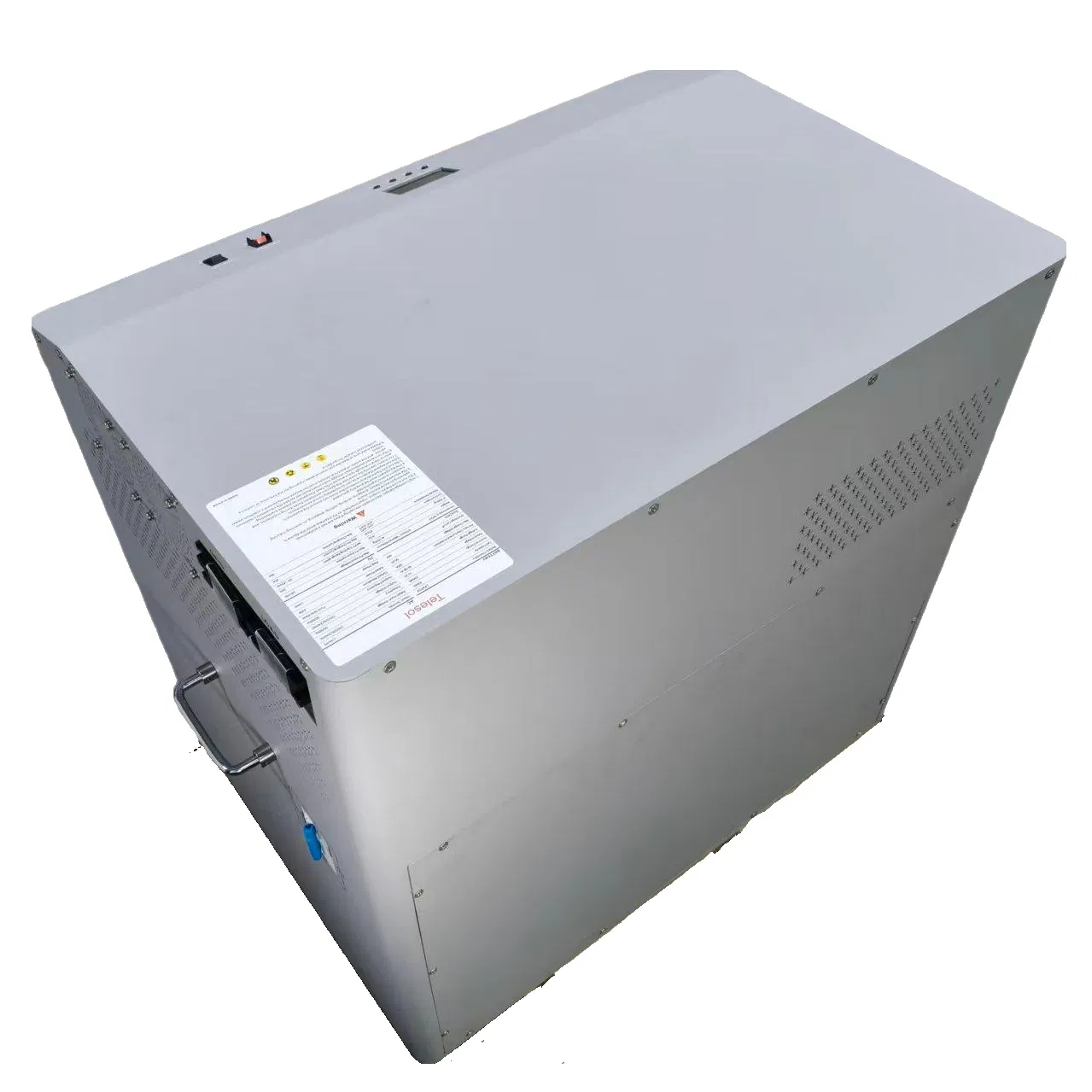

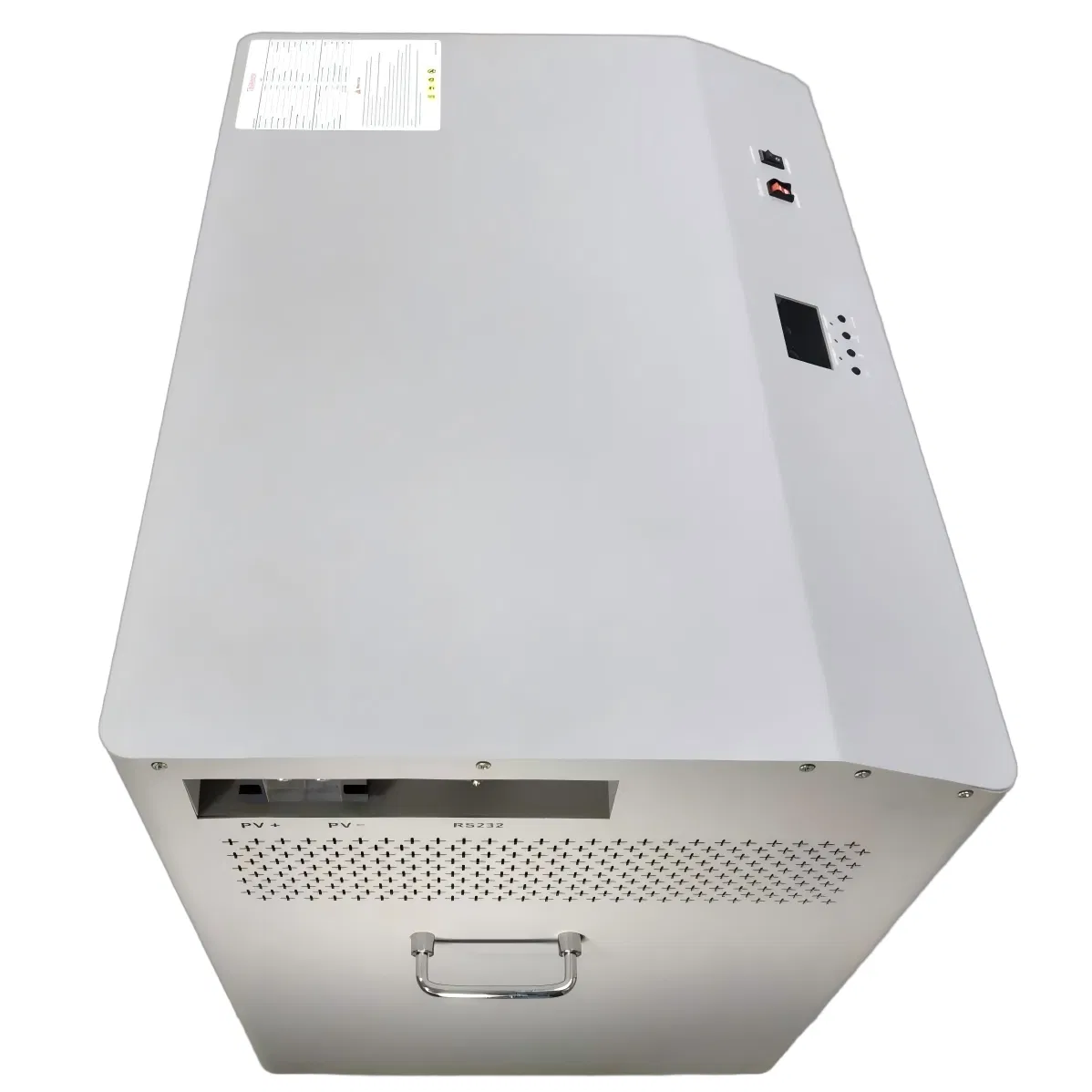

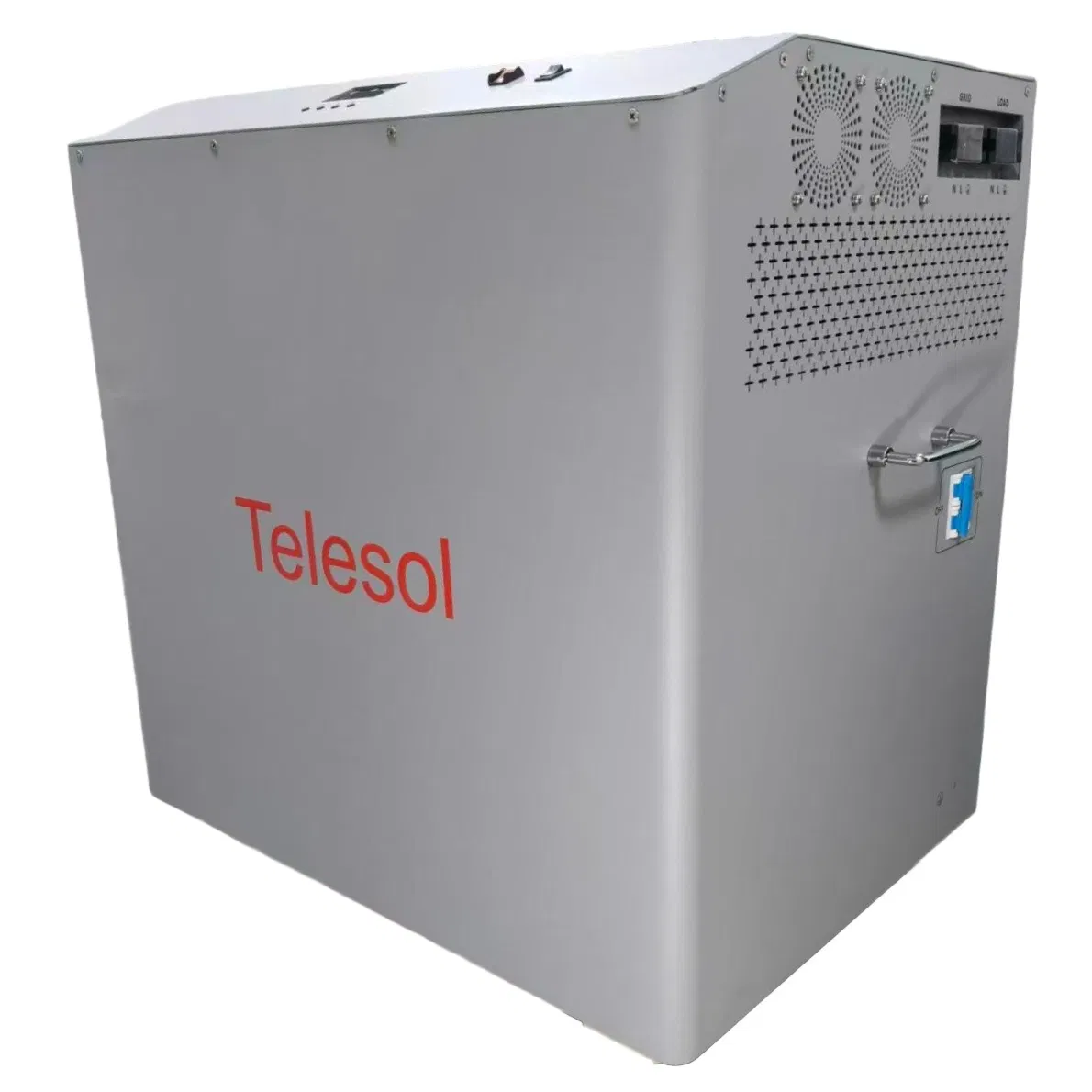

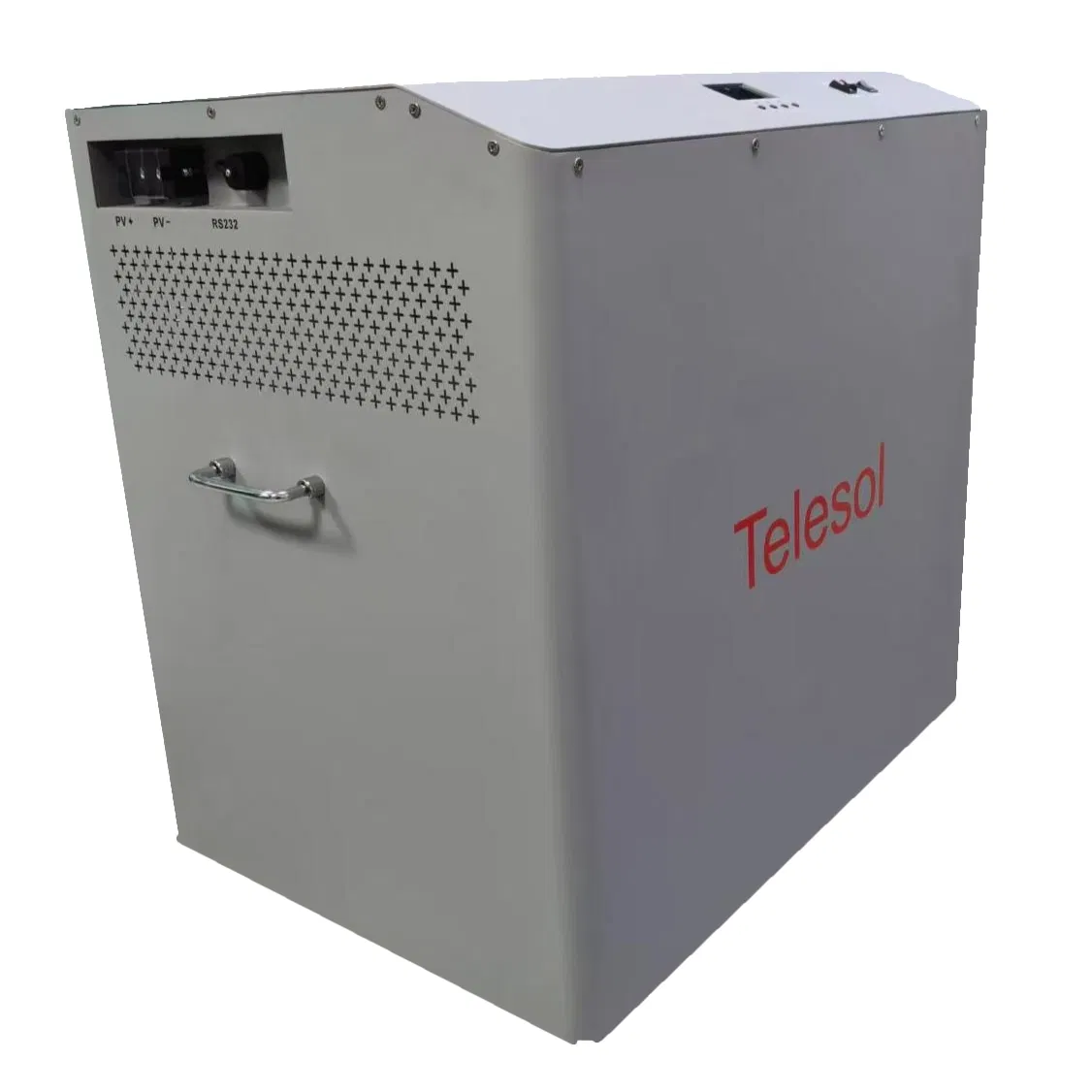

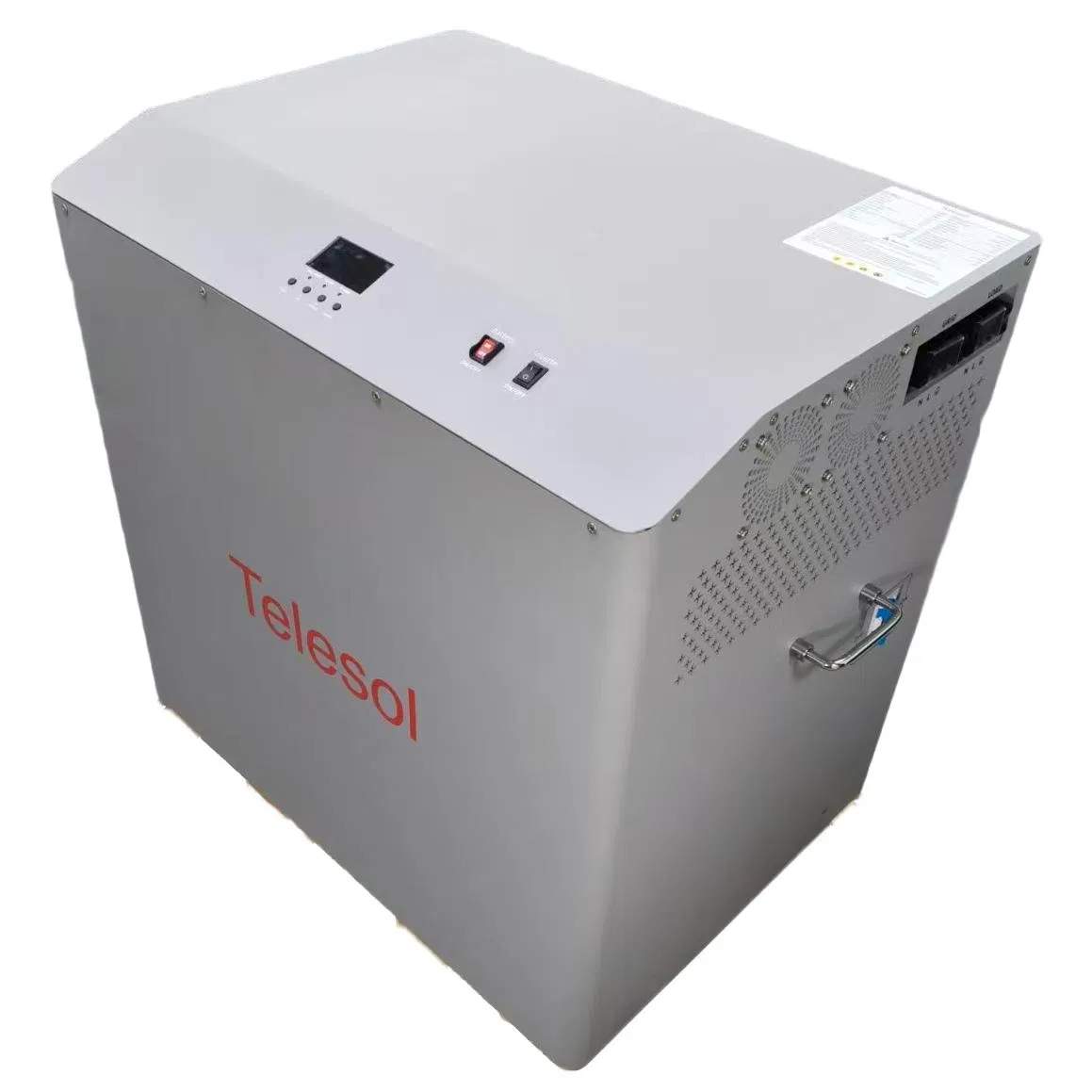

Residential All-in-One Solar Energy Storage System

Customization:	Available
Nominal Voltage:	51.2V
Warranty:	1year

Basic Specifications

Model NO.TE6010L

Nominal Capacity10kWh

Cycle Life6000 Cycles

BMS ProtectionOvercharge / Overdischarge / Overcurrent

Battery MaterialLiFePO4

Battery Capacity200Ah

Internal Resistance≤0.4MΩ

Operating Voltage Range40V ~ 58.4V

CommunicationRS232

PV Input Max Current80A

PV Max DC Voltage145V

MPPT Voltage Range60 ~ 145V

Rated Output Power6kW

Max Output Current25A

Grid Connection TypeL + N + PE

Grid Frequency50 / 60Hz

Power Grid Voltage220 ~ 240V

Transport PackageWooden Case

Specification755 * 575 * 900mm

TrademarkOEM/ODM

OriginChina

HS Code8507600090

Production Capacity100,000 / Year

Packaging & Delivery

Package Size75.50cm * 57.50cm * 90.00cm

Package Gross Weight210.000kg

Detailed Product Description

Battery Specifications

Parameter	Value
Battery Chemistry	LiFePO4
Battery Capacity	200Ah
Rated Power	10KWh (16KWh Optional)
Rated Voltage	51.2V
Voltage Range	46-58.4V
Primary Overcurrent Protection	160A
Max Charge Voltage	58.4V
Discharge Cut-off	46V

AC Specifications

Parameter	Value
Input Sources	L+N+PE
Rated Input Voltage	220/230/240VAC
Frequency	50/60Hz
Output Voltage	220/230/240VAC
Output Frequency	50/60Hz
Output Waveform	Pure Sine Wave
Rated Power	6kW
Peak Power	11KVA

PV Input Specifications

Parameter	Value
Max PV input Voltage	145 VDC
Max PV input current	80A
MPPT Tracking Range	60~145VDC
Max PV Charging Current	80A
Max Charging Current	80A

System Specifications

Parameter	Value
Product Dimensions (LWH)	670mm 480mm650mm
Package Dimensions (LWH)	755mm575mm900mm
Net Weight	≈ 150Kg
Gross Weight	≈ 210Kg
IP Rating	IP20
Communication	RS232
Operate Temperature	-10°C - 40°C / 14°F - 104°F

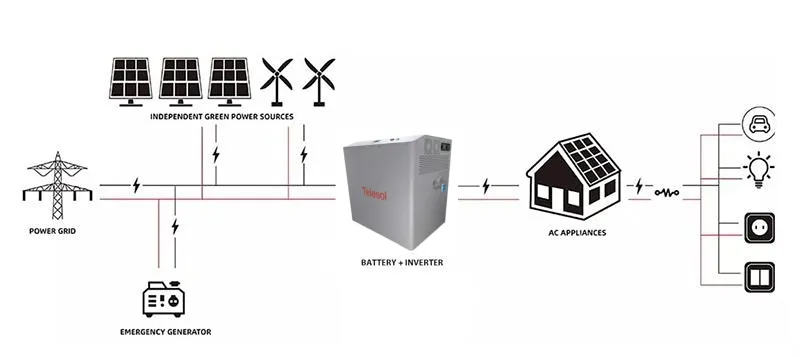

Multiple Application Scenarios

Residential All-in-One Solar Energy Storage System Scenarios

Profile

We are a production-oriented enterprise specializing in R&D, production, sales, and service of solar energy products. We possess three core competitive advantages: Verasol Certified Qualification, Pay-As-You-Go (PAYG) Payment Solutions, and OEM/ODM/SKD Customized Services.

Our main product portfolio includes: Pico Systems, Solar Home Systems, Solar Household Appliances, Energy Storage Systems (ESS), and comprehensive Solar Solutions. We provide integrated photovoltaic manufacturing, planning, sales, project consulting, system design, and specialized technical support services, along with value-added assistance including customized molds and local production implementation guidance.

Frequently Asked Questions

Q1. Are you a manufacturer?

A: We are a professional manufacturer. We have our own dedicated R&D team and modern manufacturing facilities.

Q2. Do you have any MOQ limit?

A: We support low MOQ. 1 piece for sample testing and quality validation is available. For bulk orders, we suggest starting with 1,000 units.

Q3. How is your warranty period and the product lifespan?

A: Our standard warranty is 2 years. For customized items, we offer specialized 3-5 years warranty support. The overall design lifespan of the products exceeds 8 years under standard use.

Q4. Can you print my logo on the product?

A: Yes, we accept full OEM and ODM requests. Your custom branding, color schemes, and spec modifications can be implemented by our experienced team.

Q5. What battery material is used in the storage system?

A: The TE6010L system is built using high-safety Lithium Iron Phosphate (LiFePO4) chemistry, offering over 6000 cycles and strong thermal stability.

Q6. What safety protections does the BMS feature?

A: The system includes a built-in Battery Management System (BMS) offering reliable safeguards against overcharge, over-discharge, and overcurrent conditions to ensure safe operation.
