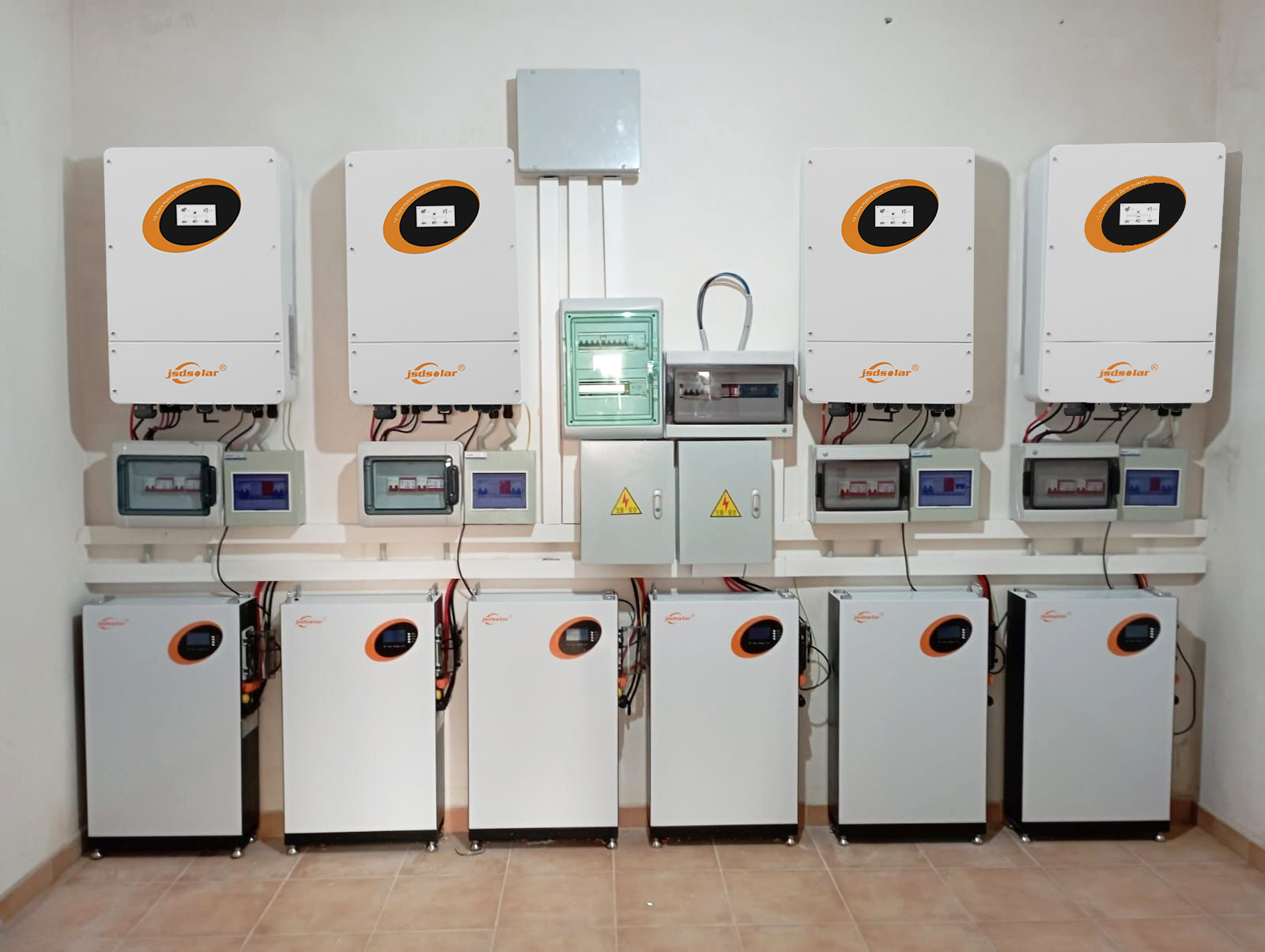

Solar System Off Grid 5KW 10KW 20KW 25KW 30KW Solar Power System Commercial Industrial Home For Sale

Product Description

Advantages of Solar Systems
Advantages

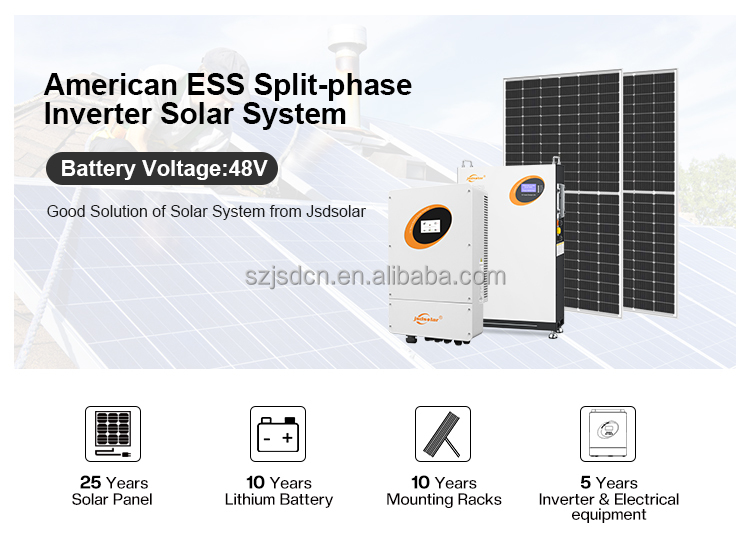

Product Description
Product Description
We are a vibrant and fast-growing international company and as a leader in the solar system & solar lighting industry. Established in 2005, we are one of the earliest new-energy manufacturers, specializing in design & development of solar products and providing professional solar power system solutions. We have completed the research and development of solar power home systems, All In One solar power systems, wall mounting, stackable and standing LiFePO4 batteries, WIFI solar inverters, Pay As You Go systems, IOT LoRa control solar street lights, and mastered the core innovative technology of entire solar products.

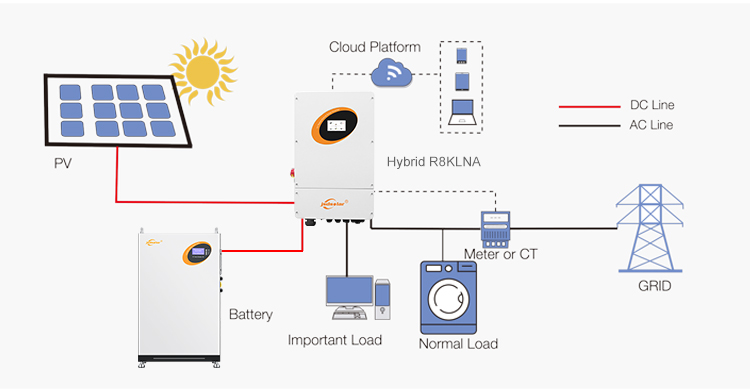

Solar Details

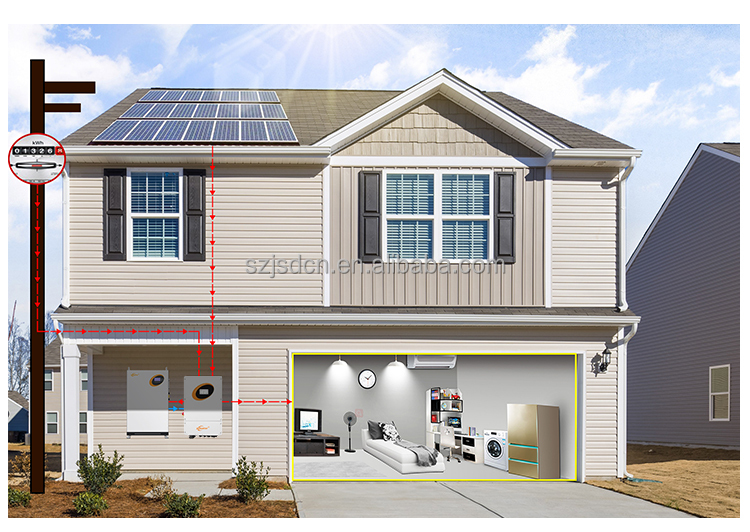

Solar Application
Specification

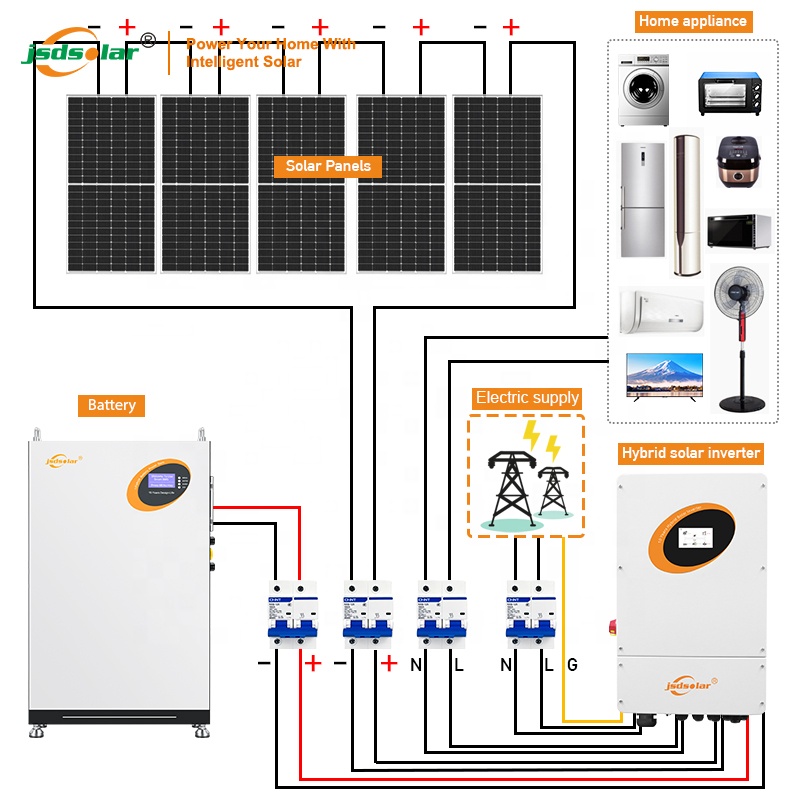

Solar system for home
Parts Description Quantity
8kW 16kW
MPPT Controller Inverter Model: JSD8KLNA
Input: 48VDC
AC Output: 120V/240V 50-60Hz, 8000W
Max Charge Current: 80A
Waterproof Level: IP65
1 PCS 1 PCS
LiFePO4 Battery Pack Model: 48V 200AH
Rated Voltage: 51.2V
Rated Capacity: 200AH
Net Weight: 86kg
DOD depth: 100%
1 PCS 2 PCS
PV Panel Model: VSMH550-36V -MH
Peak Power(Pmax): 550W
Maximum Power Current(Imp): 42.1V
Open Circuit Voltage(Voc): 50.10±3%
Rated Power: 550W
Size: 2279*1134*3mm
Weight: 28.40kg
14 PCS 28 PCS
PV Panel Mounting Bracket Customized, Anti-erosion Aluminum Alloy for rooftop or ground mounting 1 Set 1 Set
Power Distribution Box Customized, Including leakage circuit breaker, air-switch, by-pass switch etc 1 Set 1 Set
Cable Model: PV-1*6mm2
Special high Anti-UV and Wear-Resistant PV cable
Working Temperature: -40℃ to 90℃
40 M 80 M
PV Waterproof Connector Model: MC4
Rated Voltage: 1000V DC
Rated Current: 30A
IP Rate: IP67
10 Pairs 20 Pairs

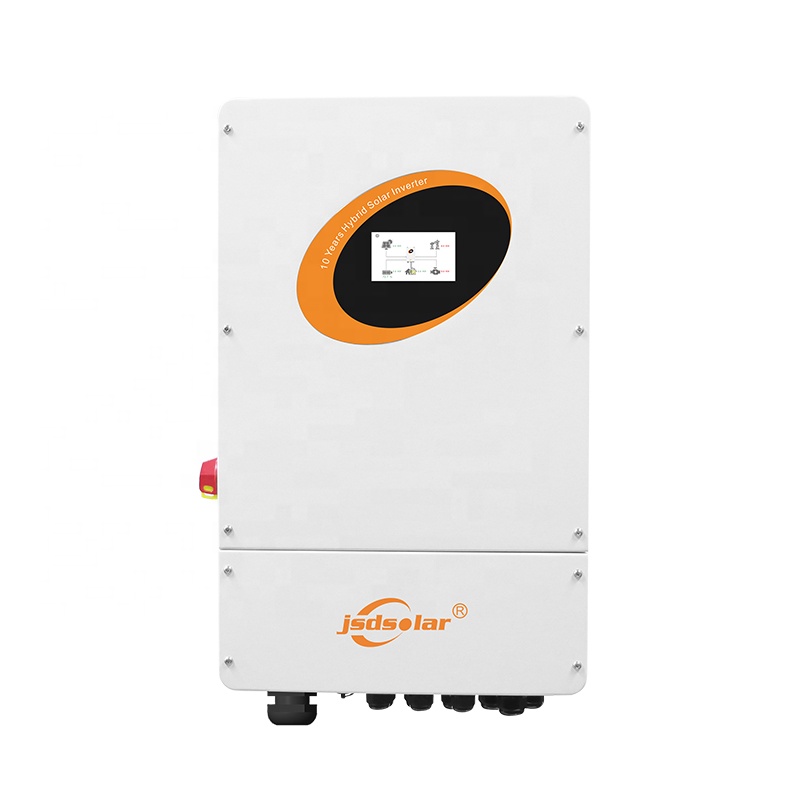

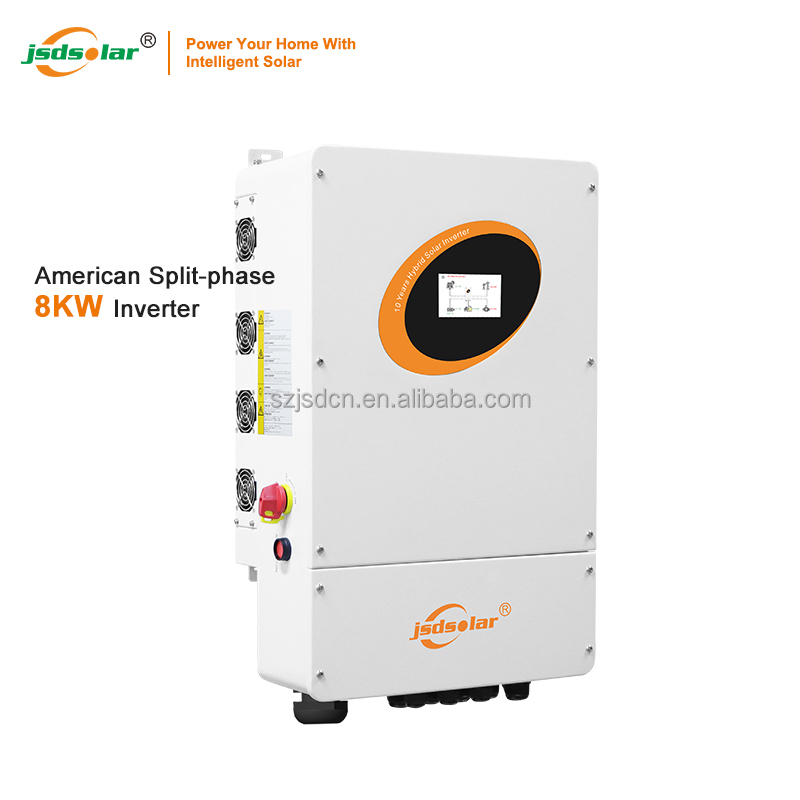

MPPT Controller Inverter
MPPT Controller Inverter
  • Pure sine wave inverter
  • Built-in MPPT solar controller
  • Configurable AC/Solar Charger priority via LCD setting
  • Compatible with mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload, over temperature, and short circuit protection
  • Cold start function

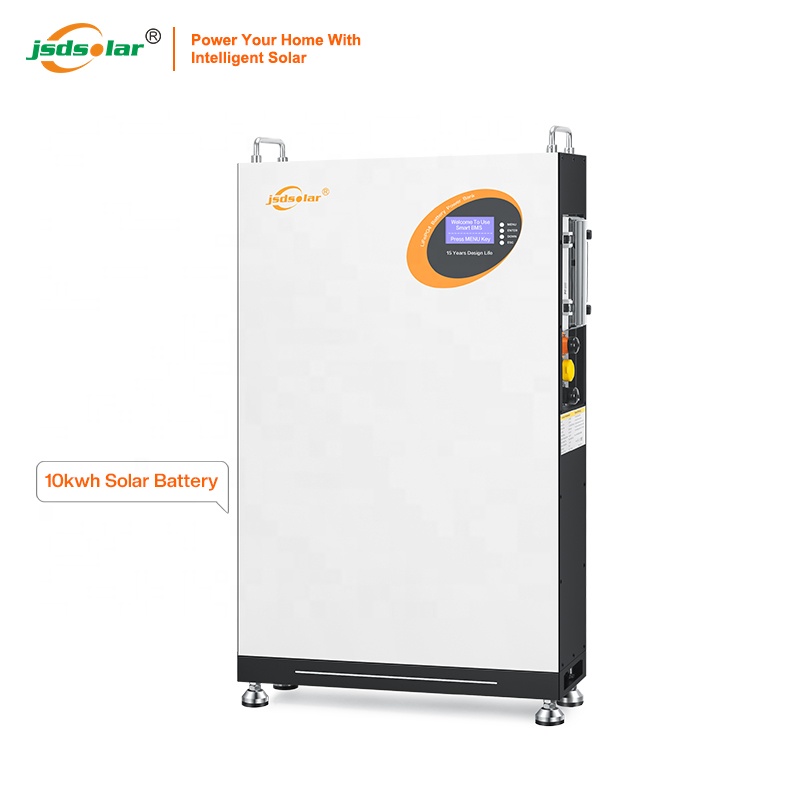

Lithium Ion Battery
Lithium Ion Battery
  • Safety and Reliable: High safety level of LiFePO4 battery cell
  • Popular battery energy options: 10kWh
  • Long life cycle time exceeding 6,000 cycles
  • Advanced BMS protection functionality
  • Flexibility and Compatible: Store energy from the grid or solar panels
  • Total energy extends up to 90kWh via parallel battery packs
  • Flexible installation: Floor or Wall mounted
  • Monitor and optimize performance via smartphone app

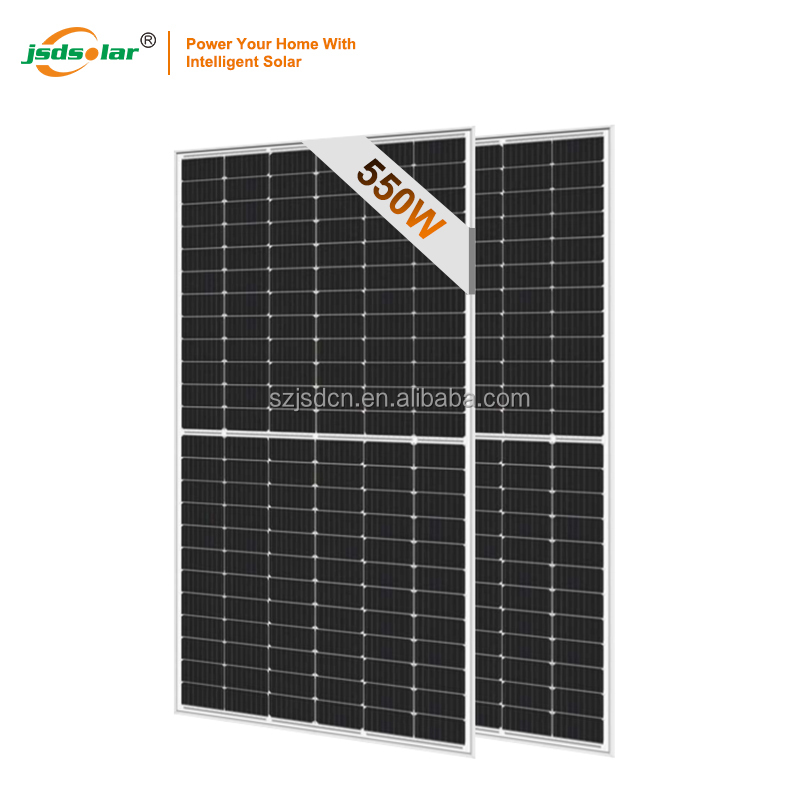

Solar Panels
Solar Panels
  • 25-year warranty for long-term performance
  • Highest conversion efficiency up to 21%
  • Anti-reflective and anti-soiling surface minimizes power loss from dirt and dust

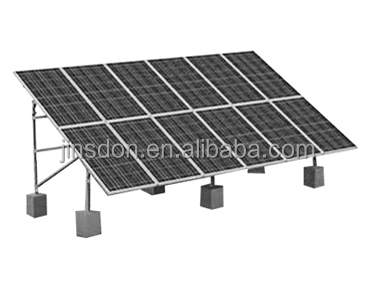

PV Mounting Bracket
PV Panel Mounting Bracket
  • Residential Roof (Pitched Roof) integration
  • Commercial Roof (Flat roof & workshop roof) systems
  • Ground Solar Mounting systems
  • Vertical wall solar mounting systems
  • All-aluminum structure solar mounting designs
  • Car parking solar mounting solutions

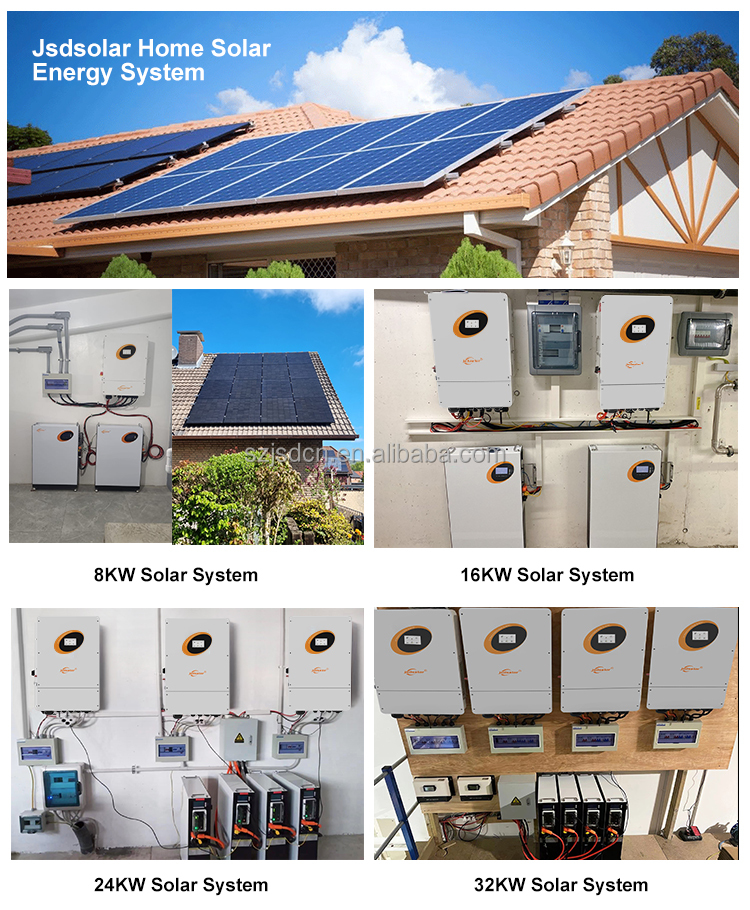

Project Cases
Project Showcase

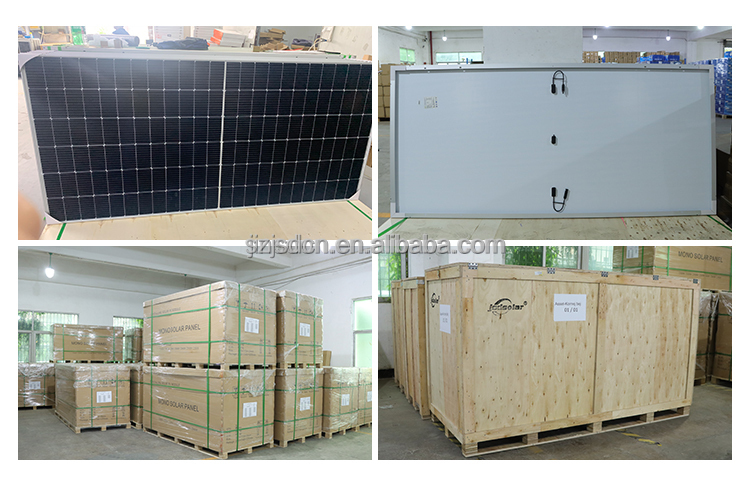

Packing & Delivery
Packing 1
Packing 2
Exhibition
Exhibition Gallery
Profile

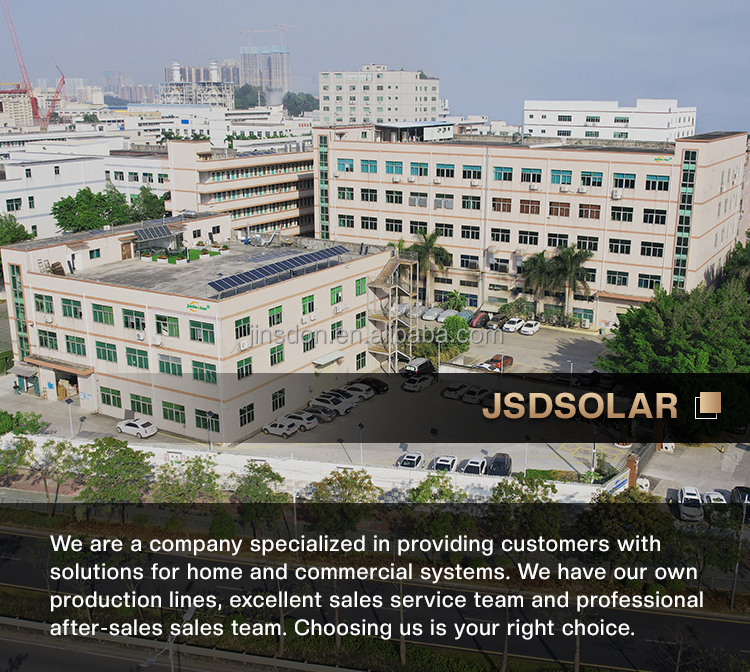

Manufacturing Facility
Established in 2010, we achieved ISO9001: 2008 quality management system certification in 2013. Our solar products have passed CE, FCC, RoHS, and National Inspection Certifications, and we hold several national patents. We have exported to over 50 countries, including Germany, Japan, the UK, the USA, South Africa, and more. We adhere to the "integrity, professional, and win-win" business philosophy, striving for lean production, focusing on details, and implementing strict product inspection processes to ensure high quality and value creation for our clients.
Our main products include: Integrated solar street lights, All in one solar LED street lights, Integrated solar garden lights with Bluetooth speakers, Integrated solar garden lights, Solar Power Walls, Solar Energy Power Supplies, Li-ion Battery Packs for solar power, and IOT smart solar street light systems.
Frequently Asked Questions
Q1 What components are included in the home solar systems?
Our complete home solar package includes a high-performance MPPT controller inverter, a durable LiFePO4 battery pack, high-efficiency solar panels, customizable mounting brackets, a power distribution box, specialized PV cables, and waterproof MC4 connectors.
Q2 What is the expected lifespan of the Lithium Ion Battery pack?
The LiFePO4 battery pack has an excellent lifespan, supporting over 6,000 charge-discharge cycles. It features an integrated advanced Battery Management System (BMS) for enhanced safety and optimized performance.
Q3 Are the solar panels durable, and what is their efficiency?
Our solar panels feature a high conversion efficiency of up to 21% and come with a 25-year warranty. They are built with an anti-reflective and anti-soiling surface to minimize power loss caused by dust and dirt accumulation.
Q4 Can the mounting brackets adapt to different types of roofs?
Yes, our customized brackets are made of anti-erosion aluminum alloy and can adapt to residential pitched roofs, flat commercial roofs, ground installations, vertical walls, and car parking structures.
Q5 What protections do the MPPT controller inverters offer?
The pure sine wave inverters are equipped with complete protection features, including overload protection, over-temperature protection, short circuit protection, and cold start functionality.
Q6 What quality certifications do your solar products hold?
Our manufacturing processes follow ISO9001:2008 standards. All solar products have successfully passed CE, FCC, RoHS, and National Inspection certifications, ensuring compliance with international quality expectations.
