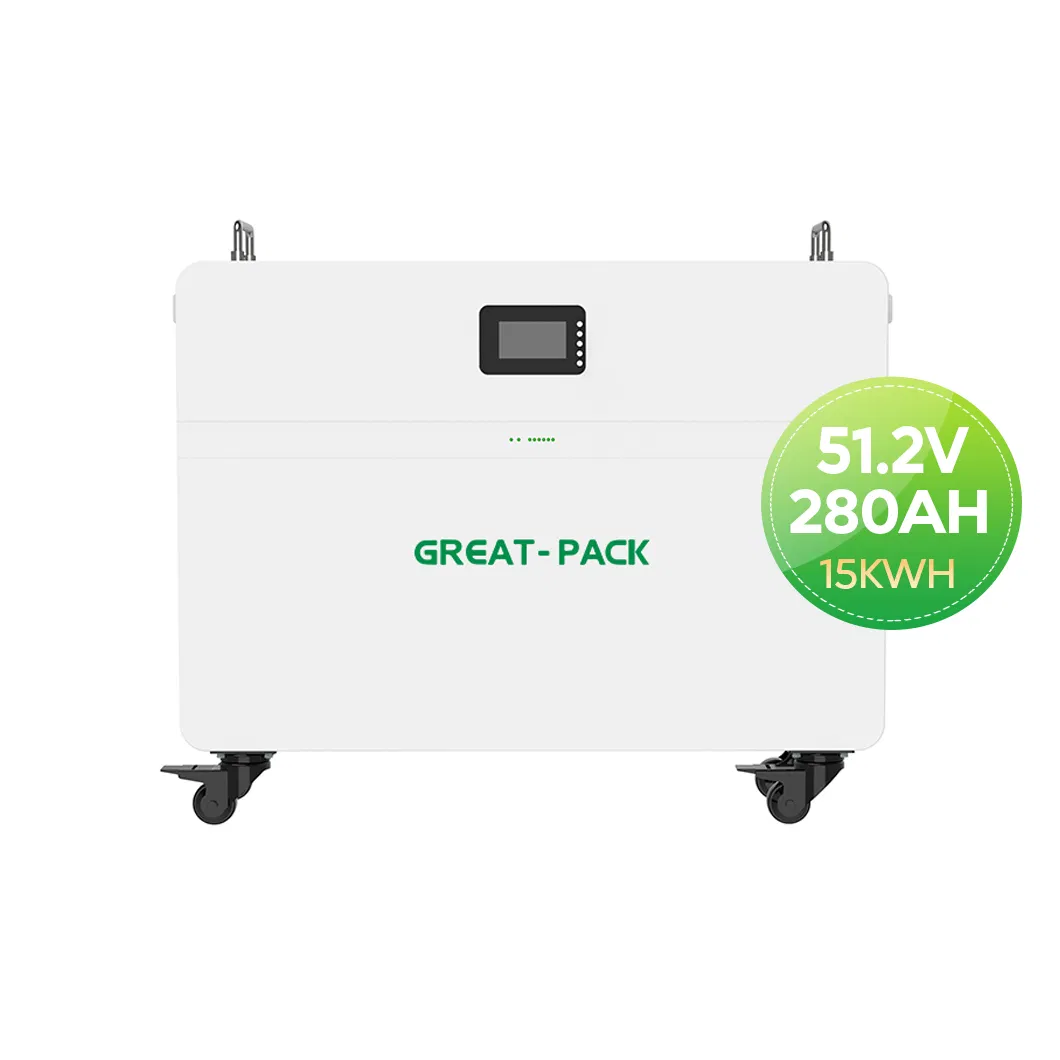

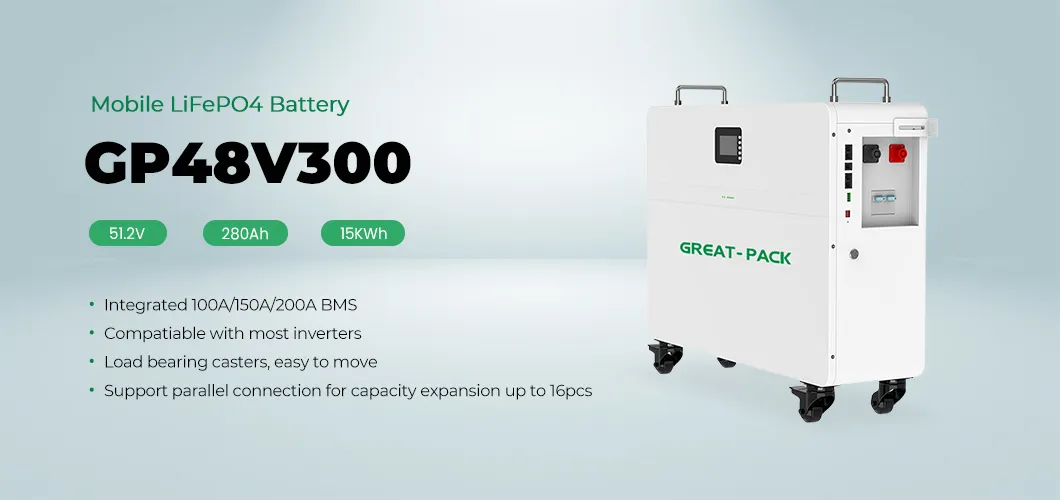

| Model | GP51V280 |
| Nominal Energy | 14.33KWH |
| Nominal Voltage | 51.2V (LFP-16 series) |
| Nominal Capacity | 280Ah |
| Range of DC Discharge Voltage | 43.2-58.4V |
| DC Normal Charge Voltage | 58.4V |
| Recommend Charge Current | 100A |
| Allowed Max. Discharge Current | 100A (150A 200A optional) |

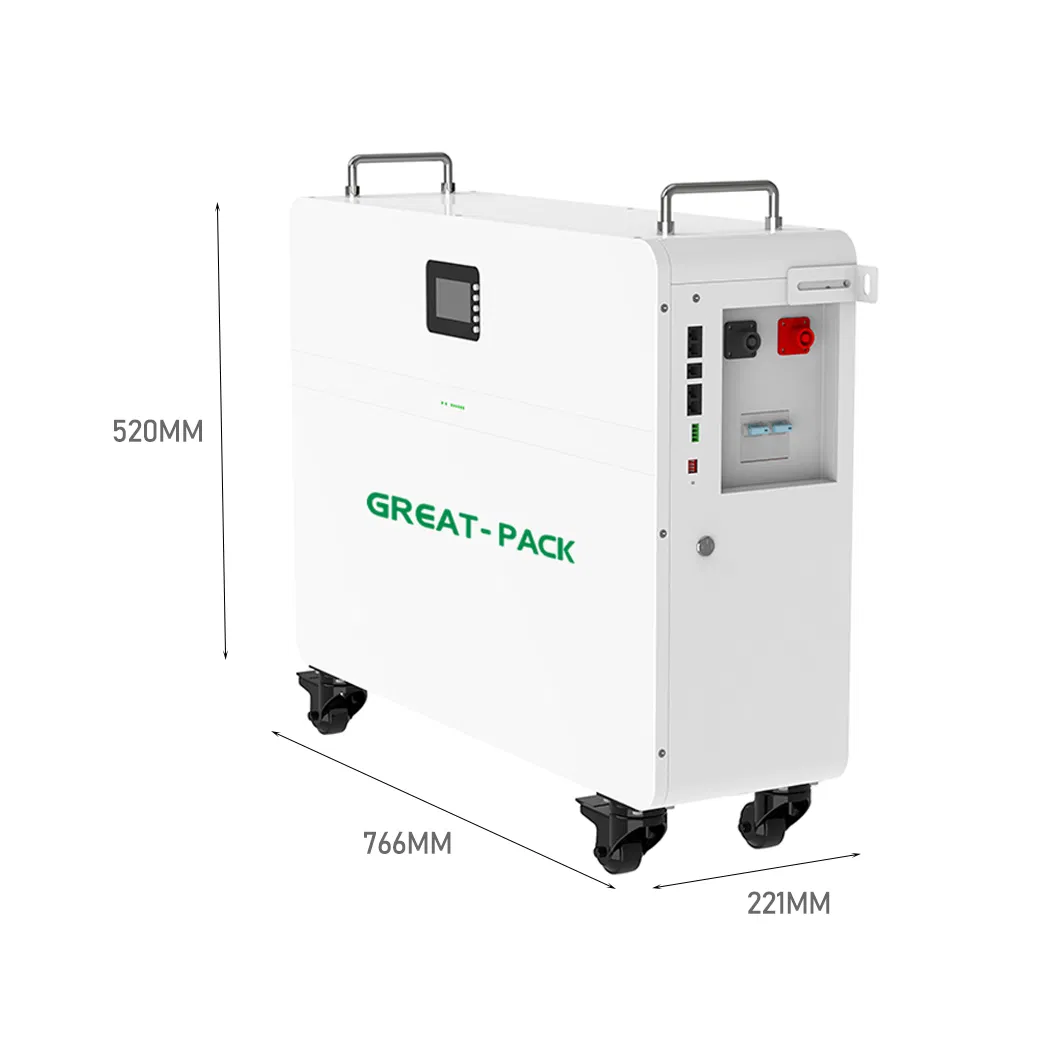

| Size | 766*520*221mm |
| Weight | 125kg |

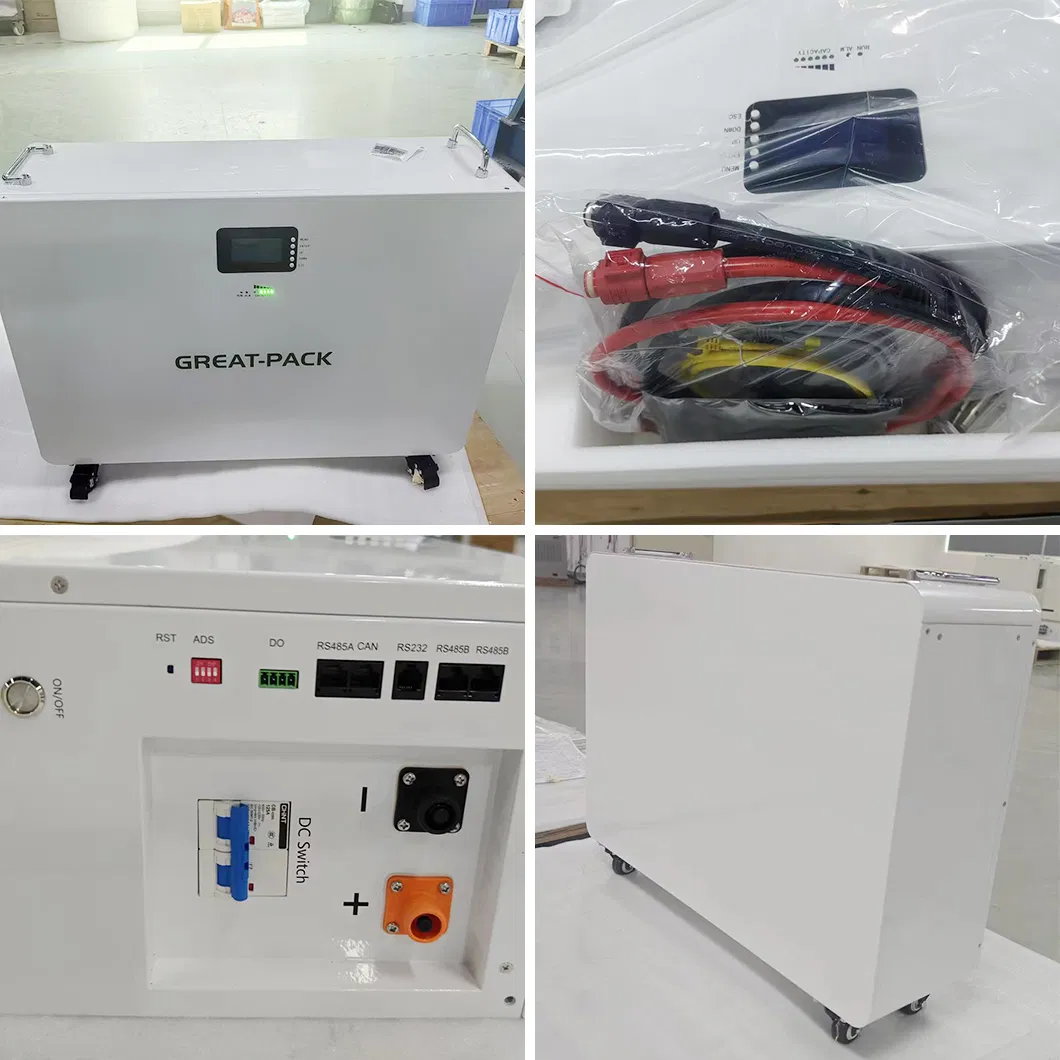

| Communication Method | RS485, RS232, CAN |
| Operation Temperature | 0~50ºC (charge); -20~50ºC (discharge) |
| Protection & Alarm | Over temperature, overcurrent, short circuit, overcharge, over discharge, etc. |
| Certification | CE, MSDS, UN38.8, TUV |
| Design Life | 15 years |
| Warranty | 10 years |
| Waterproof Rate | IP20 |

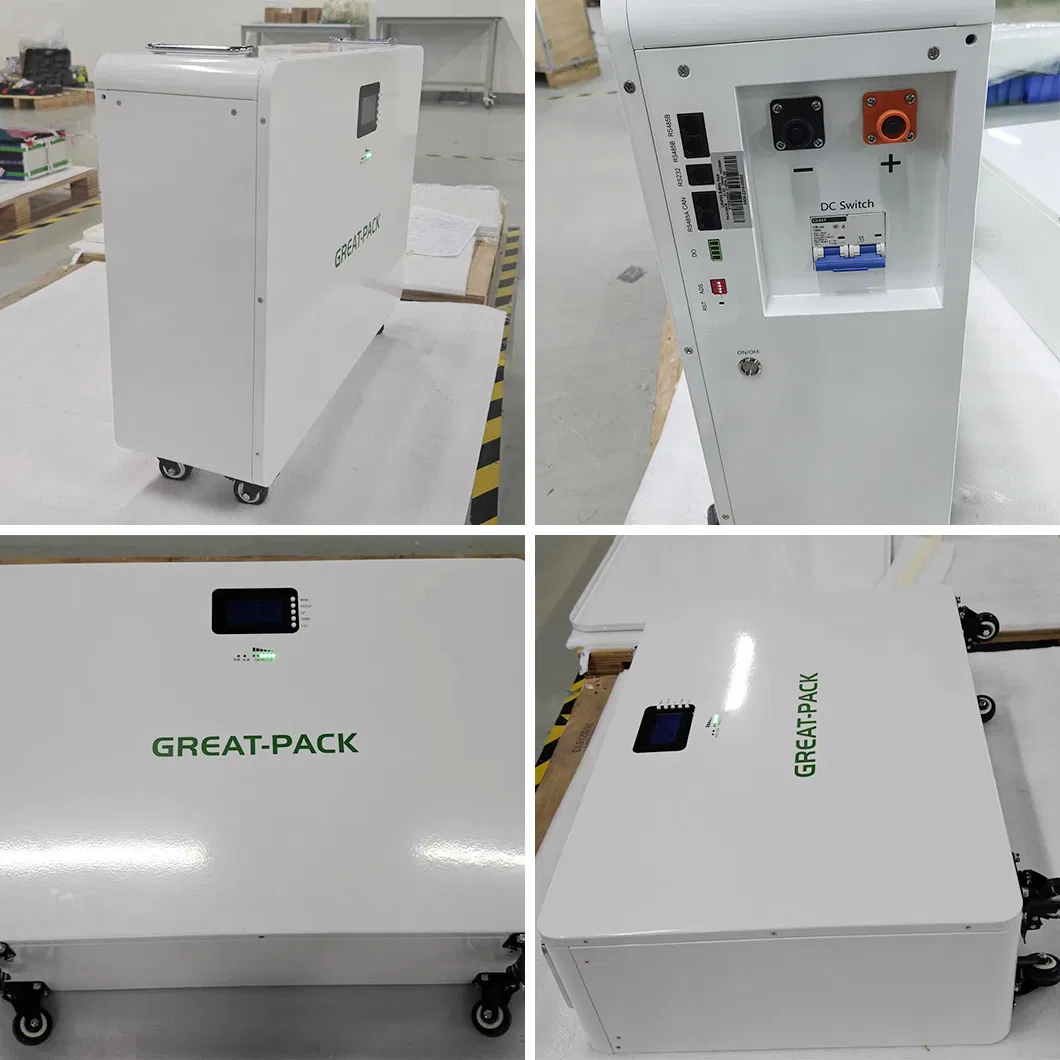

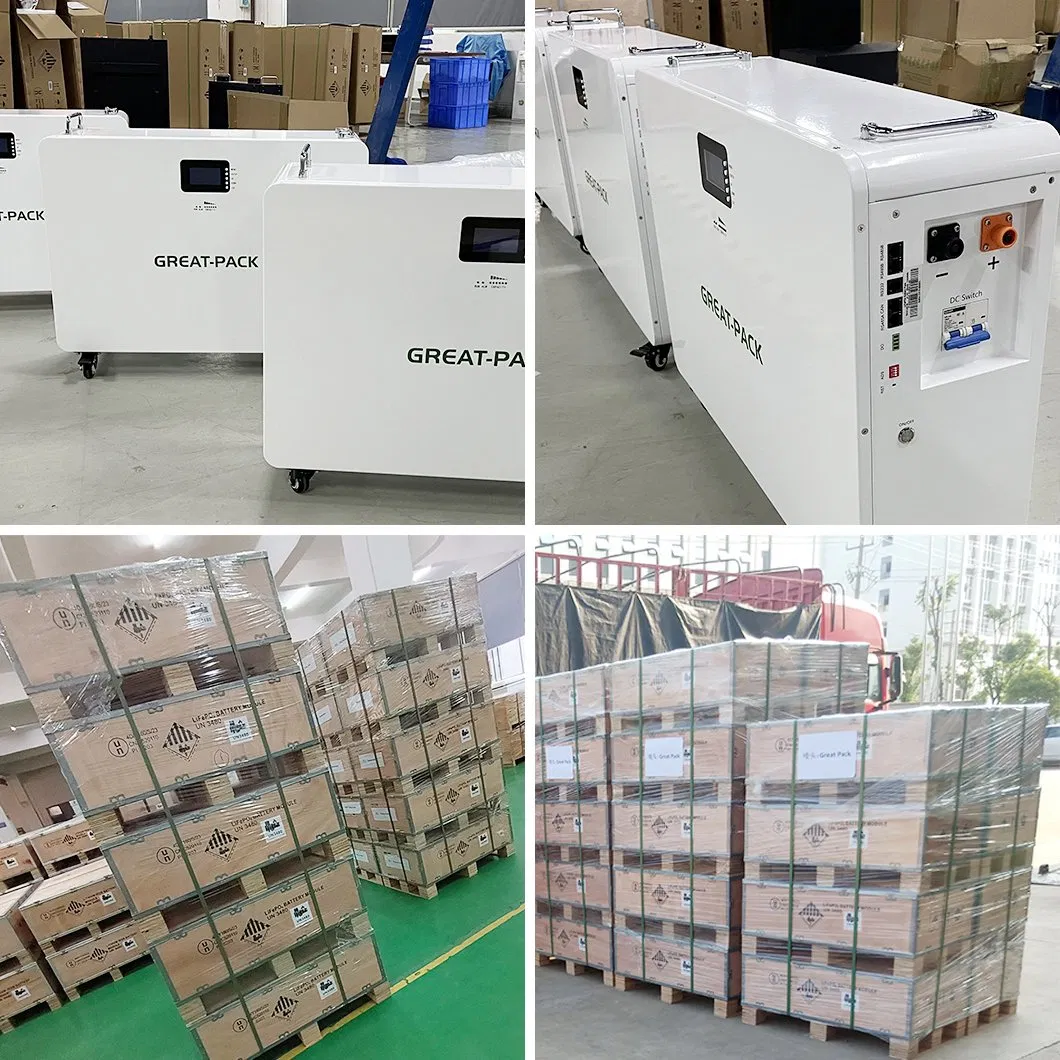

Support Max. 6pcs in parallel up to 86KWh. We have wheels for your moving or installation.

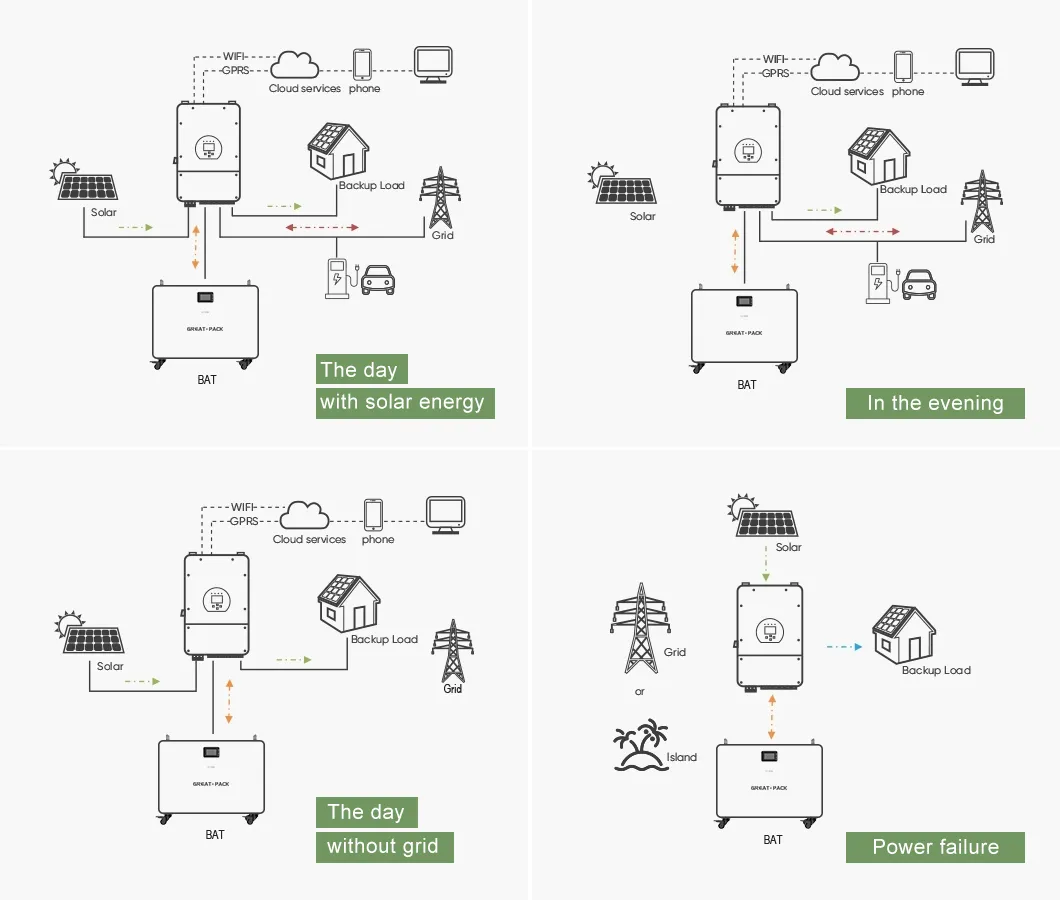

Our battery is widely used in solar systems, wind systems, UPS systems and telecom systems. Especially in photovoltaic off-grid and hybrid systems.
We focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, and solar energy batteries, committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives!

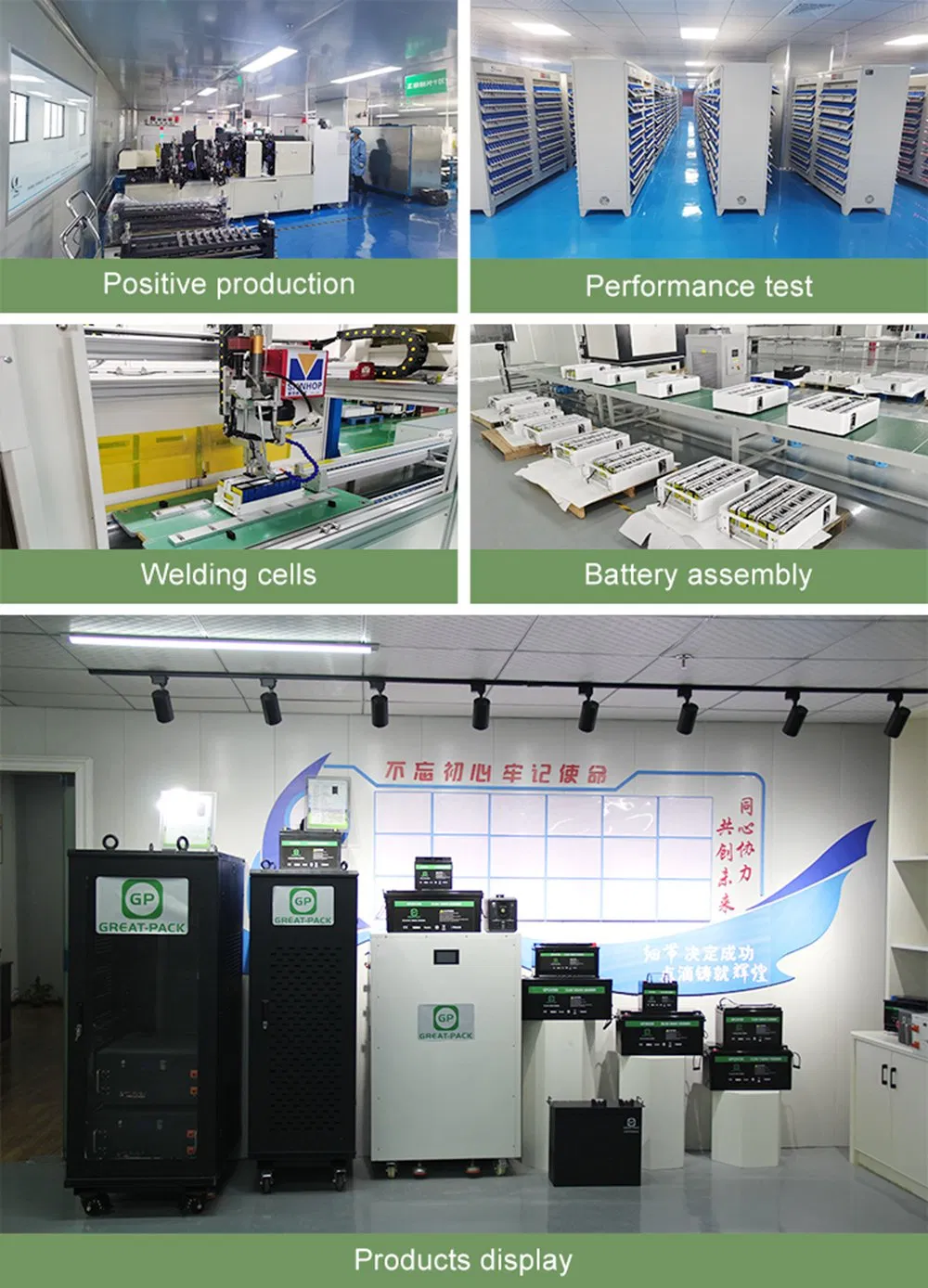

Our team has over 8 years of experience in the lithium battery field and supplies One Stop Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.

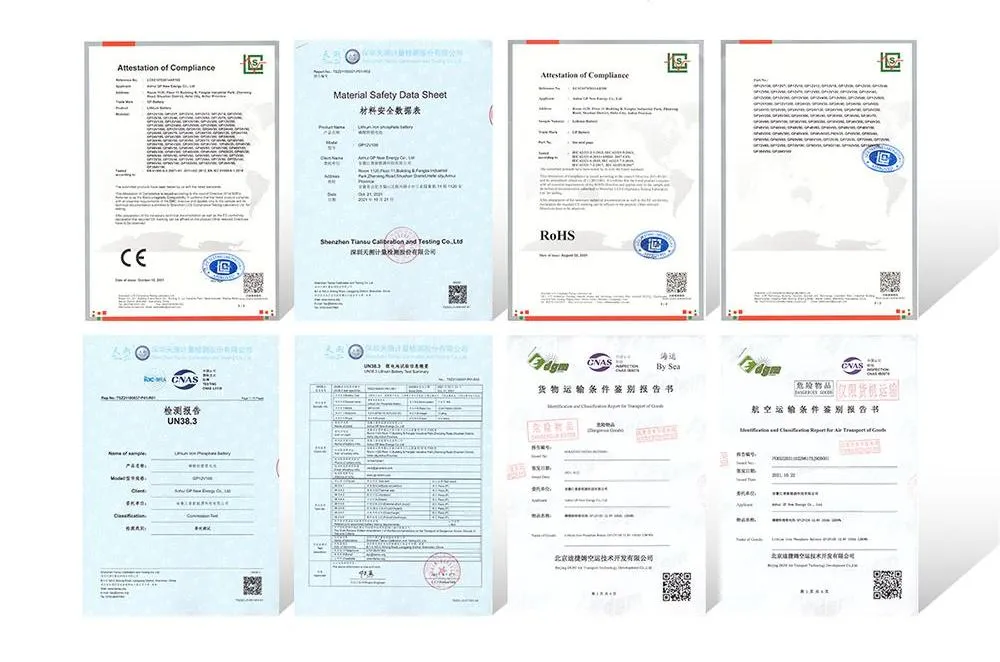

Quality is life, we are committed to supplying high-quality batteries and the best service to our clients all over the world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
