5-20 Kwh Home Supply Solar Electrical Residential Commercial MPPT BMS Lithium Ion Battery Stacked Energy Storage Systems

Basic Info

Model NO. AS-15KW-HYBRID

Condition New

Certification ISO, CE

Application Home, Industrial, Commercial

Specification Normal, OEM

Mounting Support Roof or Ground Solar Mount Bracket

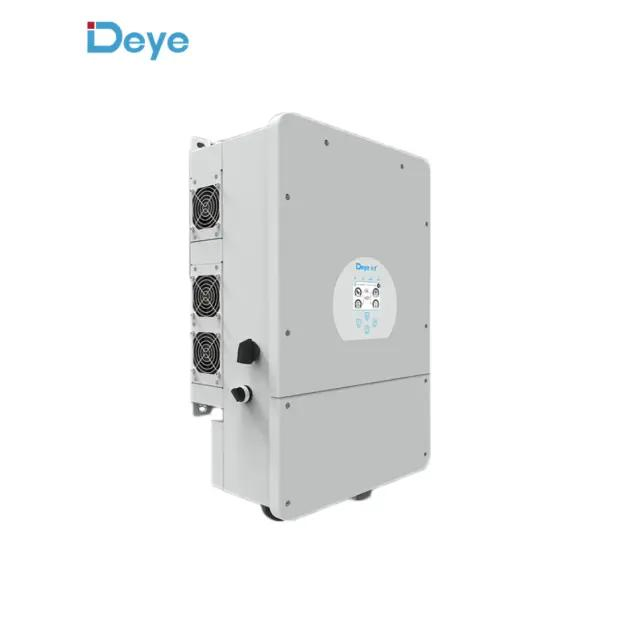

Solar Inverter Deye Hybrid Solar Inverter

System Type Home Solar Power System

Solar Panel Mono Solar Panel

Transport Package Carton/Wooden Box

HS Code 8501802000

Production Capacity 4500sets Per Month

Packaging & Delivery

Package Size 100.00cm * 55.00cm * 30.00cm

Package Gross Weight 35.000kg

Product Description

Home Supply Solar Electrical Residential Commercial MPPT BMS Lithium Ion Battery Stacked Energy Storage Systems

Product Parameters

Hybrid Storage Solar Power System (Low-Medium Power)
Hybrid Inverter (KW)	3.6kw	5kw	8kw	10kw	12kw
550W Mono Solar Panel (Pcs)	6	10	14	20	24
PV Combiner Box (Set)	1	1	1	1	1
Lead Acid Gel/ AGM Battery	48V 100/200AH	48V 100/200AH	48V 100/200AH	48V 100/200AH	48V 100/200AH
Quantity of Battery (Pcs)	1	1	1	1	1
DC Cable (m)	200	200	200	400	400
AC (Grid-connected)	Deye 3.6KW	Deye 5KW	Deye 8KW	Deye 10KW	Deye 12KW
Solar Mounting	Customized

Hybrid Storage Solar Power System (High Power)
Hybrid Inverter (KW)	30KW	50KW	100KW	120KW	150KW
550W Mono Solar Panel (Pcs)	56	96	200	240	280
PV Combiner Box (Set)	1	1	1	1	1
Lead Acid Gel/ AGM Battery	336V-438V 200Ah	336V-438V 200Ah	336V-438V 200Ah	336V-438V 200Ah	336V-438V 200Ah
Quantity of Battery (Pcs)	1	2	4	4	6
DC Cable (m)	400	600	800	800	1000
AC (Grid-connected)	ATESS HPS30	ATESS HPS50	ATESS HPS100	ATESS HPS120	ATESS HPS150
Solar Mounting	Customized

Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

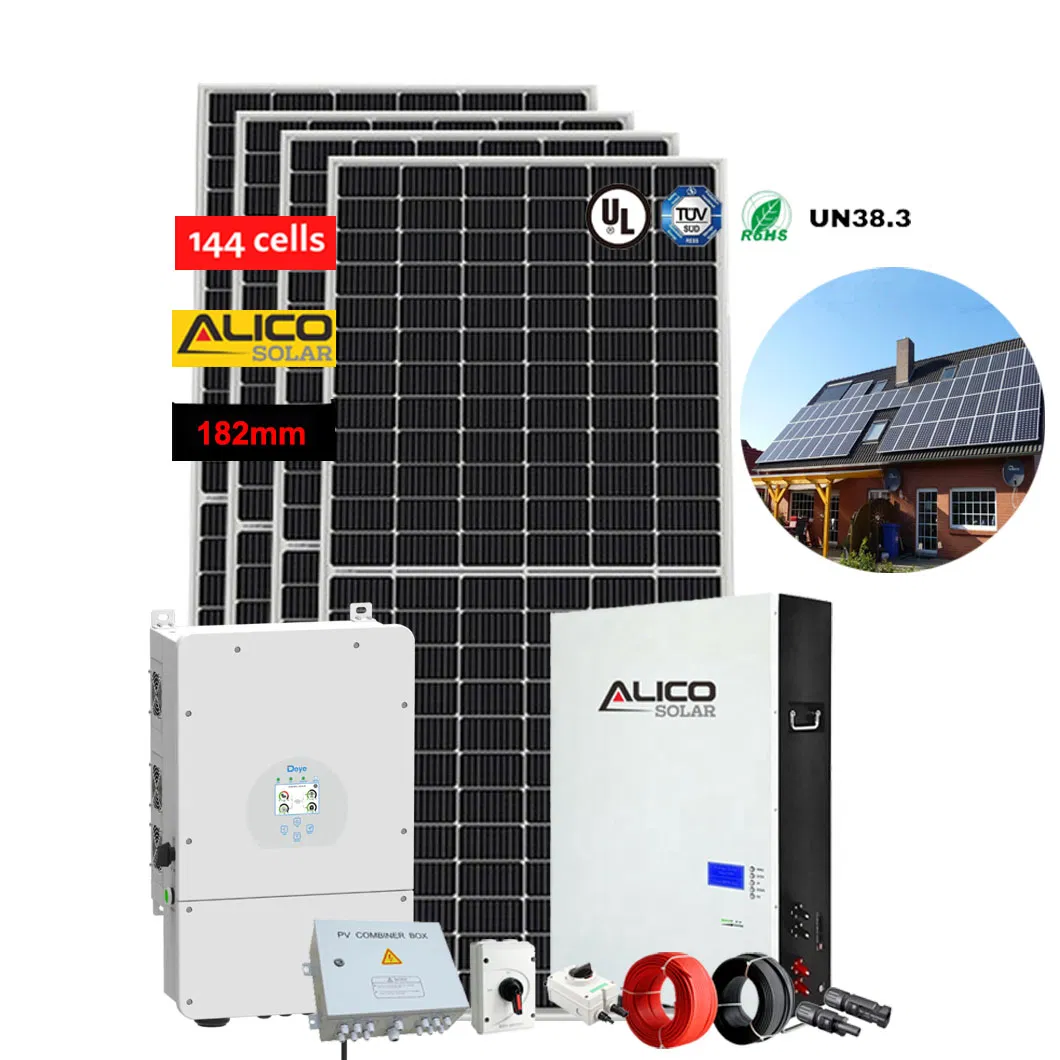

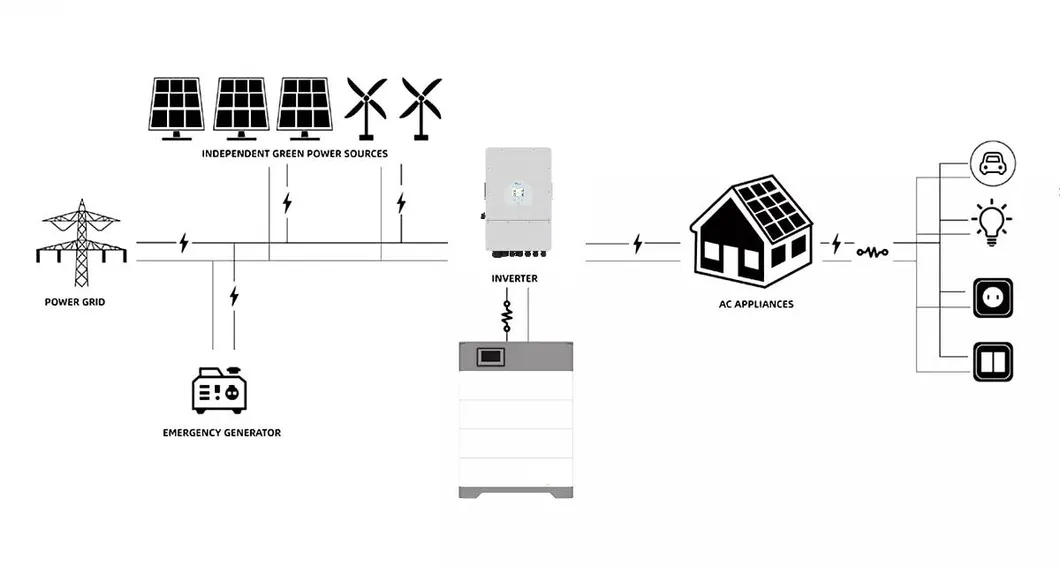

Hybrid Solar System Overview

■ 1. Solar Panel

■ 2. Hybrid Inverter

■ 3. Switch Box

■ 4. Power Meter

System Components Detail

Monocrystalline Solar Panel

Model Type: ASWM6-132-455M
Peak Power Watts: 455w
Open Circuit Voltage: 44.95V
Short Circuit Current: 12.59A
High Efficiency Half Cell Solar Cell
Dimensions: 2108*1048*35mm
Weight: 24kg
Customizable selection options available

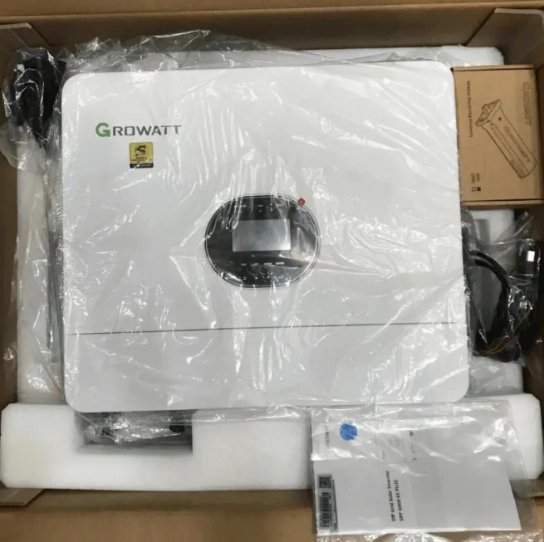

Growatt Hybrid Solar Inverter

All in one hybrid inverter
Seamless on/off grid transfer
Programmable working mode
Supports remote control of DG
Doubled capacity by paralleling 2 units

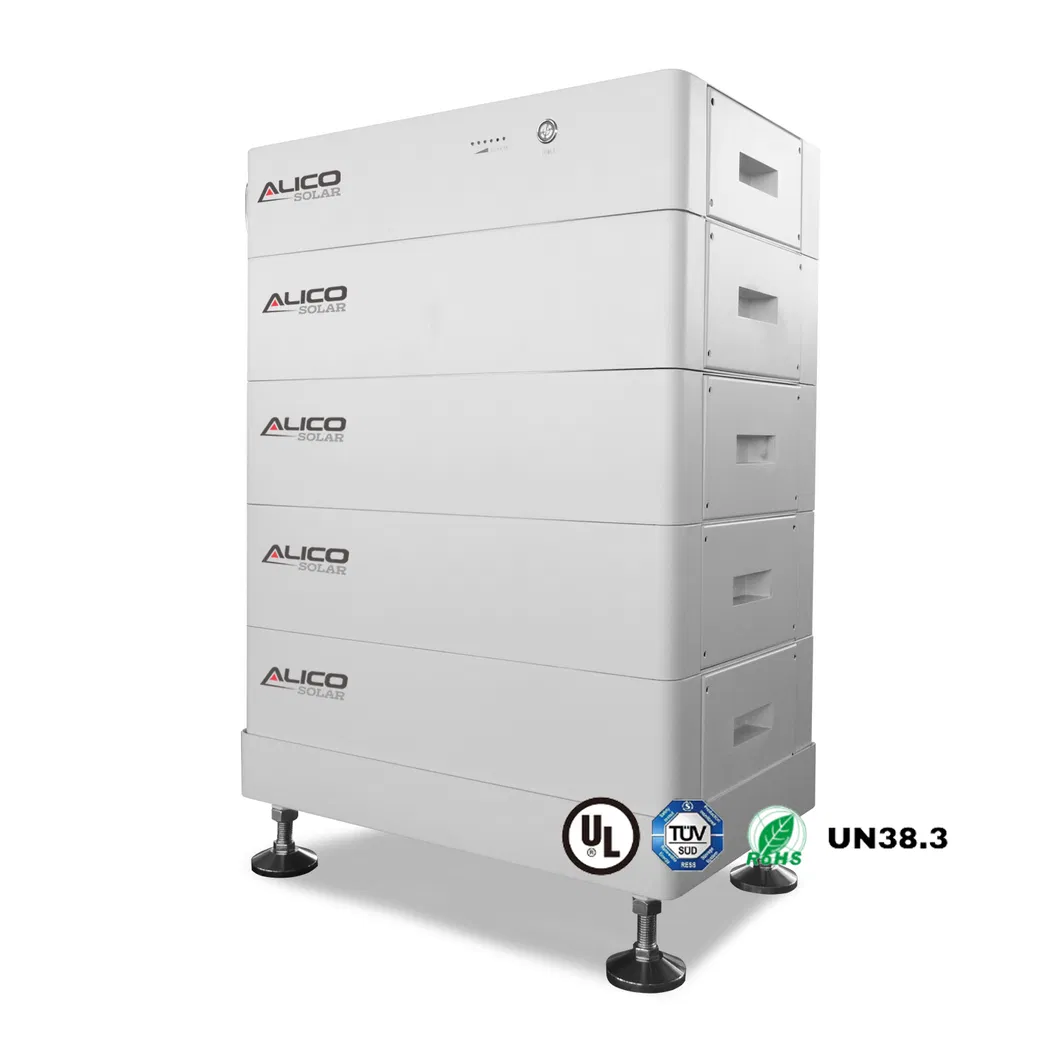

Lithium Battery Stack

Easy installation with modular and stacked design
Flexible capacity options: 2.56kwh ~ 25.6kwh
Excellent safety profile of cobalt-free LiFePO4 battery
Wide operational temperature range: -10°C to 50°C

Lead Acid GEL/AGM Battery

Capacity(kWh): 0.4 / 0.8 / 1.2 / 1.6 / 2.0
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 100 / 150 / 200 / 250AH
Voltage Range(Vdc): 12v
Depth of Discharge: 80%

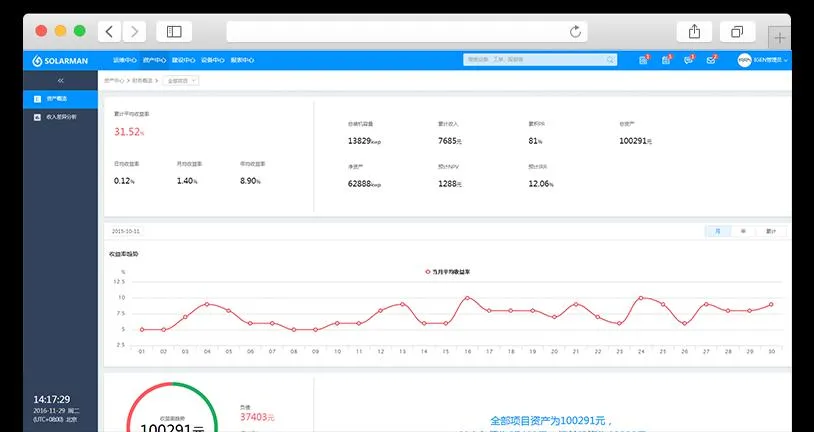

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system, keeping you informed about the situation of your PV system and atmospheric conditions anytime and anywhere. Accessible via Wi-Fi, LAN, or GPRS. App is available for PC, iOS & Android.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

System Accessories

AC Cable
DC Switches
AC Breaker
AC/DC Combiner box

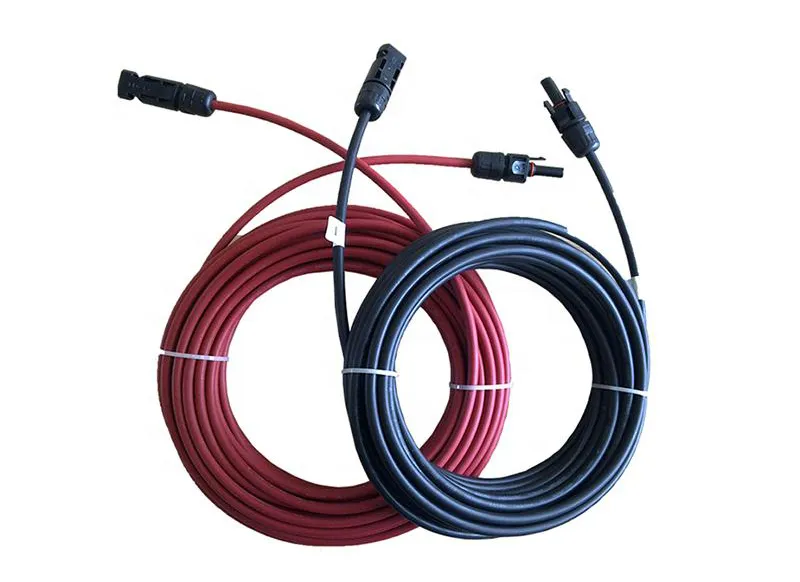

PV Cable (4mm² / 6mm²)

PV Tools

Wire Cable Cutter & Stripper
MC3 MC4 Crimper
MC4 Connectors Assembly & Disassembly Tool

Projects Shown

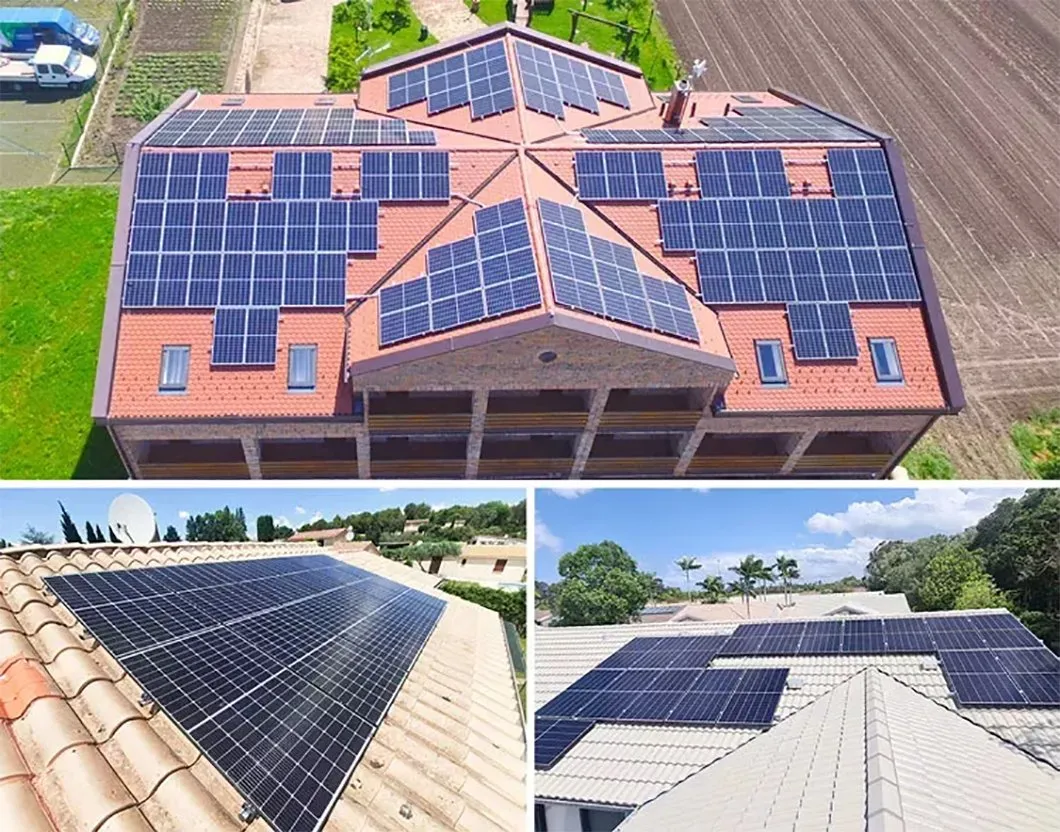

Commercial Solar Installation Project Grid Showcase

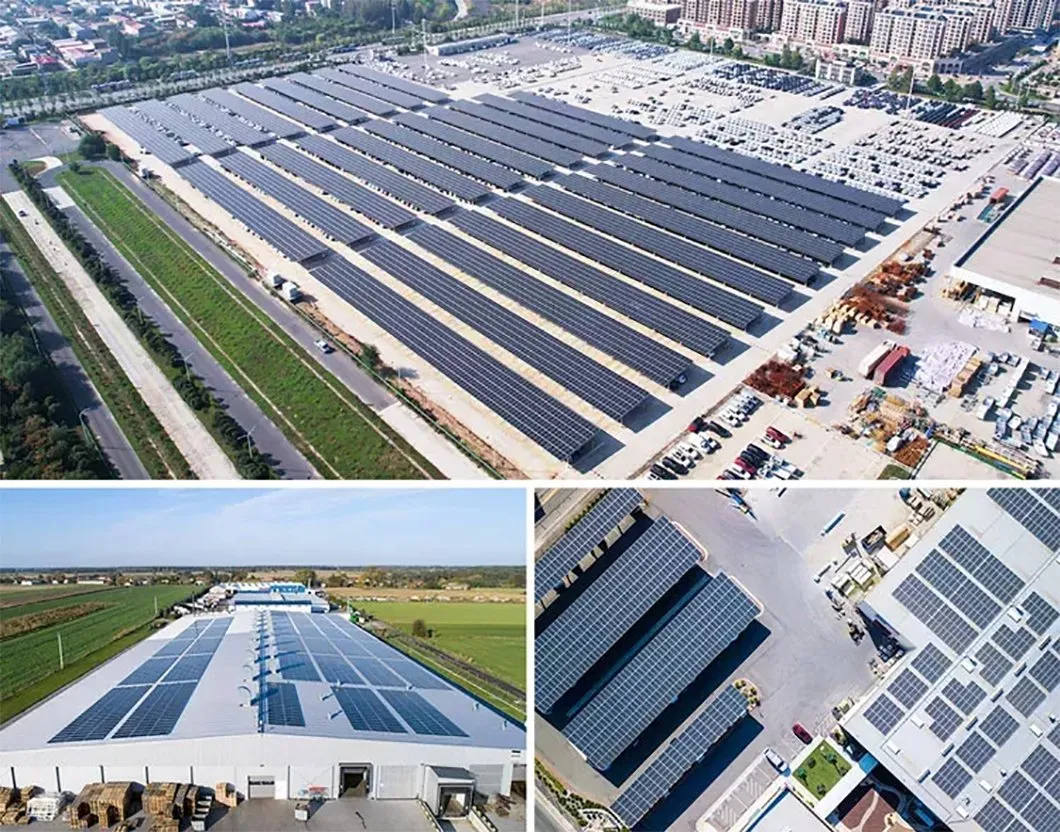

Commercial Roof Solar Project Construction View

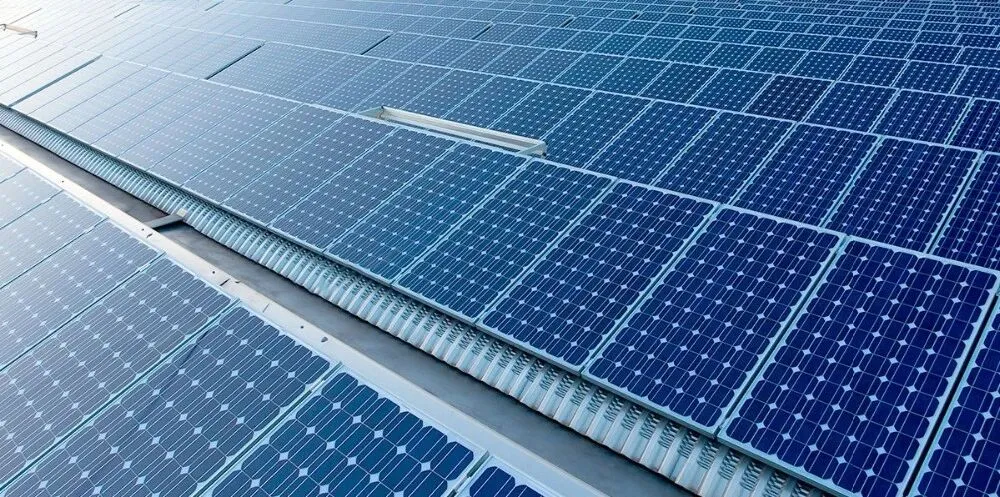

12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015

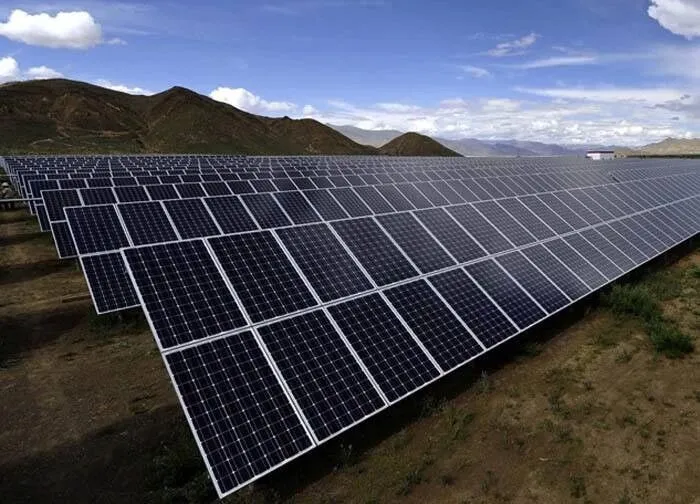

20MW Ground Solar Plant in USA

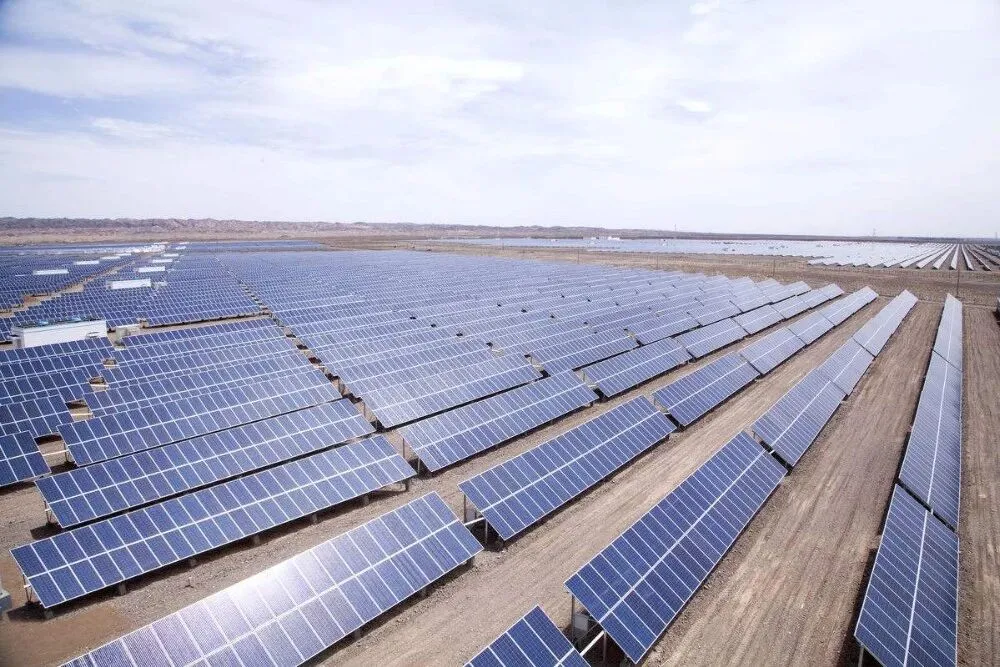

50MW Solar Plant in Brazil

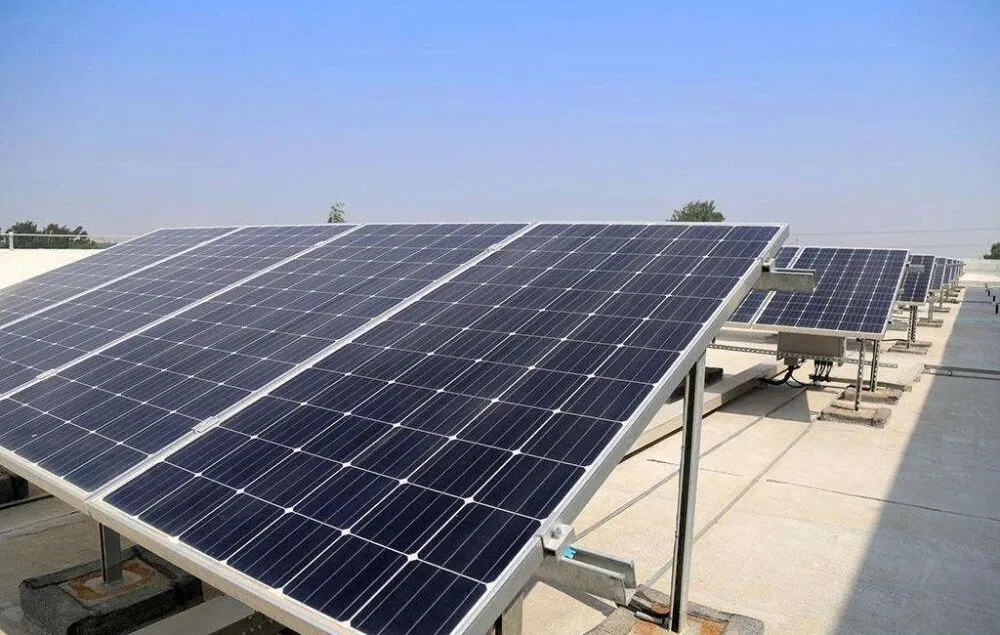

20KW Solar Plant in Mexico

Large Scale Solar Park Project Aerial View

Frequently Asked Questions

What are the advantages of a hybrid solar system over traditional on-grid/off-grid systems?

A hybrid solar power system combines the benefits of grid connectivity and energy storage. It ensures a continuous power supply by seamlessly shifting between grid power, solar output, and stored battery power, optimizing operational energy costs while providing reliable backup during grid failures.

What types of battery storage options are compatible with the system?

The system supports highly versatile storage solutions, including standard Lead Acid Gel/AGM Batteries (various configurations ranging from 48V to 438V options) as well as modular, stacked lithium-ion (LiFePO4) battery systems, offering scalable capacities from 2.56kWh up to 25.6kWh.

How does remote monitoring for the hybrid system function?

The system integrates a Dedicated Data Logging Stick that connects via Wi-Fi, LAN, or GPRS to transmit real-time metrics to our secure web servers. System performance, local weather variations, and operational logs can be managed remotely via compatible PC software or dedicated Android and iOS applications.

Are the mounting systems suitable for different installation environments?

Yes, our customized PV Mounting Systems are designed to support both ground and roof layouts (such as asphalt shingles, metal roofs, and flat concrete slabs). They incorporate high-strength Al6005 alloy rails, SUS304 steel bolts, and optional system components like L-feet, ground clips, and hanger bolts.

Can multiple hybrid inverters be connected to scale up capacity?

Yes, the systems support expandable scaling configurations. For instance, the Growatt Hybrid Solar Inverters support capacity expansion by connecting up to two units in a parallel setup to meet higher load demands.
