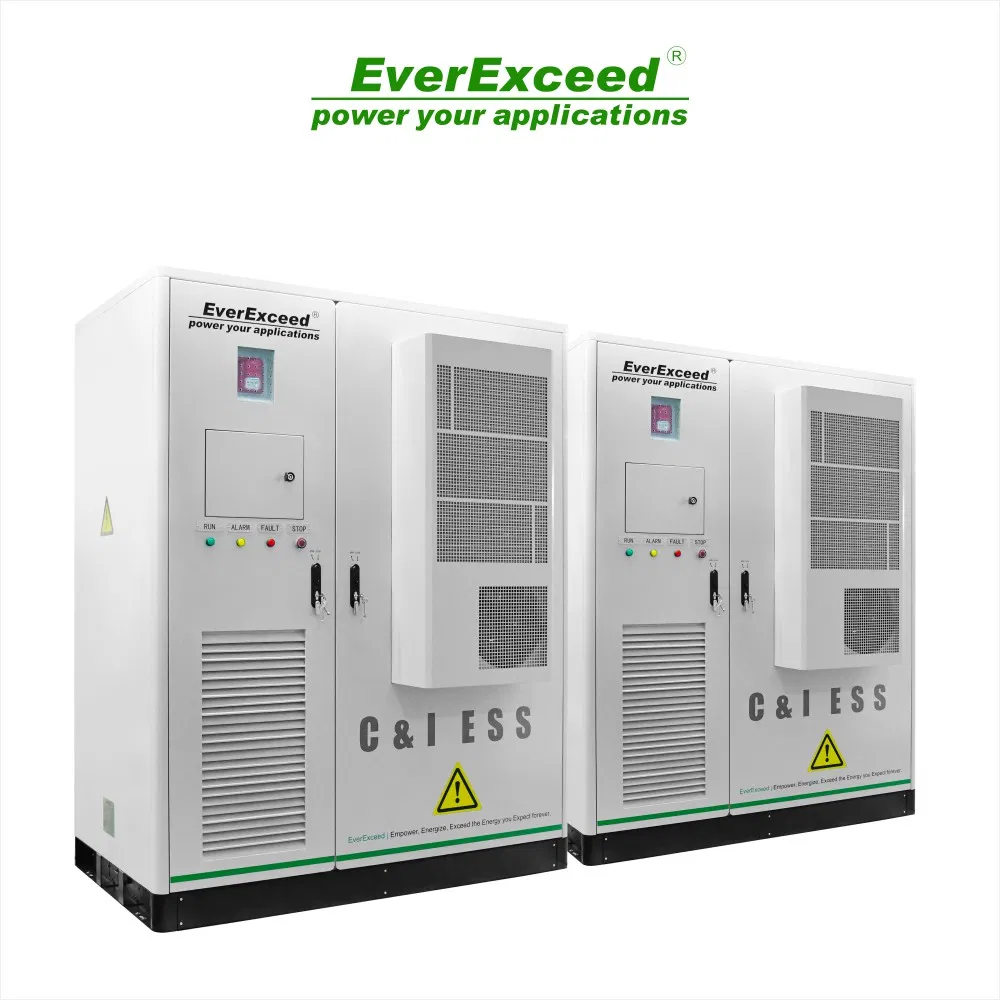

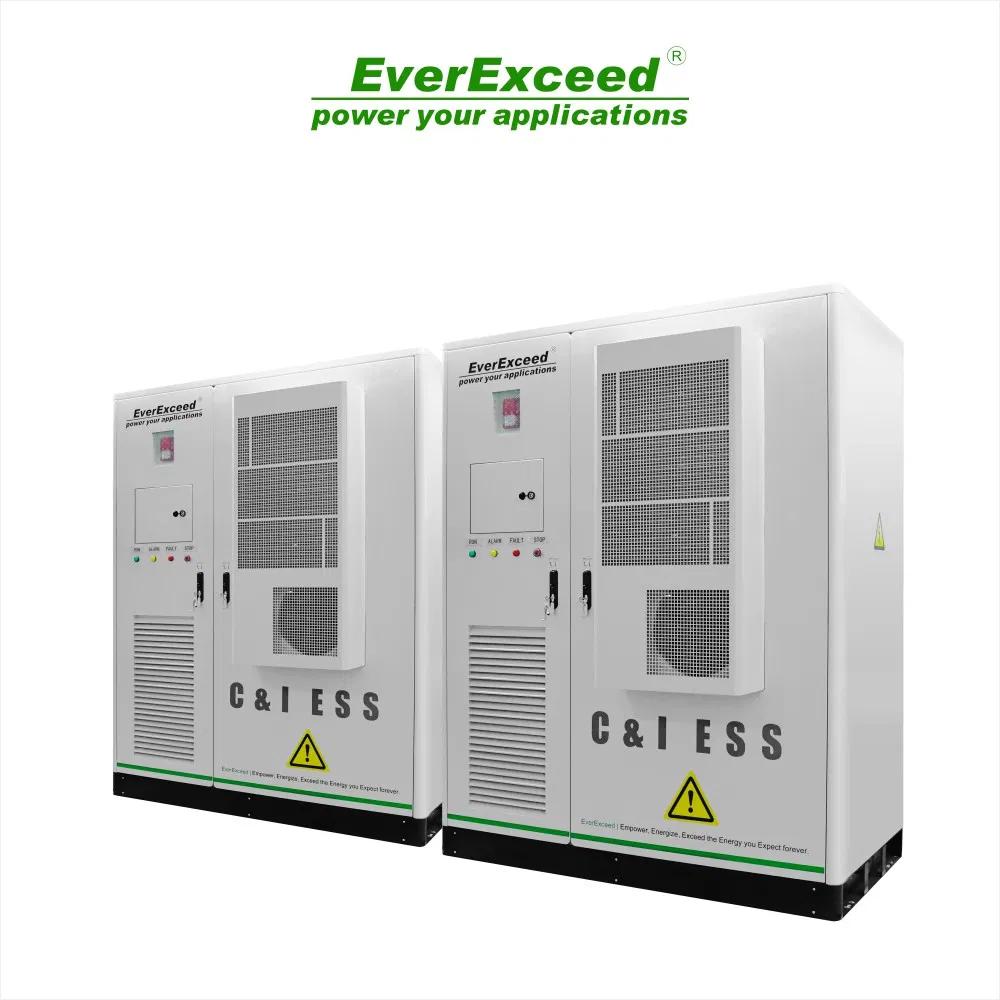

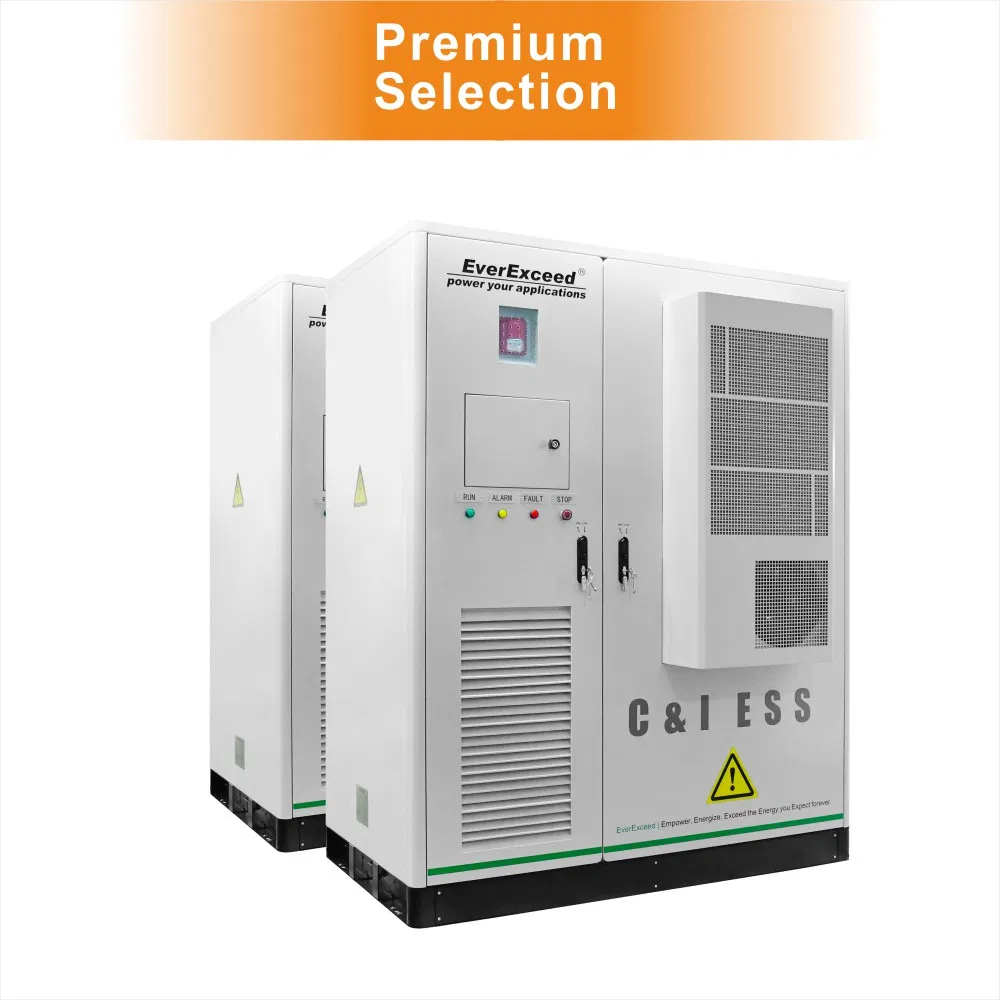

Everexceed 150kw Commercial UPS for Reliable Energy Storage Solutions

Customization:	Available
Phase:	No
Type:	Hybrid

Overview

150kW Commercial UPS Energy Storage System Solution for Reliable Power

150kw Commercial UPS for Reliable Energy Storage Solutions

Basic Info.

Model NO.

CO100K-215E

Protection

Over Voltage, Over Current, Short Circuit etc.

Application

Household, Office etc.

Classification

Energy Storage Solution

Standby Time

Standard Machine

Standby UPS

No

Output Capacity

220VAC

Equipment Mode

Centralized Model

Color

White

Battery Type

Lithium

Ingress Protection

IP21

No.of MPPT

2

Power Factor

0.8 Leading-0.8 Lagging

Thdi

<3%

Inverter Warranty

2 Years

Battery Warranty

5 Years

Transport Package

Carton Box or Wooden Pallets

Specification

1738x1250x2330 mm

HS Code

8504402000

Production Capacity

10000

Packaging & Delivery

Package Size

173.80cm * 125.00cm * 233.00cm

Package Gross Weight

2400.000kg

Product Description

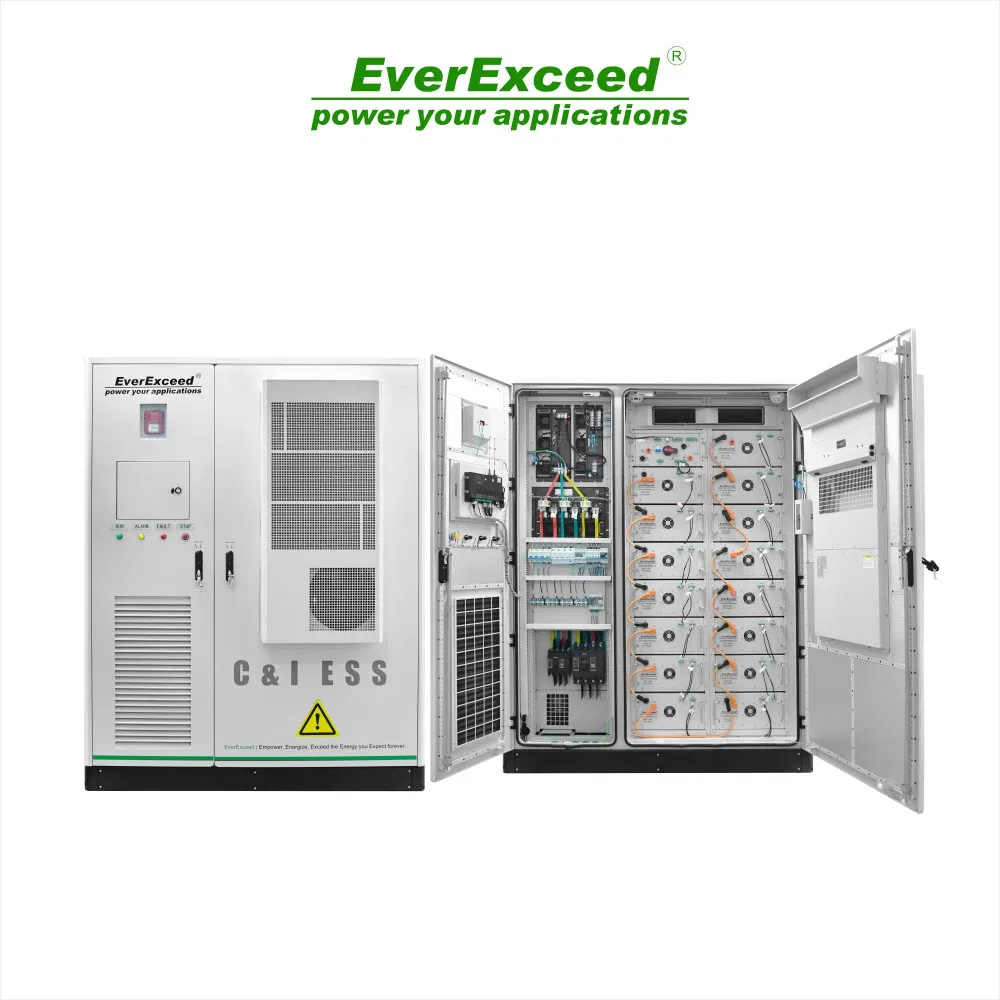

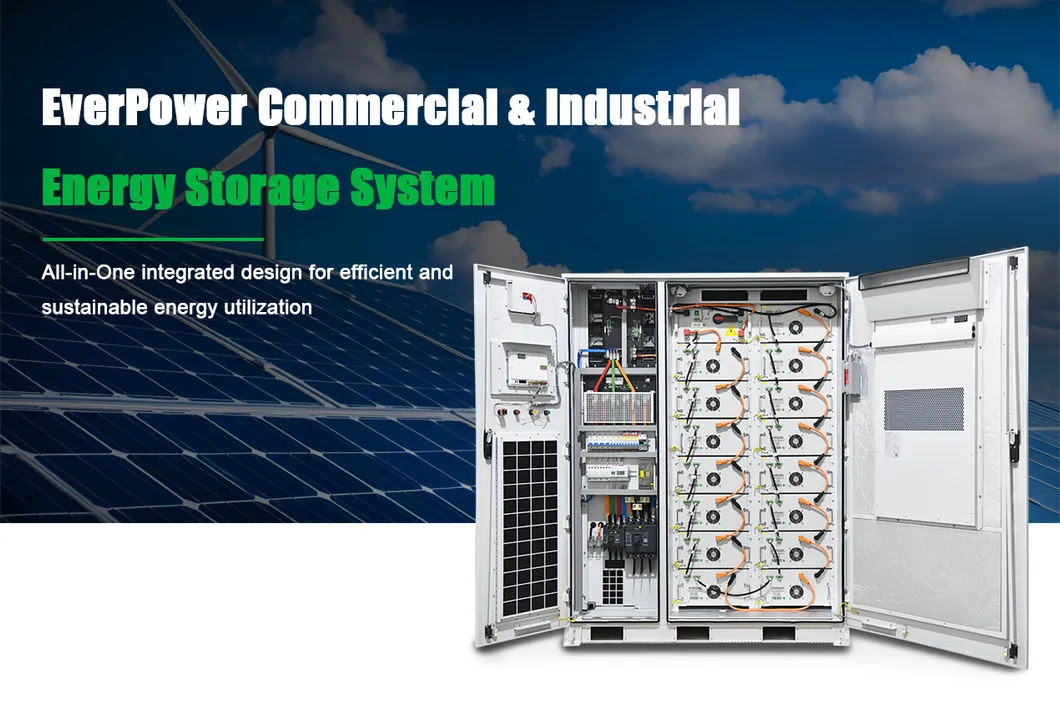

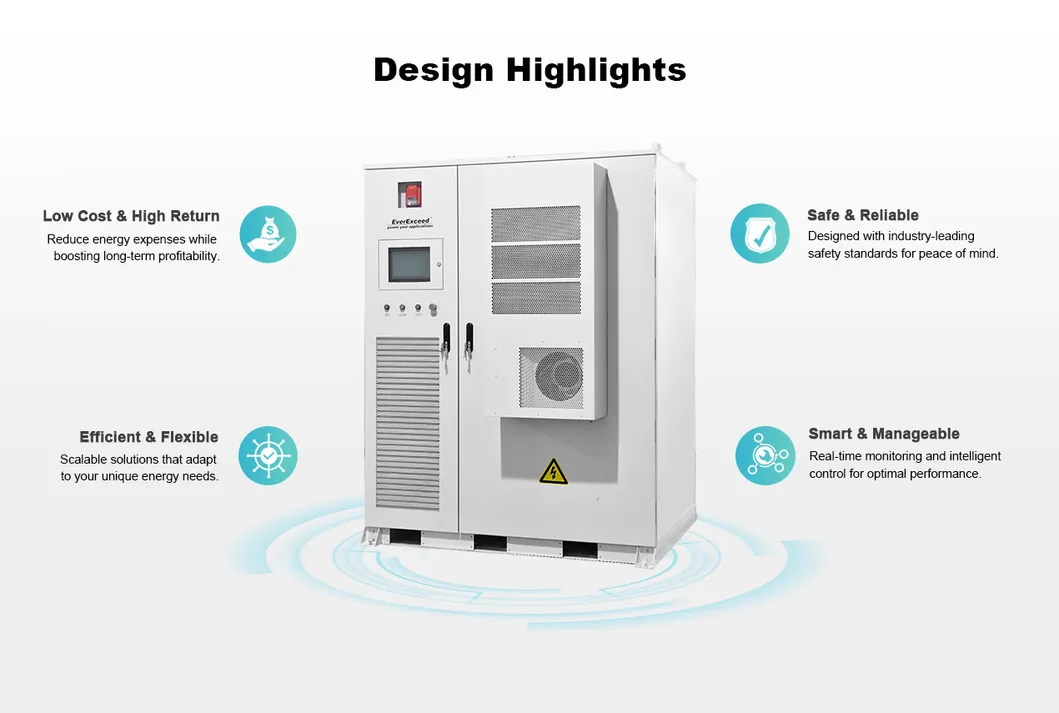

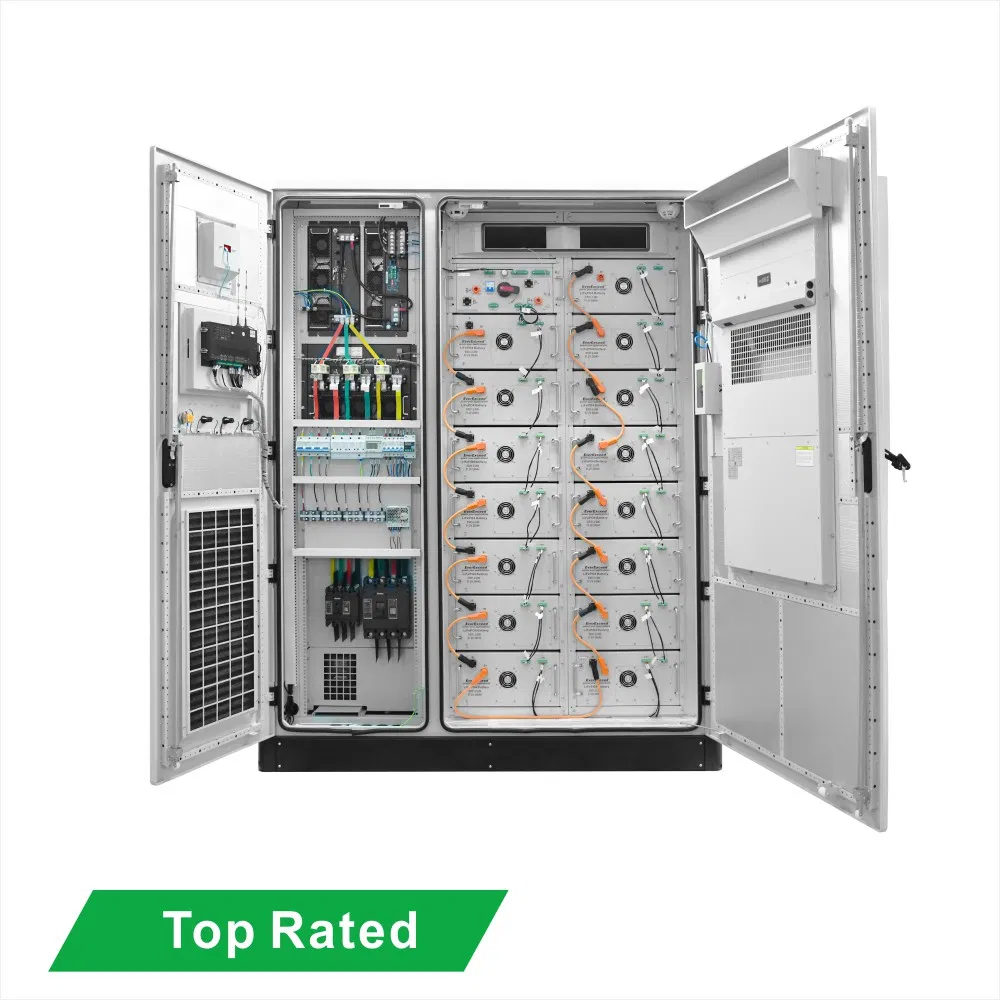

The All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting system, and heat dissipation system in the cabinet. It is a high-power backup power solution serving commercial, industrial, and grid-level customers. This high voltage energy storage system enables the highest flexibility both for rack-mounted and cabinet-based constructions. The system is much "Safer, Smarter, Simpler" and suitable to solve the power problems in substations, outdoor areas, microgrids, small factories, shopping malls, solar storage charging stations, etc.

Features

Wide Compatibility

Wide battery voltage range enables it to be compatible with more operation environments; Fully compatible with lead acid & lithium-ion batteries.

Cold Start Function

Off-grid cold start function, support multi-machine parallel function.

Multiple Protection

Overcharge, Over discharge, Overload, Short-circuit, High temp., Low temp. protection etc.

Dual Power Backup

AC and DC dual power backup to ensure the power supply of the control system.

Energy Consumption

Low power consumption fan, with intelligent temperature control system.

High Efficiency

The highest power density, the highest efficiency is 97.5%.

Independent Inverter Functions

With grid-connected charging and discharging, off-grid independent inverter functions.

Smart Communication Interface

Flexible communication, can accept BMS commands in real time, communication methods are RS485, CAN.

Compact Size

Small size, easy to install, transport and maintain.

This energy storage can meet various scenarios:

Commercial UPS for Reliable Energy Storage Solutions

Product Parameters

Product Model	CO30K-50E	CO50K-100E	CO100K-215E	CO150K-300E
Electrical Parameter
Nominal AC power	30 kW	50 kW	100 kW	150 kW
Grid Type	3W+N
Nominal Grid Voltage	400 Vac
Nominal Grid Voltage Range	360 Vac - 440 Vac
Nominal Grid Frequency	50 Hz / 60 Hz
Nominal Grid Frequency Range	45 Hz - 55 Hz / 55 Hz - 65 Hz
Rated AC Output Current	43.5 A	72 A	152 A	200 A
Max.THD Of Current	<3% (at nominal power)
Battery Parameter
Cell Chemistry	Lithium Iron Phosphate (LFP)
Battery Voltage	512 Vdc	358 Vdc	768 Vdc	563 Vdc
Battery Ampere Hour Capacity	100 Ah	280 Ah	280 Ah	560 Ah
Battery Energy Capacity	51.2 kWh	100 kWh	215 kWh	315 kWh
Duration @ Rated Power	2 hrs
Cycle Life	6000+ cycles	10000+ cycles	10000+ cycles	10000+ cycles
Calendar Life	15+ years	20+ years
Compliance	IEC62619, UL9540A, UL1973, UN38.3
Mechanical parameter
Monitoring System	Energy Management System
Cooling Method	Air-Conditioner
Fire Fighting System	yes
Noise Emission	≤75dB
Communication Interfaces	Ethernet, RS485
Operating Temperature Range	-20ºC to 50ºC (>45ºC Derating)
Allowable Relative Humidity Range	0 - 95 % (Non-Condensing)
Degree Of Protection	IP54
Max. Working Altitude	3000 m
Dimensions (WDH)	800x1200x2100 mm	1000x1450x2100 mm	1738x1250x2330 mm	*
Weight	800 Kg	1200 Kg	2400 Kg	*
Solar parameter (Optional)
Max. PV Input Power	38.4 kW	60 kW	120 kW	240 kW
Max. PV Input Voltage	850 Vdc		900 Vdc
MPPT Voltage Range	200 Vdc - 800 Vdc		200 Vdc - 850 Vdc
Number Of MPPT	1	2	1	2
Number PV Input Of Per MPPT	2	2	4	4
Max. Current Per PV input	25 A	25 A	60 A	60 A
* The size and weight will be customised according to the requirements.

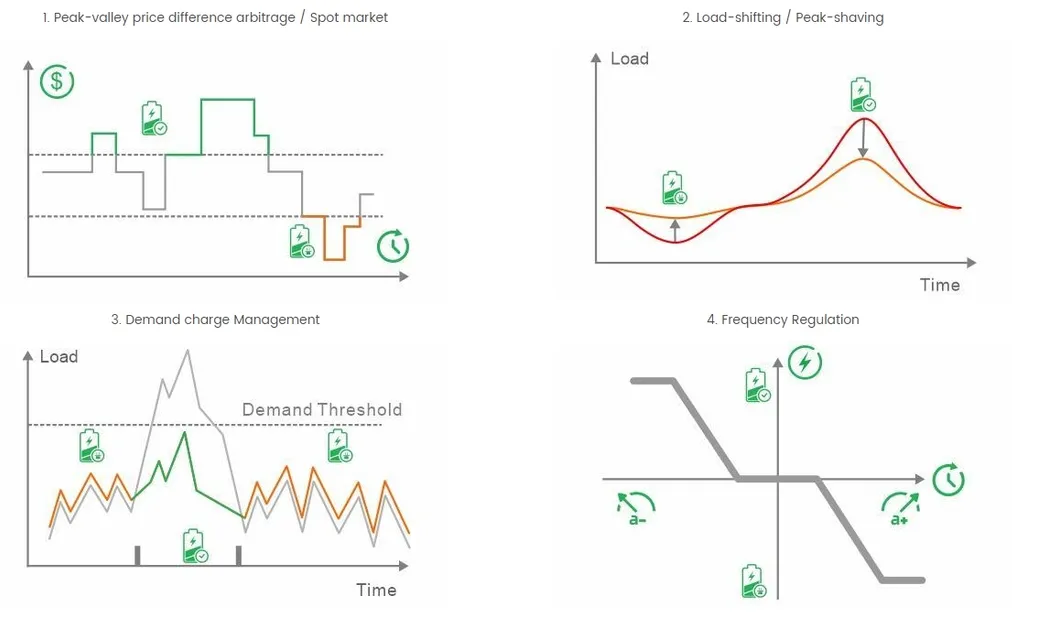

Application

Solar+ Storage for applications with uninterrupted power supply.
Solar + Storage+ generators for Off-grid applications with cheap power supply.
Peak load shifting for TOU (Peak-to-Valley) tariff arbitrage to saving electricity cost.
Peak shaving for reduce demand charge.
Backup power.

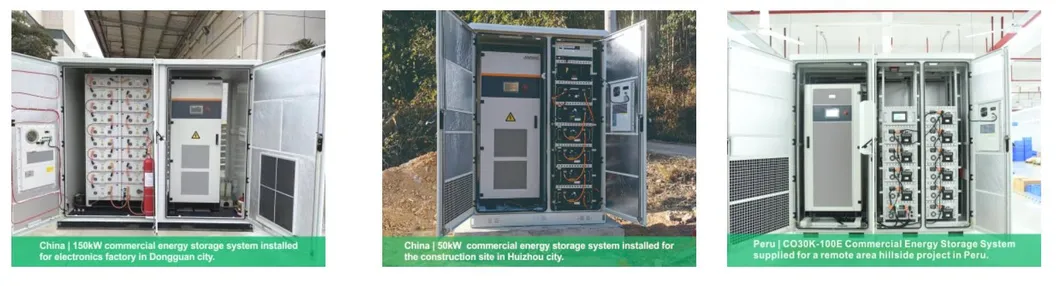

Cases

Shipping & Payment
Payment	T/T, L/C, Cash, Western Union etc. (flexible payment terms can be discussed)
Port	Normally main sea port (upon request)
Delivery	By sea/air/train/truck transportation
Delivery time	Normally 4 weeks ex factory excluding shipping.
Packing	Pack in carton box then pallet (wooden box)

FAQ

What is a commercial battery storage system?

A clean energy solution that enables flexible electricity use by storing electrical energy. It can store low-cost electricity or renewable energy, such as solar and wind power, during off-peak hours and release it during peak hours, helping businesses:

Save on electricity costs - Store low-cost energy and use it during peak times to avoid high electricity prices.
Ensure power reliability - Automatically switch to backup power during unexpected outages.
Support sustainability - Maximize green energy usage and reduce carbon footprint.
Generate additional revenue - In some regions, excess electricity can be sold back to the grid.

How do commercial battery storage systems work?

Commercial battery storage systems capture, store, and provide electricity when needed through four key stages:

Charging: Electricity from the grid or renewable sources (solar, wind) is stored in batteries as chemical energy.
Storing: The energy remains stored until needed, offering flexibility for businesses.
Discharging: When required—during peak demand, outages, or low renewable output—the system converts stored energy back into electricity.
Managing: A smart management system optimizes charging and discharging based on energy prices, demand, and business needs.

What are the benefits of using a commercial battery storage system?

Key benefits include:

Energy Cost Savings: Shift load and shave peak usage to reduce high utility bills.
Lower Demand Charges: Limit maximum draw from the grid.
Power Reliability: Seamless backup power for critical business facilities.
EV Charging Support: Buffer EV charging loads to prevent local grid overloading.
Sustainability: Maximize renewable integration and lower carbon footprints.

How much energy can a commercial battery storage system store?

The storage capacity varies by size and purpose, measured in kilowatt-hours (kWh). Small systems range in tens of kWh, while larger industrial systems can scale from hundreds to thousands of kWh to match high-demand business requirements.

How long can energy be stored in commercial battery storage systems?

Most commercial batteries are designed for daily cycles. Lithium batteries can hold their charge for months, losing only 2-3% per month when idle. The system lifespan is generally 10-20 years with proper maintenance, depending on usage and environmental factors.

What are the key differences between Commercial, Grid-Scale, and Residential storage?

Scale & Purpose: Residential supports home appliances, Commercial optimizes facility bills and backup, Grid-Scale balances regional grid fluctuations.
Key Features: Grid-scale focuses on regional stability; Commercial cuts peak tariffs and demand charges; Residential runs household essentials off solar.
Approvals & Timelines: Residential takes 2-4 weeks; Commercial requires fire safety checks and business licensing (3-6 months); Grid-Scale requires complex government permits and grid agreements (1-3 years).
