Product Description

RELIABLE WALL-MOUNTED HOME BATTERY STORAGE SYSTEM

Upgrade home energy management with our compact, high-performance LFP battery for residential and light commercial use.
Scalable from 2.56kWh to 16.07kWh, this system offers 6000+ cycle life at 80% DOD ensuring reliability.
Space-saving wall-mount design, with built-in intelligent BMS, ensures safety and easy installation.
Ideal for solar storage, backup power, or off-grid use, connect up to 15 units for a customizable solution.

Model		SMP-NU003	SMP-NU004
Battery pack parameters

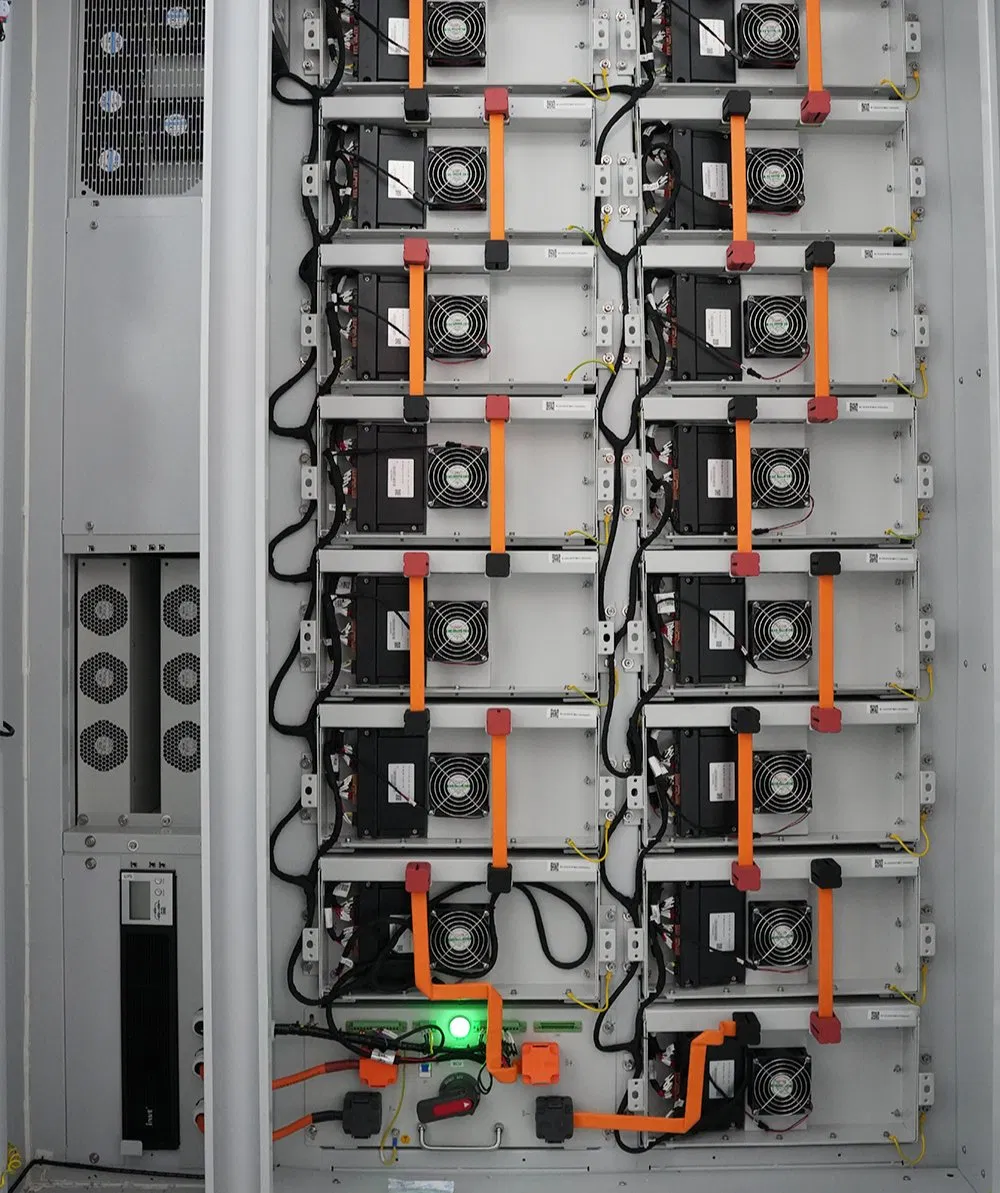

Battery pack model		768V280Ah	832V280Ah
Nominal energy		215.04kWh	232kWh
Working voltage range		672~864V	728V~936V
BMS communication protocol		Ethernet/RS485/CAN	Ethernet/RS485/CAN

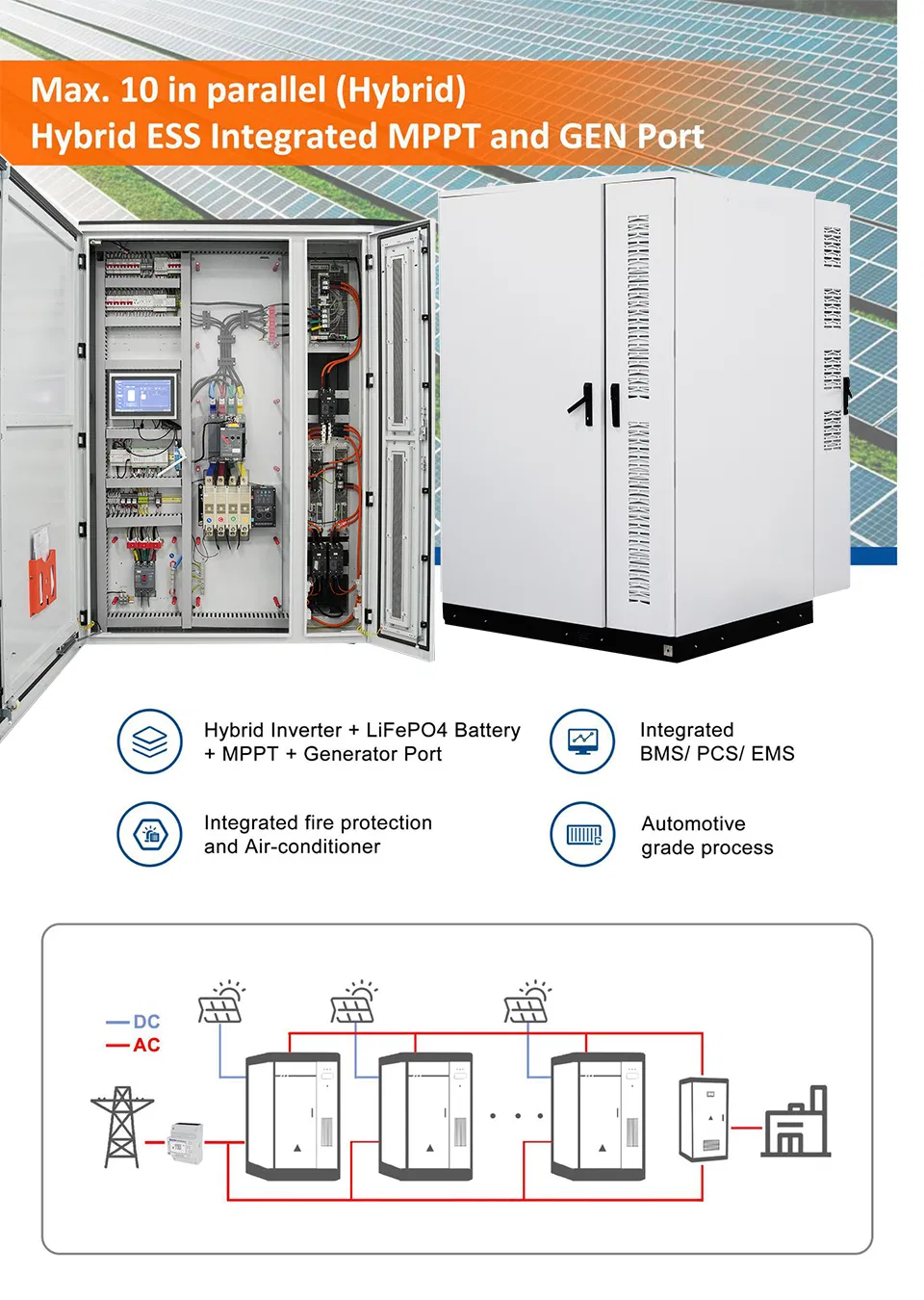

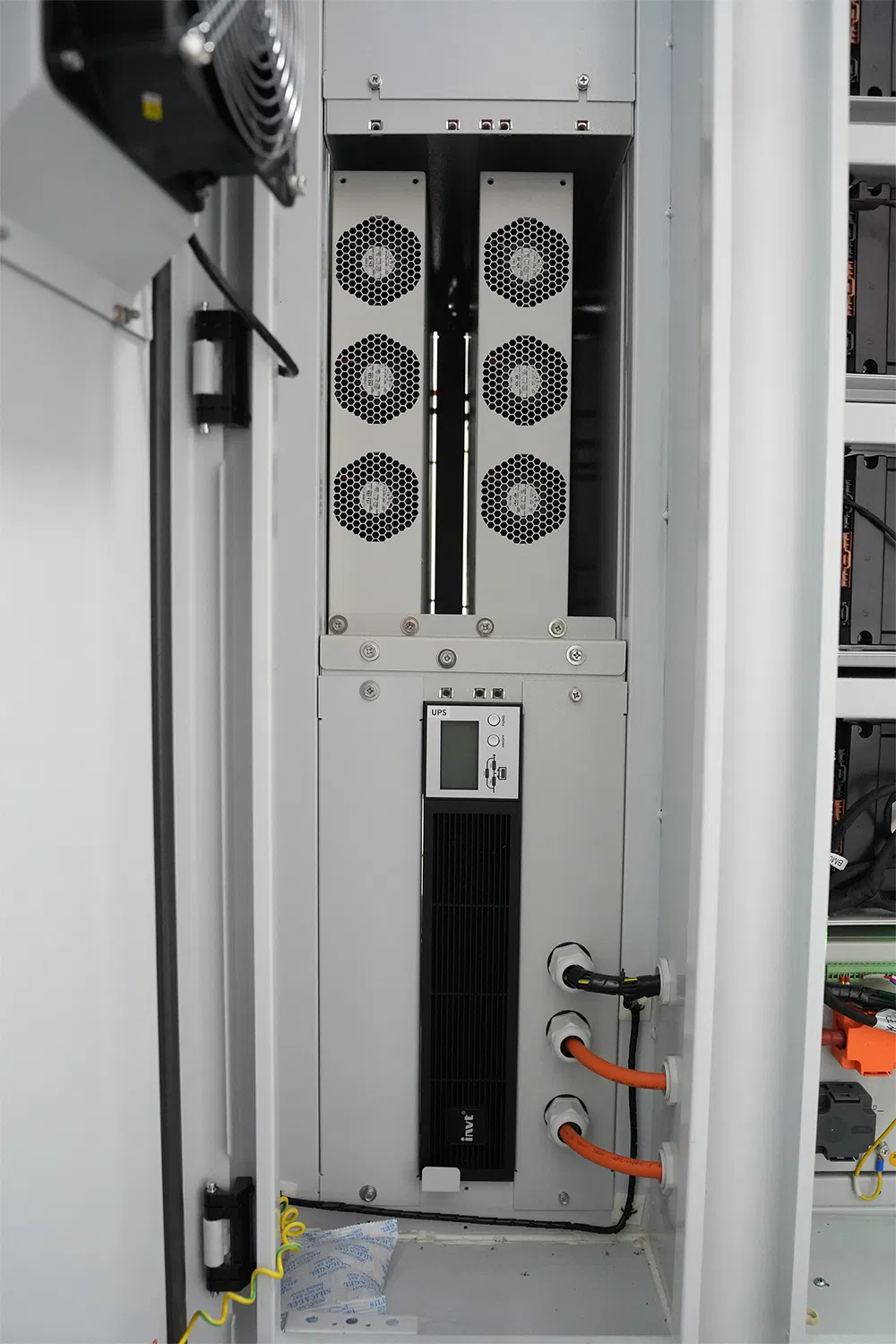

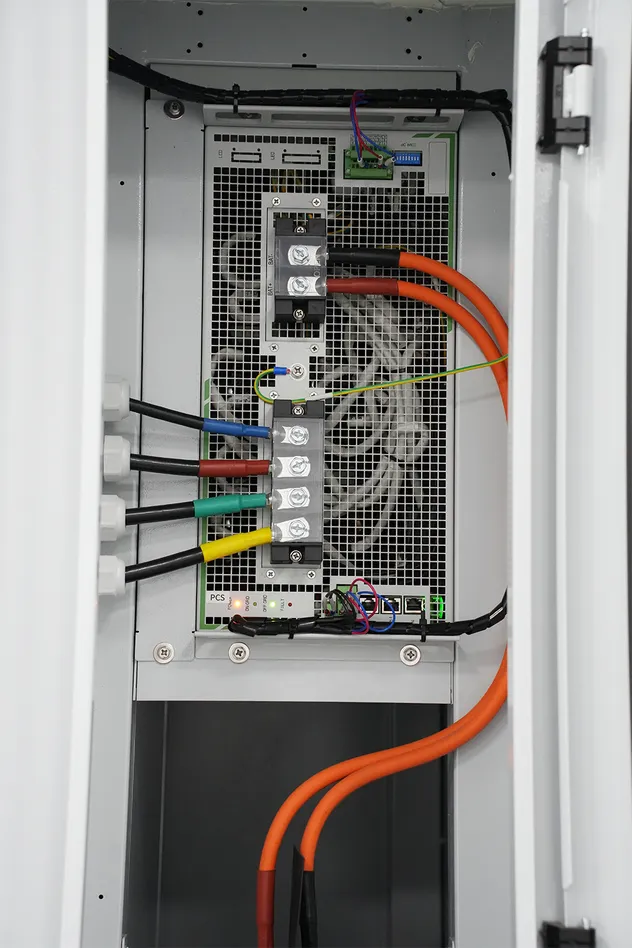

Energy storage inverter parameters
Grid side parameters	Rated AC power	100kW
	Maximum AC power	100kW
	Maximum AC current	150A
	Rated grid voltage	380V
	Rated grid frequency	50/60Hz
DC side parameters	Maximum input voltage	950V	936V
	Battery pack voltage range	140A
	Battery pack voltage range	650~950V	728~936V
MPPT parameters
Low voltage side	Rated power	100kW
	Rated current	320A
	MPPT voltage range	200~650V (320~650V full load)
HV side	Rated power	100kW
	Rated current	100A
	Voltage operating range	350~1000V
General parameters

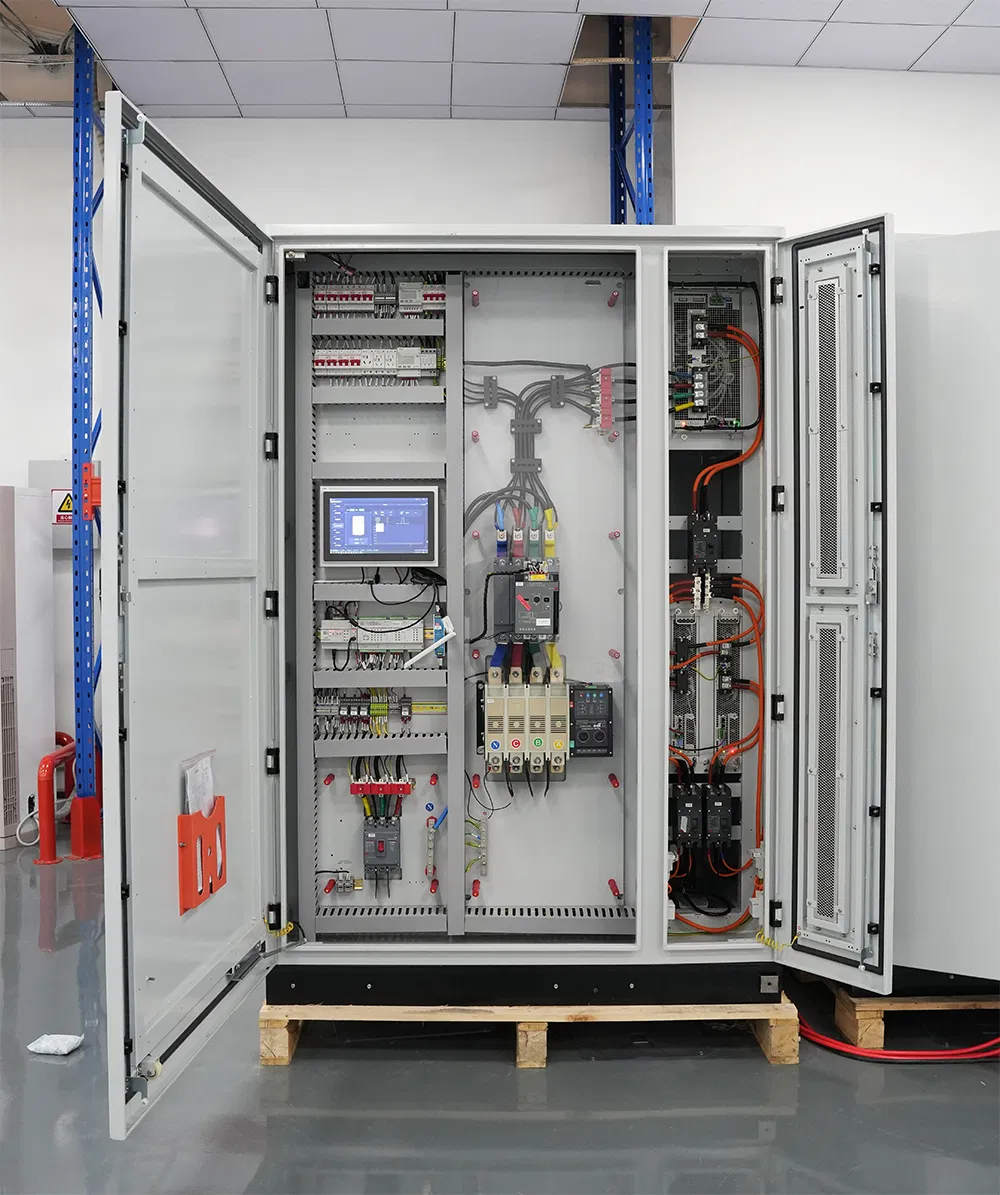

Storage cabinet size		150023061539mm	135020501350mm
IP rating		IP54
Working temperature		-20~55℃
Refrigeration method		Air cooling	Liquid cooling
Certification		CE/ UN38.3/ RoHS
Product net weight		3500kg	2500kg
