CCSC Energy
1 / 5
| Model NO. | SMP-NU003 |
| Warranty | 5 Years |
| Nominal Capacity | 215kWh |
| Cycle Life | 6000 Cycles |
| Origin | China |
| HS Code | 8507600090 |
| Production Capacity | 30000pieces/Year |
| Package Size | 150.00cm * 231.00cm * 154.00cm |
| Package Gross Weight | 3500.000kg |
Enhance energy management with our compact, high-performance LFP battery for residential and light commercial use.
Scalable from 2.56kWh to 16.07kWh, this system offers 6000+ cycle life at 80% DOD for reliability.
The space-saving wall-mount design and built-in intelligent BMS ensure safety and easy installation.
For solar storage, backup power, or off-grid use, connect up to 15 units for a tailored solution.
| Model | SMP-NU003 | SMP-NU004 | |
| Battery pack parameters | |||
| Battery pack model | 768V280Ah | 832V280Ah | |
| Nominal energy | 215.04kWh | 232kWh | |
| Working voltage range | 672~864V | 728V~936V | |
| BMS communication protocol | Ethernet/RS485/CAN | Ethernet/RS485/CAN | |
| Energy storage inverter parameters | |||
| Grid side parameters | Rated AC power | 100kW | |
| Maximum AC power | 100kW | ||
| Maximum AC current | 150A | ||
| Rated grid voltage | 380V | ||
| Rated grid frequency | 50/60Hz | ||
| DC side parameters | Maximum input voltage | 950V | 936V |
| Battery pack voltage range | 140A | ||
| Battery pack voltage range | 650~950V | 728~936V | |
| MPPT parameters | |||
| Low voltage side | Rated power | 100kW | |
| Rated current | 320A | ||
| MPPT voltage range | 200~650V (320~650V full load) | ||
| HV side | Rated power | 100kW | |
| Rated current | 100A | ||
| Voltage operating range | 350~1000V | ||
| General parameters | |||

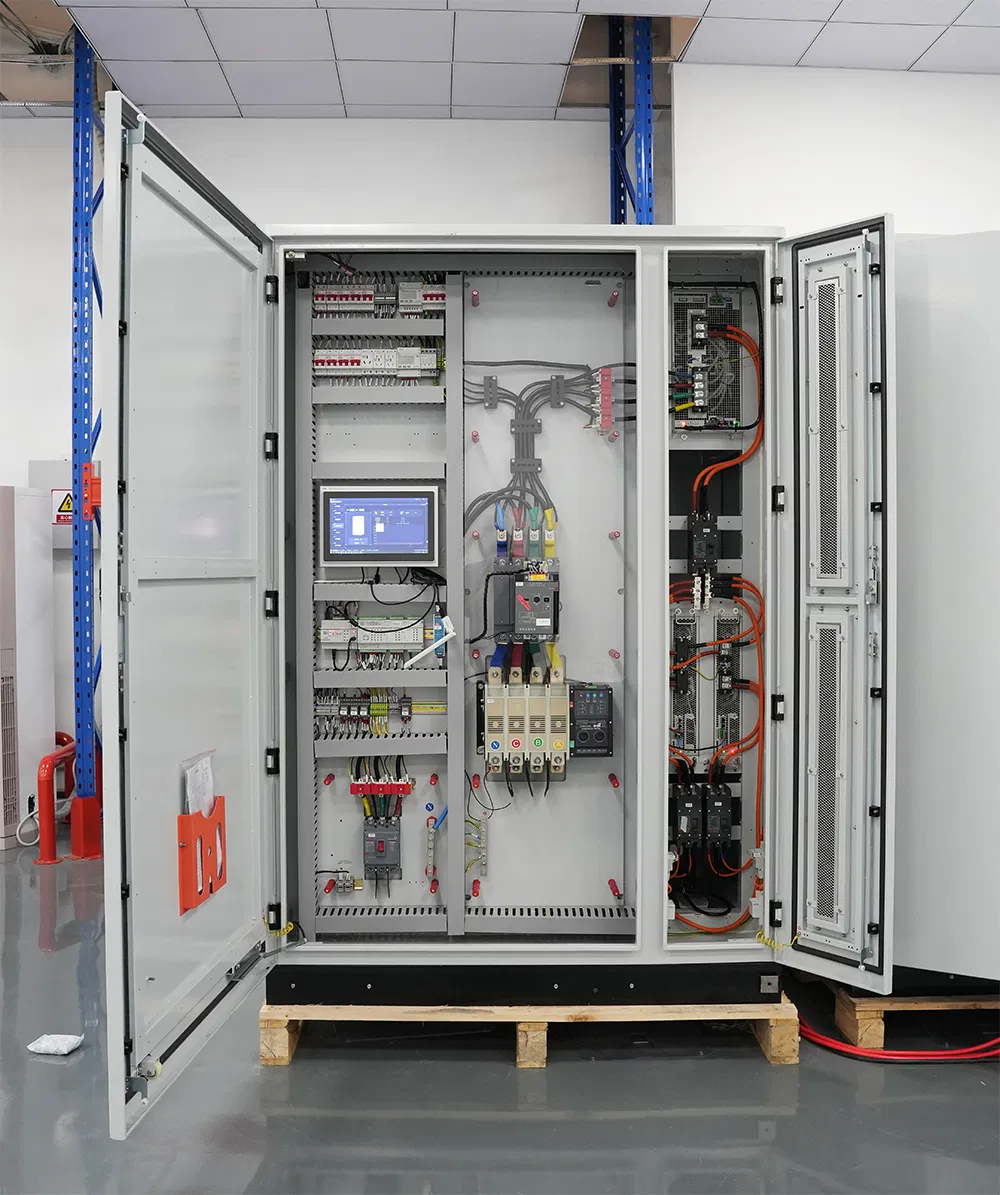

| Storage cabinet size | 1500*2306*1539mm | 1350*2050*1350mm | |
| IP rating | IP54 | ||
| Working temperature | -20~55℃ | ||
| Refrigeration method | air cooling | Liquid cooling | |
| Certification | CE/ UN38.3/ RoHS | ||
| Product net weight | 3500kg | 2500kg | |
