| Items | Parameters |
|---|---|
| Type of cell | Lithium Iron Phosphate(LFP) |
| Cell parameter | 3.2V/314Ah |
| Max. charge/discharge power | 0.5C |
| Configuration of system | 1P416S×12 |
| Rated capacity | 5.01 MWh |
| Rated voltage | 1331.2V |
| Voltage range | 1164.8~1497.6V |
| Cooling method | Liquid Cooling |
| Operating temperature | −30~50ºC |
| Humidity | ≤95%RH, no condensation |
| Altitude | ≤3000m |
| Noise level | ≤80dB(A), @1m / 75dB(optional) |
| IP grade | IP55 |
| Storage temperature | −20~45ºC |
| Corrosion-proof grade | C4/C5(optional) |
| Fire protection | Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler |
| External communication interface | Ethernet/CAN/RS485 |
| Dimension(L×W×H) | 6058×2438×2896mm |
| Weight | ≈42000 kg |

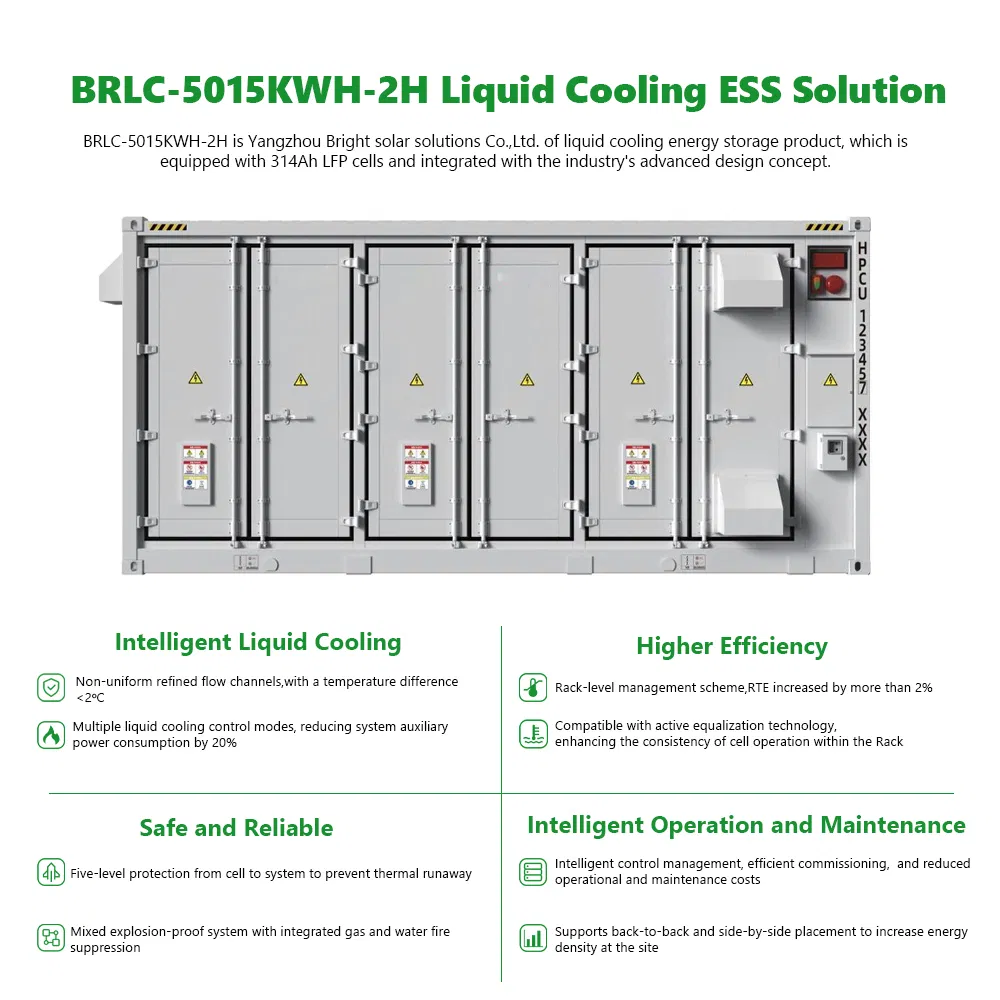

A: This system utilizes Lithium Iron Phosphate (LFP) cells. These cells feature a specification of 3.2V/314Ah, providing high energy density, thermal stability, and an extended operational life cycle.

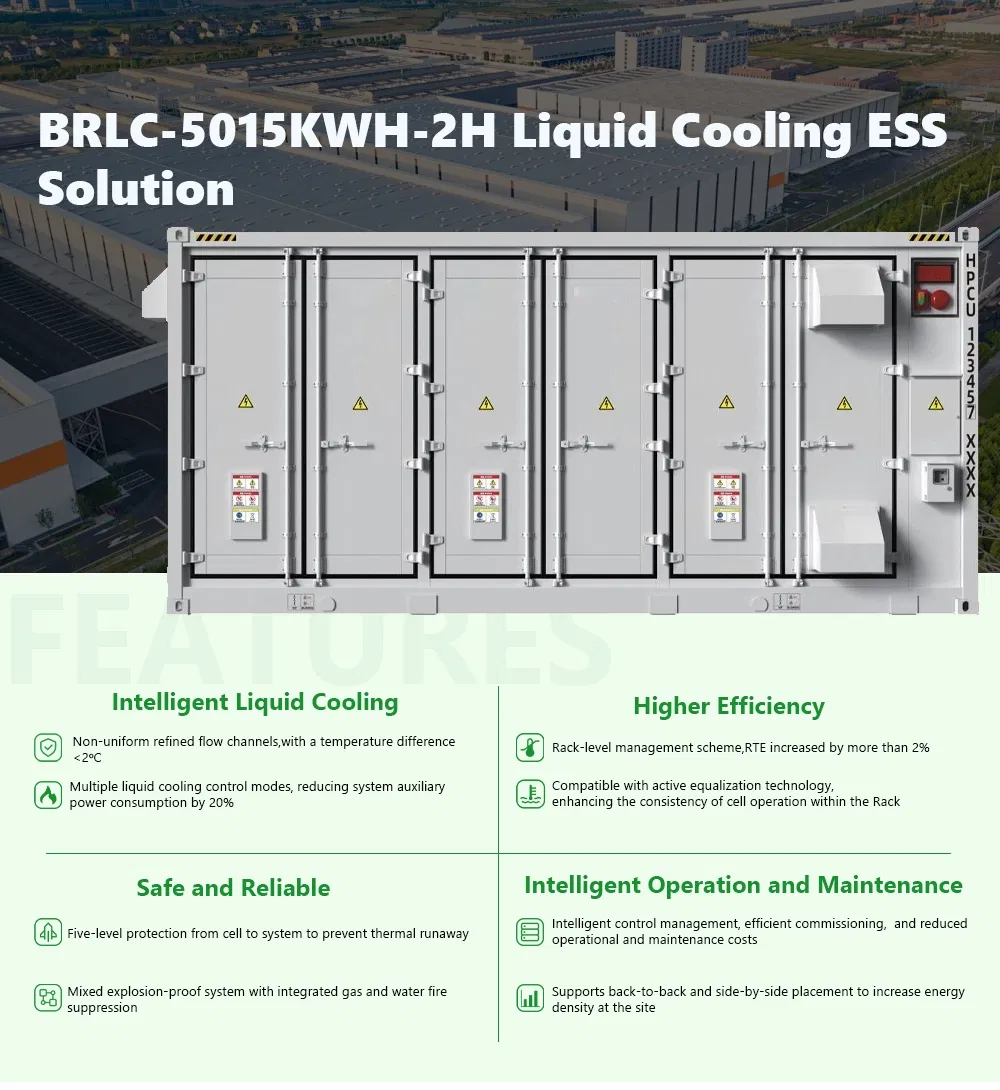

A: The system uses an advanced Liquid Cooling method. Liquid cooling provides highly efficient temperature regulation, ensuring the system operates reliably within its optimal temperature range of -30ºC to 50ºC.
A: The unit features a comprehensive multi-level fire safety setup, which includes temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and a integrated water sprinkler system.

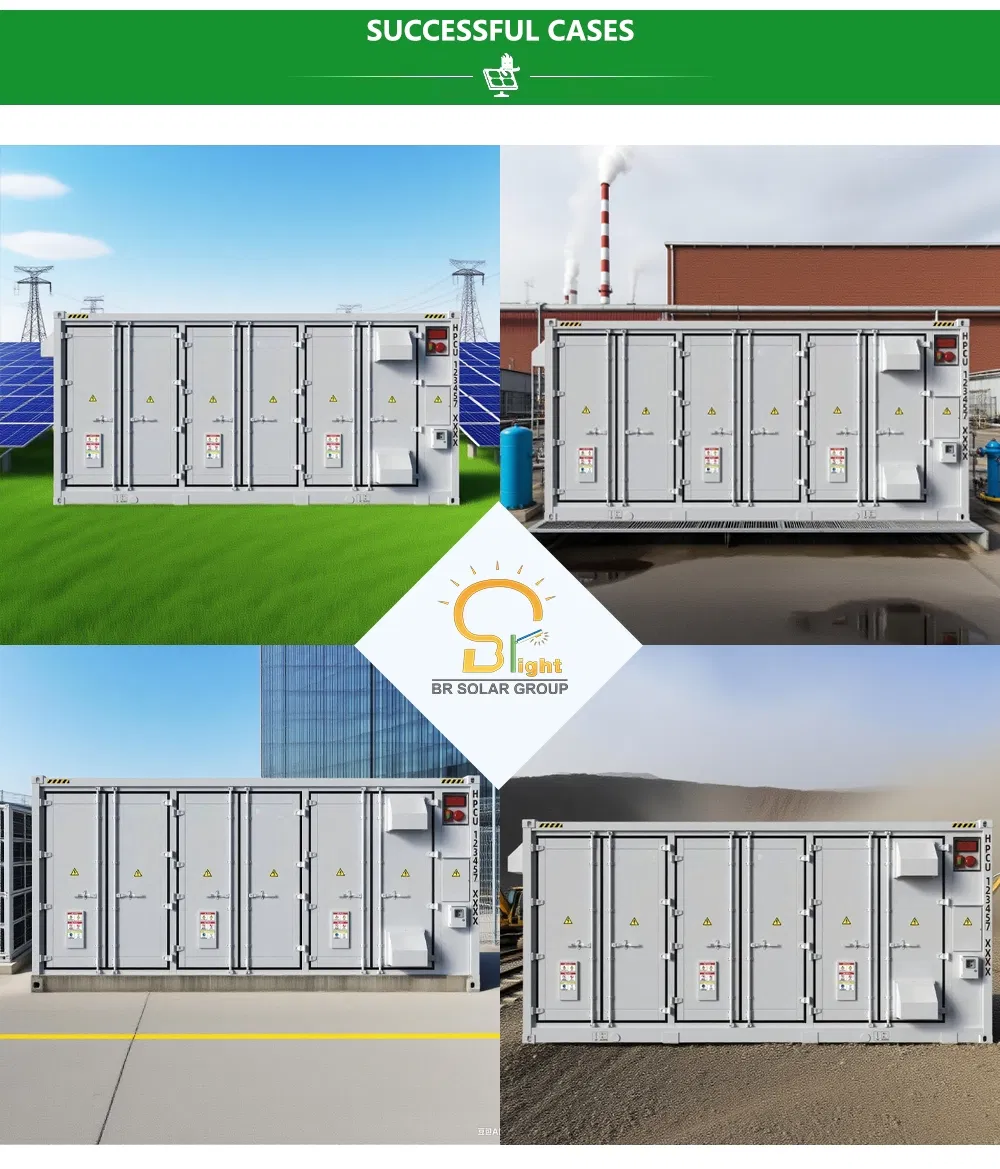

A: This energy storage solution has an IP55 protection rating and is suitable for various applications, including residential (home), commercial, industrial, schools, and factories. It has a corrosion-proof rating of C4/C5 (optional) to withstand harsh environmental conditions.
A: The system has a rated capacity of 5.01 MWh, a rated voltage of 1331.2V (voltage range: 1164.8V to 1497.6V), and supports a maximum charge/discharge power of 0.5C. It is configured in a 1P416S×12 structure.

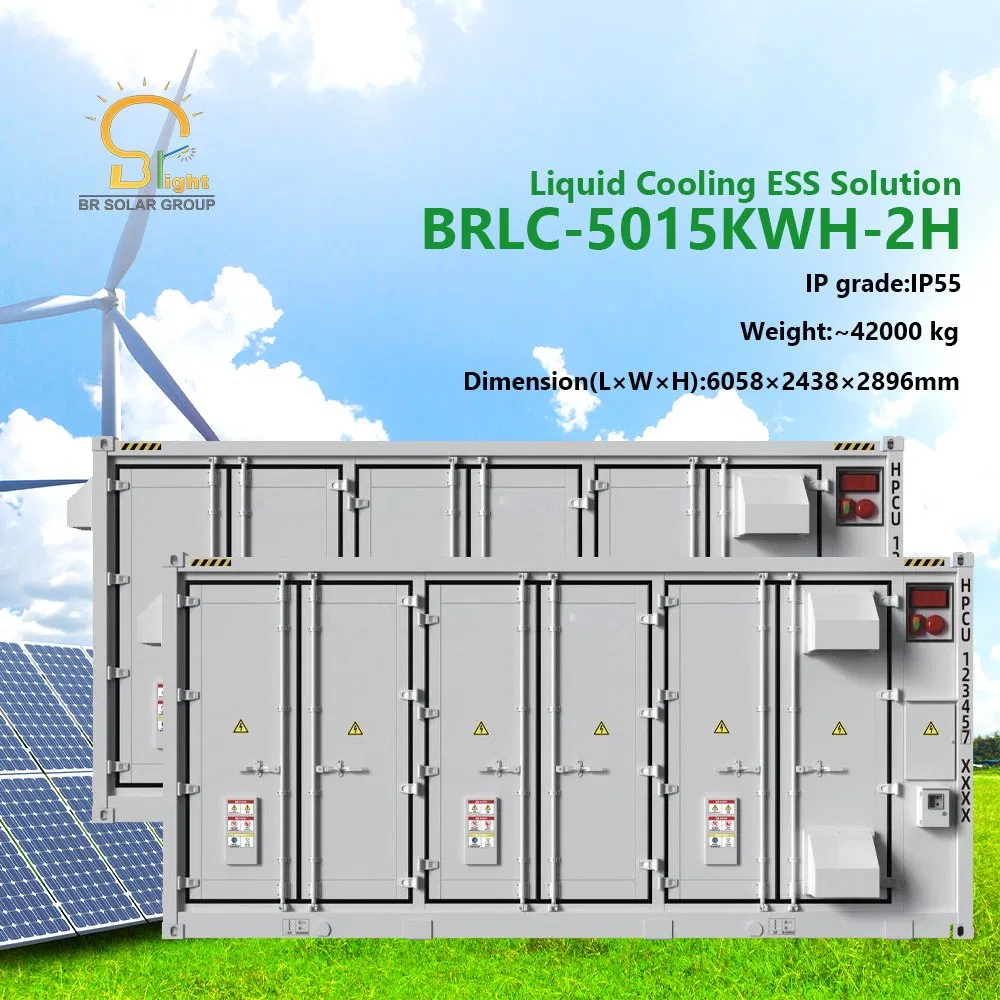

A: The container measures 6058×2438×2896mm and weighs approximately 42,000 kg. It is suitable for installations up to an altitude of 3000m and maintains a operating noise level of ≤80dB(A) at 1m (with an optional 75dB reduction design).
