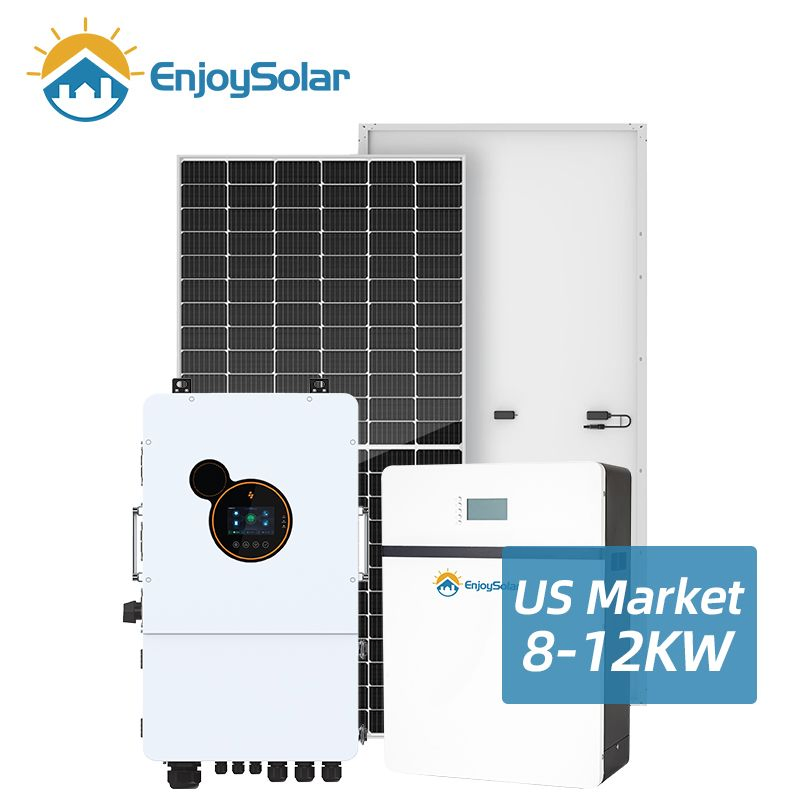

48V Battery Hybrid Inverter 5kw 6kw 7kw 8kw 9kw 10kw Two Phase Solar Energy Storage System for Us Residential Project

1 / 5

48V Battery Hybrid Inverter 5kw 6kw 7kw 8kw 9kw 10kw Two Phase Solar Energy Storage System for Us Residential Project

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
How It Works?
Solutions Design
System Components
Packaging & Shipping
Projects

Basic Info.

Model NO.ES10KW-HY-US

ConditionNew

CertificationISO, CB, CE, TUV, UL, Cec, Inmetro, VDE

ApplicationHome, Industrial, Commercial

SpecificationNormal, 3cbm

Product Name10kw Hybrid Solar System

Battery Voltage48V

Output Voltage110V/220V Split Phase 60Hz

Solar Panel600W Mono Solar Panel

Inverter TypeHybrid

Inverter Power10kw

Battery TypeLead Acid, Lithium Ion, LiFePO4 Battery

Battery InstallationGround or Wall

Technical SupportComplete Professional Technical Guidance

Online MonitoringWiFi/LAN/GPRS

OEM/ODMAccept

System Voltage1500V(IEC)

Mount RackGround, Rooftop

System Max. PV Input Voltage1000V

Product ApplicationSolar Energy Storage System

Transport PackageCarton, Pallet, Wooden Box

OriginChina

HS Code8543709990

Production Capacity2gw/Years

Packaging & Delivery

Package Size120.00cm * 60.00cm * 20.00cm

Package Gross Weight100.000kg

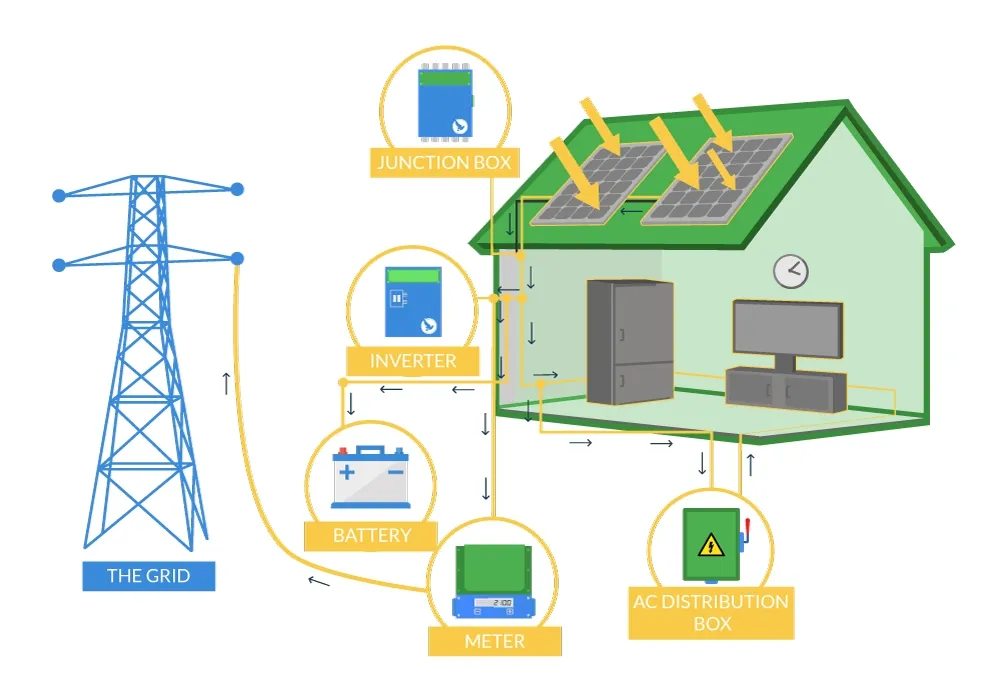

How It Works?

Solutions Design

Model	5KW	10KW	15KW	20KW
Mono Half Cell Solar Panel 600W	9PCS	18PCS	26PCS	36PCS
Hybrid Inverter	5KVA 1PC	10KVA 1PC	15KVA 1PC	20KVA 1PC
LiFePO4 Battery	10.24KWH (Optional)	14.336KWH (Optional)	20.48KWH (Optional)	37.99KWH (Optional)
DC Cable 1*4MM2	200 Meters	400 Meters	400 Meters	600 Meters
MC4 Connector	4 Pairs	6 Pairs	10 Pairs	15 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set	1 Set

System Components

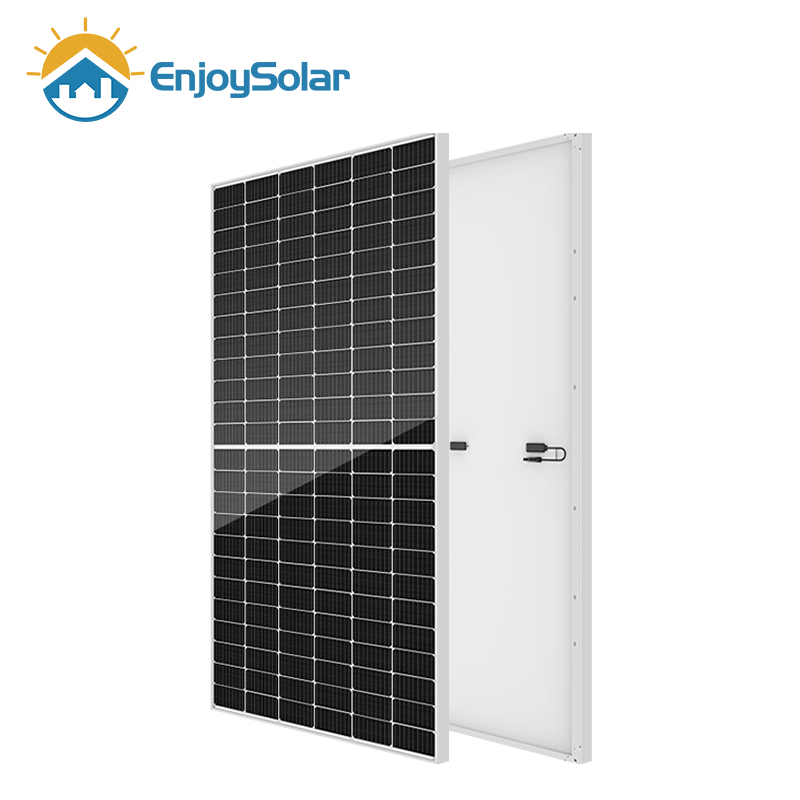

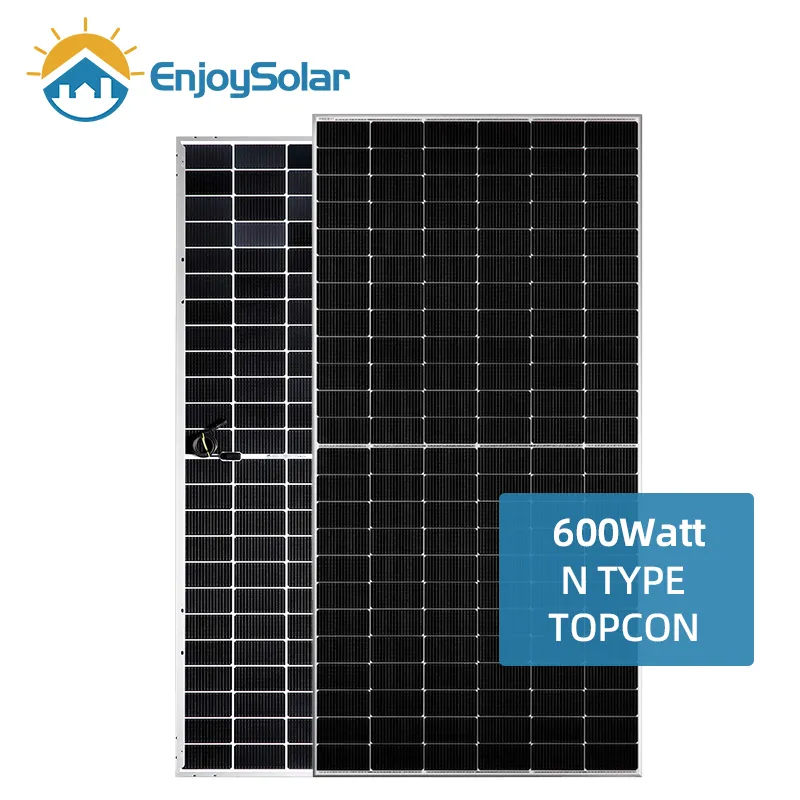

Mono Solar Panel. Harness the sun's power with our high-efficiency Mono Solar Panels, specifically designed to capture maximum solar energy and transform it into a sustainable power source.

Model: ES-600M-72HNT. Experience the power of precision with the ES-600M-72HNT, a model synonymous with excellence in solar technology.
Peak Power Watt: 600Wp. Achieve superior energy generation with a peak power output of 600Wp, ensuring your solar setup delivers maximum efficiency and performance.
Open Circuit Voltage (Voc/V): 50.2V. Designed for optimal performance, our panels operate at an open circuit voltage of 50.2V, offering superior energy conversion.
Short Circuit Current (Isc./A): 14.34A. Maximize your energy output with a short circuit current of 14.34A, reflecting the panel's robust ability to handle high electricity flow.
Voltage at Maximum Power (Vmp./V): 42.51V. Deliver consistent energy with a precise voltage at maximum power of 42.51V, optimizing your system's power management.
Current at Maximum Power (Imp./A): 13.41A. Achieve enhanced energy efficiency with a current at maximum power of 13.41A, supporting your dynamic energy requirements.
Efficiency: 22.07%. Experience groundbreaking efficiency of 22.07%, ensuring that each solar panel maximizes energy harvest with unbeatable precision and reliability.
Dimensions: 2278*1134*30mm. Built to fit perfectly, our panels feature dimensions of 2278*1134*30mm, providing a versatile yet powerful addition to your solar setup.
Weight: 31 kg. Engineered for effortless handling, our panels weigh 31 kg, offering a perfect balance of durability and ease of installation.

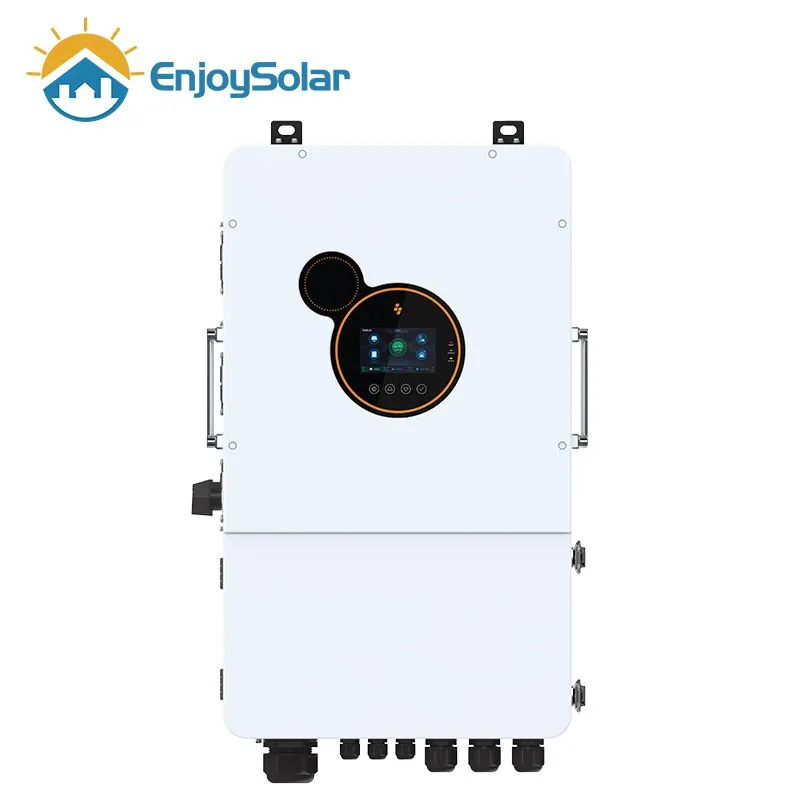

All-in-one hybrid solar inverter. Unlock energy independence with our all-in-one hybrid solar inverter, a pinnacle of innovation that seamlessly integrates with your solar system for unmatched performance.

Increases energy independence for homeowners and commercial users. Empower your energy journey with a system that enhances independence, freeing homeowners and commercial entities from the constraints of traditional energy sources.
Smart Monitoring & Remote Firmware Upgrade. Stay ahead with smart monitoring capabilities and remote firmware upgrades, ensuring your system operates at peak efficiency and security.
Built-in Anti-feed-in Function. Safeguard your energy investment with a built-in anti-feed-in function, designed to prevent excess energy from being fed back into the grid.
AFCI (Optional) & Rapid Shutdown Ready. Experience safety and convenience with optional AFCI and rapid shutdown readiness, protecting your system from electrical faults and hazards.
Support for Time-of-use Optimization. Optimize your energy usage with time-of-use optimization features, allowing you to maximize savings and efficiency based on your energy consumption patterns.

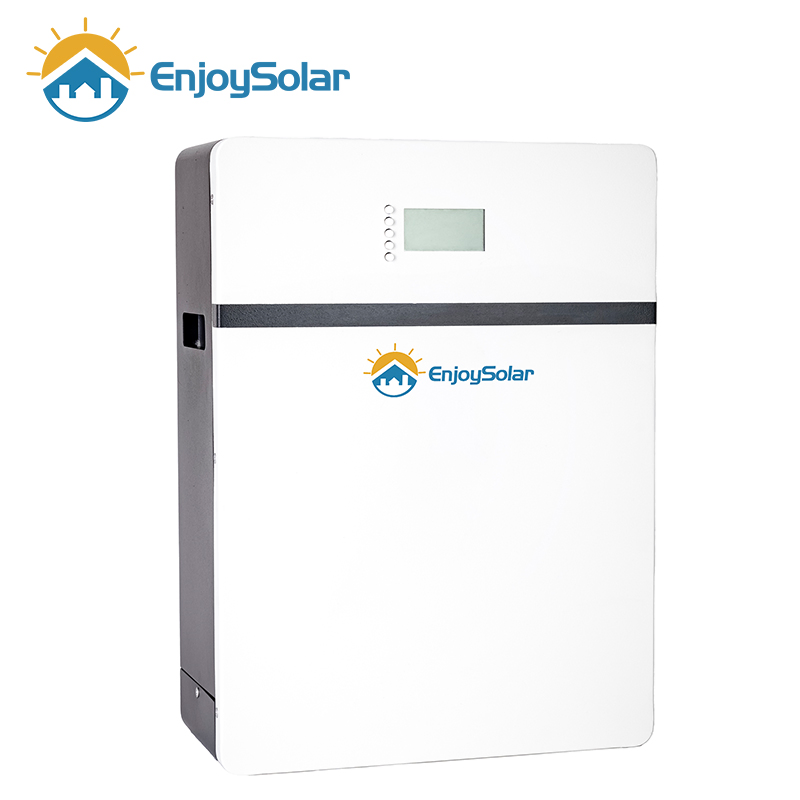

Battery Storage Bank. Meet your energy storage needs with our robust battery storage bank, designed for longevity and superior performance.

Deep Cycle long lifespan. Enjoy peace of mind with deep cycle batteries that promise a long lifespan and consistent performance, powering your life sustainably.
High discharge performance. Trust in high discharge performance to deliver the energy you need, when you need it, ensuring reliability.
Easy installation and Maintenance-free. Simplify your energy journey with easy installation and maintenance-free operation, enhancing user experience.
AGM/GEL/Lithium Ion Battery Type. Choose from reliable AGM, GEL, or Lithium-Ion battery types, each offering specific advantages to meet your unique energy requirements.
48V/High Voltage Battery. Leverage the power of our 48V high voltage battery, delivering robust energy storage and unmatched performance.
More than 6000 times, up to 90% DOD. Experience endurance and efficiency with over 6000 cycles and up to 90% depth of discharge, securing your energy future.
Wide suitability of ambient temperature range. Count on reliability across varied climates with our batteries' wide suitability for ambient temperature ranges.

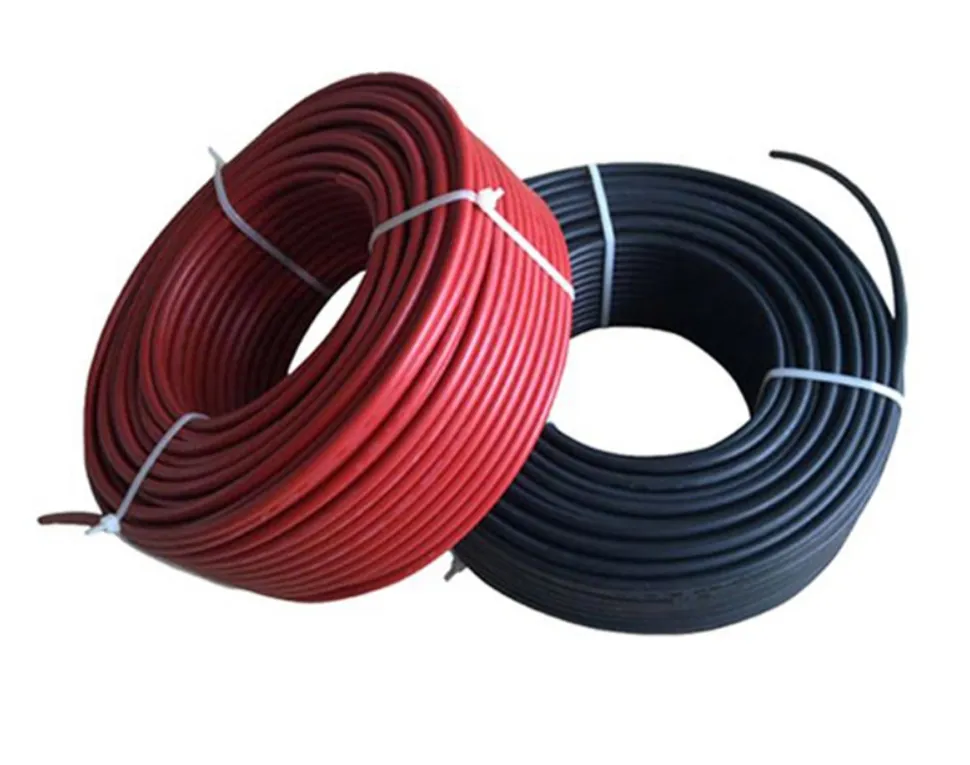

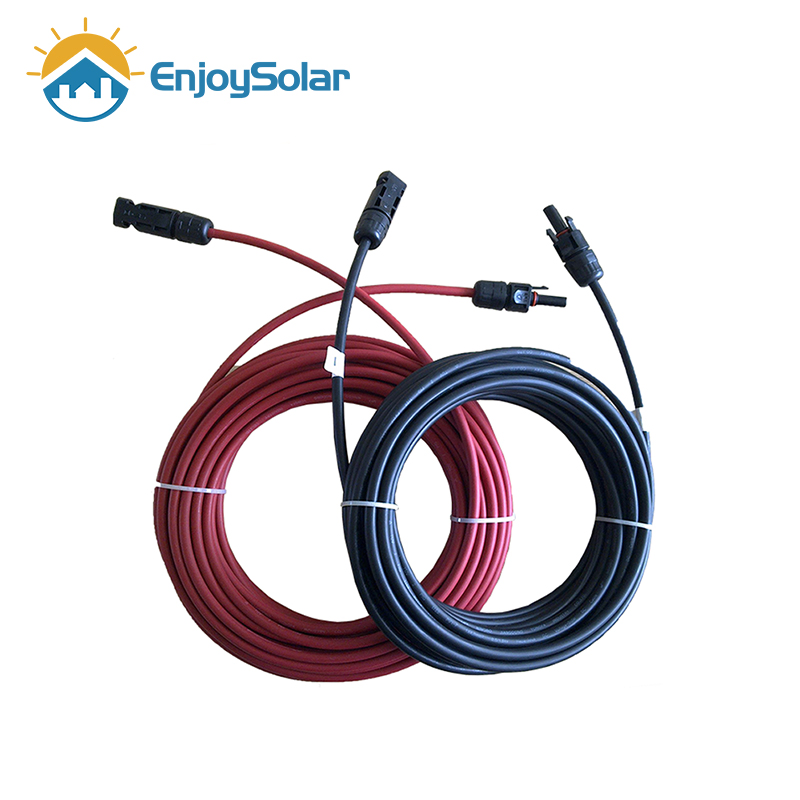

DC Cable & Accessories. Complement your system with premium DC cables and accessories, tailored to ensure seamless connectivity and performance.

Cross Section: 4mm2, 6mm2 Optional. Choose the ideal cross-section for your setup, with options of 4mm2 and 6mm2, optimizing electrical flow.
Rated Voltage: 600VDC /1000VDC (TUV). Depend on TUV-rated voltage of 600VDC/1000VDC to maintain system integrity and safety.
Rated Current: 55A, 70A. Ensure optimal performance with rated currents of 55A and 70A, designed to support your energy needs efficiently.
Colors: Black For STD, Red Optional. Personalize your setup with standard black color or opt for a striking red, matching aesthetics with function.
Lifetime: ≤25 Years. Rely on a robust and long-lasting operation with a lifetime of up to 25 years, ensuring sustained performance and peace of mind.

Online Monitoring System. Elevate your energy management with our cutting-edge online monitoring system, offering real-time insights and control.

Open Station Supports one-click. Simplify your system access with one-click open station support, enhancing user convenience.
Installation and registration Problem. Navigate installation and registration effortlessly, supported by intuitive features and comprehensive guidance.
Support one-click dispatch and navigation. Experience ease with one-click dispatch and navigation, streamlining your energy management processes.
Safe operation, traceable logs, etc. Enjoy safe operation with traceable logs and comprehensive data management, fostering trust and transparency.
Support full life-cycle data storage to ensure data security and reliability. Benefit from full life-cycle data storage support, ensuring data security and reliability throughout your system's lifespan.

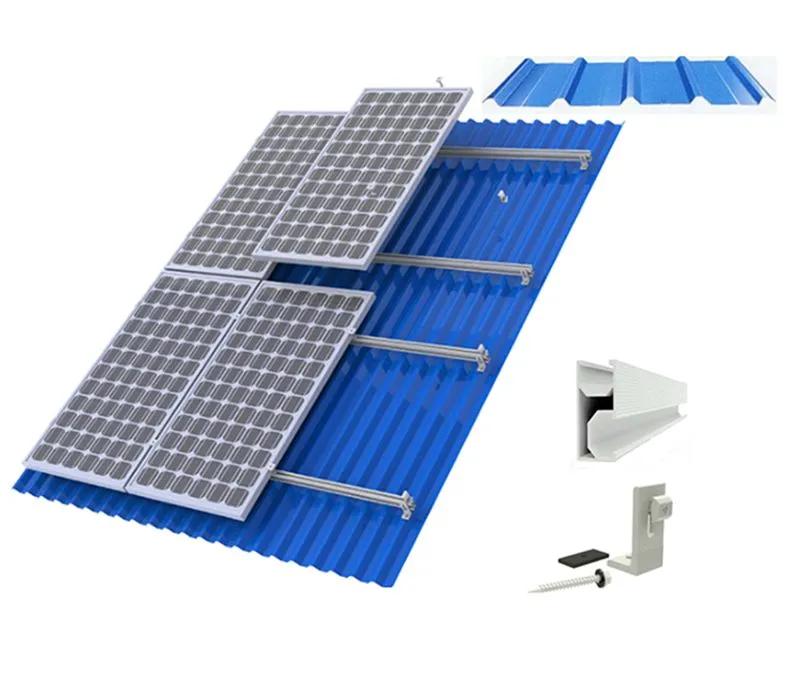

PV MOUNTING SYSTEM. Ensure stability and durability with our PV Mounting System, designed to support and secure your solar panels efficiently.

MOUNTING RAIL & RAIL SPLICE KIT: AI6005 & SUS304 BOLT. Rely on sturdy AI6005 mounting rails and SUS304 bolts for a secure and lasting installation.
MID&END CLAMPS: 30,35,40MM. Ensure secure panel placement with mid and end clamps available in 30, 35, and 40mm sizes, catering to your specific requirements.
Optional: Roof Mounting/Ground Mounting/Carport etc. Design diagram according to customer's installation area. Choose from versatile mounting options such as roof, ground, or carport. We provide customized design diagrams according to your installation area, ensuring a tailored solution.

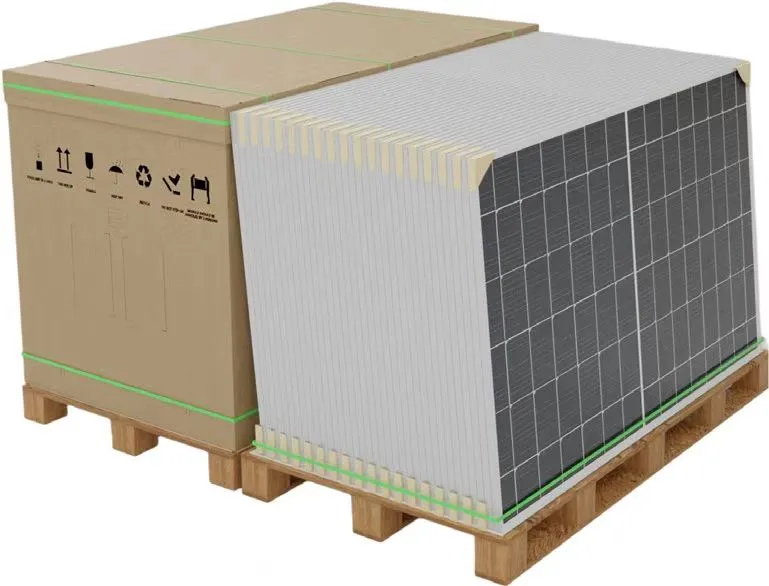

Packaging & Shipping

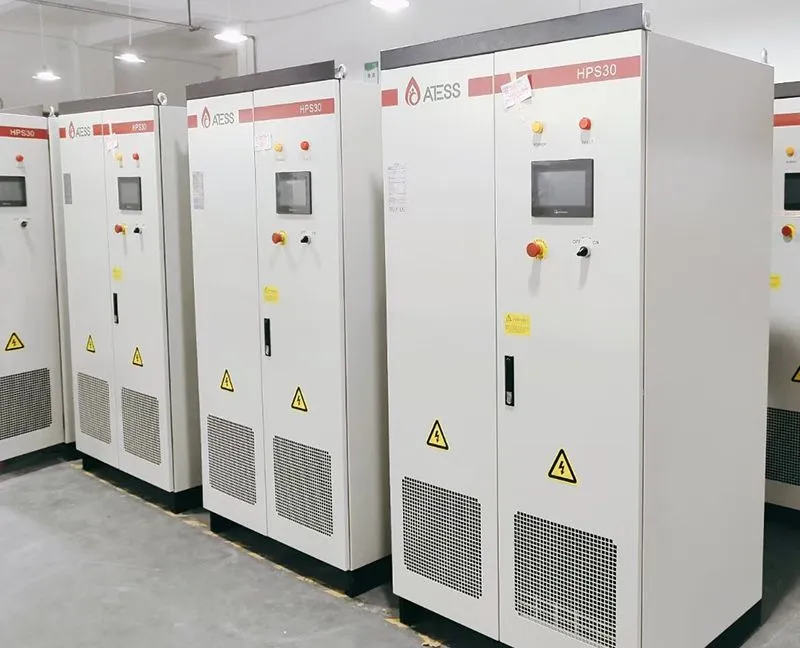

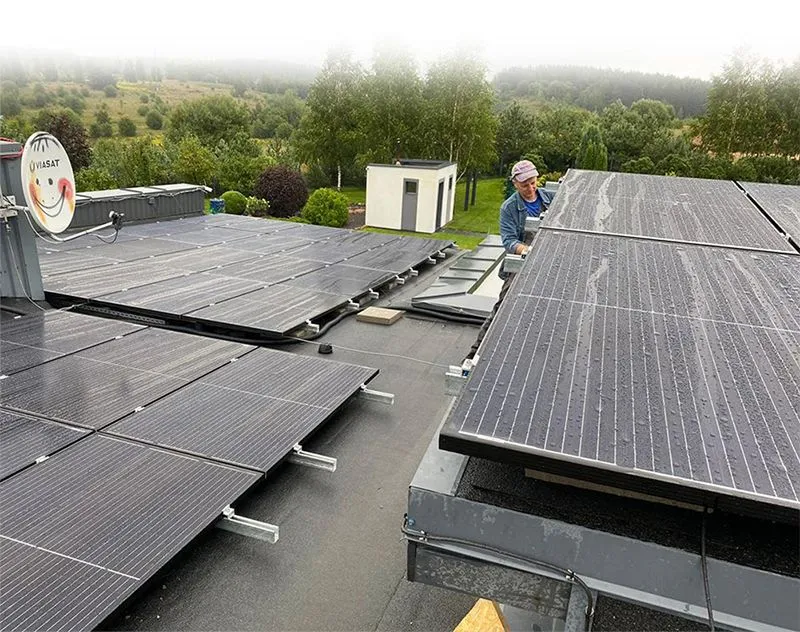

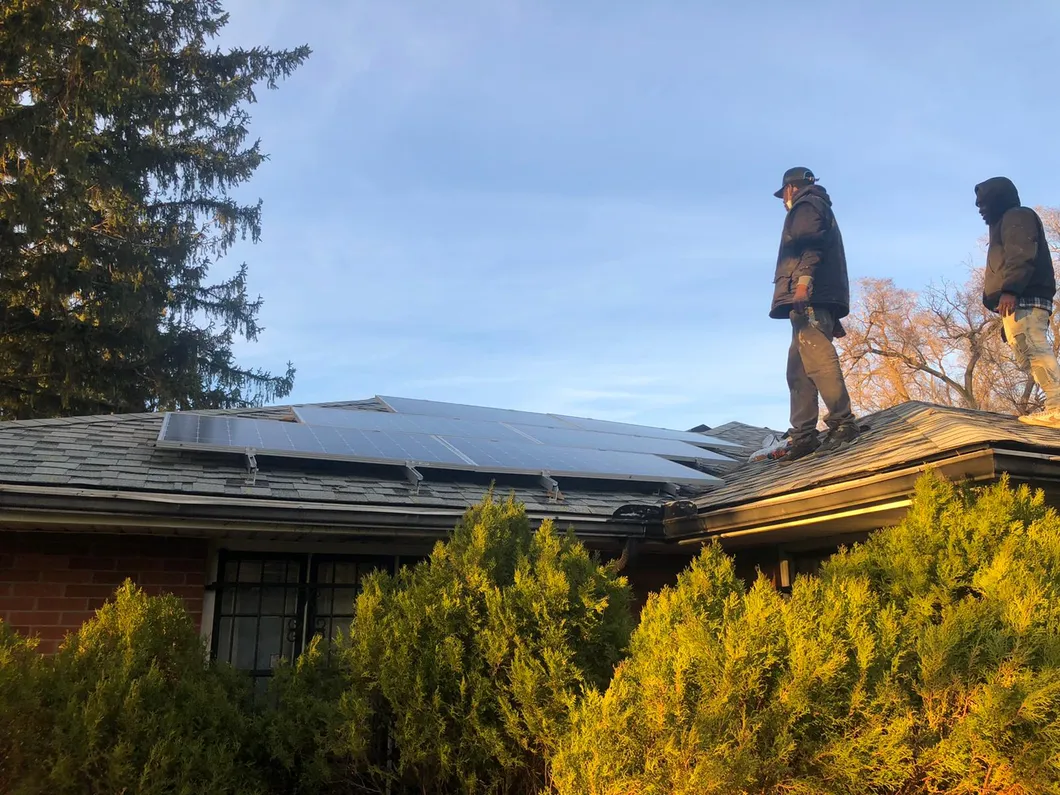

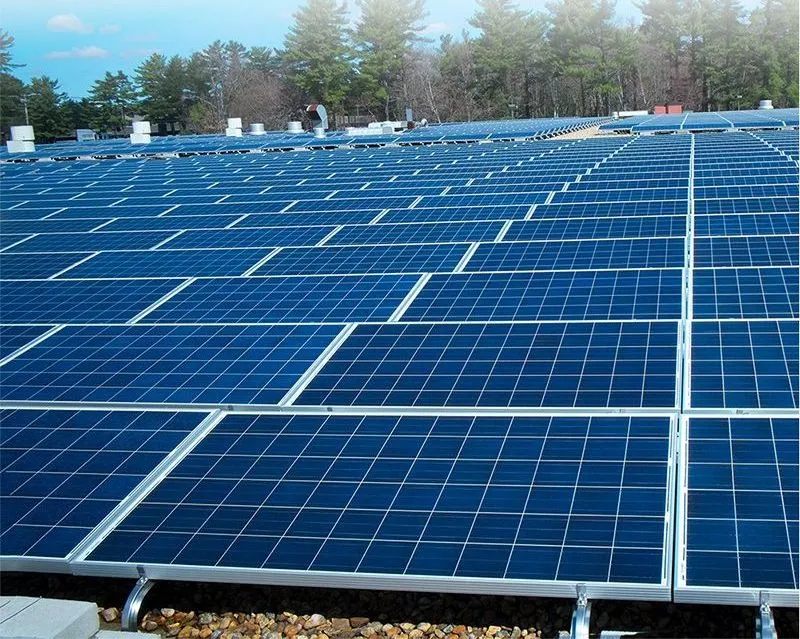

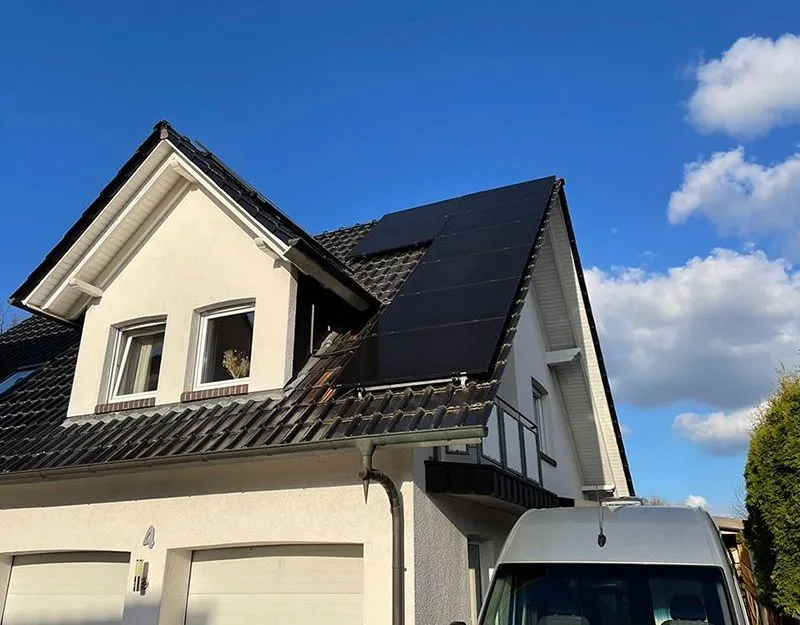

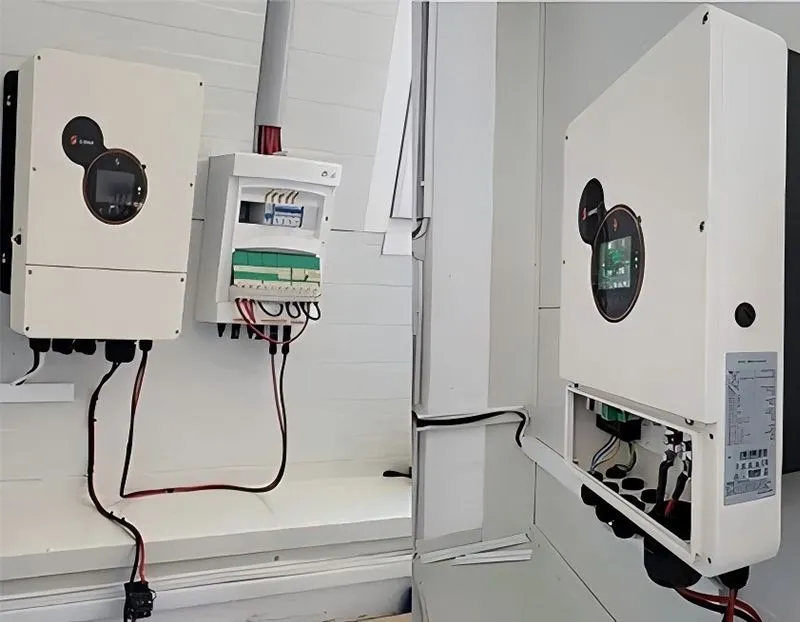

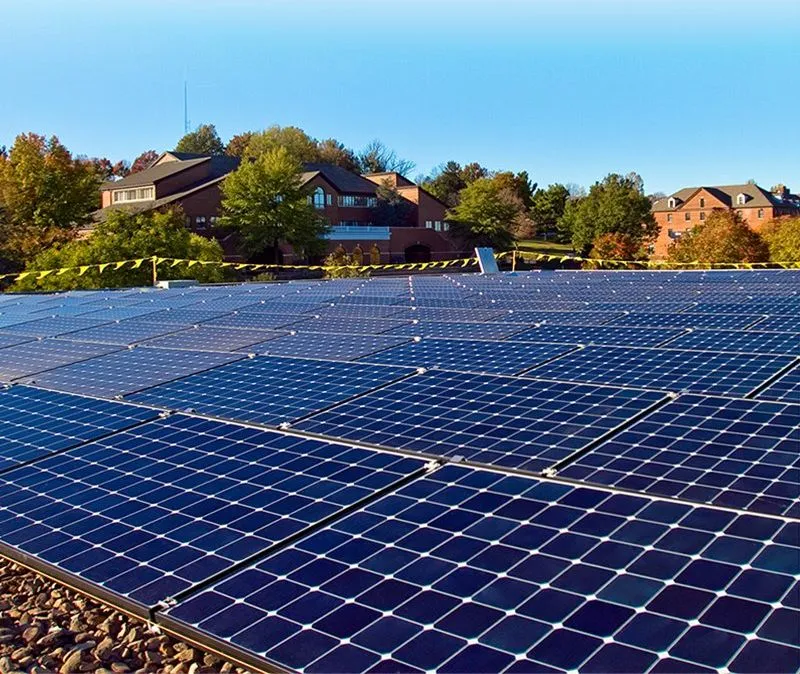

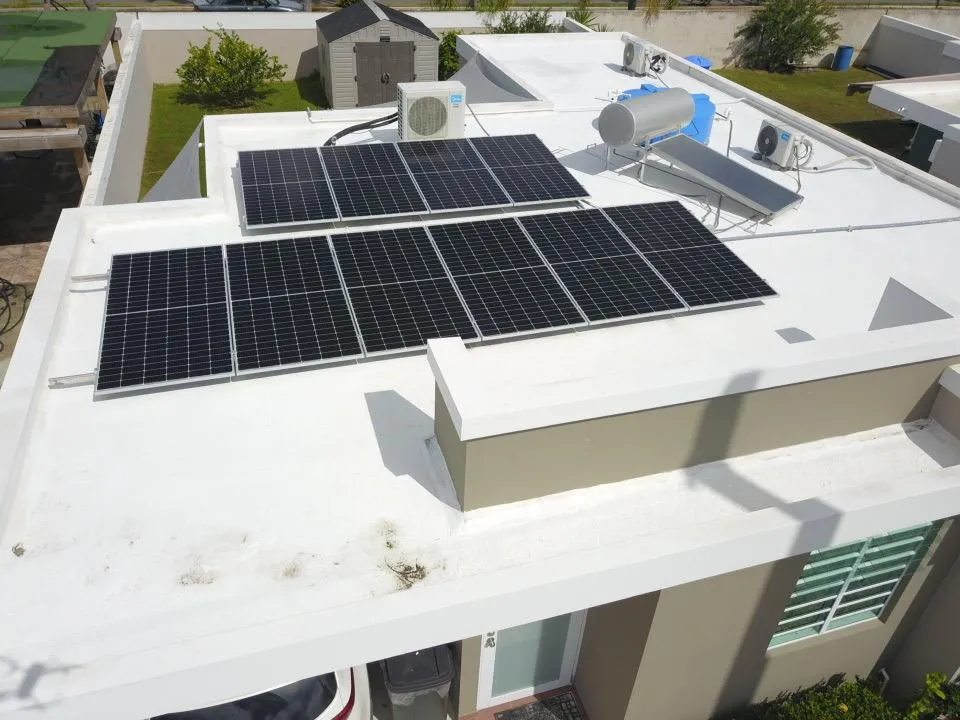

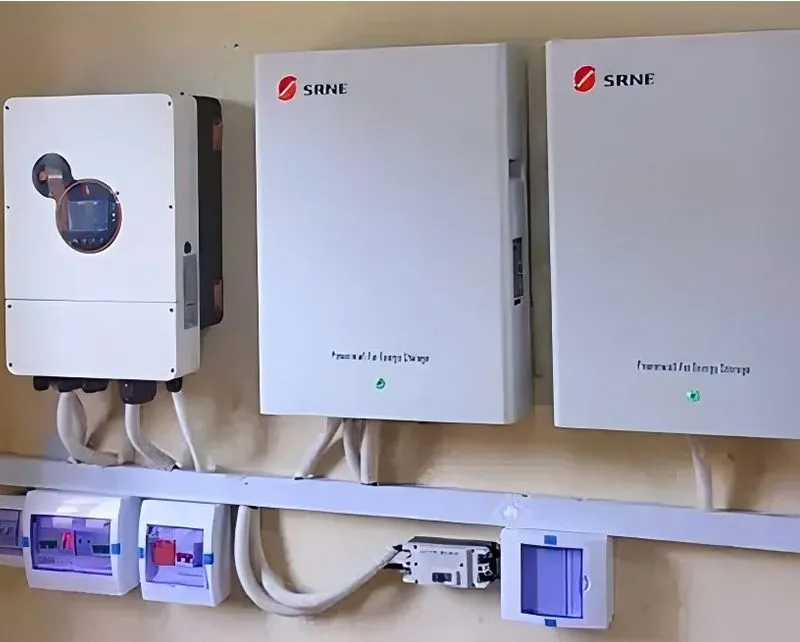

Projects

Frequently Asked Questions

QWhat is included in the 10kW Hybrid Solar System package?

The system includes 18 pieces of 600W Mono Half Cell Solar Panels, a 10KVA hybrid inverter, an optional 14.336KWH LiFePO4 battery bank, 400 meters of DC cable, 6 pairs of MC4 connectors, a customized mounting system, and a solar installation tool set.

QWhat type of batteries are supported by this hybrid system?

The system is designed for high compatibility, supporting Lead Acid, Lithium-Ion, and deep-cycle LiFePO4 battery storage banks. The standard configuration operates at a 48V battery voltage.

QDoes the hybrid inverter support Time-of-Use (TOU) optimization?

Yes, the all-in-one hybrid solar inverter supports Time-of-Use optimization, allowing homeowners and commercial users to optimize energy usage, reduce electricity bills, and maximize energy independence.

QHow long is the expected lifespan of the system components?

The Mono Solar Panels are built to high industry standards, the battery bank supports over 6000 cycles at up to 90% Depth of Discharge (DOD), and the premium DC cables and accessories feature an operational lifetime of up to 25 years.

QCan the solar power system be monitored online?

Absolutely. The system includes an online monitoring system supporting WiFi, LAN, and GPRS connectivity. It offers one-click station setups, remote firmware upgrades, safe operations, traceable logs, and full life-cycle data storage.

QWhat mounting system options are available for the solar panels?

The mounting systems are customized using AI6005 rails and SUS304 bolt hardware. Options include Roof Mounting, Ground Mounting, or Carport setups designed according to the customer's specific installation area.
