15kwh All-in-One Residential Energy Storage System for PV

Send Inquiry

Product Description

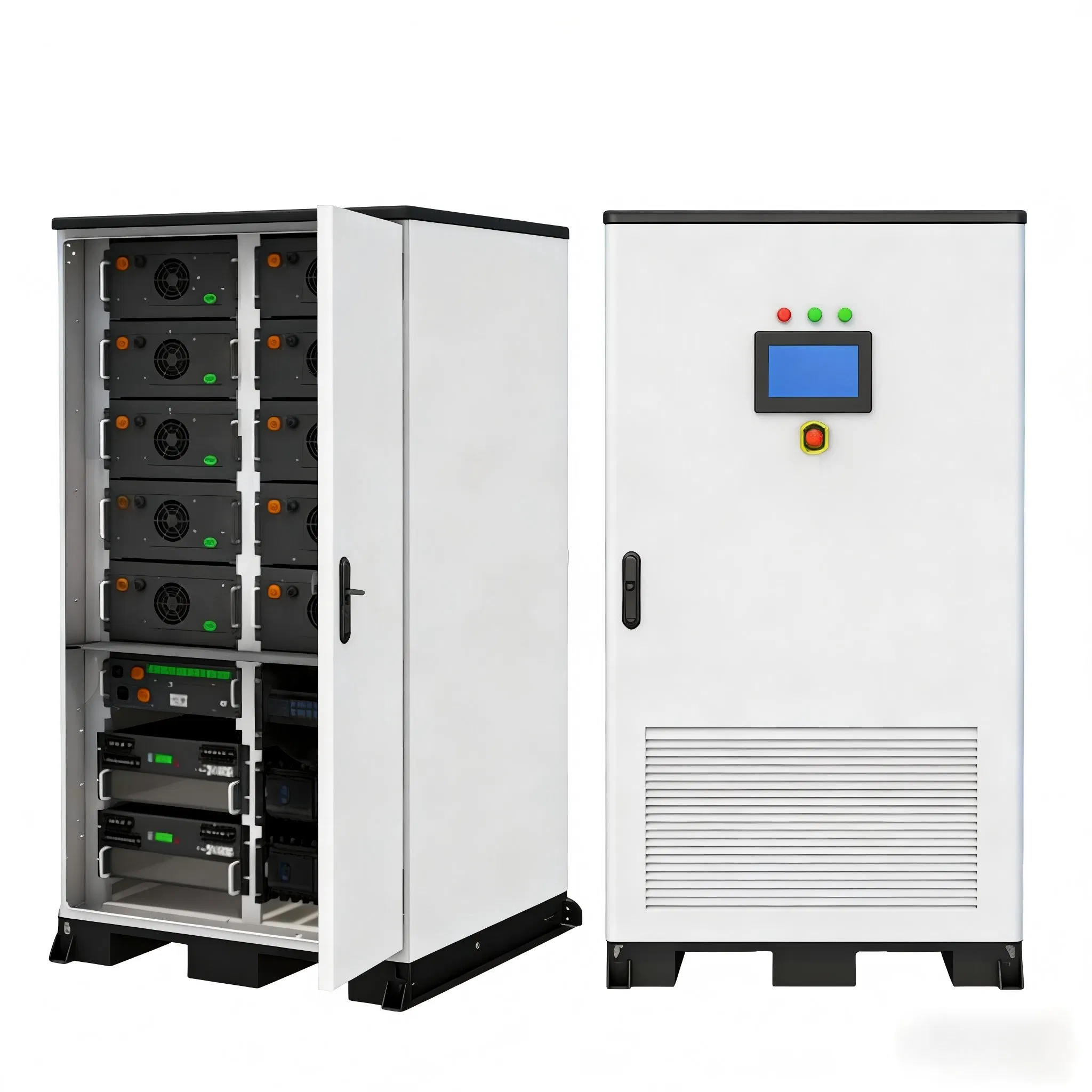

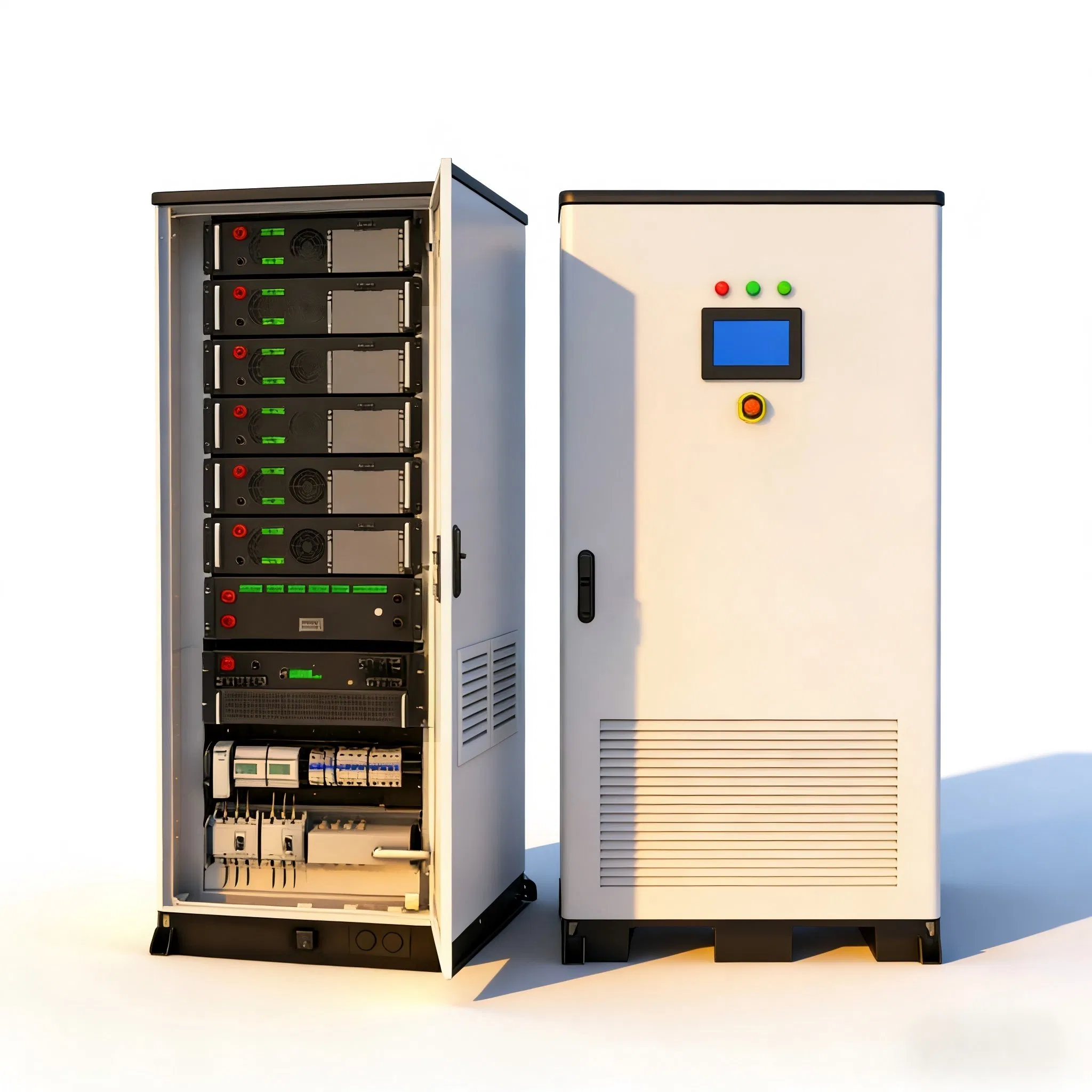

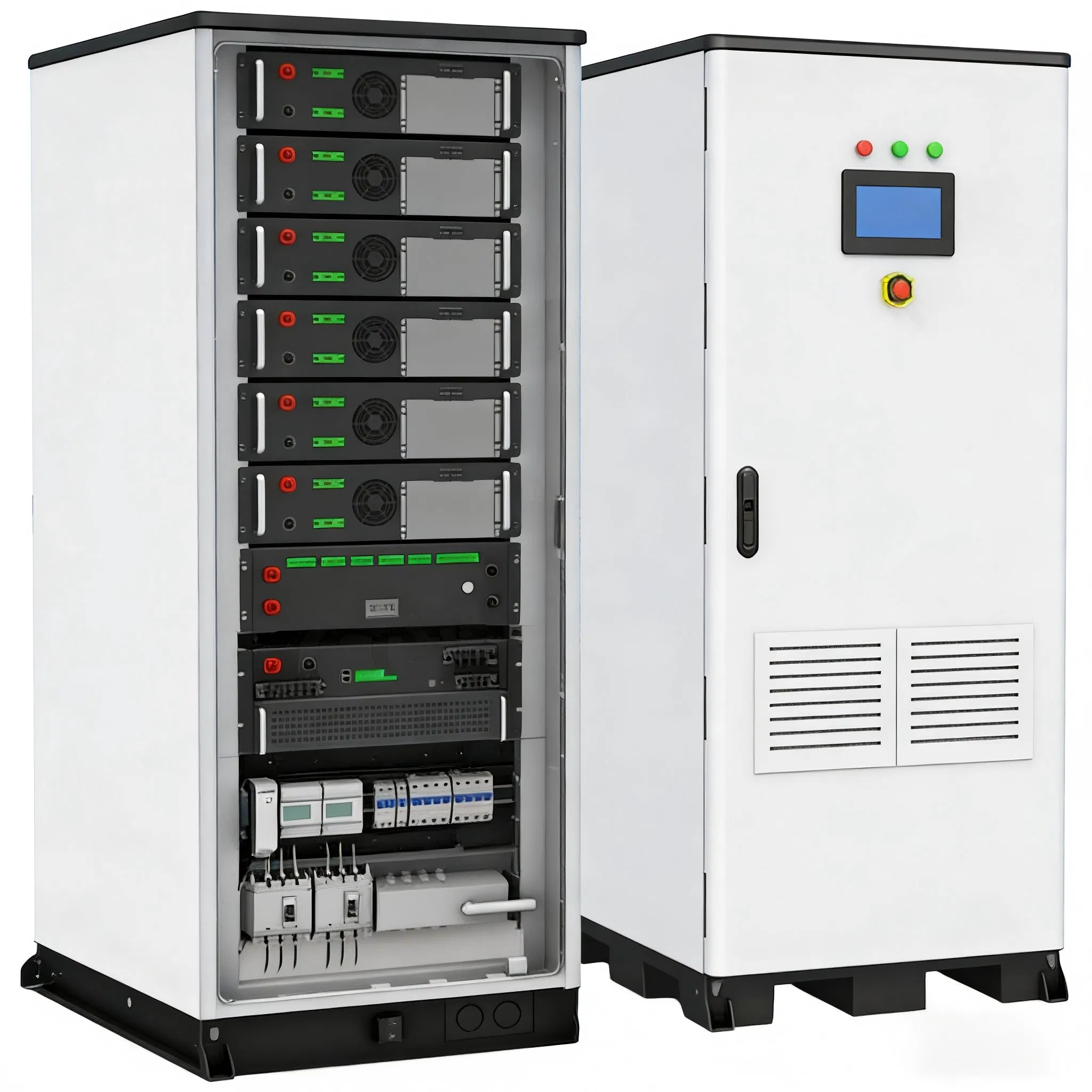

VoltaNest: All-In-One Energy Storage Cabinet

Three configurations. Customizable according to customer needs.

Configuration A

30KW Inverter + 61kWh Lithium Battery

Configuration B

60KW Inverter + 112kWh Lithium Battery

Configuration C

100KW Inverter + 241kWh Lithium Battery

Perfect Solution for Your Power Challenges

Large daily electricity consumption! Unstable power grid! High electricity prices! Peak-shaving and valley-filling of electricity prices! Microgrids, island power grids, etc. do not have external power supply! Emergency power supply! If you have the above problems and need to solve them, this product can perfectly solve your needs.

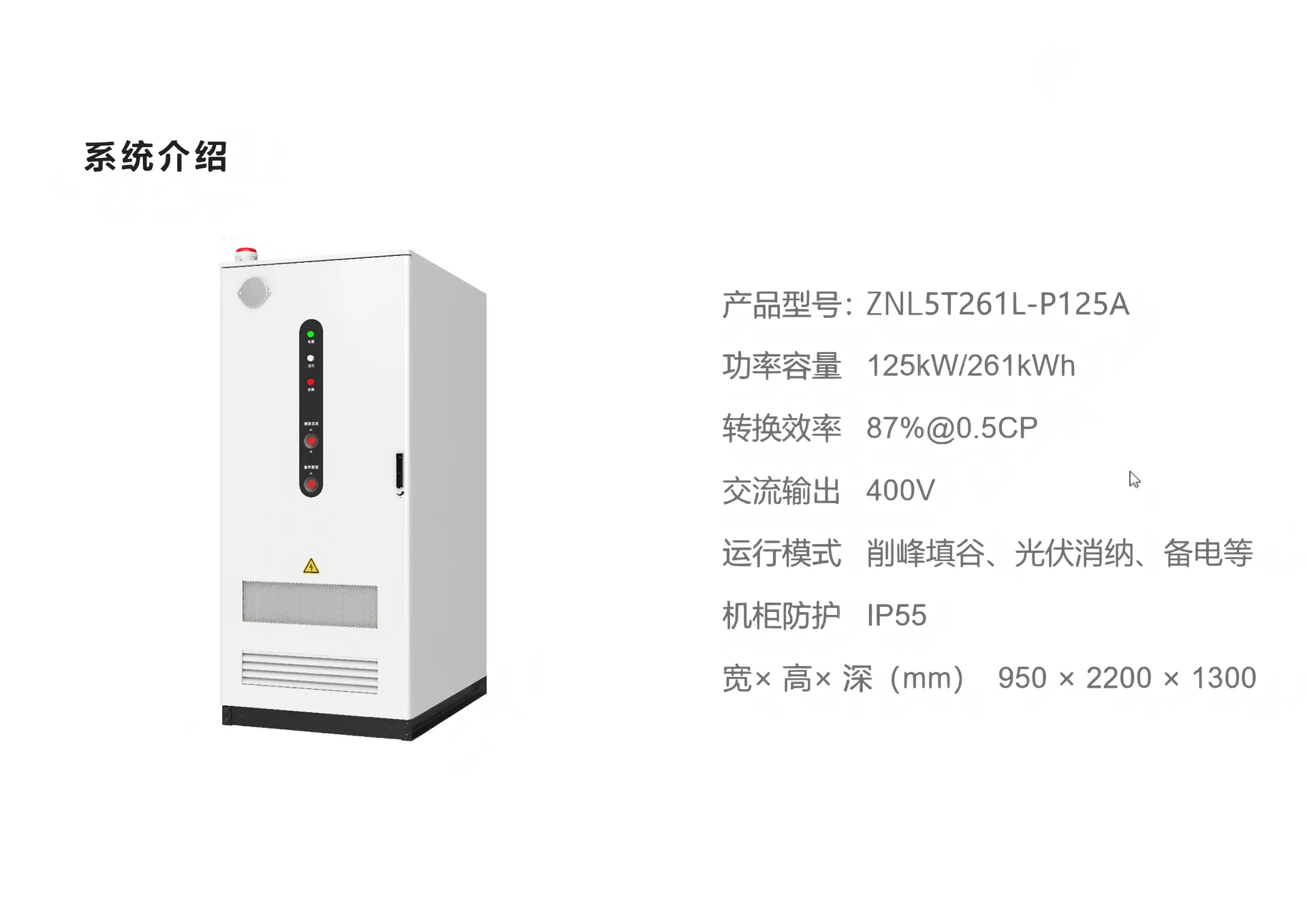

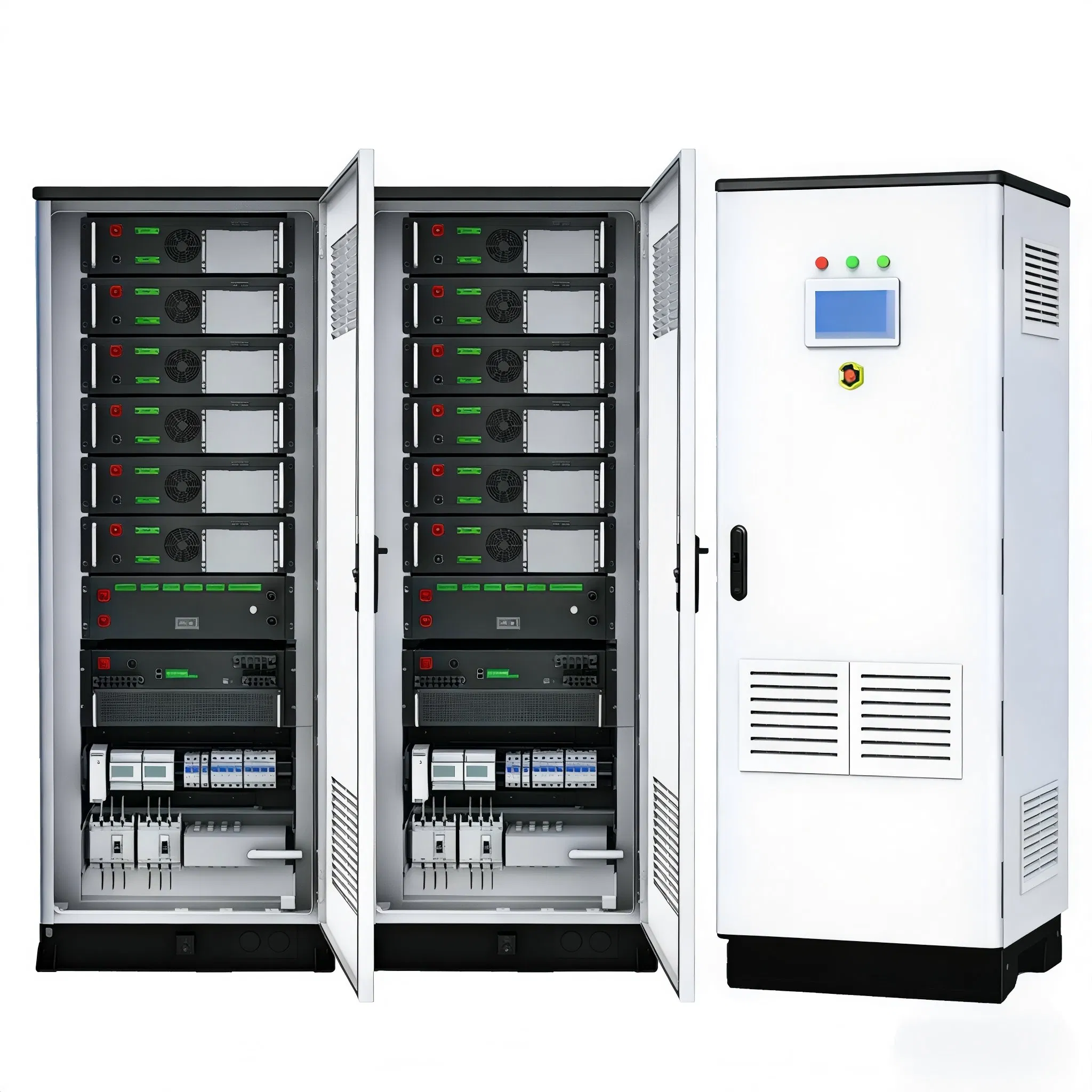

30-100kW/61-241kWh Outdoor Integrated Cabinet for Industrial and Commercial Storage

All-in-One Design

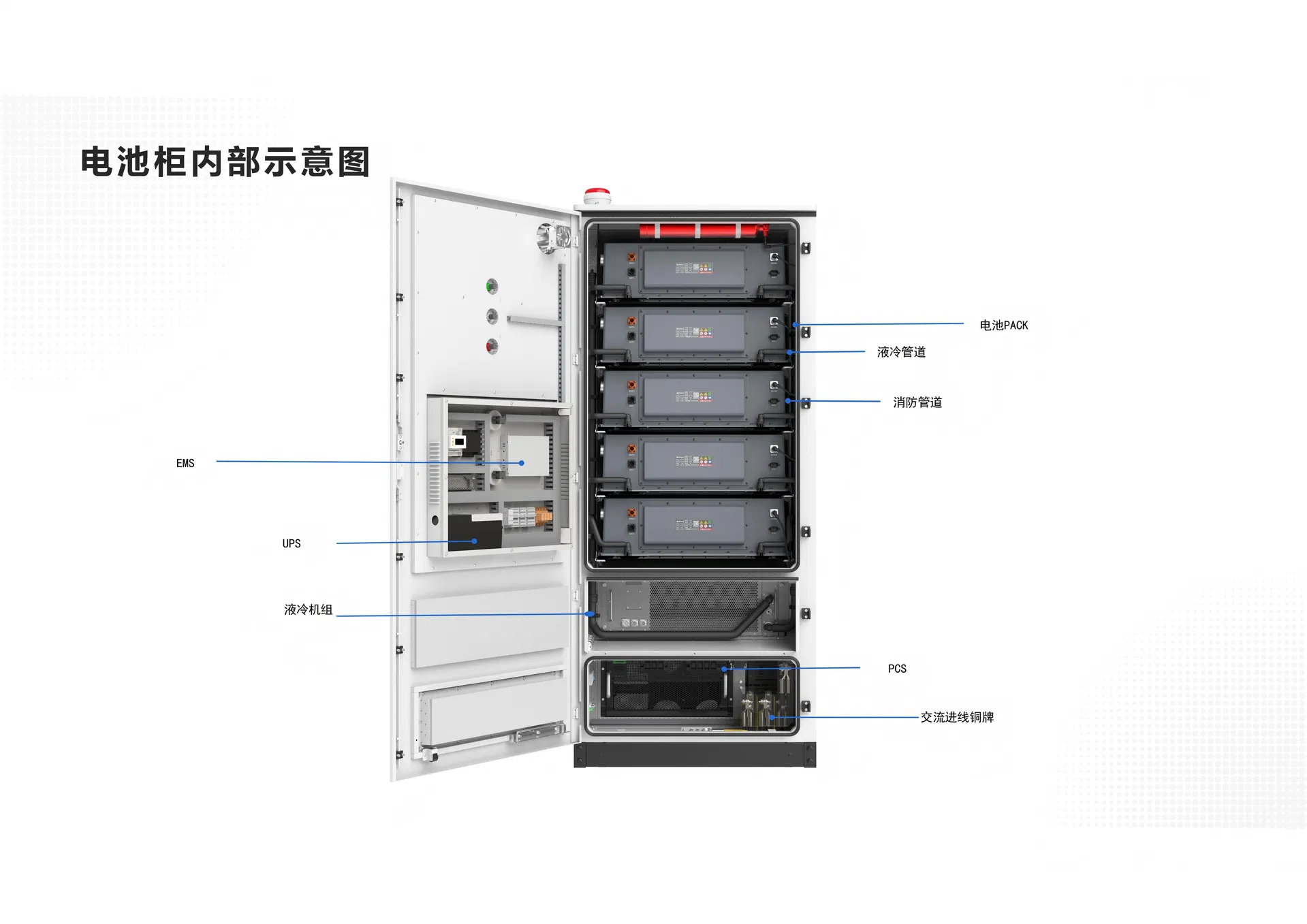

Integrated PCS, BMS, EMS, battery modules, intelligent control systems, in a compact outdoor cabinet, reducing installation complexity and cost.

High-Performance Cells, Long Lifespan

Equipped with 314Ah LiFePO4(LFP) cells, 8000+ cycles, stable operation beyond 10 years. (12000+ optional)

Intelligent Climate & Safety Protection

Built-in industrial AC maintains constant temperature/humidity. Fluoroketone fire suppression and IP54 rating ensure reliability in harsh environments.

Cloud Smart Management, Visible Efficiency

Real-time cloud monitoring with remote O&M and strategy optimization. Data dashboard visualizes energy efficiency and revenue for smart decision-making.

Multi-Energy Input, Automatic Switching

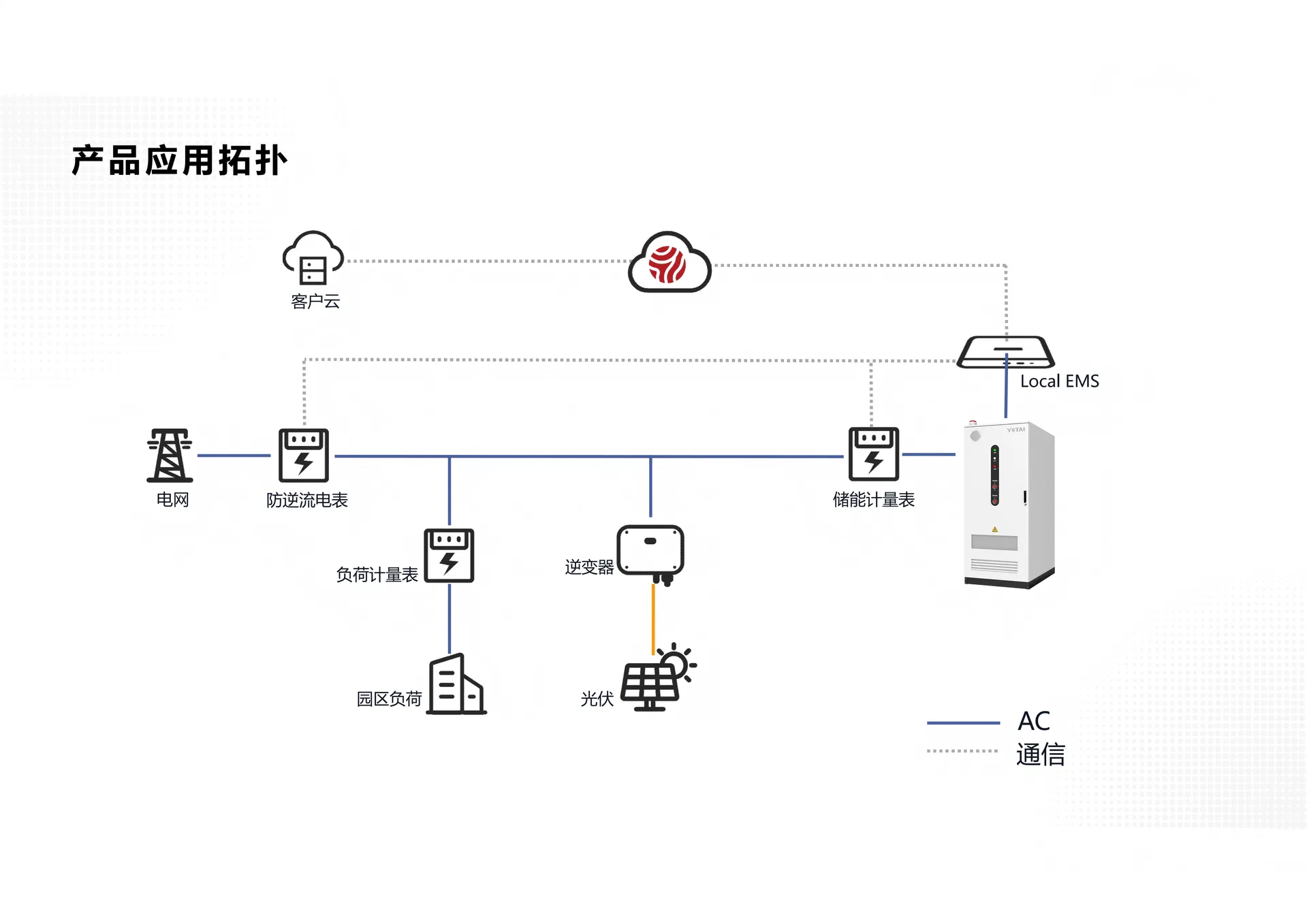

Compatible with PV, grid power, diesel generators, and wind power. Built-in STS enables automatic energy switching for uninterrupted power supply.

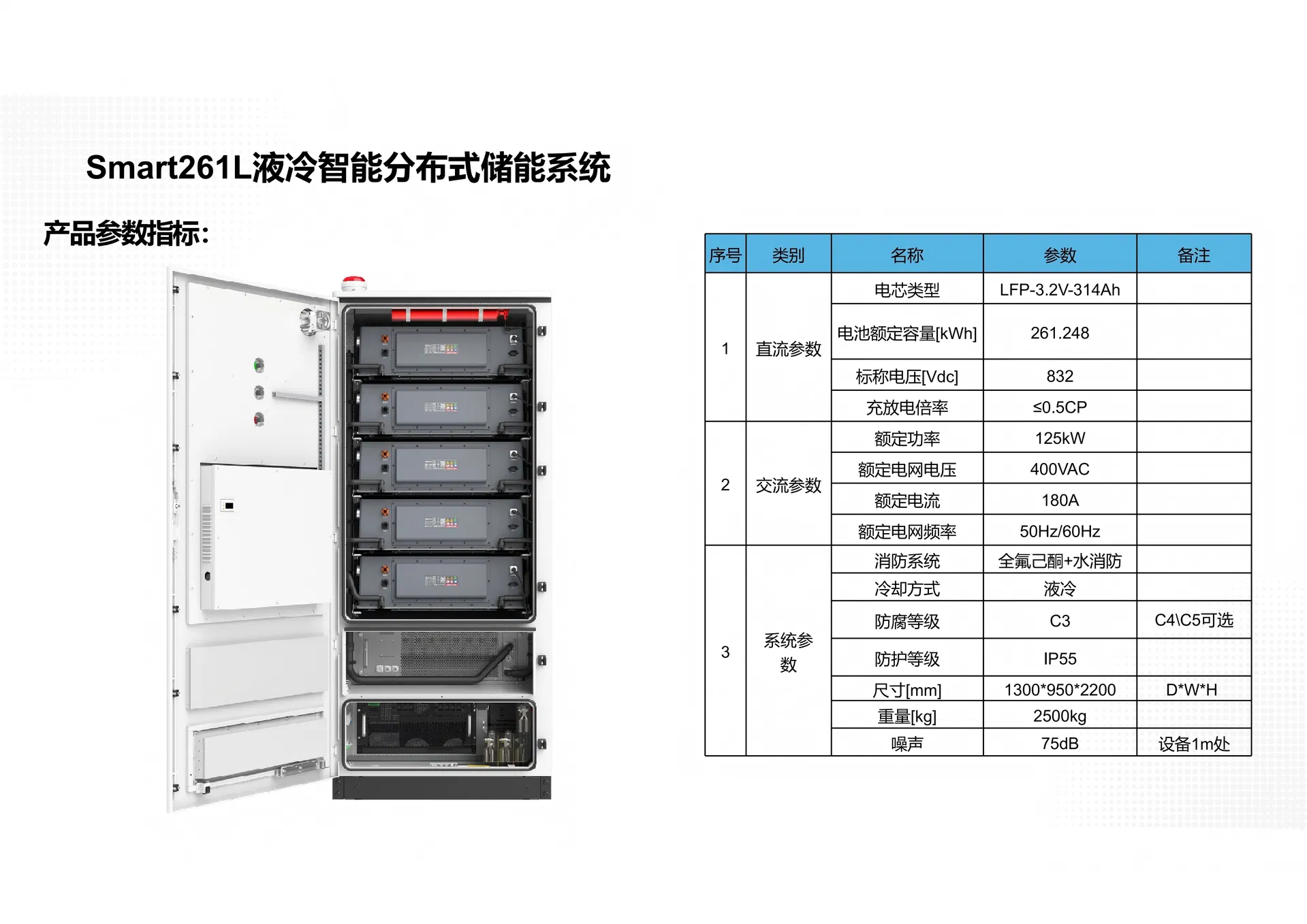

Model	VN-AES30-HC61	VN-AES60-HC112	VN-AES100-HC241
System Specification
Nominal Output Power	30KVA	60KVA	100kVA
Max.Output Power	33KVA	66KVA	110KVA
Energy Configuration	61.44kWh	112.5KWh	241.14KWh
Battery Chemistry	LiFePO4
System Nominal Voltage	614.4V	358.4V	768V
System Operating Voltage	508.8~691.2V	296.8~403.2V	636~864V
Switching Time (On-grid/Off-grid)	<10ms
Rated PV Input Power	36kW	72kW	120kW
Max.PV Input Power	38.4kW	76.8kW	144kW
Max.PV Input Current	2*32A	4*32A	4*50A
Max.PV Input Voltage	850V	850V	950V
Number of MPPT	2	4	4
MPPT Voltage Range	200~830V		200~950V
Start Up DC Voltage	250V
Battery Technical Specification
Battery Cell	3.2V/100Ah	3.2V/314Ah	3.2V/314Ah
Connection Method	1P192S	1P112S	1P240S
Battery Module Energy	614V/100Ah	358.4V/314Ah	716.8V/314Ah
Max.Charging/Discharging Current	50A	157A	157A
Operating Temperature Range	Charge -20~55ºC; Discharge 0~55ºC
Cycle Life	>8000
PCS Technical Specification (On-grid)
Rated Output Power	30kVA	60kVA	100kVA
Rated Output Current	43.5A	87A	152A
Rated Grid Voltage	400V/230V
Grid Voltage Range	-20%~15%
Grid Frequency Range	50Hz(47Hz~52Hz)
Grid Frequency Range	60Hz(57Hz~62Hz)
THDi (@Rated Power)	<5%		<3%
Power Factor	0.8 leading~0.8 lagging
PCS Technical Specification (Off-grid)
Rated Output Power	30KVA	60KVA	100KVA
Max.Output Power	33KVA	66KVA	110KVA
Rated Output Current	43.5A	87A	152A
Max.Output Current	48A	96A	168A
Rated Voltage	400V/230V
THDi (@Resistive load)	<3%		<1.5%
Unbalanced Load Capacity	100%
Rated Output Frequency	50/60Hz
Output Overload Current	<1.1 times Stable output
	<1.25 times, 100s
	<1.5 times, 100ms
Max.Efficiency	97.80%		98.78%
General Specification
Altitude	4000m
IP Rating	IP54
Humidity	5%~95%
Dimension (W×H×D)	1068×1854×1035mm	1450×2070×1210mm	1866×2300×1210mm

Frequently Asked Questions

What configurations are available for the VoltaNest Energy Storage Cabinet?

The system is available in three key configurations: A (30KW Inverter + 61kWh Lithium Battery), B (60KW Inverter + 112kWh Lithium Battery), and C (100KW Inverter + 241kWh Lithium Battery). Customized options are also available according to customer needs.

What type of battery cells are used and what is their expected lifespan?

The system utilizes high-performance 314Ah LiFePO4 (LFP) cells. These cells feature a cycle life of over 8,000 cycles (with 12,000+ optional) and support stable operation for more than 10 years.

How does the cabinet ensure safety and operate in harsh outdoor environments?

It features a built-in industrial air conditioner that maintains constant temperature and humidity. It is equipped with a fluoroketone fire suppression system and has an IP54 protection rating to ensure high reliability in various outdoor conditions.

Which energy sources are compatible with the VoltaNest system?

The system is compatible with multiple energy inputs including solar PV, power grid, diesel generators, and wind power. The built-in static transfer switch (STS) enables automatic switching in less than 10ms for an uninterrupted power supply.

Does the energy storage system support remote management and monitoring?

Yes, it features Cloud Smart Management which allows real-time cloud monitoring, remote operations and maintenance (O&M), and strategy optimization. It also includes a data dashboard to visualize energy efficiency and financial revenue.

What kind of application scenarios can this product resolve?

It is designed to solve challenges related to high electricity consumption, unstable grids, high electricity prices (for peak-shaving and valley-filling), and off-grid scenarios like microgrids or islands, as well as serving as an emergency power supply.
