| Model | 60 kW | 80 kW | 120 kW | 150 kW |
|---|---|---|---|---|
| AC Input Power | 115A, 400V | 155A, 400V | 182A, 400V | 228A, 400V |
| Input Voltage Range | 3P+N+PE, AC380V±15% | |||
| Cable Length | 5 meters or customized | |||

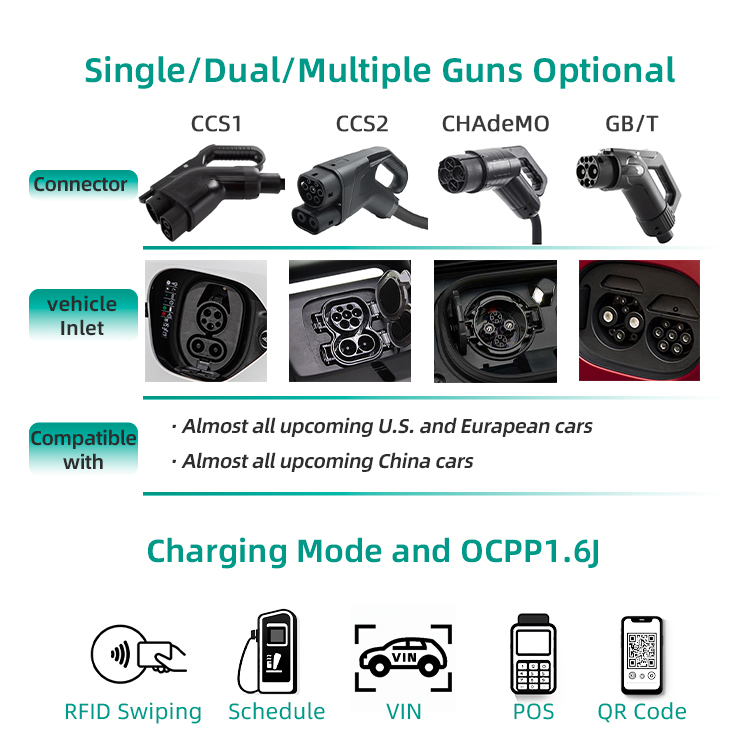

| Max. Current- CCS | 200 A | 250 A | ||
| Max. Current-CHAdeMO | 125 A | 125 A | ||
| Max. Current- GBT | 200 A | 250 A | ||
| Distribution System | TN-S, TN-C, TN-C-S, TT (External RCD Required) | |||
| Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection | |||
| Connectivity | Internet access via 4G/3G/Ethernet (RJ45) | |||
| User Authentication | RFID(ISO/IEC 14443 A/B Mifare RFID reader), QR code | |||
| User Interface | 12.1 inch LCD high-contrast touchscreen | |||
| Communication Protocols | Proprietary and OCPP 1.6J/2.0 | |||
| Emergency Button | Yes | |||

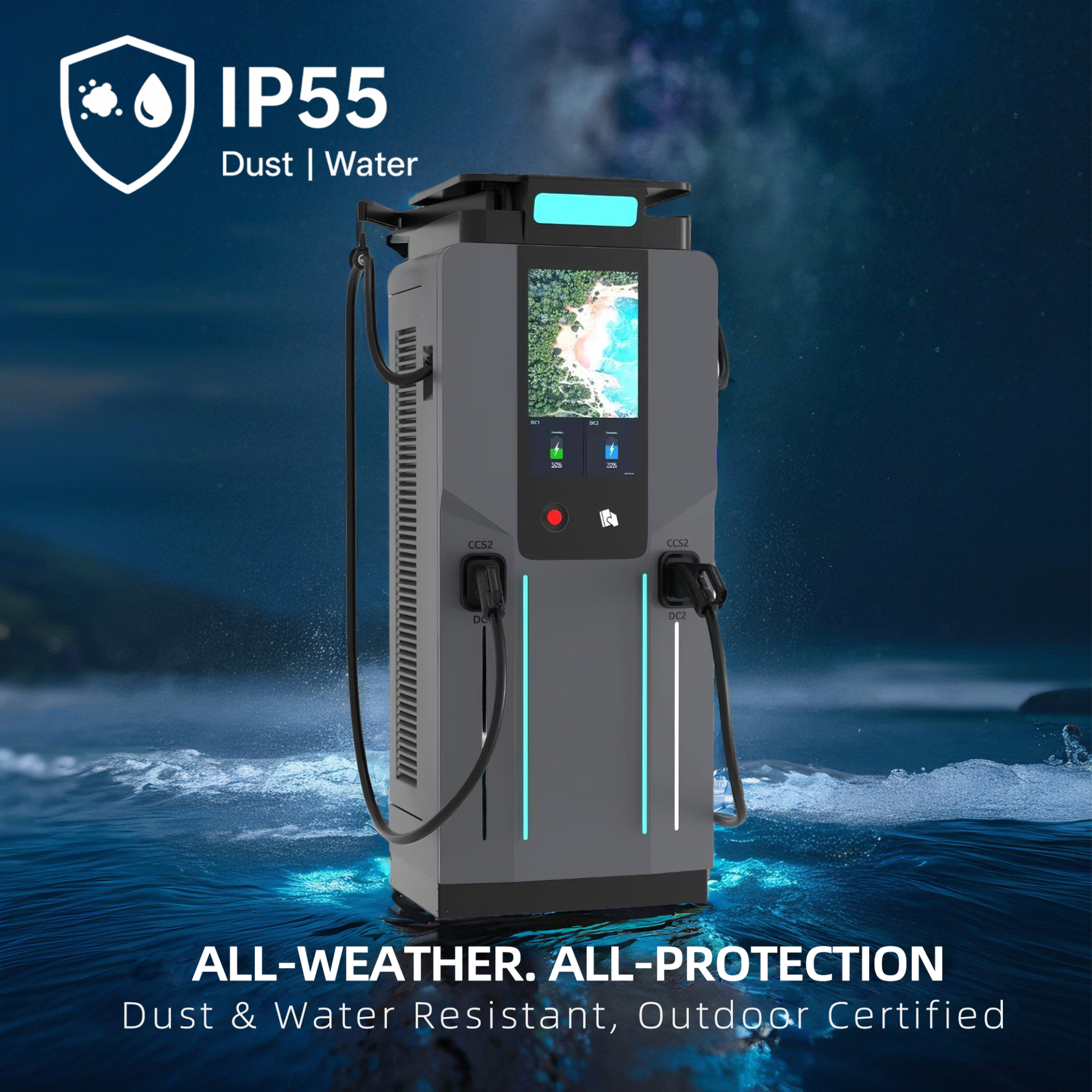

| Protection Rating | IP55 and IK10 (cabinet) / IK08 (touchscreen) | |||
| Operating Temperature | -20 °C to 55 °C | |||

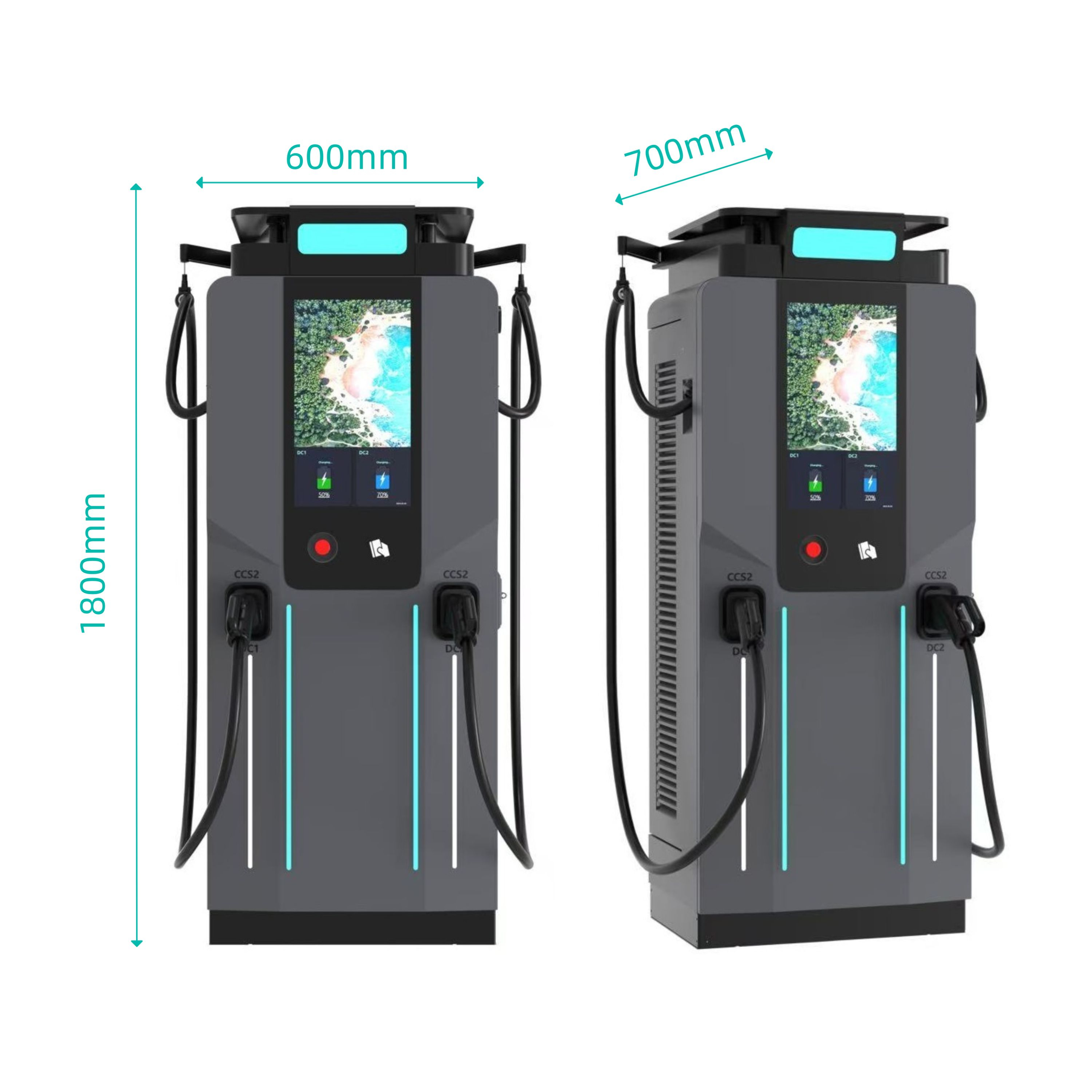

| Dimensions (mm) | 600*700*1800mm | |||
| Net Weight (kg) | ≤325kg | ≤425kg | ||
