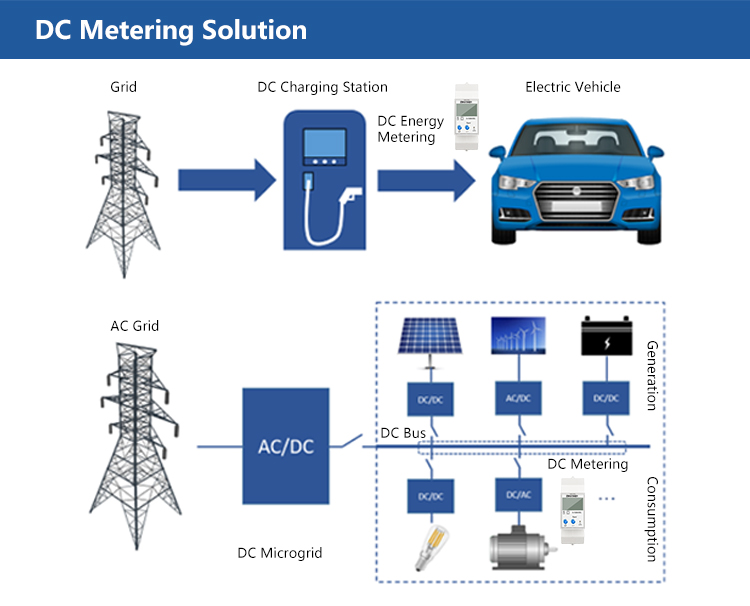

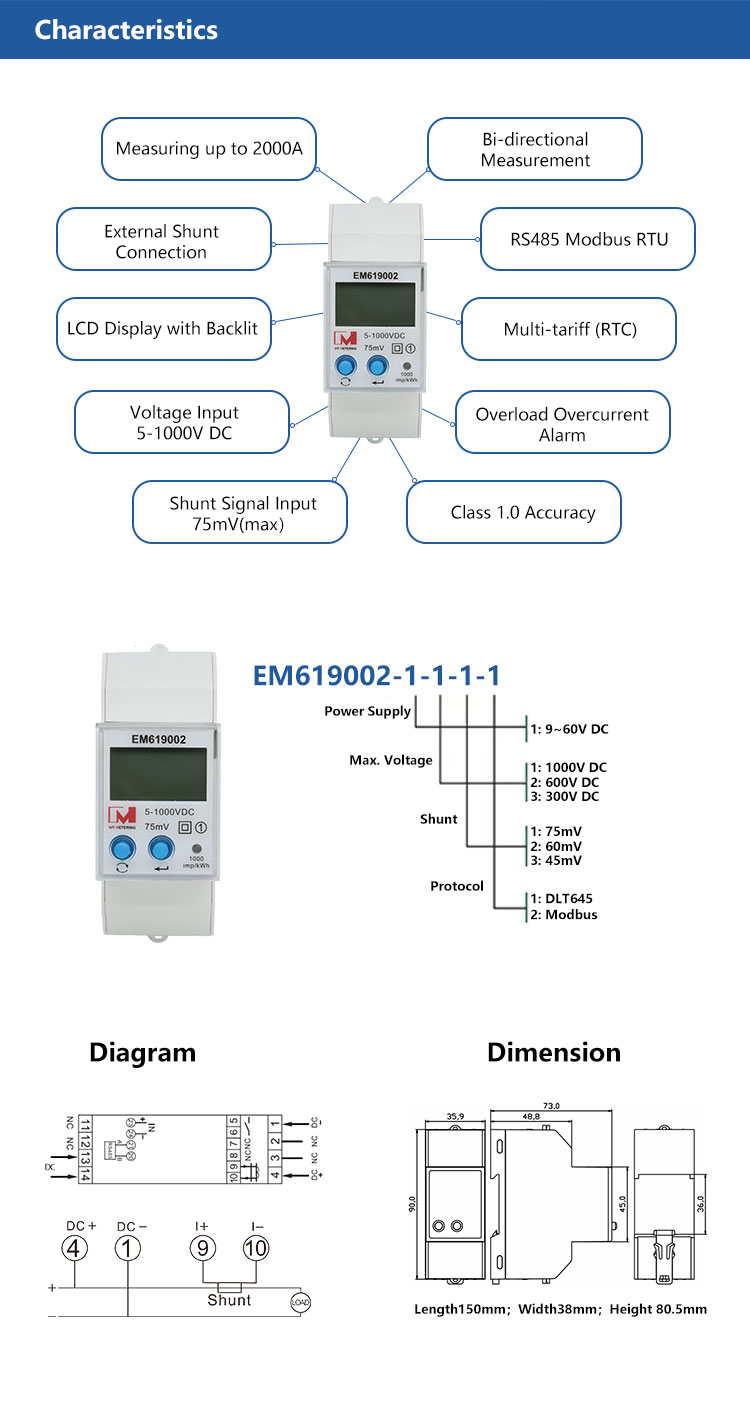

Designed for measuring and monitoring DC systems, capturing vital parameters including Voltage, Current, Power, and Energy with bi-directional support.

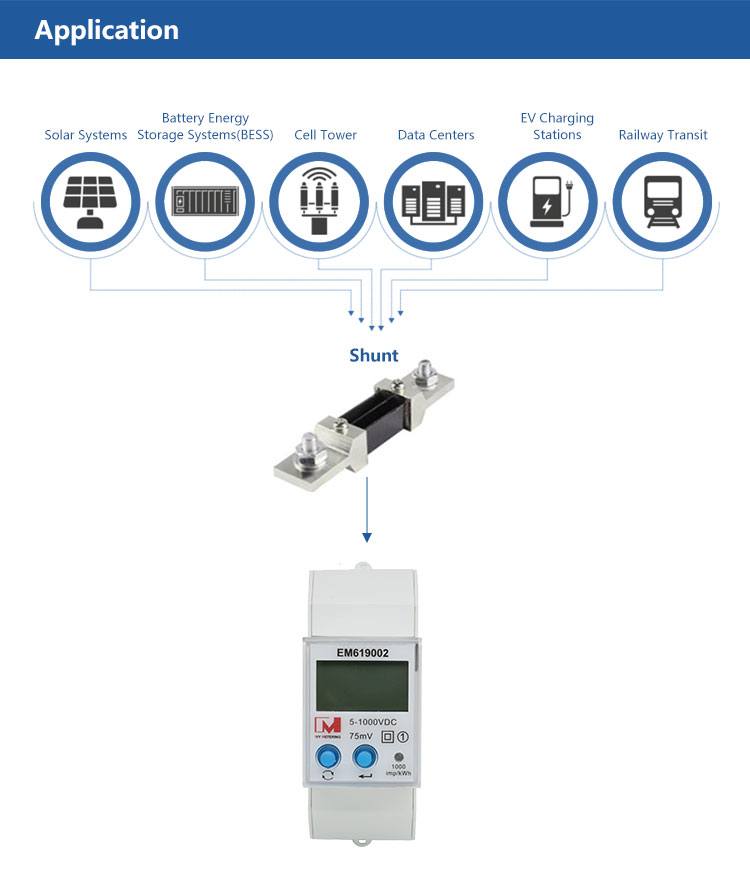

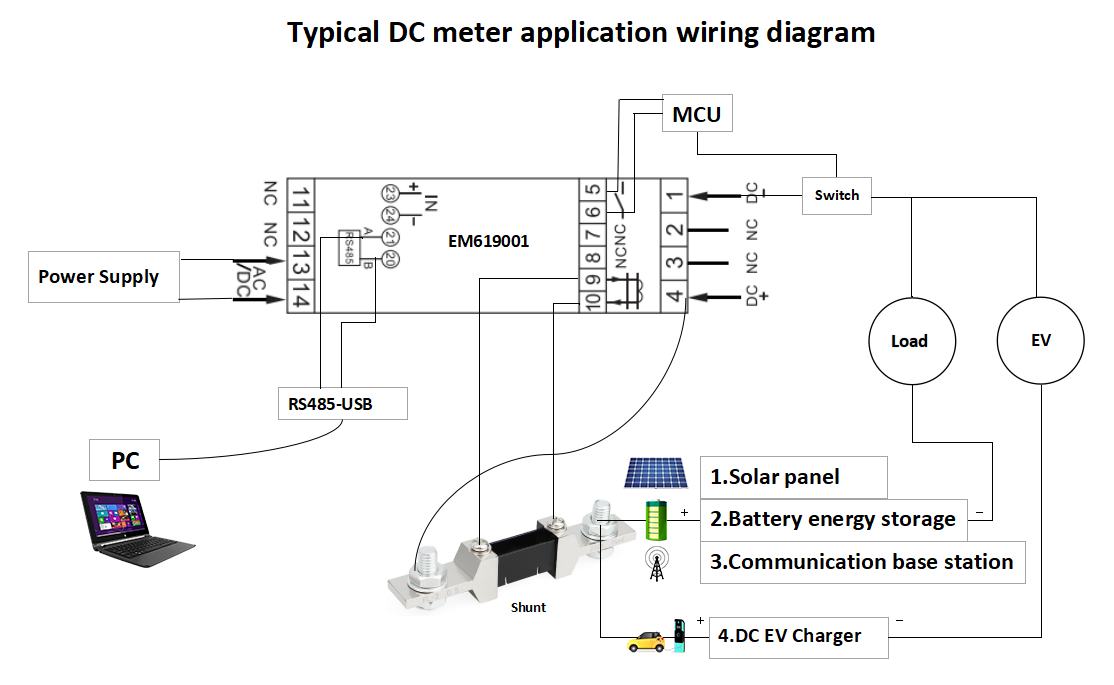

Supports input voltage range up to 1000VDC. Current inputs are highly flexible via DC shunt connections to suit various industrial needs.
Data is easily accessible via RS485 using Modbus RTU or DTL645 protocols, ensuring seamless integration with SCADA or monitoring platforms.
Equipped with an internal RTC for multi-tariff information tracking and monthly data records for efficient energy management.

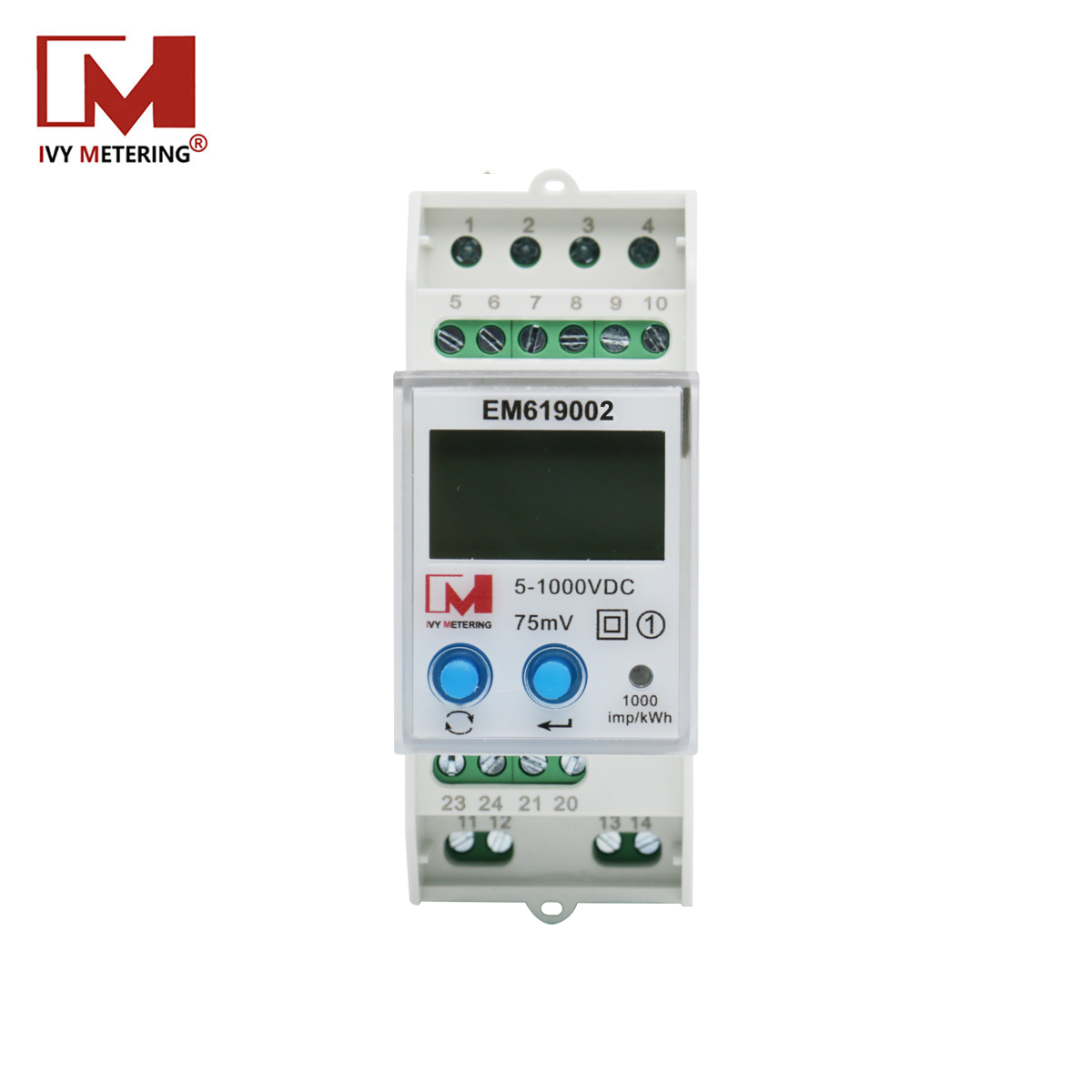

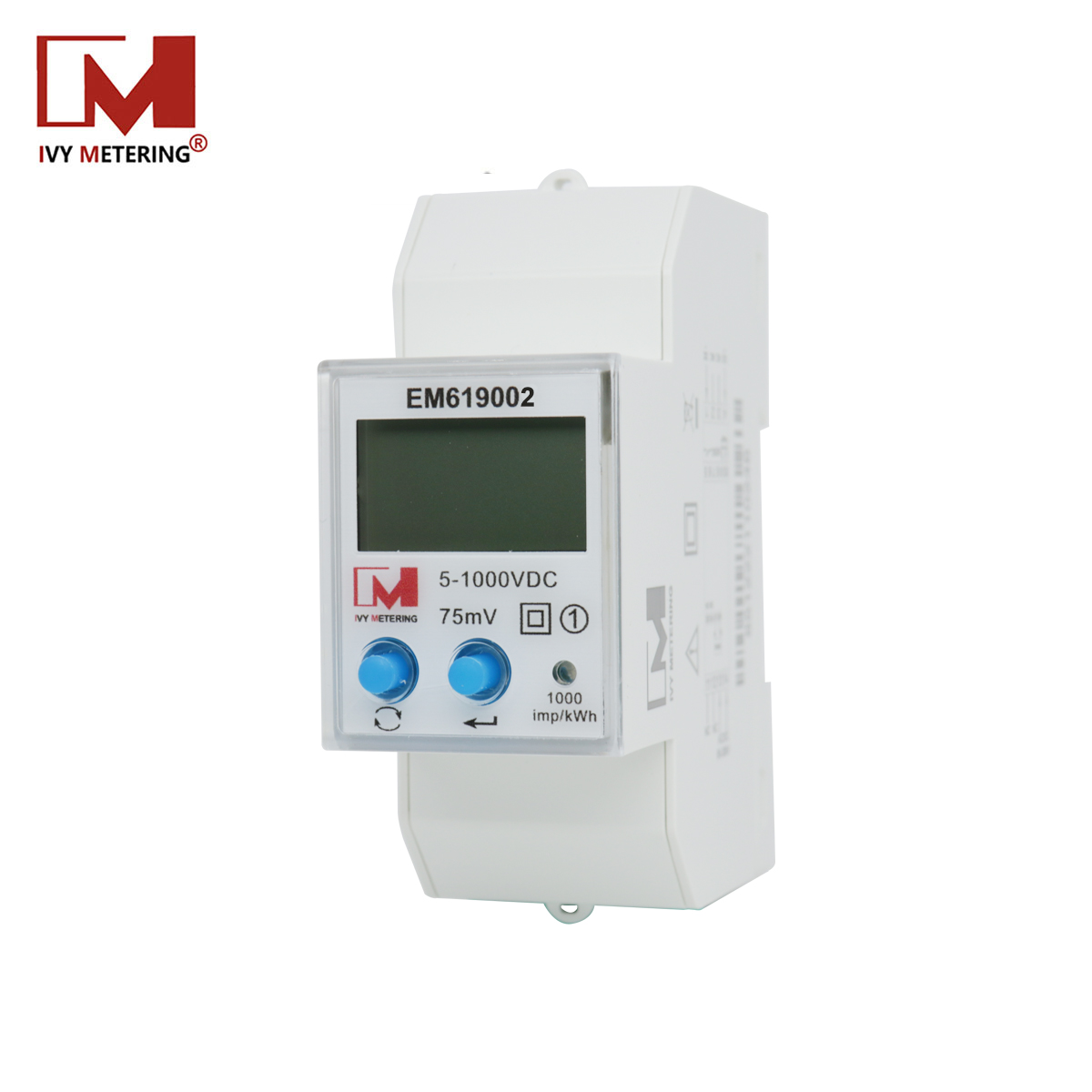

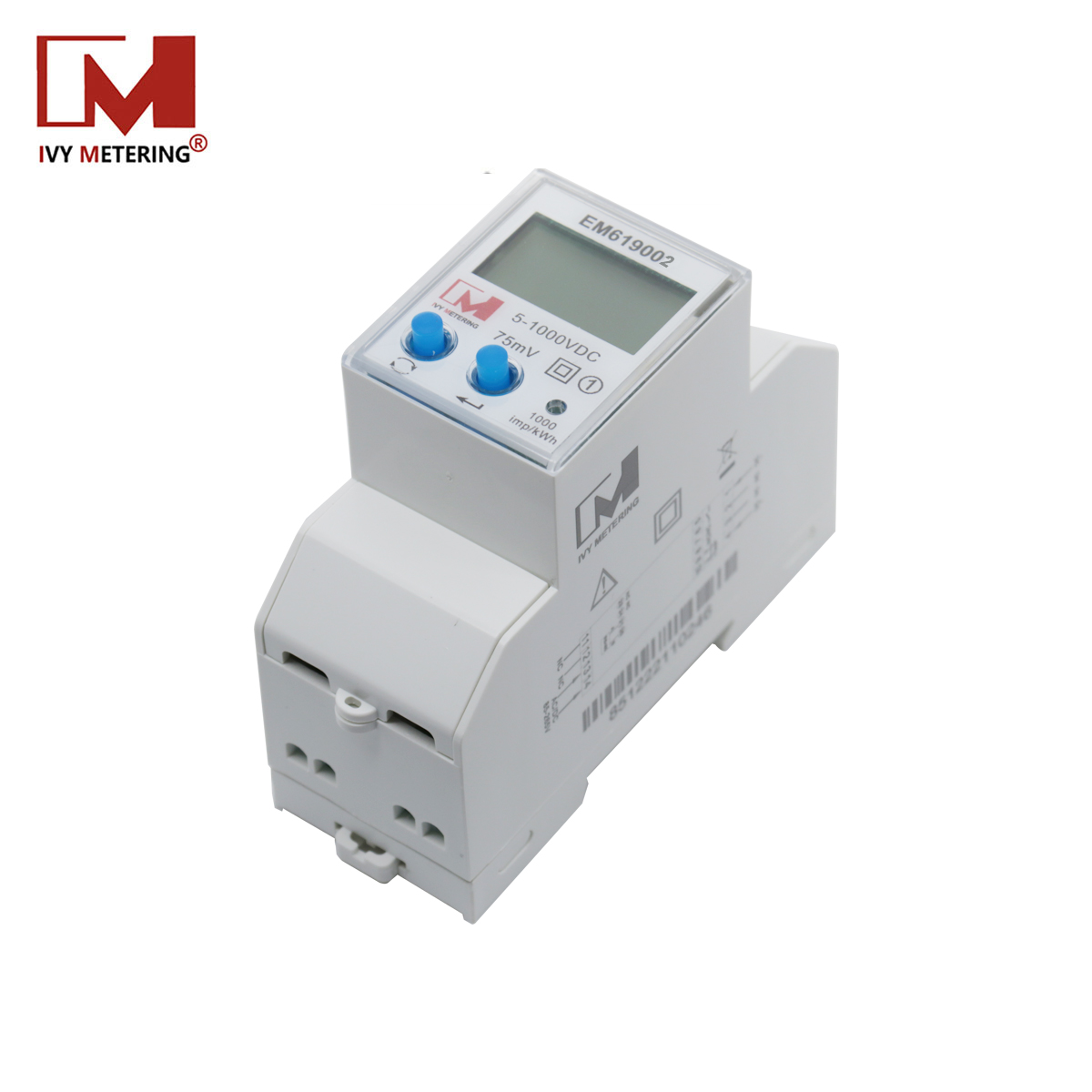

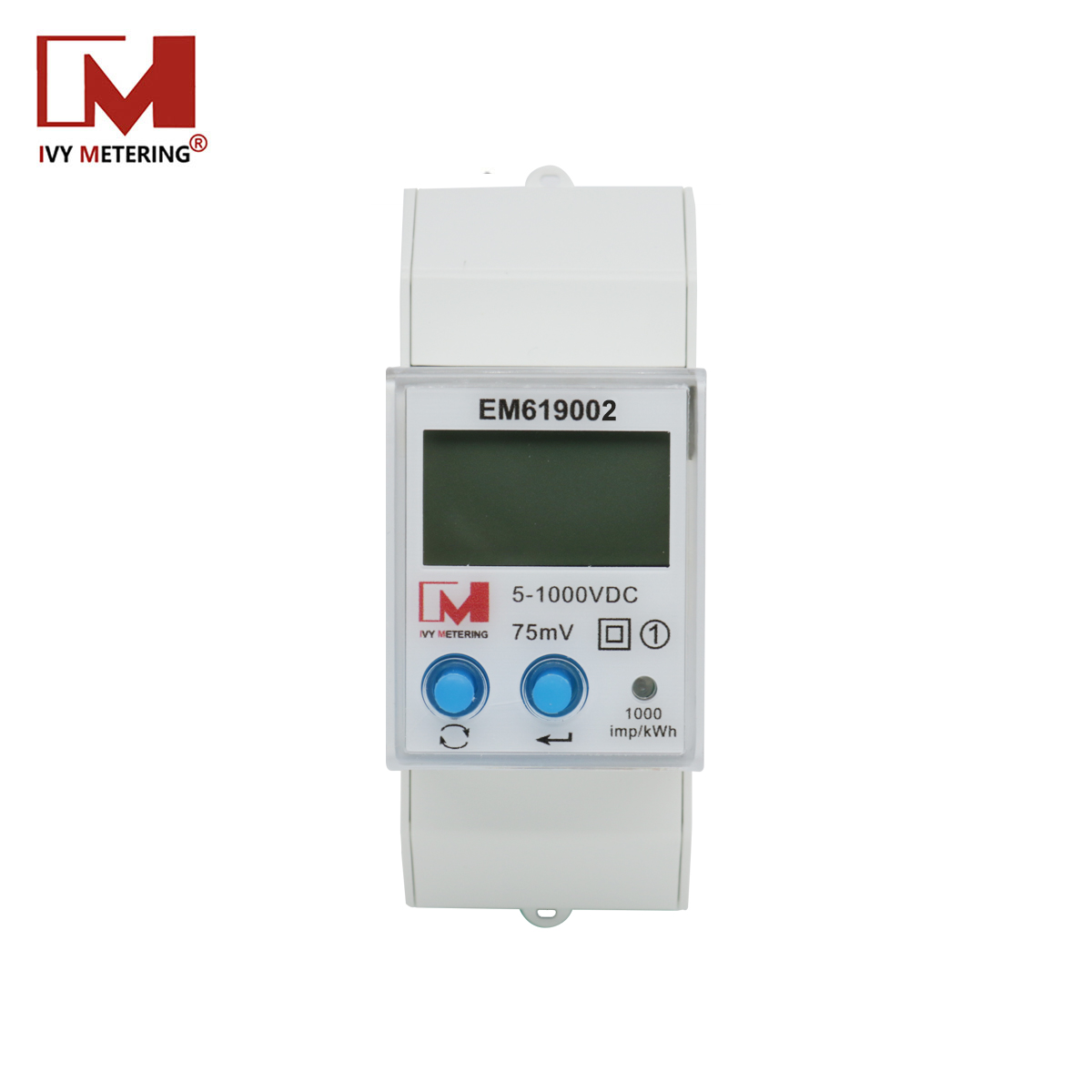

EM619002 DC meter is optimized for:
| Model | EM619001 / EM619002 |

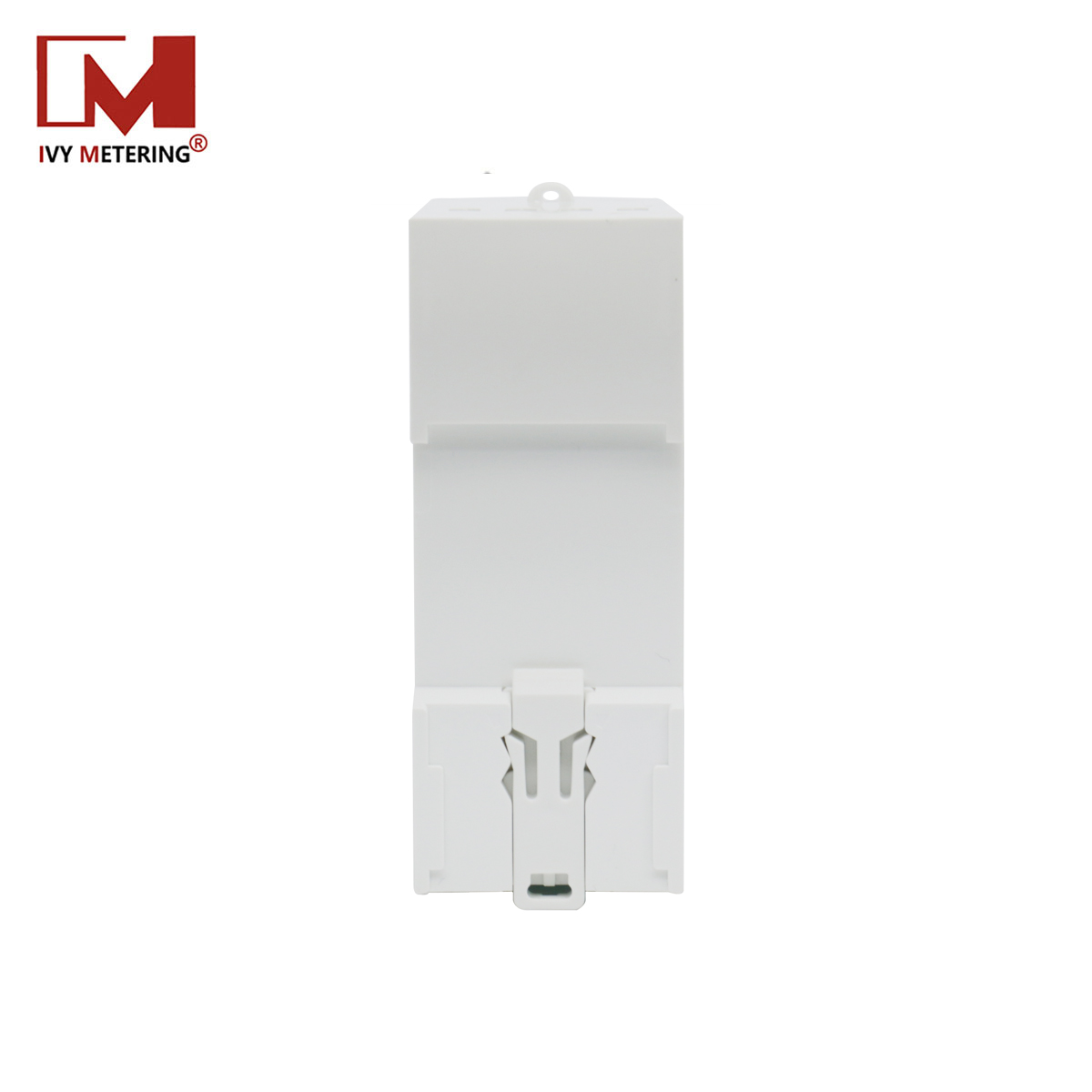

| Device Type | Din Rail DC Measuring Device |
| Reference Voltage | DC 5V-1000V |
| Current Range | Shunt Connection, Max 2000A (Settable), 75mV signal |
| Power Supply | DC 9~60V (Self-powered) |
| Accuracy (V/I) | 0.5% |
| Active Energy Accuracy | Class 1.0 (1.0%) |
| Operation Temperature | -25°C ~ +70°C |
| Communication | RS485 (DLT645 / Modbus RTU) |
| Display | LCD 6+2 digits |
| Impulse Constant | 1000 imp/kWh |
| Power Consumption | ≤0.4W, ≤8VA |
| Withstand Voltage | 4400V/min |
