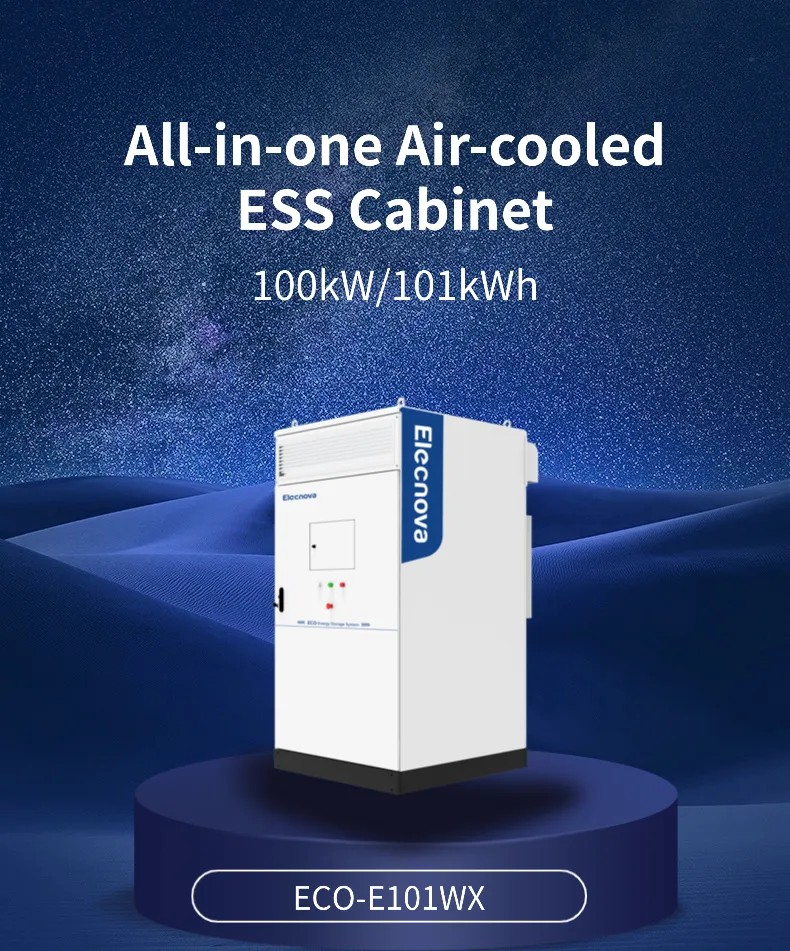

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

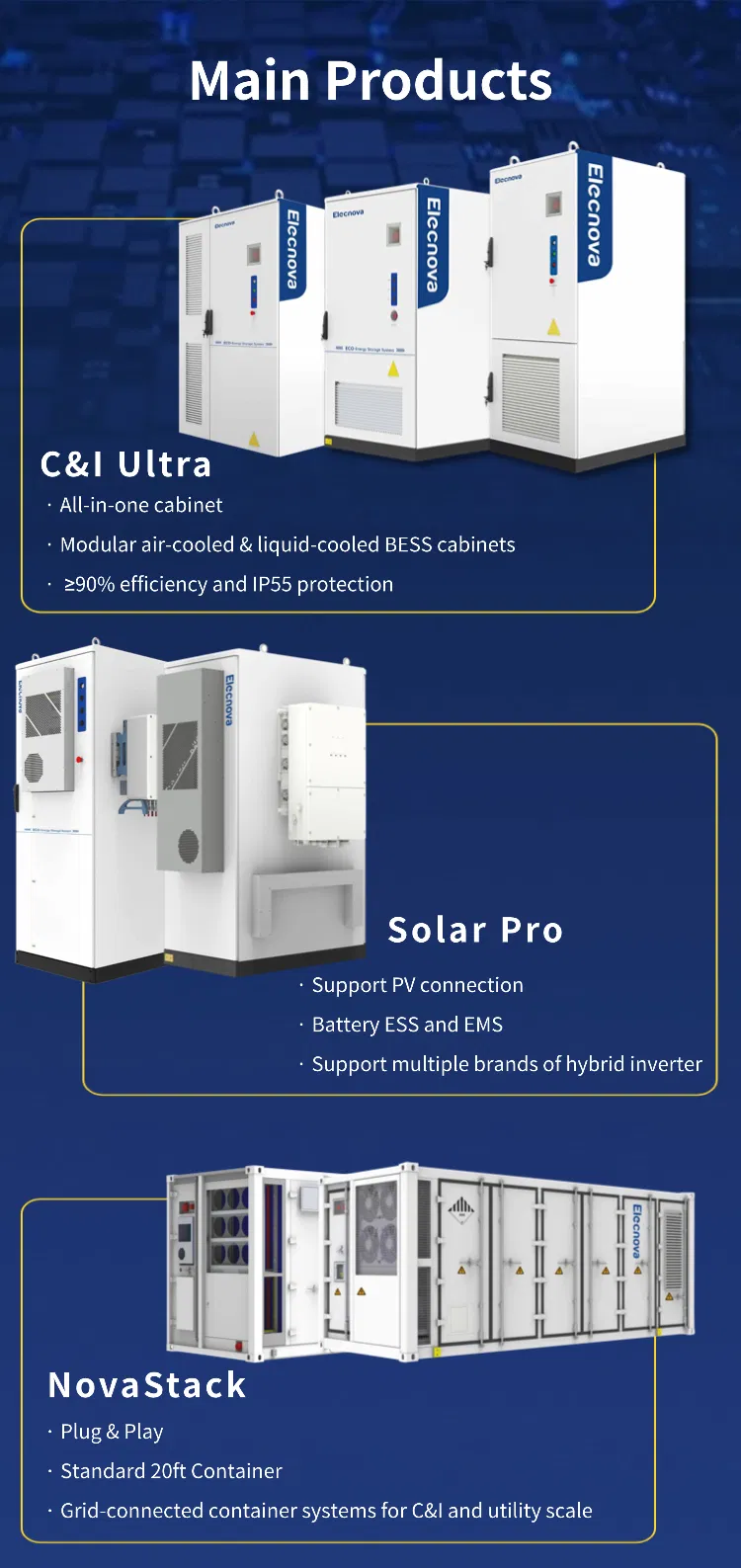

We offer three flagship product lines to meet diverse energy storage demands:

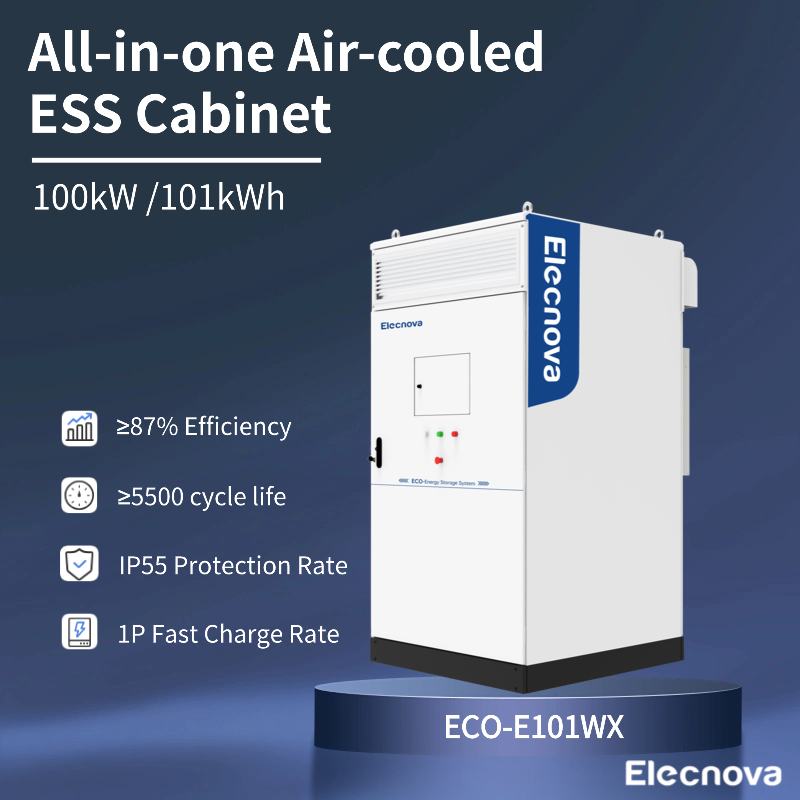

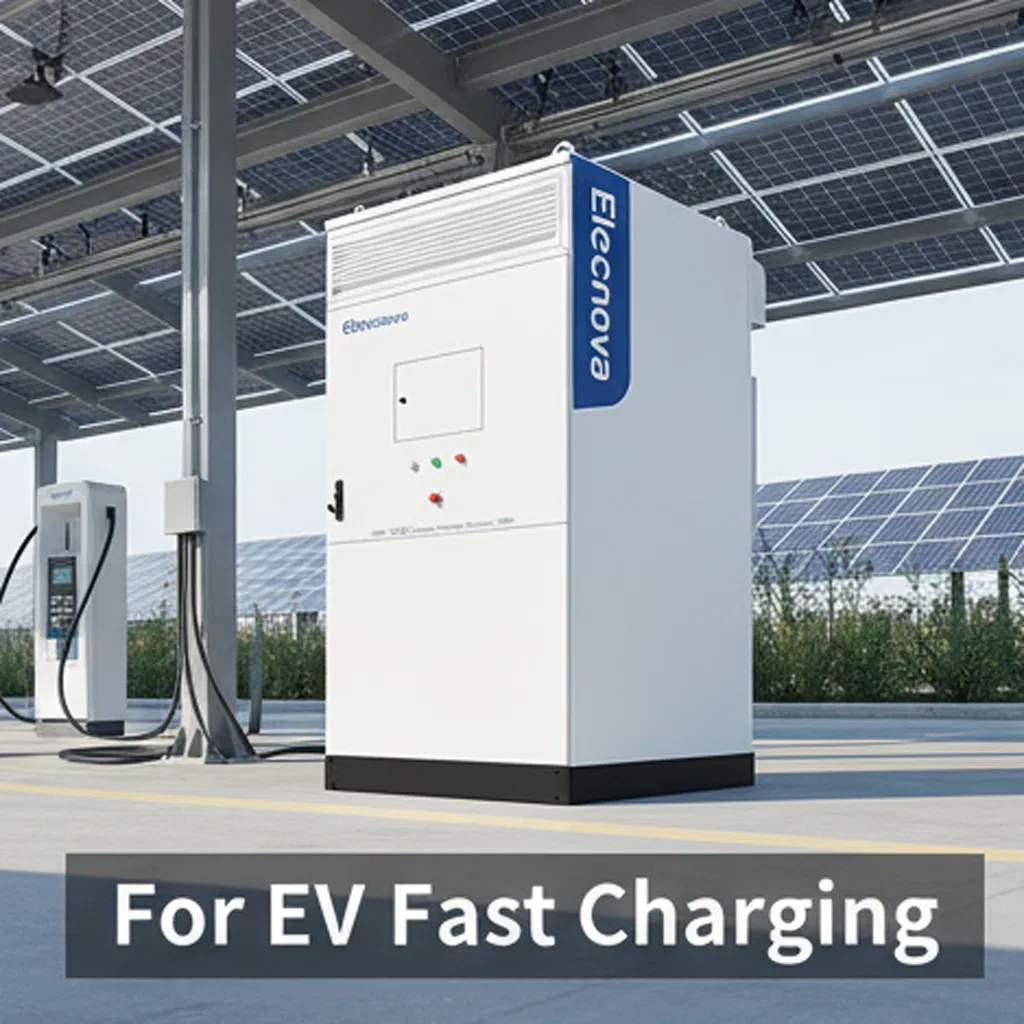

Introducing the ECO-E101WX, a high-performance energy storage solution ideal for EV charging stations and similar applications. With a max charge/discharge rate of 1P, ≥87% efficiency, and a robust cycle life of ≥5500 cycles, it delivers consistent power. Its IP55 ingress rating and forced air cooling ensure durability in varied environments. Trust ECO-E101WX to power your charging infrastructure with reliability and efficiency.
| DC Side | |
|---|---|
| Cell Type | LFP / 120 Ah |
| PACK Configuration | 9.2 kWh / 1P24S |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| DC Voltage Range | 739.2 ~ 950.4 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99/ -1 ~ +1 |
| THDi | ≤3% |
| DC Ratio | <0.5% Ipn |
| General Specs | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Operating Temperature | -25ºC~55ºC (Derating after 45ºC) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Noise | ≤ 75 dB |
| Altitude | 4000m (Derating above 2000m) |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |
| Certification | UN38.3, IEC62477-1, IEC61000, IEC62619, IEC63056, EN50549 |

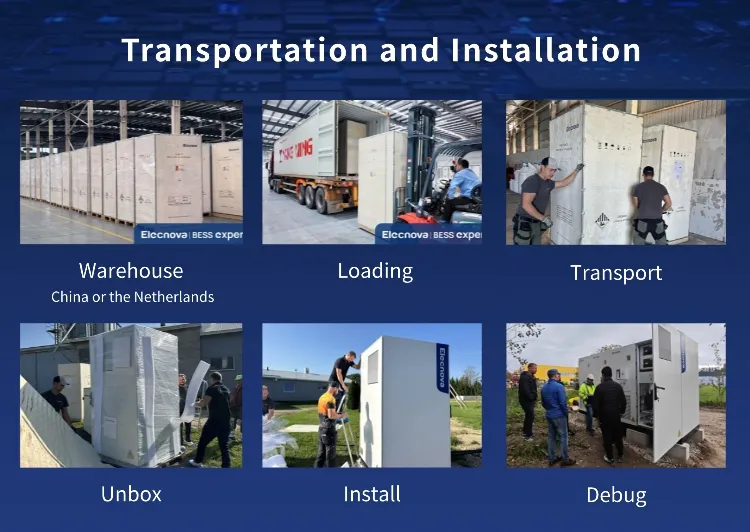

When it comes to energy storage project delivery, a systematic and professional transportation & installation process is key to ensuring your BESS (Battery Energy Storage System) operates reliably. We deliver a full-cycle service from warehouse to commissioning, designed to bring efficiency and confidence to your project:
From warehouse to grid connection, we are committed to making your energy storage project delivery smooth, efficient, and worry-free.

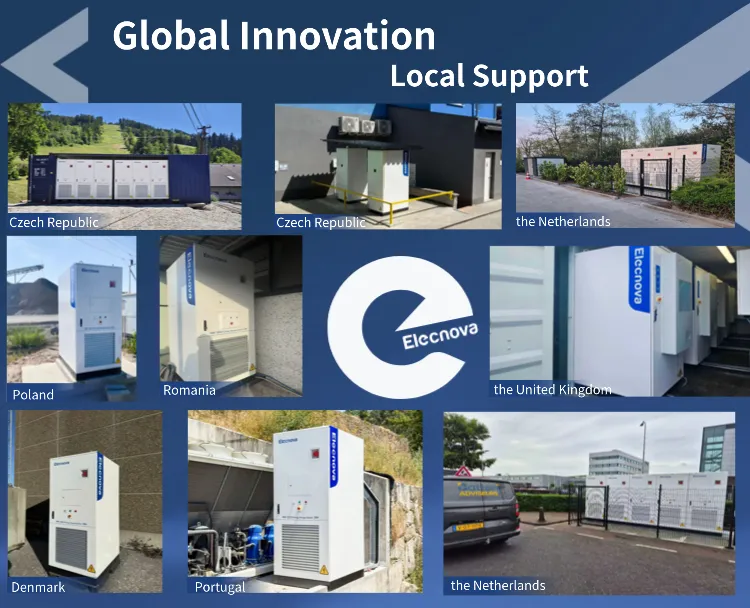

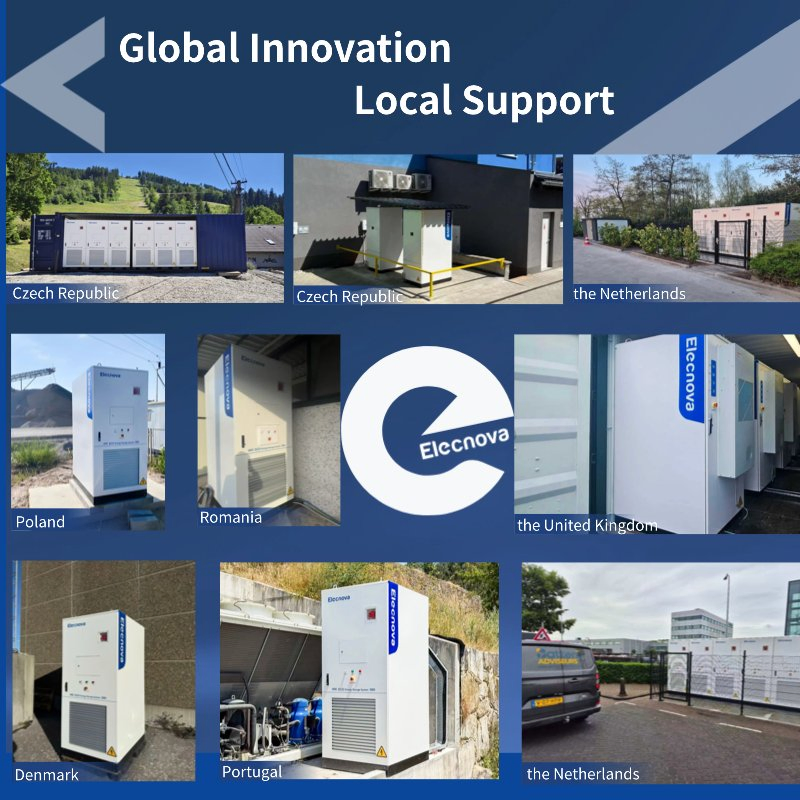

From Italy, the Netherlands, Belgium, Czech Republic, and Poland in Europe, to Ukraine, Southeast Asia, Africa, and the Middle East, our energy storage solutions are transforming energy landscapes worldwide. Trusted across continents, we deliver reliable, scalable BESS to empower your energy security, wherever you are.
We stand behind every energy storage solution with a robust after-sales ecosystem. In Europe, our dedicated after-sales center, service partners, and regional warehouses with ample spare parts ensure localized, timely support. We offer an industry-leading max 5+5 years warranty, coupled with a cells performance warranty of up to 8000 cycles at 75% SOH. Our services extend to on-site/online training (maintenance, installation, sales), comprehensive technical guidance (specifications, schematic, design), 3rd party EMS testing, and tailored support for special projects.

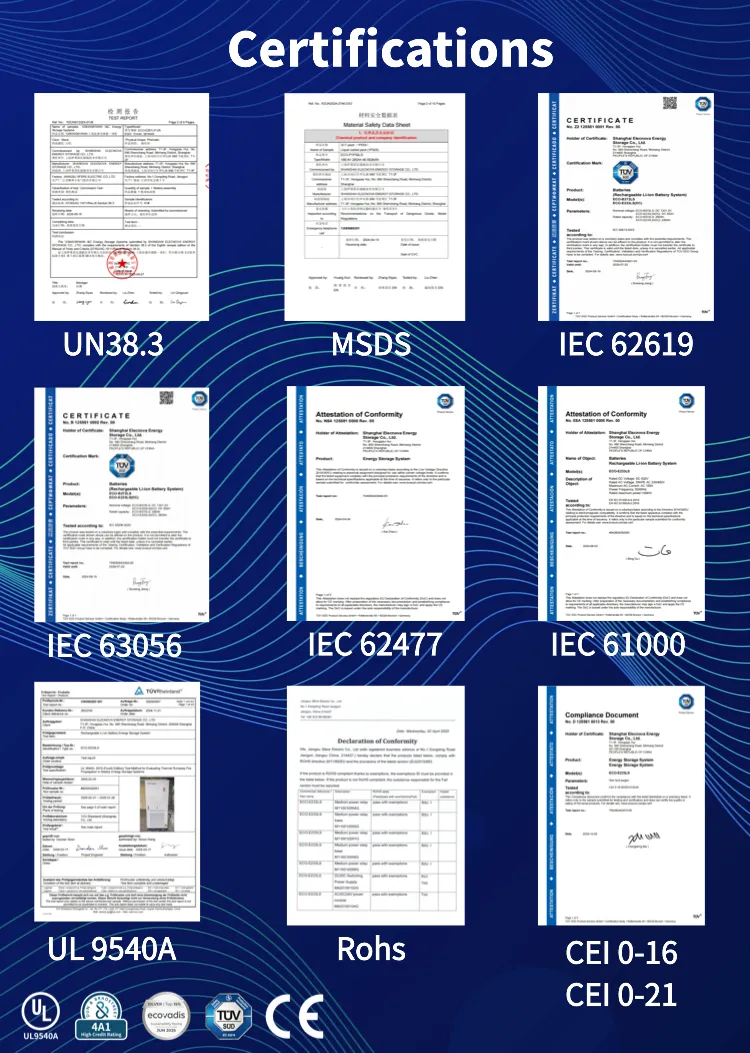

Our energy storage solutions are backed by a comprehensive suite of international certifications, underscoring our commitment to excellence, safety, and compliance across global markets:
With 28 years of industry experience, we are a leading player in the energy storage sector. We dedicate 10% of our revenue to R&D, ensuring continuous technological advancement. Moreover, our 15% Enterprise rating in EcoVadis reflects our strong commitment to environmental, social, and governance (ESG) standards. From cutting-edge innovation to sustainable development, we consistently deliver reliable energy storage solutions to power the global energy transition.
We are a professional OEM & ODM energy storage manufacturer with strong production capabilities:
Partner with us for reliable, high-quality energy storage manufacturing solutions.
