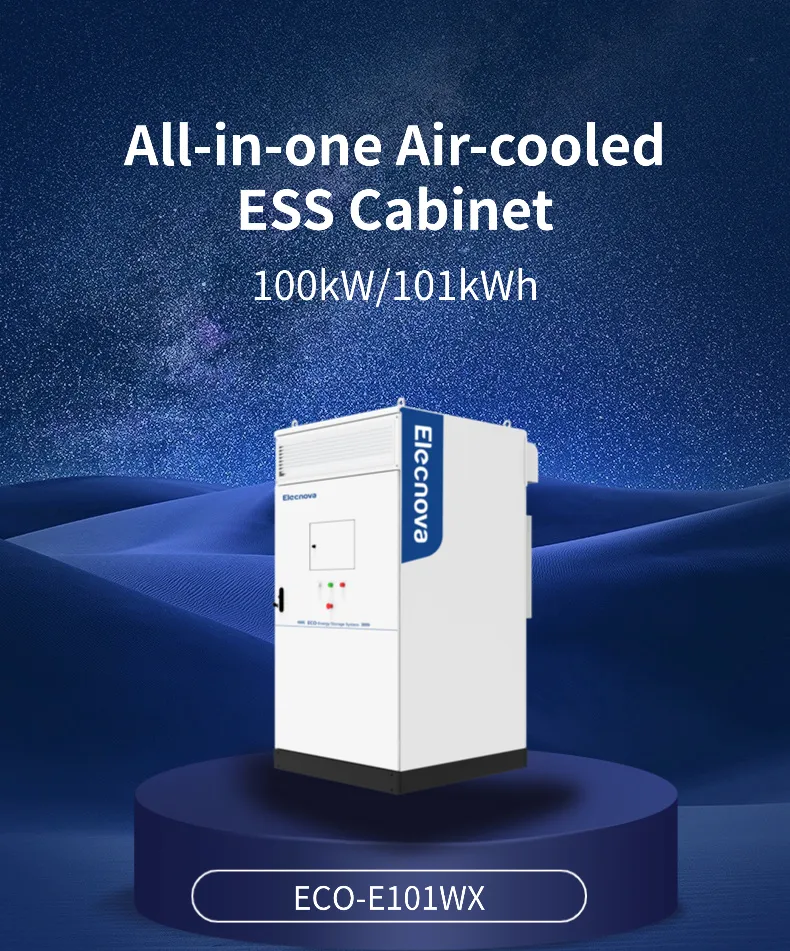

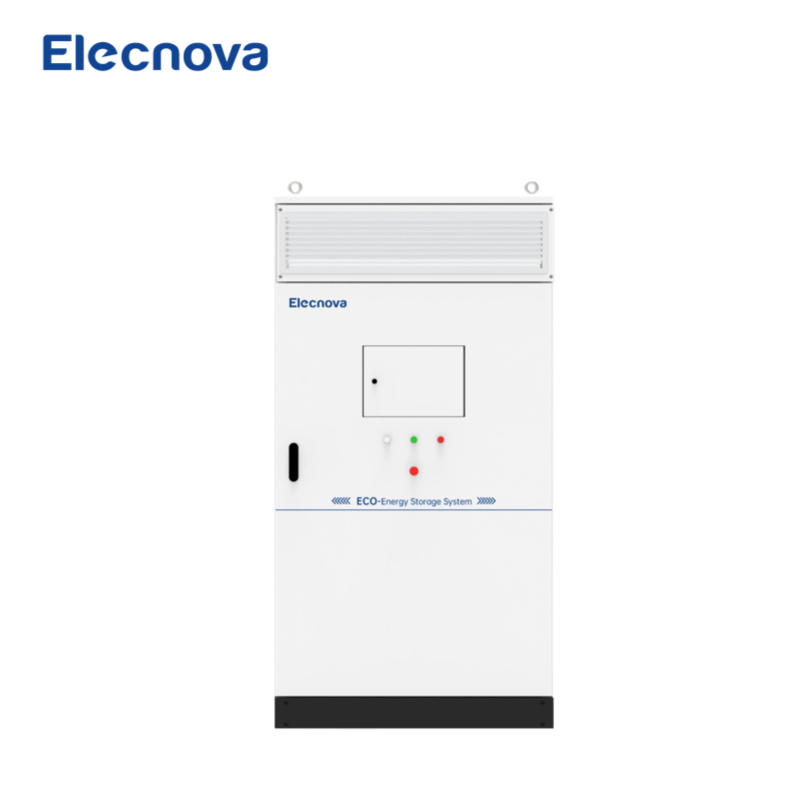

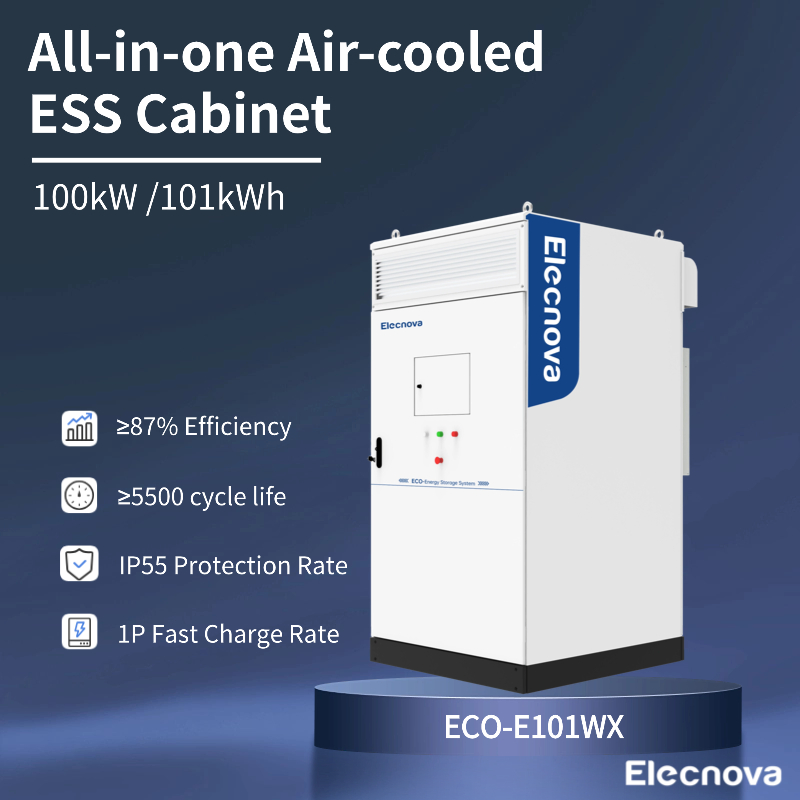

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution, and HVAC into one cabinet. This system enables long-term operation with safety, stability, and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power stations with flexible capacity expansion.
We offer three flagship product lines to meet diverse energy storage demands:
| ECO-E101WX System Specifications | |
|---|---|
| DC Side | |
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC (Derating after 45ºC) |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |

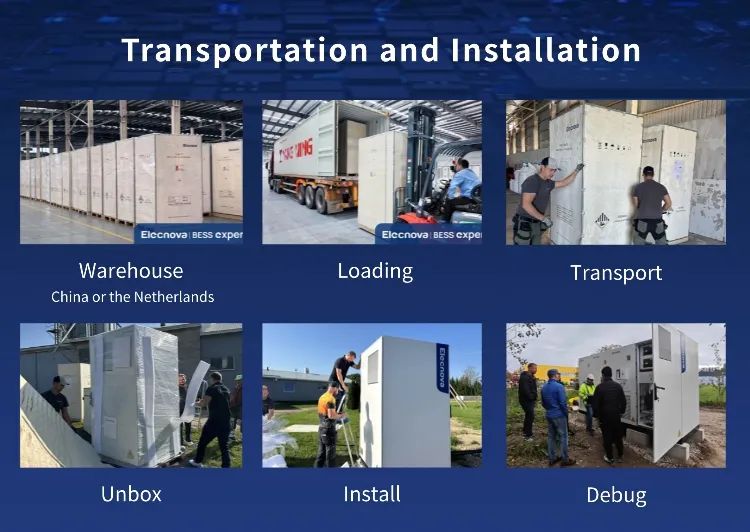

Our systematic delivery process ensures your BESS operates reliably from day one:

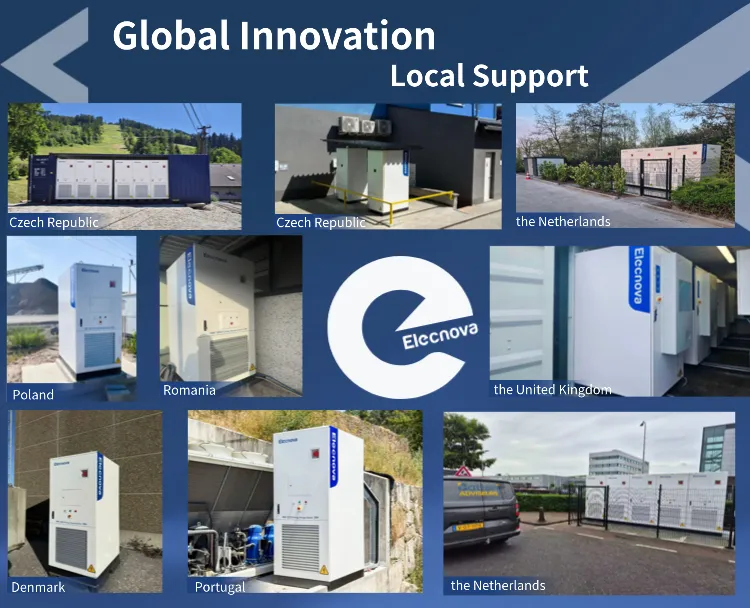

From Europe (Italy, Netherlands, Belgium, Czech Republic, Poland) to Ukraine, Southeast Asia, Africa, and the Middle East, our energy storage solutions are transforming energy landscapes worldwide.
We provide a robust support ecosystem including a 5+5 years warranty and specialized technical guidance. Our manufacturing capabilities include:
