Wholesale RFID Card Swipe EVwallbox 22kW 7kW, 32amp Type2 AC EV Charger EV Charging Station 22kw EV Charger Type 2 EU

1 / 5

Wholesale RFID Card Swipe EVwallbox 22kW 7kW, 32amp Type2 AC EV Charger EV Charging Station 22kw EV Charger Type 2 EU

Send Inquiry

Product Description

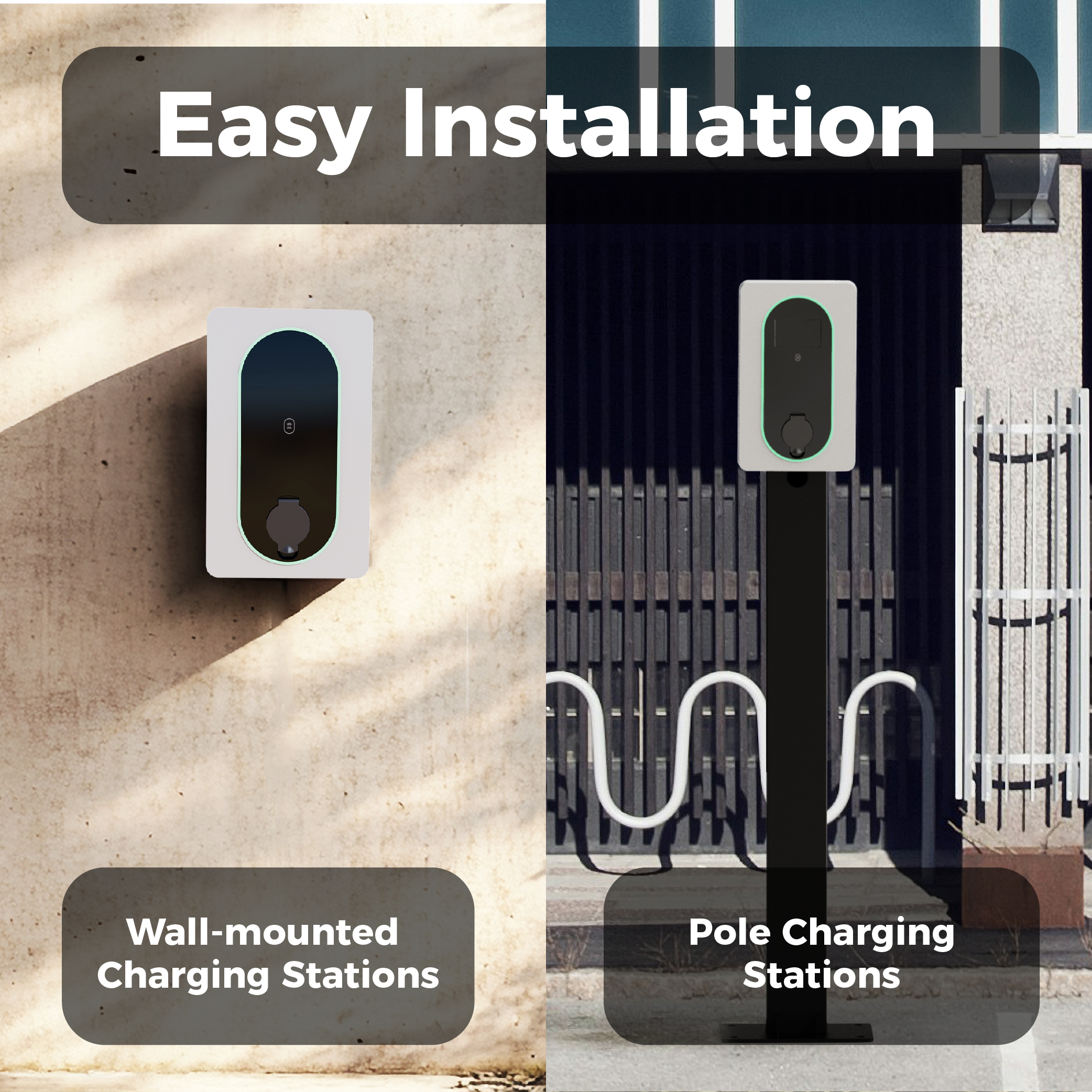

Supports both wall-mounted and pole installation, making it adaptable to different setups. It also offers ODM & OEM customization, allowing businesses to tailor brands and features.

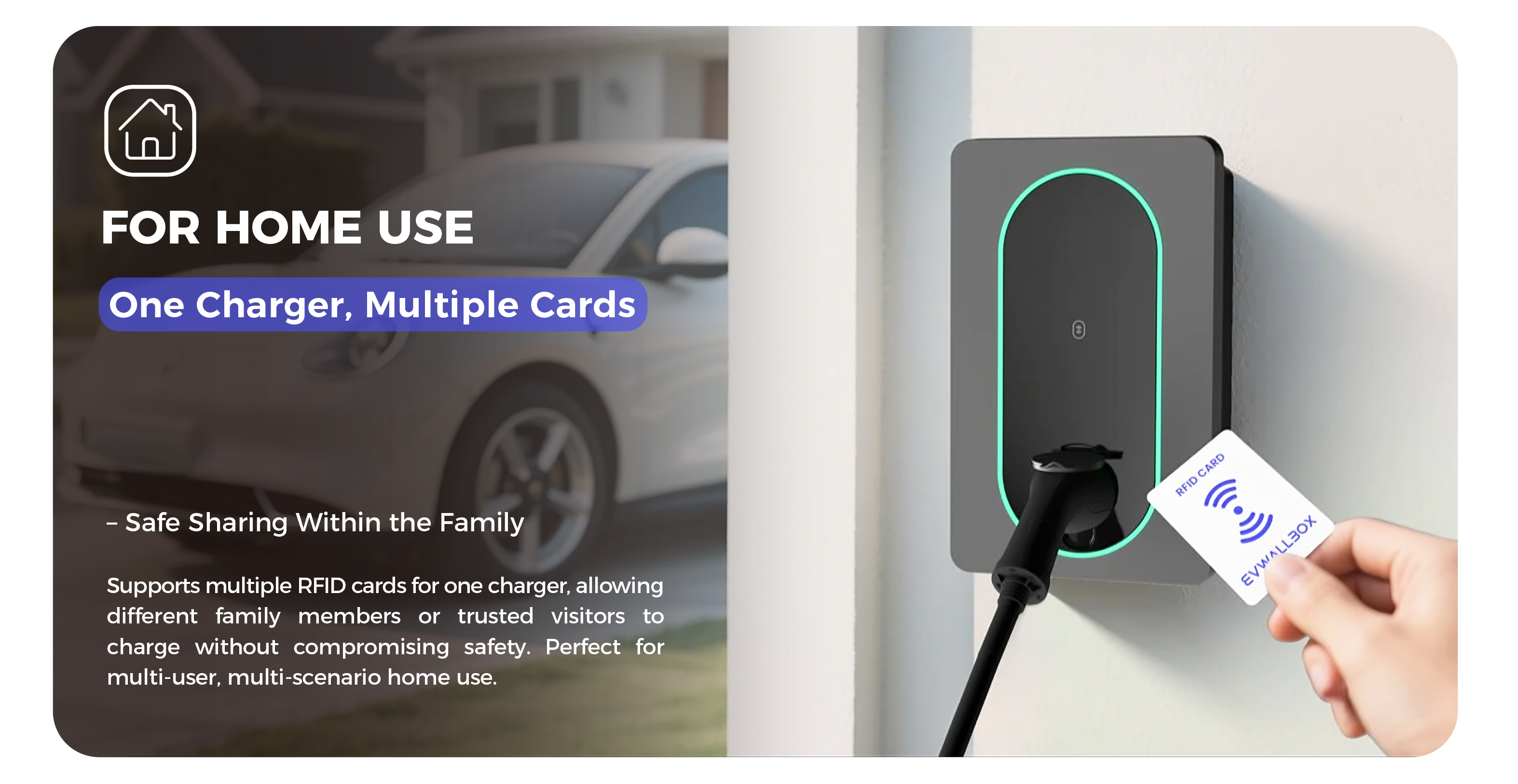

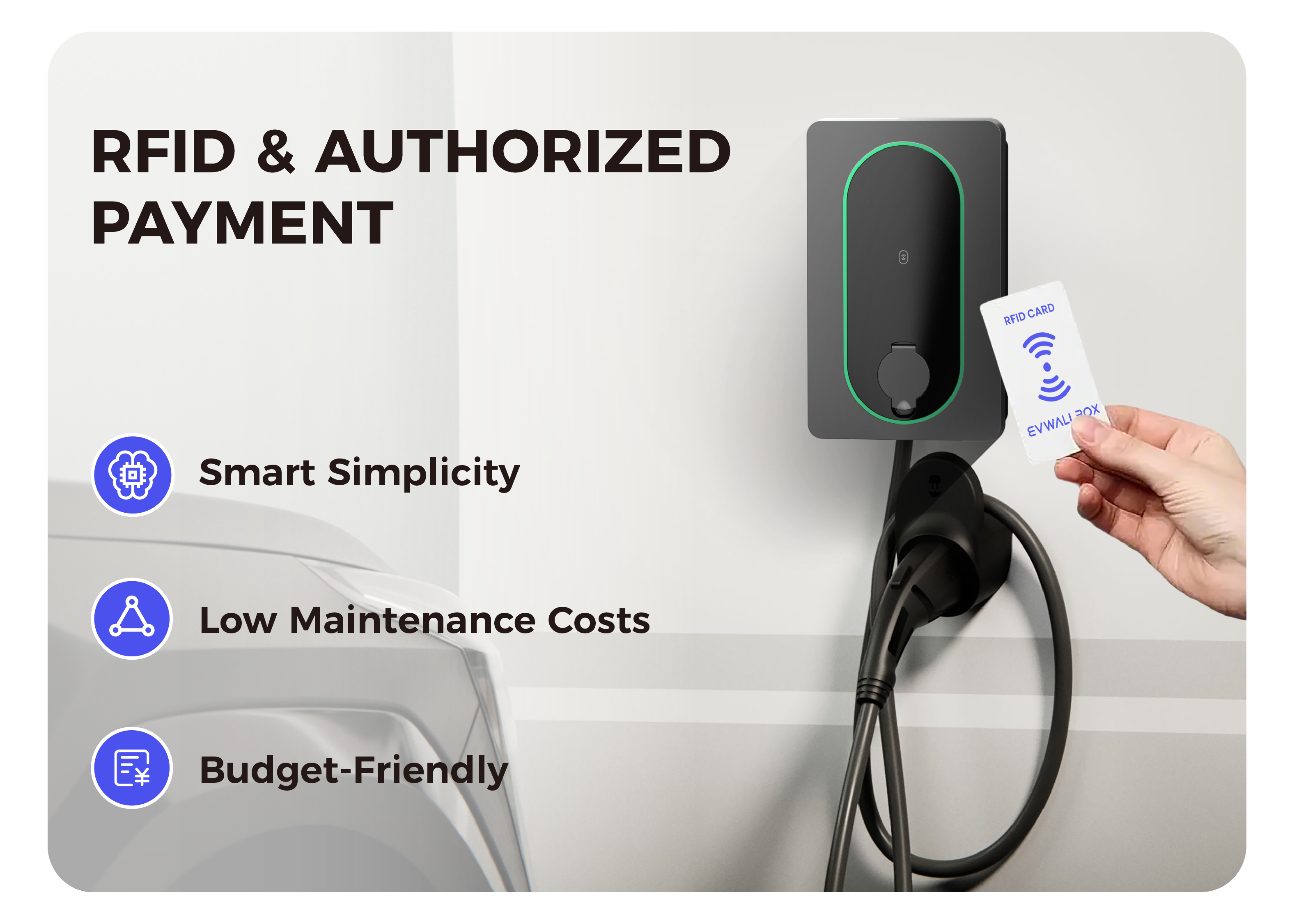

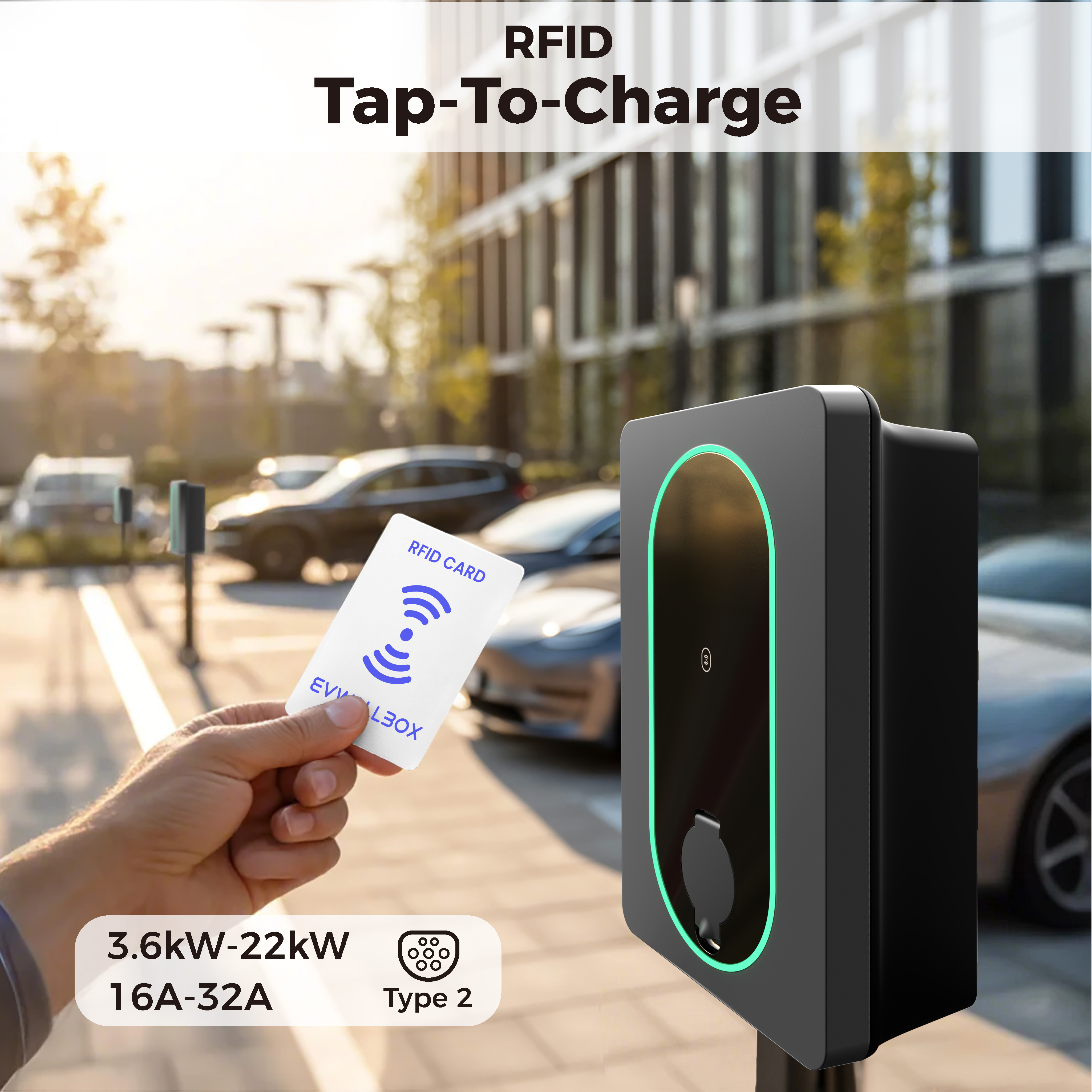

RFID Card Swipe: Equipped with RFID card access, allowing only authorized users to operate the charging station. Ideal for operators managing revenue or for limiting use to a specific group, such as employees or residents.

Electrical Design
Charging power	1.4-22kW, 1~3 phase
Power supply	Single phase: 230VAC ± 20%, 50/60Hz. Three phase: 230/400VAC ± 20%, 50/60Hz. TN/TT/IT
Protection	UVP, OVP, OCP, Relay Stuck, Over Temperature
RCD Protection	Integrated 6mA DC
Metering Accuracy	±2% Cl.A (1% by request)
Protection Rating	IP55, IK10
General
Charging mode	AC Mode 3
HMI	5 LEDs

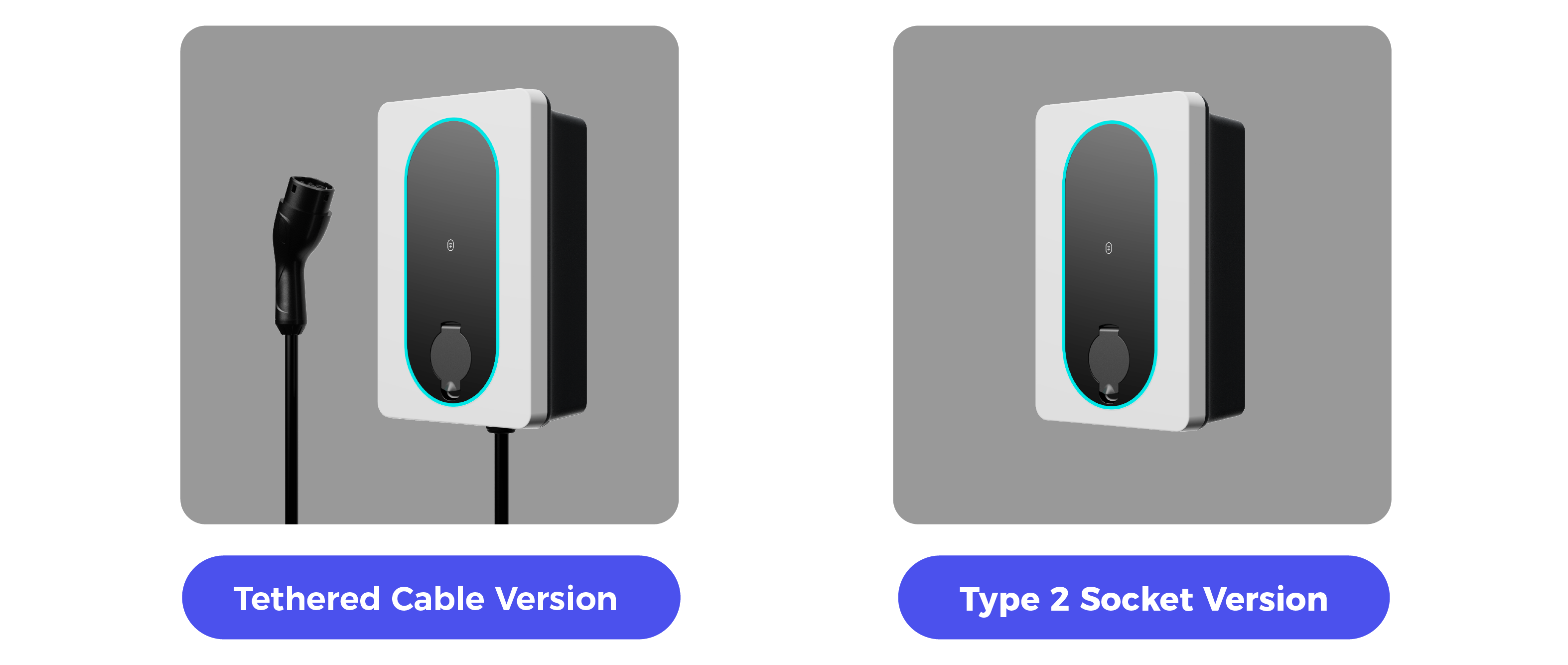

Charging connector	Cable/Socket/Socket with shutter
Cable Length	5m/7.5m (tethered varient only)
Dimensions	390240122mm
Weight	4.3 ~ 7.2kg
Operating Temperature	-30°C~55°C
Communication
Connectivity	Plug & Play / RFID
User authentication	Plug & Charge / RFID
Backend protocol	/

Features and Functions

Durable Construction

Built with high-quality materials to withstand harsh environmental conditions and frequent use, ensuring long-lasting performance.

Efficient Charging

Delivers fast and efficient charging, reducing downtime and enhancing user convenience.

Fully Certified

Complies with all relevant safety and quality standards, providing peace of mind for users.

Versatile Installation

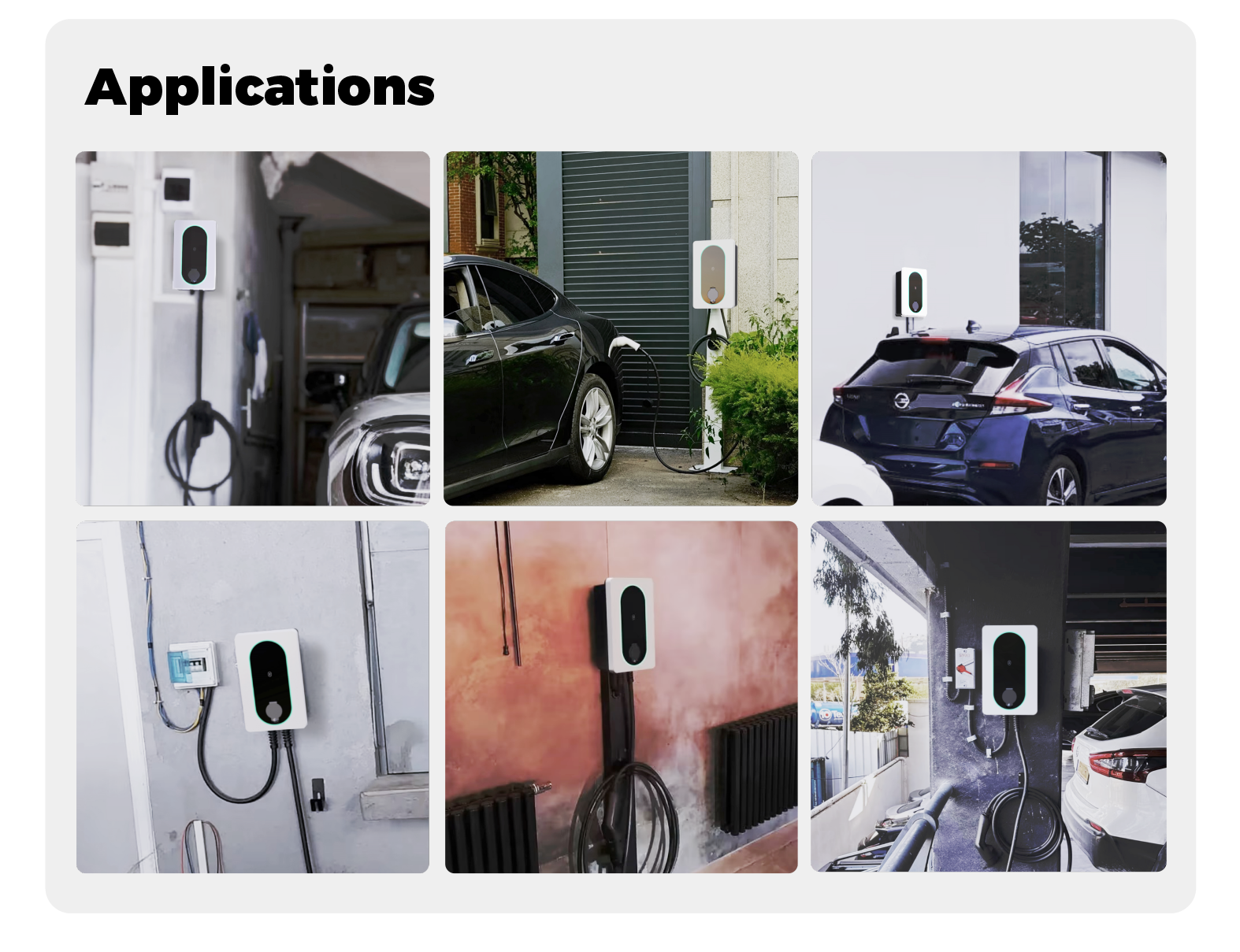

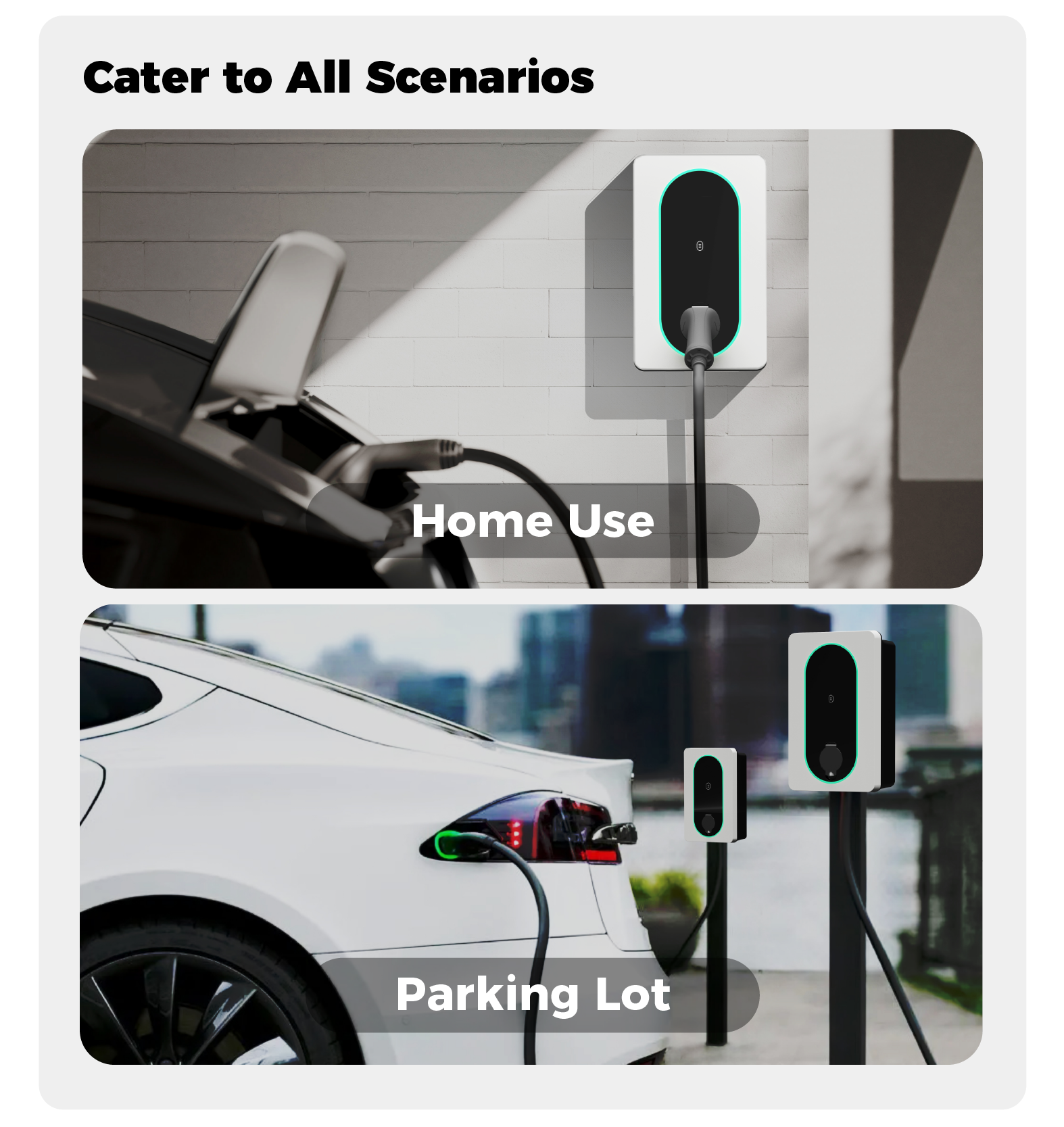

Can be installed in various locations such as homes, commercial buildings, parking lots, and more.

Frequently Asked Questions

What charging power options does the charging station support?

The charging station supports a charging power range from 1.4kW up to 22kW, compatible with both 1-phase and 3-phase systems.

What type of protection systems are integrated?

It features comprehensive integrated protection including Under Voltage Protection (UVP), Over Voltage Protection (OVP), Over Current Protection (OCP), Relay Stuck protection, Over Temperature protection, and an integrated 6mA DC RCD protection.

Can the charging station limit unauthorized use?

Yes. The system is equipped with RFID card swipe capabilities, allowing operators to authenticate users and restrict operation solely to authorized cardholders.

What are the dimensions and weights of the charging station?

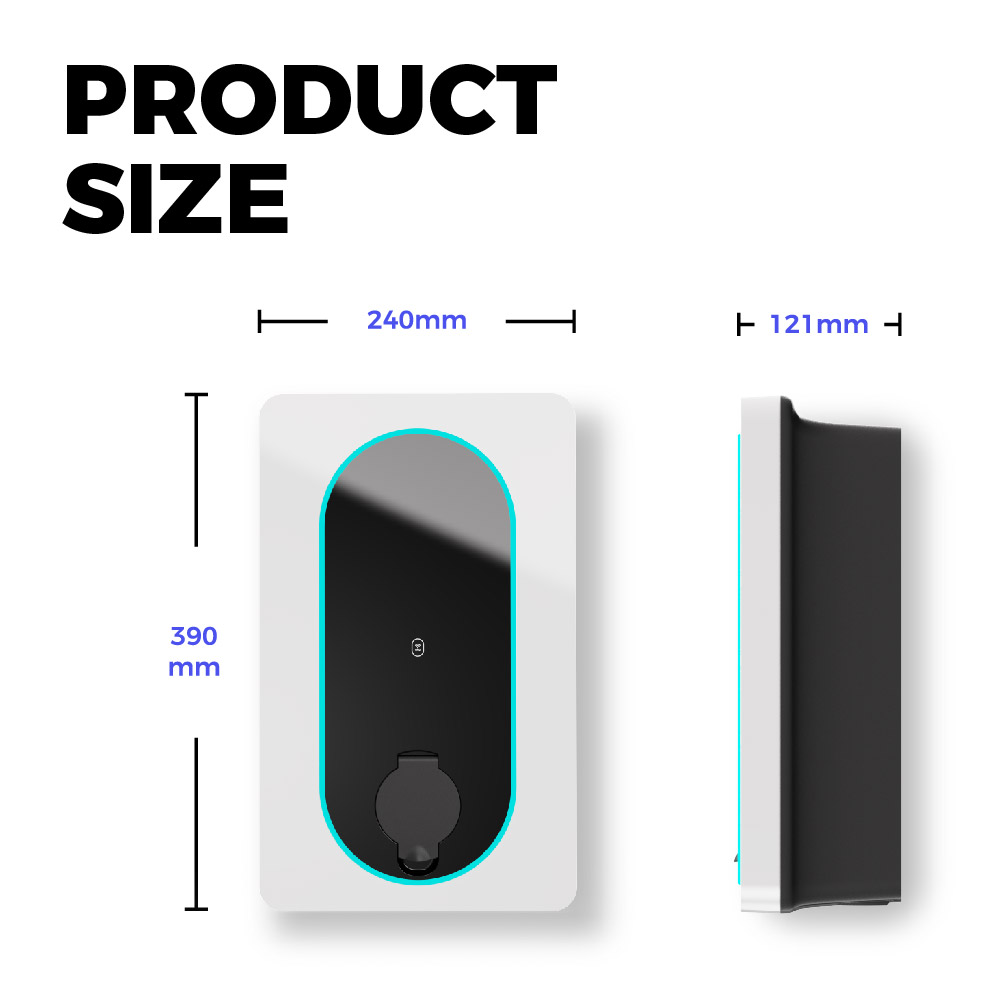

The dimensions of the device are 390*240*122mm, and the weight ranges from 4.3kg to 7.2kg depending on the configuration.

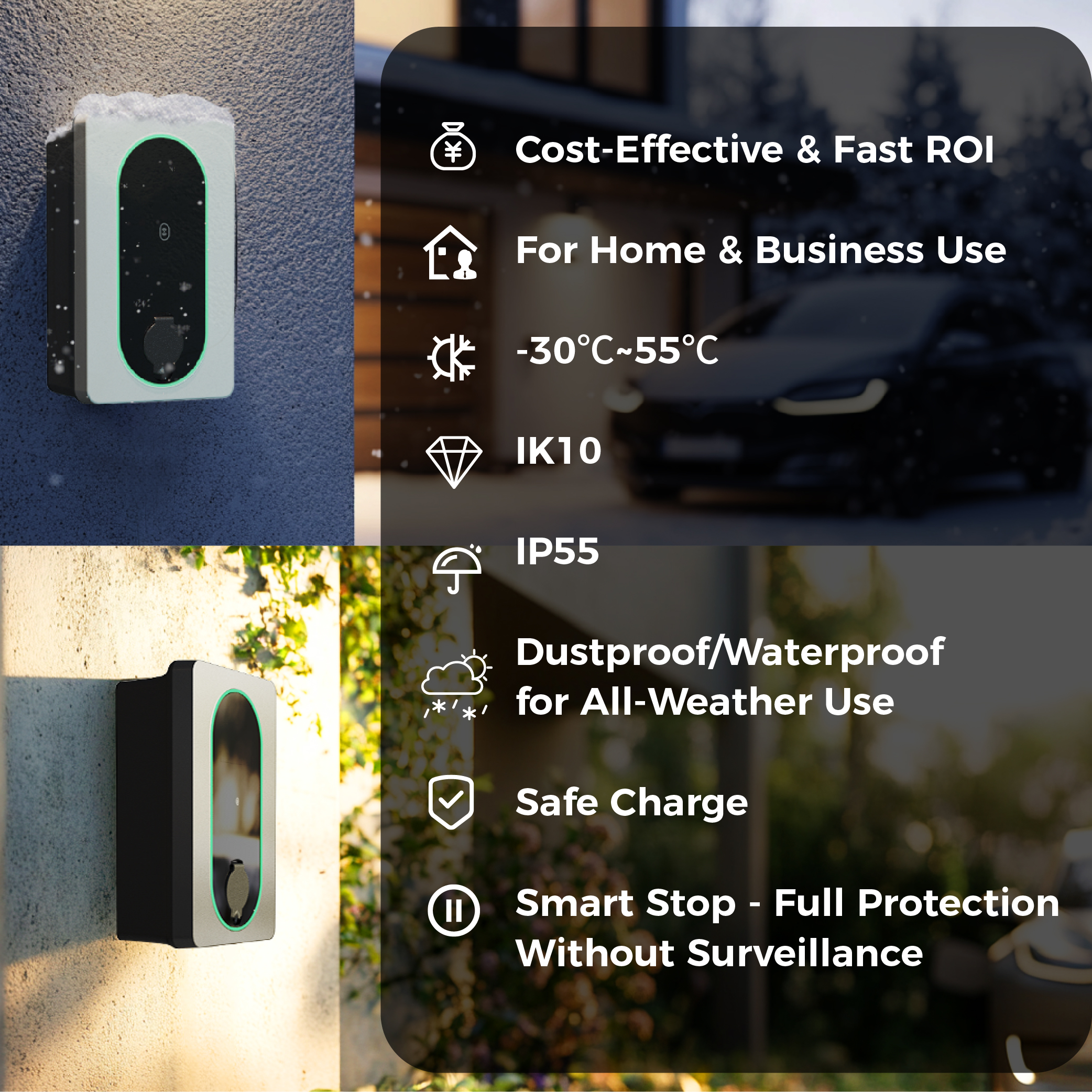

Is this charging station suitable for harsh outdoor conditions?

Yes. The unit is designed with an IP55 protection rating and an IK10 impact resistance rating. It is capable of operating reliably in temperatures ranging from -30°C up to 55°C.

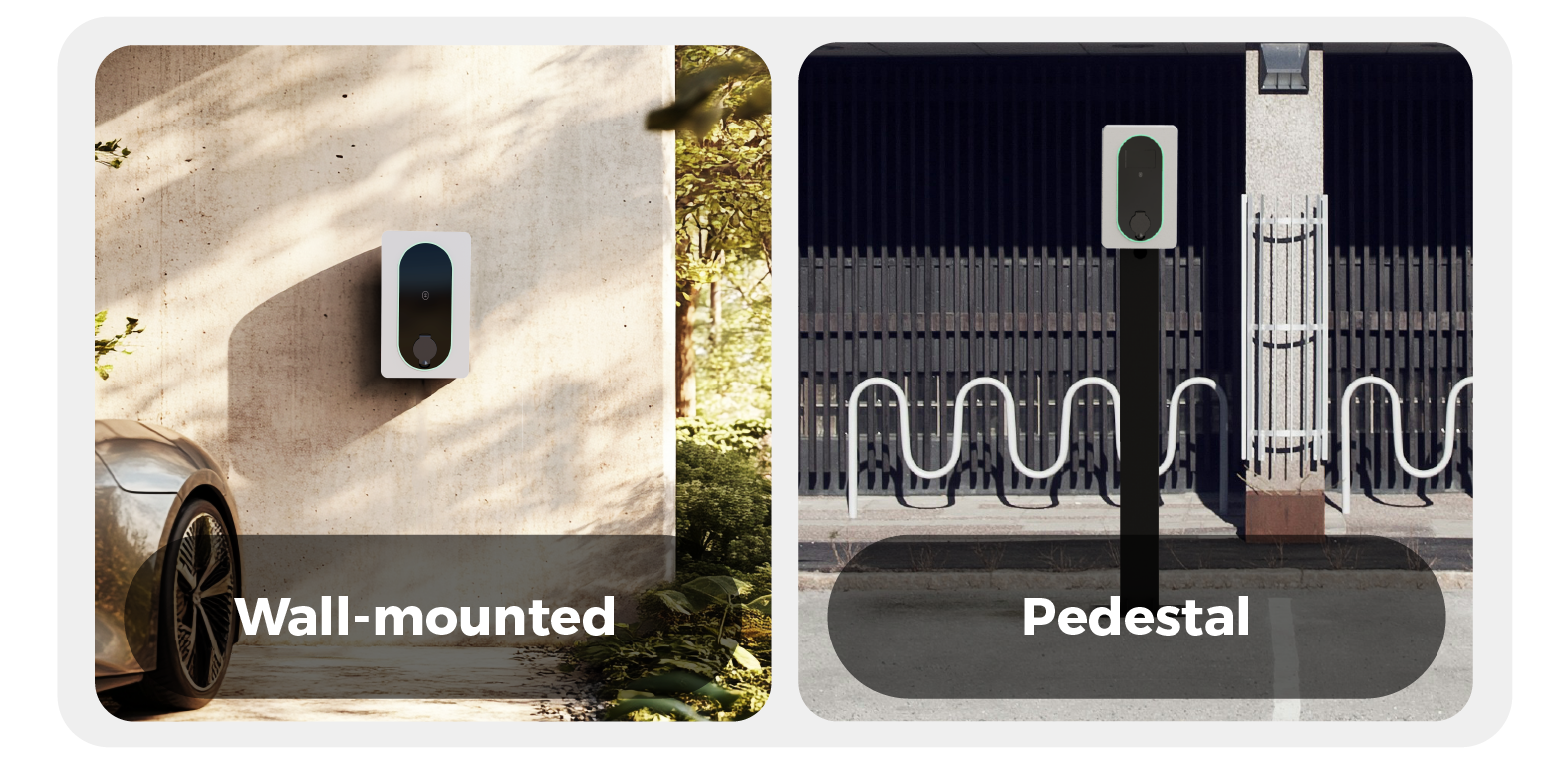

What mounting options are available?

The design supports both wall-mounted and pole installations to fit various spatial setups, and ODM & OEM customization is available.
